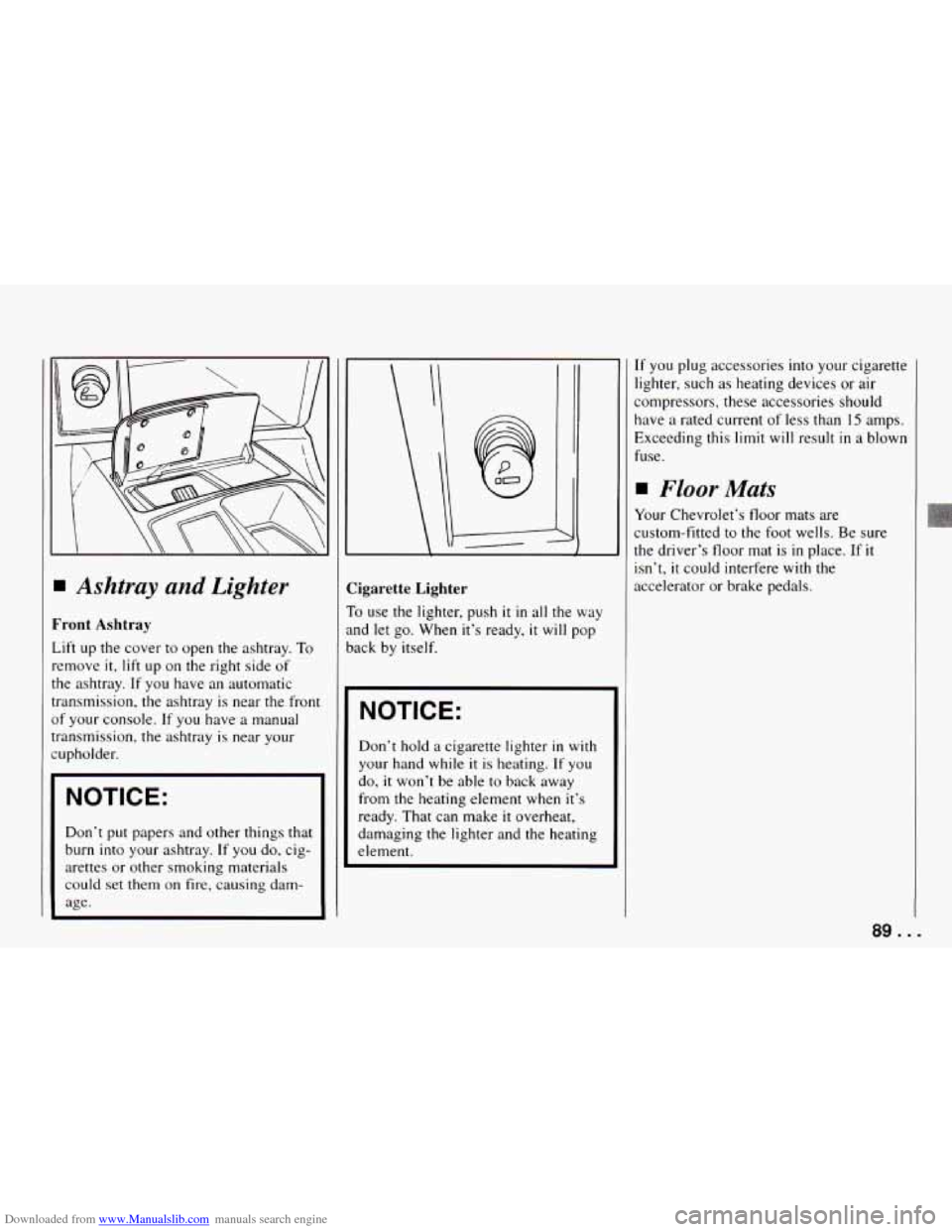

I Front Ashtray
Lift up the cover to open the ashtray. To
remove it, lift up on the right side of
the ashtray. If you have an automatic
transmission, the ashtray
is near the front
of your console. If you have
a manual
transmission, the ashtray is near
your
cupholder.
I
NOTICE:
Don’t put papers and other things that
burn
into your ashtray. If you do, cig-
arettes or other smoking materials
could set them on fire, causing dam-
age.
Jigarette Lighter
b use the lighter, push it in all the way
nd let go. When it’s ready, it will pop
ack by itself.
NOTICE:
Don’t hold a cigarette lighter in with
your hand while
it is heating. If you
do, it won’t be able to back away
from the heating element when it’s
ready. That can make
it overheat,
damaging the lighter and
the heating
element. If you plug accessories
into your
cigarette
lighter, such as heating devices or air
compressors, these accessories should have a rated current
of less than 15 amps.
Exceeding this limit will result
in a blown
fuse.
rn Floor Mats
Your Chevrolet’s t’loor mats are
custom-fitted to
the foot wells. Be sure
the driver’s floor mat is in place. If it
accelerator or brake pedals.
I isn’t, it could interfere with the
89 ...

Downloaded from www.Manualslib.com manuals search engine Features and Controls
... 90

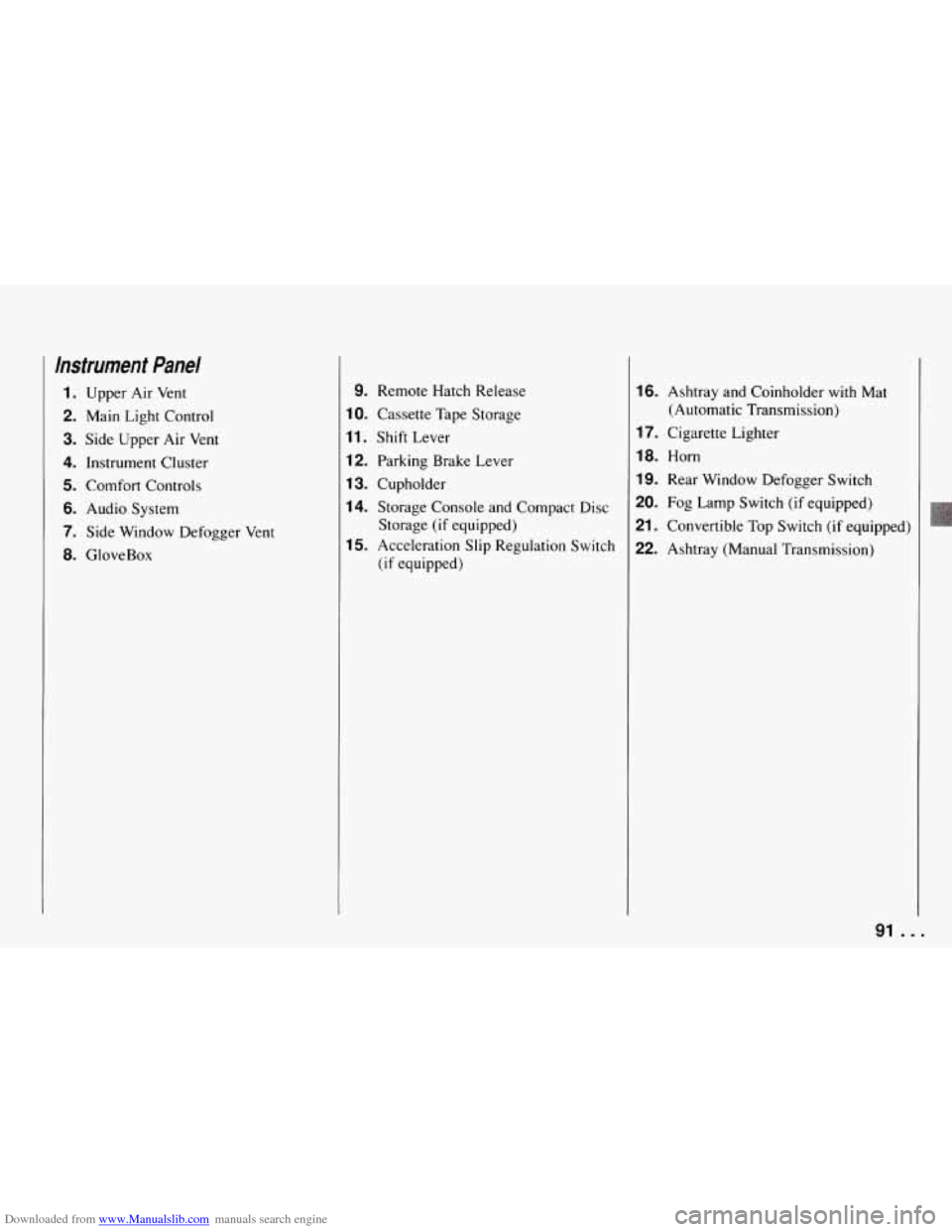

Downloaded from www.Manualslib.com manuals search engine Instrument Panel
1. Upper Air Vent
2. Main Light Control
3. Side Upper Air Vent
4. Instrument Cluster
5. Comfort Controls
6. Audio System
7. Side Window Defogger Vent
8. GloveBox
9. Remote Hatch Release
10. Cassette Tape Storage
11. Shift Lever
12. Parking Brake Lever
13. Cupholder
14. Storage Console and Compact Disc
15. Acceleration Slip Regulation Switch
Storage
(if equipped)
(if equipped)
16. Ashtray and
Coinholder with Mat
17. Cigarette Lighter
18. Horn
19. Rear Window Defogger Switch
20. Fog Lamp Switch (if equipped)
21. Convertible Top Switch (if equipped)
22. Ashtray (Manual Transmission)
(Automatic Transmission)
91 ...

Downloaded from www.Manualslib.com manuals search engine Features and Controls

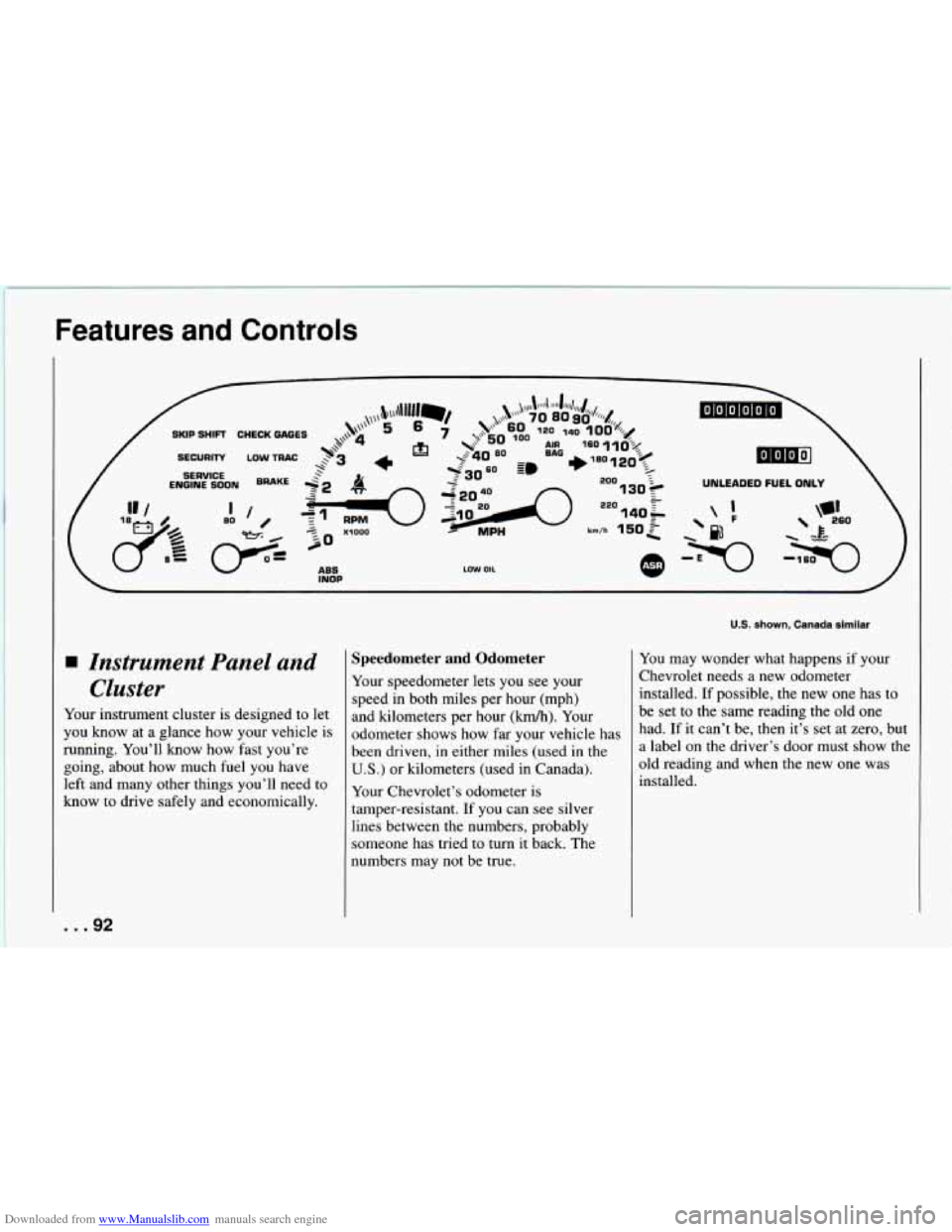

UNLEADED FUEL ONLY
\I
Instrument Panel and Cluster
Your instrument cluster is designed to let
you know at a glance how your vehicle is
running. You'll know how fast you're
going, about how much fuel you have
left and many other things you'll need to
know to drive safely and economically.
Speedometer and Odometer
Your speedometer lets you see your
speed in both miles per
hour (mph)
and kilometers per hour
(kmh). Your
odometer shows how far your vehicle has
been driven, in either miles (used in the
U.S.) or kilometers (used in Canada).
Your Chevrolet's odometer is
tamper-resistant. If you can see silver
lines between the numbers, probably someone has tried to turn
it back. The
numbers may not be true.
U.S. shown, Canada similar
You may wonder what happens if your
Chevrolet needs a new odometer
installed. If possible, the new one has to
be set to the same reading the old one
had. If it can't be, then it's
set at zero, but
a label on the driver's door must show the
old reading and when the new one was
installed.
... 92

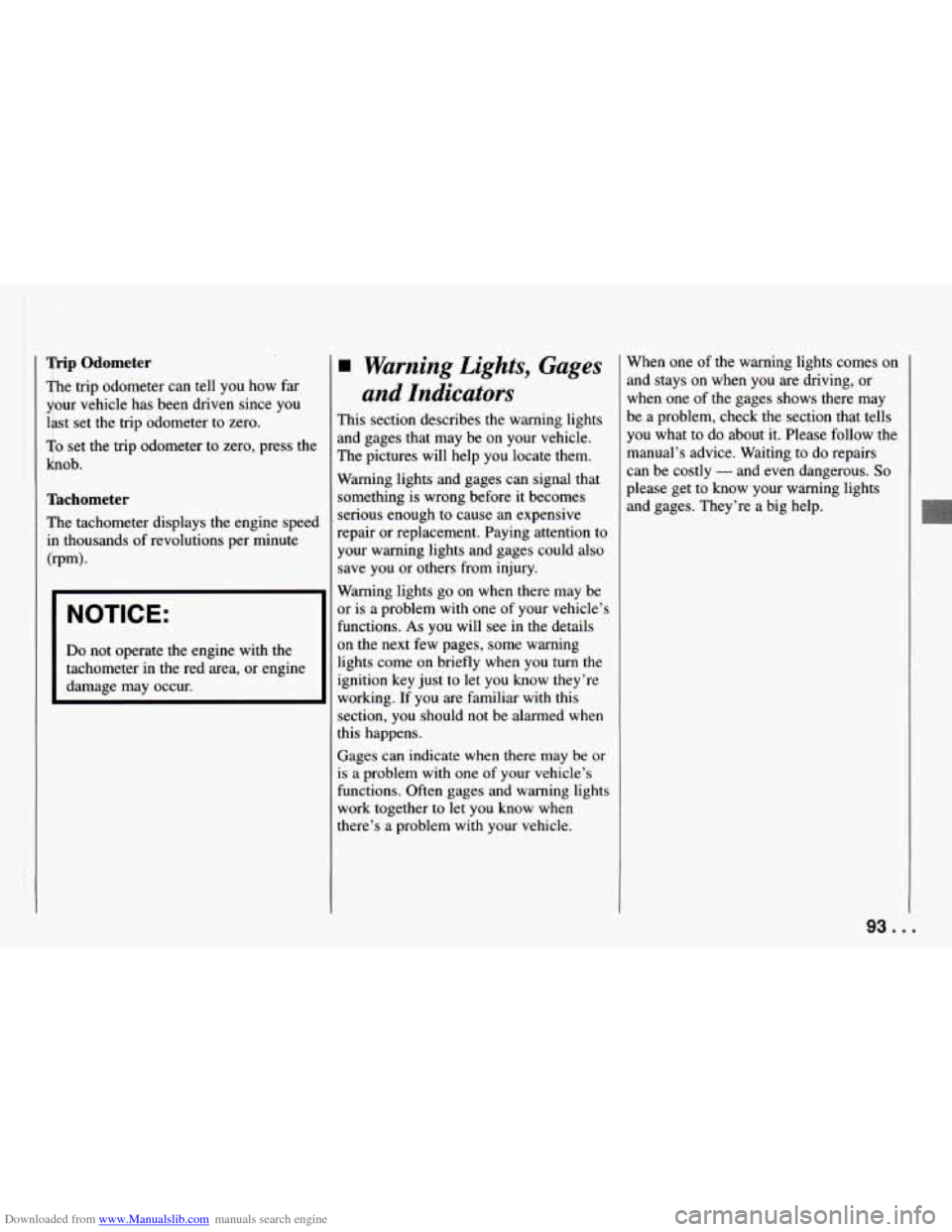

Downloaded from www.Manualslib.com manuals search engine Trip Odometer
The trip odometer can tell you how far
your vehicle has been driven since you
last set the trip odometer to.zero.
To set the trip odometer to zero, press the
hob.
Tachometer
The tachometer displays the engine speed
in thousands
of revolutions per minute
(rpm).
NOTICE:
Do not operate the engine with the
tachometer in the red area, or engine
damage may occur.
Warning Lights, Gages
and Indicators
This section describes the warning lights
and gages that may be on your vehicle.
The pictures will help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes
serious enough to cause an expensive
repair or replacement. Paying attention to
your warning lights and gages could also
save you or others from injury.
Warning lights go on when there may be
or is a problem with one of your vehicle’s
functions.
As you will see in the details
on the next few pages, some warning
lights come on briefly when you turn the
ignition key just to let you know they’re
working.
If you are familiar with this
section, you should not be alarmed when
this happens.
Gages can indicate when there may be
or
is a problem with one of your vehicle’s
functions. Often gages and warning lights
work together to let you know when
there’s a problem with your vehicle. When one
of the warning lights comes on
and stays
on when you are driving, or
when one of the gages shows there may
be a problem, check the section that tells
you what to do about it. Please follow the
manual’s advice. Waiting to do repairs
can be costly
- and even dangerous. So
please get to know your warning lights
and gages. They’re a big help.
93 ...

Downloaded from www.Manualslib.com manuals search engine Features and Controls
’F
-E
Fuel Gage
Your fuel gage shows about how much
fuel is in your tank. The fuel gage works
only when the ignition switch is in the
“Run” position. When the gage pointer
first indicates
“E,” you still have a little
fuel left (about one to two gallons), but
you need to get more right away.
Here are four concerns some owners
have had about the fuel gage. All these
situations are normal and do not indicate
that anything is wrong with the fuel gage. At
the gas station, the gas pump shuts
off before the gage reads
“E”
It takes more (or less) gas to fill up
than the gage reads. For example, the
gage reads
1/2 full, but it took more
(or less) than half of the tank’s
capacity to fill it.
The gage moves a little when you
turn, stop or speed up.
When you
turn the engine off, the
gage doesn’t go back to
“E.”
BRAKE
I I 3
Brake System Warning Light
Your Chevrolet’s hydraulic brake system
is divided into two parts. If one part isn’t
working, the other part can still work and
stop you.
For good braking, though, you
need both parts working well.
If the warning light comes on, there could
be a brake problem. Have your brake system inspected right away.
This light should come on as you start the
vehicle.
If it doesn’t come on then, have it
fixed
so it will be ready to warn you if
there’s a problem.
... 94

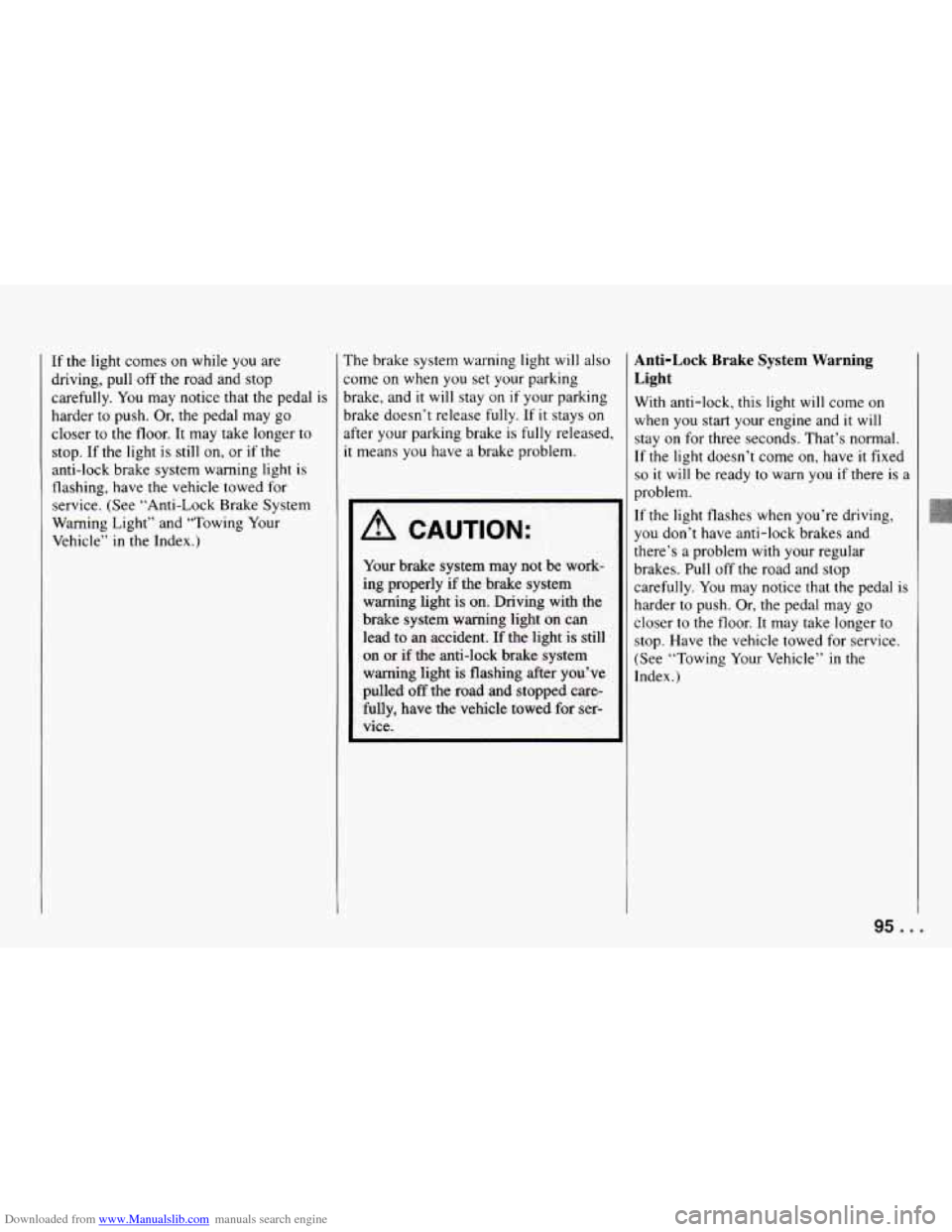

Downloaded from www.Manualslib.com manuals search engine If the light comes on while you are
driving, pull off the road and stop
carefully.
You may notice that the pedal is
harder to push. Or, the pedal may go
closer to the floor. It may take longer to
stop. If the light is still on, or
if the
anti-lock brake system warning light is
flashing, have the vehicle towed for
service. (See “Anti-Lock Brake System
Warning Light” and “Towing Your
Vehicle”
in the Index.) The
brake system warning light
will also
come on when you set your parking
brake, and
it will stay on if your parking
brake doesn’t release
fully. If it stays on
after your parking brake is
fully released,
it means you have a brake problem.
A CAUTION:
Your brake system may not be work-
ing properly if the brake system
warning light
is on. Driving with the
brake system warning light on can
lead to an accident. If &e light is still
on or if the anti-lock brake system
warning light is flashing after
you’ve
pulled off the road and stopped care-
fully, have the vehicle towed
for ser-
vice.
Anti-Lock Brake System Warning Light
With anti-lock, this light will come on
when you start your engine and
it will
stay on for three seconds. That’s normal.
If the light doesn’t come on, have it fixed
so it will be ready to warn you if there is a
problem.
If the light flashes when you’re driving,
you don’t have anti-lock brakes and
there’s a problem with your regular
brakes. Pull off the road and stop
carefully. You may notice that the pedal is
harder to push. Or, the pedal may go
closer to the floor. It may take longer to
stop. Have the vehicle towed for service.
(See “Towing Your Vehicle” in the
Index.)
95 ...

Downloaded from www.Manualslib.com manuals search engine Features and Controls

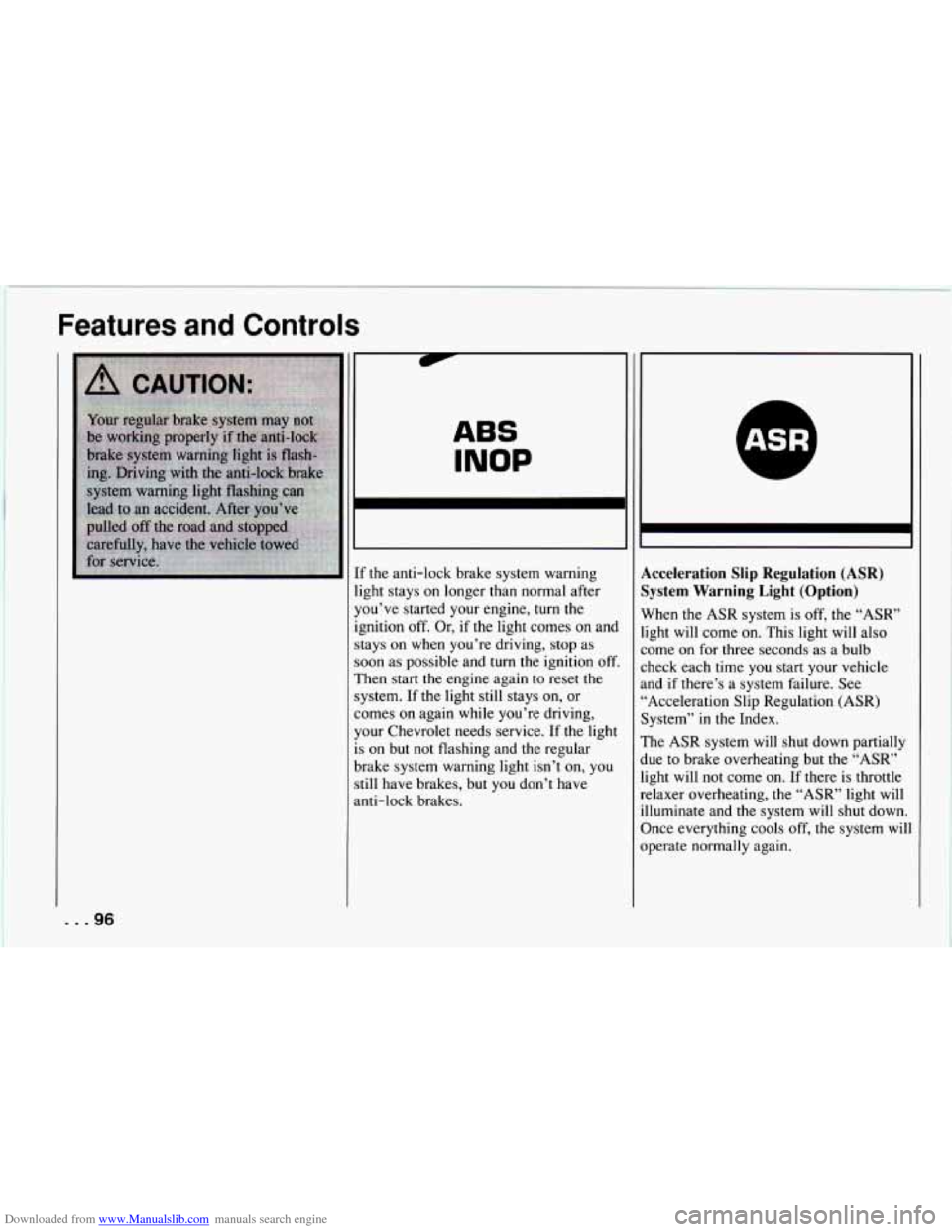

ABS
INOP
... 96
If the anti-lock brake system warning
light stays on longer than normal after
you’ve started your engine, turn the
ignition off. Or, if the light comes on and
stays on when you’re driving,
stop as
soon as possible and turn the ignition off.
Then start the engine again to reset the
system. If the light still stays on, or
comes on again while you’re driving,
your Chevrolet needs service. If the light
is on but not flashing and the regular
brake system warning light isn’t on, you
still have brakes, but you don’t have
anti-lock brakes.
P
S
V
li
C
C
a
S
’I
d li
rt
il
C
Lb
0
Lcceleration Slip Regulation (ASR)
lystem Warning Light (Option)
Vhen the ASR system is off, the “ASR”
ght
will come on. This light will also
ome on for three seconds as a bulb
heck each time you start your vehicle
nd if there’s a system failure. See
Acceleration Slip Regulation (ASR)
lystem”
in the Index.
‘he ASR system will shut down partially ue to brake overheating but the
“ASR”
ght will not come on. If there is throttle
:laxer overheating, the “ASR” light will
luminate and the system will shut down.
hce everything cools off, the system will
perate norma
.lly again.

Downloaded from www.Manualslib.com manuals search engine When this warning light is on, the system
will not limit wheel spin. Adjust your
driving accordingly.

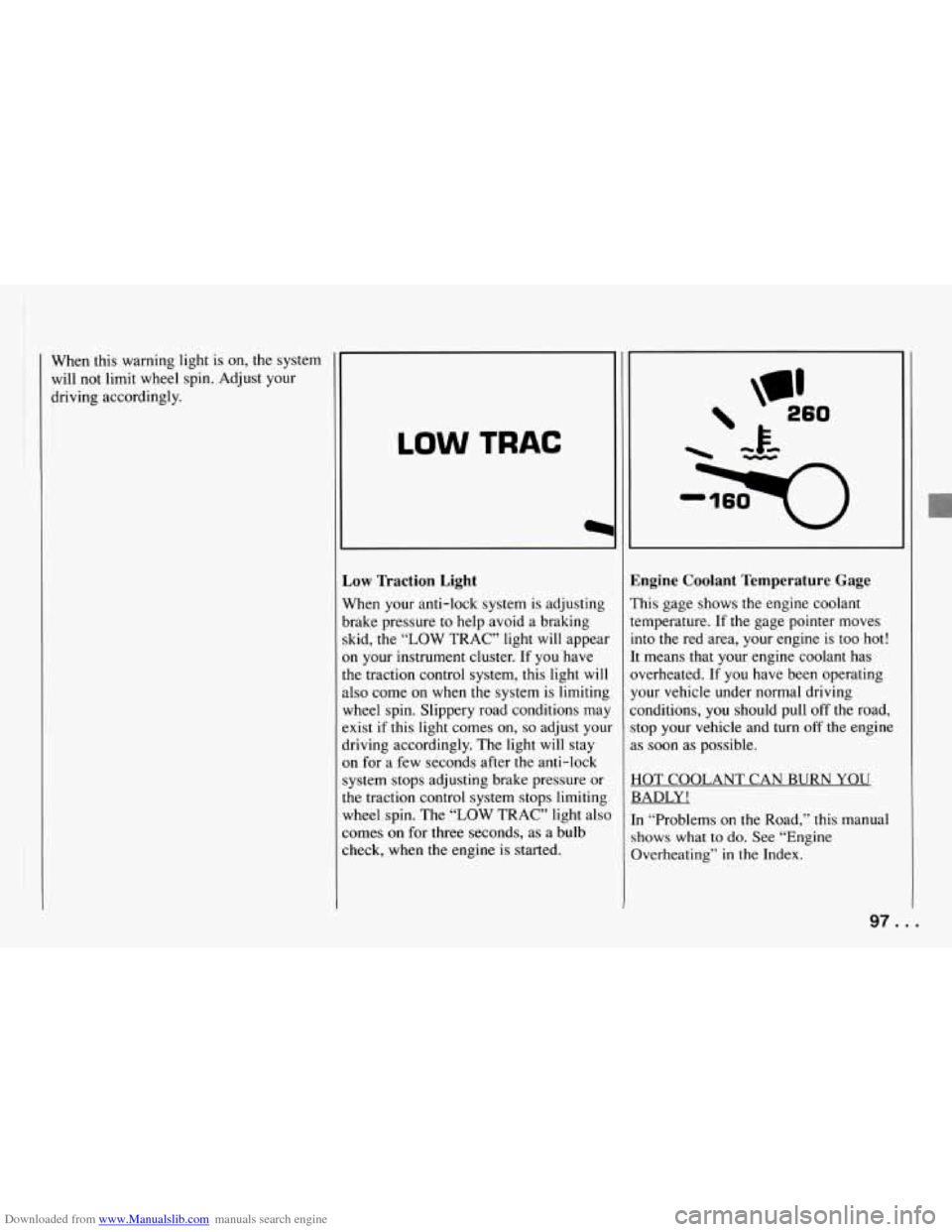

LOW TRAC
Low Traction Light
When your anti-lock system is adjusting
brake pressure to help avoid a braking
skid, the “LOW TRAC” light will appear
on your instrument cluster. If you have
the traction control system, this light
will
also come on when the system is limiting
wheel spin. Slippery road conditions may
exist if this light comes on,
so adjust your
driving accordingly. The light
will stay
on for a few seconds after the anti-lock
system stops adjusting brake pressure or
the traction control system stops limiting
wheel spin. The “LOW TRAC” light also
comes
on for three seconds, as a bulb
check, when
the engine is started.
hgine Coolant Temperature Gage
?his gage shows the engine coolant
emperature. If the gage pointer moves
nto the red area, your engine is too hot!
t means that your engine coolant has
jverheated. If you have been operating
’our vehicle under normal driving
:onditions, you should pull off
the road,
top your vehicle and turn
off the engine
IS soon as possible.
IOT COOLANT CAN BURN YOU
3ADLY!
n “Problems on the Road,” this manual
#bows what to do. See “Engine
herheating”
in the Index.
97 ...

Downloaded from www.Manualslib.com manuals search engine Features and Controls
Toltmeter
!ou can read battery voltage on your
,oltmeter.
If it reads less than 11 volts or
nore than
16 volts while your engine is
unning, and it stays there, you may have
problem with the electrical charging
ystem. Have it checked right away.
)riving with
the voltmeter reading in a
taming zone could drain your battery.
F you idle your engine for a while, the
oltmeter reading might move into the red
one. If the reading stays in the red zone
thile you are driving, you may have a
iroblem with the electrical charging
ystem. Have it checked. While the
oltmeter reads in
the red zone, your
sattery may not be able to power certain
lectrical accessories, like
ABS. (If this
. .98
happens, your “ABS INOP” light will
come on. See “Anti-Lock Brake System
Warning Light”
in this part.)

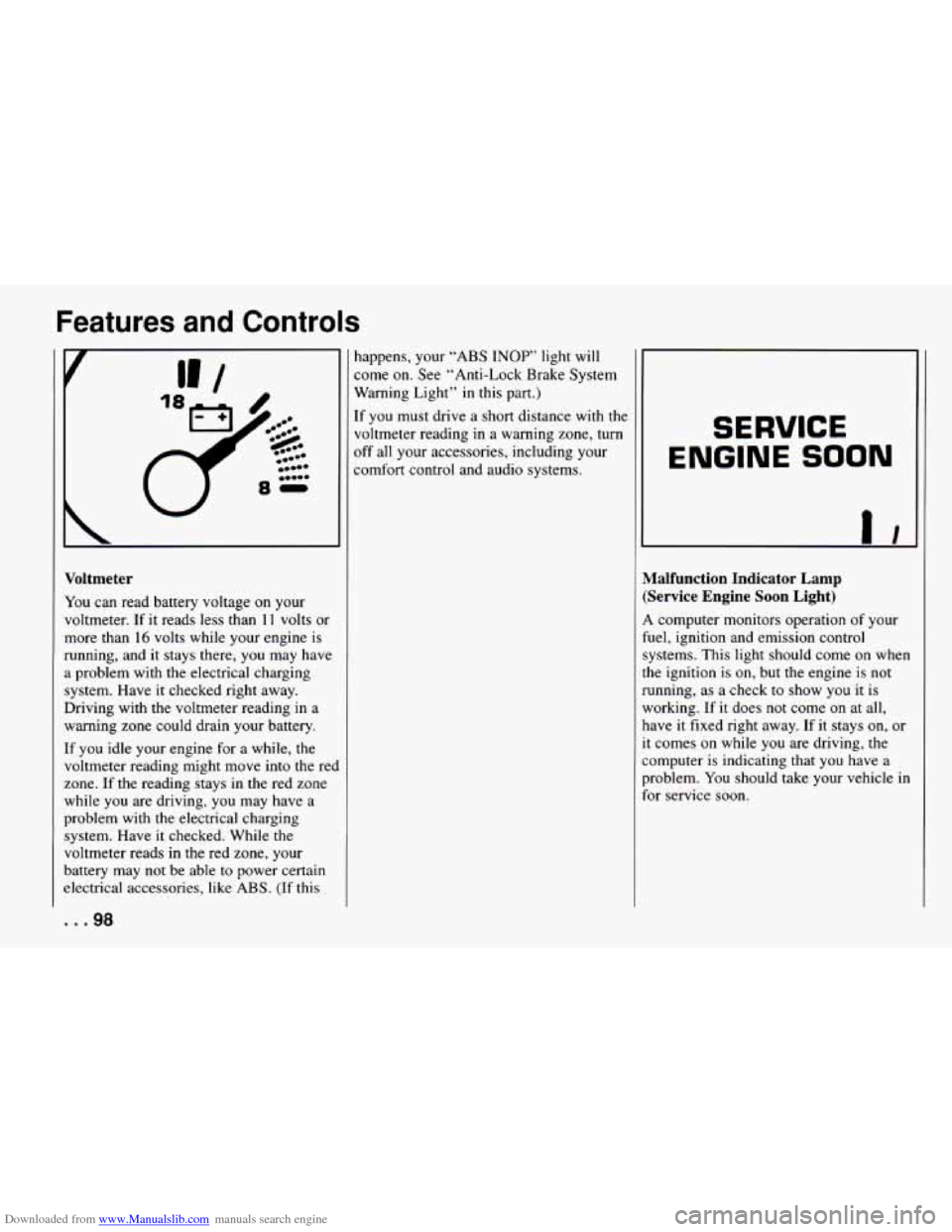

If you must drive a short distance with the
voltmeter reading
in a warning zone, turn
off all your accessories, including your
comfort control and audio systems. SERVICE
ENGINE SOON
Malfunction Indicator Lamp (Service Engine Soon Light)
A computer monitors operation of your
fuel, ignition and emission control
systems. This light should come on when
the ignition is on, but the engine
is not
running, as a check to show
you it is
working. If it does not come on at all,
have
it fixed right away. If it stays on, or
it comes on while you are driving, the
computer is indicating
that you have a
problem.
You should take your vehicle in
for service soon.
