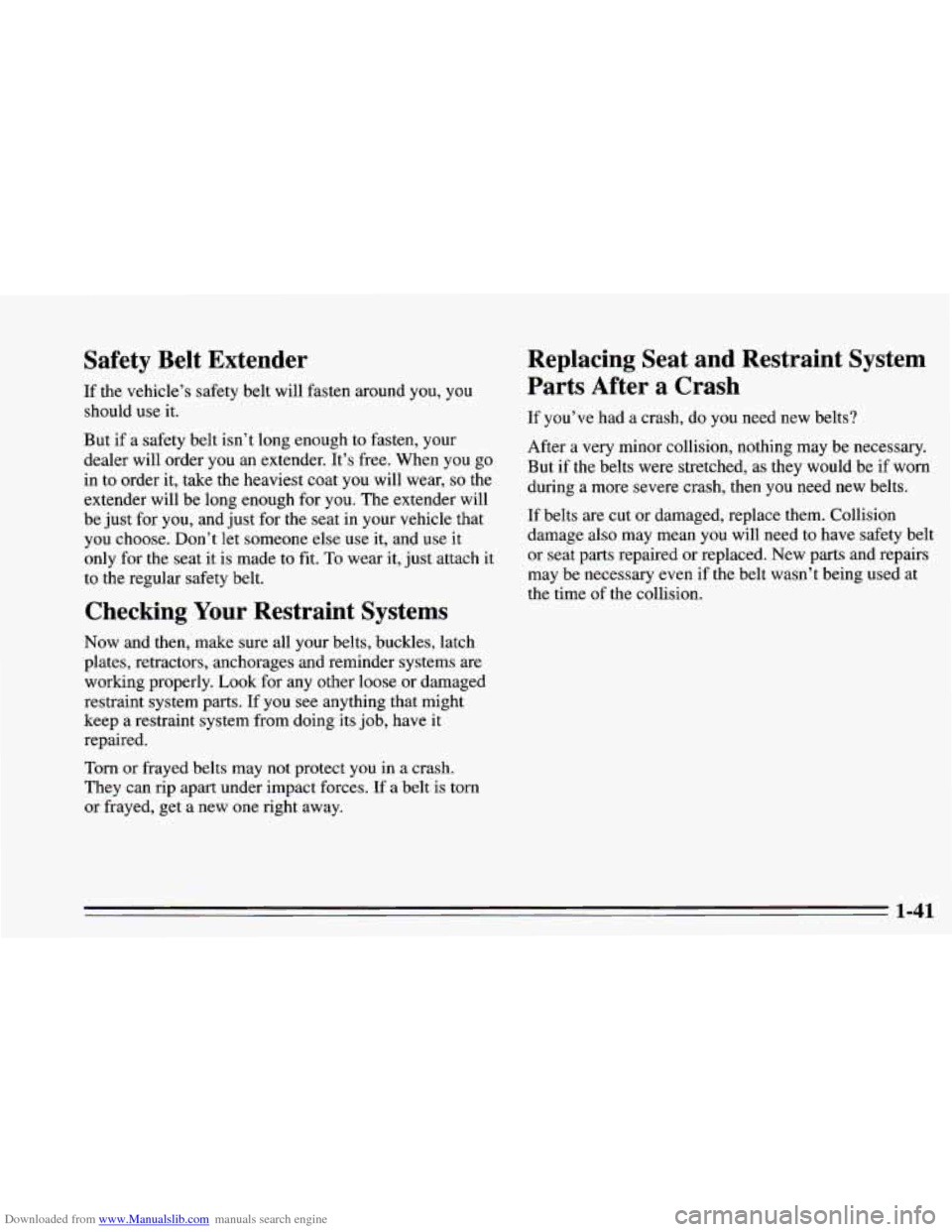

Downloaded from www.Manualslib.com manuals search engine Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use it.
But if a safety belt isn’t long enough to fasten, your
dealer will order
you an extender. It’s free. When you go
in to order it, take the heaviest coat you will wear,
so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don’t let someone else use it, and use it
only for the seat it is made to fit.
To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly.
Look for any other loose or damaged
restraint system parts.
If you see anything that might
keep a restraint system from doing its job, have it
repaired.
Torn or frayed belts may not protect you in a crash.
They can rip apart under impact forces. If a belt
is torn
or frayed, get a new one right away.
Replacing Seat and Restraint System
Parts After a Crash
If you’ve had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be
if worn
during a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn’t being used at
the time of the collision.
1-41

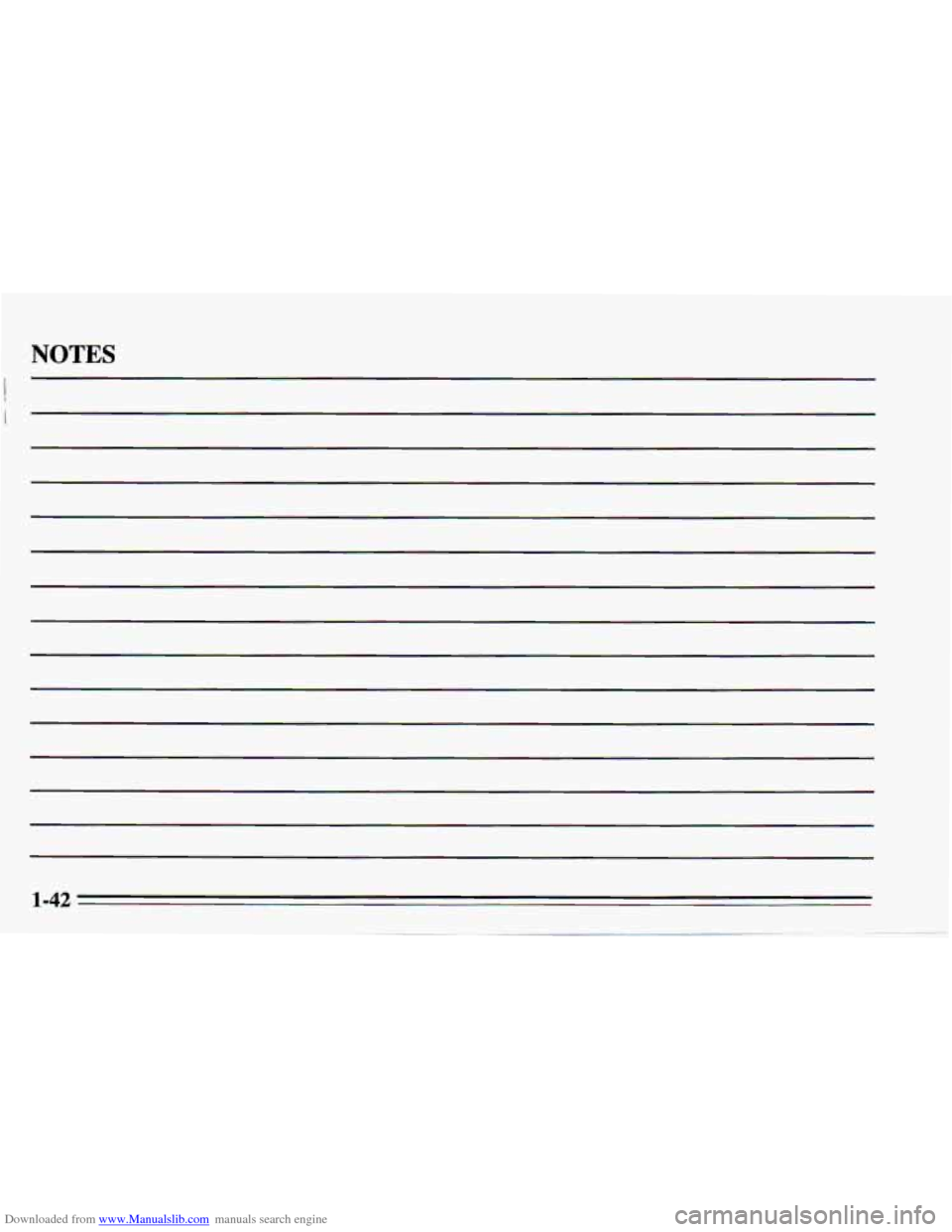

Downloaded from www.Manualslib.com manuals search engine NOTES

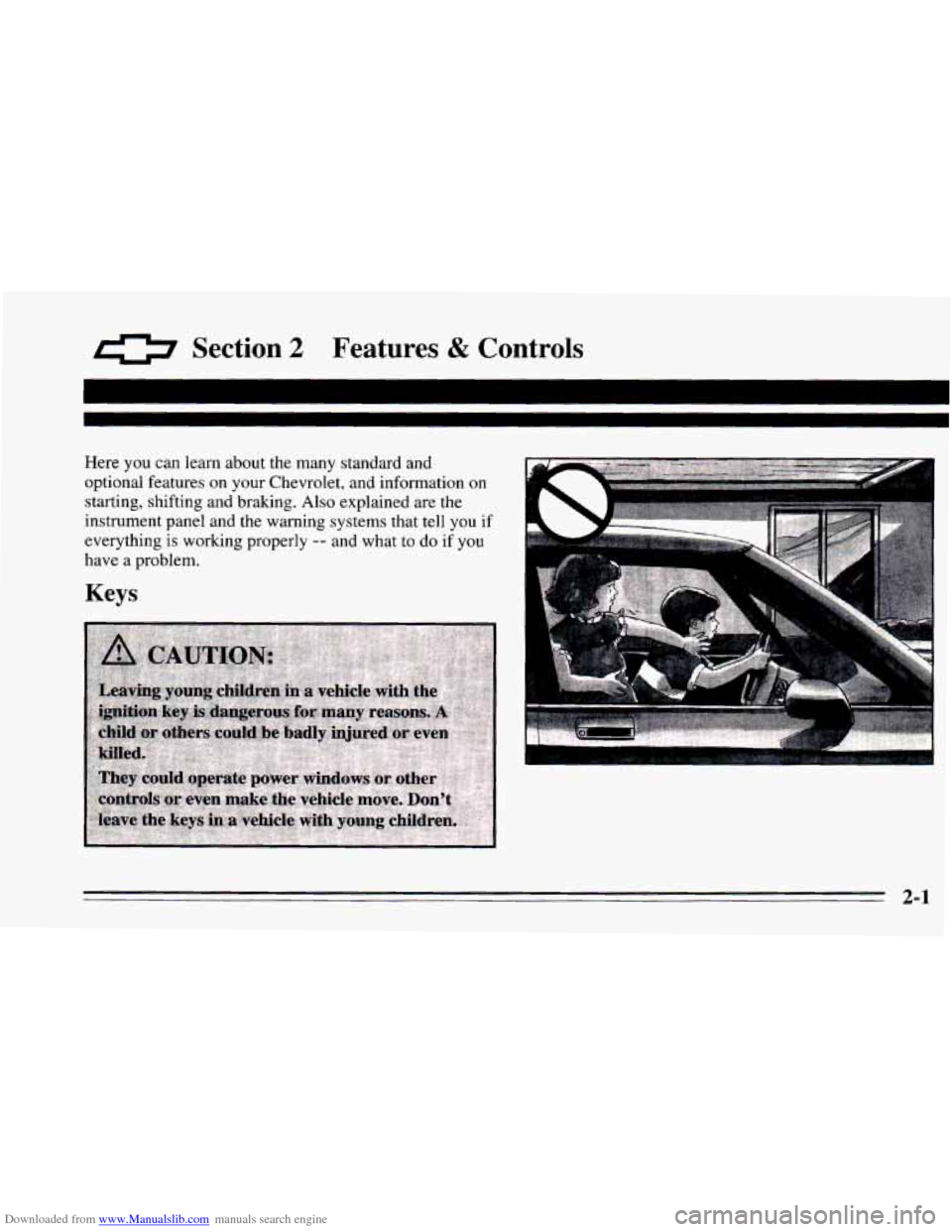

Downloaded from www.Manualslib.com manuals search engine 0 Section 2 Features & Controls
I
Here you can learn about the many standard and
optional features on your Chevrolet, and information on starting, shifting and braking. Also explained are the
instrument panel and the warning systems that tell
you if
everything
is working properly -- and what to do if you
have a problem.
Keys
2-1

Downloaded from www.Manualslib.com manuals search engine W

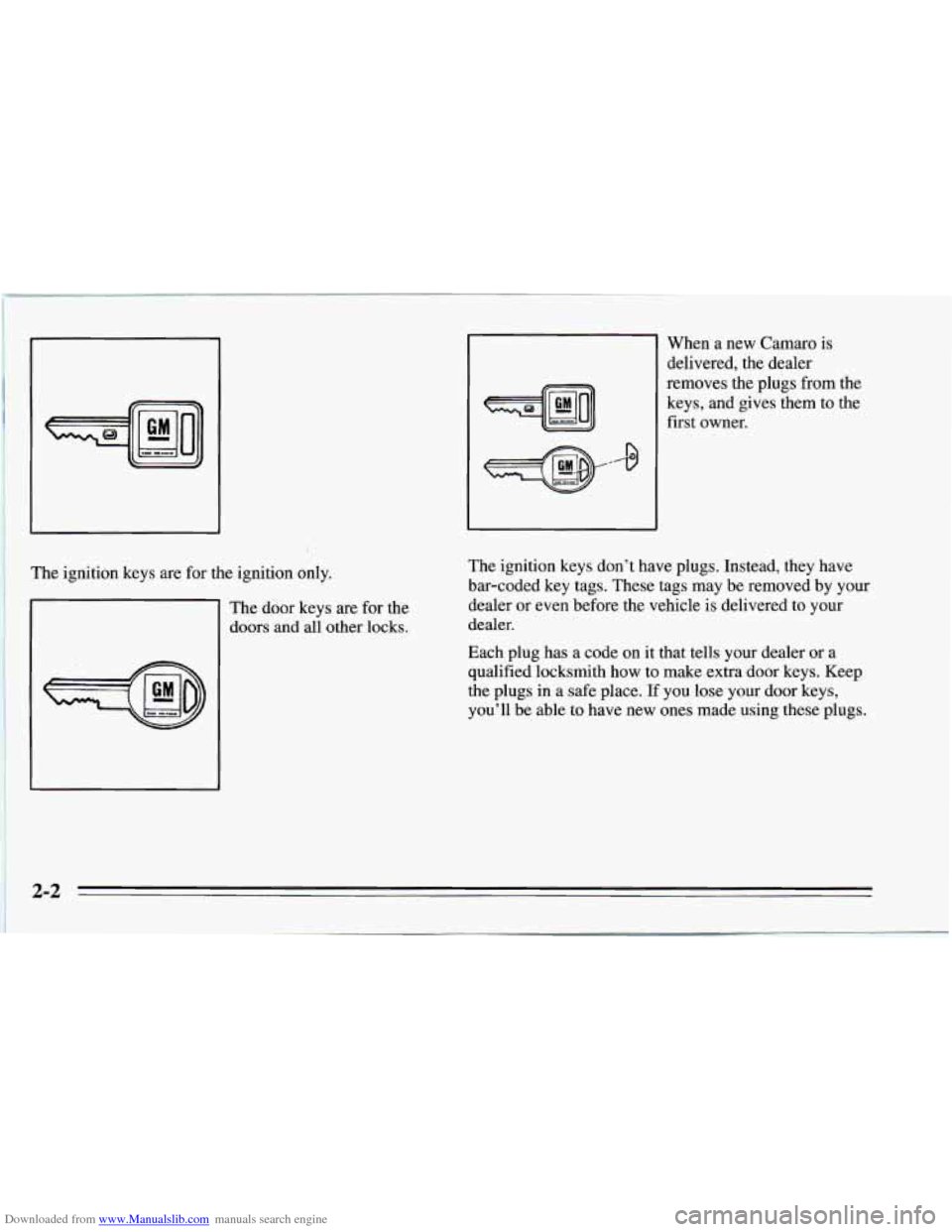

The ignition keys are for the ign’ition only.
-l
The door keys are for the
doors and all other locks. When
a new Camaro is
delivered, the dealer
removes the plugs from the
keys, and gives them to the
first owner.
The ignition keys don’t have plugs. Instead, they have
bar-coded key tags. These tags may be removed by your
dealer or even before the vehicle
is delivered to your
dealer.
Each plug
has a code on it that tells your dealer or a
qualified locksmith
how to make extra door keys. Keep
the plugs in a safe place.
If you lose your door keys,
you’ll be able to have new ones made using these plugs.
I
2-2

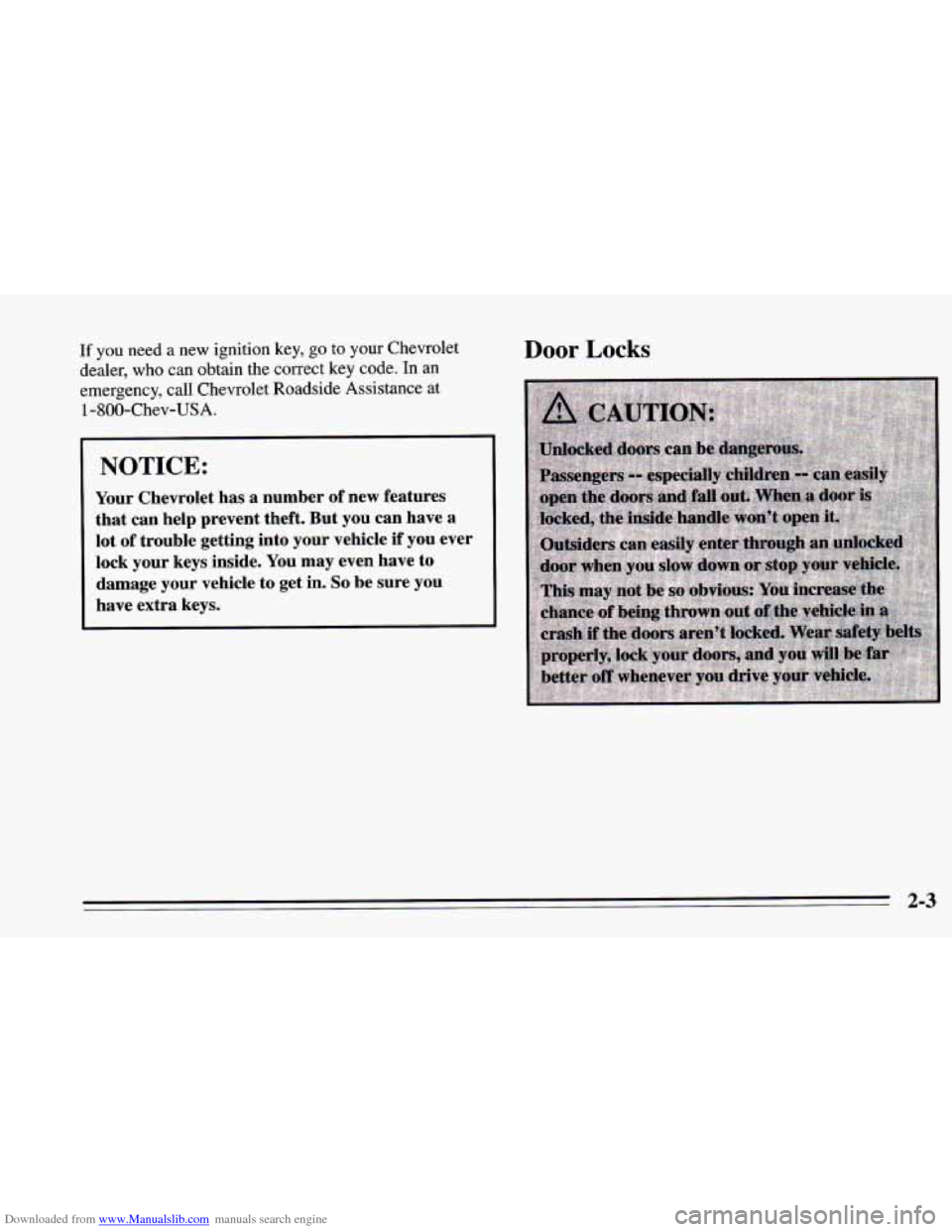

Downloaded from www.Manualslib.com manuals search engine If you need a new ignition key, go to your Chevrolet
dealer, who can obtain the correct key code. In an
emergency, call Chevrolet Roadside Assistance
at
1-800-Chev-USA.
NOTICE:
Your Chevrolet has a number of new features
that can help prevent theft. But you can have a
lot of trouble getting into your vehicle if you ever
lock your keys inside.
You may even have to
damage your vehicle to get in.
So be sure you
have extra keys.
Door Locks
2-3

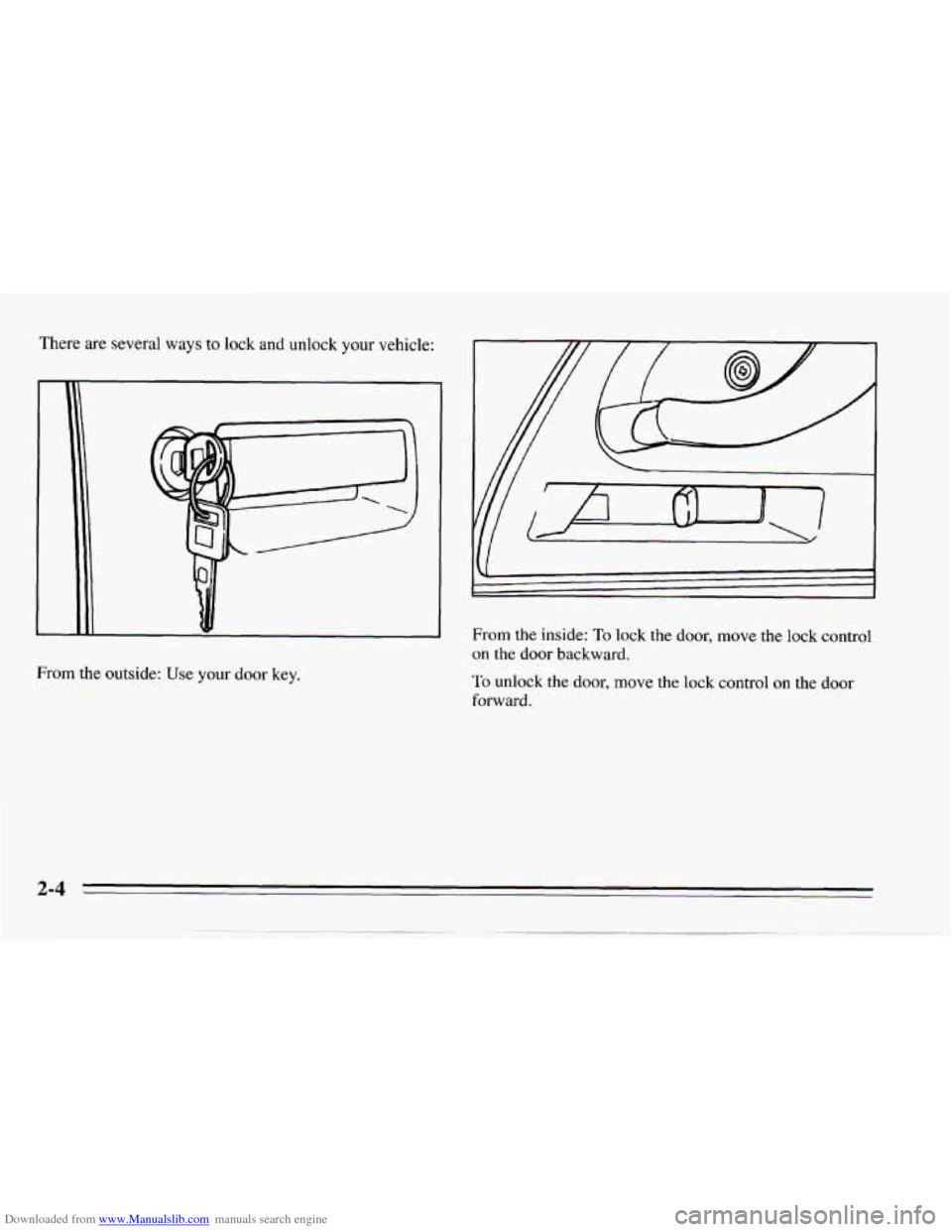

Downloaded from www.Manualslib.com manuals search engine From the outside: Use your door key.
From the inside: To lock the door, move the lock control
on the door backward.
TO unlock the door, move the lock control on the door
forward.

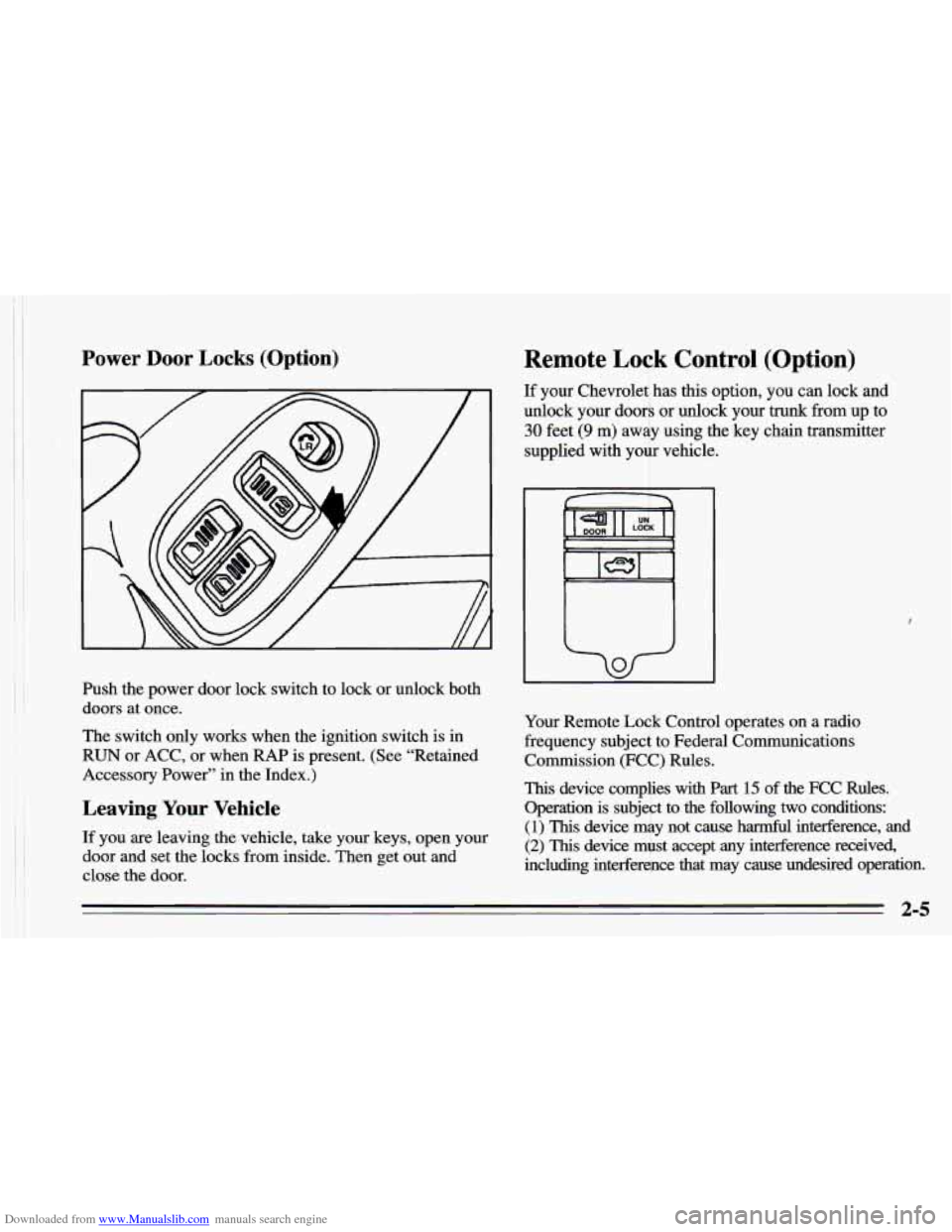

Downloaded from www.Manualslib.com manuals search engine Power Door Locks (Option)
~~
Push the power door lock switch to lock or unlock both
doors at once.
The switch only works when the ignition switch is in
RUN or ACC, or when
RAP is present. (See “Retained
Accessory Power” in the Index.)
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Remote Lock Control (Option)
If your Chevrolet has this option, you can lock and
unlock your doors
or unlock your trunk from up to
30 feet (9 m) away using the key chain transmitter
supplied with your vehicle.
Your Remote Lock Control operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
2-5

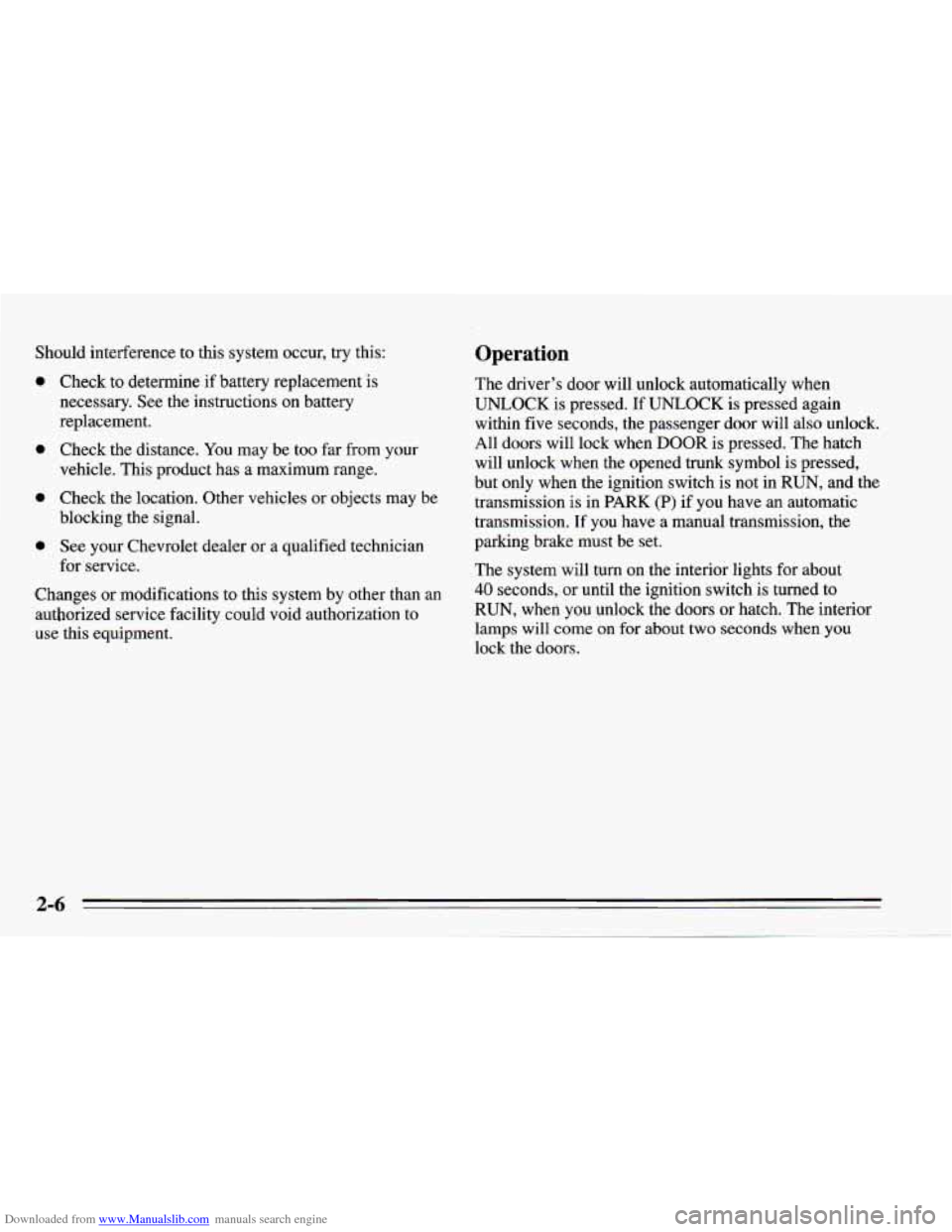

Downloaded from www.Manualslib.com manuals search engine Should interference to this system occur, try this:
0
0
0
0
Check to determine if battery replacement is
necessary. See the instructions on battery
replacement.
Check the distance. You may be too far from your
vehicle. This product has a maximum range.
Check the location. Other vehicles or objects may be
blocking the signal.
See your Chevrolet dealer or a qualified technician
for service.
Changes or modifications to this system
by other than an
authorized service facility could void authorization to
use this equipment.
Operation
The driver’s door will unlock automatically when
UNLOCK is pressed. If UNLOCK is pressed again
within five seconds, the passenger door will also unlock.
All doors will lock when
DOOR is pressed. The hatch
will unlock when
the opened trunk symbol is pressed,
but only when the ignition switch
is not in RUN, and the
transmission is in
PARK (P) if you have an automatic
transmission. If you have a manual transmission, the
parking brake must be set.
The system will turn on the interior lights for about
40 seconds, or until the ignition switch is turned to
RUN, when you unlock the doors or hatch. The interior
lamps
will come on for about two seconds when you
lock the doors.
2-6

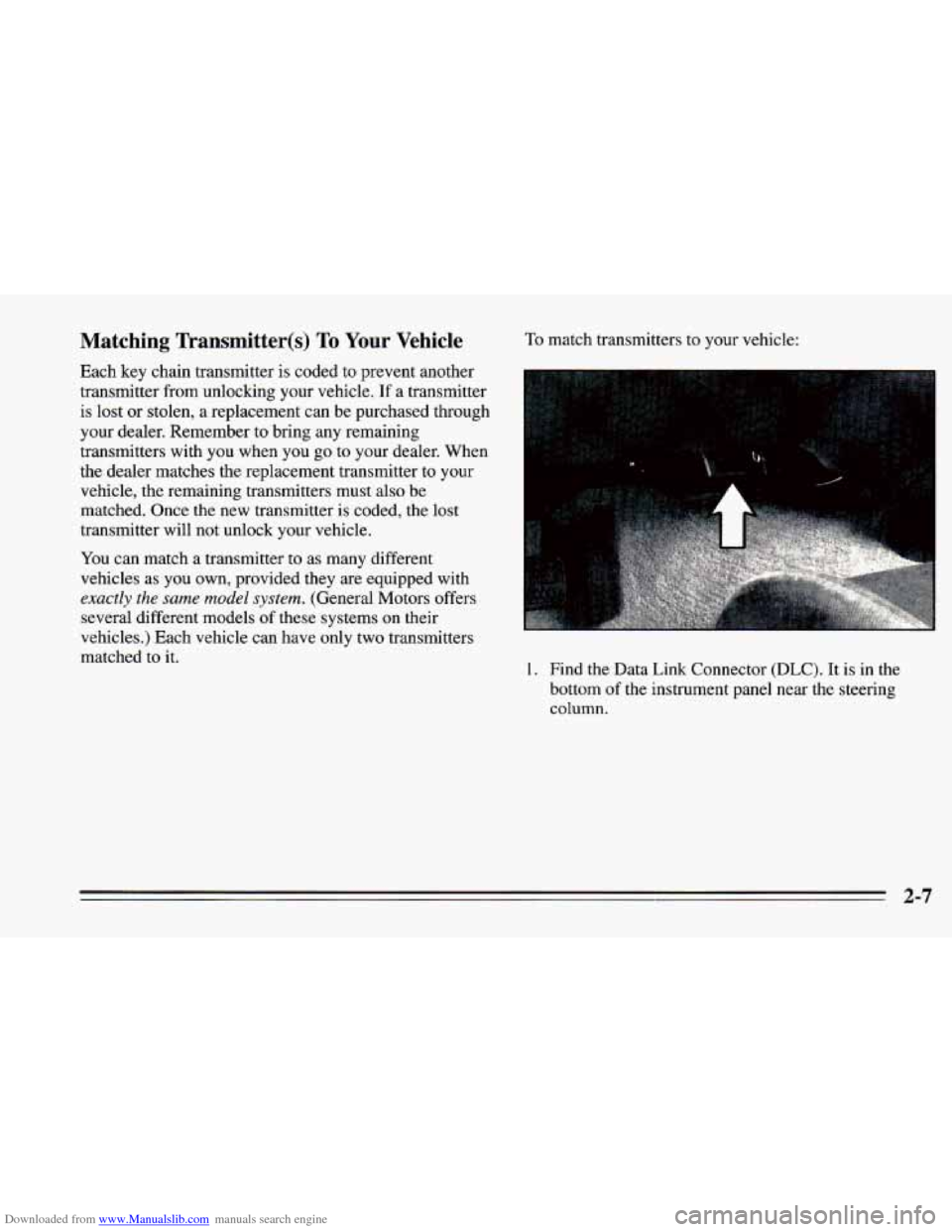

Downloaded from www.Manualslib.com manuals search engine Matching Transmitter@) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased through
your dealer. Remember to bring any remaining
transmitters with you when you
go to your dealer. When
the dealer matches the replacement transmitter to your
vehicle, the remaining transmitters must also be
matched. Once
the new transmitter is coded, the lost
transmitter will not unlock your vehicle.
You can match a transmitter to as many different
vehicles as you own, provided they are equipped with
exactly the same model system. (General Motors offers
several different models
of these systems on their
vehicles.) Each vehicle can have only two transmitters
matched to it.
To match transmitters to your vehicle:
1. Find the Data Link Connector (DLC). It is in the
bottom of
the instrument panel near the steering
column.

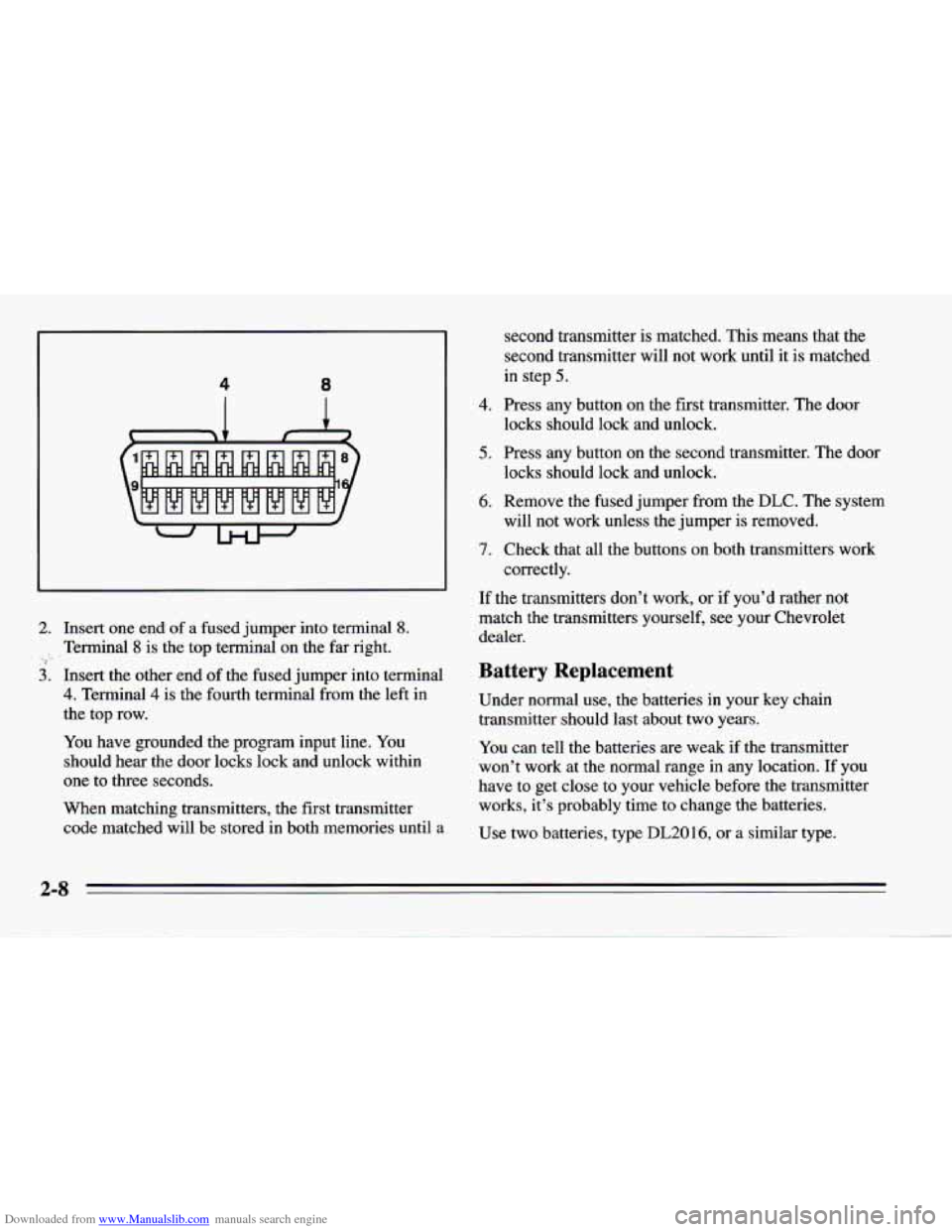

Downloaded from www.Manualslib.com manuals search engine 4 8
1
c
c
-w
I
2. Insert one end of a fused jumper into terminal 8.
, Terminal 8 is the top terminal on the far right. ,> ,_ .
3. Insert the other end of the fused jumper into terminal
4. Terminal 4 is the fourth terminal from the left in
the top row.
You have grounded the program input line. You
should hear the door locks lock and unlock within
one to three seconds.
When matching transmitters, the first transmitter
code matched will be stored in both memories until a second
transmitter is matched.
This means that the
second transmitter will not work until it is matched
in step
5.
4. Press any button on the first transmitter. The door
locks should lock and unlock.
5. Press any button on the second transmitter. The door
locks should lock and unlock.
6. Remove the fused jumper from the
DLC. The system
7. Check that all the buttons on both transmitters work
will not work unless the
jumper is removed.
correctly.
If the transmitters don’t work,
or if you’d rather not
match the transmitters yourself, see your Chevrolet
dealer.
Battery Replacement
Under normal use, the batteries in your key chain
transmitter should last about two years.
You can tell the batteries are weak if the transmitter
won’t work at the normal range
in any location. If you
have to get close to your vehicle before the transmitter
works, it’s probably time to change the batteries.
Use two batteries, type
DL20 16, or a similar type.
