CHEVROLET CAMARO 1996 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Long Trip/Highway Maintenance Schedule I
mm
~~

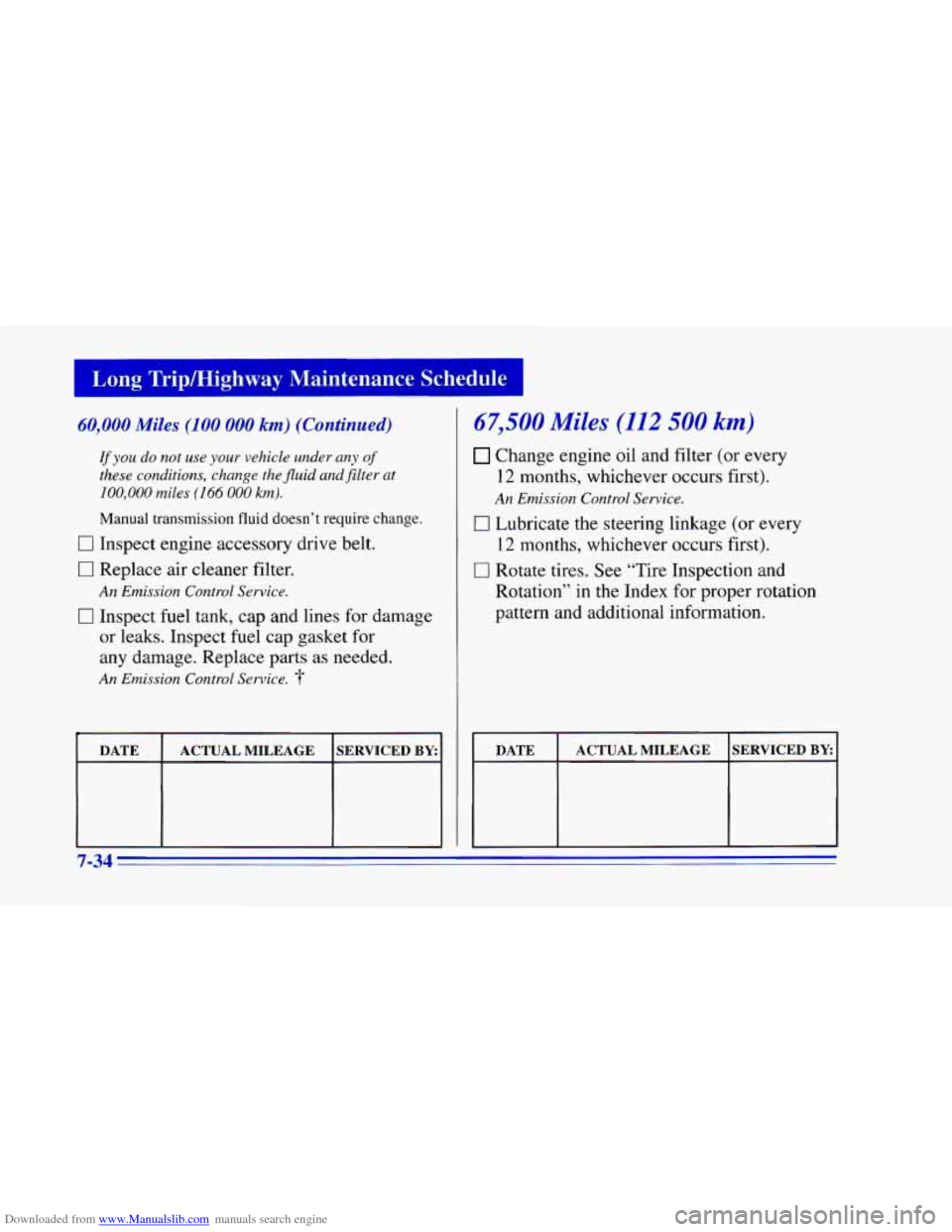

60,000 Miles (100 000 km) (Continued)
If you do not use your vehicle under any of
these conditions, change the fluid and filter at
100,000 miles (166 000 km).
Manual transmission fluid doesn’t require change.
0 Inspect engine accessory drive belt.
0 Replace air cleaner filter.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect
fuel cap gasket for
any damage. Replace parts
as needed.
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY
67,500 Miles (112 500 km)
Change
engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the steering linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
DATE SERVICED BY ACTUAL MILEAGE
7-34

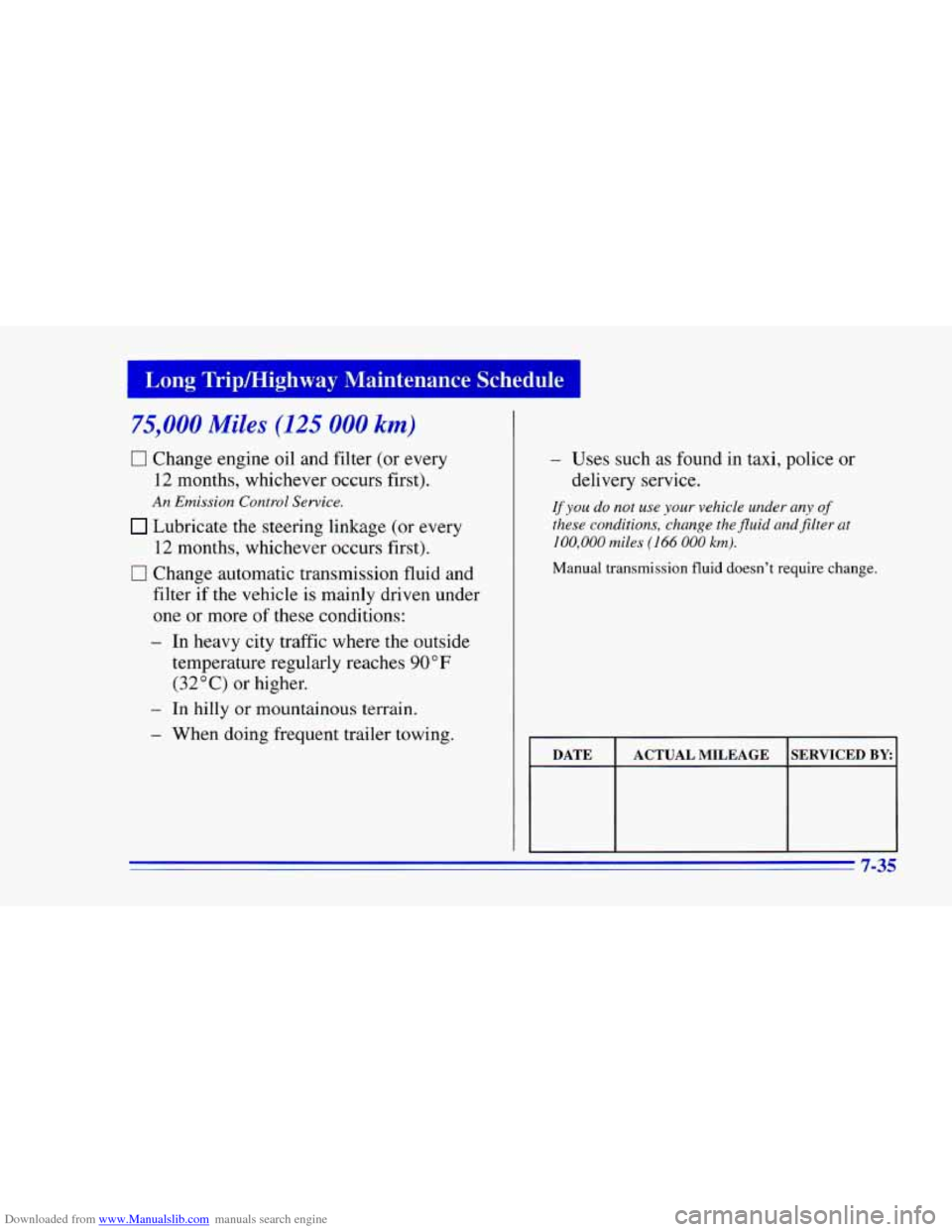

Downloaded from www.Manualslib.com manuals search engine I Long TripBighway Maintenance Schedule I
75,000 Miles (125 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
Lubricate the steering linkage (or every
12 months, whichever occurs first).
0 Change automatic transmission fluid and
filter if the vehicle is mainly driven under
one or more
of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of
these conditions, change the fluid andfilter ut
100,000 miles (166 000 km).
Manual transmission fluid doesn’t require change.
-
DATE
SERVICED BY ACTUAL MILEAGE
7-35

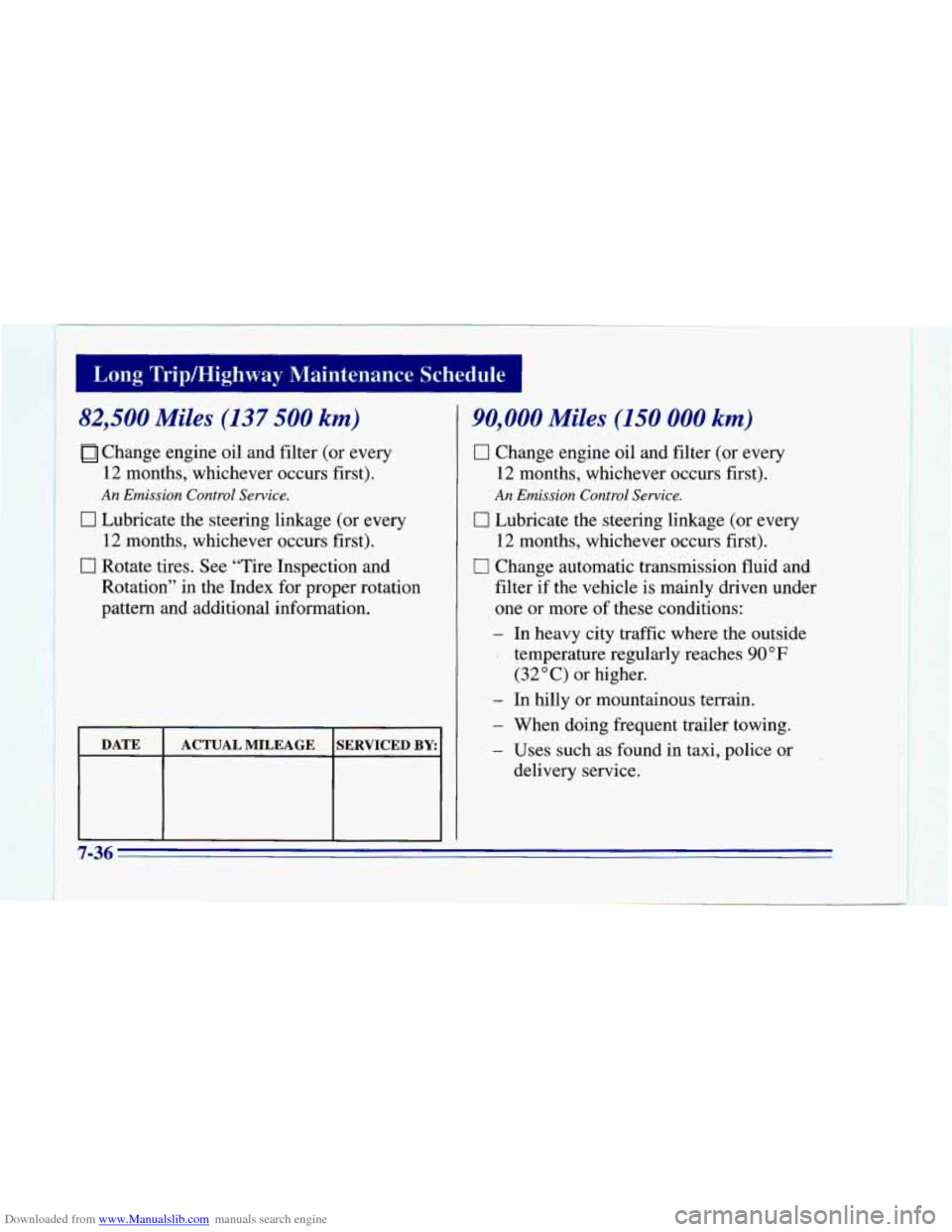

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule
82,500 Miles (137 500 km)
Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate the steering linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information.
An Emission Control Service.
DATE .ACTUAL MILEAGE SERVICED BY:
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the steering linkage (or every
12 months, whichever occurs first).
0 Change automatic transmission fluid and
filter if the vehicle is mainly driven under
one or more
of these conditions:
- In heavy city traffic where the outside
j temperature regularly reaches 90°F
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
(32°C)
or higher.
delivery service.
I -36

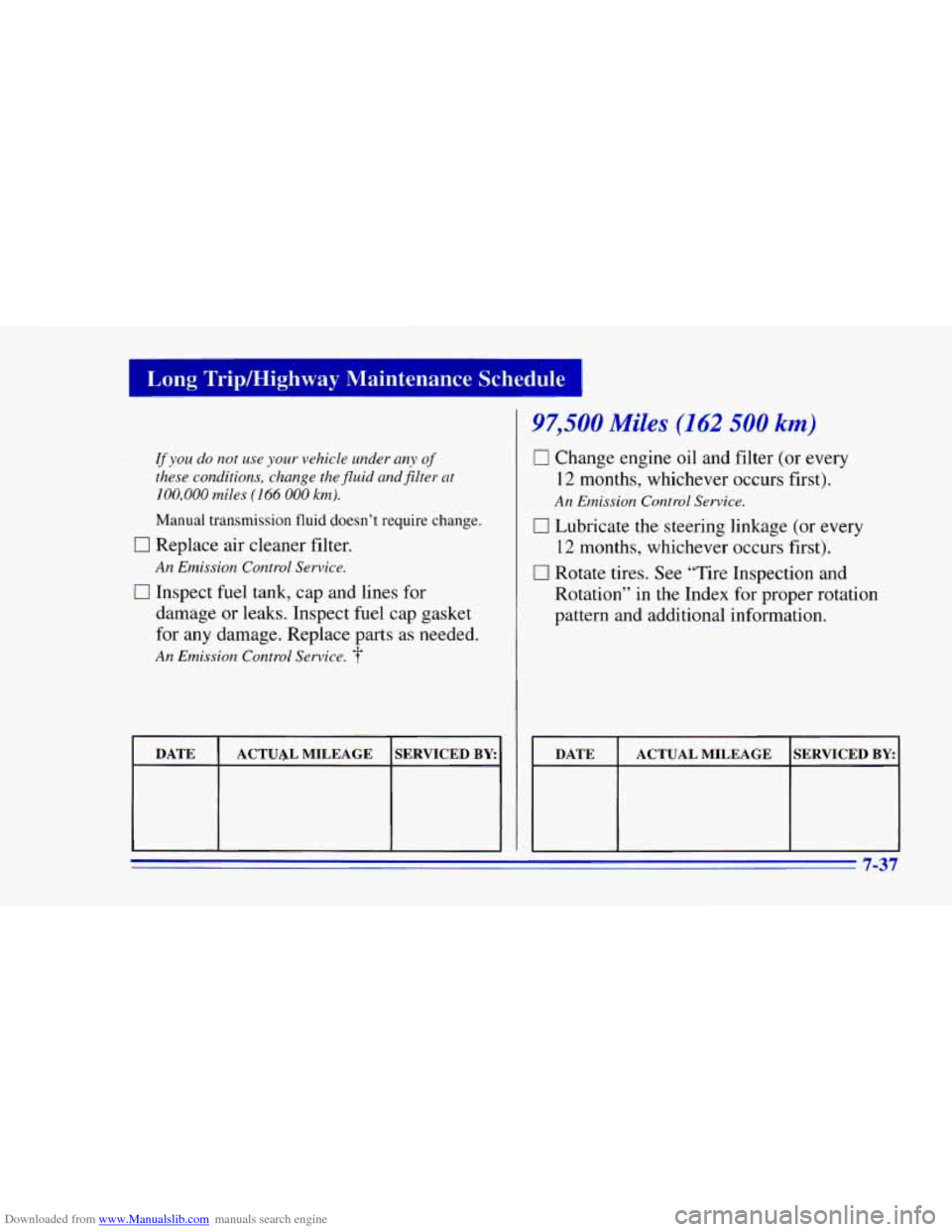

Downloaded from www.Manualslib.com manuals search engine I Long Trip/Highway Maintenance Schedule I ~~~~
I
lf you do not use your vehicle under any of
these conditions, change the fluid and jilter at
100,000 miles (I 66 000 km).
Manual transmission fluid doesn’t require change.
0 Replace air cleaner filter.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for
damage or leaks. Inspect fuel cap gasket
for any damage. Replace parts as needed.
An Emission Control Service. ?
DATE
SERVICED BY ACTUAL MILEAGE
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Lubricate the steering linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
An Emission Control Service.
DATE SERVICED BY ACTUAL MILEAGE
7-37

Downloaded from www.Manualslib.com manuals search engine I Long Trip/Highway Maintenance Schedule
100,000 Miles (1 66 000 km)
0 Drain, flush and refill cooling system
(or
every 60 months since last service,.
whichever occurs first). See “Engine
Coolant”
in the Index for what to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test
the cooling system and pressure cap.
An Emission Control Service.
0 Inspect spark plug wires.
An Emission Control Service.
0 Replace spark plugs.
An Emission Control Service.
0 If you haven’t used your vehicle under
severe service conditions listed previously
and, therefore, haven’t changed your
automatic transmission fluid, change both
the fluid and filter.
DATE ACTUAL MILEAGE SERVICED BY
7-38

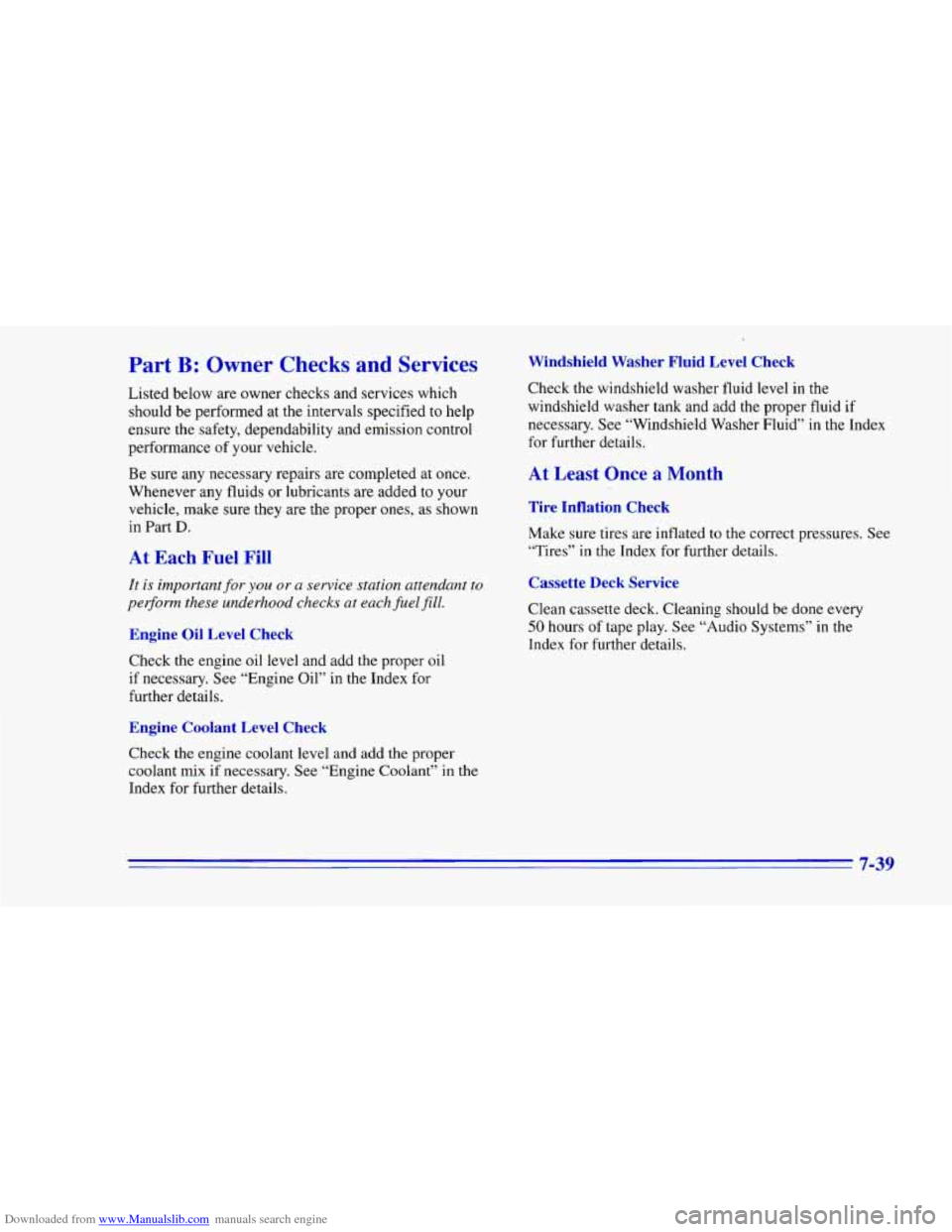

Downloaded from www.Manualslib.com manuals search engine Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance
of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever
any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Ch - -k
Check the engine coolant levei and add the proper
coolant mix if necessary. See “Engine Coolant”
in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add
the proper fluid if
necessary. See “Windshield Washer Fluid”
in the Index
for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures. See
“Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the
Index for further details.
7-39

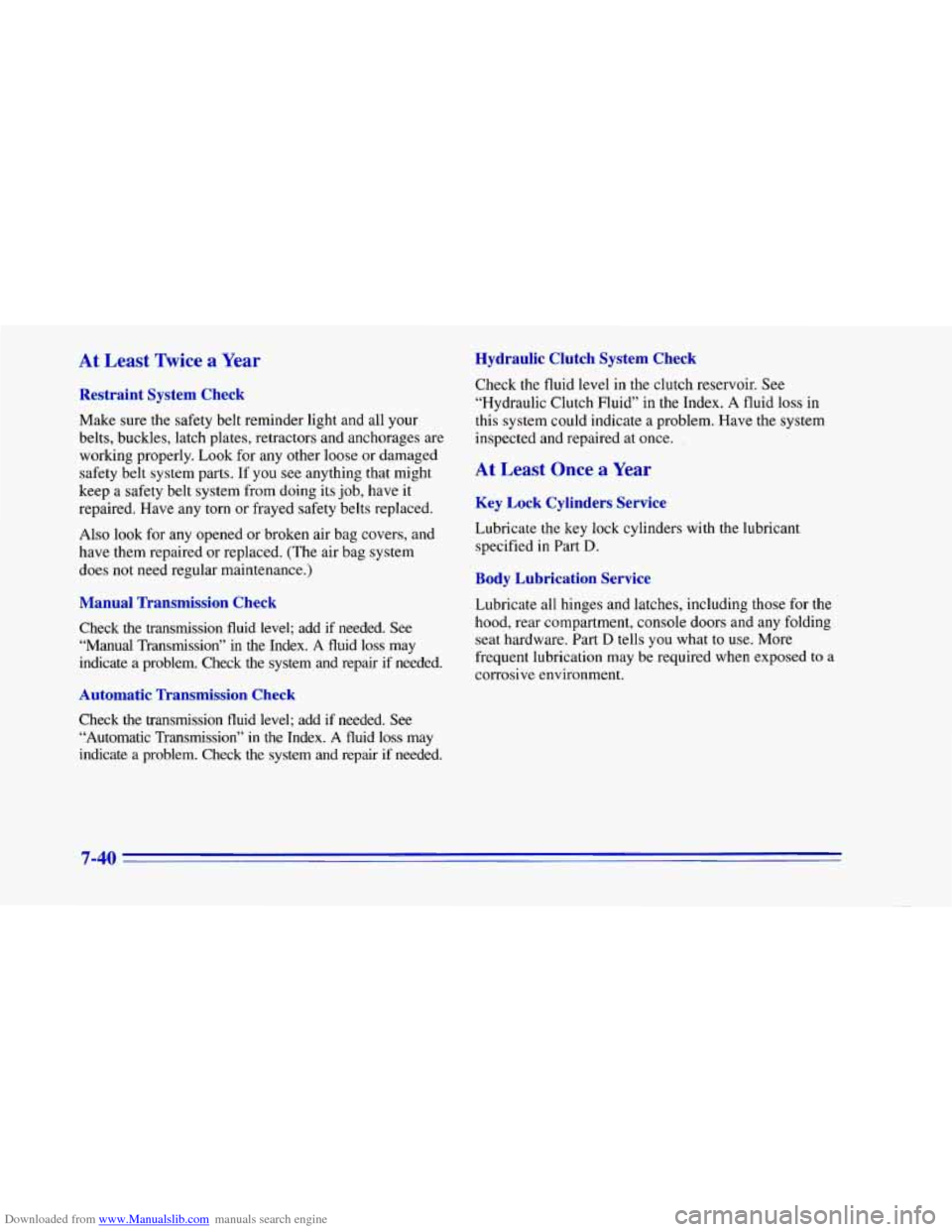

Downloaded from www.Manualslib.com manuals search engine At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly.
Look for any other loose or damaged
safety belt system parts. If you
see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened
or broken air bag covers, and
have them repaired or replaced. (The air
bag system
does not need regular maintenance.)
Manual Transmission Check
Check the transmission fluid level; add if needed. See
“Manual Transmission” in the Index. A fluid loss may
indicate a problem. Check the system and repair if needed.
Automatic Transmission Check
Check the transmission fluid level; add if needed. See
“Automatic Transmission”
in the Index. A fluid loss may
indicate a problem. Check the system and repair if needed.
Hydraulic Clutch System Check
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid” in the Index.
A fluid loss in
this system could indicate a problem. Have the system
inspected and repaired
at once. .
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified
in Part D.
Body Lubrication Service
Lubricate all hinges and latches, including those for the
hood, rear compartment, console doors and any foldine
seat hardware. Part
D tells you what to use. More
frequent lubrication may be required when exposed
to a
corrosive environment.
7-40

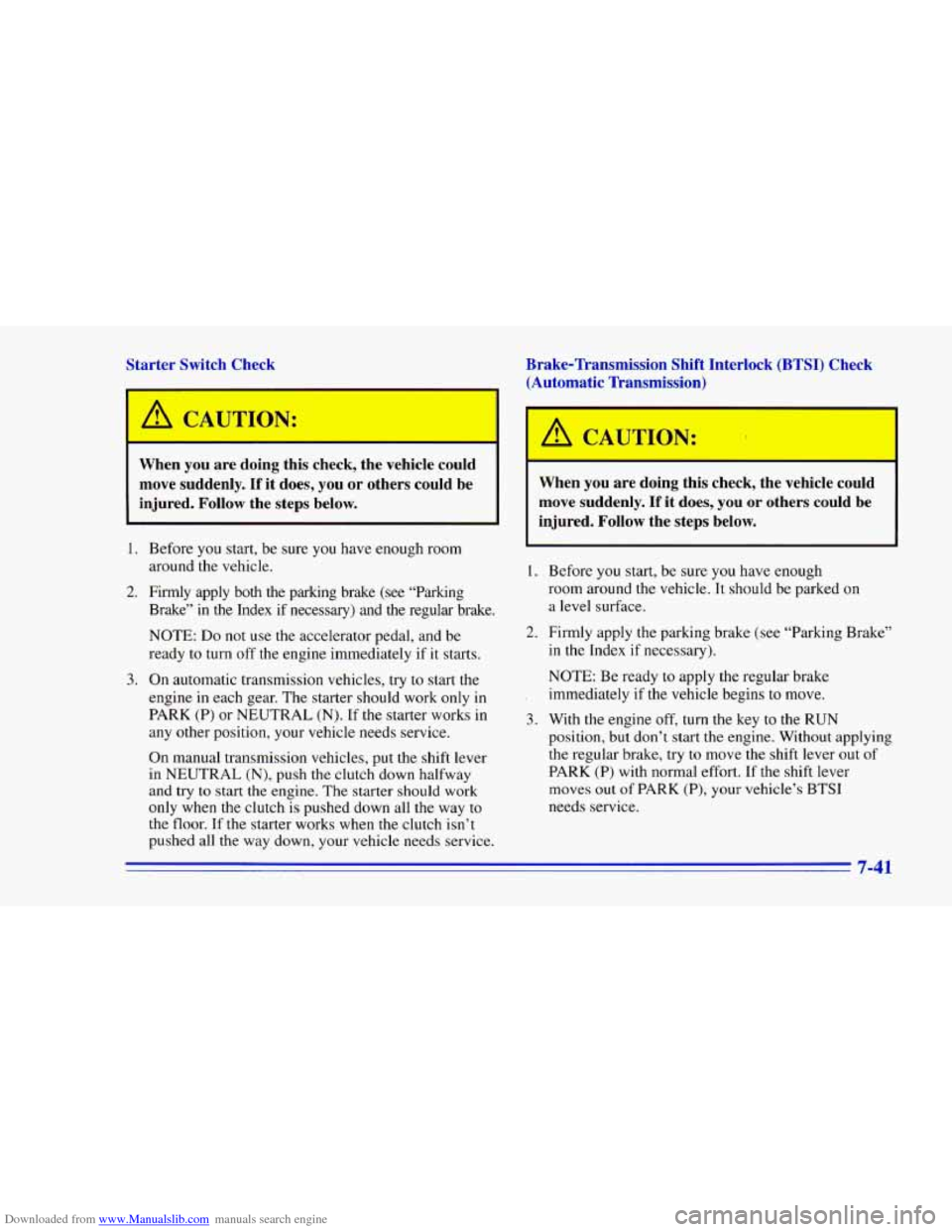

Downloaded from www.Manualslib.com manuals search engine Starter Switch Check Brake-'Ikansmission Shift Interlock (BTSI) Check
(Automatic Transmission)
When you are doing this check, the vehicle could move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
Firmly apply both the parking brake (see "Parking
Brake"
in the Index if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if
it starts.
On automatic transmission vehicles, try
to start the
engine
in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever
in NEUTRAL
(N), push the clutch down halfway
and try to start the engine. The starter should work
only when
the clutch is pushed down all the way to
the floor. If the starter works when the clutch isn't
pushed all the way down, your vehicle needs service.
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough
room around the vehicle. It should be parked
on
a level surface.
Firmly apply the parking brake (see "Parking Brake"
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if
the vehicle begins to move.
With
the engine off, turn the key to the RUN
position, but don't start
the engine. Without applying
the regular brake, try
to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out of PARK (P), your vehicle's
BTSI
needs service.
7-41

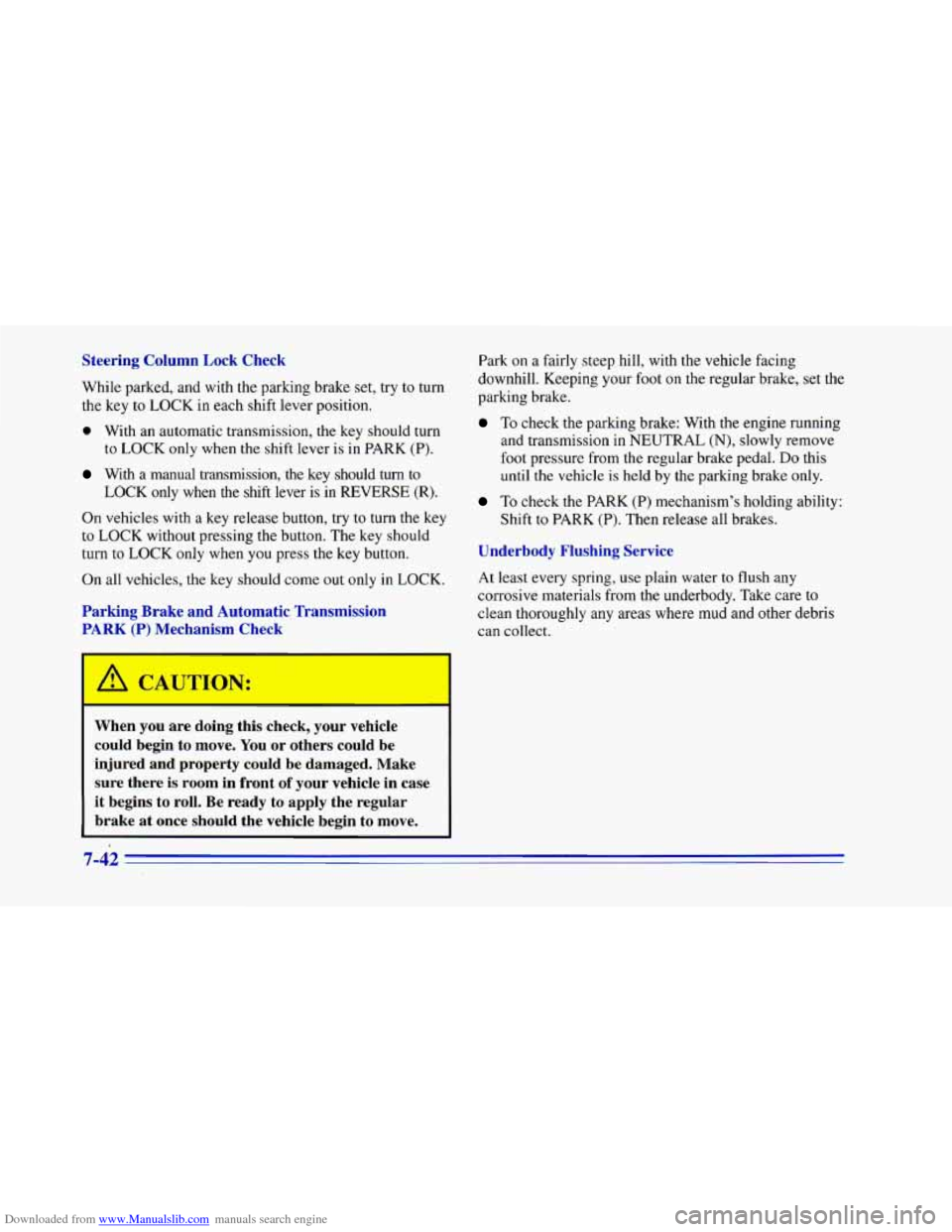

Downloaded from www.Manualslib.com manuals search engine Steering Column Lock Check
While parked, and with the parking brake set, try to turn
the key
to LOCK in each shift lever position.
0 With an automatic transmission, the key should turn
to LOCK only when the shift lever is in PARK (P).
With a manual transmission, the key should turn to
LOCK only when the shift lever is in REVERSE (R).
On vehicles with
a key release button, try to turn the key
to LOCK without pressing the button. The key should
turn to LOCK only when you press the key button.
On all vehicles, the key should come out only
in LOCK.
Parking Brake and Automatic. Transmission
PARK (P) Mechanism Check
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake: With the engine running
and transmission in NEUTRAL (N), slowly remove
foot pressure from
the regular brake pedal. Do this
until
the vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
Shift
to PARK (P). Then release all brakes.
Underbody FI ~ -3g Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
When you are doing this check, your vehicle
could begin
to move. You or others could be
injured and property could be damaged. Make
sure there
is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
7-42

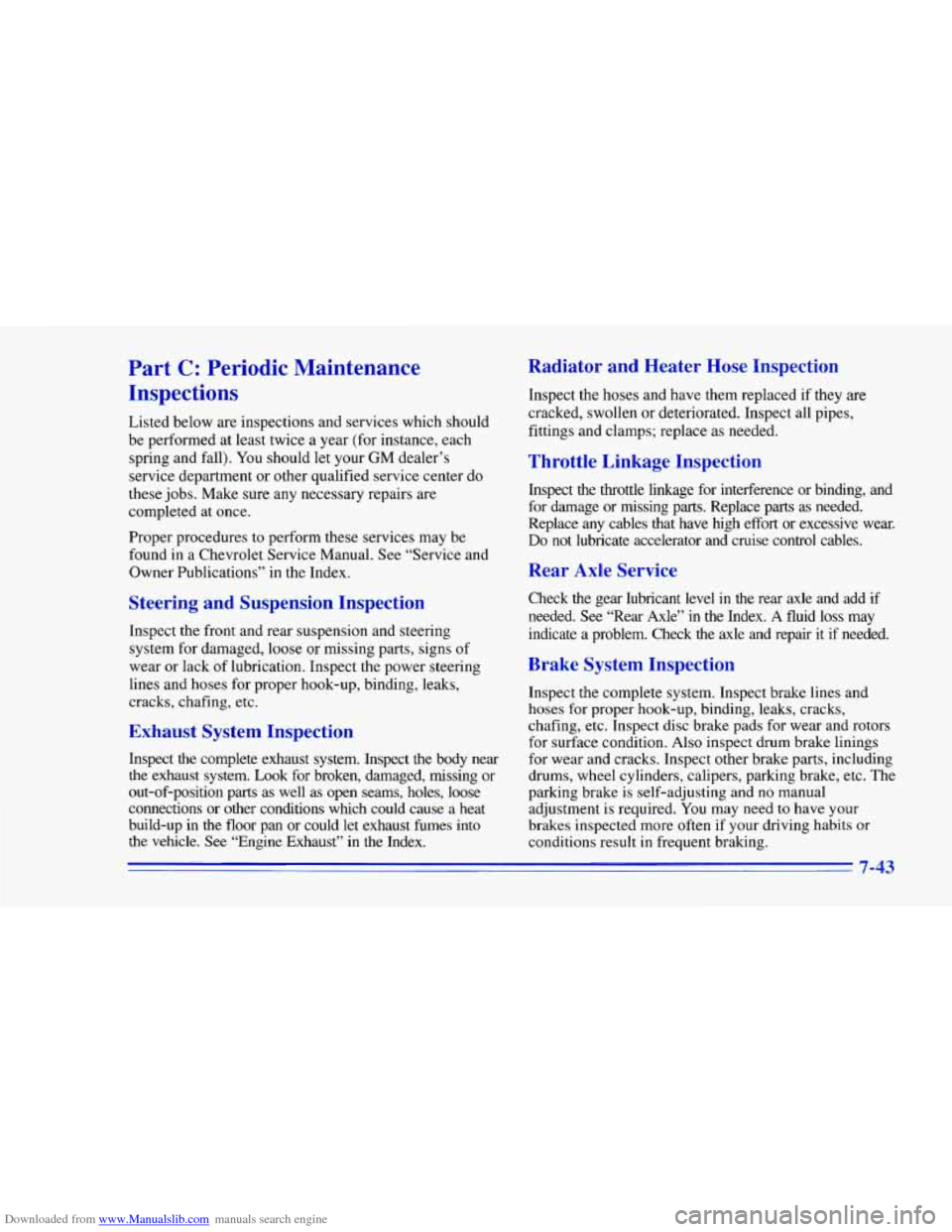

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should let your
GM dealer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found in a Chevrolet Service Manual. See “Service and
Owner Publications” in the Index.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body near
the exhaust system. Look for broken, damaged, missing or
out-of-position
parts as well as open seams, holes, loose
connections
or other conditions which could cause a heat
build-up in the floor
pan or could let exhaust fumes into
the vehicle.
See “Engine Exhaust” in the Index,
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding, and
for damage or missing parts. Replace parts as needed.
Replace
any cables that have high effort or excessive wear.
Do not lubricate accelerator and cruise control c.ables.
Rear Axle Service
Check the gear lubricant level in the rear axle and add if
needed. See “Rear Axle” in the Index. A fluid loss may
indicate a problem. Check the axle and repair it if needed.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc. The
parking brake is self-adjusting and no manual
adjustment is required. You may need
to have your
brakes inspected
more often if your driving habits or
conditions result in frequent braking.
7-43
