CHEVROLET CAMARO 1996 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule

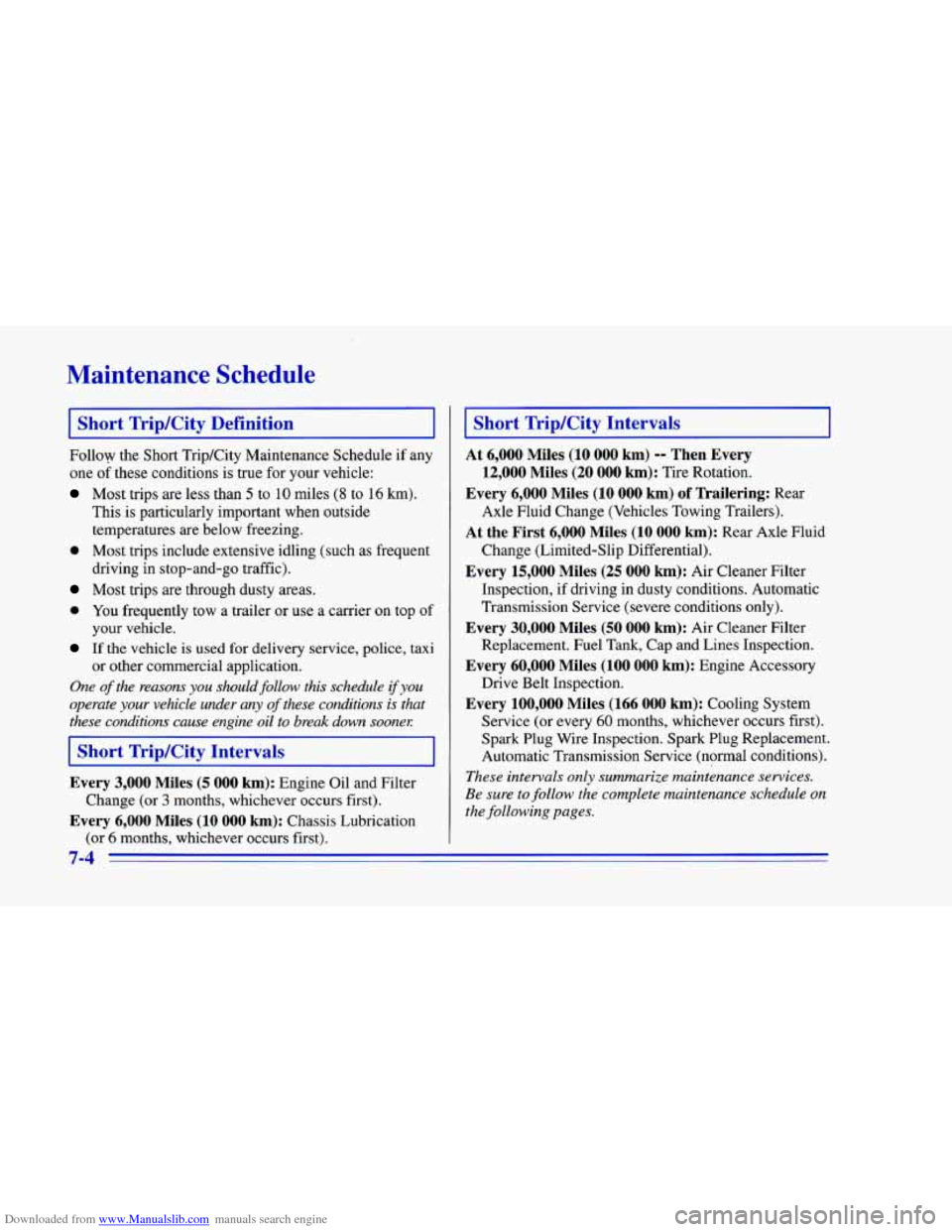

Short TriplCity Definition
Follow the Short Trip/City Maintenance Schedule if any
one of these conditions is true for your vehicle:
Most trips are less than 5 to 10 miles (8 to 16 km).
This
is particularly important when outside
temperatures are below freezing.
0 Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
Most trips are through dusty areas.
0 You frequently tow a trailer or use a carrier on top of
If the vehicle is used for delivery service, police, taxi
One of the reasons you should follow this schedule if you
operate your vehicle under any
of these conditions is that
these conditions cause engine oil to break down soonez
your vehicle.
or other commercial application.
Short TriplCity Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Every 6,000 Miles (10 000 km): Chassis Lubrication
Change (or
3 months, whichever
occurs first).
(or
6 months, whichever occurs first).
Short TriplCity Intervals
At 6,000 Miles (10 000 km) -- Then Every
12,000 Miles (20 000 km): Tire Rotation.
Every 6,000 Miles (10 000 km) of Trailering: Rear
Axle Fluid Change (Vehicles Towing Trailers).
At the First 6,000 Miles (10 000 km): Rear Axle Fluid
Change (Limited-Slip Differential).
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Inspection, if driving
in dusty conditions. Automatic
Transmission Service (severe conditions only).
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
Spark Plug Wire Inspection. Spark Plug Replacement.
Automatic Transmission Service (normal conditions).
These intervals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule on
the following pages.
7-4

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule

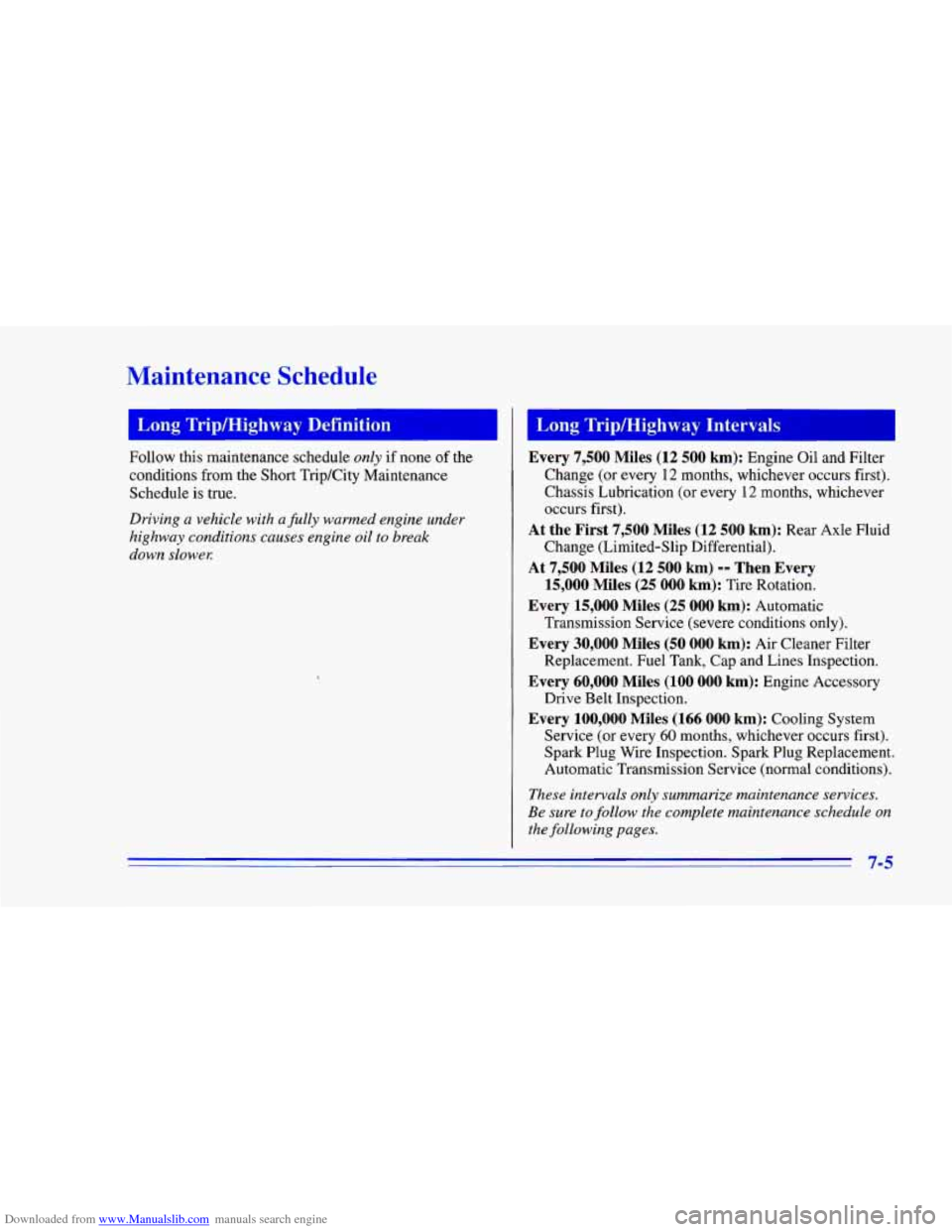

Follow this maintenance schedule only if none of the
conditions from the Short Trip/City Maintenance
Schedule is true.
Driving a vehicle with a fully warmed engine under
highway conditions causes engine
oil to break
down slowel:
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or
every 12 months, whichever occurs first).
Chassis Lubrication (or every
12 months, whichever
occurs first).
At the First 7,500 Miles (12 500 km): Rear Axle Fluid
Change (Limited-Slip Differential).
At 7,500 Miles (12 500 km) -- Then Every
15,000 Miles (25
000 km): Tire Rotation.
Every 15,000 Miles (25 000 km): Automatic
Transmission Service (severe conditions only).
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
Spark Plug Wire Inspection. Spark Plug Replacement.
Automatic Transmission Service (normal conditions).
These intervals only summarize maintenance services.
Be sure to follow the complete maintenance schedule
on
the following pages.
7-5

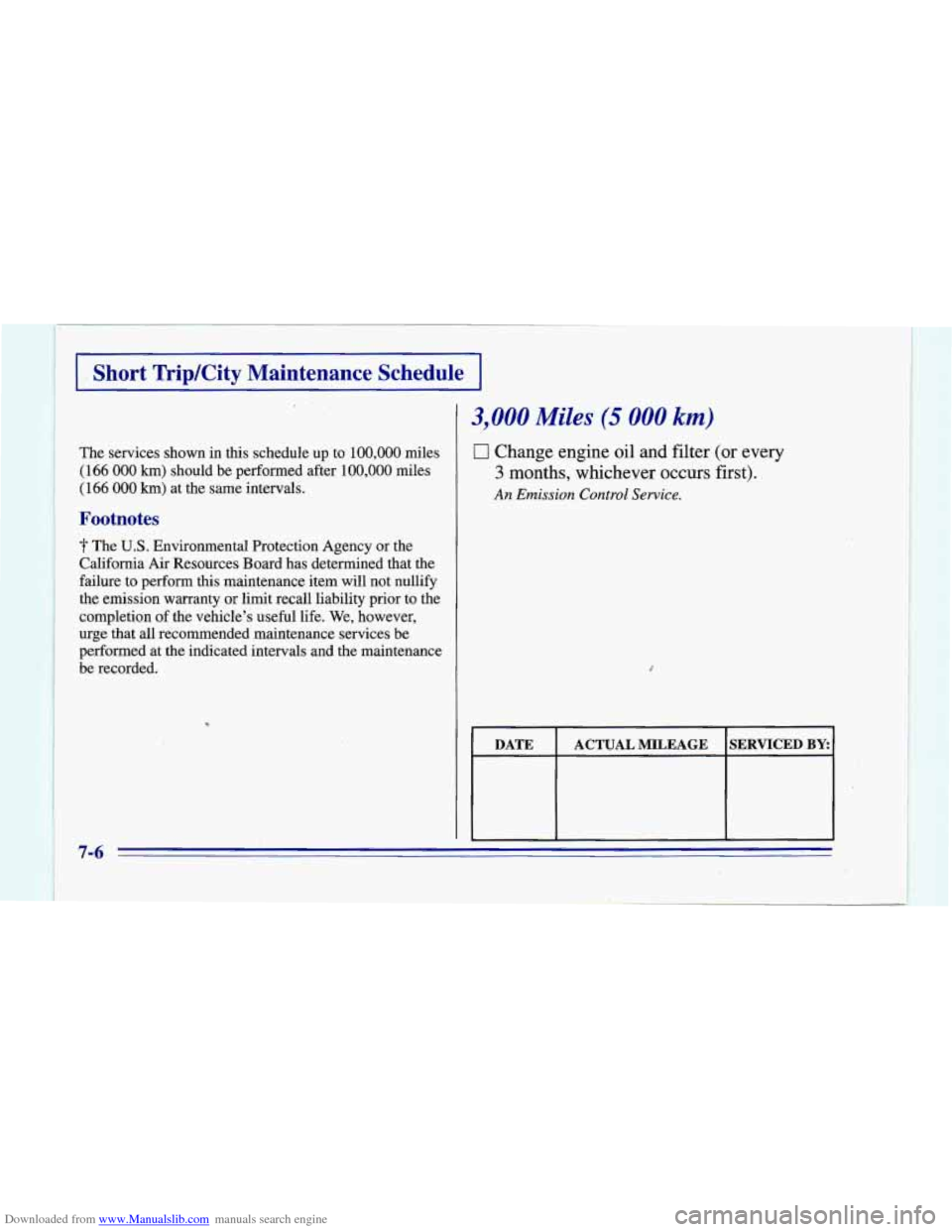

Downloaded from www.Manualslib.com manuals search engine 1 - Short Trip/City Maintenance Schedule I
The services shown in this schedule up to 100,000 miles
(1 66
000 km) should be performed after 100,000 miles
(166
000 km) at the same intervals.
Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty
or limit recall liability prior to the
completion of the vehicle's useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
B
3,000 Miles (5 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
I I I
t- L L
ACTUAL MILEAGE SERVICED BY:
-
7-6

Downloaded from www.Manualslib.com manuals search engine I Short Trip/City Maintenance Schedule I

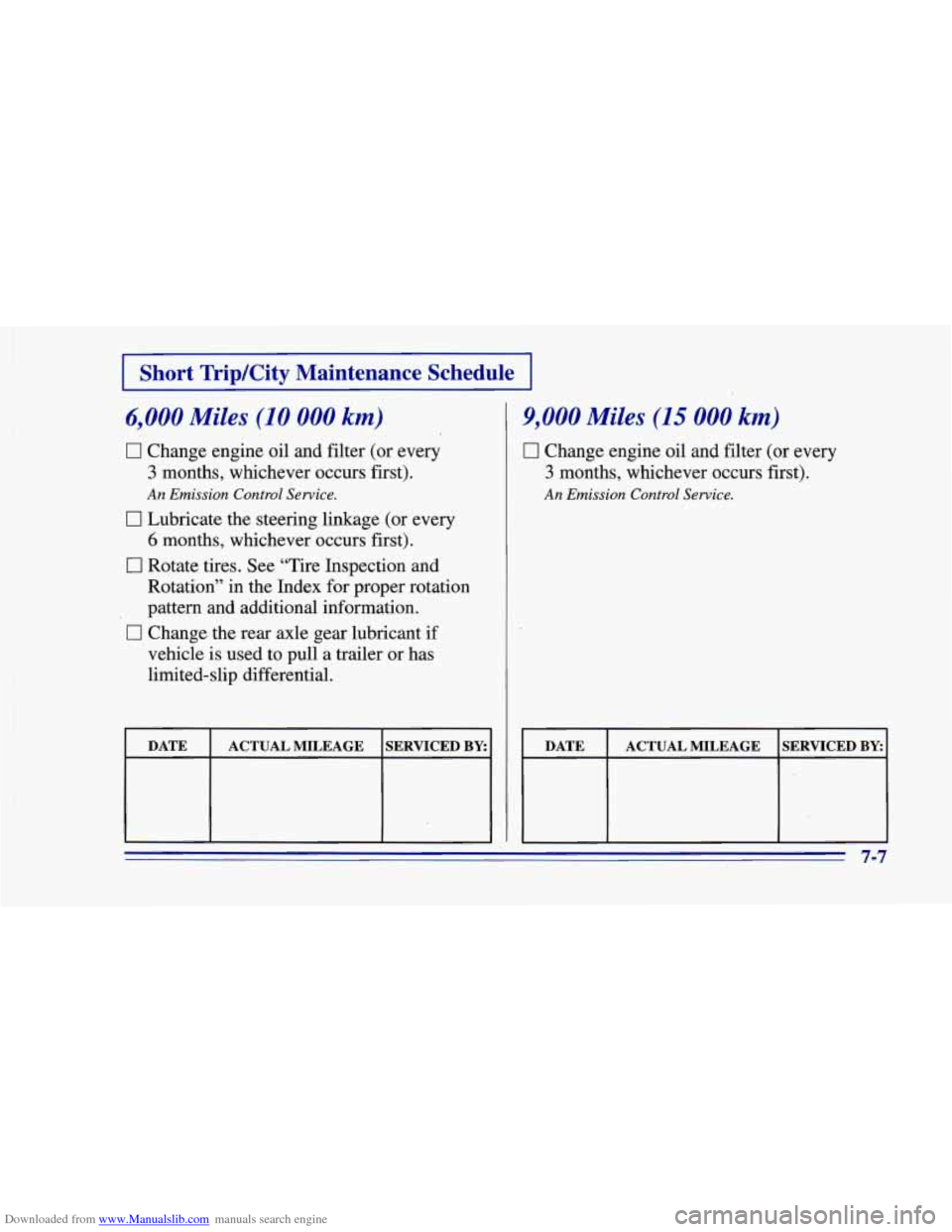

6,000 Miles (10 000 km) I
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the steering linkage (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
0 Change the rear axle gear lubricant if
vehicle is used to pull a trailer or has
limited-slip differential.
DATE
SERVICED BY: ACTUAL MILEAGE
9,000 Miles (15 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE SERVICED BY: ACTUAL MILEAGE
7-7

Downloaded from www.Manualslib.com manuals search engine I Short TripKity Maintenance Schedule I

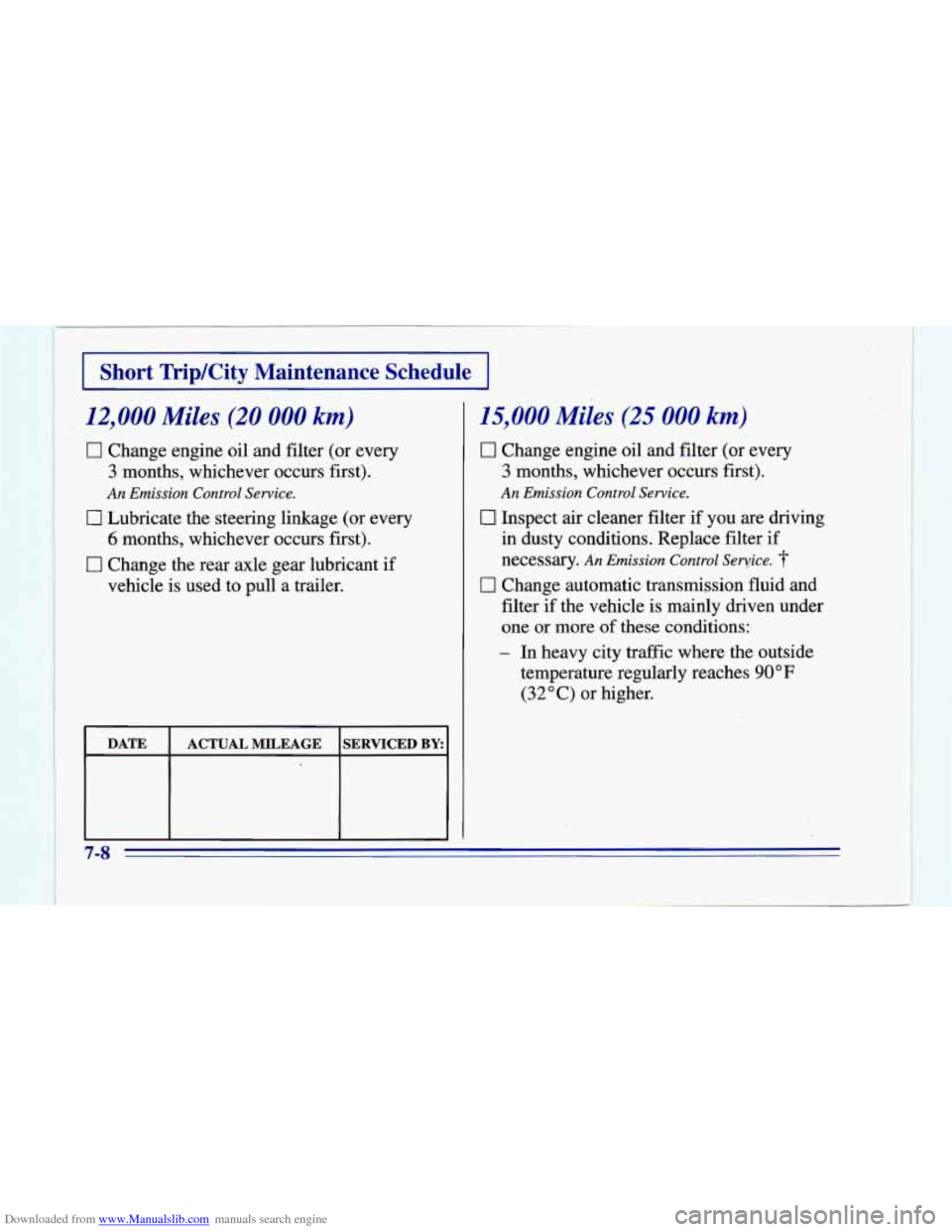

12,000 Miles (20 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
.n Lubricate the steering linkage (or every
6 months, whichever occurs first).
0 Change the rear axle gear lubricant if
vehicle is used to pull a trailer.
DATE ACTUAL MILEAGE SERVICED BY:
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Inspect air cleaner filter if you are driving
in dusty conditions. Replace filter if
necessary.
An Emission Control Seryice. 3-
0 Change automatic transmission fluid and
filter
if the vehicle is mainly driven under
one or more
of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32°C) or higher.
7-8

Downloaded from www.Manualslib.com manuals search engine I Short TripKity Maintenance Schedule I

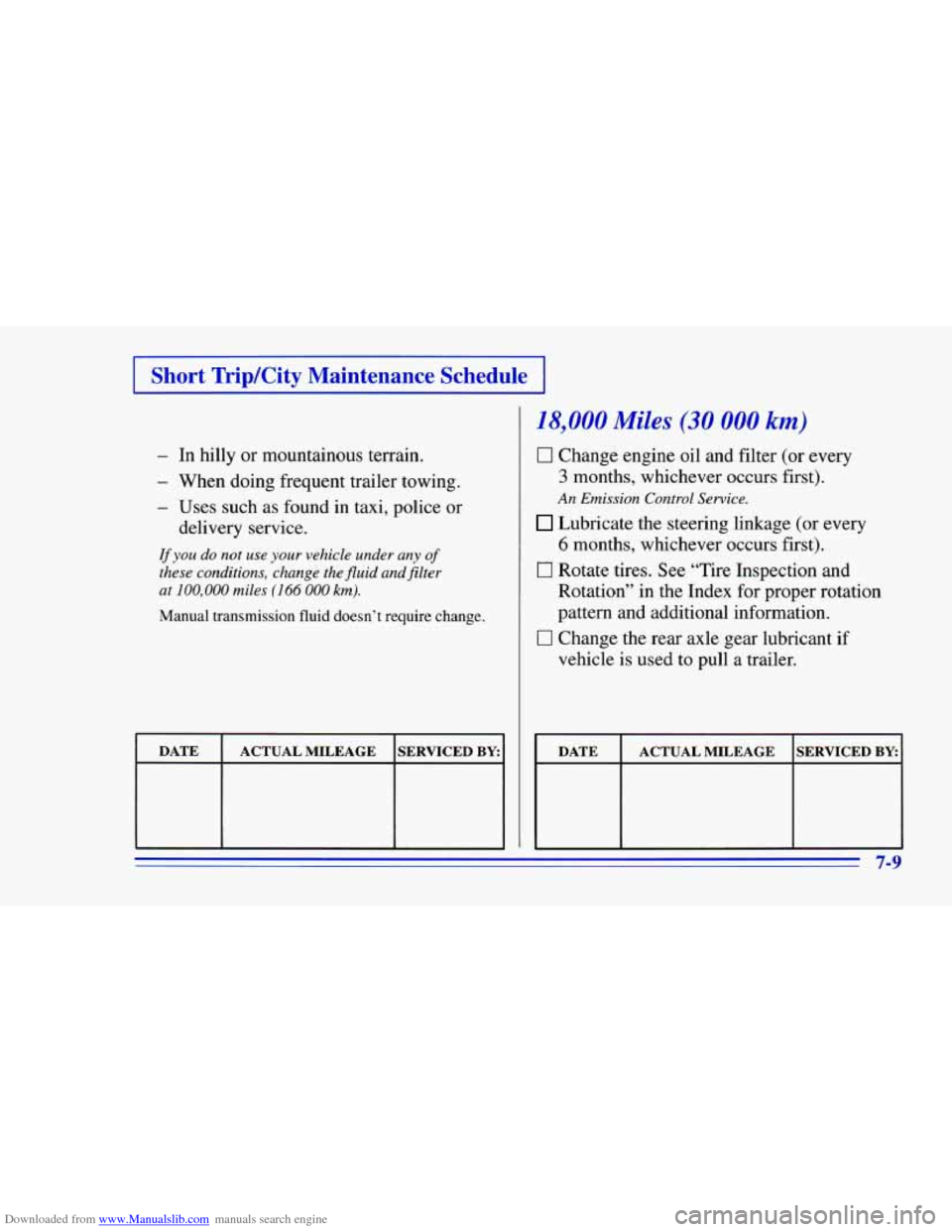

- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
lfyou do not use your vehicle under any of
these conditions, change the fluid and filter
at
100,000 miles (166 000 km).
Manual transmission fluid doesn’t require change.
18,000 Miles (30 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Lubricate the steering linkage (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
0 Change the rear axle gear lubricant if
vehicle is used to pull a trailer.
DATE
SERVICED BY: ACTUAL MILEAGE DATE SERVICED BY: ACTUAL MILEAGE
7-9

Downloaded from www.Manualslib.com manuals search engine I Short Trip/City Maintenance Schedu el

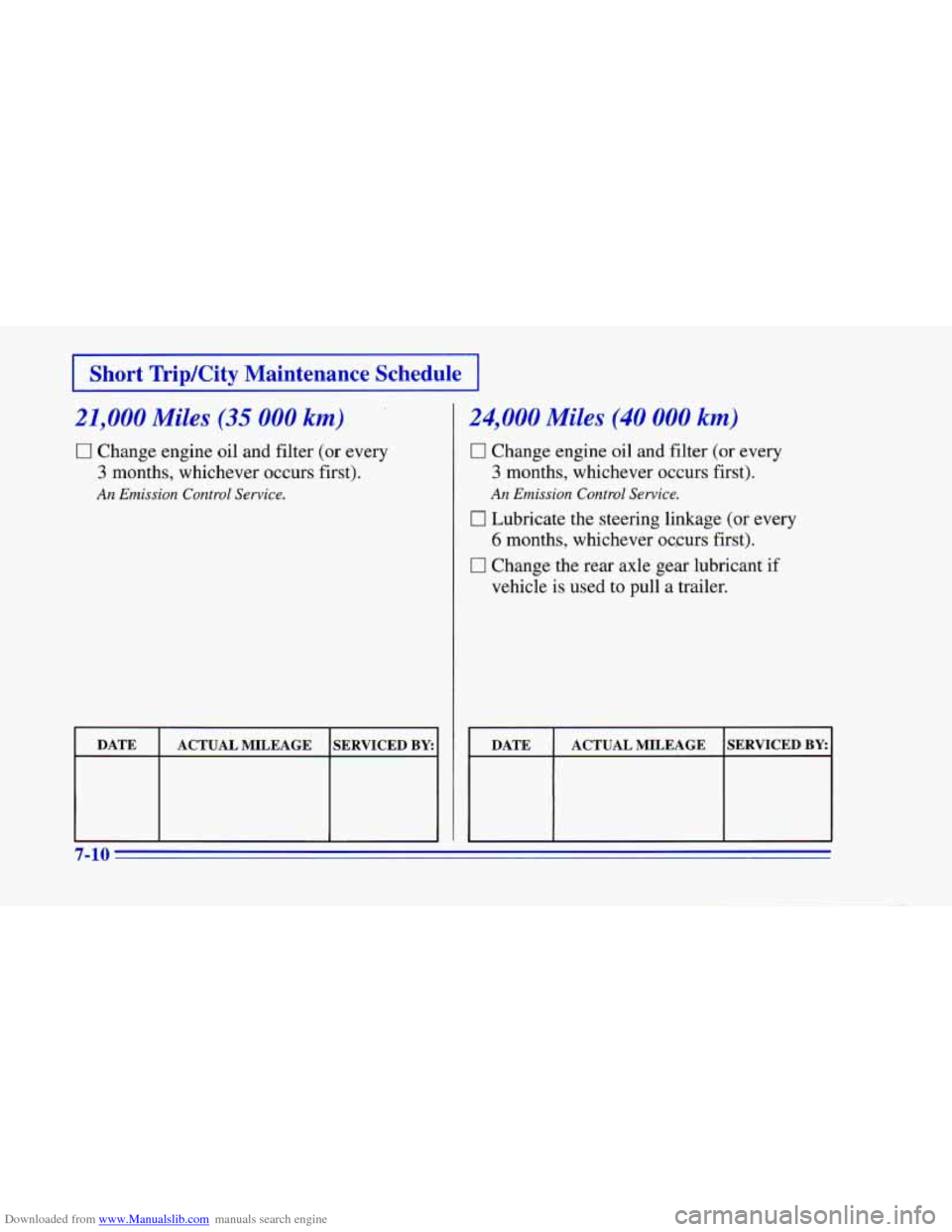

21,000 Miles (35 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
24,000 Miles (40 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the steering linkage (or every
6 months, whichever oc.curs first).
0 Change the rear axle gear lubricant if
vehicle is used to pull a trailer.
DATE ACTUAL MILEAGE SERVICED BY:
7-10

Downloaded from www.Manualslib.com manuals search engine I Short Trip/City Maintenance Schedule I

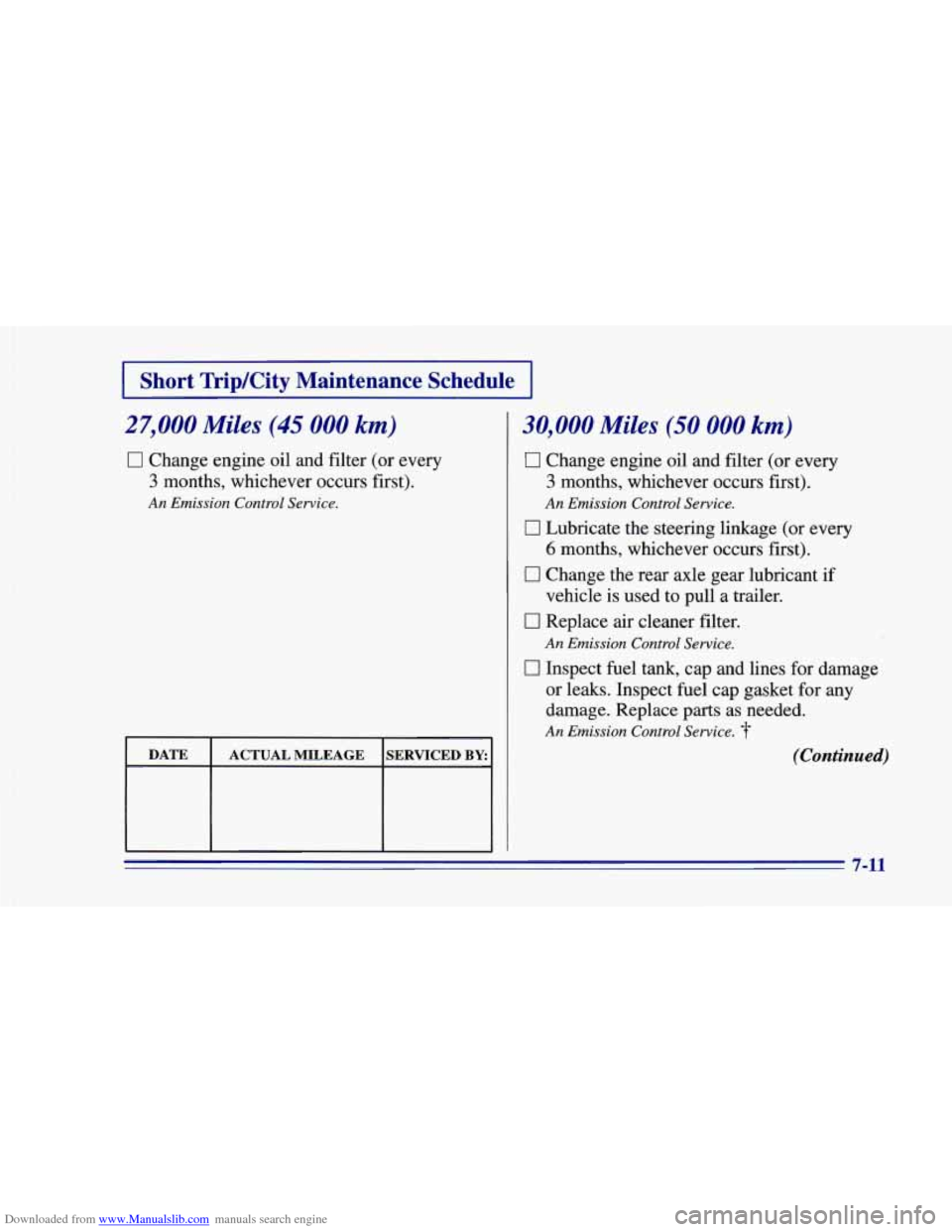

27,000 Miles (45 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
DATE
SERVICED BY: ACTUAL MILEAGE
30,000 Miles (50 000 km)
17 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the steering linkage (or every
6 months, whichever occurs first).
.I7 Change the rear axle gear lubricant if
vehicle is used to pull a trailer.
0 Replace air cleaner filter.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace
parts as needed.
An Emission Control Service. -f
An Emission Control Service.
(Continued)
CI 11

Downloaded from www.Manualslib.com manuals search engine 1 Short Trip/City Maintenance Schedule I

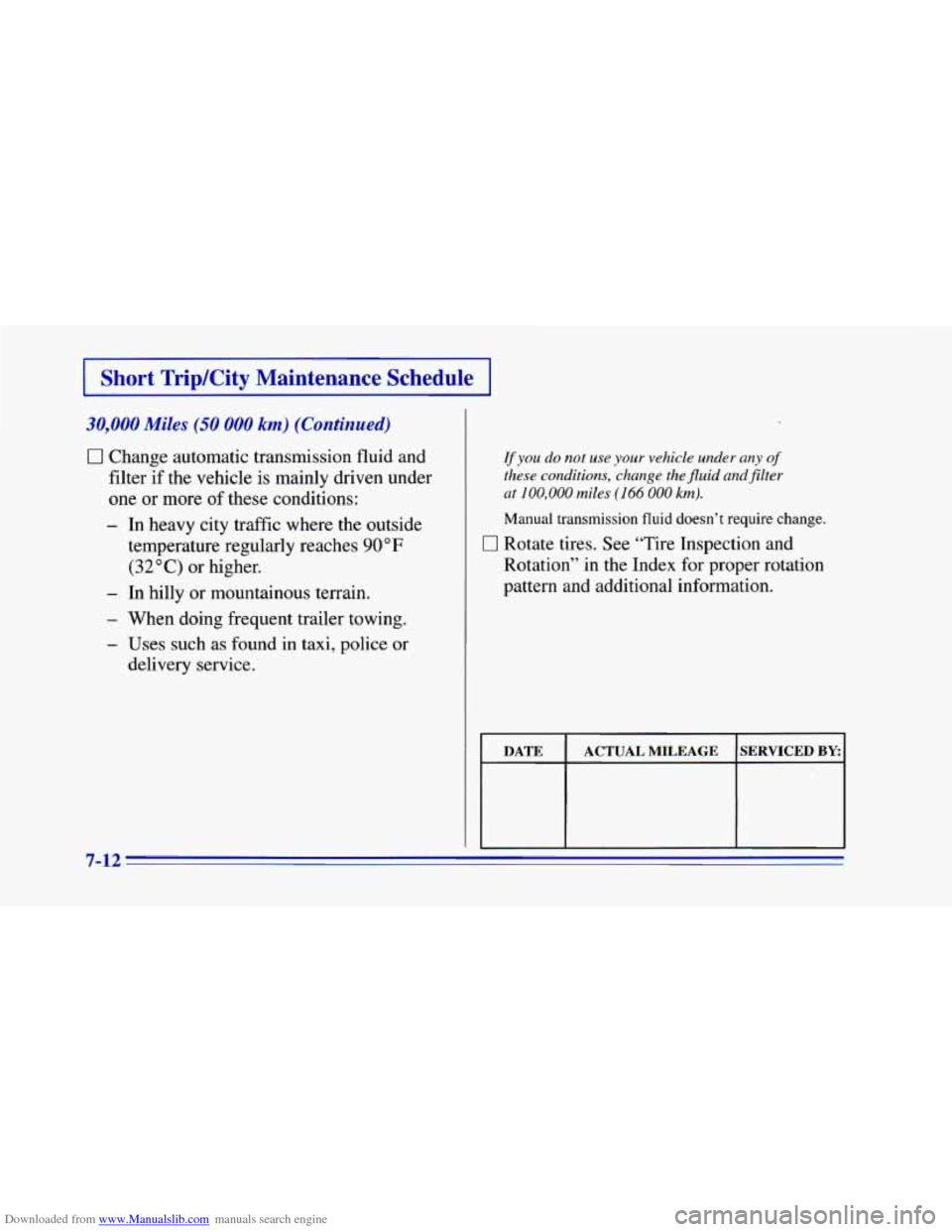

30,000 Miles (50 000 km) (Continued)
0 Change automatic transmission fluid and
filter
if the vehicle is mainly driven under
one or
more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
If you do not use your vehicle under any of
these conditions, change the fluid and filter
at
100,000 miles (1 66 000 km).
Manual transmission fluid doesn’t require change.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
r I I I
DATE SERVICED BY: ACTUAL MILEAGE
7-12

Downloaded from www.Manualslib.com manuals search engine I I
Short TripKity Maintenance Schedule

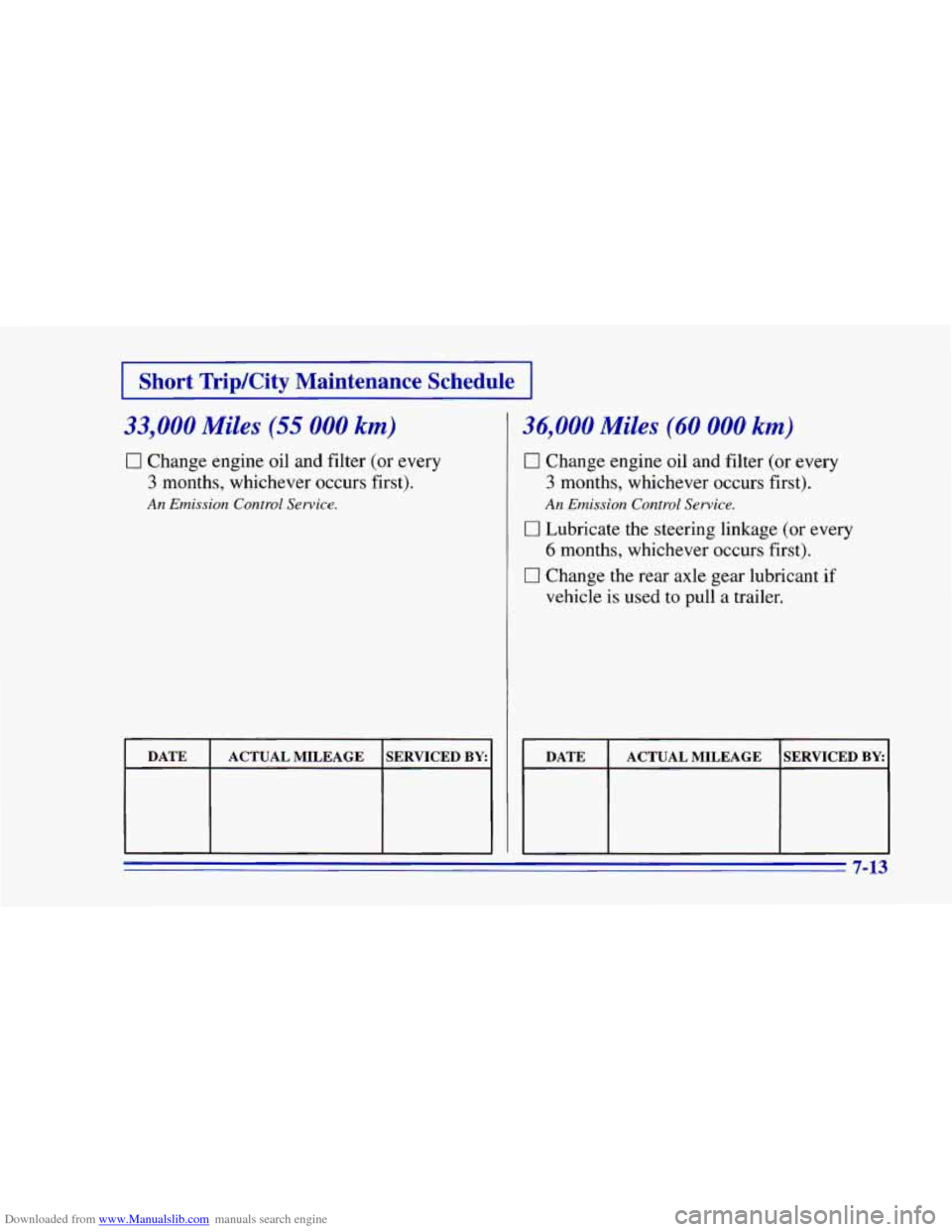

33,000 Miles (55 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Con'trol Service.
DATE
SERVICED BY ACTUAL MILEAGE
36,000 Miles (60 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the steering linkage (or every
6 months, whichever occurs first).
0 Change the rear axle gear lubricant if
vehicle is used to pull a trailer.
DATE SERVICED BY ACTUAL MILEAGE
7-13
