CHEVROLET CAMARO 1996 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center Fuses
Fuse
ABS IGN
ACTUATORS
The underhood electrical center fuses are located in
the engine compartment. Open the cover to expose
the
fuses.
R HDLP DR
L HDLP DR
ABS VLV
ABS BAT
AIR PUMP
Usage
Anti-Lock Brake System
Daytime Running Lamp Module,
Headlamp Switch, Cooling Fan
Relay, Exhaust, Gas Recirculation,
EVAP Canister Purge Solenoid
Headlamp Door Module
Headlamp
Door Module
Brake Pressure Valve
Electronic Brake Control Module
Air Pump (VS) Relay, Pump,
Bleed Valve and Cooling Fan
6-70

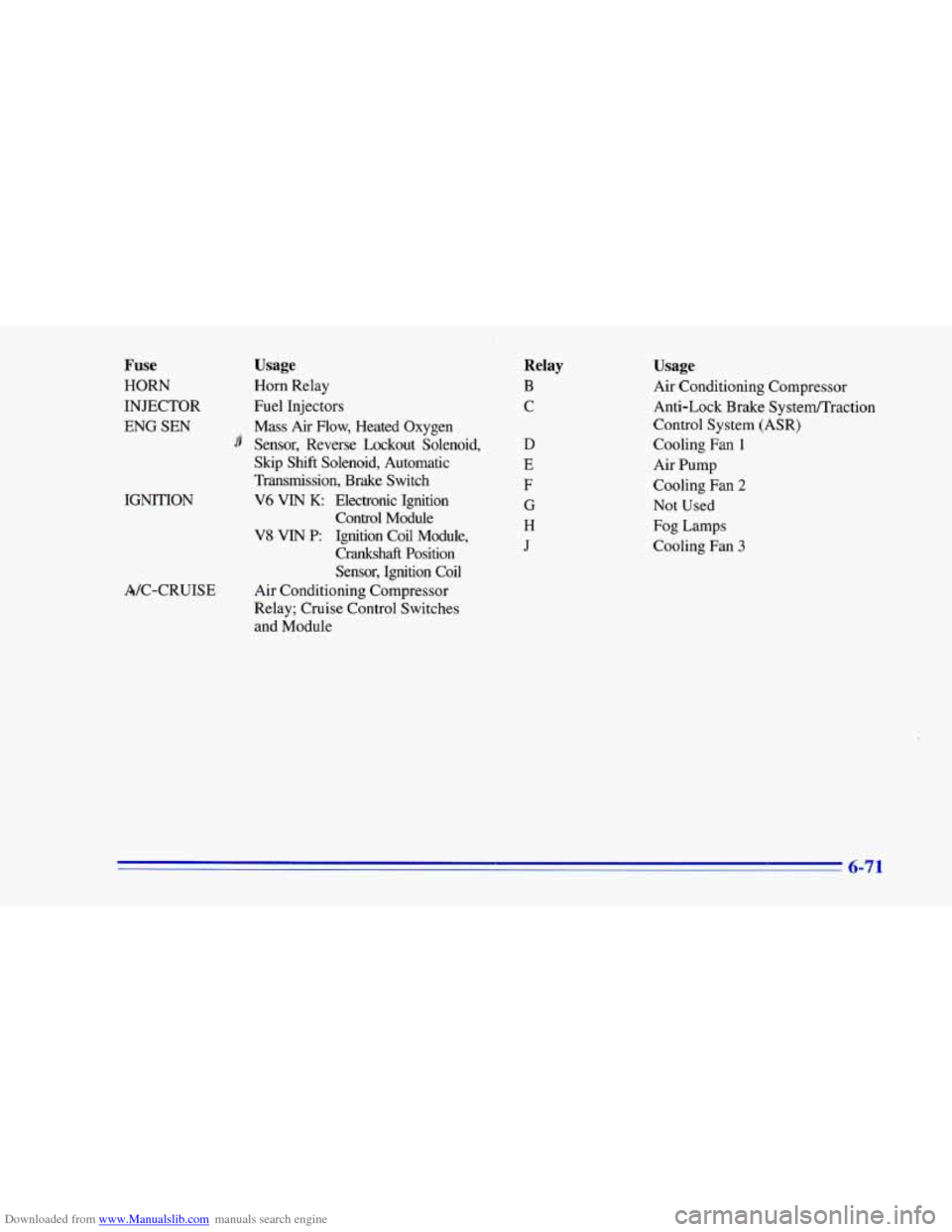

Downloaded from www.Manualslib.com manuals search engine Fuse
HORN INJECTOR
ENG SEN
IGNITION
A/C-CRUISE
Usage
Horn Relay
Fuel Injectors
~ Mass Air Flow, Heated Oxygen
fl Sensor, Reverse Lockout Solenoid.
Skip Shift Solenoid, Automatic
Transmission, Brake Switch
V6 VIN K: Electronic Ignition Control Module
V8 VIN P: Ignition Coil Module,
Crankshaft Position
Sensor, Ignition Coil
Air Conditioning Compressor
Relay; Cruise Control Switches
and Module
Relay
B
C
D
E
F
G
H
J
Usage
Air Conditioning Compressor
Anti-Lock Brake SystedTraction
Control System (ASR)
Cooling Fan
1
Air Pump
Cooling Fan
2
Not Used
Fog Lamps
Cooling Fan
3
6-71

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Ashtray" ................................ 194
Automatic Transmission Indicator
............. 73
Back-up ............................... 1141
Center High-Mounted Stoplamp
............. 92 1
Cluster ................................. 161
Console
................................ 194
Dome
................................ 906
Door Courtesy
............................ 74
Fog
.................................... 885
Front Parking and Turn Signal .............. 3057
GloveBox
.............................. 194
Headlamp (Low-Beam) ................. H-435 1
Headlamp (High-Beam) ................ H-4352
Heater and A/C Control
..................... 37 High-Beam Indicator
.................... 161
Indicator Lights
.......................... 161
Interior Door Handle
....................... 74
License
................................. 194
Reading
............................... 212-2
Rear
Courtesy ............................ 562
Sidemarker
............................ 194
Tail Only
............................... 194
TaiVStoplTurn
.......................... 2057
Trunk
.................................. 562
Turn Signal Indicators
..................... 161
*Manual transmission only
.
6-72

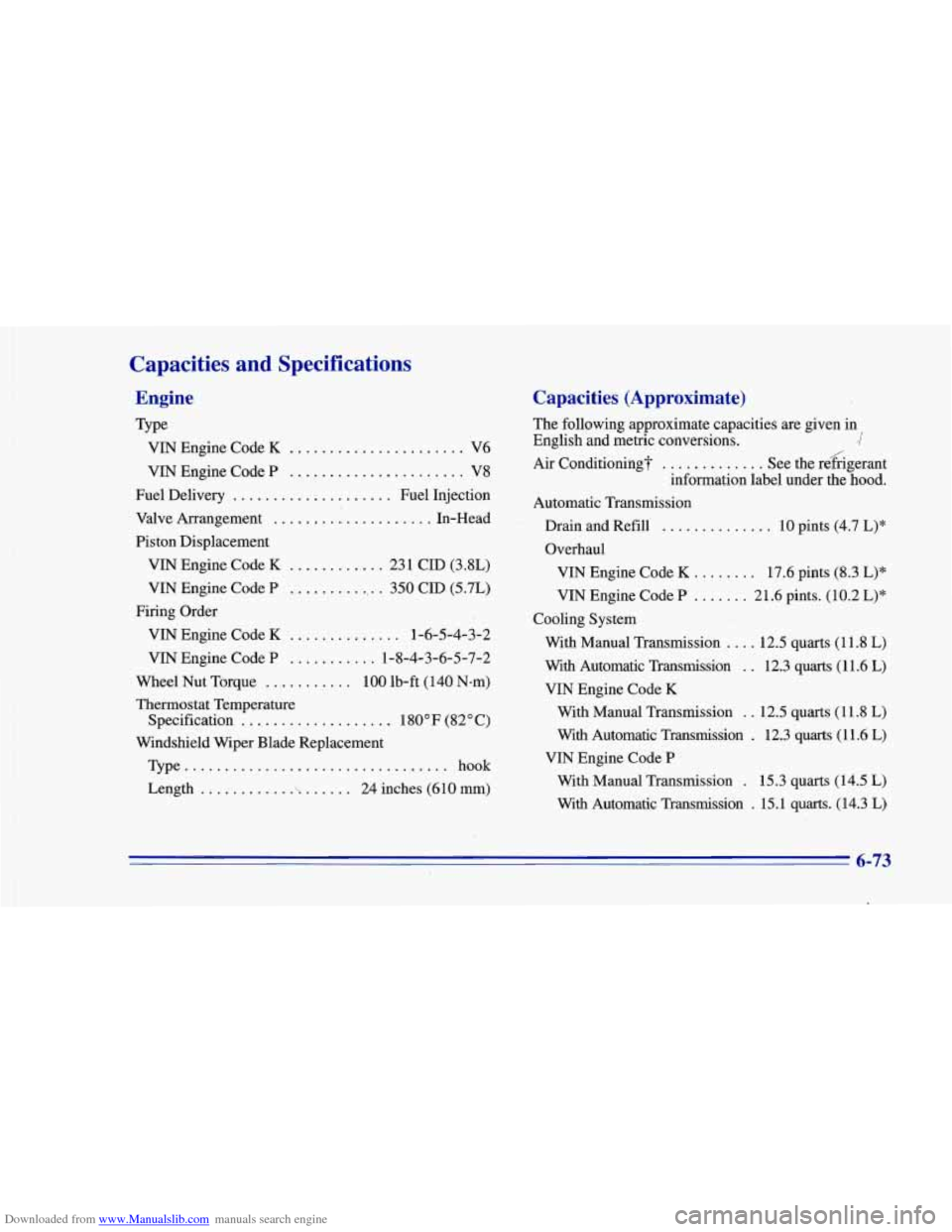

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Engine
Type VIN Engine Code
K ...................... V6
VIN Engine Code P ...................... V8
Fuel Delivery
.................... Fuel Injection
Valve Arrangement
.................... In-Head
Piston Displacement
VIN Engine Code
K ............ 23 1 CID (3.8L)
VIN Engine Code
P ......... .I - - 350 CID (5.7L)
Firing Order VIN Engine Code
K ............ 1-6-5-4-3-2
VIN Engine Code
P ......... 1-8-4-3-6-5-7-2
Wheel Nut Torque
........... 100 lb-ft (140 N-m)
Thermostat Temperature Specification
.................... 1 80" F (82 O C)
Windshield Wiper Blade Replacement
Type
................................. hook
Length
..................... 24 inches (610 mm)
Capacities (Approximate)
The following approximate capacities are given in
English and metric conversions.
li
Air Conditioning? ............. See the refngerant /.
information label under the hood.
Automatic Transmission
Drain and Refill
.............. 10 pints (4.7 L)*
Overhaul VIN Engine Code
K ........ 17.6 pints (8.3 L)*
VIN Engine Code
P ....... 2 1.6 pints. ( 10.2 L)*
Cooling System
With Manual Transmission
.... 12.5 quarts (11.8 L)
With Automatic Transmission . . 12.3 quarts (11.6 L)
VIN Engine Code
K
With Manual Transmission . . 12.5 quarts (1 1.8 L)
With Automatic Transmission . 12.3 quarts (1 1.6 L)
VIN Engine Code P
With Manual Transmission
. 15.3 quarts (14.5 L)
With Automatic Transmission . 15.1 quarts. (14.3 L)
6-73

Downloaded from www.Manualslib.com manuals search engine Capacities (Approximate)
Crankcase .................. 4.5 quarts (4.3 L)**
Fuel Tank
.................. 15.5 gallons (58.7 L)
Manual Transmission
Five-Speed
................. 5.9 pints (2.8 L)*
Six-Speed .................. 8.0 pints (3.8 L)*
Rear Axle Lubricant .............. 3.5 pints (1.7L)
?Not all air conditioning refrigerants are the same. If the
air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If
you’re not sure, ask your Chevrolet dealer.
Vehicle Dimensions
Length 193.2 inches (4 908 mm)
Width
74.1 inches (1 883 mm)
Height 5 1.3 inches (1 303 mm)
Wheelbase
101.1 inches (2 566 mm)
Front Tread 60.7 inches (1 542 m: ‘
Rear Tread 60.6 inches (1 540 mm)
*Recheck fluid level after filling. See “Automatic
Transmission Fluid” or “Manual Transmission Fluid” in
the Index.
**Recheck the oil level after filling.
See “Engine Oil” in
the Index.
6-74

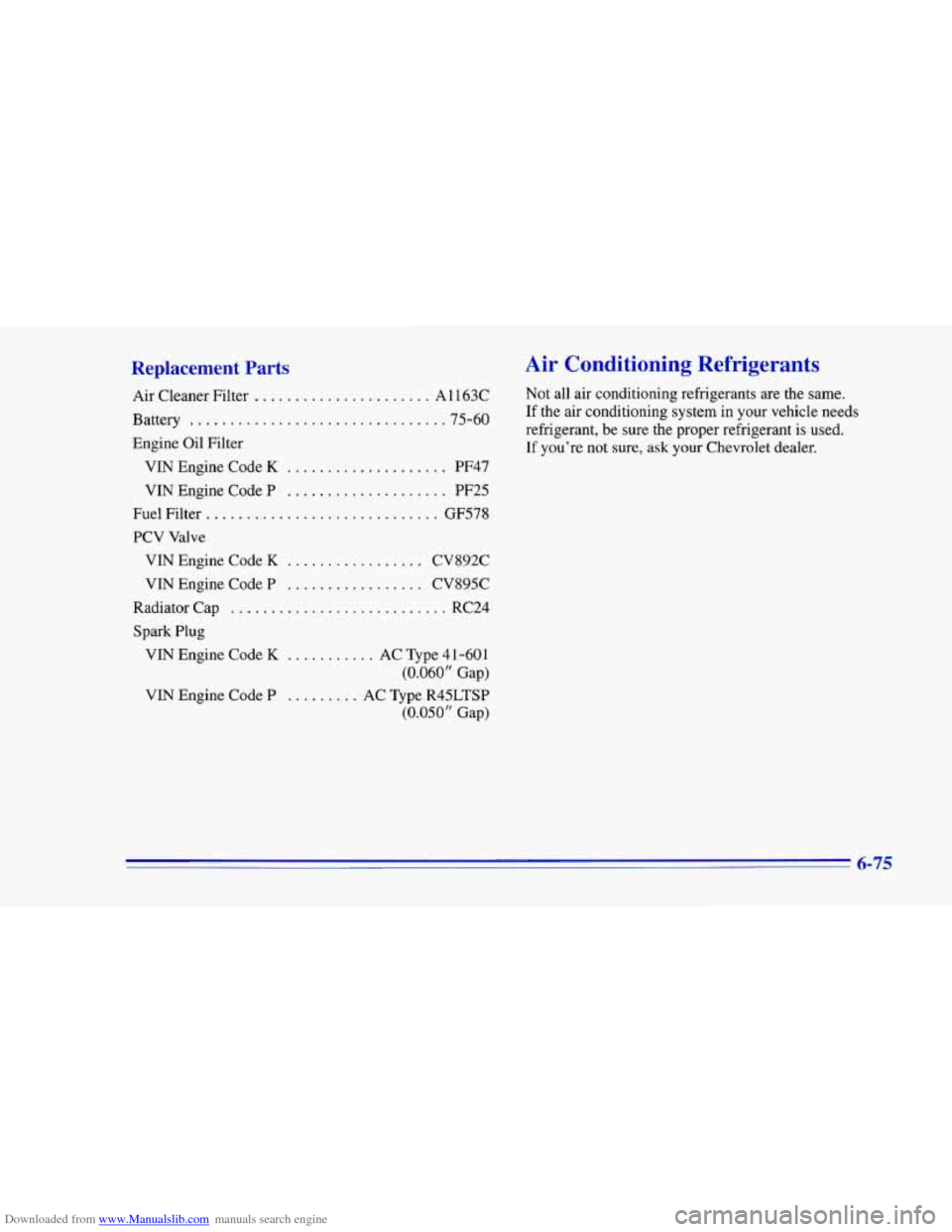

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Air Cleaner Filter ...................... A1 163C
Battery
............................... .75-60
Engine Oil Filter
VIN Engine Code
K ........... ... PF47
VIN Engine Code
P ................ PF25
Fuel Filter
............................. GF578
PCV Valve VIN Engine Code
K ................. CV892C
VIN Engine Code
P .... ......... CV895C
Radiator Cap
........................... RC24
Spark Plug VIN Engine Code
K ........... AC Type 4 1-60 1
(0.060” Gap)
VIN Engine Code P
......... AC Type R45LTSP
(0.050” Gap)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask your Chevrolet dealer.
6-75

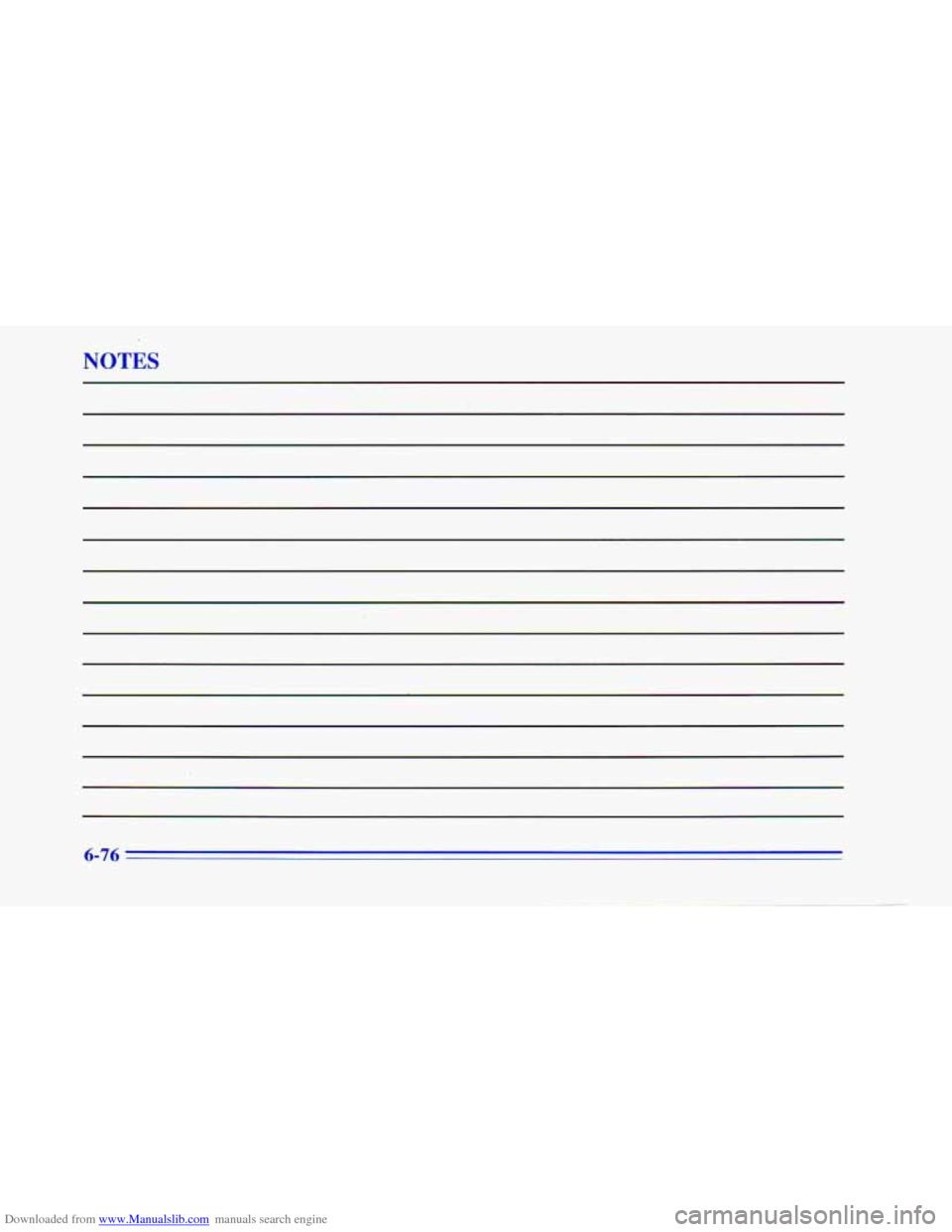

Downloaded from www.Manualslib.com manuals search engine NOTES
6-76

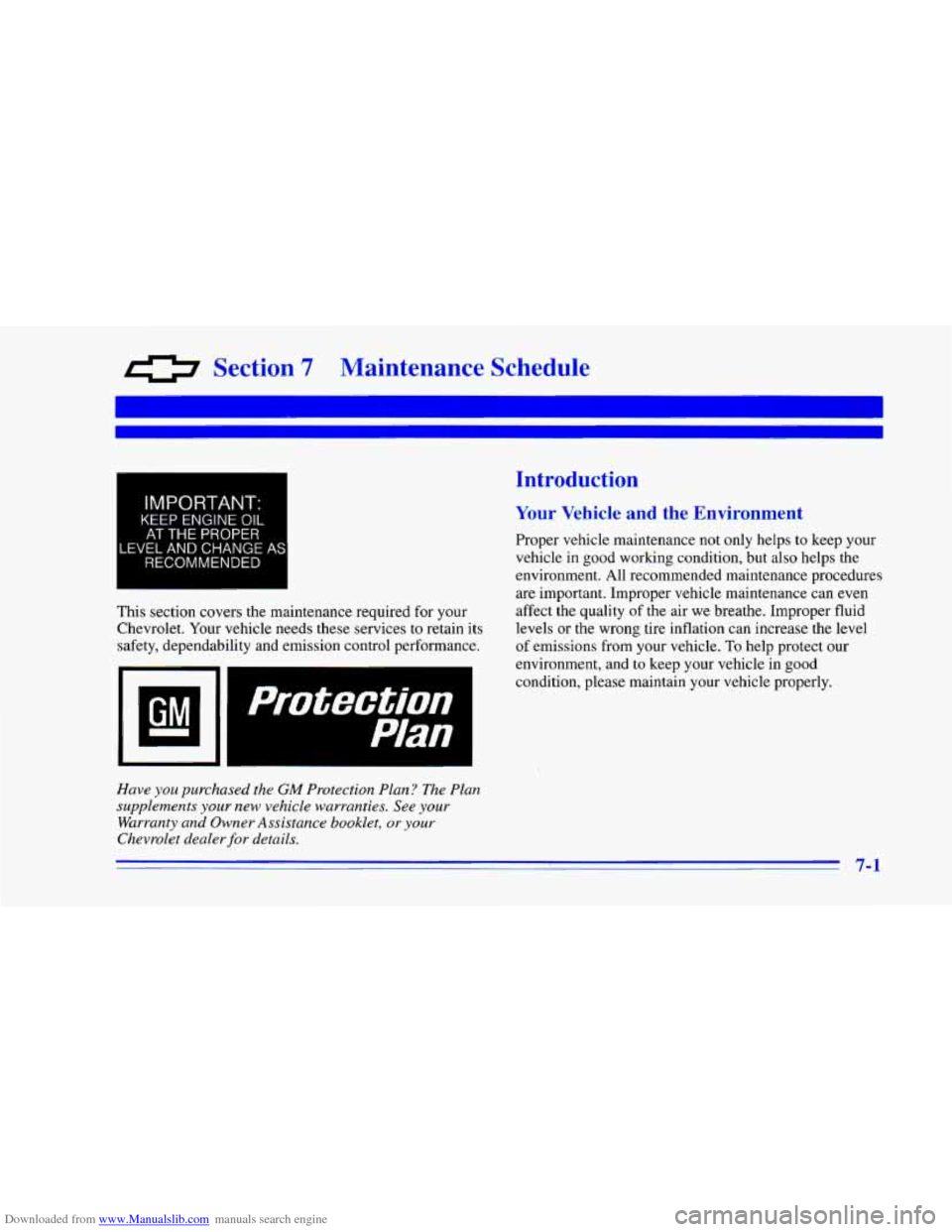

Downloaded from www.Manualslib.com manuals search engine 0 Section 7 Maintenance Schedule
IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
.EVEL AND CHANGE AS
RECOMMENDED
I
This section covers the maintenance required for your
Chevrolet. Your vehicle needs these services
to retain its
safety, dependability and emission control performance.
Protection I
Have you purchased the GM Protection Plan? The Plan.
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or
your
Chevrolet dealer for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality
of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle.
To help protect our
environment, and
to keep your vehicle in good
condition, please maintain your vehicle properly.
7-1

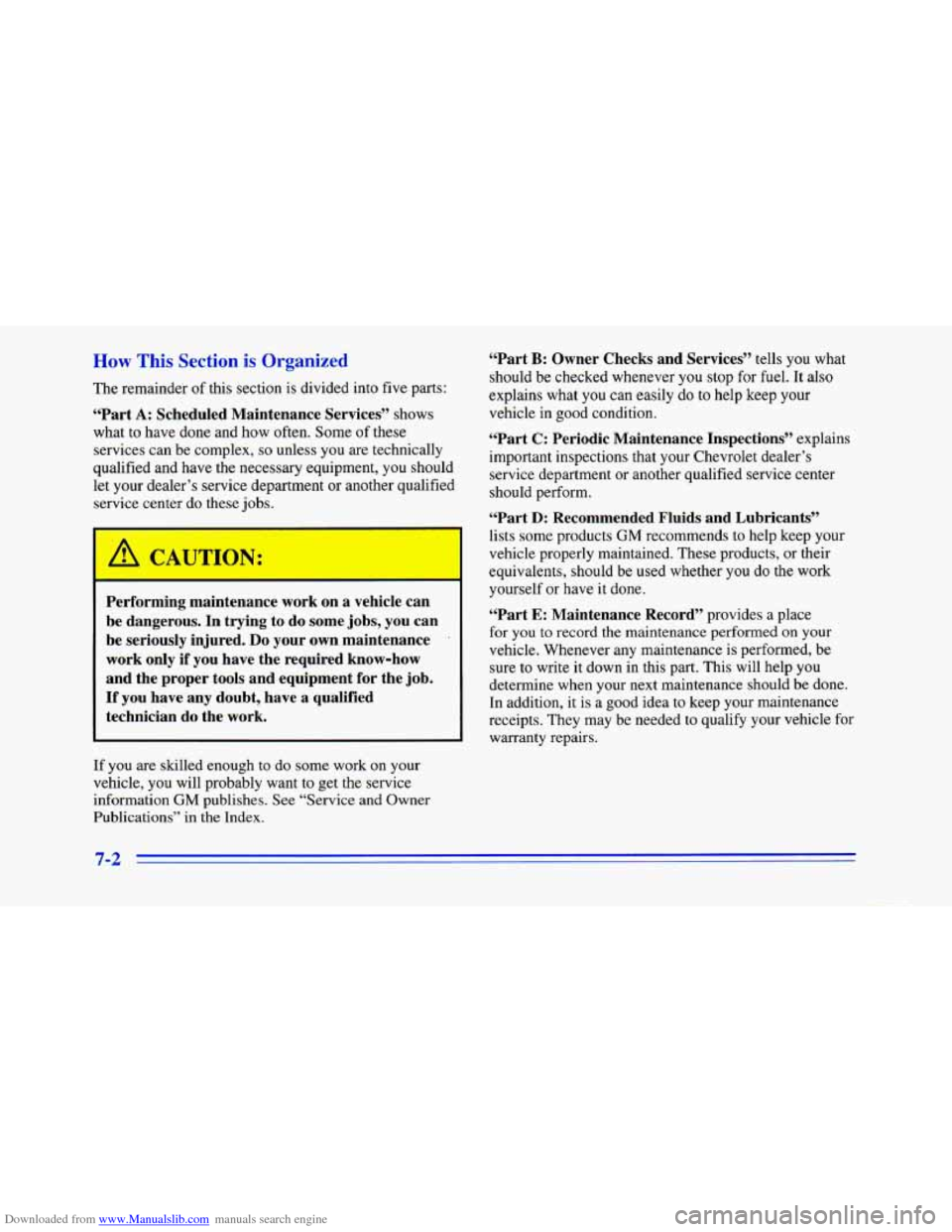

Downloaded from www.Manualslib.com manuals search engine How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what to have done and how often. Some
of these
services can be ,complex,
so unless you are technically
qualified and have the necessary equipment, you should
let your dealer’s service department or another qualified
service center do these jobs.
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you can
be seriously injured.
Do your own maintenance
work only
if you have the required know-how
and the proper tools and equipment for the job.
If you have any doubt, have a qualified
technician do the work. “Part
B: Owner Checks
and Services” tells you what
should be checked whenever
you stop for fuel. It also
explains what you can easily
do to help keep your
vehicle in good condition.
&‘Part C: Periodic Maintenance Inspections” explains
important inspections that your Chevrolet dealer’s
service department or another qualified service center
should perform.
(‘Part D: Recommended Fluids and Lubricants”
lists some products GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have it done.
“Part E: Maintenance Record” provides a place
for
you to record the maintenance performed on your
vehicle. Whenever any maintenance
is performed, be
sure to write it down in this part. This will help
you
determine when your next maintenance should be done.
In addition, it is
a good idea to keep your maintenance
receipts. They may be needed
to qualify your vehicle for
I I warranty repairs.
If you are skilled enough to do some work on your
vehicle, you will probably want
to get the service
information
GM publishes. See “Service and Owner
Publications”
in the Index.
7-2

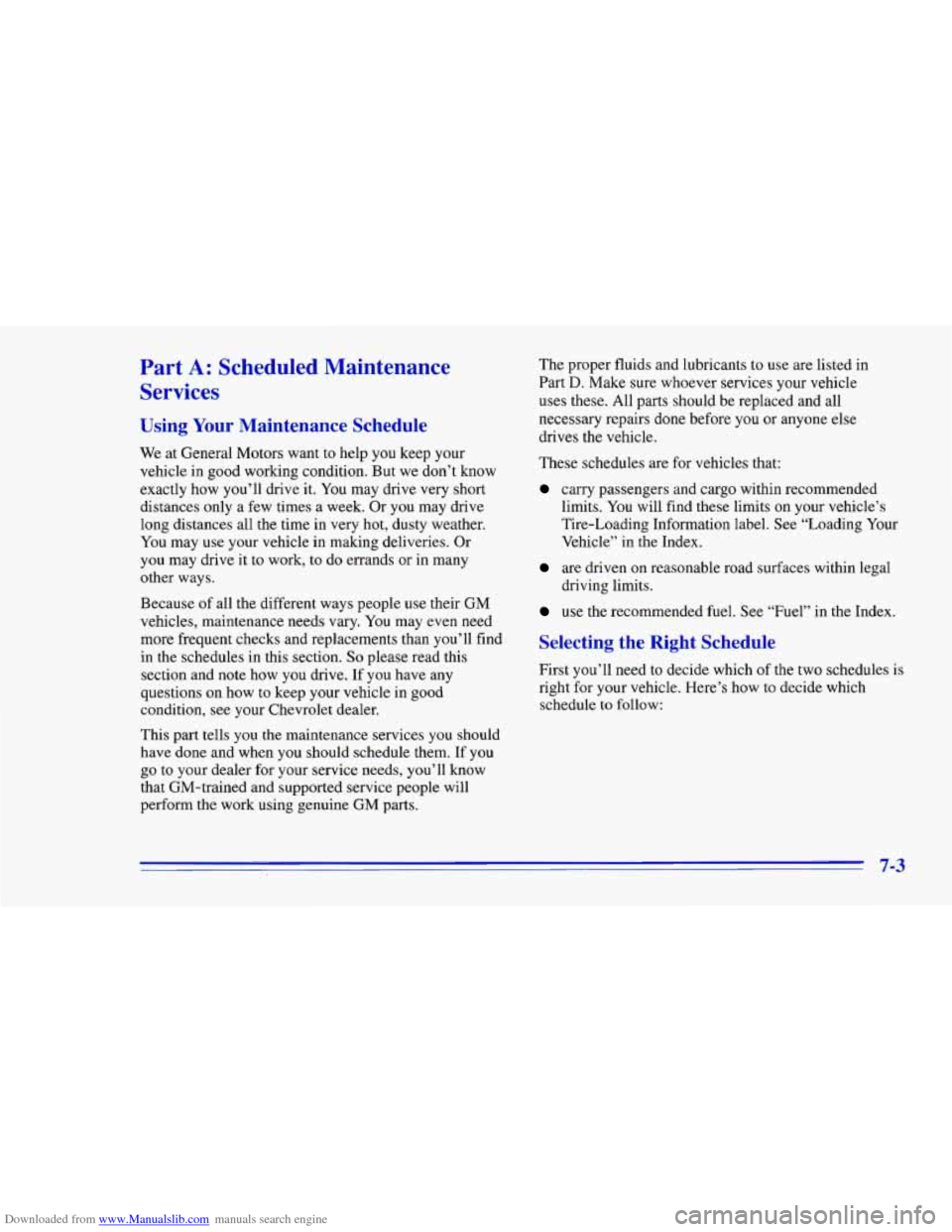

Downloaded from www.Manualslib.com manuals search engine Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t know
exactly how you’ll drive
it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or
you may drive it
to work, to do errands or in many
other ways.
Because of all the different ways people use their
GM
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you’ll find
in the schedules in this section.
So please read this
section and note how you drive. If you have any
questions on how to keep your vehicle in good
condition,
see your Chevrolet dealer.
This part tells you the maintenance services you should
have done and when you should schedule them. If you
go
to your dealer for your service needs, you’ll know
that GM-trained and supported service people will
perform
the work using genuine GM parts. The
proper fluids and lubricants to use are listed in
Part
D. Make sure whoever services your vehicle
uses these. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle.
These schedules are for vehicles that:
carry passengers and cargo within recommended
limits. You will find these limits on
your vehicle’s
Tire-Loading Information label. See “Loading Your
Vehicle” in the Index.
are driven on reasonable road surfaces within legal
use the recommended fuel. See “Fuel” in the Index.
driving
limits.
Selecting the Right Schedule
First you’ll need to decide which of the two schedules is
right for your vehicle. Here’s how to decide which
schedule
to follow:
7-3
