CHEVROLET CAMARO 2019 Owner's Manual

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
330 Service and Maintenance

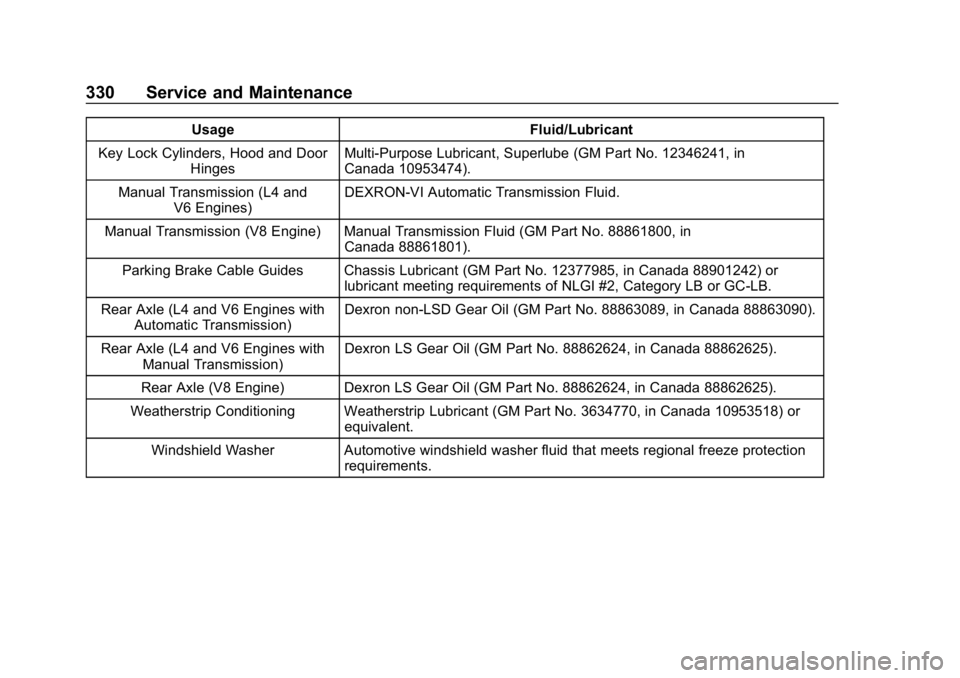

UsageFluid/Lubricant
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Manual Transmission (L4 and V6 Engines) DEXRON-VI Automatic Transmission Fluid.
Manual Transmission (V8 Engine) Manual Transmission Fluid (GM Part No. 88861800, in Canada 88861801).
Parking Brake Cable Guides Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Rear Axle (L4 and V6 Engines with Automatic Transmission) Dexron non-LSD Gear Oil (GM Part No. 88863089, in Canada 88863090).
Rear Axle (L4 and V6 Engines with Manual Transmission) Dexron LS Gear Oil (GM Part No. 88862624, in Canada 88862625).
Rear Axle (V8 Engine) Dexron LS Gear Oil (GM Part No. 88862624, in Canada 88862625).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or equivalent.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
Service and Maintenance 331

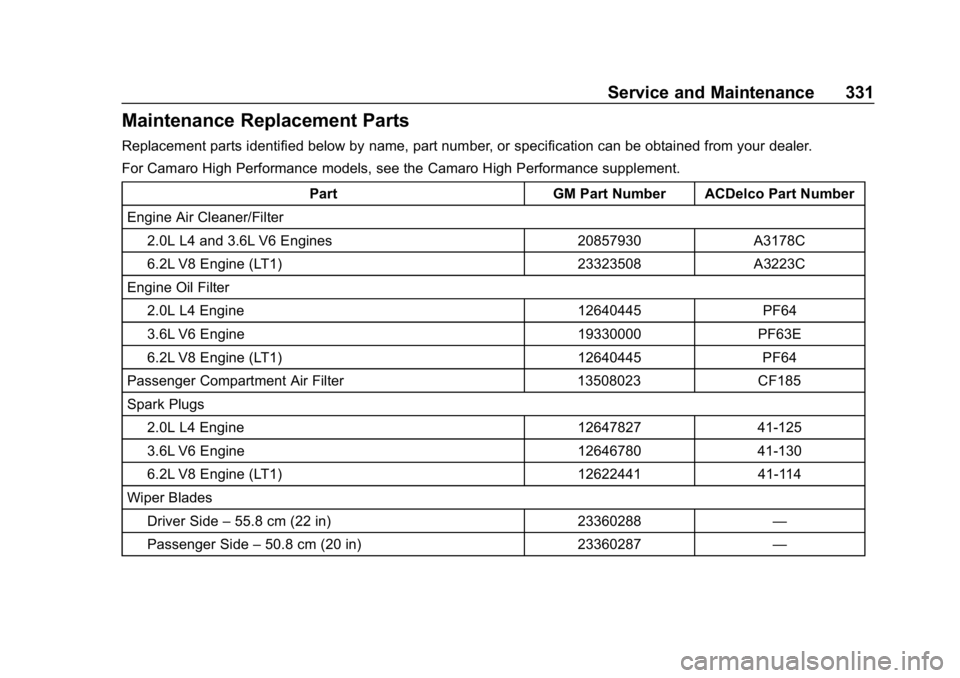

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
For Camaro High Performance models, see the Camaro High Performance supplement.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 2.0L L4 and 3.6L V6 Engines 20857930 A3178C
6.2L V8 Engine (LT1) 23323508 A3223C
Engine Oil Filter
2.0L L4 Engine 12640445 PF64
3.6L V6 Engine 19330000 PF63E
6.2L V8 Engine (LT1) 12640445 PF64
Passenger Compartment Air Filter 13508023 CF185
Spark Plugs
2.0L L4 Engine 12647827 41-125
3.6L V6 Engine 12646780 41-130
6.2L V8 Engine (LT1) 12622441 41-114
Wiper Blades Driver Side –55.8 cm (22 in) 23360288 —
Passenger Side –50.8 cm (20 in) 23360287 —

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
332 Service and Maintenance
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
Technical Data 333
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 333
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 333
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 334
Engine Drive Belt Routing . . . . 336
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement parts. See
“Engine Specifications”
under Capacities and Specifications
0 334 for the vehicle's engine code.
Service Parts
Identification Label
There may be a label on the inside
of the trunk that contains the
following information:
.
Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options and special
equipment
If there is no label, there is a
barcode on the certification label on
the center (B) pillar to scan for this
same information.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
334 Technical Data

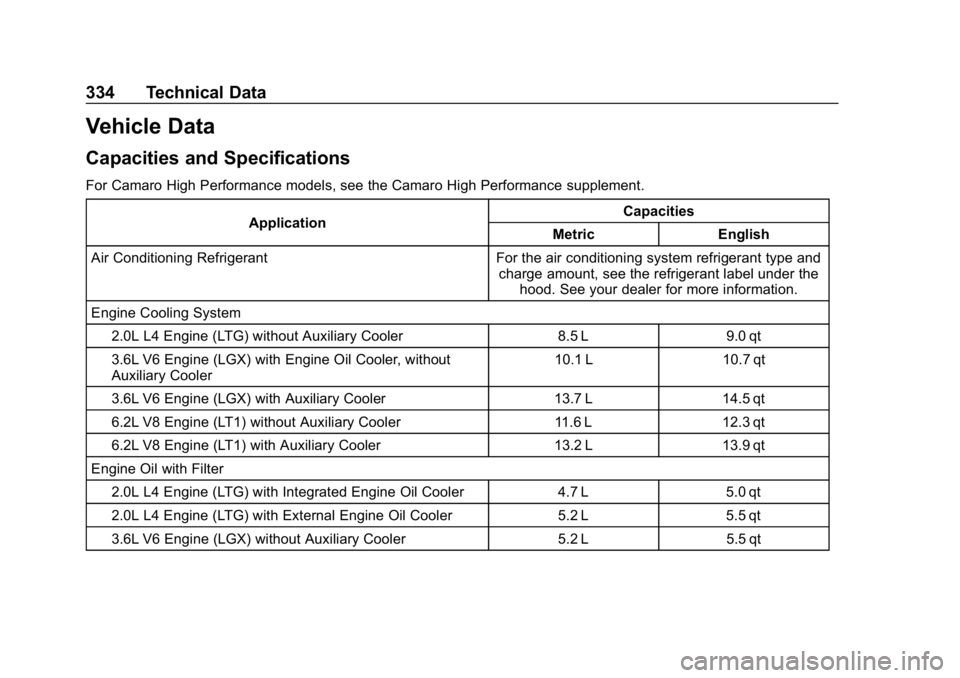

Vehicle Data
Capacities and Specifications
For Camaro High Performance models, see the Camaro High Performance supplement.Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System
2.0L L4 Engine (LTG) without Auxiliary Cooler 8.5 L 9.0 qt
3.6L V6 Engine (LGX) with Engine Oil Cooler, without
Auxiliary Cooler 10.1 L 10.7 qt
3.6L V6 Engine (LGX) with Auxiliary Cooler 13.7 L 14.5 qt
6.2L V8 Engine (LT1) without Auxiliary Cooler 11.6 L 12.3 qt
6.2L V8 Engine (LT1) with Auxiliary Cooler 13.2 L 13.9 qt
Engine Oil with Filter
2.0L L4 Engine (LTG) with Integrated Engine Oil Cooler 4.7 L 5.0 qt
2.0L L4 Engine (LTG) with External Engine Oil Cooler 5.2 L 5.5 qt
3.6L V6 Engine (LGX) without Auxiliary Cooler 5.2 L 5.5 qt

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
Technical Data 335

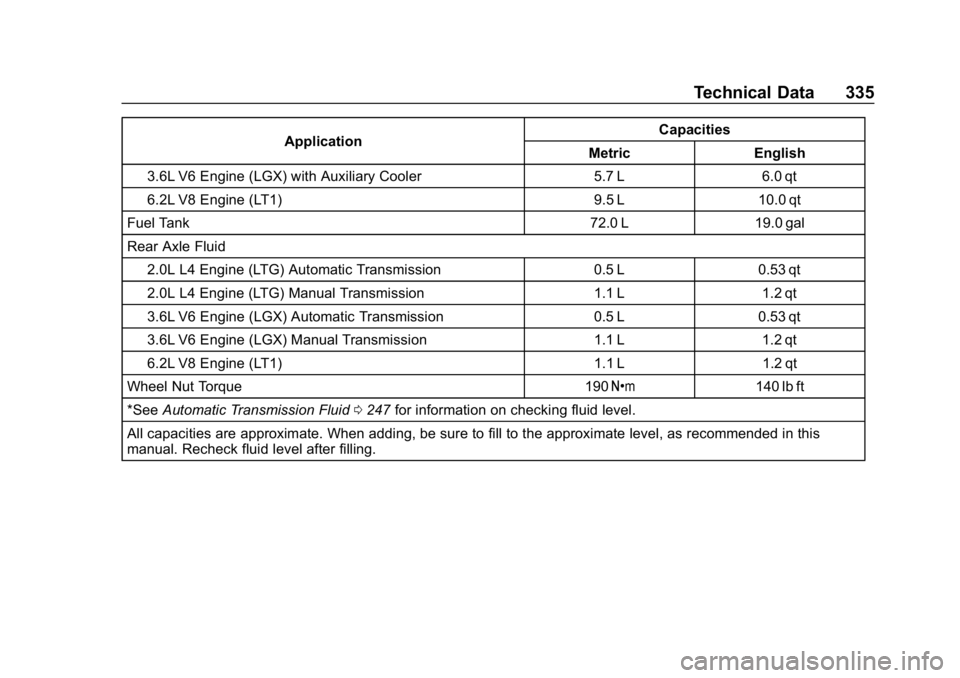

ApplicationCapacities
Metric English
3.6L V6 Engine (LGX) with Auxiliary Cooler 5.7 L 6.0 qt
6.2L V8 Engine (LT1) 9.5 L 10.0 qt
Fuel Tank 72.0 L 19.0 gal
Rear Axle Fluid 2.0L L4 Engine (LTG) Automatic Transmission 0.5 L 0.53 qt
2.0L L4 Engine (LTG) Manual Transmission 1.1 L 1.2 qt
3.6L V6 Engine (LGX) Automatic Transmission 0.5 L 0.53 qt
3.6L V6 Engine (LGX) Manual Transmission 1.1 L 1.2 qt
6.2L V8 Engine (LT1) 1.1 L 1.2 qt
Wheel Nut Torque 190 Y140 lb ft
*See Automatic Transmission Fluid 0247 for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
336 Technical Data

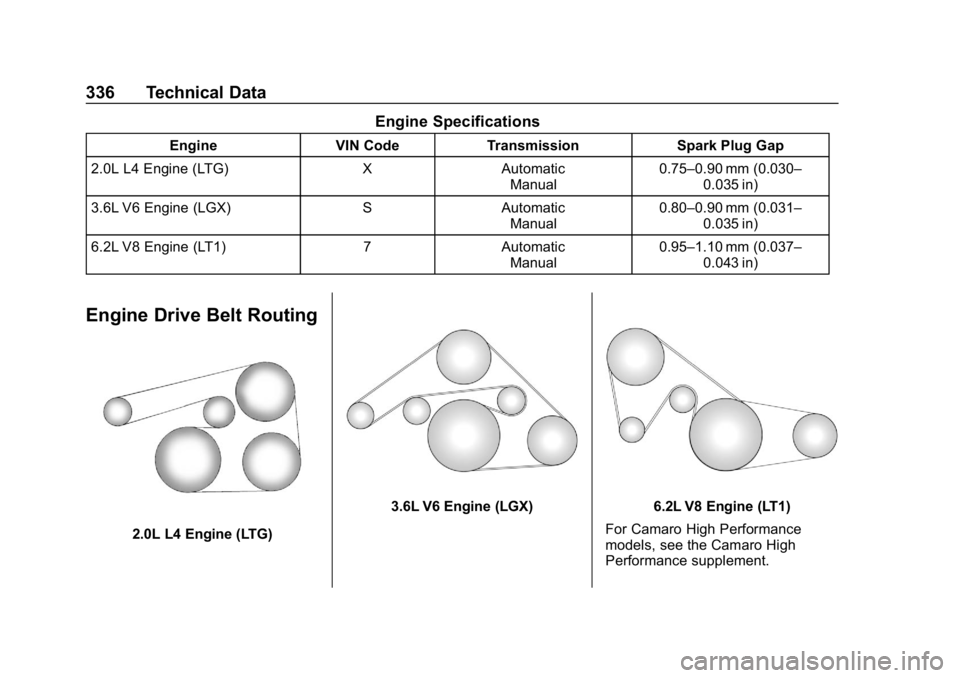

Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
2.0L L4 Engine (LTG) XAutomatic
Manual 0.75–0.90 mm (0.030–
0.035 in)
3.6L V6 Engine (LGX) SAutomatic
Manual 0.80–0.90 mm (0.031–
0.035 in)
6.2L V8 Engine (LT1) 7Automatic
Manual 0.95–1.10 mm (0.037–
0.043 in)
Engine Drive Belt Routing
2.0L L4 Engine (LTG)
3.6L V6 Engine (LGX)6.2L V8 Engine (LT1)
For Camaro High Performance
models, see the Camaro High
Performance supplement.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
Customer Information 337
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . . 337
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . . 339
Customer Assistance for Text Telephone (TTY) Users . . . . . 340
Online Owner Center . . . . . . . . . 340
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . 341
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . 341
Scheduling Service Appointments . . . . . . . . . . . . . . . 343
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . 343
Collision Damage Repair . . . . . 344
Publication Ordering Information . . . . . . . . . . . . . . . . . . 346
Radio Frequency Statement . . . . . . . . . . . . . . . . . . . 347
Reporting Safety Defects
Reporting Safety Defects tothe United States
Government . . . . . . . . . . . . . . . . . 348
Reporting Safety Defects to the Canadian
Government . . . . . . . . . . . . . . . . . 348
Reporting Safety Defects to General Motors . . . . . . . . . . . . . 348
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . . . 349
Event Data Recorders . . . . . . . . 349
OnStar . . . . . . . . . . . . . . . . . . . . . . . 350
Infotainment System . . . . . . . . . . 350
Customer Information
Customer Satisfaction
Procedure
Your satisfaction and goodwill are
important to your dealer and to
Chevrolet. Normally, any concerns
with the sales transaction or the
operation of the vehicle will be
resolved by your dealer's sales or
service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE : Discuss your concern
with a member of dealership
management. Normally, concerns
can be quickly resolved at that level.
If the matter has already been
reviewed with the sales, service,
or parts manager, contact the owner
of your dealership or the general
manager.
STEP TWO : If after contacting a
member of dealership management,
it appears your concern cannot be

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
338 Customer Information
resolved by your dealership without
further help, in the U.S., call the
Chevrolet Customer Assistance
Center at 1-800-222-1020. In
Canada, call General Motors of
Canada Customer Care Centre at
1-800-263-3777 (English),
or 1-800-263-7854 (French).
We encourage you to call the
toll-free number in order to give your
inquiry prompt attention. Have the
following information available to
give the Customer Assistance
representative:
.Vehicle Identification
Number (VIN). This is available
from the vehicle registration or
title, or the plate at the top left of
the instrument panel and visible
through the windshield.
. Dealership name and location.
. Vehicle delivery date and
present mileage.
When contacting Chevrolet,
remember that your concern will
likely be resolved at a dealer's
facility. That is why we suggest
following Step One first. STEP THREE
—U.S. Owners :
Both General Motors and your
dealer are committed to making
sure you are completely satisfied
with your new vehicle. However,
if you continue to remain unsatisfied
after following the procedure
outlined in Steps One and Two, you
can file with the Better Business
Bureau (BBB) Auto Line Program to
enforce your rights.
The BBB Auto Line Program is an
out-of-court program administered
by the Council of Better Business
Bureaus to settle automotive
disputes regarding vehicle repairs or
the interpretation of the New Vehicle
Limited Warranty. Although you may
be required to resort to this informal
dispute resolution program prior to
filing a court action, use of the
program is free of charge and your
case will generally be heard within
40 days. If you do not agree with the
decision given in your case, you
may reject it and proceed with any
other venue for relief available
to you. You may contact the BBB Auto Line
Program using the toll-free
telephone number or write them at
the following address:
BBB Auto Line Program
Council of Better Business Bureaus,
Inc.
3033 Wilson Boulevard
Suite 600
Arlington, VA 22201
Telephone: 1-800-955-5100
http://www.bbb.org/council/
programs-services/
dispute-handling-and-resolution/
bbb-auto-line
This program is available in all
50 states and the District of
Columbia. Eligibility is limited by
vehicle age, mileage, and other
factors. General Motors reserves
the right to change eligibility
limitations and/or discontinue its
participation in this program.
STEP THREE
—Canadian
Owners : In the event that you do
not feel your concerns have been
addressed after following the
procedure outlined in Steps One

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12461811) - 2019 - crc - 11/5/18
Customer Information 339
and Two, General Motors of Canada
Company wants you to be aware of
its participation in a no-charge
Mediation/Arbitration Program.
General Motors of Canada
Company has committed to binding
arbitration of owner disputes
involving factory-related vehicle
service claims. The program
provides for the review of the facts
involved by an impartial third party
arbiter, and may include an informal
hearing before the arbiter. The
program is designed so that the
entire dispute settlement process,
from the time you file your complaint
to the final decision, should be
completed in about 70 days. We
believe our impartial program offers
advantages over courts in most
jurisdictions because it is informal,
quick, and free of charge.For further information concerning
eligibility in the Canadian Motor
Vehicle Arbitration Plan (CAMVAP),
call toll-free 1-800-207-0685, or call
the General Motors Customer Care
Centre, 1-800-263-3777 (English),
1-800-263-7854 (French),
or write to:
The Mediation/Arbitration Program
c/o Customer Care Centre
General Motors of Canada
Company
Mail Code: CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Your inquiry should be accompanied
by the Vehicle Identification
Number (VIN).Customer Assistance
Offices
Chevrolet encourages customers to
call the toll-free number for
assistance. However, if a customer
wishes to write or e-mail Chevrolet,
the letter should be addressed to:
United States and Puerto Rico
Chevrolet Motor Division
Chevrolet Customer Assistance
Center
P.O. Box 33170
Detroit, MI 48232-5170
www.Chevrolet.com
1-800-222-1020
1-800-833-2438 (For Text
Telephone Devices (TTYs))
Roadside Assistance:
1-800-243-8872
From U.S. Virgin Islands:
1-800-496-9994
