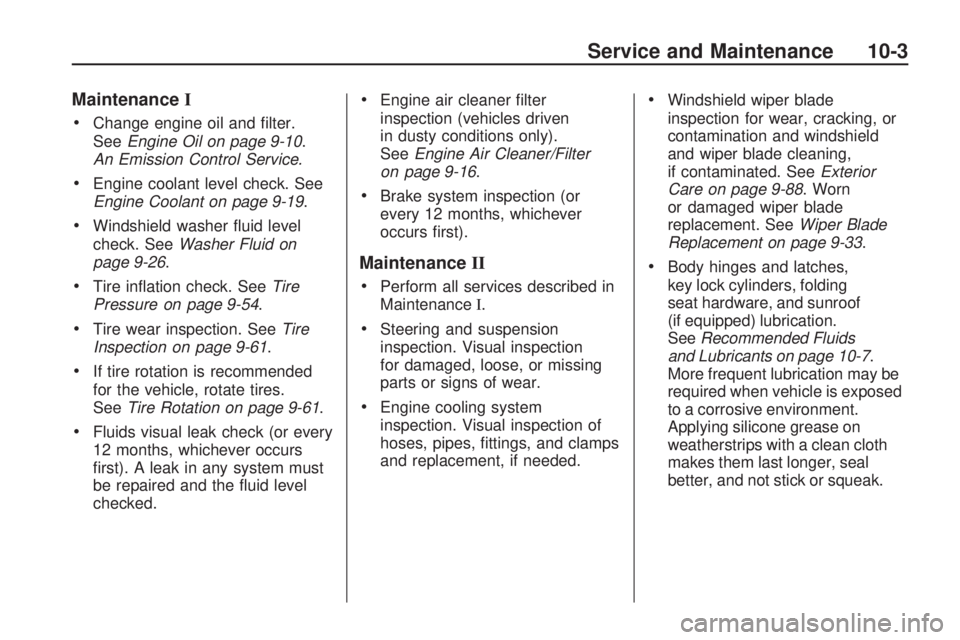

MaintenanceI
•
Change engine oil and filter.
SeeEngine Oil on page 9-10.
An Emission Control Service.
•Engine coolant level check. See
Engine Coolant on page 9-19.
•Windshield washer fluid level
check. SeeWasher Fluid on
page 9-26.
•Tire inflation check. SeeTire
Pressure on page 9-54.
•Tire wear inspection. SeeTire
Inspection on page 9-61.
•If tire rotation is recommended
for the vehicle, rotate tires.
SeeTire Rotation on page 9-61.
•Fluids visual leak check (or every
12 months, whichever occurs
first). A leak in any system must
be repaired and the fluid level
checked.
•Engine air cleaner filter
inspection (vehicles driven
in dusty conditions only).
SeeEngine Air Cleaner/Filter
on page 9-16.
•Brake system inspection (or
every 12 months, whichever
occurs first).
MaintenanceII
•
Perform all services described in
MaintenanceI.
•Steering and suspension
inspection. Visual inspection
for damaged, loose, or missing
parts or signs of wear.
•Engine cooling system
inspection. Visual inspection of
hoses, pipes, fittings, and clamps
and replacement, if needed.
•Windshield wiper blade
inspection for wear, cracking, or
contamination and windshield
and wiper blade cleaning,
if contaminated. SeeExterior
Care on page 9-88. Worn
or damaged wiper blade
replacement. SeeWiper Blade
Replacement on page 9-33.
•Body hinges and latches,
key lock cylinders, folding
seat hardware, and sunroof
(if equipped) lubrication.
SeeRecommended Fluids
and Lubricants on page 10-7.
More frequent lubrication may be
required when vehicle is exposed
to a corrosive environment.
Applying silicone grease on
weatherstrips with a clean cloth
makes them last longer, seal
better, and not stick or squeak.
Service and Maintenance 10-3

•Restraint system component
check. SeeSafety System Check
on page 2-20.
•Automatic transmission fluid level
check and adding fluid, if needed.
SeeAutomatic Transmission
Fluid on page 9-14.
•Rear axle fluid level check and
adding fluid, if needed. SeeRear
Axle on page 9-30.
•Engine air cleaner filter
inspection. SeeEngine Air
Cleaner/Filter on page 9-16.
•Passenger compartment air filter
replacement (or every 12 months,
whichever occurs first). More
frequent replacement may be
required if vehicle is driven
regularly under dusty conditions.
Additional Required Services
At Each Fuel Stop
•Engine oil level check.
SeeEngine Oil on page 9-10.
•Engine coolant level check.
SeeEngine Coolant on
page 9-19.
•Windshield washer fluid level
check. SeeWasher Fluid on
page 9-26.
Once a Month
•Tire inflation check. SeeTire
Pressure on page 9-54.
•Tire wear inspection. SeeTire
Inspection on page 9-61.Once a Year
•SeeStarter Switch Check on
page 9-31.
•SeeAutomatic Transmission
Shift Lock Control System
Check on page 9-32.
•SeeIgnition Transmission Lock
Check on page 9-32.
•SeePark Brake and P (Park)
Mechanism Check on page 9-32.
•Engine cooling system and
pressure cap pressure check.
Radiator and air conditioning
condenser outside cleaning.
SeeCooling System on
page 9-17.
•If the vehicle has a Tire Sealant
and Compressor Kit, check the
sealant expiration date printed
on the instruction label of the
kit. SeeTire Sealant and
Compressor Kit on page 9-71.
10-4 Service and Maintenance

First Engine Oil Change After
Every 40 000 km/25,000 Miles
•Fuel system inspection for
damage or leaks.
•Exhaust system inspection for
loose or damaged components.
First Engine Oil Change After
Every 80 000 km/50,000 Miles
•Engine air cleaner filter
replacement. SeeEngine Air
Cleaner/Filter on page 9-16.
•Automatic transmission fluid
change (severe service) for
vehicles mainly driven in heavy
city traffic in hot weather, in hilly
or mountainous terrain, when
frequently towing a trailer, or used
for taxi, police, or delivery service.
SeeAutomatic Transmission
Fluid on page 9-14.
•Rear axle fluid change (severe
service) for vehicles mainly driven
in hilly or mountainous terrain,
when frequently towing a
trailer, used for high speed or
competitive driving, or used for
taxi, police, or delivery service.
SeeRear Axle on page 9-30.
First Engine Oil Change After
Every 160 000 km/100,000 Miles
•Automatic transmission fluid
change (normal service).
SeeAutomatic Transmission
Fluid on page 9-14.
•Rear axle fluid change (normal
service). SeeRear Axle on
page 9-30.
•Spark plug replacement.
An Emission Control Service.First Engine Oil Change After
Every 240 000 km/150,000 Miles
•Engine cooling system drain,
flush, and refill, cooling system
and cap pressure check,
and cleaning of outside of
radiator and air conditioning
condenser (or every 5 years,
whichever occurs first). See
Cooling System on page 9-17.
An Emission Control Service.
•Engine accessory drive belt
inspection for fraying, excessive
cracks, or obvious damage
and replacement, if needed.
An Emission Control Service.
Service and Maintenance 10-5

ServiceMaintenanceIMaintenance II
Change engine oil and filter. Reset oil life system. ••
Engine coolant level check. ••
Windshield washer fluid level check. ••
Tire inflation pressures check. ••
Tire wear inspection. ••
If tire rotation is recommended for the vehicle, rotate tires. ••
Fluids visual leak check. ••
Engine air cleaner filter inspection (vehicles driven in dusty conditions only). ••
Brake system inspection. ••
Steering and suspension inspection. •
Engine cooling system inspection. •
Windshield wiper blades inspection. •
Body components lubrication. •
Restraint system components check. •
Automatic transmission fluid level check. •
Rear axle fluid level check. •
Engine air cleaner filter inspection (vehicles not driven in dusty conditions). •
Passenger compartment air filter replacement. •
10-6 Service and Maintenance

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Engine Oil (V6 Engine) Engine oil which meets GM Standard GM6094M and displays the
American Petroleum Institute Certified for Gasoline Engines starburst
symbol. To determine the proper viscosity for the vehicle’s engine, see
Engine Oil on page 9-10
.
Engine Oil (V8 Engines) The engine requires a special engine oil meeting GM Standard GM4718M.
Oils meeting this standard can be identified with the American Petroleum
Institute (API) Certified for Gasoline Engines starburst symbol. However,
not all synthetic API oils with the starburst symbol will meet this GM
standard. Look for and use only an oil that meets GM Standard GM4718M.
For the proper viscosity, see
Engine Oil on page 9-10.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®
Coolant. See
Engine Coolant on page 9-19 .
Hydraulic Brake System Hydraulic Brake Fluid (GM Part No. U.S. 88862806, in Canada 88862807).
Hydraulic Clutch System Hydraulic Brake Fluid (GM Part No. U.S. 88862806, in Canada 88862807). Windshield Washer Optikleen
®Washer Solvent.
Hydraulic Power Steering System DEXRON®-VI Automatic Transmission Fluid.
Parking Brake Cable Guides Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Manual Transmission (V6 Engine) SAE 75W-90 GL5 Gear Oil (GM Part No. U.S. 88862475,
in Canada 88862476).
Service and Maintenance 10-7

UsageFluid/Lubricant
Manual Transmission (V8 Engine) Manual Transmission Fluid (GM Part No. U.S. 88861800,
in Canada 88861801).
Rear Axle (V6 Engine with Automatic Transmission) Rear Differential Fluid 75W-90 to GM Specification 9986155.
GM Part No. U.S. 89021677, in Canada 89021678.
Rear Axle (V6 Engine with Manual Transmission) Rear Differential Fluid 75W-90 Limited Slip to GM Specification 9986226.
GM Part No. U.S. 89021677 and Friction Modifier 1052358,
in Canada 89021678 and Friction Modifier 992694.
Rear Axle (V8 Engine) Rear Differential Fluid 75W-90 Limited Slip to GM Specification 9986226.
GM Part No. U.S. 89021677 and Friction Modifier 1052358,
in Canada 89021678 and Friction Modifier 992694.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293,
in Canada 992723) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood, Door, and Folding Seat Hinges Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease (GM Part No. U.S. 12345579,
in Canada 992887).
10-8 Service and Maintenance

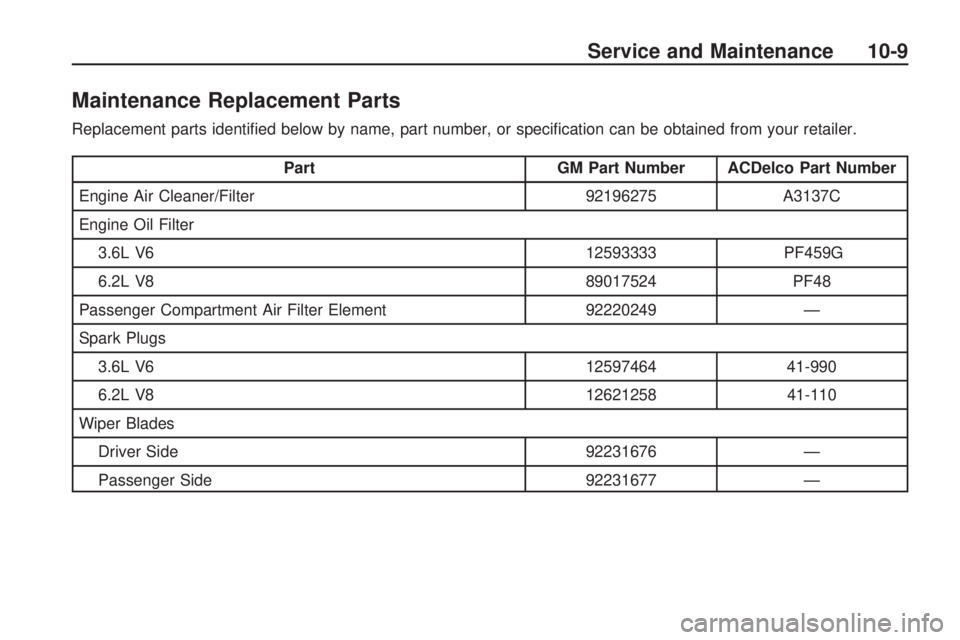

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your retailer.
PartGM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 92196275A3137C
Engine Oil Filter 3.6L V6 12593333PF459G
6.2L V8 89017524PF48
Passenger Compartment Air Filter Element 92220249—
Spark Plugs 3.6L V6 1259746441-990
6.2L V8 1262125841-110
Wiper Blades Driver Side 92231676—
Passenger Side 92231677—
Service and Maintenance 10-9

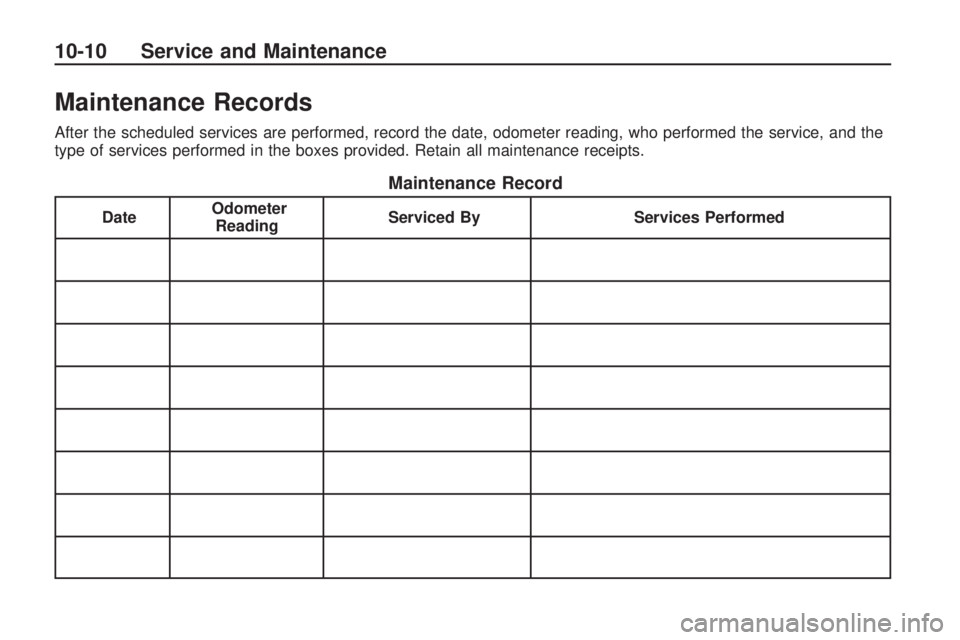

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By
Services Performed
10-10 Service and Maintenance

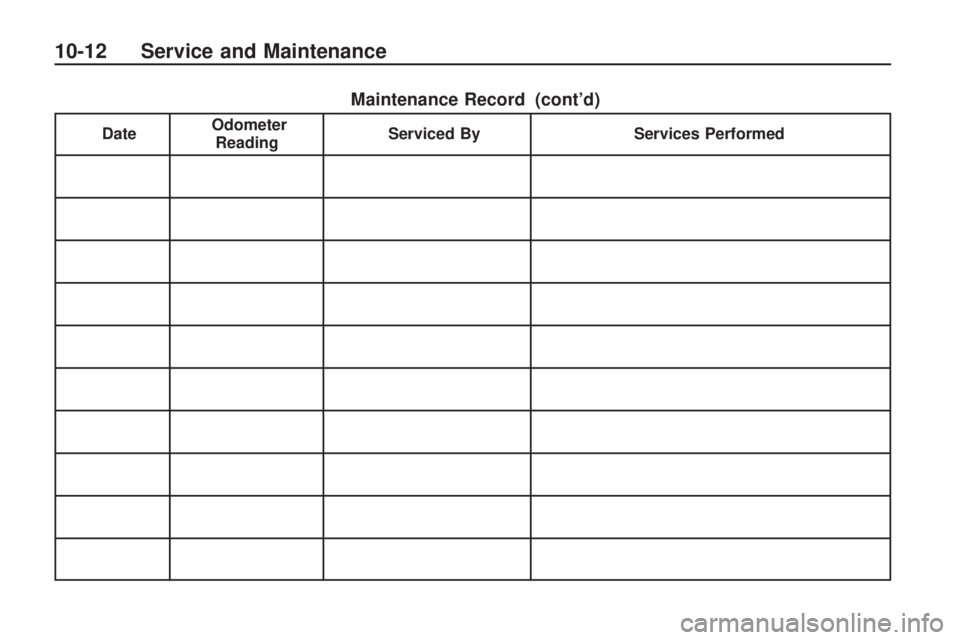

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By
Services Performed
Service and Maintenance 10-11

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By
Services Performed
10-12 Service and Maintenance
