CHEVROLET CAVALIER 1995 3.G Owners Manual

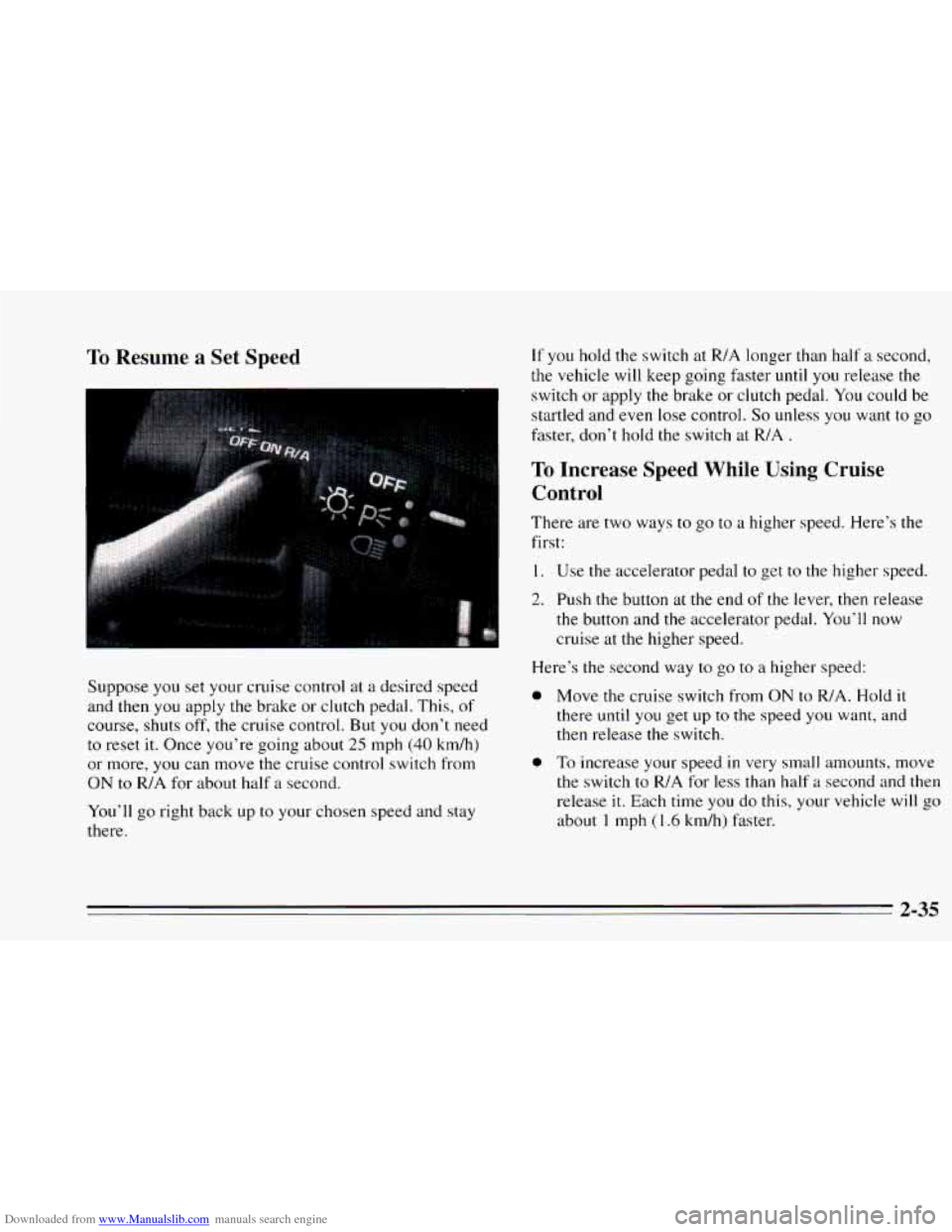

Downloaded from www.Manualslib.com manuals search engine To Resume a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake or clutch pedal. This, of
course, shuts off, the cruise control. But you don’t need
to reset
it. Once you’re going about 25 mph (40 kdh)
or more, you can move the cruise control switch from
ON to R/A for about half a second.
You’ll go right back
up to your chosen speed and stay
there.
If you hold the switch at R/A longer than half a second,
the vehicle will keep going faster until
you release the
switch or apply the brake or clutch pedal. You could be
startled and even lose control.
So unless you want to go
faster, don’t hold the switch at R/A .
To Increase Speed While Using Cruise
Control
There are two ways to go to a higher speed. Here’s the
first:
1. Use the accelerator pedal to get to the higher speed.
2. Push the button at the end of the lever, then release
the button and the accelerator pedal. You’ll now
cruise at the higher speed,
Here’s the second way to
go to a higher speed:
0
0
Move the cruise switch from ON to R/A. Hold it
there until you get up to the speed you want, and
then release the switch.
To increase your speed in very small amounts, move
the switch to
R/A for less than half a second and then
release
it. Each time you do this, your vehicle will go
about 1 mph (I .6 km/h) faster.
2-35

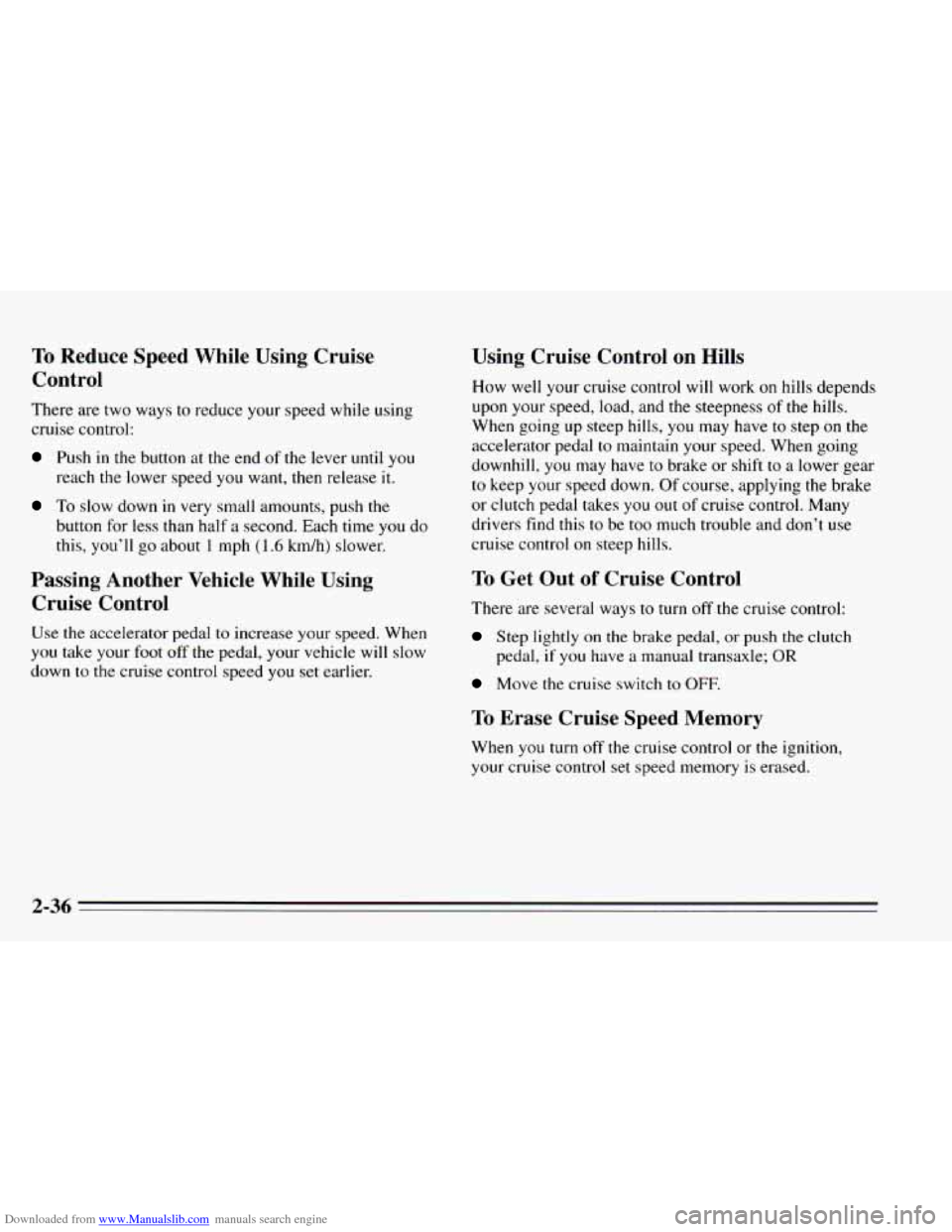

Downloaded from www.Manualslib.com manuals search engine To Reduce Speed While Using Cruise
Control
There are two ways to reduce your speed while using
cruise control:
Push in the button at the end of the lever until you
reach the lower speed
you want, then release it.
To slow down in very small amounts, push the
button for less than half a second. Each time you do
this, you’ll
go about 1 mph (1.6 kmh) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to
the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load, and
the steepness of the hills.
When going up steep hills,
you may have to step on the
accelerator pedal
to maintain your speed. When going
downhill, you may have to brake or shift to a lower gear
to keep your speed down. Of course, applying the brake
or clutch pedal takes
you out of cruise control. Many
drivers find this
to be too much trouble and don’t use
cruise control on steep hills.
To Get Out of Cruise Control
There are several ways to turn off the cruise control:
Step lightly on the brake pedal, or push the clutch
pedal, if you have
a manual transaxle; OR
Move the cruise switch to OFF.
To Erase Cruise Speed Memory
When you turn off the cruise control or the ignition,
your cruise control
set speed memory is erased.
2-36

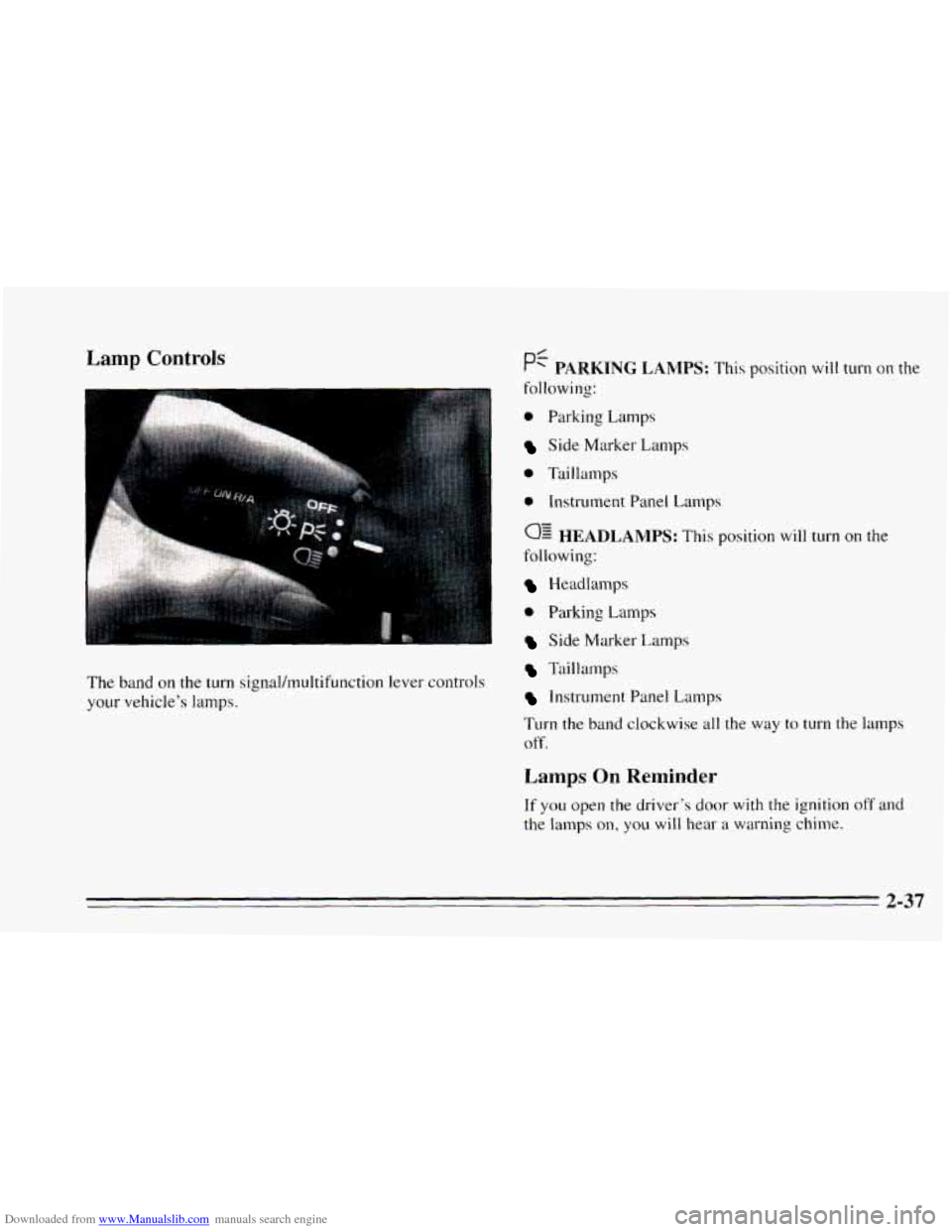

Downloaded from www.Manualslib.com manuals search engine Lamp Controls
I I
The band on the turn signal/multifunction lever controls
your vehicle’s lamps.
0 Parking Lamps
Side Marker Lamps
0 Taillamps
e Instrument Panel Lamps
0: HEADLAMPS: This position will turn on the
following:
Headlamps
0 Parking Lamps
Side Marker Lamps
Taillamps
Instrument Panel Lamps
Turn the
band clockwise all the way to turn the lamps
off.
Lamps On Reminder
If you open the driver’s door with the ignition off and
the lamps on, you will hear a warning chime.
2-37

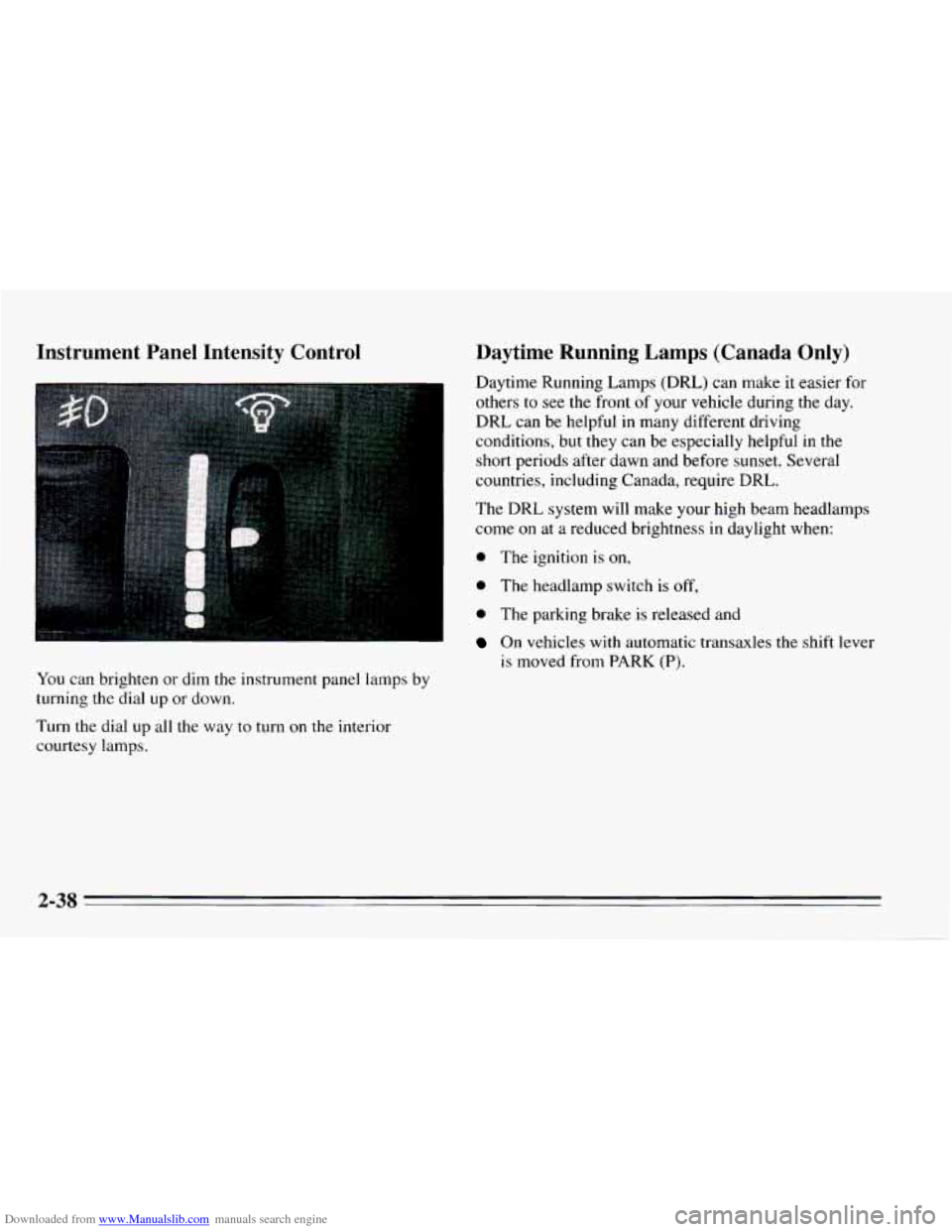

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Intensity Control Daynme Running Lamps (Canada Only)
You can brighten or dim the instrument panel lamps by
turning the dial up
or down.
Turn the dial up all the way
to turn on the interior
courtesy lamps. Daytime Running Lamps (DRL) can make
it easier for
others
to see the front of your vehicle during the day.
DRL can be helpful
in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset. Several
countries, including Canada, require DRL.
The DRL system will make your high beam headlamps
come
on at a reduced brightness in daylight when:
0 The ignition is on,
0 The headlamp switch is off,
0 The parking brake is released and
On vehicles with automatic transaxles the shift lever
is moved from PARK
(P).
2-38
~~ -.

Downloaded from www.Manualslib.com manuals search engine This indicator light on your
instrument panel comes
on
when DRL are on. When
you turn
off the headlamp switch, the regular
lamps will
go off, and your high beam headlamps will
come on
to the reduced brightness.
To idle your vehicle with the DRL off, set the parking
brake. The
DRL will stay off until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamps system when you need it.
When the
DRL are on, only your high beam headlamps
will be on at a reduced brightness. The taillamps,
sidemarker and other lamps won’t be
on. Your
instrument panel won’t be lit up either.
When
you turn on the headlamp switch, your high beam
headlamps will go out, and your headlamps will come
on. The other lamps that come
on with your headlamps
will also come
on.

Downloaded from www.Manualslib.com manuals search engine Fog Lamps (224 Model)
Use your fog lamps for better vision in foggy or misty
conditions.
The switch
for your fog lamps is next to the instrument
panel intensity control.
Push the top of the switch to turn the
fog lamps on. Push
the bottom of the switch
to turn the fog lamps off. When
using fog lamps, the parking lamps
or low beam
headlamps must be
on.
Fog lamps will go off whenever the high beam
headlamps come on. When the high beams go off, the
fog lamps
will come on again.
Front Reading Lamps (Models with Sunroof
or Convertible Top)
These lamps are located on the rearview mirror. Turn
each one on and off by pressing its switch.
2-40

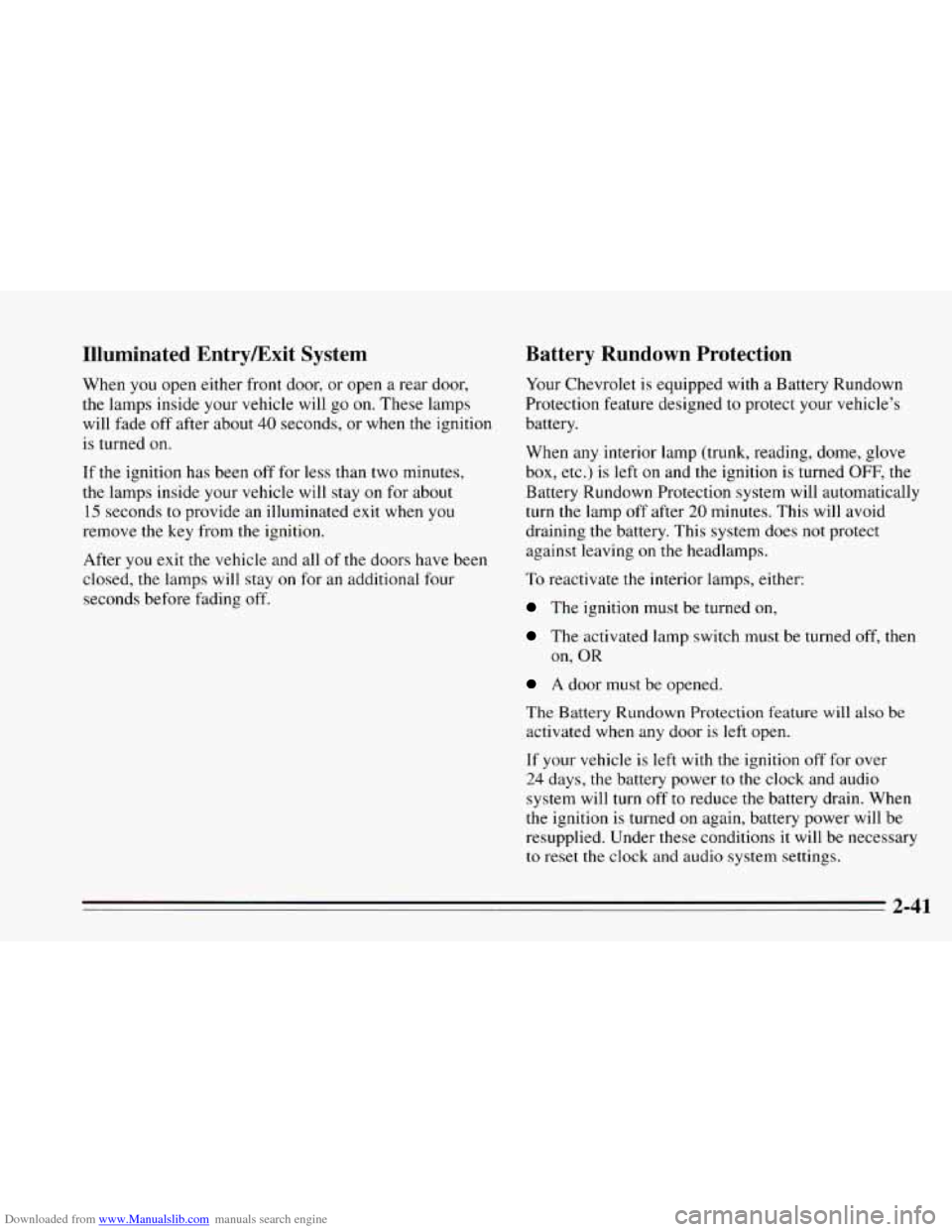

Downloaded from www.Manualslib.com manuals search engine Illuminated EntryLExit System
When you open either front door, or open a rear door,
the lamps inside your vehicle will go
on. These lamps
will fade off after about
40 seconds, or when the ignition
is turned on.
If the ignition has been off for less than two minutes,
the lamps inside your vehicle will stay on for about
15 seconds to provide an illuminated exit when you
remove the key from the ignition.
After you exit the vehicle and all of the doors have been
closed,
the lamps will stay on for an additional four
seconds before fading
off.
Battery Rundown Protection
Your Chevrolet is equipped with a Battery Rundown
Protection feature designed
to protect your vehicle’s
battery.
When any interior lamp (trunk, reading, dome, glove
box, etc.) is left
on and the ignition is turned OFF, the
Battery Rundown Protection system will automatically
turn the lamp
off after 20 minutes. This will avoid
draining the battery. This system does not protect
against leaving on the headlamps.
To reactivate the interior lamps, either:
The ignition must be turned on,
The activated lamp switch must be turned off, then
on, OR
A door must be opened.
The Battery
Rundown Protection feature will also be
activated when any door is
left open.
If your vehicle is left with the ignition off for over
24 days, the battery power to the clock and audio
system will turn off to reduce the battery drain. When
the ignition is turned on again, battery power will be
resupplied. Under these conditions it will be necessary
to reset the clock and audio system settings.
2-41

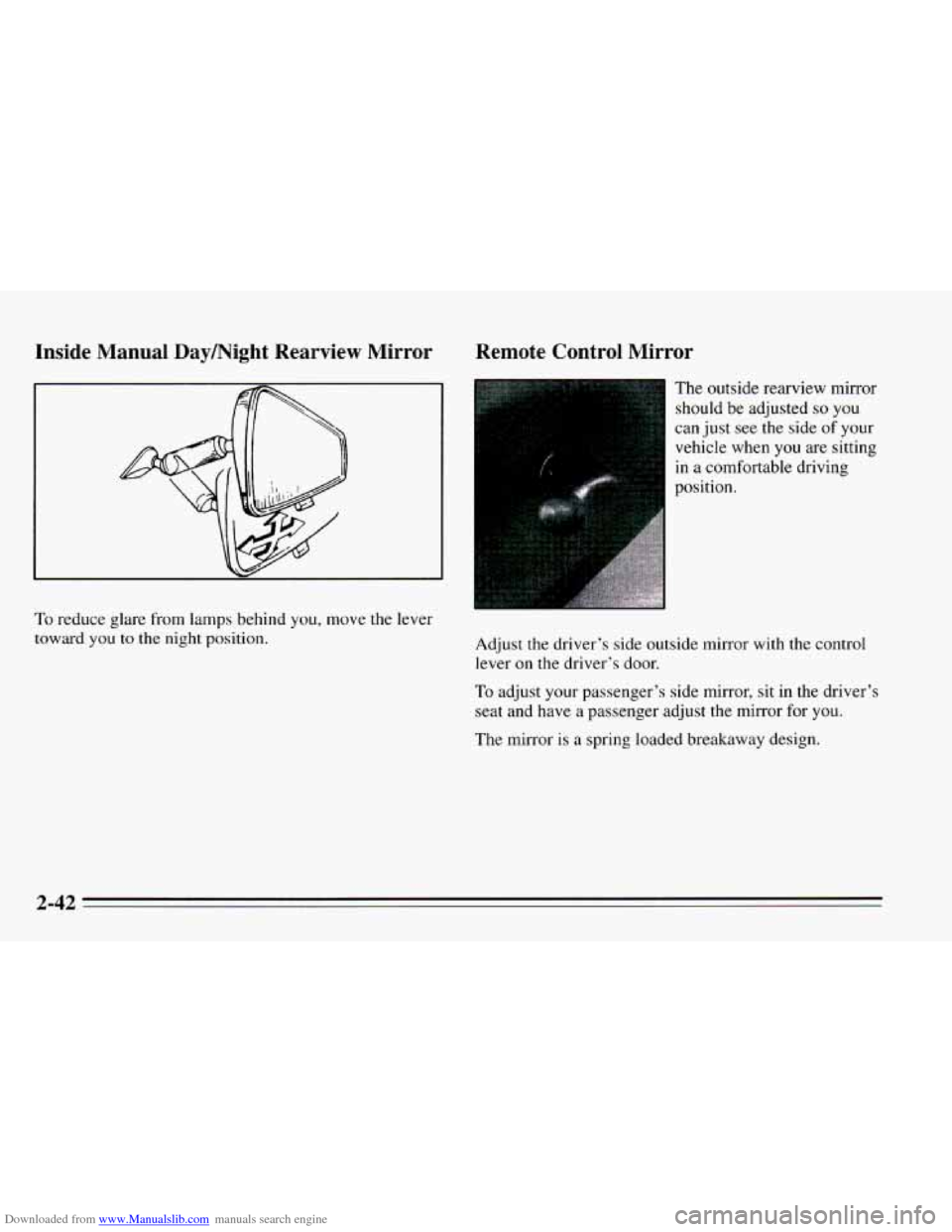

Downloaded from www.Manualslib.com manuals search engine Inside Manual Daymight Rearview Mirror
To reduce glare from lamps behind you, move the lever
toward you
to the night position.
Remote Control Mirror
The outside rearview mirror
should be adjusted
so you
can just see the side
of your
vehicle when
you are sitting
in a comfortable driving
position.
Adjust
the driver’s side outside mirror with the control
lever on
the driver’s door.
To adjust your passenger’s side mirror, sit in the driver’s
seat and have a passenger adjust the mirror for
you.
The mirror is a spring loaded breakaway design.
2-42

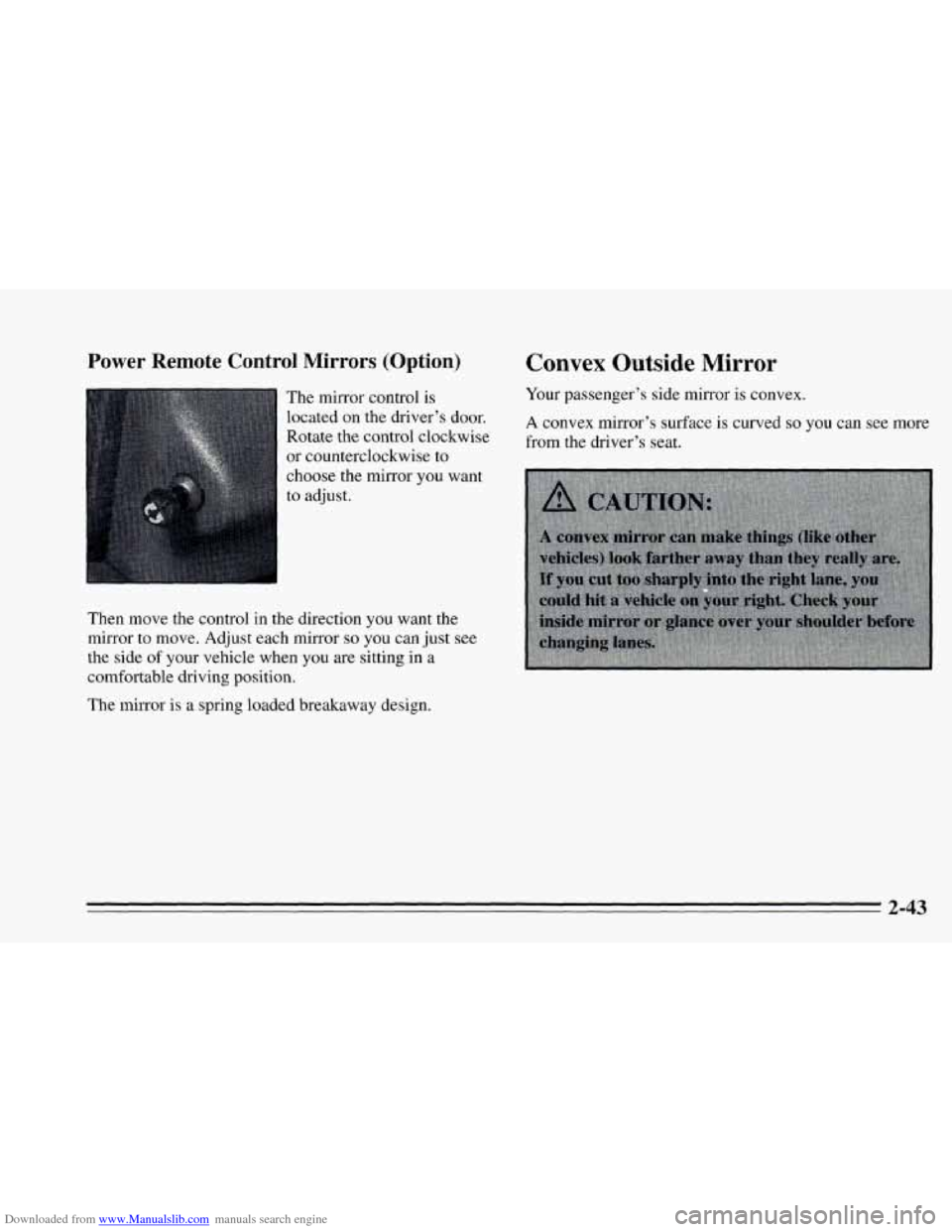

Downloaded from www.Manualslib.com manuals search engine Power Remote Control Mirrors (Option) Convex Outside Mirror
The mirror control is Your passenger’s side mirror is convex.
located
On the driver’s A convex mirror’s surface is curved so you can see more
or counterclockwise to
Rotate the control clockwise
from the driver’s seat.
Then move the control in the direction you want the
mirror to move. Adjust each mirror
so you can just see
the side
of your vehicle when you are sitting in a
comfortable driving position.
The mirror is a spring loaded breakaway design.
2-43

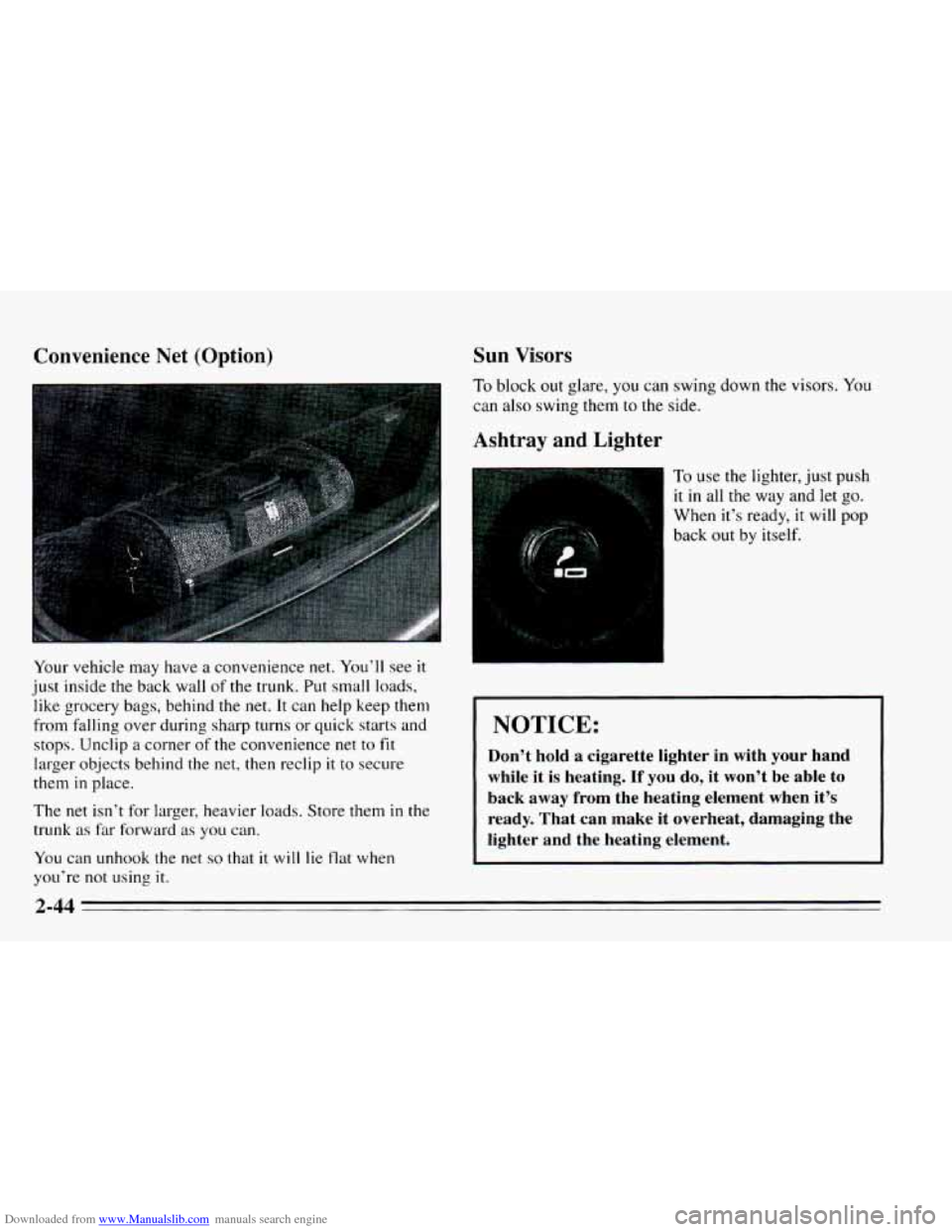

Downloaded from www.Manualslib.com manuals search engine Convenience Net (Option) Sun Visors
To block out glare, you can swing down the visors. You
can
also swing them to the side.
Your vehicle may have
a convenience net. You’ll see it
just inside the back wall of the trunk. Put small loads,
like grocery bags, behind the net. It can help keep them
from falling over during sharp turns or quick starts and
stops. Unclip
a corner of the convenience net to fit
larger objects behind the net, then reclip it to secure
them
in place.
The net isn’t for larger, heavier loads. Store them
in the
trunk as far forward as you can.
You can unhook the net.
so that it will lie tlat when
you’re not using
it.
Ashtray and Lighter
To use the lighter, just push
it in all the way and let go.
When it’s ready, it will pop
back out by itself.
’ NOTICE:
1 Don’t hold a cigarette lighter in with your hand
, while it is heating. If you do, it won’t be able to
~ back away from the heating element when it’s
1 ready. That can make it overheat, damaging the
, lighter and the heating element.
