CHEVROLET CAVALIER 1996 3.G Owner's Manual

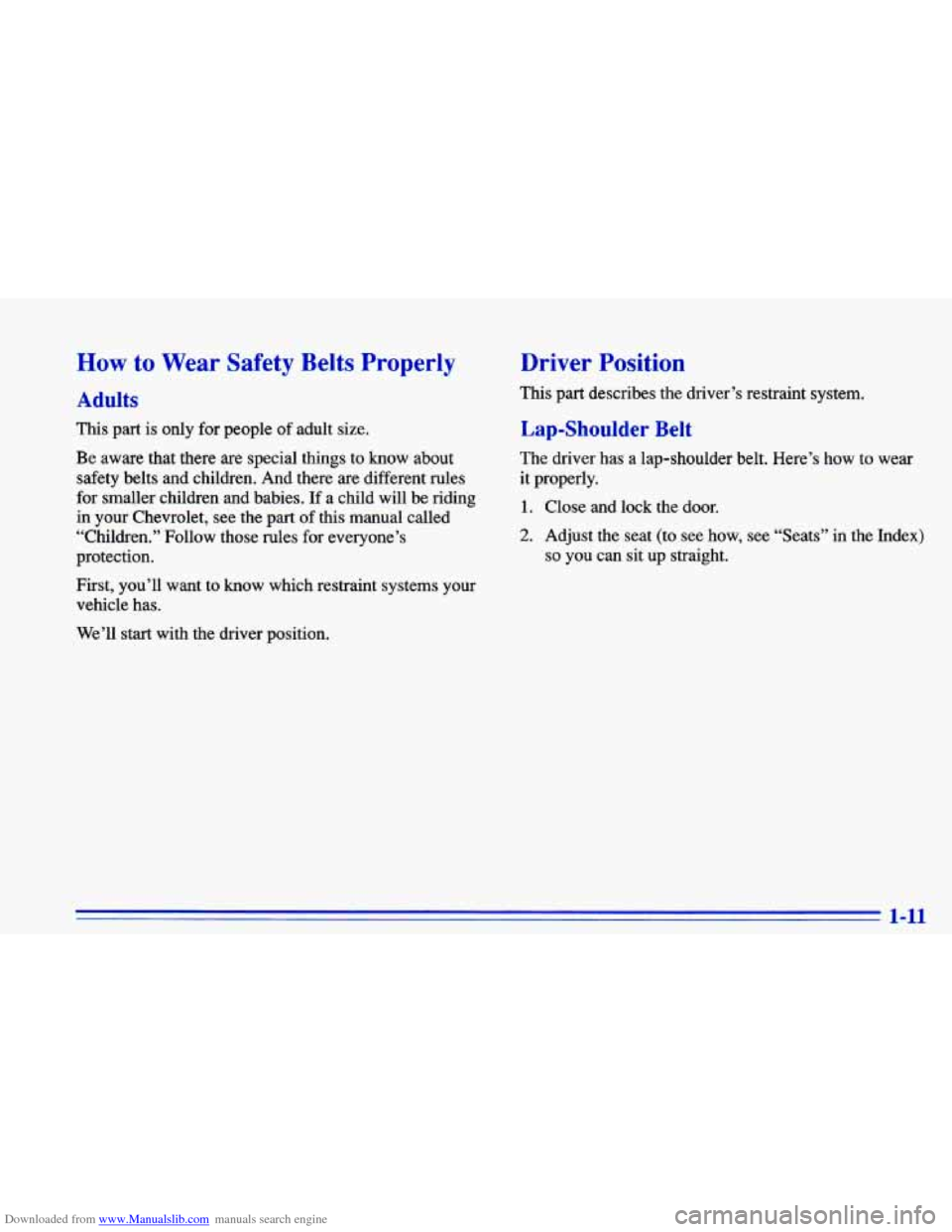

Downloaded from www.Manualslib.com manuals search engine How to Wear Safety Belts Properly
Adults
This part is only for people of adult size.
Be aware that there
are special things to know about
safety belts and children.
And there are different rules
for smaller children
and babies. If a child will be riding
in your Chevrolet, see the part of this manual called
“Children.” Follow those rules for everyone’s
protection.
First, you’ll want to know which restraint systems your
vehicle has.
We’ll start with the driver position.
Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to wear
it properly.
1. Close and lock the door.
2. Adjust the seat (to see how, see “Seats” in the Index)
so you can sit up straight.
1-11

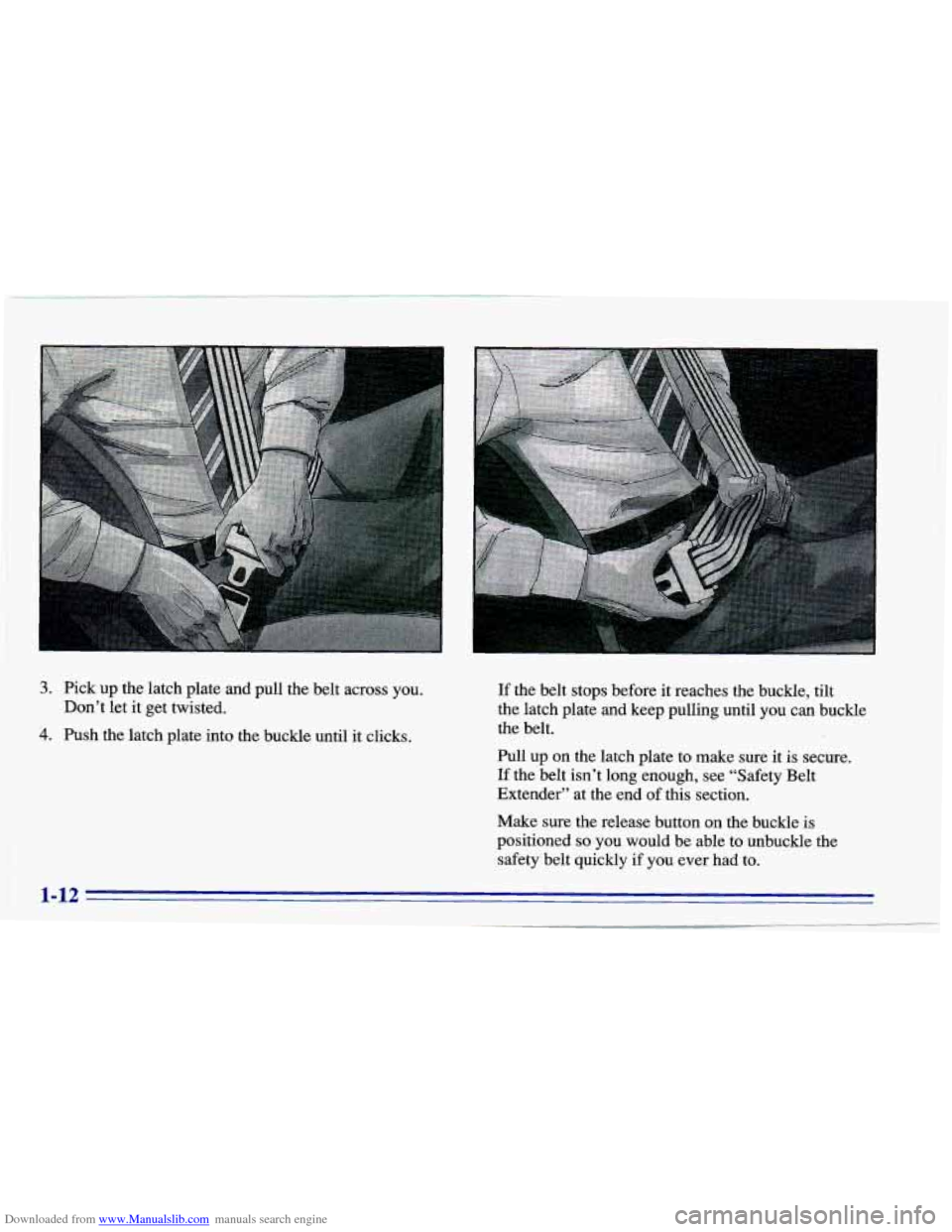

Downloaded from www.Manualslib.com manuals search engine 3. Pick up the latch plate and pull the belt across you.
4. Push the latch plate into the buckle until it clicks.
Don’t let
it get
twisted.
If the belt stops before it reaches the buckle, tilt
the latch plate and keep pulling until you can buckle
the belt.
Pull up on the latch plate to make sure
it is secure.
If the belt isn’t long enough, see “Safety Belt
Extender” at the end of this section.
Make sure the release button on the buckle is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
1-12

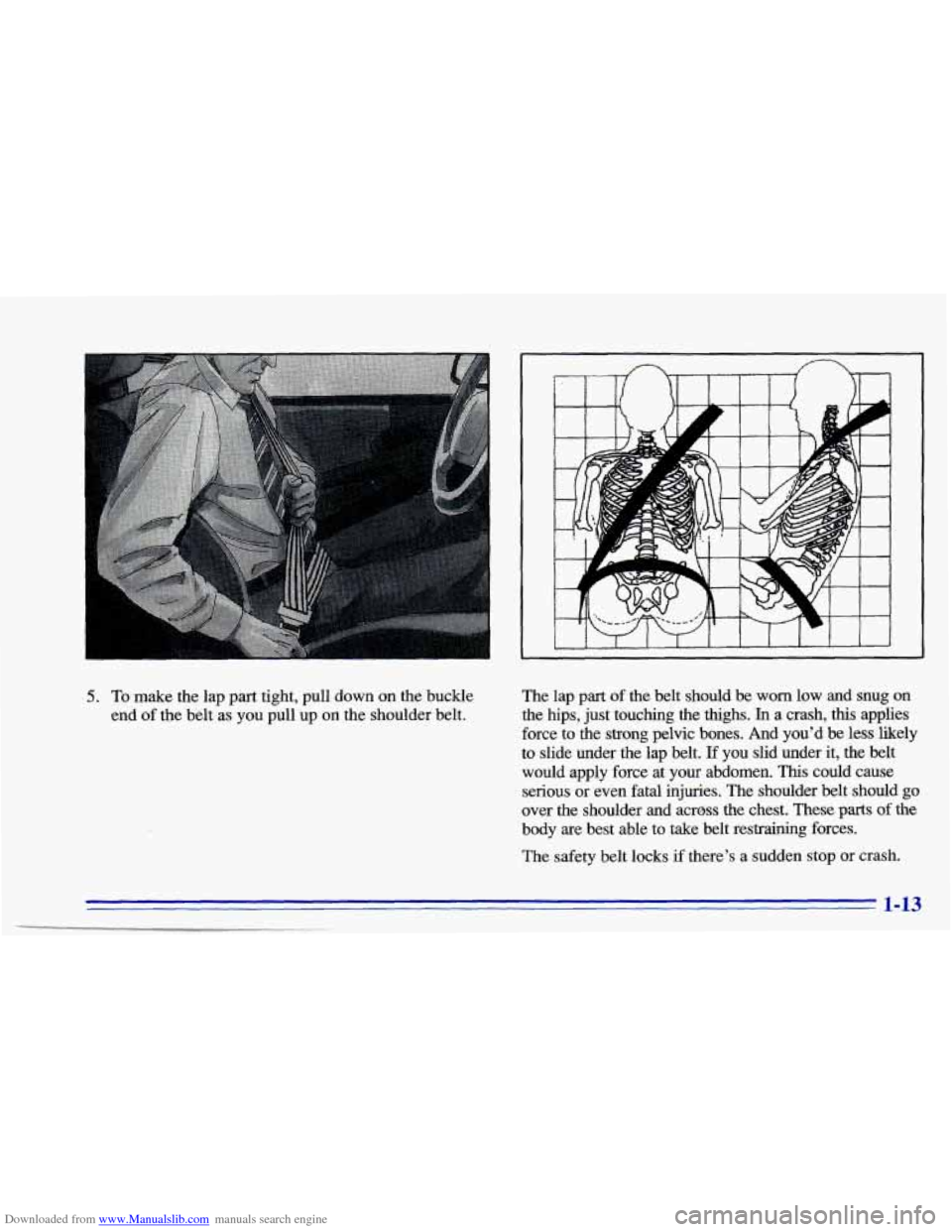

Downloaded from www.Manualslib.com manuals search engine 5. To make the lap part tight, pull down on the buckle
end
of the belt as you pull up on the shoulder belt. The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And you’d
be less likely
to slide under the lap belt.
If you slid under it, the belt
would apply force at your abdomen.
This could cause
serious or even fatal injuries. The shoulder belt should go
over the shoulder and acrms the chest. These parts of the
body are best able to take belt restraining forces.
The safety belt locks if there’s a sudden stop or crash.
1-13

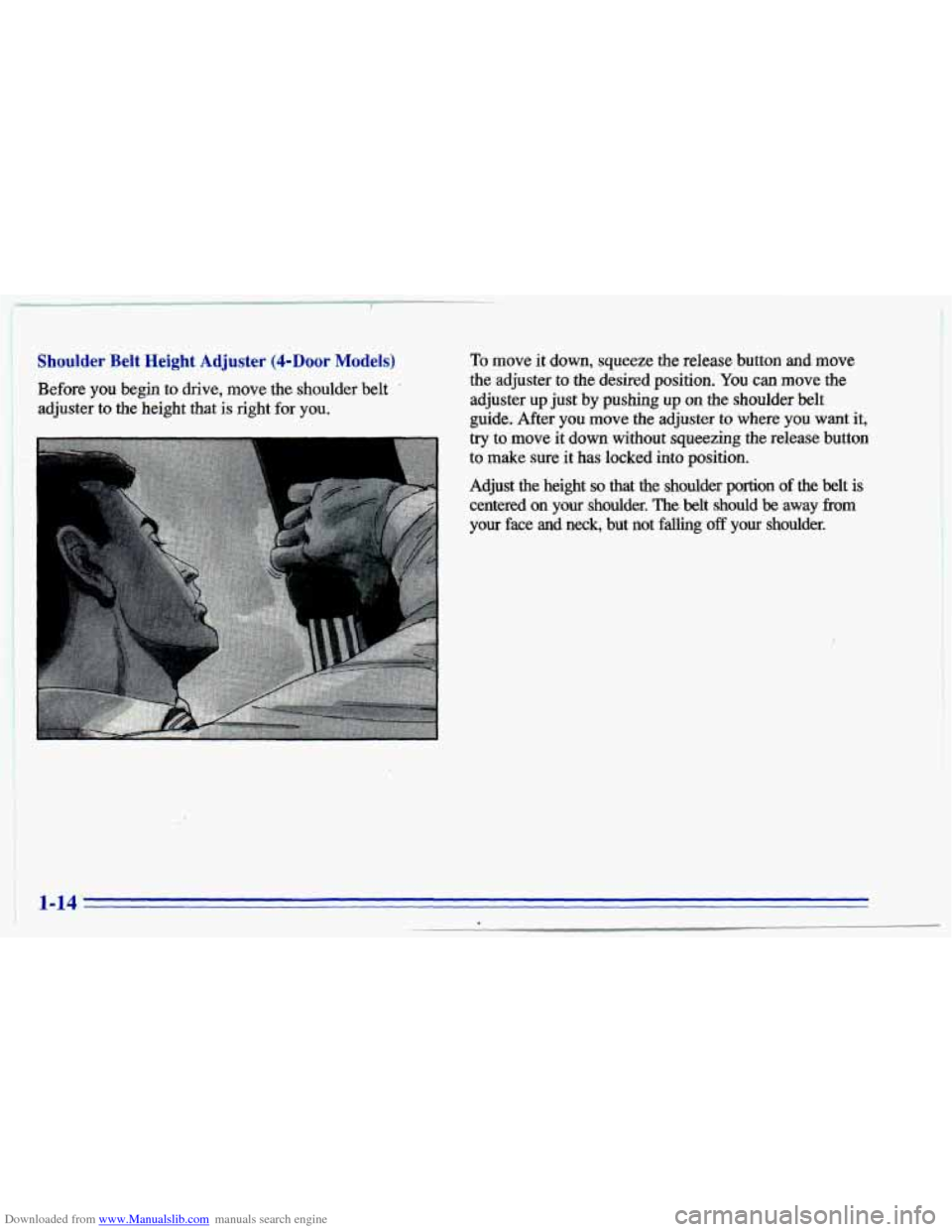

Downloaded from www.Manualslib.com manuals search engine Shoulder Belt Height Adjuster (&Door Models)
Before you begin to drive, move the shoulder belt .
adjuster to the height that is right for you.
To move it down, squeeze the release button and.move
the adjuster to the desired position.
You can move the
adjuster up just
by pushing up on the shoulder belt
guide. After you move the adjuster
to where you want it,
try to move it down without squeezing the release button
to make sure it has locked into position.
Adjust the height
so that the shoulder portion of. the belt is
centered on
your shoulder. The belt should be away from
your face and neck, but not falling
off your shoulder.
1-14'

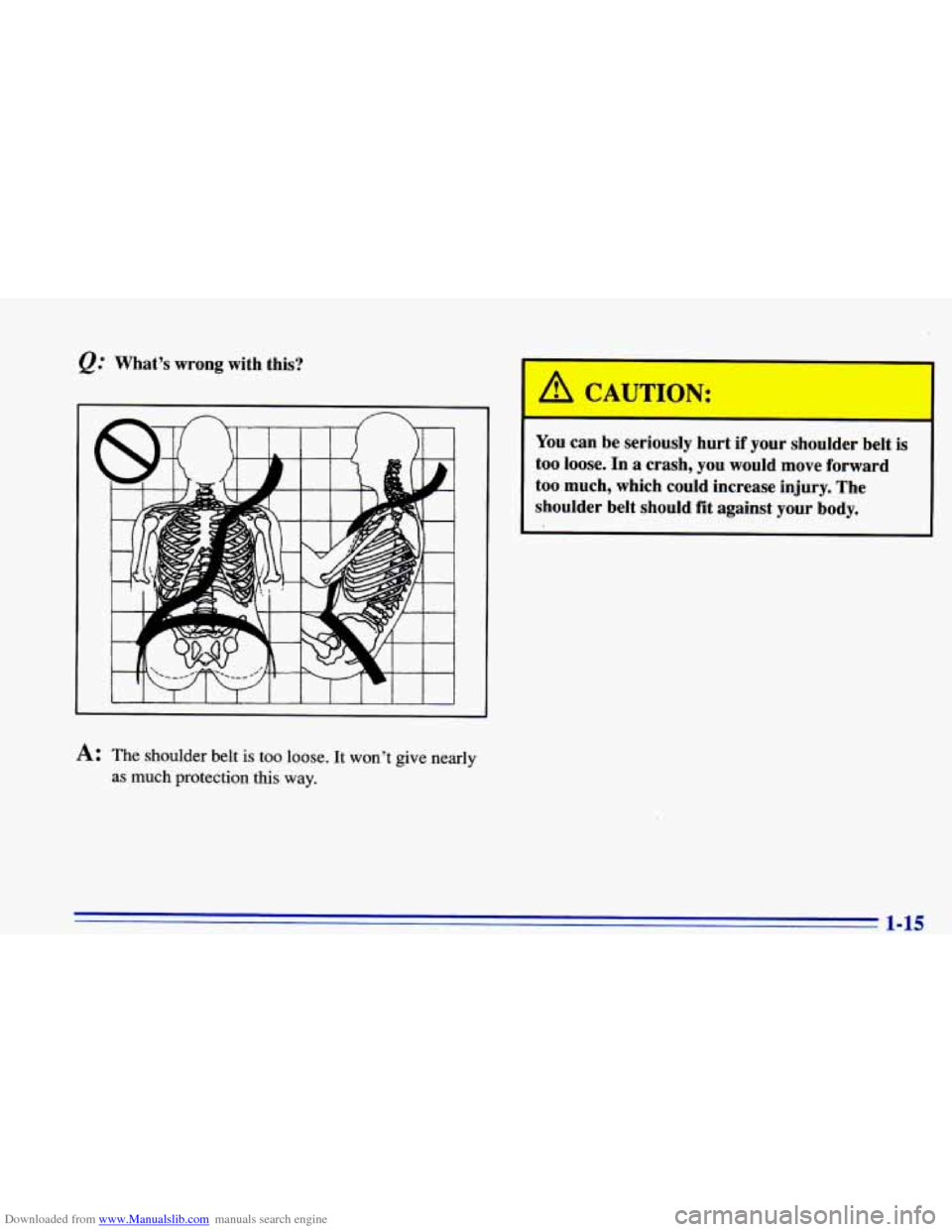

Downloaded from www.Manualslib.com manuals search engine @ What's wrong with this?
A: The shoulder belt is too loose. It won't give nearly
as much protection this way.
A CAUTION:
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit against your body.
1-15

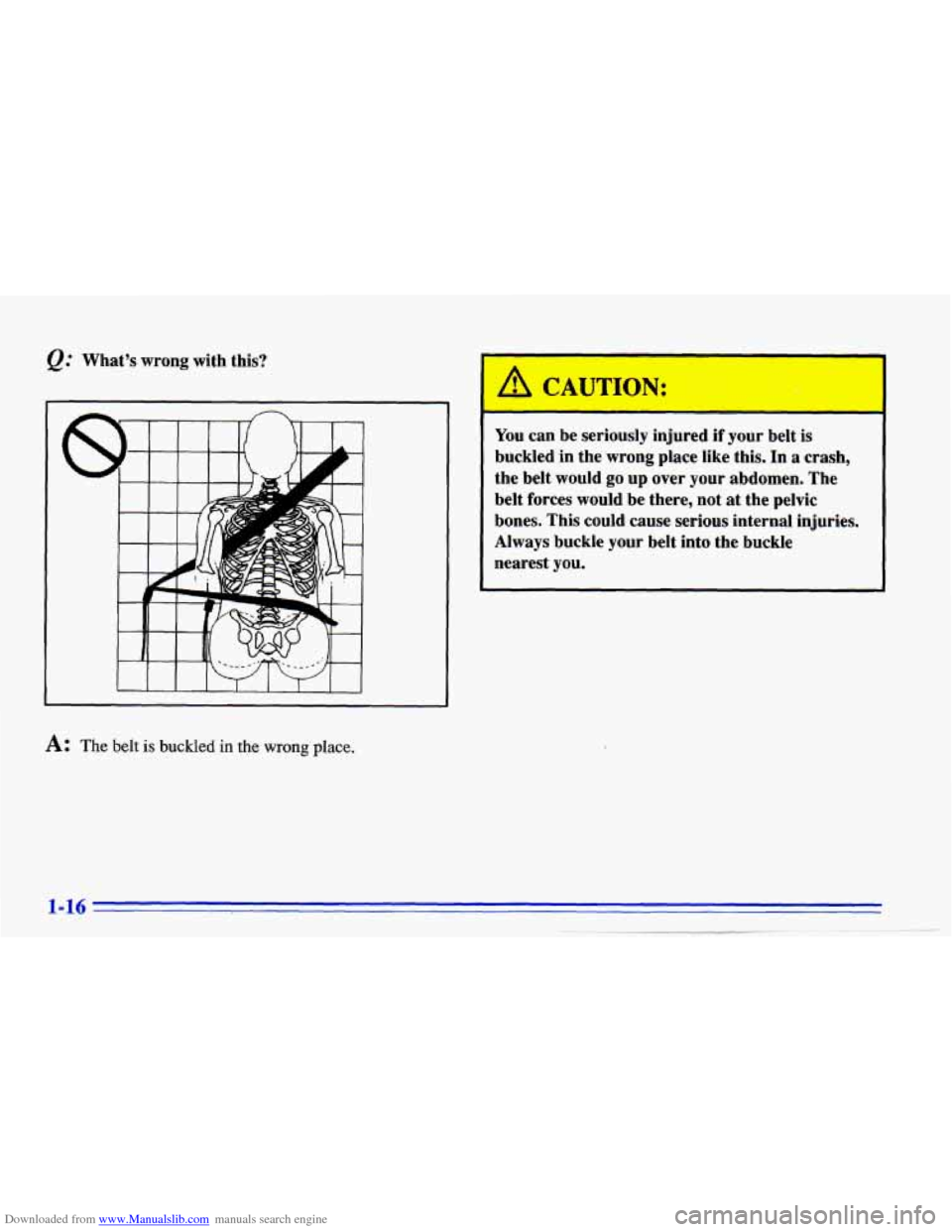

Downloaded from www.Manualslib.com manuals search engine @ What’s wrong with this?
A: The belt is buckled in the wrong place.
A CAUTION: . -.
You can be seriously injured if your belt is
buckled in the wrong place like this. In
a crash,
the belt would
go up over your abdomen. The
belt forces would be there, not at the pelvic
bones. This could cause serious internal injuries.
Always buckle your belt into the buckle
nearest you.

Downloaded from www.Manualslib.com manuals search engine @ What’s wrong with this?
A: The shoulder belt is worn under the arm. It should
be
worn over the shoulder at all times. You
can be seriously injured if you wear the
shoulder belt under your arm, In
a crash, your
body would move too
far forward, which would
increase the chance of head and neck injury,
Also, the belt would apply too much force to the
ribs, which aren’t
as strong as shoulder bones.
You could also severely injure internal organs
like your liver or spleen.
1-17

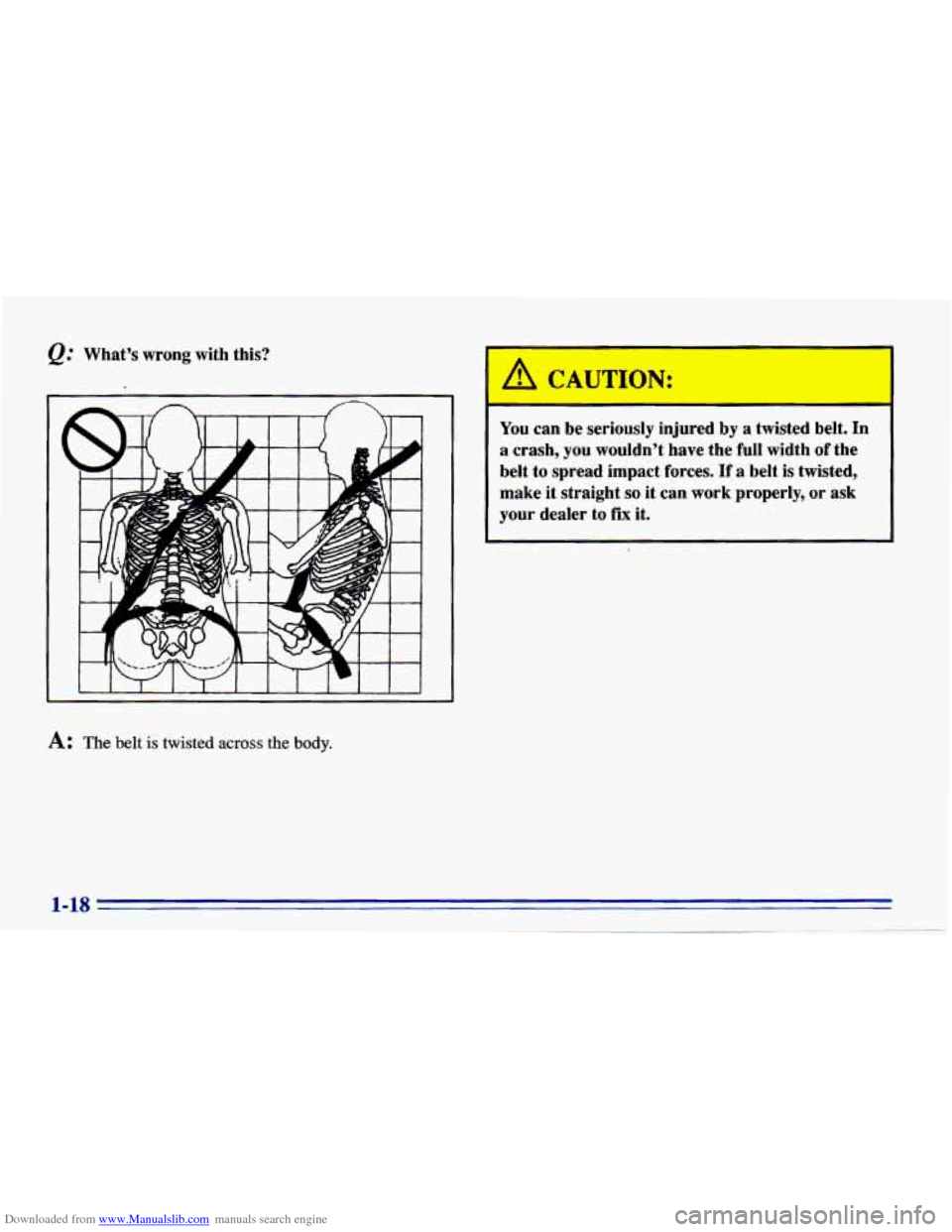

Downloaded from www.Manualslib.com manuals search engine Q." What's wrong with this?
A: The belt is twisted across the body.
~
You can be seriously injured by a twisted belt. In
a crash, you wouldn't have the full width of the
belt to spread impact forces. If
a belt is twisted,
make it straight
so it can work properly, or ask
your dealer to
fix it.

Downloaded from www.Manualslib.com manuals search engine .

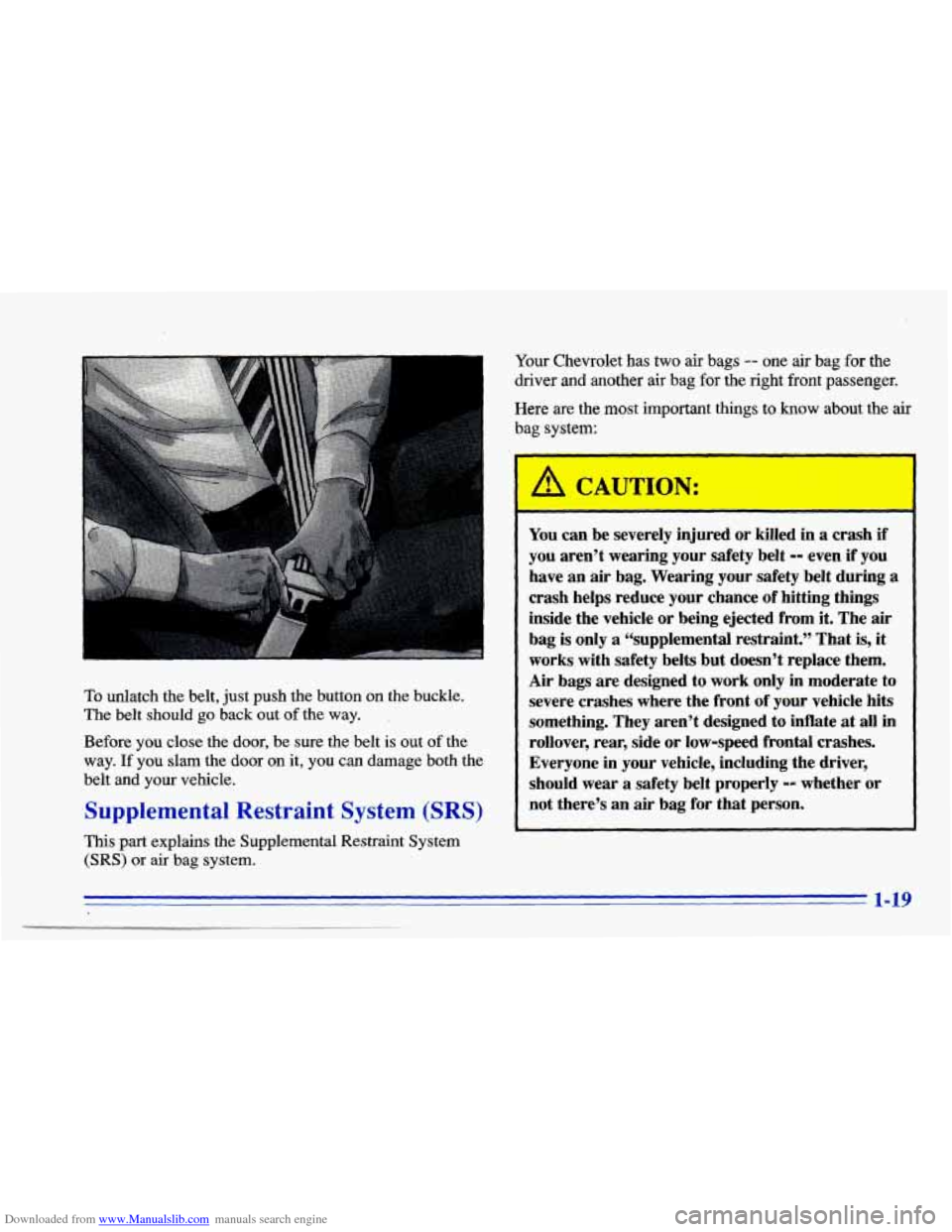

Your Chevrolet has two air bags -- one air bag for the
driver
and another air bag for the right front passenger.
Here are the most
important thin,gs to know about the air
bag
system:
To unlatch the belt, just push the button on the buckle.
The
belt should go back out of the way. ,
Before you close the door, be sure the belt is out of the
way.
If you slam the door on it, you can damage both the
belt
and your vehicle.
Supplemental Restraint System (SRS)
This part explains the Supplemental Restraint System
(SRS) or air bag system. You
can be severely injured or killed
in a crash if
you aren’t wearing your safety belt -- even if you
have an air bag. Wearing your safety belt during
a
crash helps reduce your chance of hitting things
inside the vehicle
or being ejected.from it. The air
bag is only a (‘supplemental restraint.” That is, it
works with safety belts but doesn’t replace them.
Air bags are designed to work only in moderate to
severe crashes where the front of your vehicle hits
something. They aren’t designed to inflate at all
in
rollover, rear, side or low-speed frontal crashes.
Everyone in your vehicle, including the driver,
should wear
a safety belt properly -- whether or
not there’s an
air bag for that person.
1-19

Downloaded from www.Manualslib.com manuals search engine I

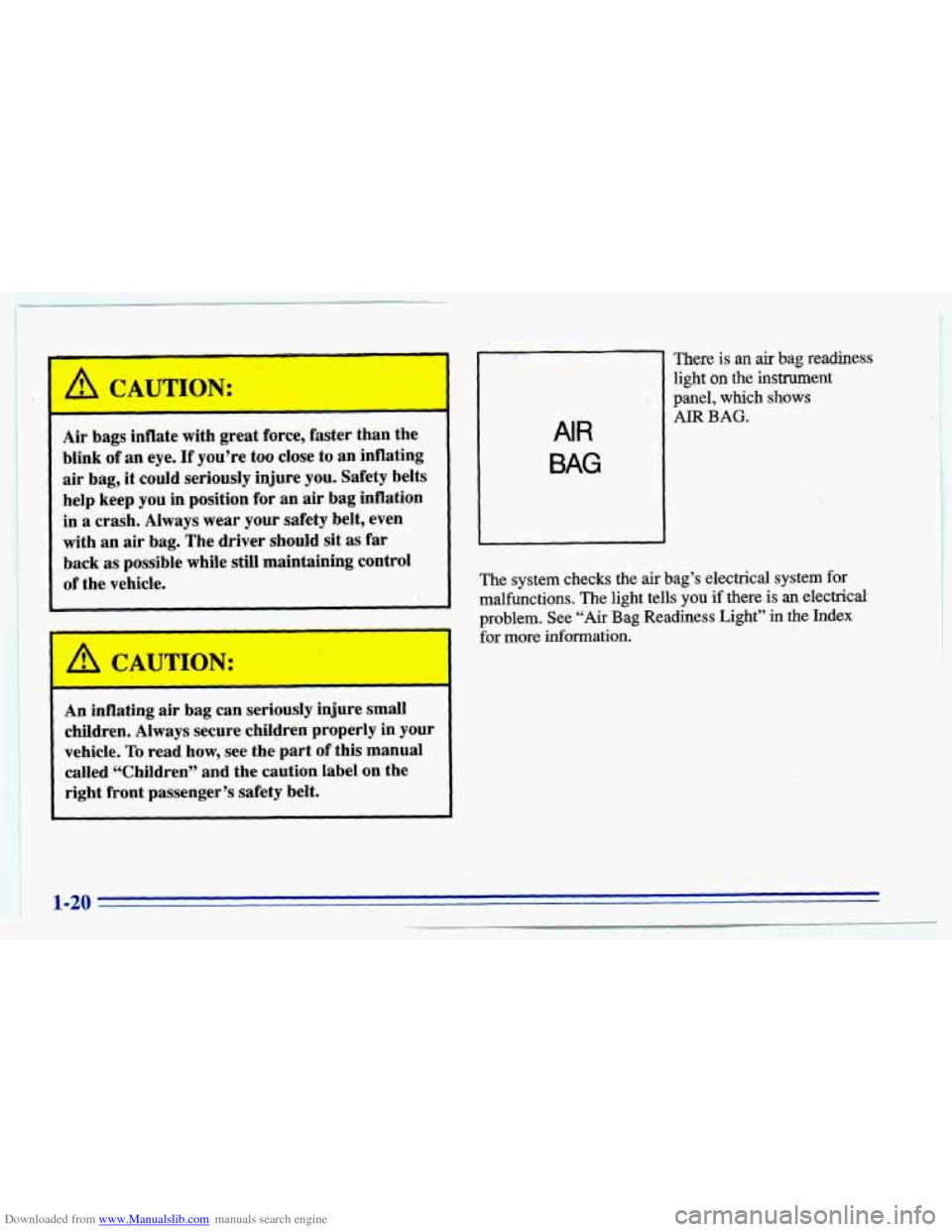

A CAUTION:
Air bags inflate with great force, faster than the
blink
of an eye. If you’re too close to an inflating
air bag, it could seriously injure you. Safety belts
help keep you in position for an
air bag inflation
in
a crash. Always wear your safety belt, even
with an air
bag. The driver should sit as far
back as possible while still maintaining control
of the vehicle.
A CAUTION:
R -
An inflating air bag can seriously injure small
children. Always secure children properly in your
vehicle.
To read how, see the part of this manual
called “Children” and the caution label
on the
right front passenger’s safety belt.
AIR
BAG
There is an air bag readiness
light on the instrument
panel, which shows
AIR BAG.
The system checks the air bag’s electrical system for
malfunctions. The light tells you if there is an electrical
problem. See
“Air Bag Readiness Light” in the Index
for more information.
1-20
