CHEVROLET CITY EXPRESS 2018 Owner's Manual

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
250 Service and Maintenance

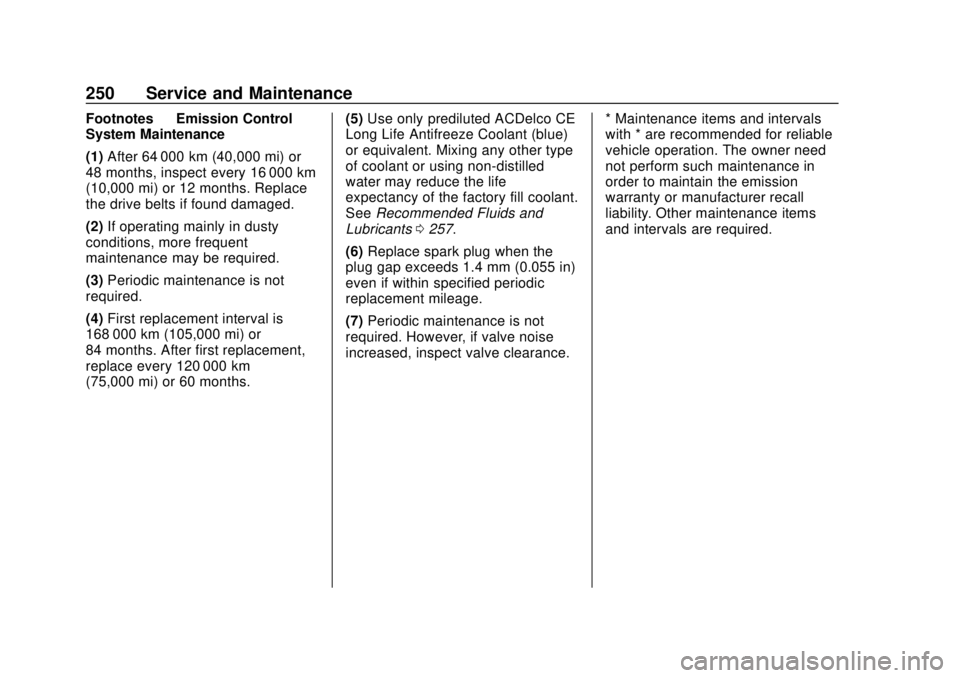

Footnotes—Emission Control
System Maintenance
(1) After 64 000 km (40,000 mi) or
48 months, inspect every 16 000 km
(10,000 mi) or 12 months. Replace
the drive belts if found damaged.
(2) If operating mainly in dusty
conditions, more frequent
maintenance may be required.
(3) Periodic maintenance is not
required.
(4) First replacement interval is
168 000 km (105,000 mi) or
84 months. After first replacement,
replace every 120 000 km
(75,000 mi) or 60 months. (5)
Use only prediluted ACDelco CE
Long Life Antifreeze Coolant (blue)
or equivalent. Mixing any other type
of coolant or using non-distilled
water may reduce the life
expectancy of the factory fill coolant.
See Recommended Fluids and
Lubricants 0257.
(6) Replace spark plug when the
plug gap exceeds 1.4 mm (0.055 in)
even if within specified periodic
replacement mileage.
(7) Periodic maintenance is not
required. However, if valve noise
increased, inspect valve clearance. * Maintenance items and intervals
with * are recommended for reliable
vehicle operation. The owner need
not perform such maintenance in
order to maintain the emission
warranty or manufacturer recall
liability. Other maintenance items
and intervals are required.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 251

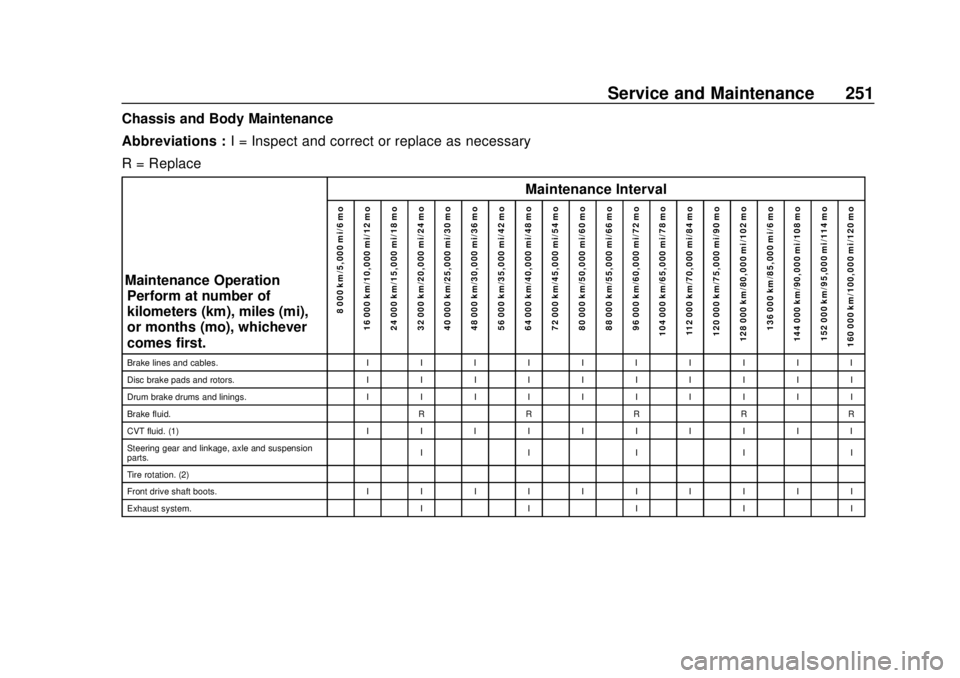

Chassis and Body Maintenance
Abbreviations :I = Inspect and correct or replace as necessary
R = Replace
Maintenance OperationPerform at number of
kilometers (km), miles (mi),
or months (mo), whichever
comes first. Maintenance Interval
8 000 km/5,000 mi/6 mo
16 000 km/10,000 mi/12 mo
24 000 km/15,000 mi/18 mo
32 000 km/20,000 mi/24 mo
40 000 km/25,000 mi/30 mo
48 000 km/30,000 mi/36 mo
56 000 km/35,000 mi/42 mo
64 000 km/40,000 mi/48 mo
72 000 km/45,000 mi/54 mo
80 000 km/50,000 mi/60 mo
88 000 km/55,000 mi/66 mo
96 000 km/60,000 mi/72 mo
104 000 km/65,000 mi/78 mo 112 000 km/70,000 mi/84 mo
120 000 km/75,000 mi/90 mo
128 000 km/80,000 mi/102 mo 136 000 km/85,000 mi/6 mo
144 000 km/90,000 mi/108 mo 152 000 km/95,000 mi/114 mo
160 000 km/100,000 mi/120 mo
Brake lines and cables. IIIIIIIIII
Disc brake pads and rotors.∞ IIIIIIIIII
Drum brake drums and linings.∞ IIIIIIIIII
Brake fluid.∞ RRRRR
CVT fluid. (1) IIIIIIIIII
Steering gear and linkage, axle and suspension
parts.∞ I
IIII
Tire rotation. (2)
Front drive shaft boots.∞ IIIIIIIIII
Exhaust system.∞ IIIII

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
252 Service and Maintenance

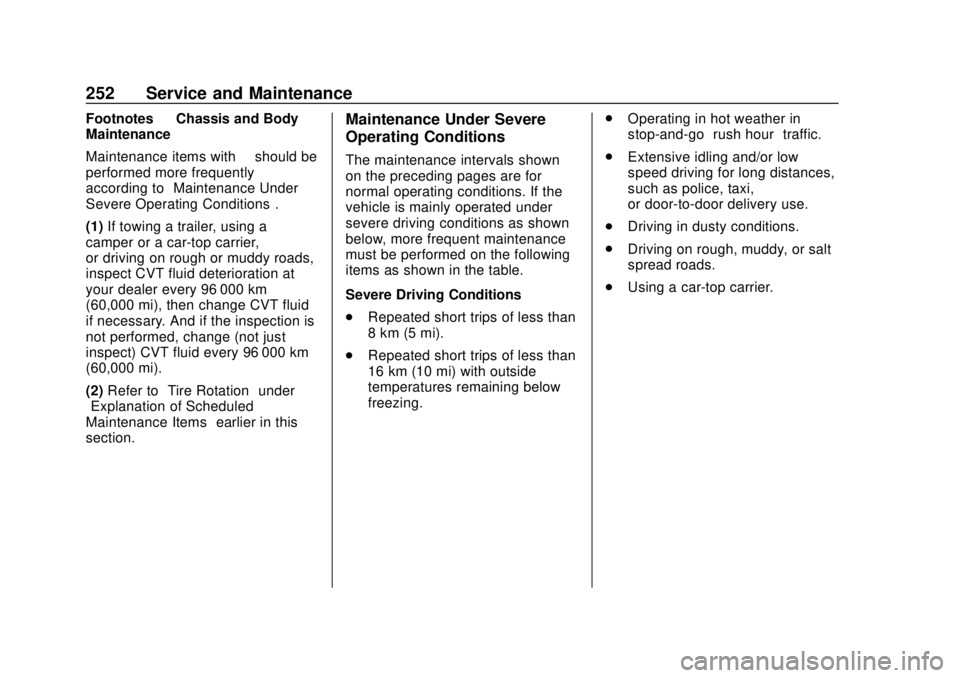

Footnotes—Chassis and Body
Maintenance
Maintenance items with ∞should be
performed more frequently
according to “Maintenance Under
Severe Operating Conditions”.
(1) If towing a trailer, using a
camper or a car-top carrier,
or driving on rough or muddy roads,
inspect CVT fluid deterioration at
your dealer every 96 000 km
(60,000 mi), then change CVT fluid
if necessary. And if the inspection is
not performed, change (not just
inspect) CVT fluid every 96 000 km
(60,000 mi).
(2) Refer to “Tire Rotation” under
“Explanation of Scheduled
Maintenance Items” earlier in this
section.Maintenance Under Severe
Operating Conditions
The maintenance intervals shown
on the preceding pages are for
normal operating conditions. If the
vehicle is mainly operated under
severe driving conditions as shown
below, more frequent maintenance
must be performed on the following
items as shown in the table.
Severe Driving Conditions
. Repeated short trips of less than
8 km (5 mi).
. Repeated short trips of less than
16 km (10 mi) with outside
temperatures remaining below
freezing. .
Operating in hot weather in
stop-and-go “rush hour”traffic.
. Extensive idling and/or low
speed driving for long distances,
such as police, taxi,
or door-to-door delivery use.
. Driving in dusty conditions.
. Driving on rough, muddy, or salt
spread roads.
. Using a car-top carrier.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 253

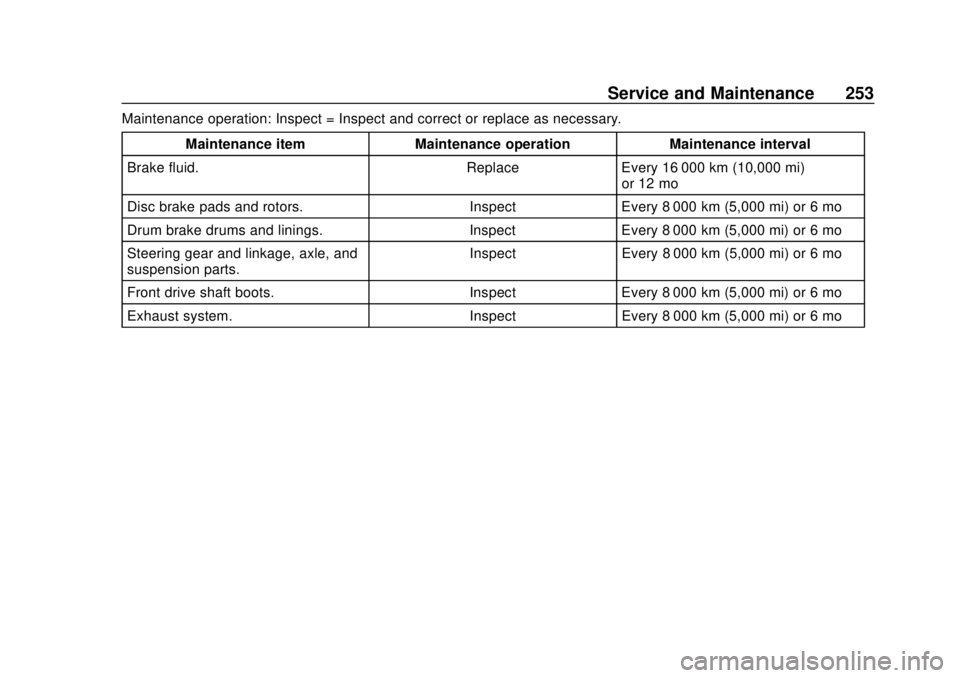

Maintenance operation: Inspect = Inspect and correct or replace as necessary.Maintenance item Maintenance operation Maintenance interval
Brake fluid. ReplaceEvery 16 000 km (10,000 mi)
or 12 mo
Disc brake pads and rotors. InspectEvery 8 000 km (5,000 mi) or 6 mo
Drum brake drums and linings. InspectEvery 8 000 km (5,000 mi) or 6 mo
Steering gear and linkage, axle, and
suspension parts. Inspect
Every 8 000 km (5,000 mi) or 6 mo
Front drive shaft boots. InspectEvery 8 000 km (5,000 mi) or 6 mo
Exhaust system. InspectEvery 8 000 km (5,000 mi) or 6 mo

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
254 Service and Maintenance
Special Application
Services
.Severe Commercial Use
Vehicles Only: Lubricate chassis
components every oil change.
. Have underbody flushing service
performed. See “Underbody
Maintenance” inExterior Care
0 233.
Additional
Maintenance and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required.
It is recommended that your dealer
perform these services —their
trained dealer technicians know
your vehicle best. Your dealer can
also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention.
The following list is intended to
explain the services and conditions
to look for that may indicate
services are required. Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories.
.
To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 255

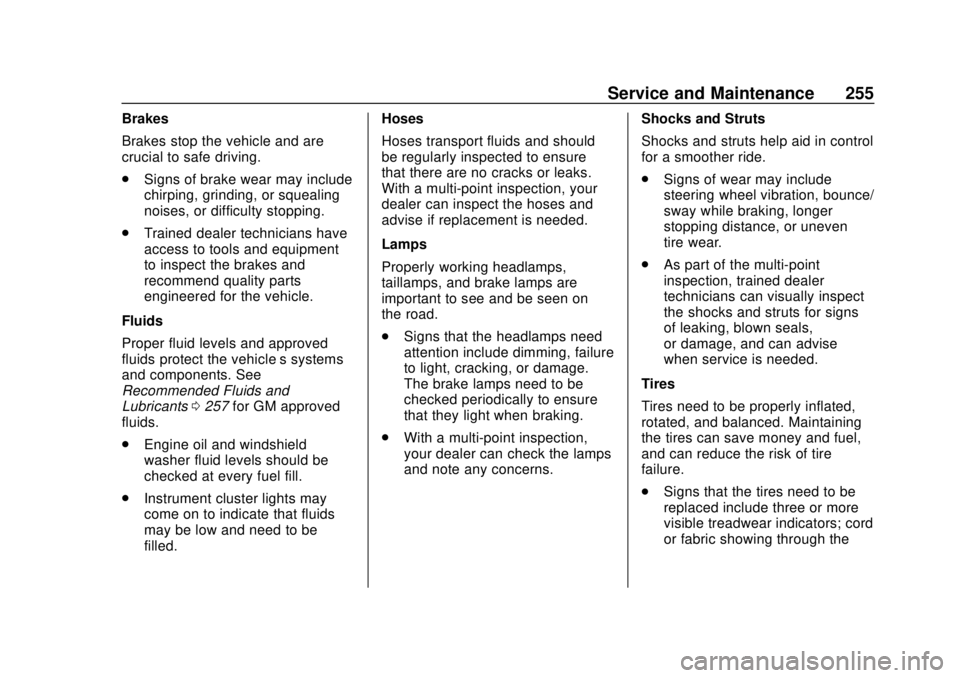

Brakes
Brakes stop the vehicle and are
crucial to safe driving.
.Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping.
. Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0257 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled. Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns. Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
.
Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel,
and can reduce the risk of tire
failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
256 Service and Maintenance
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire.
. Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires.

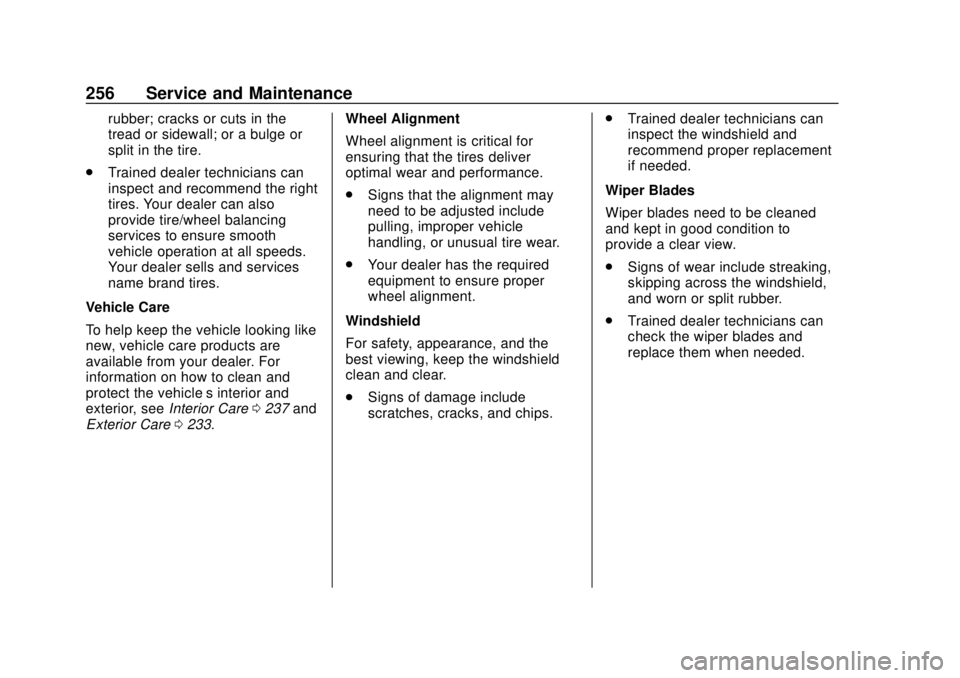

Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, see Interior Care 0237 and
Exterior Care 0233. Wheel Alignment
Wheel alignment is critical for
ensuring that the tires deliver
optimal wear and performance.
.
Signs that the alignment may
need to be adjusted include
pulling, improper vehicle
handling, or unusual tire wear.
. Your dealer has the required
equipment to ensure proper
wheel alignment.
Windshield
For safety, appearance, and the
best viewing, keep the windshield
clean and clear.
. Signs of damage include
scratches, cracks, and chips. .
Trained dealer technicians can
inspect the windshield and
recommend proper replacement
if needed.
Wiper Blades
Wiper blades need to be cleaned
and kept in good condition to
provide a clear view.
. Signs of wear include streaking,
skipping across the windshield,
and worn or split rubber.
. Trained dealer technicians can
check the wiper blades and
replace them when needed.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 257

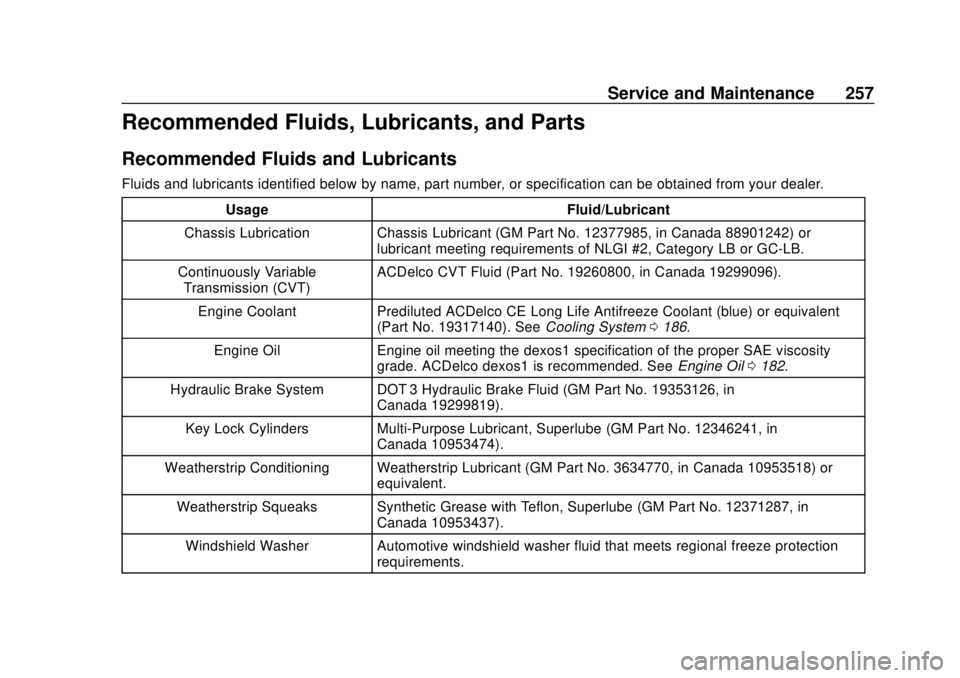

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.Usage Fluid/Lubricant
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Continuously Variable Transmission (CVT) ACDelco CVT Fluid (Part No. 19260800, in Canada 19299096).
Engine Coolant Prediluted ACDelco CE Long Life Antifreeze Coolant (blue) or equivalent (Part No. 19317140). SeeCooling System0186.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity grade. ACDelco dexos1 is recommended. See Engine Oil0182.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19353126, in Canada 19299819).
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or equivalent.
Weatherstrip Squeaks Synthetic Grease with Teflon, Superlube (GM Part No. 12371287, in Canada 10953437).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
258 Service and Maintenance

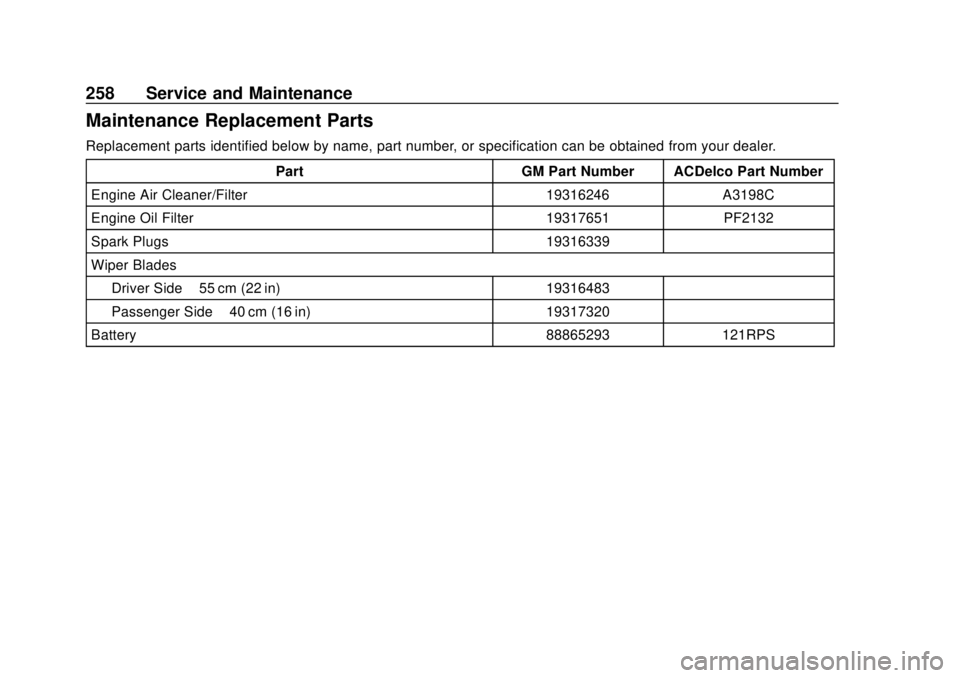

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 19316246 A3198C
Engine Oil Filter 19317651 PF2132
Spark Plugs 19316339 —
Wiper Blades Driver Side –55 cm (22 in) 19316483 —
Passenger Side –40 cm (16 in) 19317320 —
Battery 88865293 121RPS

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 259
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed
