240 Vehicle Care
Caution (Continued)
the appearance and feel of
leather or soft trim, and are not
recommended.
Do not use cleaners that increase
gloss, especially on the instrument
panel. Reflected glare can decrease
visibility through the windshield
under certain conditions.
Caution
Use of air fresheners may cause
permanent damage to plastics
and painted surfaces. If an air
freshener comes in contact with
any plastic or painted surface in
the vehicle, blot immediately and
clean with a soft cloth dampened
with a mild soap solution.
Damage caused by air fresheners
would not be covered by the
vehicle warranty.
Care of Seat Belts
Keep belts clean and dry.
{Warning
Do not bleach or dye seat belt
webbing. It may severely weaken
the webbing. In a crash, they
might not be able to provide
adequate protection. Clean and
rinse seat belt webbing only with
mild soap and lukewarm water.
Allow the webbing to dry.
Floor Mats
{Warning
If a floor mat is the wrong size or
is not properly installed, it can
interfere with the pedals.
Interference with the pedals can
cause unintended acceleration
and/or increased stopping
distance which can cause a crash (Continued)
Warning (Continued)
and injury. Make sure the floor
mat does not interfere with the
pedals.
Use the following guidelines for
proper floor mat usage.
. The original equipment floor
mats were designed for the
vehicle. If the floor mats need
replacing, it is recommended
that GM certified floor mats be
purchased. Non-GM floor mats
may not fit properly and may
interfere with the pedals. Always
check that the floor mats do not
interfere with the pedals.
. Do not use a floor mat if the
vehicle is not equipped with a
floor mat retainer on the driver
side floor.
. Use the floor mat with the
correct side up. Do not turn
it over.
. Do not place anything on top of
the driver side floor mat.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Vehicle Care 241
.Use only a single floor mat on
the driver side.
. Do not place one floor mat on
top of another.
Floor Mat Installation
Your vehicle is equipped with floor
mat positioning hook(s). The
number and shape of the floor mat
positioning hooks for each seating
position varies depending on the
vehicle. When installing GM certified
floor mats, follow the installation
instructions provided with the mat
and the following: 1. Shift to P (Park), apply the
parking brake, and turn off the
ignition.
2. Position the floor mat so that the grommet holes are aligned
with the hook(s).
3. Secure the grommet holes into the hook(s) and ensure that the
floor mat is properly positioned.
4. Make sure the floor mat does not interfere with pedal
operation with the ignition off
and the shift lever in P (Park),
fully apply and release all
pedals. The floor mat must not
interfere with pedal operation
or prevent the pedal from
returning to its normal position.
See your dealer for details about
installing the floor mats in your
vehicle.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
242 Service and Maintenance
Service and
Maintenance
General Information
General Information . . . . . . . . . . 242
Maintenance Schedule
Maintenance Schedule . . . . . . . 246
Special Application Services
Special ApplicationServices . . . . . . . . . . . . . . . . . . . . 254
Additional Maintenance
and Care
Additional Maintenanceand Care . . . . . . . . . . . . . . . . . . . . 254
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 257
Maintenance Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . 258
Maintenance Records
Maintenance Records . . . . . . . . 259
General Information
Maintenance Requirements
Some regular maintenance is
essential to maintain the vehicle’s
mechanical condition, as well as its
emissions and engine performance.
It is the owner ’s responsibility to
make sure that the scheduled
maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the
only one who can ensure that your
vehicle receives proper
maintenance. You are a vital link in
the maintenance chain.
General Maintenance
General maintenance includes
those items that should be checked
during normal day-to-day operation.
They are essential for proper
vehicle operation. It is your
responsibility to perform these
procedures regularly as prescribed. Performing general maintenance
checks requires minimal mechanical
skill and only a few general
automotive tools.
These checks or inspections can be
done by yourself, a qualified
technician, or, if you prefer, your
dealer.
Scheduled Maintenance
The maintenance items listed in this
section are required to be serviced
at regular intervals. However, under
severe driving conditions, additional
or more frequent maintenance will
be required.
Where to go for Service
If maintenance service is required or
your vehicle appears to malfunction,
have the systems checked and
serviced. It is recommended that
you visit your dealer for this service.
Chevrolet technicians are
well-trained specialists and are kept
up to date with the latest service
information through technical
bulletins, service tips, and training
programs.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 243
You can be confident that your
dealer’s service department can
perform the service needed to meet
the maintenance requirements on
your vehicle.
General Maintenance
During the normal day-to-day
operation of the vehicle, general
maintenance should be performed
regularly as prescribed in this
section. If you detect any unusual
sounds, vibrations, or smells, be
sure to check for the cause or have
your dealer do it promptly. In
addition, it is recommended that you
visit your dealer if you think that
repairs are required.
When performing any checks or
maintenance work, see Doing Your
Own Service Work 0178.
Explanation of General
Maintenance Items
Additional information on the
following items with * is found under
“Vehicle Checks” in the Vehicle
Care section of this manual. Outside the Vehicle
The maintenance items listed here
should be performed from time to
time, unless otherwise specified.
Doors and engine hood* :
Check
that the doors and engine hood
operate properly. Also ensure that
all latches lock securely. Lubricate
hinges, latches, latch pins, rollers,
and links if necessary.
Make sure that the secondary latch
keeps the hood from opening when
the primary latch is released.
When driving in areas using road
salt or other corrosive materials,
check lubrication frequently.
Lamps* : Clean the headllamps on
a regular basis. Make sure that the
headlamps, stoplamps, taillamps,
turn signal lamps, and other lights
are all operating properly and
installed securely. Also check
headlamp aim. Road wheel nuts (lug nuts) :
When checking the tires, make sure
no wheel nuts are missing, and
check for any loose wheel nuts.
Tighten if necessary.
Tire rotation* :
Tires should be
rotated every 8 000 km (5,000 mi).
Tires* : Check the pressure with a
gauge often and always prior to long
distance trips. If necessary, adjust
the pressure in all tires, including
the spare, to the pressure specified.
Check carefully for damage, cuts,
or excessive wear.
Tire Pressure Monitoring System
(TPMS) transmitter components :
Replace the TPMS transmitter
grommet seal, valve core, and cap
when the tires are replaced due to
wear or age.
Wheel alignment and balance : If
the vehicle pulls to either side while
driving on a straight and level road,
or if you detect uneven or abnormal
tire wear, there may be a need for
wheel alignment. If the steering

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
244 Service and Maintenance
wheel or seat vibrates at normal
highway speeds, wheel balancing
may be needed.
For additional information regarding
tires, refer to the warranty manual.
Windshield :Clean the windshield
on a regular basis. Check the
windshield at least every six months
for cracks or other damage. Have a
damaged windshield repaired by a
qualified repair facility.
Windshield wiper blades* : Check
for cracks or wear if they do not
wipe properly.
Inside the Vehicle
The maintenance items listed here
should be checked on a regular
basis, such as when performing
scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal : Check the
pedal for smooth operation and
make sure the pedal does not catch
or require uneven effort. Keep the
floor mat away from the pedal. Brake pedal :
Check the pedal for
smooth operation. If the brake pedal
suddenly goes down further than
normal, if the pedal feels spongy,
or if the vehicle seems to take
longer to stop, have your vehicle
checked immediately. It is
recommended that you see your
dealer for this service. Keep the
floor mat away from the pedal.
Brakes : Check that the brakes do
not pull the vehicle to one side
when applied.
Continuously Variable
Transmission (CVT) P (Park)
position mechanism : On a fairly
steep hill check that the vehicle is
held securely with the shift lever in
the P (Park) position without
applying any brakes.
Parking brake : Check the parking
brake operation regularly. The
vehicle should be securely held on
a fairly steep hill with only the
parking brake applied. If the parking
brake needs adjustment, it is
recommended that you see your
dealer for this service. Seats :
Check seat position controls
such as seat adjusters, seatback
recliner, etc., to ensure they operate
smoothly and all latches lock
securely in every position. Check
that the head restraints/headrests
move up and down smoothly and
the locks (if equipped) hold securely
in all latched positions.
Seat belts : Check that all parts of
the seat belt system (for example,
buckles, anchors, adjusters, and
retractors) operate properly and
smoothly, and are installed securely.
Check the belt webbing for cuts,
fraying, wear, or damage.
Steering wheel : Check for
changes in the steering system,
such as excessive free play, hard
steering, or strange noises.
Warning lights and chimes : Make
sure all warning lights and chimes
are operating properly.
Windshield defroster : Check that
the air comes out of the defroster
outlets properly and in sufficient
quantity when operating the heater
or air conditioner.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 245
Windshield wiper and washer* :
Check that the wipers and washer
operate properly and that the wipers
do not streak.
Under the Hood and Vehicle
The maintenance items listed here
should be checked periodically (for
example, each time you check the
engine oil or refuel).
Battery* :Check the fluid level in
each cell. The fluid should be at the
bottom of the filler opening. Vehicles
operated in high temperatures or
under severe conditions require
frequent checks of the battery fluid
level.
Care should be taken to avoid
situations that can lead to potential
battery discharge and potential
no-start conditions such as:
. Installation or extended use of
electronic accessories that
consume battery power when
the engine is not running (phone
chargers, GPS, DVD
players, etc.). .
Vehicle is not driven regularly
and/or only driven short
distances.
In these cases, the battery may
need to be charged to maintain
battery health.
Brake fluid level* : Make sure that
the brake fluid level is between the
MAX and MIN lines on the reservoir.
Engine coolant level* : Check the
coolant level when the engine
is cold.
Engine drive belts : Make sure the
drive belts are not frayed, worn,
cracked, or oily.
Engine oil level* : Check the level
after parking the vehicle on a level
spot and turning off the engine. Wait
more than 15 minutes for the oil to
drain back into the oil pan.
Exhaust system : Make sure there
are no loose supports, cracks,
or holes. If the sound of the exhaust
seems unusual or there is a smell of
exhaust fumes, immediately have
the exhaust system inspected. It is
recommended that you see your dealer for this service. For additional
information, see
Engine Exhaust
0 149.
Fluid leaks : Check under the
vehicle for fuel, oil, water, or other
fluid leaks after the vehicle has
been parked for a while. Water
dripping from the air conditioner
after use is normal. If you notice any
leaks or if fuel fumes are evident,
check for the cause and have it
corrected immediately.
Radiator and hoses : Check the
front of the radiator and clean off
any dirt, insects, leaves, etc., that
may have accumulated. Make sure
the hoses have no cracks,
deformation, rot, or loose
connections.
Underbody : The underbody is
frequently exposed to corrosive
substances such as those used on
icy roads or to control dust. It is very
important to remove these
substances, otherwise rust may
form on the floor pan, frame, fuel
lines, and around the exhaust
system. At the end of winter, the
underbody should be thoroughly

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
246 Service and Maintenance
flushed with plain water, being
careful to clean those areas where
mud and dirt may accumulate. For
additional information,Exterior Care
0 233.
Windshield washer fluid* : Check
that there is adequate fluid in the
reservoir.Maintenance
Schedule
Explanation of Scheduled
Maintenance Items
The following descriptions are
provided to give you a better
understanding of the scheduled
maintenance items that should be
regularly checked or replaced. The
maintenance schedule indicates at
which mileage/time intervals each
item requires service.
In addition to scheduled
maintenance, your vehicle requires
that some items be checked during
normal day-to-day operation. For
additional information, refer to
“General Maintenance” in this
section.
Items marked with * are
recommended for reliable vehicle
operation. You are not required to
perform maintenance on these
items in order to maintain the
warranties that come with your
vehicle. Other maintenance items
and intervals are required. When applicable, additional
information can be found under
“Vehicle Checks”
in the Vehicle
Care section of this manual.
Chevrolet does not advocate the
use of non-OEM approved
aftermarket flushing systems and
strongly advises against performing
these services on a Chevrolet
product. Many of the aftermarket
flushing systems use non-OEM
approved chemicals or solvents, the
use of which has not been validated
by Chevrolet.
For recommended fuel, lubricants,
fluids, grease, and refrigerant, refer
to Recommended Fluids and
Lubricants 0257.
Emission Control System
Maintenance
Drive belts* : Check engine drive
belts for wear, fraying, or cracking
and for proper tension. Replace any
damaged drive belts.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 247
Engine air filter :Replace at
specified intervals. When driving for
prolonged periods in dusty
conditions, check/replace the filter
more frequently.
Engine coolant* : Replace coolant
at the specified interval. When
adding or replacing coolant, be sure
to use only prediluted ACDelco CE
Long Life Antifreeze Coolant (blue)
or equivalent. See Recommended
Fluids and Lubricants 0257.
Mixing any other type of coolant or
using non-distilled water may
reduce the recommended service
interval of the coolant.
Engine oil and oil filter : Replace
engine oil and oil filter at the
specified intervals. For
recommended oil grade and
viscosity, see Recommended Fluids
and Lubricants 0257.
Engine valve clearance* : Inspect
only if valve noise increases. Adjust
valve clearance if necessary. Evaporative emissions control
vapor lines :
Check vapor lines for
leaks or looseness. Tighten
connections or replace parts as
necessary.
Fuel lines* : Check the fuel hoses,
piping, and connections for leaks,
looseness, or deterioration. Tighten
connections or replace parts as
necessary.
Spark plugs : Replace at specified
intervals. Install new plugs of the
same type as originally equipped.
Chassis and Body Maintenance
Brake lines and cables : Visually
inspect for proper installation.
Check for chafing, cracks,
deterioration, and signs of leaking.
Replace any deteriorated or
damaged parts immediately.
Brake pads, rotors, drums, and
linings : Check for wear,
deterioration, and fluid leaks.
Replace any deteriorated or
damaged parts immediately. Exhaust system :
Visually inspect
the exhaust pipes, muffler, and
hangers for leaks, cracks,
deterioration, and damage. Tighten
connections or replace parts as
necessary.
Steering gear and linkage, axle
and suspension parts, drive shaft
boots : Check for damage,
looseness, and leakage of oil or
grease. Under severe driving
conditions, inspect more frequently.
Tire rotation : Tires should be
rotated every 8 000 km (5,000 mi).
When rotating tires, check for
damage and uneven wear. Replace
if necessary.
Transmission fluid/oil : Visually
inspect for signs of leakage at
specified intervals.
If towing a trailer, using a camper or
car-top carrier, or driving on rough
or muddy roads, replace the CVT
fluid every 96 000 km (60,000 mi) or
request the dealer to inspect the
fluid.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
248 Service and Maintenance
Maintenance Schedules
To help ensure smooth, safe, and
economical driving, two
maintenance schedules are
provided, depending upon the
conditions in which you usually
drive. These schedules contain both
distance and time intervals, up to
160 000 km (100,000 mi)/
120 months. For most people, the
odometer reading will indicate when
service is needed. However, if you
drive very little, your vehicle should
be serviced at the regular time
intervals shown in the schedule.
After 160 000 km (100,000 mi)/
120 months, continue maintenance
at the same mileage/time intervals.
Additional Maintenance Items for
Severe Operating Conditions
Additional maintenance items for
severe operating conditions should
be performed on vehicles that are
driven under especially demanding
conditions. Additional maintenanceitems should be performed if you
primarily operate your vehicle under
the following conditions:
.
Repeated short trips of less than
8 km (5 mi).
. Repeated short trips of less than
16 km (10 mi) with outside
temperatures remaining below
freezing.
. Operating in hot weather in
stop-and-go “rush hour”traffic.
. Extensive idling and/or low
speed driving for long distances,
such as police, taxi,
or door-to-door delivery use.
. Driving in dusty conditions.
. Driving on rough, muddy, or salt
spread roads.
. Using a car-top carrier.
For vehicles operated in Canada,
both standard and severe
maintenance items should be
performed at every interval.
Standard Maintenance
The following tables show the
standard maintenance schedule.
Depending upon weather and
atmospheric conditions, varying
road surfaces, individual driving
habits, and vehicle usage, additional
or more frequent maintenance may
be required. After 160 000 km
(100,000 mi)/120 months, continue
maintenance at the same mileage/
time interval.

Chevrolet City Express Owner Manual (GMNA-Localizing-U.S./Canada-
11683523) - 2018 - CRC - 7/10/17
Service and Maintenance 249

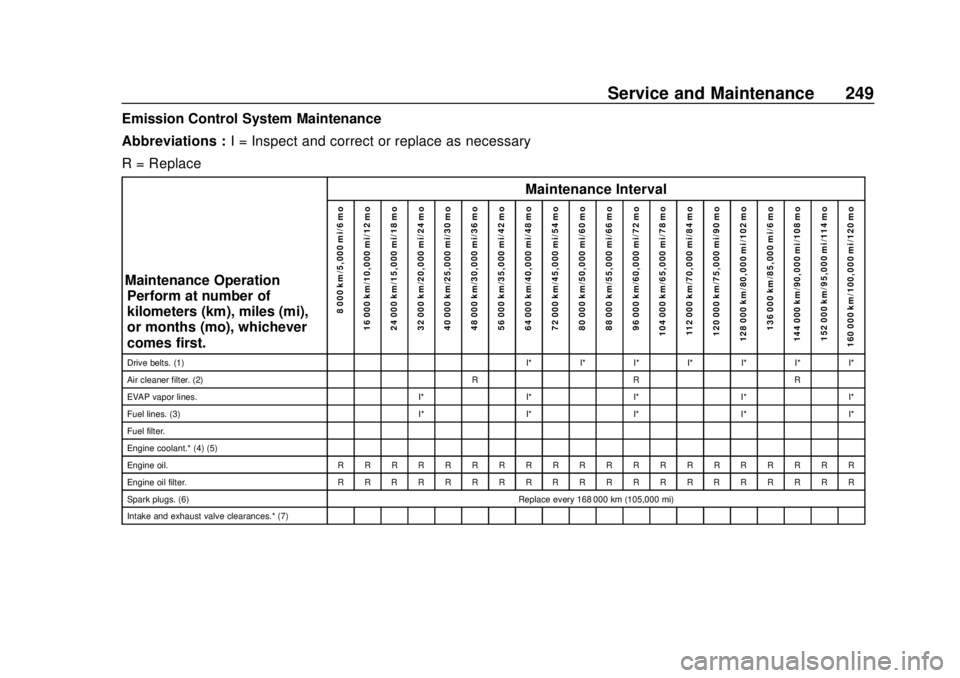

Emission Control System Maintenance
Abbreviations :I = Inspect and correct or replace as necessary
R = Replace
Maintenance OperationPerform at number of
kilometers (km), miles (mi),
or months (mo), whichever
comes first. Maintenance Interval
8 000 km/5,000 mi/6 mo
16 000 km/10,000 mi/12 mo
24 000 km/15,000 mi/18 mo
32 000 km/20,000 mi/24 mo
40 000 km/25,000 mi/30 mo
48 000 km/30,000 mi/36 mo
56 000 km/35,000 mi/42 mo
64 000 km/40,000 mi/48 mo
72 000 km/45,000 mi/54 mo
80 000 km/50,000 mi/60 mo
88 000 km/55,000 mi/66 mo
96 000 km/60,000 mi/72 mo
104 000 km/65,000 mi/78 mo 112 000 km/70,000 mi/84 mo
120 000 km/75,000 mi/90 mo
128 000 km/80,000 mi/102 mo 136 000 km/85,000 mi/6 mo
144 000 km/90,000 mi/108 mo 152 000 km/95,000 mi/114 mo
160 000 km/100,000 mi/120 mo
Drive belts. (1) I* I* I* I* I* I* I*
Air cleaner filter. (2) R R R
EVAP vapor lines. I* I* I* I* I*
Fuel lines. (3) I* I* I* I* I*
Fuel filter.
Engine coolant.* (4) (5)
Engine oil. R R R R R R R R R R R R R R R R R R R R
Engine oil filter. R R R R R R R R R R R R R R R R R R R R
Spark plugs. (6) Replace every 168 000 km (105,000 mi)
Intake and exhaust valve clearances.* (7)
