CHEVROLET COLORADO 2007 1.G Owners Manual

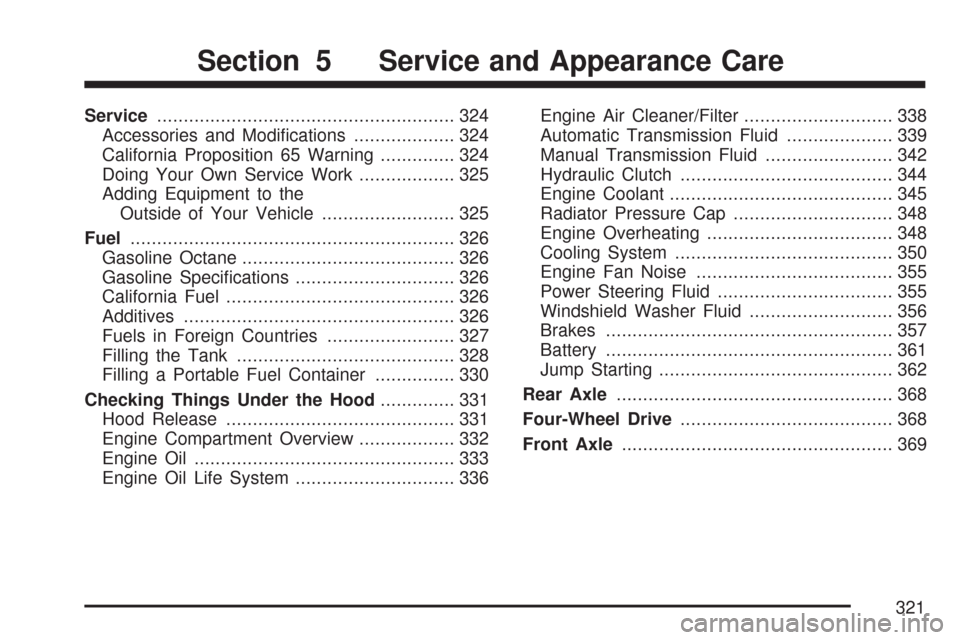

Service........................................................ 324
Accessories and Modications................... 324
California Proposition 65 Warning.............. 324
Doing Your Own Service Work.................. 325
Adding Equipment to the
Outside of Your Vehicle......................... 325
Fuel............................................................. 326
Gasoline Octane........................................ 326
Gasoline Specications.............................. 326
California Fuel........................................... 326
Additives................................................... 326
Fuels in Foreign Countries........................ 327
Filling the Tank......................................... 328
Filling a Portable Fuel Container............... 330
Checking Things Under the Hood.............. 331
Hood Release........................................... 331
Engine Compartment Overview.................. 332
Engine Oil................................................. 333
Engine Oil Life System.............................. 336Engine Air Cleaner/Filter............................ 338
Automatic Transmission Fluid.................... 339
Manual Transmission Fluid........................ 342
Hydraulic Clutch........................................ 344
Engine Coolant.......................................... 345
Radiator Pressure Cap.............................. 348
Engine Overheating................................... 348
Cooling System......................................... 350
Engine Fan Noise..................................... 355
Power Steering Fluid................................. 355
Windshield Washer Fluid........................... 356
Brakes...................................................... 357
Battery...................................................... 361
Jump Starting............................................ 362
Rear Axle.................................................... 368
Four-Wheel Drive........................................ 368
Front Axle................................................... 369
Section 5 Service and Appearance Care
321

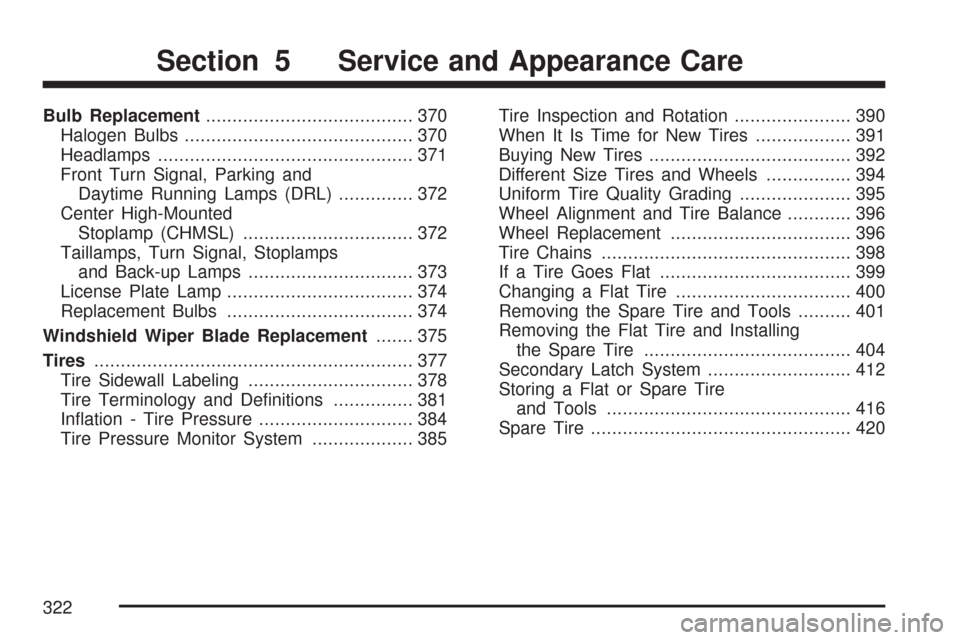

Bulb Replacement....................................... 370
Halogen Bulbs........................................... 370
Headlamps................................................ 371
Front Turn Signal, Parking and
Daytime Running Lamps (DRL).............. 372
Center High-Mounted
Stoplamp (CHMSL)................................ 372
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps............................... 373
License Plate Lamp................................... 374
Replacement Bulbs................................... 374
Windshield Wiper Blade Replacement....... 375
Tires............................................................ 377
Tire Sidewall Labeling............................... 378
Tire Terminology and Denitions............... 381
Ination - Tire Pressure............................. 384
Tire Pressure Monitor System................... 385Tire Inspection and Rotation...................... 390
When It Is Time for New Tires.................. 391
Buying New Tires...................................... 392
Different Size Tires and Wheels................ 394
Uniform Tire Quality Grading..................... 395
Wheel Alignment and Tire Balance............ 396
Wheel Replacement.................................. 396
Tire Chains............................................... 398
If a Tire Goes Flat.................................... 399
Changing a Flat Tire................................. 400
Removing the Spare Tire and Tools.......... 401
Removing the Flat Tire and Installing
the Spare Tire....................................... 404
Secondary Latch System........................... 412
Storing a Flat or Spare Tire
and Tools.............................................. 416
Spare Tire................................................. 420
Section 5 Service and Appearance Care
322

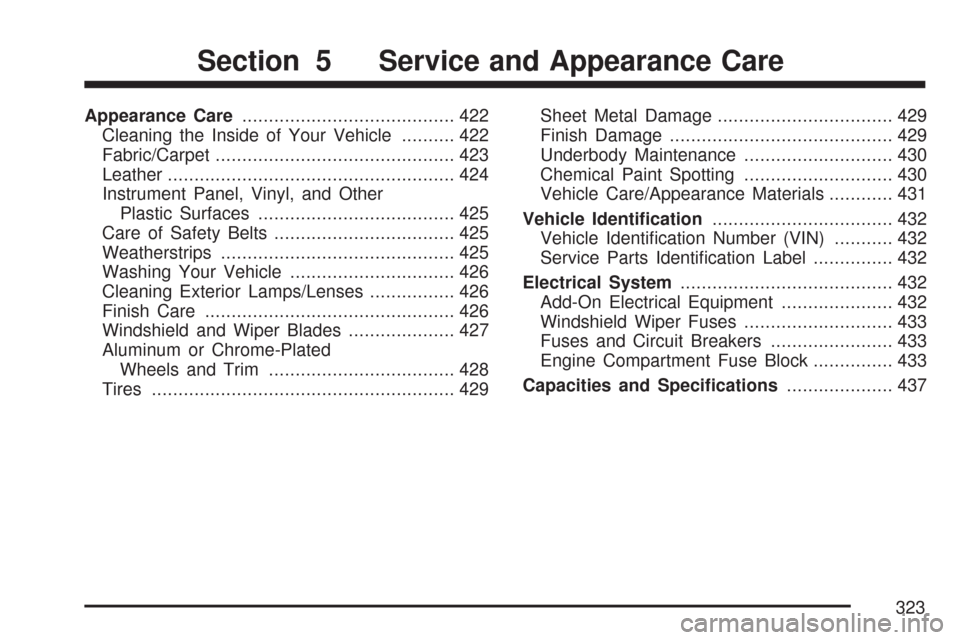

Appearance Care........................................ 422
Cleaning the Inside of Your Vehicle.......... 422
Fabric/Carpet............................................. 423
Leather...................................................... 424
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 425
Care of Safety Belts.................................. 425
Weatherstrips............................................ 425
Washing Your Vehicle............................... 426
Cleaning Exterior Lamps/Lenses................ 426
Finish Care............................................... 426
Windshield and Wiper Blades.................... 427
Aluminum or Chrome-Plated
Wheels and Trim................................... 428
Tires......................................................... 429Sheet Metal Damage................................. 429
Finish Damage.......................................... 429
Underbody Maintenance............................ 430
Chemical Paint Spotting............................ 430
Vehicle Care/Appearance Materials............ 431
Vehicle Identication.................................. 432
Vehicle Identication Number (VIN)........... 432
Service Parts Identication Label............... 432
Electrical System........................................ 432
Add-On Electrical Equipment..................... 432
Windshield Wiper Fuses............................ 433
Fuses and Circuit Breakers....................... 433
Engine Compartment Fuse Block............... 433
Capacities and Specications.................... 437
Section 5 Service and Appearance Care
323

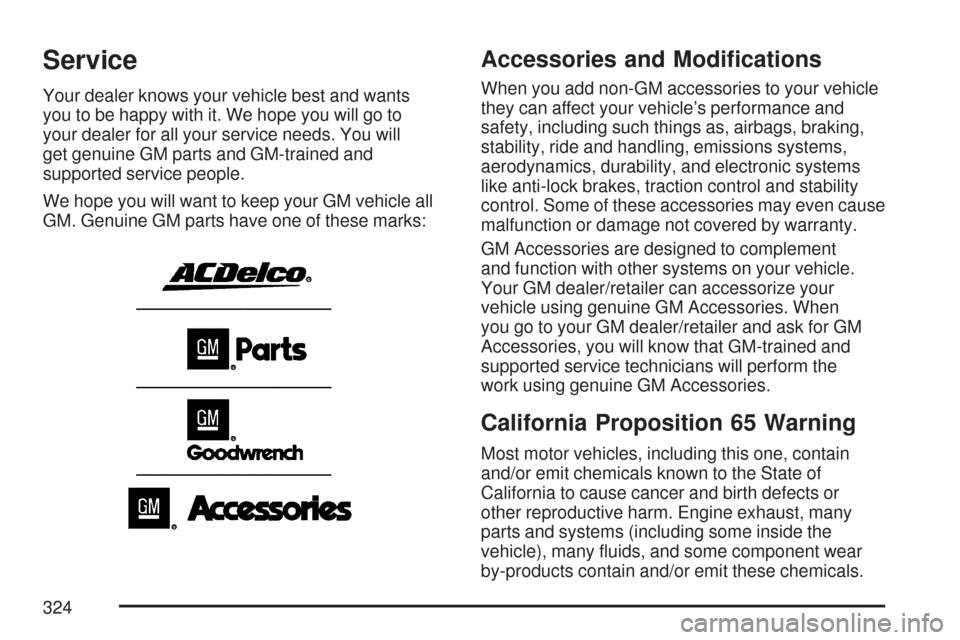

Service
Your dealer knows your vehicle best and wants
you to be happy with it. We hope you will go to
your dealer for all your service needs. You will
get genuine GM parts and GM-trained and
supported service people.
We hope you will want to keep your GM vehicle all
GM. Genuine GM parts have one of these marks:
Accessories and Modications
When you add non-GM accessories to your vehicle
they can affect your vehicle’s performance and
safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems
like anti-lock brakes, traction control and stability
control. Some of these accessories may even cause
malfunction or damage not covered by warranty.
GM Accessories are designed to complement
and function with other systems on your vehicle.
Your GM dealer/retailer can accessorize your
vehicle using genuine GM Accessories. When
you go to your GM dealer/retailer and ask for GM
Accessories, you will know that GM-trained and
supported service technicians will perform the
work using genuine GM Accessories.
California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm. Engine exhaust, many
parts and systems (including some inside the
vehicle), many uids, and some component wear
by-products contain and/or emit these chemicals.
324

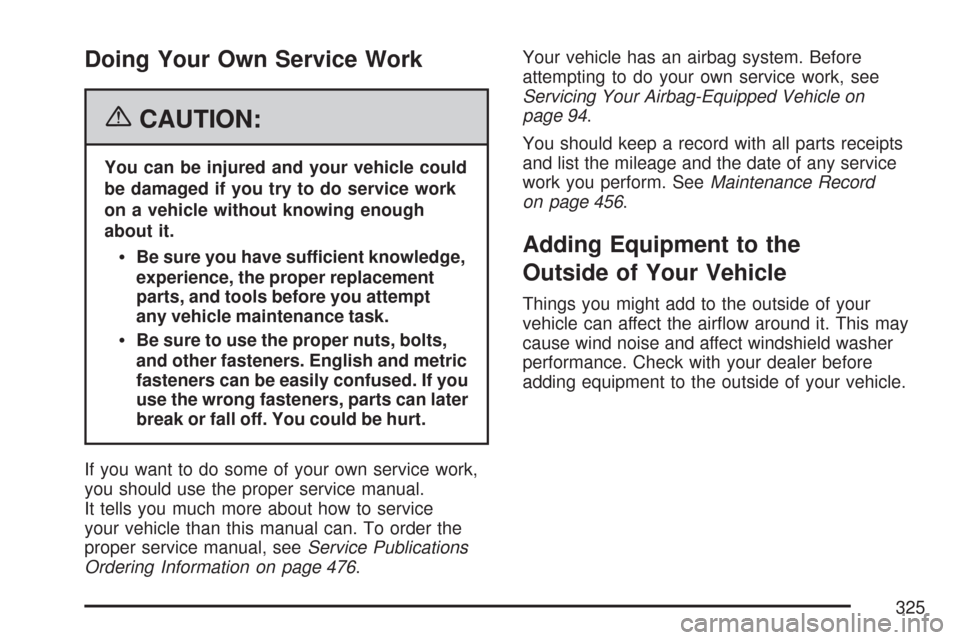

Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt
any vehicle maintenance task.
Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you should use the proper service manual.
It tells you much more about how to service
your vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 476.Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 94.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeeMaintenance Record
on page 456.
Adding Equipment to the
Outside of Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
325

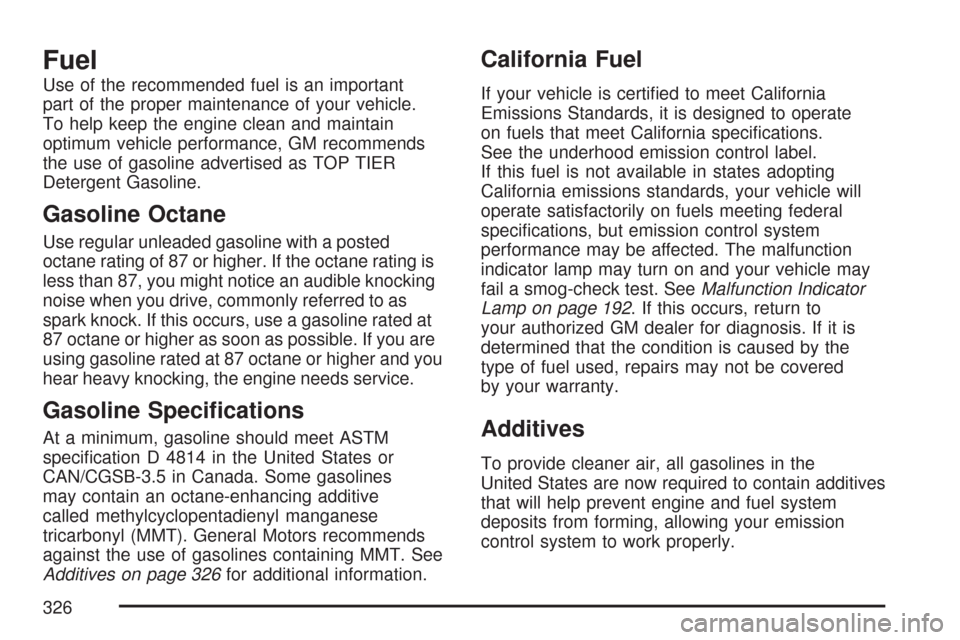

Fuel
Use of the recommended fuel is an important
part of the proper maintenance of your vehicle.
To help keep the engine clean and maintain
optimum vehicle performance, GM recommends
the use of gasoline advertised as TOP TIER
Detergent Gasoline.
Gasoline Octane
Use regular unleaded gasoline with a posted
octane rating of 87 or higher. If the octane rating is
less than 87, you might notice an audible knocking
noise when you drive, commonly referred to as
spark knock. If this occurs, use a gasoline rated at
87 octane or higher as soon as possible. If you are
using gasoline rated at 87 octane or higher and you
hear heavy knocking, the engine needs service.
Gasoline Specications
At a minimum, gasoline should meet ASTM
specication D 4814 in the United States or
CAN/CGSB-3.5 in Canada. Some gasolines
may contain an octane-enhancing additive
called methylcyclopentadienyl manganese
tricarbonyl (MMT). General Motors recommends
against the use of gasolines containing MMT. See
Additives on page 326for additional information.
California Fuel
If your vehicle is certied to meet California
Emissions Standards, it is designed to operate
on fuels that meet California specications.
See the underhood emission control label.
If this fuel is not available in states adopting
California emissions standards, your vehicle will
operate satisfactorily on fuels meeting federal
specications, but emission control system
performance may be affected. The malfunction
indicator lamp may turn on and your vehicle may
fail a smog-check test. SeeMalfunction Indicator
Lamp on page 192. If this occurs, return to
your authorized GM dealer for diagnosis. If it is
determined that the condition is caused by the
type of fuel used, repairs may not be covered
by your warranty.
Additives
To provide cleaner air, all gasolines in the
United States are now required to contain additives
that will help prevent engine and fuel system
deposits from forming, allowing your emission
control system to work properly.
326

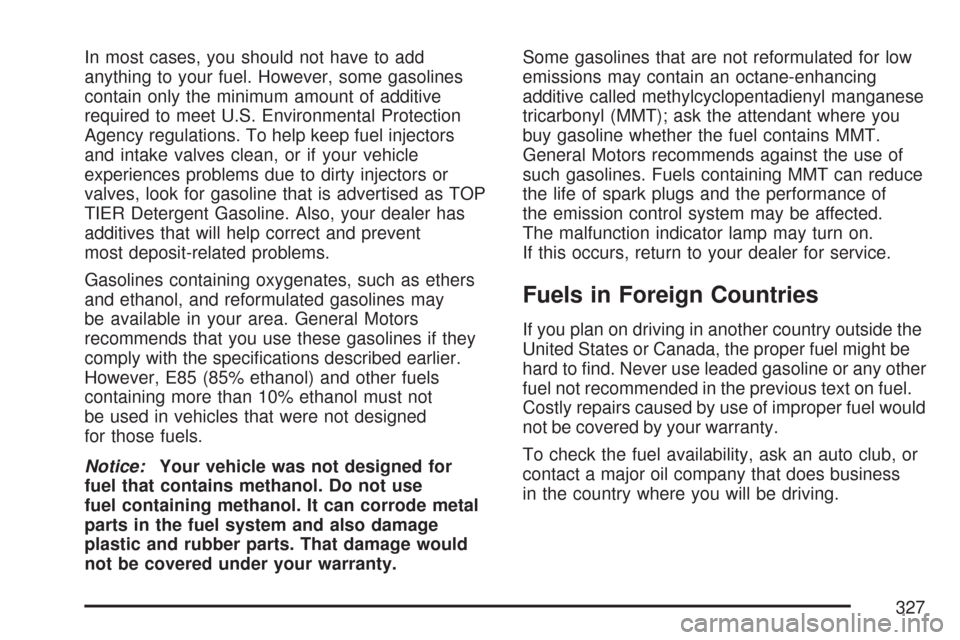

In most cases, you should not have to add
anything to your fuel. However, some gasolines
contain only the minimum amount of additive
required to meet U.S. Environmental Protection
Agency regulations. To help keep fuel injectors
and intake valves clean, or if your vehicle
experiences problems due to dirty injectors or
valves, look for gasoline that is advertised as TOP
TIER Detergent Gasoline. Also, your dealer has
additives that will help correct and prevent
most deposit-related problems.
Gasolines containing oxygenates, such as ethers
and ethanol, and reformulated gasolines may
be available in your area. General Motors
recommends that you use these gasolines if they
comply with the specications described earlier.
However, E85 (85% ethanol) and other fuels
containing more than 10% ethanol must not
be used in vehicles that were not designed
for those fuels.
Notice:Your vehicle was not designed for
fuel that contains methanol. Do not use
fuel containing methanol. It can corrode metal
parts in the fuel system and also damage
plastic and rubber parts. That damage would
not be covered under your warranty.Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing
additive called methylcyclopentadienyl manganese
tricarbonyl (MMT); ask the attendant where you
buy gasoline whether the fuel contains MMT.
General Motors recommends against the use of
such gasolines. Fuels containing MMT can reduce
the life of spark plugs and the performance of
the emission control system may be affected.
The malfunction indicator lamp may turn on.
If this occurs, return to your dealer for service.
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel might be
hard to nd. Never use leaded gasoline or any other
fuel not recommended in the previous text on fuel.
Costly repairs caused by use of improper fuel would
not be covered by your warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business
in the country where you will be driving.
327

Filling the Tank
{CAUTION:
Fuel vapor burns violently and a fuel re
can cause bad injuries. To help avoid
injuries to you and others, read and follow
all the instructions on the pump island.
Turn off your engine when you are
refueling. Do not smoke if you are near
fuel or refueling your vehicle. Do not use
cellular phones. Keep sparks, ames,
and smoking materials away from fuel.
Do not leave the fuel pump unattended
when refueling your vehicle. This is
against the law in some places. Do not
re-enter the vehicle while pumping fuel.
Keep children away from the fuel pump;
never let children pump fuel.The tethered fuel cap is located behind a hinged
fuel door on the driver’s side of the vehicle.
To remove the fuel cap, turn it slowly
counterclockwise.
While refueling, hang the tethered fuel cap from
the hook on the fuel door.
328

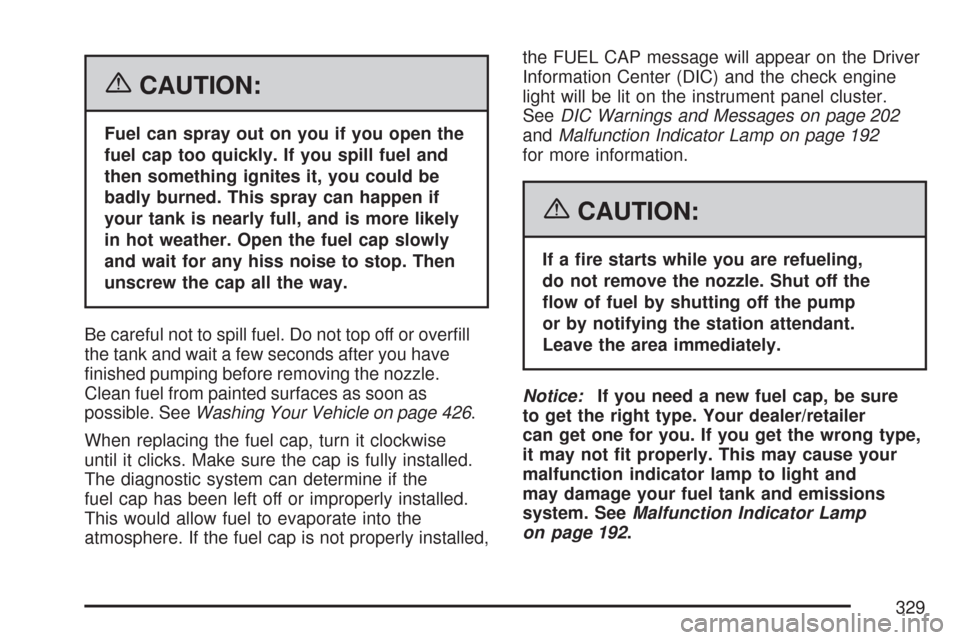

{CAUTION:
Fuel can spray out on you if you open the
fuel cap too quickly. If you spill fuel and
then something ignites it, you could be
badly burned. This spray can happen if
your tank is nearly full, and is more likely
in hot weather. Open the fuel cap slowly
and wait for any hiss noise to stop. Then
unscrew the cap all the way.
Be careful not to spill fuel. Do not top off or overll
the tank and wait a few seconds after you have
nished pumping before removing the nozzle.
Clean fuel from painted surfaces as soon as
possible. SeeWashing Your Vehicle on page 426.
When replacing the fuel cap, turn it clockwise
until it clicks. Make sure the cap is fully installed.
The diagnostic system can determine if the
fuel cap has been left off or improperly installed.
This would allow fuel to evaporate into the
atmosphere. If the fuel cap is not properly installed,the FUEL CAP message will appear on the Driver
Information Center (DIC) and the check engine
light will be lit on the instrument panel cluster.
SeeDIC Warnings and Messages on page 202
andMalfunction Indicator Lamp on page 192
for more information.
{CAUTION:
If a re starts while you are refueling,
do not remove the nozzle. Shut off the
ow of fuel by shutting off the pump
or by notifying the station attendant.
Leave the area immediately.
Notice:If you need a new fuel cap, be sure
to get the right type. Your dealer/retailer
can get one for you. If you get the wrong type,
it may not t properly. This may cause your
malfunction indicator lamp to light and
may damage your fuel tank and emissions
system. SeeMalfunction Indicator Lamp
on page 192.
329

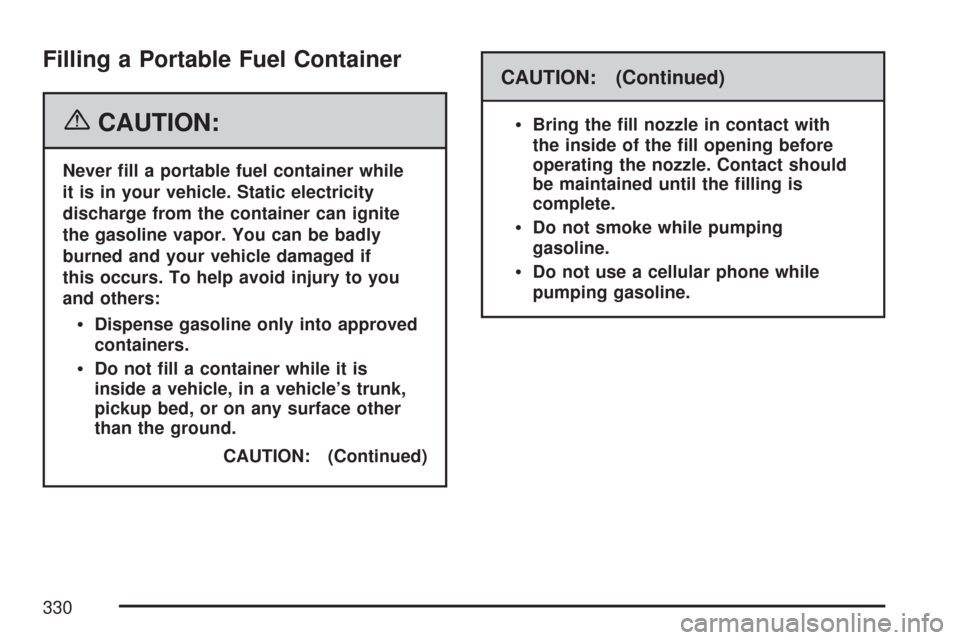

Filling a Portable Fuel Container
{CAUTION:
Never ll a portable fuel container while
it is in your vehicle. Static electricity
discharge from the container can ignite
the gasoline vapor. You can be badly
burned and your vehicle damaged if
this occurs. To help avoid injury to you
and others:
Dispense gasoline only into approved
containers.
Do not ll a container while it is
inside a vehicle, in a vehicle’s trunk,
pickup bed, or on any surface other
than the ground.
CAUTION: (Continued)
CAUTION: (Continued)

Bring the ll nozzle in contact with
the inside of the ll opening before
operating the nozzle. Contact should
be maintained until the lling is
complete.
Do not smoke while pumping
gasoline.
Do not use a cellular phone while
pumping gasoline.
330
