CHEVROLET COLORADO 2007 1.G Owners Manual

3. With your foot on the brake pedal, move the
shift lever through each gear range, pausing
for about three seconds in each range.
Then, position the shift lever in PARK (P).
4. Let the engine run at idle for three minutes
or more.
Then, without shutting off the engine, follow
these steps:
1. Flip the handle up and then pull out the
dipstick and wipe it with a clean rag or
paper towel.
The automatic
transmission dipstick
handle with this symbol
on it is located in the
engine compartment
on the passenger’s
side of the vehicle.
SeeEngine Compartment Overview on
page 332for more information on location.
2. Push it back in all the way, wait three seconds
and then pull it back out again.3. Check both sides of the dipstick, and read
the lower level. The uid level must be in the
COLD area, below the cross-hatched area, for
a cold check or in the HOT or cross-hatched
area for a hot check. Be sure to keep the
dipstick pointed down to get an accurate
reading.
4. If the uid level is in the acceptable range,
push the dipstick back in all the way; then
ip the handle down to lock the dipstick
in place.
341

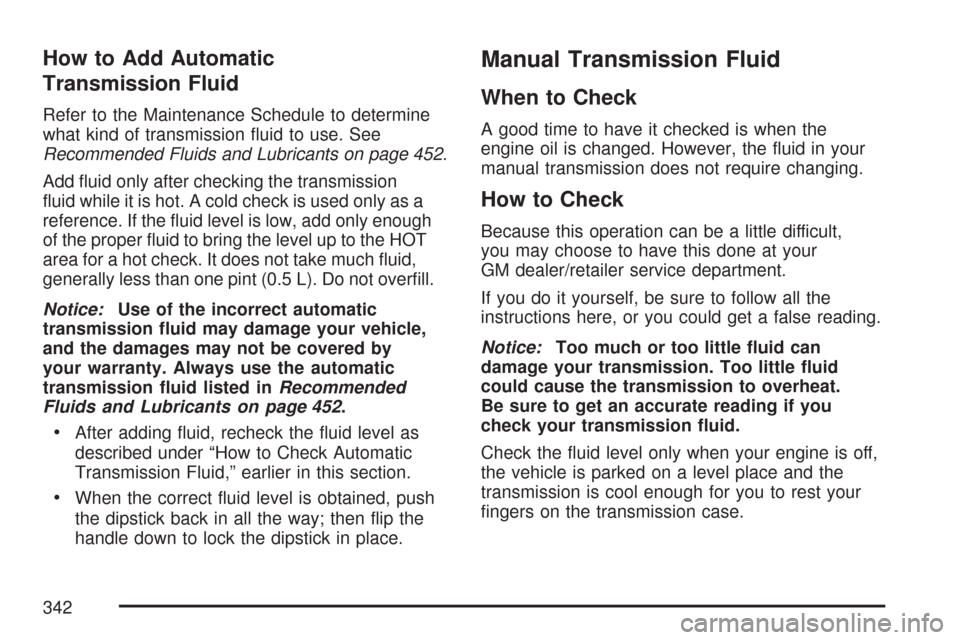

How to Add Automatic
Transmission Fluid
Refer to the Maintenance Schedule to determine
what kind of transmission uid to use. See
Recommended Fluids and Lubricants on page 452.
Add uid only after checking the transmission
uid while it is hot. A cold check is used only as a
reference. If the uid level is low, add only enough
of the proper uid to bring the level up to the HOT
area for a hot check. It does not take much uid,
generally less than one pint (0.5 L). Do not overll.
Notice:Use of the incorrect automatic
transmission uid may damage your vehicle,
and the damages may not be covered by
your warranty. Always use the automatic
transmission uid listed inRecommended
Fluids and Lubricants on page 452.
After adding uid, recheck the uid level as
described under “How to Check Automatic
Transmission Fluid,” earlier in this section.
When the correct uid level is obtained, push
the dipstick back in all the way; then ip the
handle down to lock the dipstick in place.
Manual Transmission Fluid
When to Check
A good time to have it checked is when the
engine oil is changed. However, the uid in your
manual transmission does not require changing.
How to Check
Because this operation can be a little difficult,
you may choose to have this done at your
GM dealer/retailer service department.
If you do it yourself, be sure to follow all the
instructions here, or you could get a false reading.
Notice:Too much or too little uid can
damage your transmission. Too little uid
could cause the transmission to overheat.
Be sure to get an accurate reading if you
check your transmission uid.
Check the uid level only when your engine is off,
the vehicle is parked on a level place and the
transmission is cool enough for you to rest your
ngers on the transmission case.
342

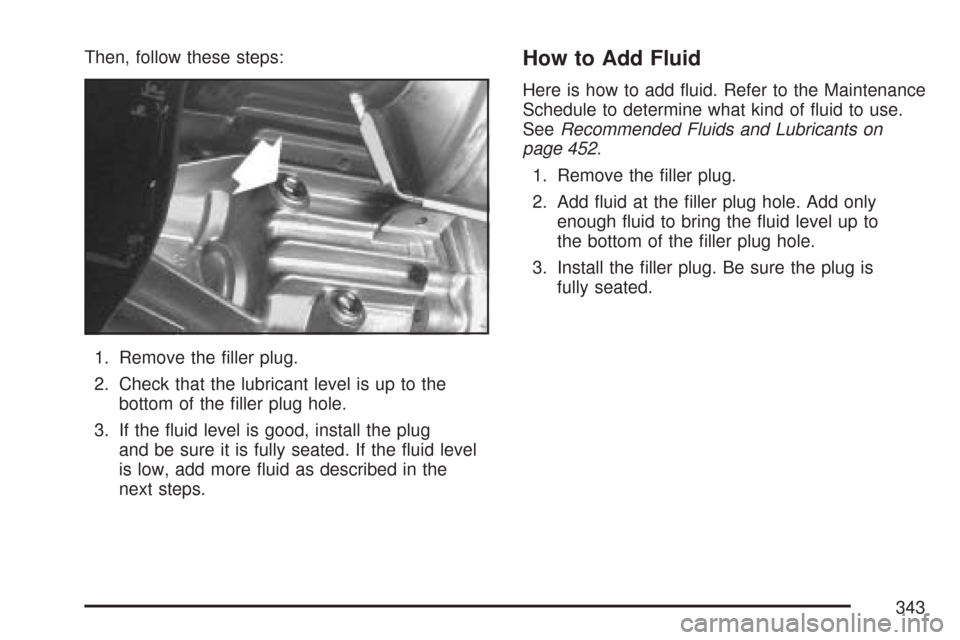

Then, follow these steps:
1. Remove the ller plug.
2. Check that the lubricant level is up to the
bottom of the ller plug hole.
3. If the uid level is good, install the plug
and be sure it is fully seated. If the uid level
is low, add more uid as described in the
next steps.How to Add Fluid
Here is how to add uid. Refer to the Maintenance
Schedule to determine what kind of uid to use.
SeeRecommended Fluids and Lubricants on
page 452.
1. Remove the ller plug.
2. Add uid at the ller plug hole. Add only
enough uid to bring the uid level up to
the bottom of the ller plug hole.
3. Install the ller plug. Be sure the plug is
fully seated.
343

Hydraulic Clutch
The hydraulic clutch linkage in your vehicle is
self-adjusting. The clutch master cylinder reservoir
is lled with hydraulic clutch uid.
The hydraulic clutch
uid reservoir cap
has this symbol
on it. SeeEngine
Compartment Overview
on page 332for
reservoir location.
It is not necessary to regularly check clutch uid
unless you suspect there is a leak in the system.
Adding uid will not correct a leak.
A uid loss in this system could indicate a
problem. Have the system inspected and repaired.
When to Check and What to Use
Refer to the Maintenance Schedule to determine
how often you should check the uid level in
your clutch master cylinder reservoir and for the
proper uid. SeeRecommended Fluids and
Lubricants on page 452.
344

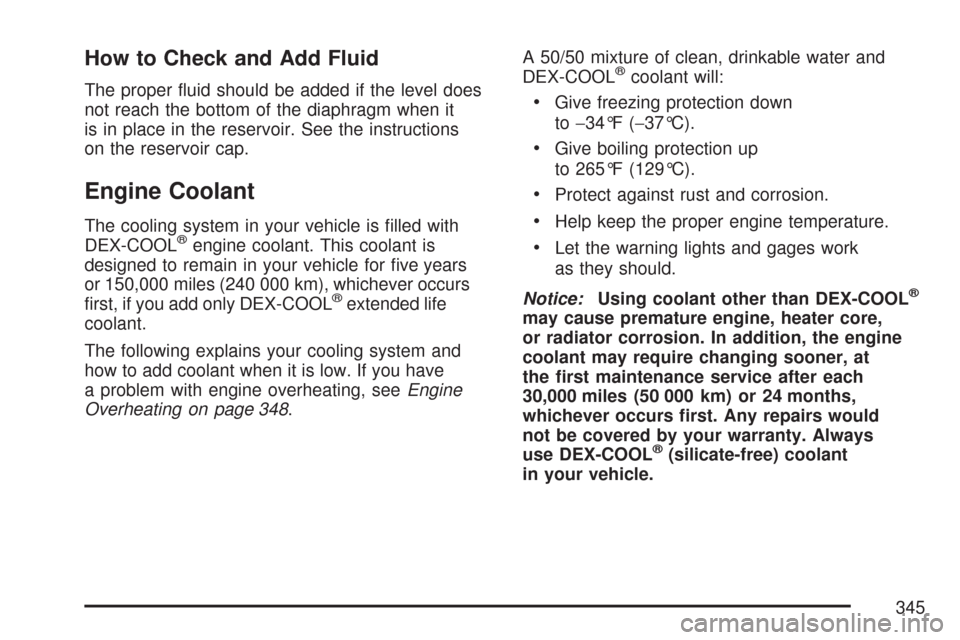

How to Check and Add Fluid
The proper uid should be added if the level does
not reach the bottom of the diaphragm when it
is in place in the reservoir. See the instructions
on the reservoir cap.
Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years
or 150,000 miles (240 000 km), whichever occurs
rst, if you add only DEX-COOL
®extended life
coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 348.A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down
to−34°F (−37°C).
Give boiling protection up
to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work
as they should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core,
or radiator corrosion. In addition, the engine
coolant may require changing sooner, at
the rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would
not be covered by your warranty. Always
use DEX-COOL
®(silicate-free) coolant
in your vehicle.
345

What to Use
Use a mixture of one-half clean, drinkable water
and one-half DEX-COOL®coolant which will
not damage aluminum parts. If you use this coolant
mixture, you do not need to add anything else.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and the proper coolant.Notice:If you use an improper coolant
mixture, your engine could overheat and be
badly damaged. The repair cost would not be
covered by your warranty. Too much water
in the mixture can freeze and crack the engine,
radiator, heater core, and other parts.
Notice:If you use extra inhibitors and/or
additives in your vehicle’s cooling system,
you could damage your vehicle. Use only
the proper mixture of the engine coolant
listed in this manual for the cooling system.
SeeRecommended Fluids and Lubricants
on page 452for more information.
Checking Coolant
The coolant recovery
tank cap has this
symbol on it.
346

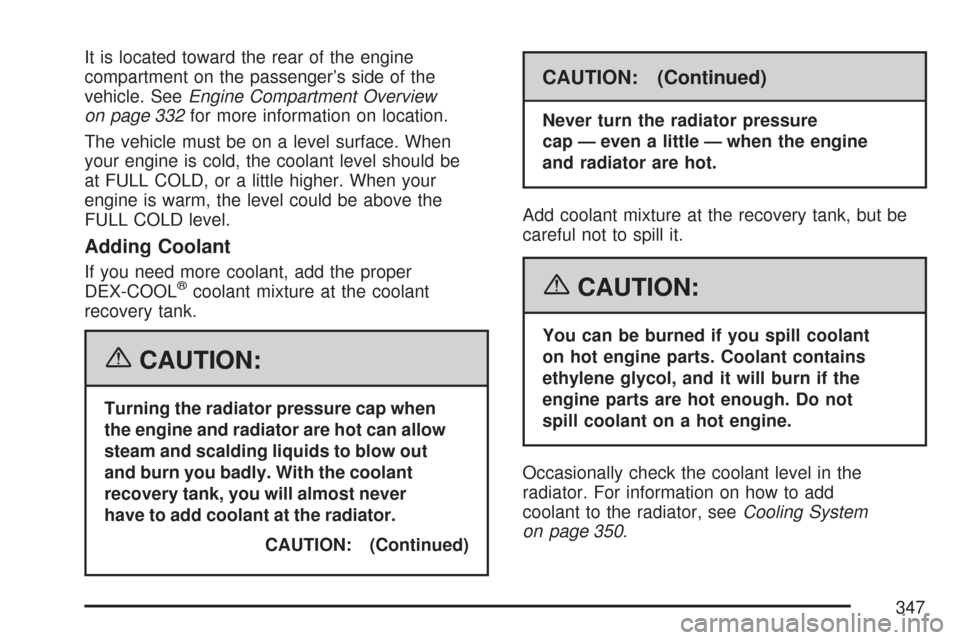

It is located toward the rear of the engine
compartment on the passenger’s side of the
vehicle. SeeEngine Compartment Overview
on page 332for more information on location.
The vehicle must be on a level surface. When
your engine is cold, the coolant level should be
at FULL COLD, or a little higher. When your
engine is warm, the level could be above the
FULL COLD level.
Adding Coolant
If you need more coolant, add the proper
DEX-COOL®coolant mixture at the coolant
recovery tank.
{CAUTION:
Turning the radiator pressure cap when
the engine and radiator are hot can allow
steam and scalding liquids to blow out
and burn you badly. With the coolant
recovery tank, you will almost never
have to add coolant at the radiator.
CAUTION: (Continued)
CAUTION: (Continued)
Never turn the radiator pressure
cap — even a little — when the engine
and radiator are hot.
Add coolant mixture at the recovery tank, but be
careful not to spill it.
{CAUTION:
You can be burned if you spill coolant
on hot engine parts. Coolant contains
ethylene glycol, and it will burn if the
engine parts are hot enough. Do not
spill coolant on a hot engine.
Occasionally check the coolant level in the
radiator. For information on how to add
coolant to the radiator, seeCooling System
on page 350.
347

Radiator Pressure Cap
Notice:If the pressure cap is not tightly
installed, coolant loss and possible engine
damage may occur. Be sure the cap is
properly and tightly secured.
SeeEngine Compartment Overview on page 332
for more information on location.
Engine Overheating
A coolant temperature gage is on the instrument
panel. SeeEngine Coolant Temperature Gage
on page 191.
The air conditioning might stop working if the
engine is too hot. This is normal and helps
cool the engine.
If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can
burn you badly, even if you just open the
hood. Stay away from the engine if you
see or hear steam coming from it. Just
turn it off and get everyone away from
the vehicle until it cools down. Wait until
there is no sign of steam or coolant
before you open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch re.
You or others could be badly burned.
Stop your engine if it overheats, and get
out of the vehicle until the engine is cool.
Notice:If your engine catches re because
you keep driving with no coolant, your vehicle
can be badly damaged. The costly repairs
would not be covered by your warranty.
348

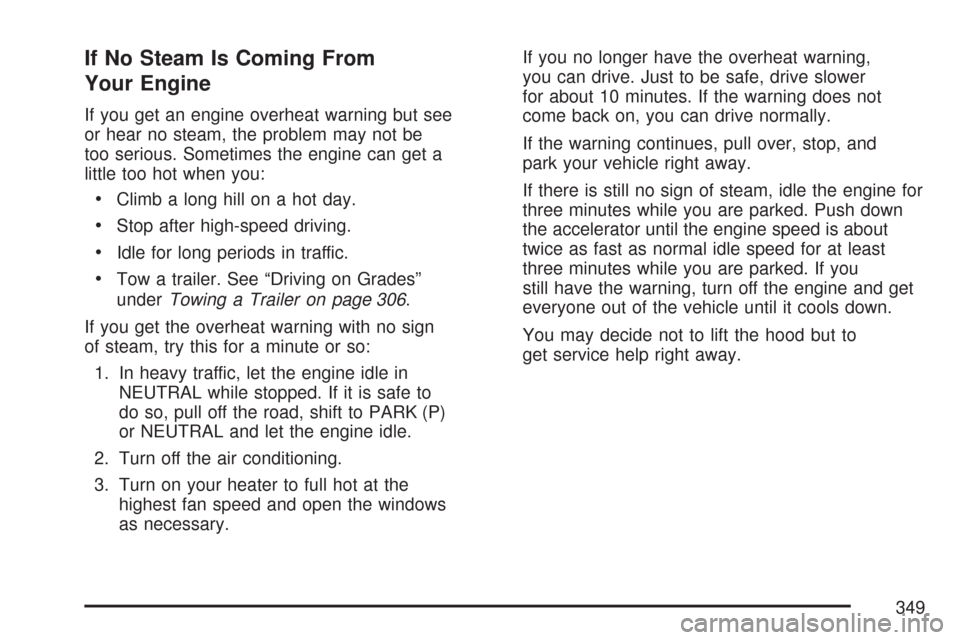

If No Steam Is Coming From
Your Engine
If you get an engine overheat warning but see
or hear no steam, the problem may not be
too serious. Sometimes the engine can get a
little too hot when you:
Climb a long hill on a hot day.
Stop after high-speed driving.
Idle for long periods in traffic.
Tow a trailer. See “Driving on Grades”
underTowing a Trailer on page 306.
If you get the overheat warning with no sign
of steam, try this for a minute or so:
1. In heavy traffic, let the engine idle in
NEUTRAL while stopped. If it is safe to
do so, pull off the road, shift to PARK (P)
or NEUTRAL and let the engine idle.
2. Turn off the air conditioning.
3. Turn on your heater to full hot at the
highest fan speed and open the windows
as necessary.If you no longer have the overheat warning,
you can drive. Just to be safe, drive slower
for about 10 minutes. If the warning does not
come back on, you can drive normally.
If the warning continues, pull over, stop, and
park your vehicle right away.
If there is still no sign of steam, idle the engine for
three minutes while you are parked. Push down
the accelerator until the engine speed is about
twice as fast as normal idle speed for at least
three minutes while you are parked. If you
still have the warning, turn off the engine and get
everyone out of the vehicle until it cools down.
You may decide not to lift the hood but to
get service help right away.
349

Cooling System
When you decide it is safe to lift the hood,
here is what you will see:
A. Coolant Recovery Tank
B. Engine Cooling Fan
C. Radiator Pressure Cap
If the coolant inside the coolant recovery tank is
boiling, do not do anything else until it cools down.
The vehicle should be parked on a level surface.When the engine is cold, the coolant level should
be at least up to the FULL COLD mark. If it is
not, you may have a leak at the pressure cap or
in the radiator hoses, heater hoses, radiator, water
pump or somewhere else in the cooling system.
350
