CHEVROLET COLORADO 2007 1.G Owners Manual

Checking Things Under
the Hood
{CAUTION:
Things that burn can get on hot engine
parts and start a re. These include
liquids like fuel, oil, coolant, brake uid,
windshield washer and other uids, and
plastic or rubber. You or others could be
burned. Be careful not to drop or spill
things that will burn onto a hot engine.
Hood Release
To open the hood, do the following:1. Pull the handle with
this symbol on it.
It is located inside
the vehicle on the
lower left side of the
instrument panel.
2. Release the secondary latch on the hood.
It is located below the front center of the hood.
3. Lift the hood.
4. Release the hood prop from its retainer and
put the hood prop into the slot in the hood.
Before closing the hood, be sure all the ller caps
are on properly. Then lift the hood to relieve
pressure on the hood prop. Remove the hood
prop from the slot in the hood and return the prop
to its retainer. Lower the hood 10 to 12 inches
(25 to 30 cm) above the vehicle and release it
to latch fully. Check to make sure the hood is
closed and repeat the procedure if necessary.
331

Engine Compartment Overview
When you open the hood on the 2.9L engine (3.7L engine similar), you will see the following:
332

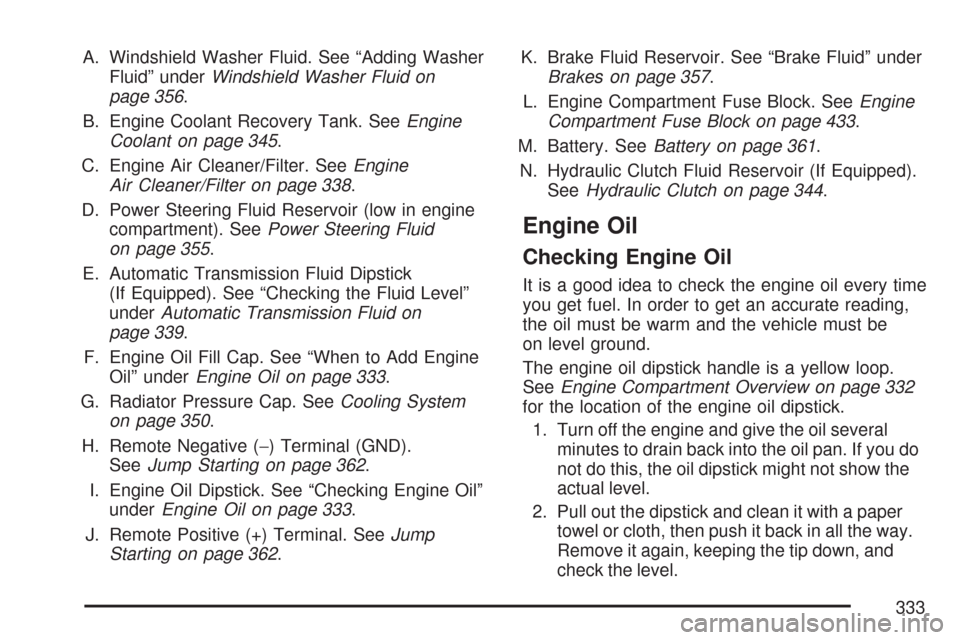

A. Windshield Washer Fluid. See “Adding Washer
Fluid” underWindshield Washer Fluid on
page 356.
B. Engine Coolant Recovery Tank. SeeEngine
Coolant on page 345.
C. Engine Air Cleaner/Filter. SeeEngine
Air Cleaner/Filter on page 338.
D. Power Steering Fluid Reservoir (low in engine
compartment). SeePower Steering Fluid
on page 355.
E. Automatic Transmission Fluid Dipstick
(If Equipped). See “Checking the Fluid Level”
underAutomatic Transmission Fluid on
page 339.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 333.
G. Radiator Pressure Cap. SeeCooling System
on page 350.
H. Remote Negative (−) Terminal (GND).
SeeJump Starting on page 362.
I. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 333.
J. Remote Positive (+) Terminal. SeeJump
Starting on page 362.K. Brake Fluid Reservoir. See “Brake Fluid” under
Brakes on page 357.
L. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 433.
M. Battery. SeeBattery on page 361.
N. Hydraulic Clutch Fluid Reservoir (If Equipped).
SeeHydraulic Clutch on page 344.
Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 332
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you do
not do this, the oil dipstick might not show the
actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the way.
Remove it again, keeping the tip down, and
check the level.
333

When to Add Engine Oil
If the oil is below the cross-hatched area (L),
you need to add at least one quart/liter of oil.
But you must use the right kind. This section
explains what kind of oil to use. For engine
oil crankcase capacity, seeCapacities and
Specications on page 437.
Notice:Do not add too much oil. If the
engine has so much oil that the oil level
gets above the cross-hatched area that
shows the proper operating range, the
engine could be damaged.SeeEngine
Compartment Overview
on page 332for the
location of the engine
oil ll cap.
Be sure to add enough oil to put the level
somewhere in the proper operating range.
Push the dipstick all the way back in when
you are through.
334

What Kind of Engine Oil to Use
Look for three things:
GM6094M
Your vehicle’s engine requires oil meeting
GM Standard GM6094M. Look for and use
only an oil that meets GM Standard GM6094M.
SAE 5W-30
As shown in the viscosity chart, SAE 5W-30
is best for your vehicle.These numbers on an oil container show its
viscosity, or thickness. Do not use other
viscosity oils such as SAE 20W-50.
Oils meeting these
requirements
should have the
starburst symbol
on the container.
This symbol indicates
that the oil has
been certied by the
American Petroleum
Institute (API).
Look for this information on the oil container, and
use only those oils that are identied as meeting
GM Standard GM6094M and have the starburst
symbol on the front of the oil container.
Notice:Use only engine oil identied as
meeting GM Standard GM6094M and showing
the American Petroleum Institute Certied
For Gasoline Engines starburst symbol. Failure
to use the recommended oil can result in
engine damage not covered by your warranty.
335

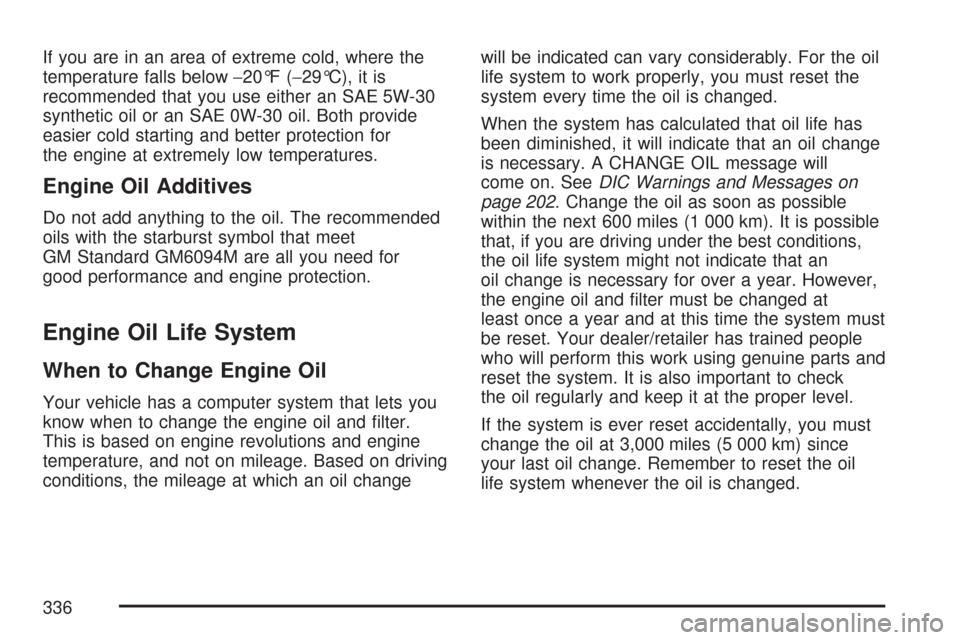

If you are in an area of extreme cold, where the
temperature falls below−20°F (−29°C), it is
recommended that you use either an SAE 5W-30
synthetic oil or an SAE 0W-30 oil. Both provide
easier cold starting and better protection for
the engine at extremely low temperatures.
Engine Oil Additives
Do not add anything to the oil. The recommended
oils with the starburst symbol that meet
GM Standard GM6094M are all you need for
good performance and engine protection.
Engine Oil Life System
When to Change Engine Oil
Your vehicle has a computer system that lets you
know when to change the engine oil and lter.
This is based on engine revolutions and engine
temperature, and not on mileage. Based on driving
conditions, the mileage at which an oil changewill be indicated can vary considerably. For the oil
life system to work properly, you must reset the
system every time the oil is changed.
When the system has calculated that oil life has
been diminished, it will indicate that an oil change
is necessary. A CHANGE OIL message will
come on. SeeDIC Warnings and Messages on
page 202. Change the oil as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions,
the oil life system might not indicate that an
oil change is necessary for over a year. However,
the engine oil and lter must be changed at
least once a year and at this time the system must
be reset. Your dealer/retailer has trained people
who will perform this work using genuine parts and
reset the system. It is also important to check
the oil regularly and keep it at the proper level.
If the system is ever reset accidentally, you must
change the oil at 3,000 miles (5 000 km) since
your last oil change. Remember to reset the oil
life system whenever the oil is changed.
336

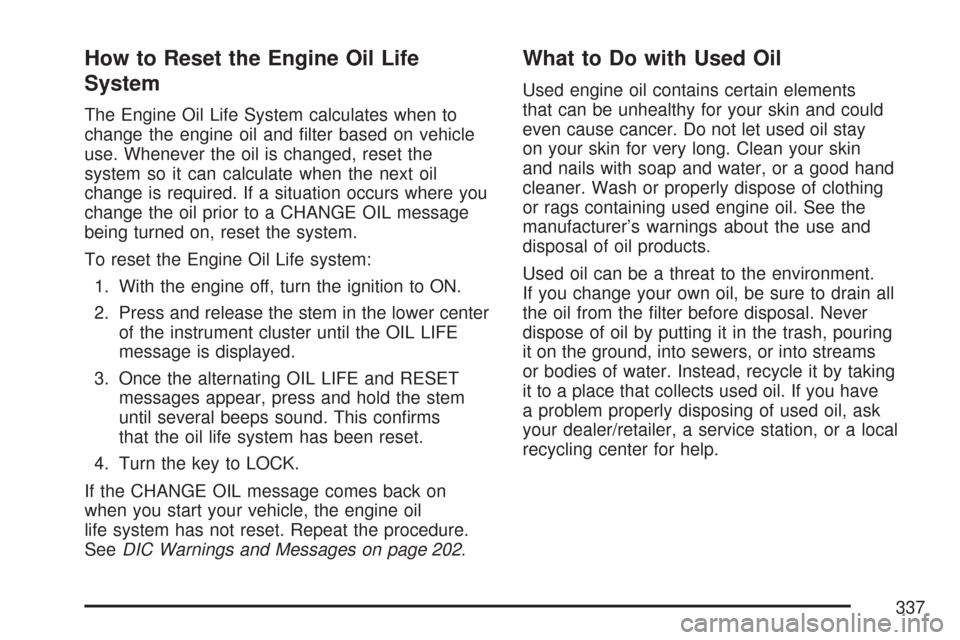

How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change the engine oil and lter based on vehicle
use. Whenever the oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where you
change the oil prior to a CHANGE OIL message
being turned on, reset the system.
To reset the Engine Oil Life system:
1. With the engine off, turn the ignition to ON.
2. Press and release the stem in the lower center
of the instrument cluster until the OIL LIFE
message is displayed.
3. Once the alternating OIL LIFE and RESET
messages appear, press and hold the stem
until several beeps sound. This conrms
that the oil life system has been reset.
4. Turn the key to LOCK.
If the CHANGE OIL message comes back on
when you start your vehicle, the engine oil
life system has not reset. Repeat the procedure.
SeeDIC Warnings and Messages on page 202.
What to Do with Used Oil
Used engine oil contains certain elements
that can be unhealthy for your skin and could
even cause cancer. Do not let used oil stay
on your skin for very long. Clean your skin
and nails with soap and water, or a good hand
cleaner. Wash or properly dispose of clothing
or rags containing used engine oil. See the
manufacturer’s warnings about the use and
disposal of oil products.
Used oil can be a threat to the environment.
If you change your own oil, be sure to drain all
the oil from the lter before disposal. Never
dispose of oil by putting it in the trash, pouring
it on the ground, into sewers, or into streams
or bodies of water. Instead, recycle it by taking
it to a place that collects used oil. If you have
a problem properly disposing of used oil, ask
your dealer/retailer, a service station, or a local
recycling center for help.
337

Engine Air Cleaner/Filter
The engine air cleaner/lter is located in the
engine compartment on the passenger’s side of
the vehicle. SeeEngine Compartment Overview
on page 332for more information on location.
When to Inspect the Engine
Air Cleaner/Filter
Inspect the air cleaner/lter at the MaintenanceII
intervals and replace it at the rst oil change
after each 50,000 mile (83 000 km) interval.
SeeScheduled Maintenance on page 442for
more information. If you are driving in dusty/dirty
conditions, inspect the lter at each engine
oil change.
How to Inspect the Engine
Air Cleaner/Filter
To inspect or replace the engine air cleaner/lter,
do the following:
1. Unfasten the clips that hold the cover on
and remove the cover.
2. Lift out the engine air cleaner/lter.
3. Inspect or replace the air lter. SeeNormal
Maintenance Replacement Parts on page 454
to determine which lter to use.
4. Reinstall the engine air cleaner/lter cover.
Fasten the clips to hold the cover in place.
338

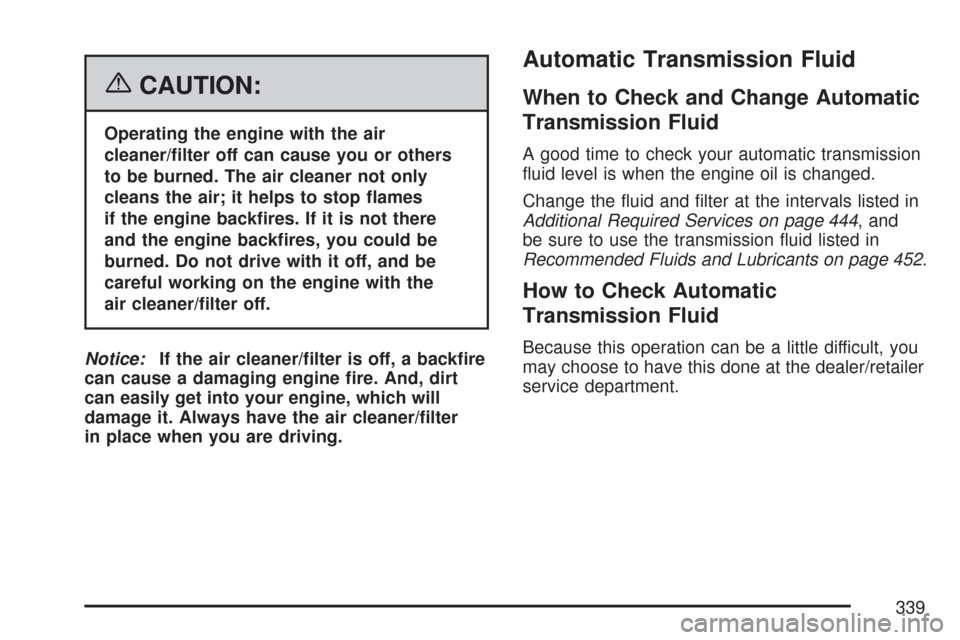

{CAUTION:
Operating the engine with the air
cleaner/lter off can cause you or others
to be burned. The air cleaner not only
cleans the air; it helps to stop ames
if the engine backres. If it is not there
and the engine backres, you could be
burned. Do not drive with it off, and be
careful working on the engine with the
air cleaner/lter off.
Notice:If the air cleaner/lter is off, a backre
can cause a damaging engine re. And, dirt
can easily get into your engine, which will
damage it. Always have the air cleaner/lter
in place when you are driving.
Automatic Transmission Fluid
When to Check and Change Automatic
Transmission Fluid
A good time to check your automatic transmission
uid level is when the engine oil is changed.
Change the uid and lter at the intervals listed in
Additional Required Services on page 444, and
be sure to use the transmission uid listed in
Recommended Fluids and Lubricants on page 452.
How to Check Automatic
Transmission Fluid
Because this operation can be a little difficult, you
may choose to have this done at the dealer/retailer
service department.
339

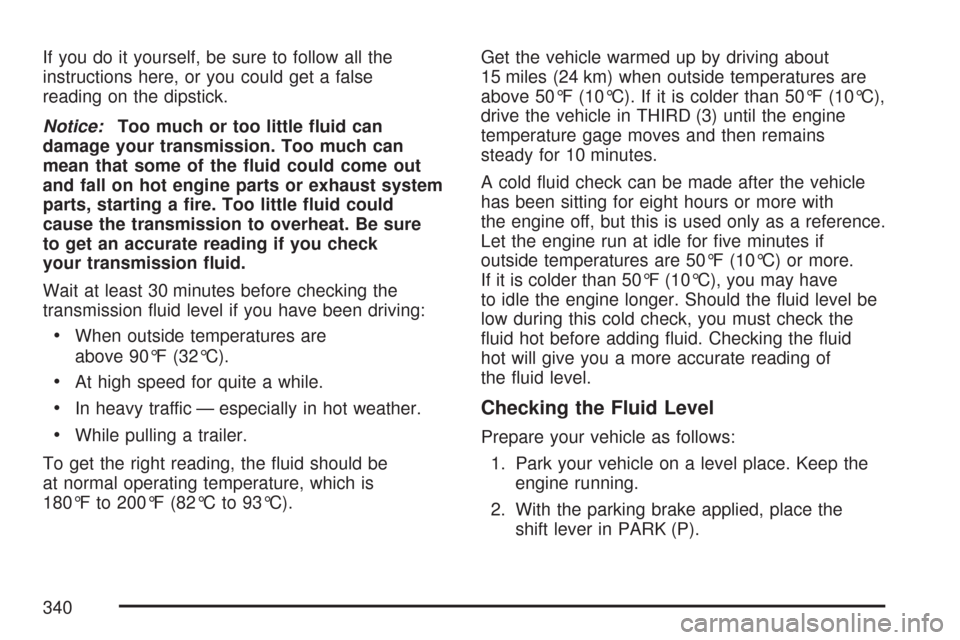

If you do it yourself, be sure to follow all the
instructions here, or you could get a false
reading on the dipstick.
Notice:Too much or too little uid can
damage your transmission. Too much can
mean that some of the uid could come out
and fall on hot engine parts or exhaust system
parts, starting a re. Too little uid could
cause the transmission to overheat. Be sure
to get an accurate reading if you check
your transmission uid.
Wait at least 30 minutes before checking the
transmission uid level if you have been driving:
When outside temperatures are
above 90°F (32°C).
At high speed for quite a while.
In heavy traffic — especially in hot weather.
While pulling a trailer.
To get the right reading, the uid should be
at normal operating temperature, which is
180°F to 200°F (82°C to 93°C).Get the vehicle warmed up by driving about
15 miles (24 km) when outside temperatures are
above 50°F (10°C). If it is colder than 50°F (10°C),
drive the vehicle in THIRD (3) until the engine
temperature gage moves and then remains
steady for 10 minutes.
A cold uid check can be made after the vehicle
has been sitting for eight hours or more with
the engine off, but this is used only as a reference.
Let the engine run at idle for ve minutes if
outside temperatures are 50°F (10°C) or more.
If it is colder than 50°F (10°C), you may have
to idle the engine longer. Should the uid level be
low during this cold check, you must check the
uid hot before adding uid. Checking the uid
hot will give you a more accurate reading of
the uid level.
Checking the Fluid Level
Prepare your vehicle as follows:
1. Park your vehicle on a level place. Keep the
engine running.
2. With the parking brake applied, place the
shift lever in PARK (P).
340
