CHEVROLET CORVETTE 2011 6.G User Guide

Black plate (5,1)Chevrolet Corvette Owner Manual - 2011
In Brief 1-5

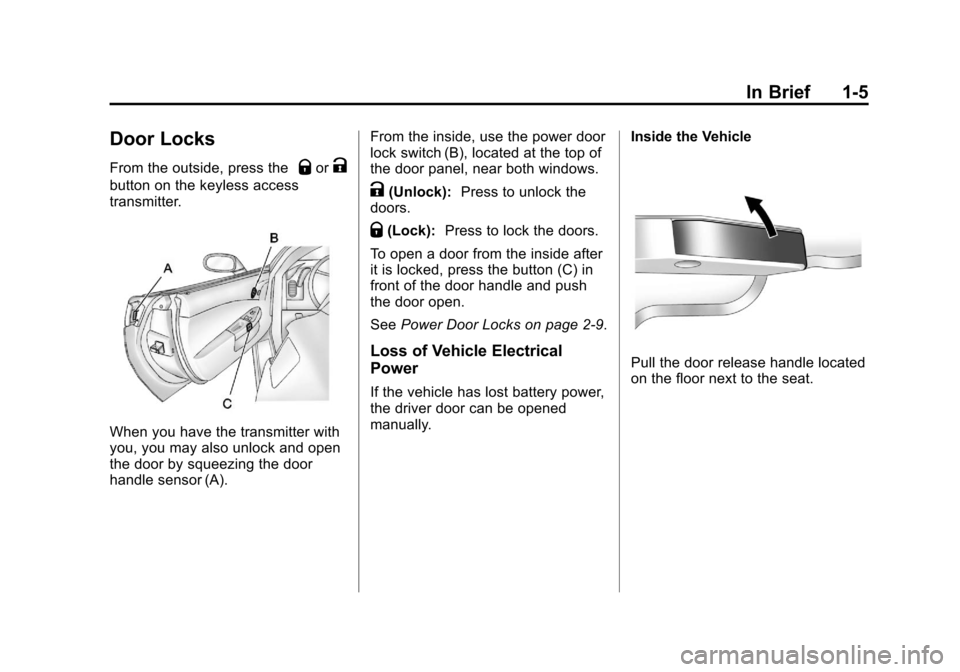

Door Locks
From the outside, press theQorK
button on the keyless access
transmitter.
When you have the transmitter with
you, you may also unlock and open
the door by squeezing the door
handle sensor (A).From the inside, use the power door
lock switch (B), located at the top of
the door panel, near both windows.
K(Unlock):
Press to unlock the
doors.
Q(Lock): Press to lock the doors.
To open a door from the inside after
it is locked, press the button (C) in
front of the door handle and push
the door open.
See Power Door Locks on page 2‑9.
Loss of Vehicle Electrical
Power
If the vehicle has lost battery power,
the driver door can be opened
manually. Inside the Vehicle
Pull the door release handle located
on the floor next to the seat.

Black plate (6,1)Chevrolet Corvette Owner Manual - 2011
1-6 In Brief
Trunk Release
Opening and Closing the
Hatch/Trunk
There are three ways to open the
hatch/trunk:
.Touch the button located above
the license plate. The Keyless
Access transmitter must be
within three feet of the button.
.Press theVbutton located to
the left of the steering wheel.
.Press the}button on the
Keyless Access transmitter.
For more information see Hatch on
page 2‑10.
Windows
The power window switches are
located on each door.
Pull up or press down on the front
of the switch to raise or lower the
window.
For more information, see Power
Windows on page 2‑17.
Seat Adjustment
Manual Seats
To adjust the seat:
1. Lift the bar under the front of the seat cushion to unlock the seat.
2. Slide the seat to the desired position and release the bar.
3. Try to move the seat back and forth to make sure it is locked in
place.
See Seat Adjustment on page 3‑2
for more information.

Black plate (7,1)Chevrolet Corvette Owner Manual - 2011
In Brief 1-7
Power Seats
On vehicles with power seats, the
control is on the outboard side of
the seat.To adjust the seat:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the rear part of
the seat cushion by moving the
rear of the control up or down.
See Power Seat Adjustment on
page 3‑3 for more information.
Power Lumbar and Side
Bolsters
On vehicles with power lumbar
and side bolsters, the controls are
located on the outboard side of
the seat.
To adjust the support:
.Move (A) forward or rearward to
adjust lumbar support.
.Move (B) up or down to adjust
the side bolsters.
See Lumbar Adjustment on
page 3‑6 for more information.

Black plate (8,1)Chevrolet Corvette Owner Manual - 2011
1-8 In Brief
Reclining Seatbacks
To recline the seatback:
1. Lift the lever on the outboardside of the seat.
2. Move the seatback to the desired position, and then
release the lever to lock the
seatback in place.
3. Push and pull on the seatback to make sure it is locked.
See Reclining Seatbacks on
page 3‑6 for more information.
Heated Seats
On vehicles with heated seats, the
buttons are on the center console.
The ignition must be on for this
feature to work.
L:Press to turn on the heated
seat at the high setting.
Press again to switch to the low
setting.
9: Press to turn the system off.
See Heated Front Seats on
page 3‑8 for more information.
Memory Features
On vehicles with the memory
feature, the controls on the driver
door are used to program and recall
memory settings for the driver seat,
outside mirrors, and the telescopic
steering column.

Black plate (9,1)Chevrolet Corvette Owner Manual - 2011
In Brief 1-9
Storing Memory Positions
To save into memory:
1. Adjust the driver seat, bothoutside mirrors, and the
telescopic steering column.
2. Press and hold “1”until
two beeps sound.
3. Repeat for a second driver position using “2.”
To recall a memory position:
.On vehicles with an automatic
transmission, press and release
“1” or“2.”
If the vehicle is in P (Park), a
single beep sounds and the
memory position is recalled after
a brief delay.
If the vehicle is not in P (Park),
three beeps sound and the
memory position is not recalled.
.On vehicles with a manual
transmission, when the vehicle
is on, the parking brake must be
set to recall a memory position.
Press and release “1”or“2.”
A single beep sounds and the
memory position is recalled after
a brief delay.
If the vehicle is on and the
parking brake is not set,
three beeps sound and the
memory position is not recalled.
See “Memory Seat, Mirrors, and
Steering Wheel” underPower Seat
Adjustment on page 3‑3 for more
information.
Easy Exit Driver Seat
The easy exit driver seat feature
can move the seat rearward and the
telescopic steering column out of
the way to allow extra room to exit
the vehicle.
B: Press to save and recall the
easy exit seat position. To save into memory:
1. Recall the desired driving
position by pressing “1.”
2. Adjust the seat and the telescopic steering column
to the desired exit position.
3. Press and hold Buntil
two beeps sound.
4. Repeat for a second driver position using “2.”
To recall an exit position, press
and release B. The vehicle must
be in P (Park) for an automatic
transmission or the parking
brake must be set for a manual
transmission. A single beep sounds.
The seat and telescopic steering
column will move to the position
previously stored for the identified
driver.
See “Memory Seat, Mirrors, and
Steering Wheel” underPower Seat
Adjustment on page 3‑3 for more
information.

Black plate (10,1)Chevrolet Corvette Owner Manual - 2011
1-10 In Brief

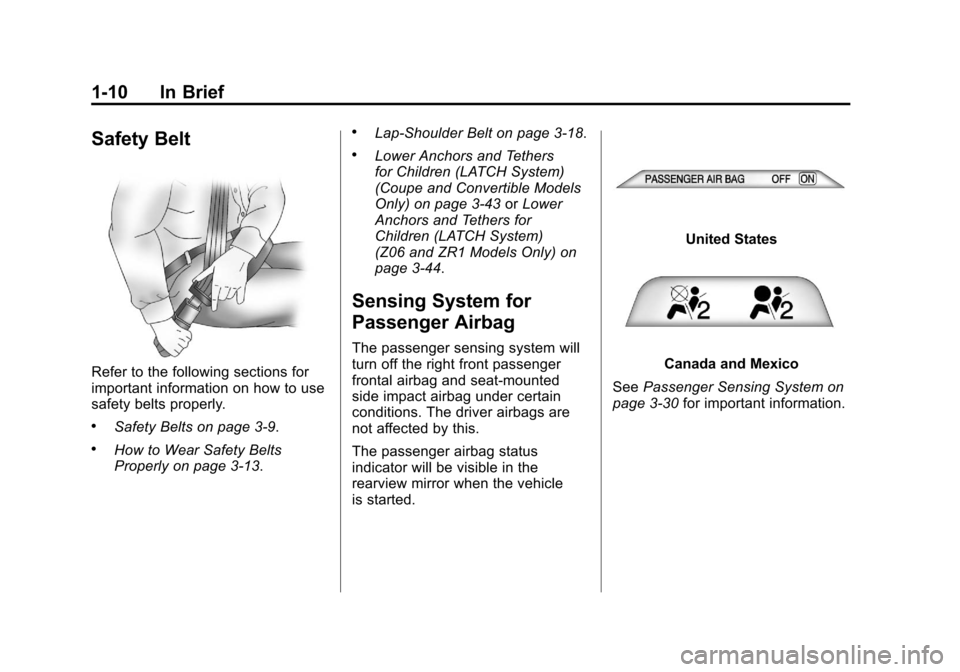

Safety Belt
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑9.
.How to Wear Safety Belts
Properly on page 3‑13.
.Lap-Shoulder Belt on page 3‑18.
.Lower Anchors and Tethers
for Children (LATCH System)
(Coupe and Convertible Models
Only) on page 3‑43orLower
Anchors and Tethers for
Children (LATCH System)
(Z06 and ZR1 Models Only) on
page 3‑44.
Sensing System for
Passenger Airbag
The passenger sensing system will
turn off the right front passenger
frontal airbag and seat‐mounted
side impact airbag under certain
conditions. The driver airbags are
not affected by this.
The passenger airbag status
indicator will be visible in the
rearview mirror when the vehicle
is started.
United States
Canada and Mexico
See Passenger Sensing System on
page 3‑30 for important information.

Black plate (11,1)Chevrolet Corvette Owner Manual - 2011
In Brief 1-11

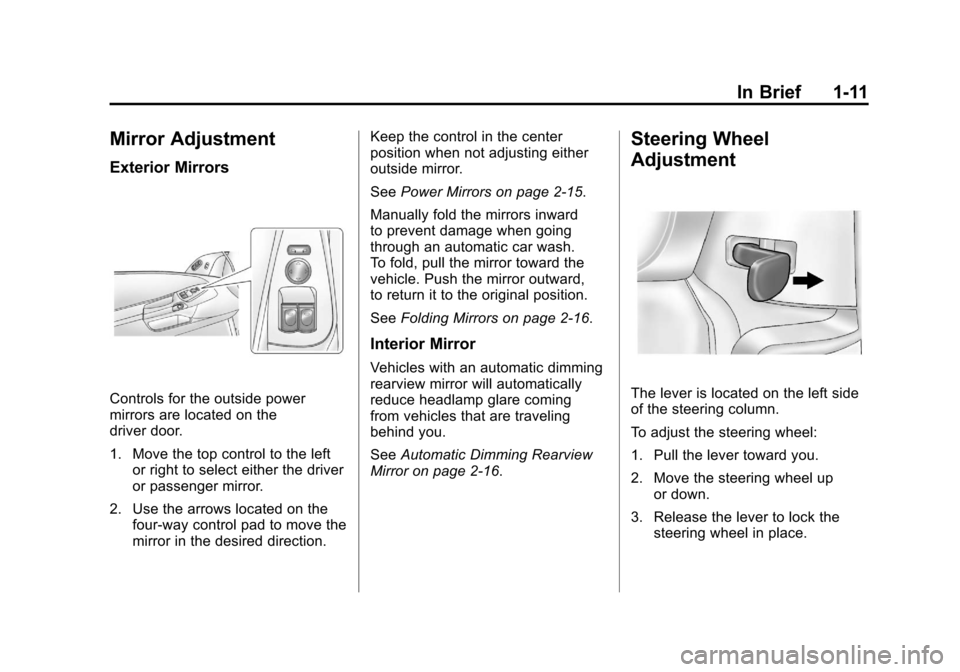

Mirror Adjustment
Exterior Mirrors
Controls for the outside power
mirrors are located on the
driver door.
1. Move the top control to the leftor right to select either the driver
or passenger mirror.
2. Use the arrows located on the four-way control pad to move the
mirror in the desired direction. Keep the control in the center
position when not adjusting either
outside mirror.
See
Power Mirrors on page 2‑15.
Manually fold the mirrors inward
to prevent damage when going
through an automatic car wash.
To fold, pull the mirror toward the
vehicle. Push the mirror outward,
to return it to the original position.
See Folding Mirrors on page 2‑16.
Interior Mirror
Vehicles with an automatic dimming
rearview mirror will automatically
reduce headlamp glare coming
from vehicles that are traveling
behind you.
SeeAutomatic Dimming Rearview
Mirror on page 2‑16.
Steering Wheel
Adjustment
The lever is located on the left side
of the steering column.
To adjust the steering wheel:
1. Pull the lever toward you.
2. Move the steering wheel up
or down.
3. Release the lever to lock the steering wheel in place.

Black plate (12,1)Chevrolet Corvette Owner Manual - 2011
1-12 In Brief
Telescopic Steering Column
For vehicles with this feature, the
telescopic steering column switch
is located on the right side of the
steering column.To adjust the telescopic steering
column:
1. Push the switch forward to move
the wheel away from you.
2. Pull the switch toward you to move the wheel closer to you.
The telescopic steering column
position can be stored with your
memory settings. See “Memory
Seat, Mirrors and Steering Wheel”
under Power Seat Adjustment on
page 3‑3 for more information.Interior Lighting
Courtesy Lamps
When any door or the hatch/trunk lid
is opened, the interior lamps will go
on, unless it is bright outside.
The courtesy lamps can also be
turned on and off by pressing the
instrument panel brightness knob. Reading Lamps
The inside rearview mirror includes
two reading lamps. The lamps go on
when a door is opened. When the
doors are closed, press the lamp
buttons to turn on each lamp.
Interior Light Control
To adjust the brightness of the
interior lights, turn and hold the
instrument panel brightness control
knob located on the left side of the
instrument panel. Push the knob in
to turn the lights on or off.
For more information on interior
lighting, see:.Instrument Panel Illumination
Control on page 6‑5.
.Entry/Exit Lighting on page 6‑6.

Black plate (13,1)Chevrolet Corvette Owner Manual - 2011
In Brief 1-13
Exterior Lighting
Exterior Lamps
The exterior lamp control is located
to the left of the steering wheel, on
the multifunction lever.
O:Turn the band with this symbol
on it to operate the exterior lamps.
O: Turns off all lamps.
AUTO: Sets the exterior lamps
to automatic mode. AUTO mode
turns the exterior lamps on and off
depending on how much light is
available outside the vehicle.
;: Turns on the parking lamps
together with the sidemarker lamps,
taillamps, license plate lamps and
instrument panel lights.
5: Turns on the headlamps
together with the parking lamps,
sidemarker lamps, taillamps, license
plate lamps and instrument panel
lights.
Turn and Lane-Change Signal
The turn signal lever has two
upward and downward positions
to signal a lane change or a turn.
.For a lane change, raise or
lower the lever. The signal
automatically flashes three
times.
.For a turn, raise or lower the
lever all of the way up or down.
The turn signal will stop flashing
when the turn is completed.
For more information, see:
.Exterior Lamp Controls on
page 6‑1.
.Turn and Lane-Change Signals
(Auto Signal) on page 6‑4.
Windshield Wiper/Washer
The windshield wiper lever is
located on the right side of the
steering column.
1: Fast wipes.
6:Slow wipes.
&:Use to set a delay between
wipes.
x: Use for a delayed wiping
cycle. Turn the intermittent adjust
band down for a longer delay or up
for a shorter delay.

Black plate (14,1)Chevrolet Corvette Owner Manual - 2011
1-14 In Brief
9:Turns off the windshield
wipers.
8: Use for a for a single wiping
cycle. For more wipes, hold the
band longer.
Windshield Washer: Press the
button at the end of the lever until
the washers begin.
See Windshield Wiper/Washer on
page 5‑4.
Climate Controls
With this system, the heating, cooling, and ventilation can be controlled.
A. Driver Temperature Control
B. Display
C. Passenger Temperature Control
D. AUTO
E. Air Recirculation
F. Air Conditioning G. Fan Control
H. Air Delivery Mode Control
I. Defrost
J. Rear Window Defogger
See
Dual Automatic Climate Control
System on page 8‑1.
