Fig. 21 Front End Splices AY Body
Ä SPLICE LOCATIONS 8W - 151

8W - 152 SPLICE LOCATIONS Ä

AG-BODY SPLICE LOCATIONS
Splice Number Fig.
A0 .......................................9
A2 .......................................9
A3 .......................................9
A4 .......................................9
A11 ......................................9
A15 ......................................9
A16 ......................................9
A21-1 .....................................9
A21-2 .....................................8
A142 .....................................9
A142 3.0L .................................11
A142-1 2.5L EFI .............................10
A142-1 Turbo III .............................12
A142-1 3.0L ................................11
A142-2 3.0L ................................11
A142-3 Turbo III .............................12
A142-3 3.0L ................................11
B47 ......................................8
C7 .......................................5
C15 ......................................5
D1 .......................................5
D1-1 .....................................9
D2 .......................................5
D2-1 .....................................9
E2 .......................................5
E17 ......................................5
F12-1 .....................................9
F12-2 .....................................7
F13 ......................................5
F20 ......................................5
F21-2 .....................................3
F30 ......................................5
F35-1 .....................................3
F35-2 .....................................3
F35-3 .....................................3
G5-1 .....................................5
G5-2 .....................................4
G7 .......................................9
G9 .......................................5
G74 ......................................4
G75 ......................................3
K4 2.5L EFI ................................10
K4 Turbo III ................................12
K4-1 ......................................9
K4-1 2.5L EFI ...............................10
K4-2 Turbo III ...............................12
K4-3 3.0L .................................11
K6 .......................................9
K7 2.5L EFI ................................10
K7 Turbo III ................................12
K7 3.0L ...................................11
K22 ......................................9Splice Number Fig.
K24 ......................................9
L1 .......................................1
L7 .......................................5
L7-3 ......................................1
L7-4 ......................................1
L7-5 ......................................1
L61 ......................................5
L62 ......................................1
L63 ......................................1
L94 ......................................4
M1-1 .....................................5
M1-2 .....................................5
M1-4 .....................................5
M2.......................................4
M2-1 .....................................5
P34 ......................................6
P76-1 .....................................6
T13 ......................................8
T16 ......................................8
T24 ......................................7
T41 ......................................7
V23 ......................................1
X13 ......................................5
X13-2 .....................................2
X15 ......................................5
X15-2 .....................................2
X60 ......................................2
Z0 .......................................9
Z1 .......................................9
Z1-2 ......................................7
Z1-3 ......................................9
Z1-4 ......................................7
Z1-5 ......................................8
Z1-6 ......................................8
Z1-7 ......................................5
Z1-8 ......................................7
Z1-9 ......................................3
Z1-11 .....................................1
Z1-12 .....................................1
Z1-14 .....................................1
Z1-15 .....................................1
Z1-16 .....................................1
Z1-20 .....................................8
Z1-21 .....................................6
Z2 .......................................5
Z2 .......................................9
Z2-1 ......................................3
Z3 .......................................5
Z3-1 ......................................3
Z12 ......................................7
Z13 ......................................8
Z14 ......................................8
Ä SPLICE LOCATIONS 8W - 153

Fig. 1 Rear End Splices AG-Body
Fig. 2 Body Splices (Right Side) AG-Body
8W - 154 SPLICE LOCATIONS Ä

Fig. 3 Cowl Splices AG-Body
Fig. 4 Cowl Splices (Right Side) AG-Body
Ä SPLICE LOCATIONS 8W - 155

Fig. 5 Instrument Panel Splices AG-Body
Fig. 6 Door Splices AG-Body
8W - 156 SPLICE LOCATIONS Ä

Fig. 7 Engine Compartment Splices AG-Body
Fig. 8 Engine Compartment Splices AG-Body
Ä SPLICE LOCATIONS 8W - 157

Fig. 9 Engine Compartment Splices AG-Body
8W - 158 SPLICE LOCATIONS Ä

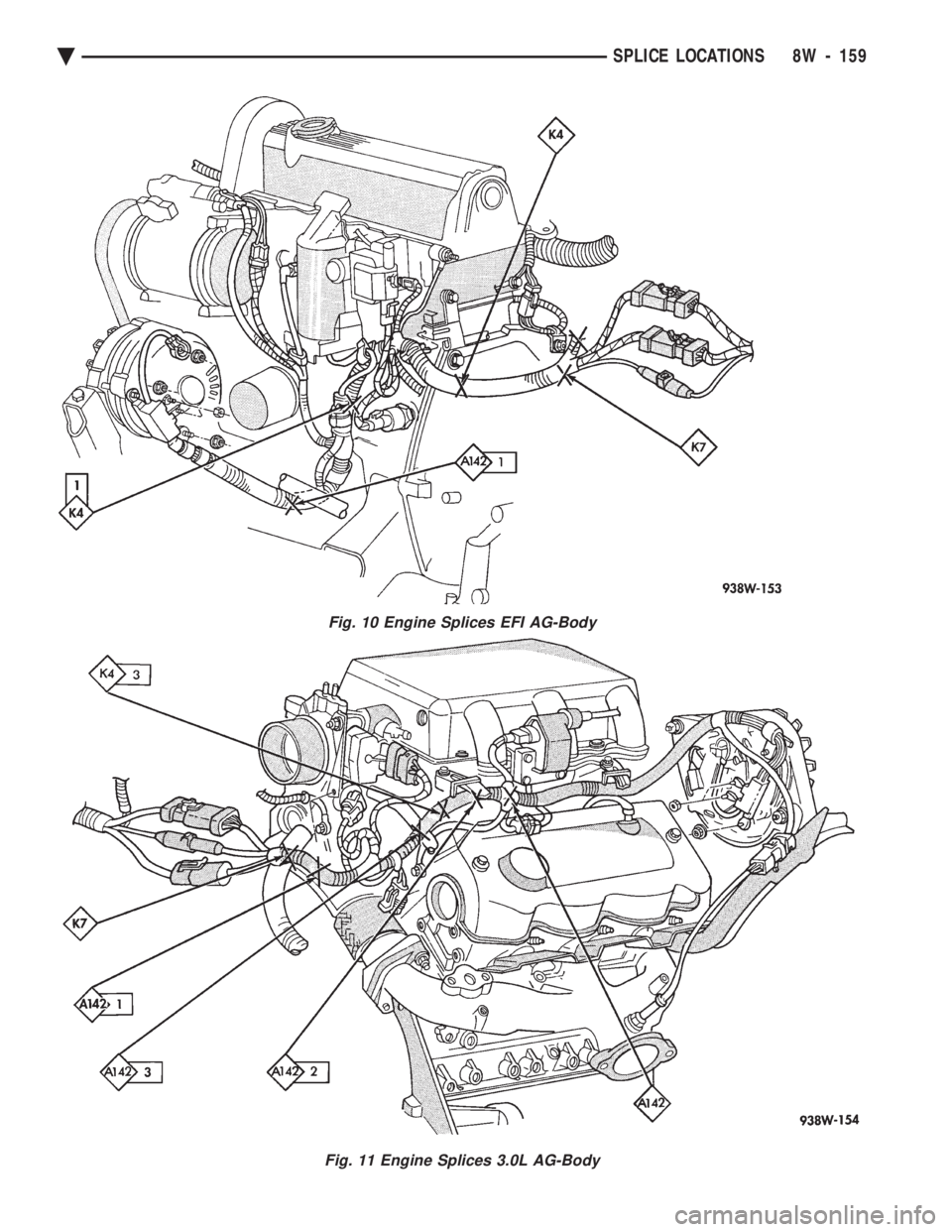

Fig. 10 Engine Splices EFI AG-Body
Fig. 11 Engine Splices 3.0L AG-Body
Ä SPLICE LOCATIONS 8W - 159

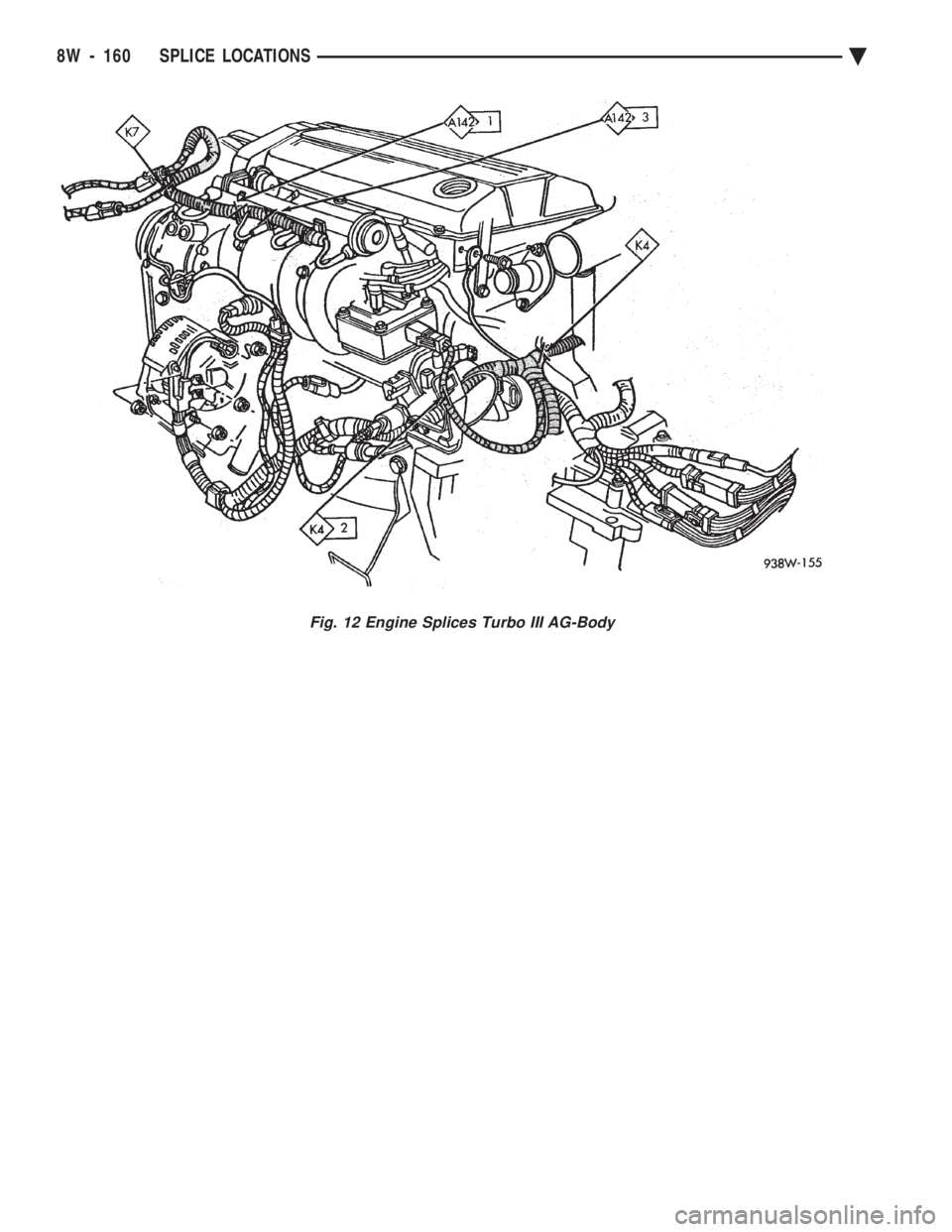

Fig. 12 Engine Splices Turbo III AG-Body
8W - 160 SPLICE LOCATIONS Ä
