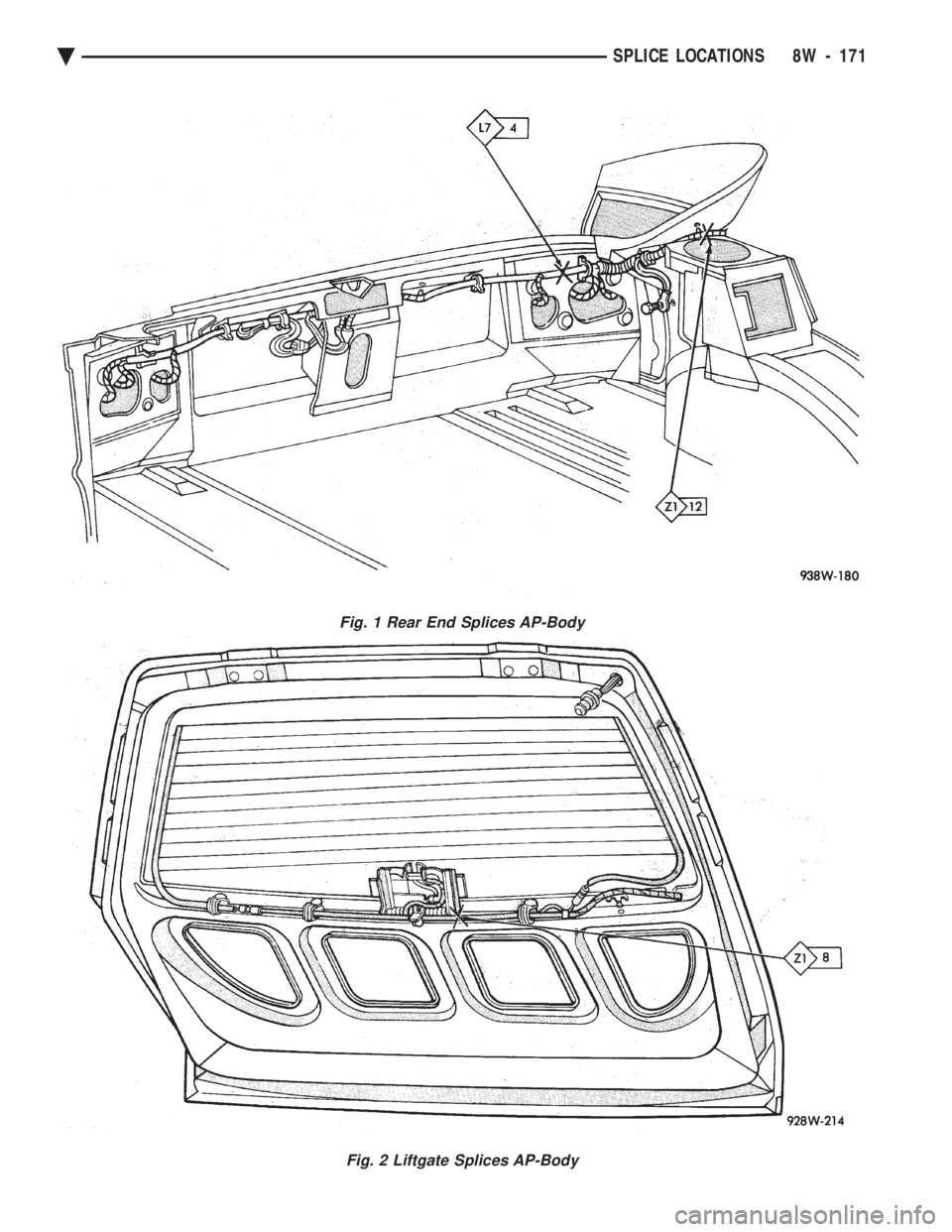

Fig. 1 Rear End Splices AP-Body
Fig. 2 Liftgate Splices AP-Body
Ä SPLICE LOCATIONS 8W - 171

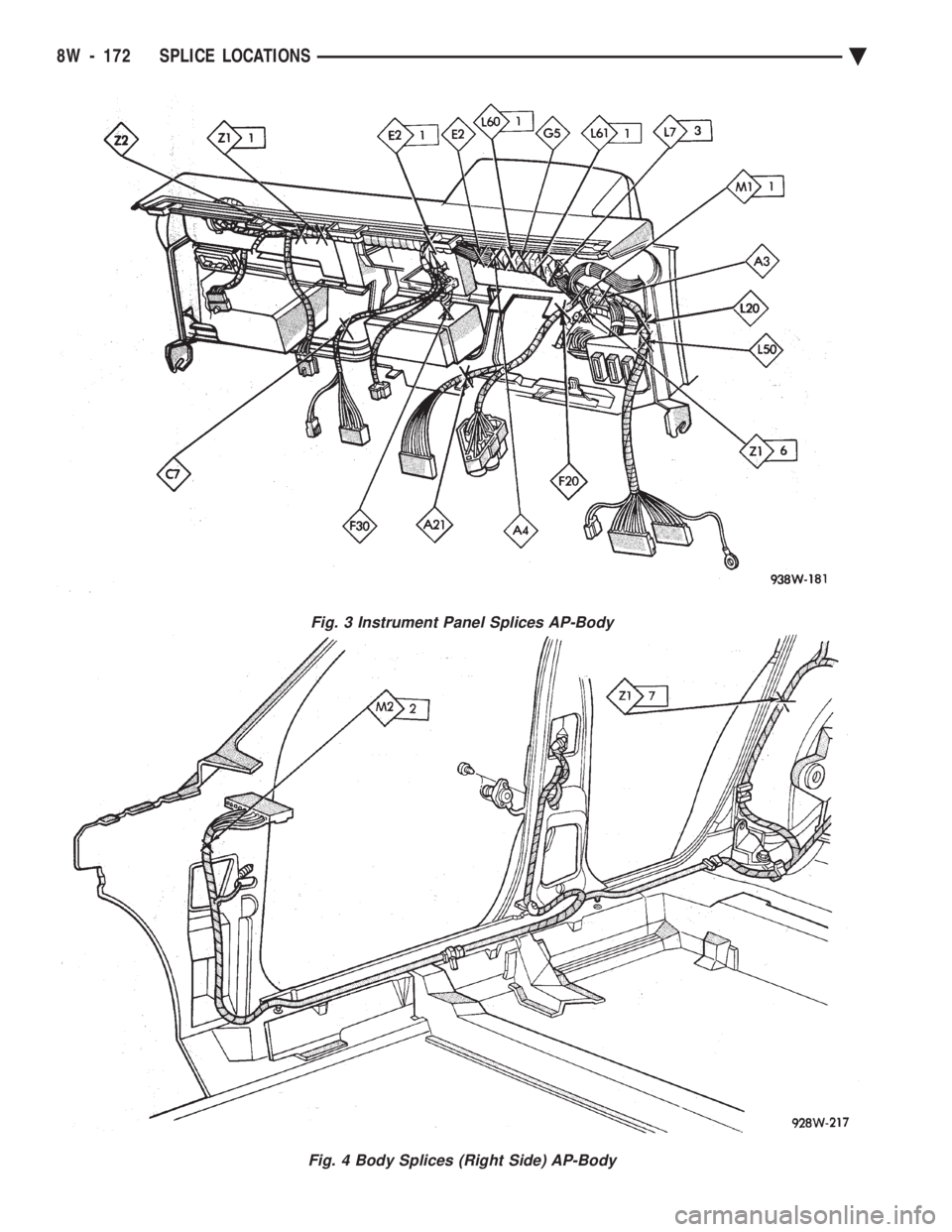

Fig. 3 Instrument Panel Splices AP-Body
Fig. 4 Body Splices (Right Side) AP-Body
8W - 172 SPLICE LOCATIONS Ä

Fig. 5 Body Splices (Left Side) AP-Body
Ä SPLICE LOCATIONS 8W - 173

Fig. 6 Cowl Panel Splices AP-Body
8W - 174 SPLICE LOCATIONS Ä

Fig. 7 Engine Compartment Splices 2.2L-2.5L AP-Body
Ä SPLICE LOCATIONS 8W - 175

Fig. 8 Engine Compartment Splices 3.0L AP-Body
8W - 176 SPLICE LOCATIONS Ä

Fig. 9 Transmission Splices 41TE AP-Body
Ä SPLICE LOCATIONS 8W - 177

Fig. 10 Engine Splices 2.2L-2.5L AP-Body
8W - 178 SPLICE LOCATIONS Ä

Fig. 11 Engine Splices 3.0L AP-Body
Ä SPLICE LOCATIONS 8W - 179

8W - 180 SPLICE LOCATIONS Ä
