CHEVROLET DYNASTY 1993 Service Manual
Manufacturer: CHEVROLET, Model Year: 1993, Model line: DYNASTY, Model: CHEVROLET DYNASTY 1993Pages: 2438, PDF Size: 74.98 MB
Page 881 of 2438
Fig. 1 Rear End Splices AA-Body
Ä SPLICE LOCATIONS 8W - 131
Page 882 of 2438
Fig. 2 Body Left Side Splices AA-Body
Fig. 3 Body Right Side Splices AA-Body
8W - 132 SPLICE LOCATIONS Ä

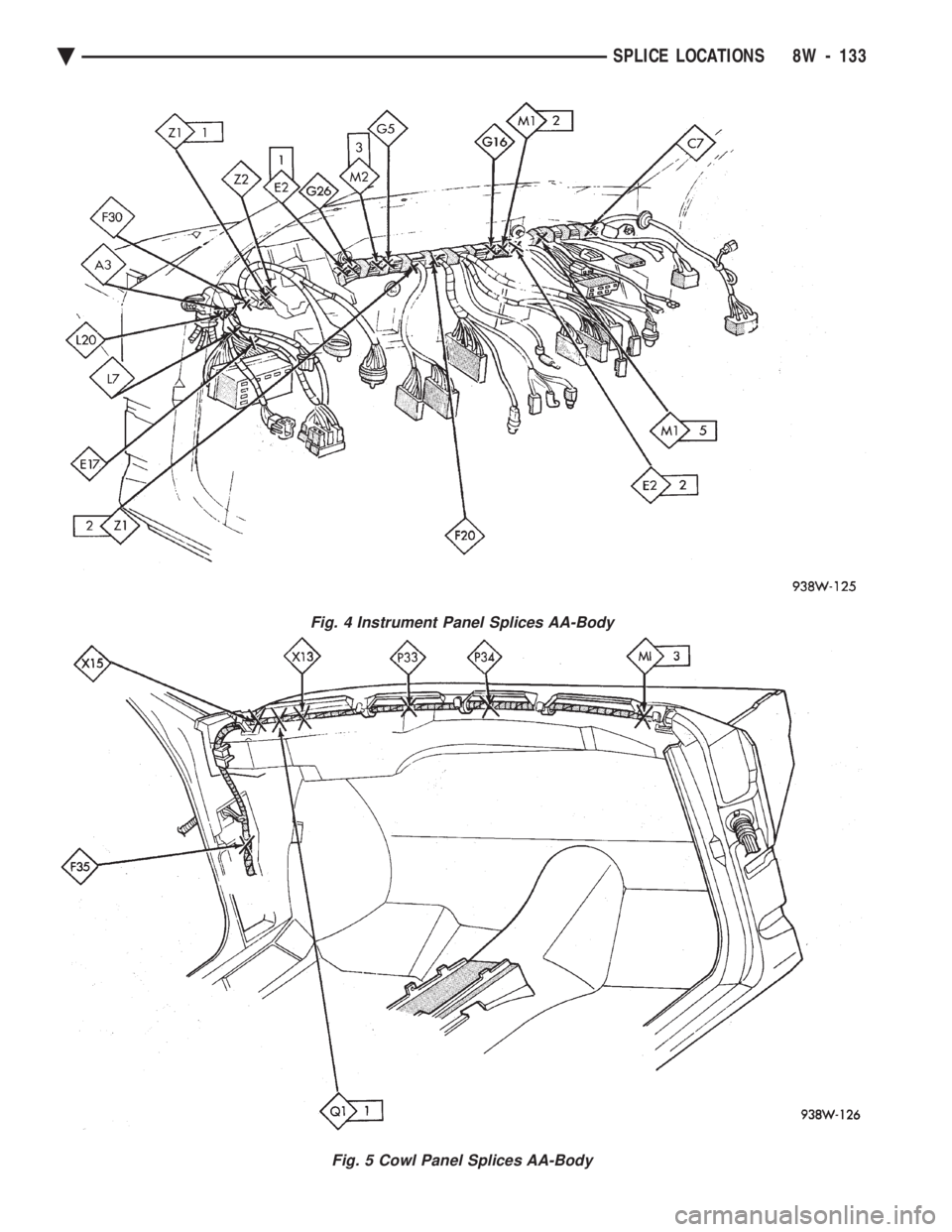

Page 883 of 2438
Fig. 4 Instrument Panel Splices AA-Body
Fig. 5 Cowl Panel Splices AA-Body
Ä SPLICE LOCATIONS 8W - 133
Page 884 of 2438
Fig. 6 Steering Column Splices AA-Body
Fig. 7 Engine Compartment Splices EFI and Flex Fuel AA-Body
8W - 134 SPLICE LOCATIONS Ä

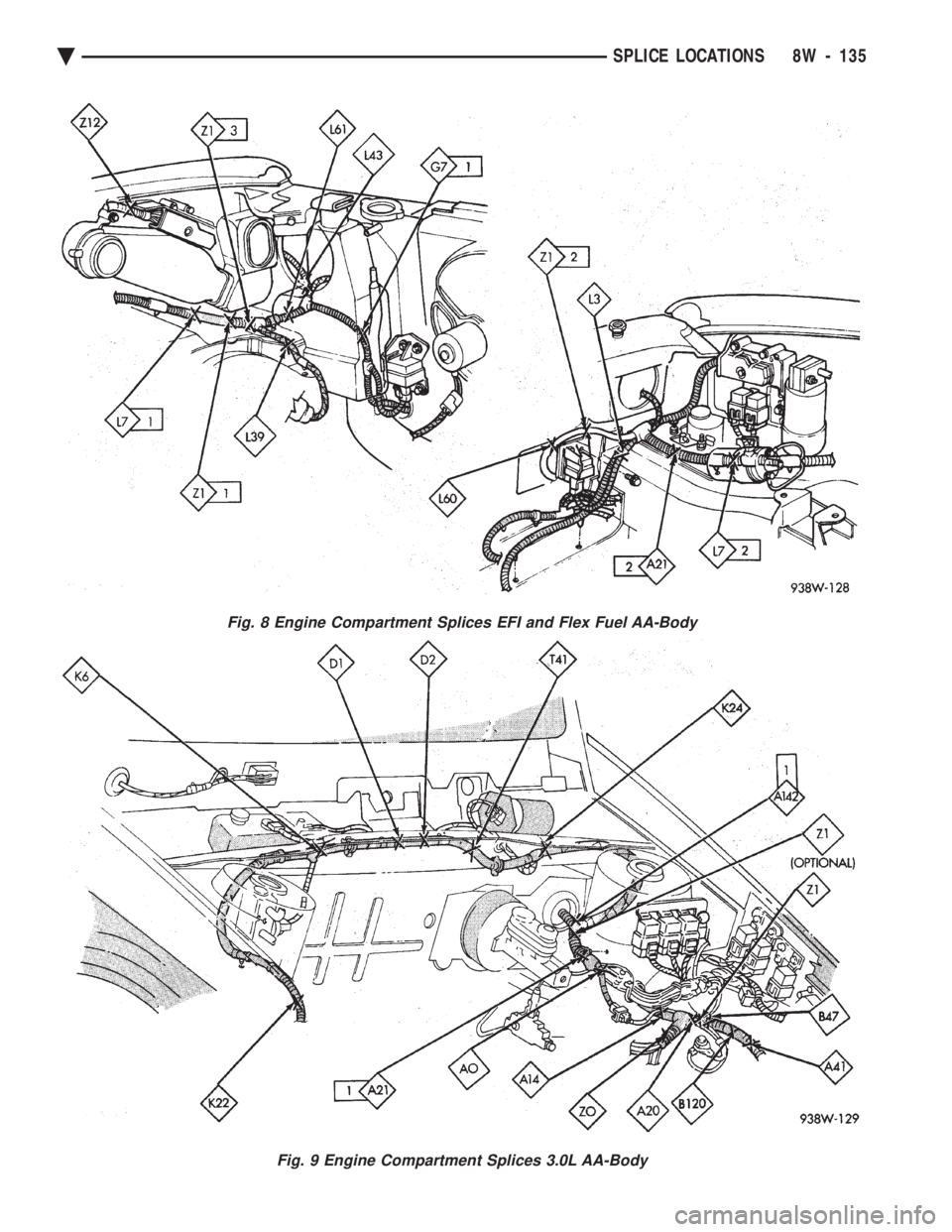

Page 885 of 2438
Fig. 8 Engine Compartment Splices EFI and Flex Fuel AA-Body
Fig. 9 Engine Compartment Splices 3.0L AA-Body
Ä SPLICE LOCATIONS 8W - 135

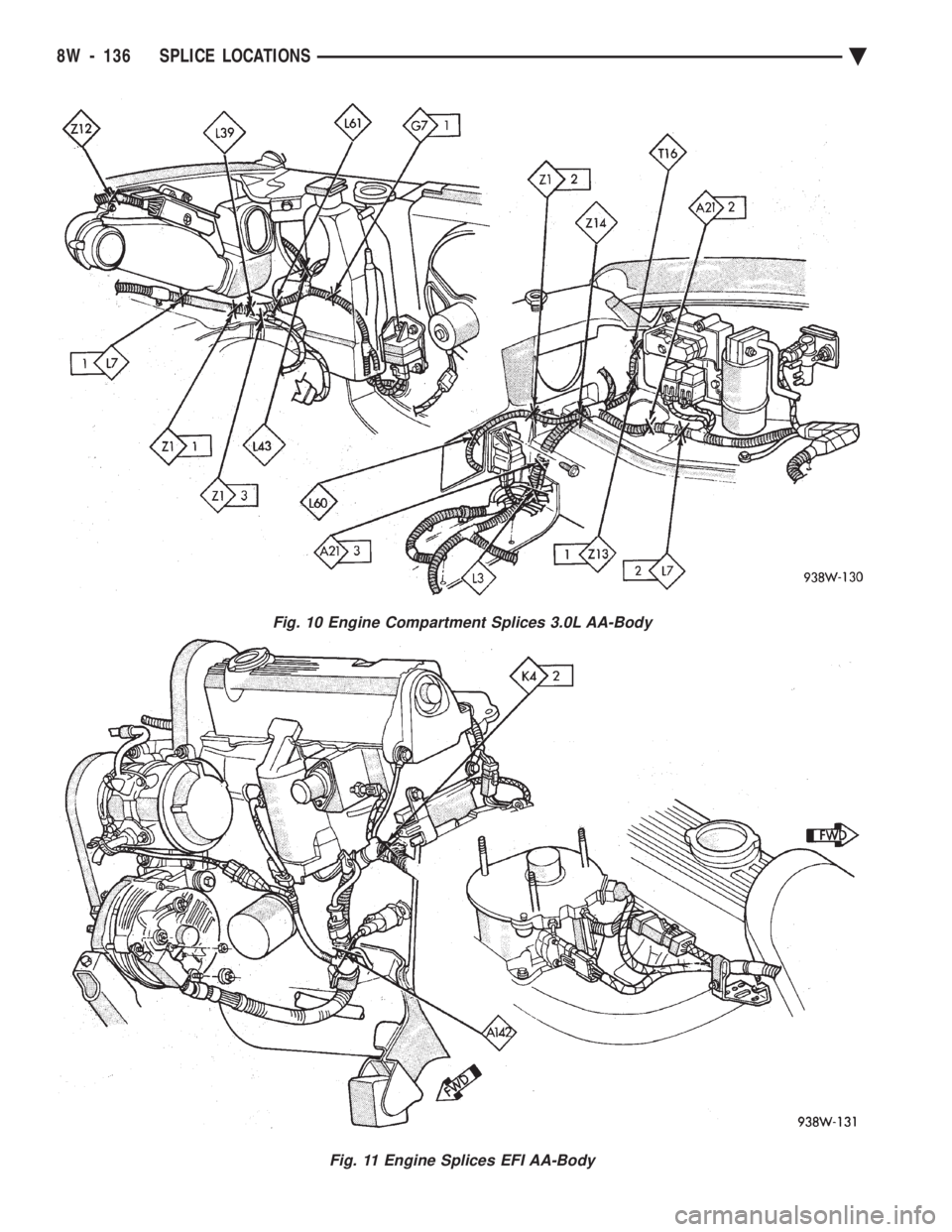

Page 886 of 2438
Fig. 10 Engine Compartment Splices 3.0L AA-Body
Fig. 11 Engine Splices EFI AA-Body
8W - 136 SPLICE LOCATIONS Ä

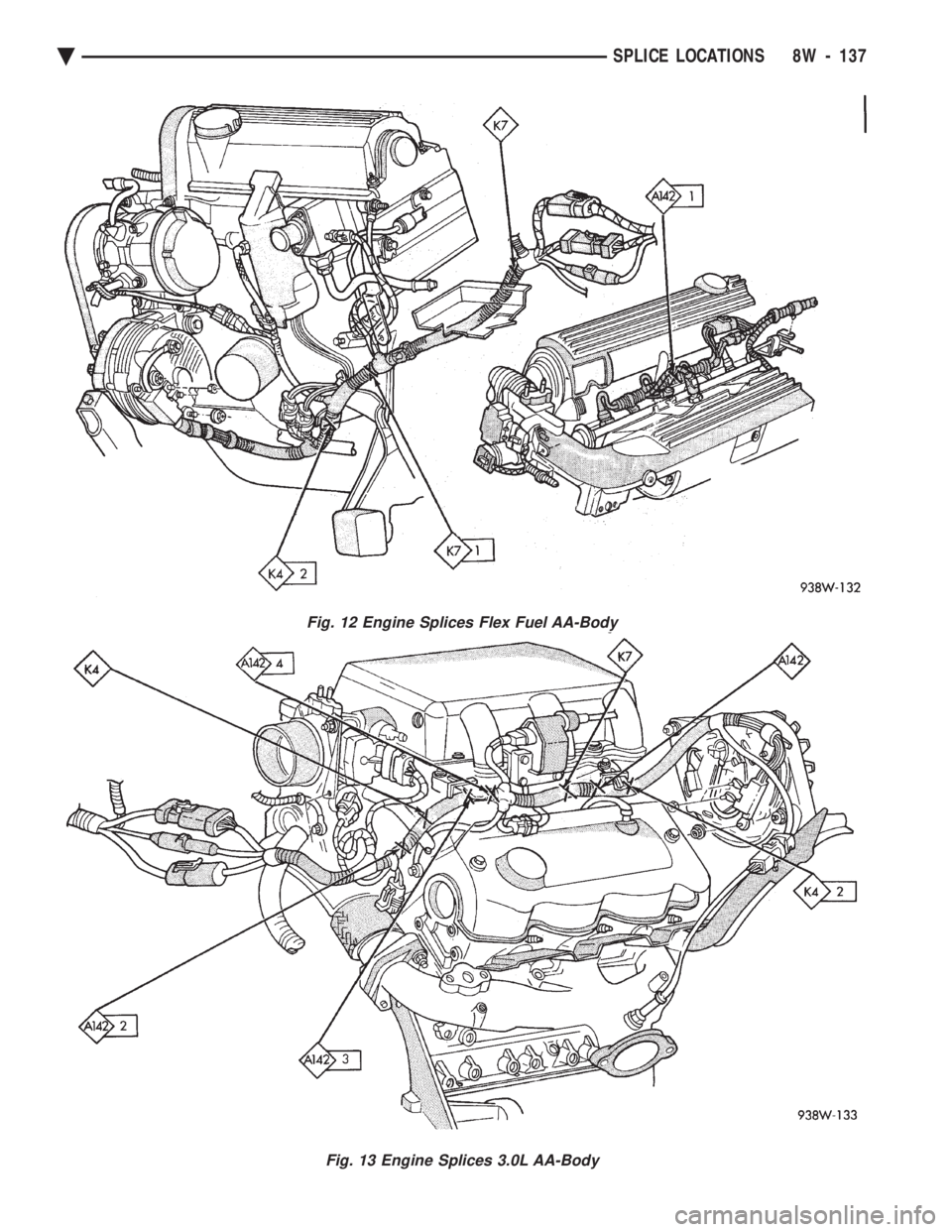

Page 887 of 2438
Fig. 12 Engine Splices Flex Fuel AA-Body
Fig. 13 Engine Splices 3.0L AA-Body
Ä SPLICE LOCATIONS 8W - 137

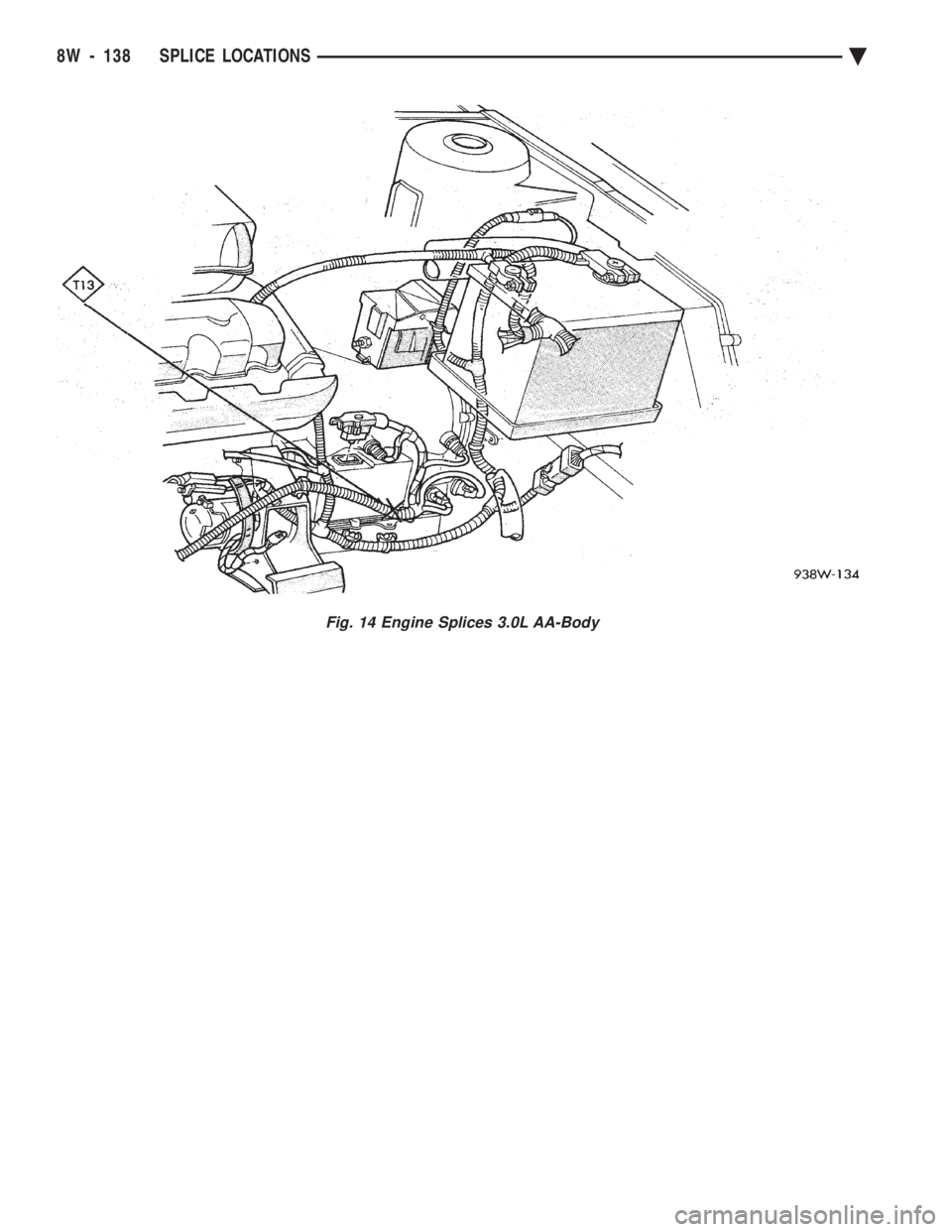

Page 888 of 2438
Fig. 14 Engine Splices 3.0L AA-Body
8W - 138 SPLICE LOCATIONS Ä

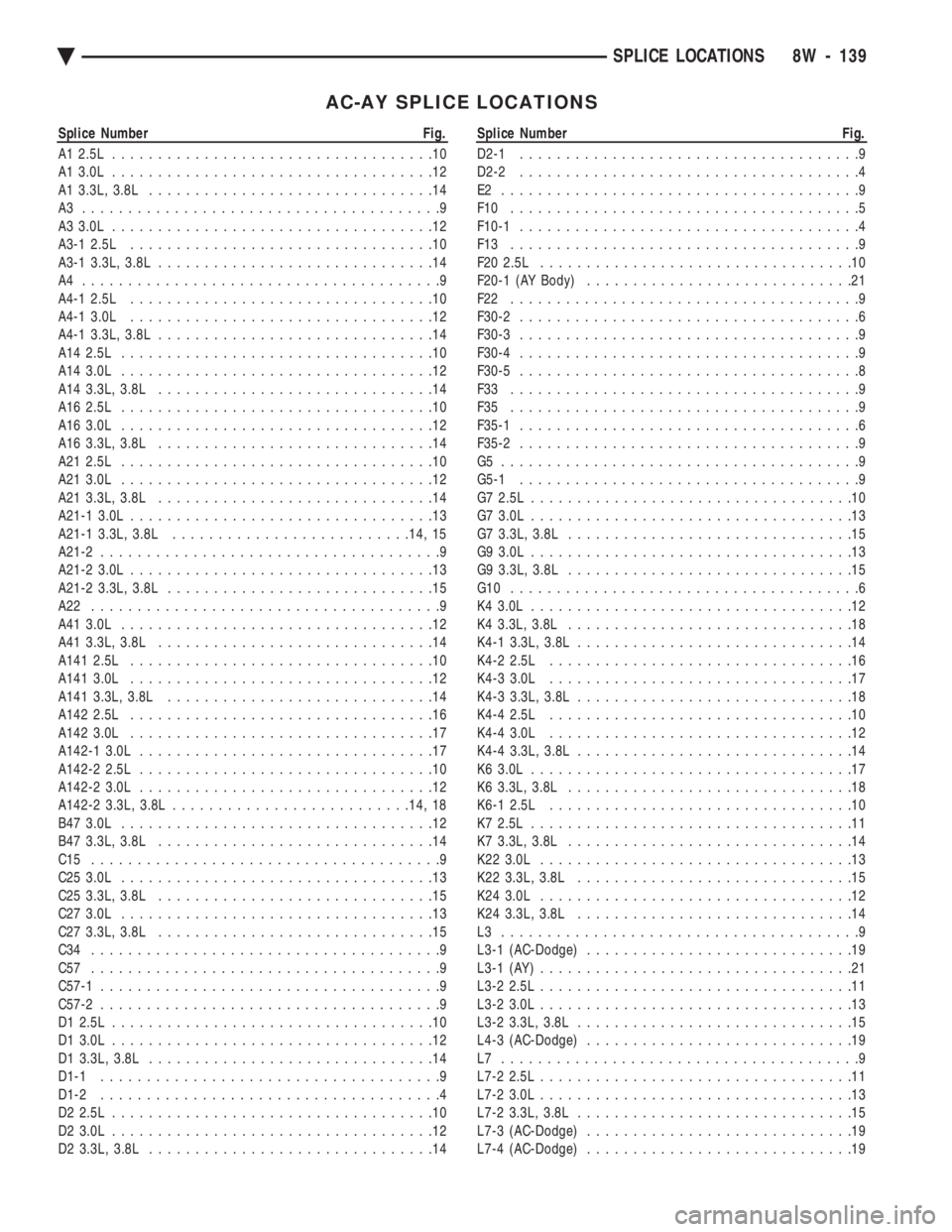

Page 889 of 2438
AC-AY SPLICE LOCATIONS
Splice Number Fig.
A1 2.5L ...................................10
A1 3.0L ...................................12
A1 3.3L, 3.8L ...............................14
A3 .......................................9
A3 3.0L ...................................12
A3-1 2.5L .................................10
A3-1 3.3L, 3.8L ..............................14
A4 .......................................9
A4-1 2.5L .................................10
A4-1 3.0L .................................12
A4-1 3.3L, 3.8L ..............................14
A14 2.5L ..................................10
A14 3.0L ..................................12
A14 3.3L, 3.8L ..............................14
A16 2.5L ..................................10
A16 3.0L ..................................12
A16 3.3L, 3.8L ..............................14
A21 2.5L ..................................10
A21 3.0L ..................................12
A21 3.3L, 3.8L ..............................14
A21-1 3.0L .................................13
A21-1 3.3L, 3.8L ......................... .14, 15
A21-2 .....................................9
A21-2 3.0L .................................13
A21-2 3.3L, 3.8L .............................15
A22 ......................................9
A41 3.0L ..................................12
A41 3.3L, 3.8L ..............................14
A141 2.5L .................................10
A141 3.0L .................................12
A141 3.3L, 3.8L .............................14
A142 2.5L .................................16
A142 3.0L .................................17
A142-1 3.0L ................................17
A142-2 2.5L ................................10
A142-2 3.0L ................................12
A142-2 3.3L, 3.8L ......................... .14, 18
B47 3.0L ..................................12
B47 3.3L, 3.8L ..............................14
C15 ......................................9
C25 3.0L ..................................13
C25 3.3L, 3.8L ..............................15
C27 3.0L ..................................13
C27 3.3L, 3.8L ..............................15
C34 ......................................9
C57 ......................................9
C57-1 .....................................9
C57-2 .....................................9
D1 2.5L ...................................10
D1 3.0L ...................................12
D1 3.3L, 3.8L ...............................14
D1-1 .....................................9
D1-2 .....................................4
D2 2.5L ...................................10
D2 3.0L ...................................12
D2 3.3L, 3.8L ...............................14Splice Number Fig.
D2-1 .....................................9
D2-2 .....................................4
E2 .......................................9
F10 ......................................5
F10-1 .....................................4
F13 ......................................9
F20 2.5L ..................................10
F20-1 (AY Body) .............................21
F22 ......................................9
F30-2 .....................................6
F30-3 .....................................9
F30-4 .....................................9
F30-5 .....................................8
F33 ......................................9
F35 ......................................9
F35-1 .....................................6
F35-2 .....................................9
G5 .......................................9
G5-1 .....................................9
G7 2.5L ...................................10
G7 3.0L ...................................13
G7 3.3L, 3.8L ...............................15
G9 3.0L ...................................13
G9 3.3L, 3.8L ...............................15
G10 ......................................6
K4 3.0L ...................................12
K4 3.3L, 3.8L ...............................18
K4-1 3.3L, 3.8L ..............................14
K4-2 2.5L .................................16
K4-3 3.0L .................................17
K4-3 3.3L, 3.8L ..............................18
K4-4 2.5L .................................10
K4-4 3.0L .................................12
K4-4 3.3L, 3.8L ..............................14
K6 3.0L ...................................17
K6 3.3L, 3.8L ...............................18
K6-1 2.5L .................................10
K7 2.5L ...................................11
K7 3.3L, 3.8L ...............................14
K22 3.0L ..................................13
K22 3.3L, 3.8L ..............................15
K24 3.0L ..................................12
K24 3.3L, 3.8L ..............................14
L3 .......................................9
L3-1 (AC-Dodge) .............................19
L3-1 (AY) ..................................21
L3-2 2.5L ..................................11
L3-2 3.0L ..................................13
L3-2 3.3L, 3.8L ..............................15
L4-3 (AC-Dodge) .............................19
L7 .......................................9
L7-2 2.5L ..................................11
L7-2 3.0L ..................................13
L7-2 3.3L, 3.8L ..............................15
L7-3 (AC-Dodge) .............................19
L7-4 (AC-Dodge) .............................19
Ä SPLICE LOCATIONS 8W - 139

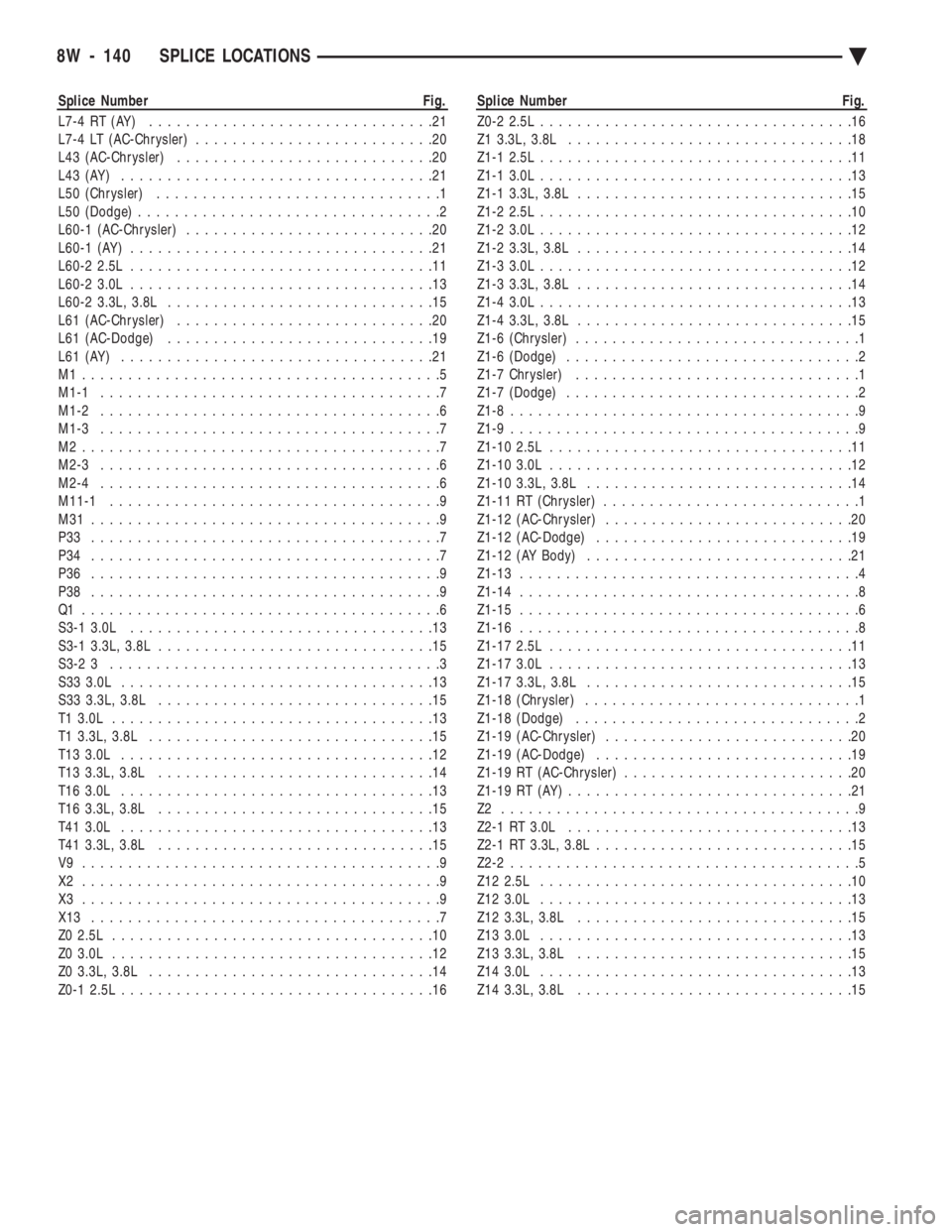

Page 890 of 2438
Splice Number Fig.
L7-4 RT (AY) ...............................21
L7-4 LT (AC-Chrysler) ..........................20
L43 (AC-Chrysler) ............................20
L43(AY) ..................................21
L50 (Chrysler) ...............................1
L50 (Dodge) .................................2
L60-1 (AC-Chrysler) ...........................20
L60-1 (AY) .................................21
L60-2 2.5L .................................11
L60-2 3.0L .................................13
L60-2 3.3L, 3.8L .............................15
L61 (AC-Chrysler) ............................20
L61 (AC-Dodge) .............................19
L61(AY) ..................................21
M1.......................................5
M1-1 .....................................7
M1-2 .....................................6
M1-3 .....................................7
M2.......................................7
M2-3 .....................................6
M2-4 .....................................6
M11-1 ....................................9
M31 ......................................9
P33 ......................................7
P34 ......................................7
P36 ......................................9
P38 ......................................9
Q1 .......................................6
S3-1 3.0L .................................13
S3-1 3.3L, 3.8L ..............................15
S3-2 3 ....................................3
S33 3.0L ..................................13
S33 3.3L, 3.8L ..............................15
T1 3.0L ...................................13
T1 3.3L, 3.8L ...............................15
T13 3.0L ..................................12
T13 3.3L, 3.8L ..............................14
T16 3.0L ..................................13
T16 3.3L, 3.8L ..............................15
T41 3.0L ..................................13
T41 3.3L, 3.8L ..............................15
V9 .......................................9
X2 .......................................9
X3 .......................................9
X13 ......................................7
Z0 2.5L ...................................10
Z0 3.0L ...................................12
Z0 3.3L, 3.8L ...............................14
Z0-1 2.5L ..................................16Splice Number Fig.
Z0-2 2.5L ..................................16
Z1 3.3L, 3.8L ...............................18
Z1-1 2.5L ..................................11
Z1-1 3.0L ..................................13
Z1-1 3.3L, 3.8L ..............................15
Z1-2 2.5L ..................................10
Z1-2 3.0L ..................................12
Z1-2 3.3L, 3.8L ..............................14
Z1-3 3.0L ..................................12
Z1-3 3.3L, 3.8L ..............................14
Z1-4 3.0L ..................................13
Z1-4 3.3L, 3.8L ..............................15
Z1-6 (Chrysler) ...............................1
Z1-6 (Dodge) ................................2
Z1-7 Chrysler) ...............................1
Z1-7 (Dodge) ................................2
Z1-8 ......................................9
Z1-9 ......................................9
Z1-10 2.5L .................................11
Z1-10 3.0L .................................12
Z1-10 3.3L, 3.8L .............................14
Z1-11 RT (Chrysler) ............................1
Z1-12 (AC-Chrysler) ...........................20
Z1-12 (AC-Dodge) ............................19
Z1-12 (AY Body) .............................21
Z1-13 .....................................4
Z1-14 .....................................8
Z1-15 .....................................6
Z1-16 .....................................8
Z1-17 2.5L .................................11
Z1-17 3.0L .................................13
Z1-17 3.3L, 3.8L .............................15
Z1-18 (Chrysler) ..............................1
Z1-18 (Dodge) ...............................2
Z1-19 (AC-Chrysler) ...........................20
Z1-19 (AC-Dodge) ............................19
Z1-19 RT (AC-Chrysler) .........................20
Z1-19 RT (AY) ...............................21
Z2 .......................................9
Z2-1 RT 3.0L ...............................13
Z2-1 RT 3.3L, 3.8L ............................15
Z2-2 ......................................5
Z12 2.5L ..................................10
Z12 3.0L ..................................13
Z12 3.3L, 3.8L ..............................15
Z13 3.0L ..................................13
Z13 3.3L, 3.8L ..............................15
Z14 3.0L ..................................13
Z14 3.3L, 3.8L ..............................15
8W - 140 SPLICE LOCATIONS Ä
