Page 331 of 430

CHEVROLET HHR 2008 1.G Owners Manual Accessing the Tire Sealant and
Compressor Kit
To access the tire sealant and compressor kit:
1. Open the liftgate. SeeLiftgate on page 2-12for
more information
2. Remove the cargo cover.3. Remove the

Page 332 of 430

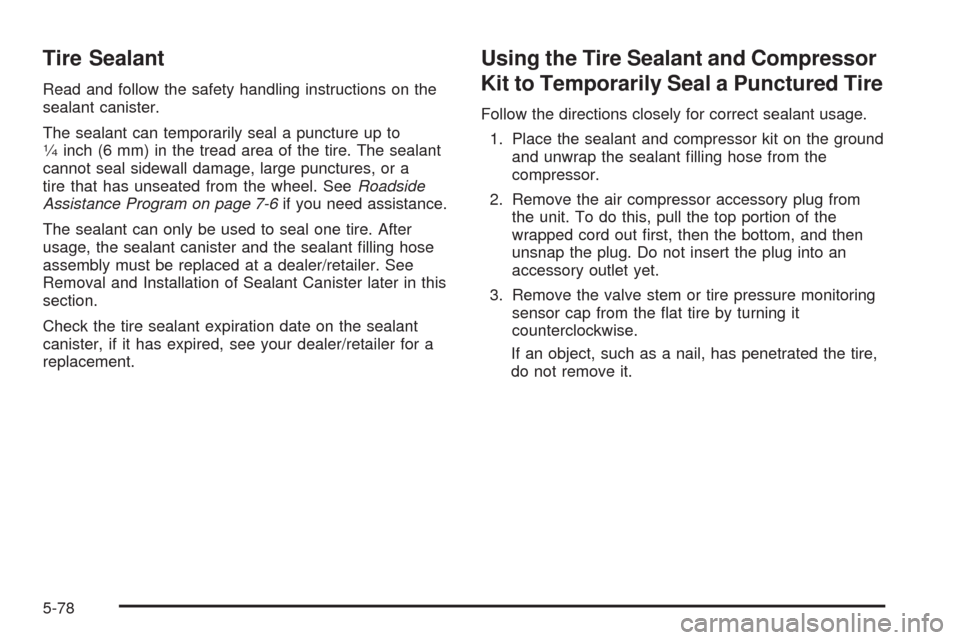

CHEVROLET HHR 2008 1.G Owners Manual Tire Sealant
Read and follow the safety handling instructions on the
sealant canister.
The sealant can temporarily seal a puncture up to
1�4inch (6 mm) in the tread area of the tire. The sealant
canno

Page 333 of 430

CHEVROLET HHR 2008 1.G Owners Manual 4. Attach the sealant �lling hose (A) onto the tire valve
stem. Turn it clockwise until it is tight.
Make sure the sealant and compressor kit on/off
switch (B) is in the O (off) position.
5. Plug the

Page 334 of 430

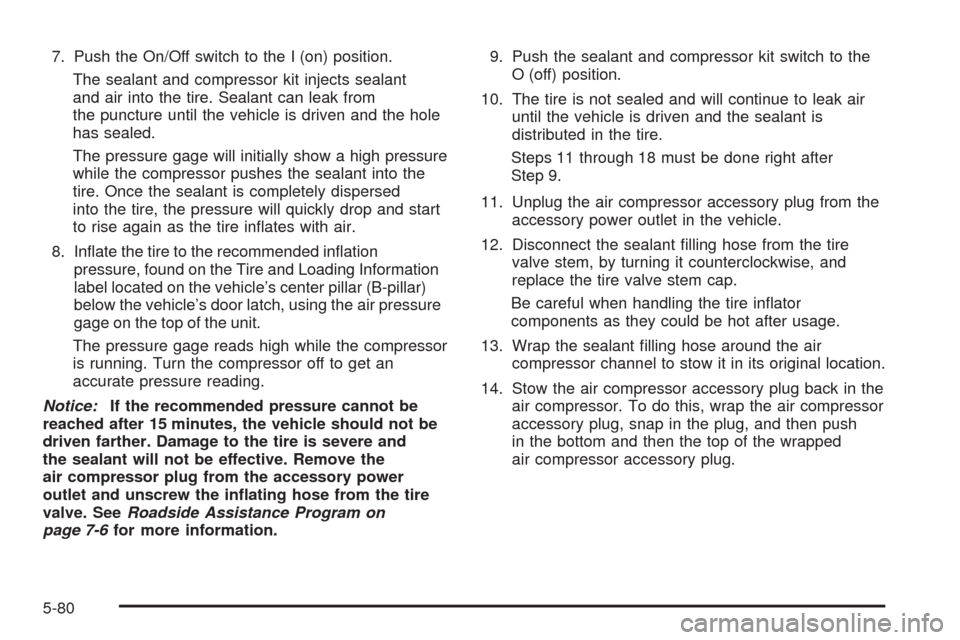

CHEVROLET HHR 2008 1.G Owners Manual 7. Push the On/Off switch to the I (on) position.
The sealant and compressor kit injects sealant
and air into the tire. Sealant can leak from
the puncture until the vehicle is driven and the hole
has

Page 335 of 430

CHEVROLET HHR 2008 1.G Owners Manual 15. If the �at tire was able
to in�ate to the
recommended in�ation
pressure, remove
the maximum speed
label from the sealant
canister.
The maximum speed label reminds you to drive
cautiously and not t

Page 336 of 430

CHEVROLET HHR 2008 1.G Owners Manual 20. If the tire pressure has fallen more then 10 psi
(68 kPa), below the recommended in�ation
pressure, stop driving the vehicle. The tire is
too severely damaged and the tire sealant and
compressor k

Page 337 of 430

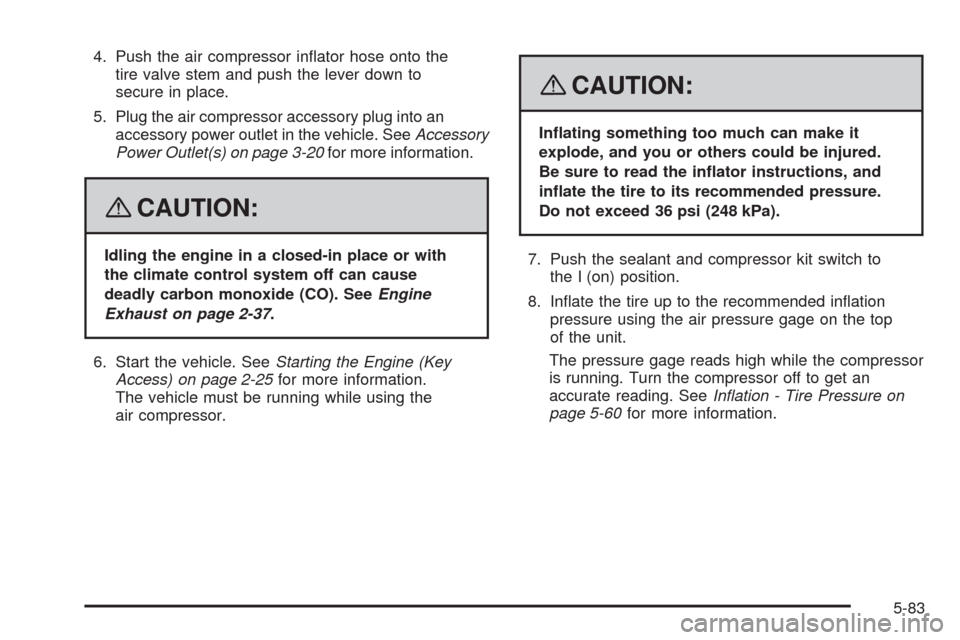

CHEVROLET HHR 2008 1.G Owners Manual 4. Push the air compressor in�ator hose onto the
tire valve stem and push the lever down to
secure in place.
5. Plug the air compressor accessory plug into an
accessory power outlet in the vehicle. Se

Page 338 of 430

CHEVROLET HHR 2008 1.G Owners Manual 9. Turn off the air compressor by moving the switch to
the O (off) position.
{CAUTION:
Storing the tire sealant and compressor kit
or other equipment in the passenger
compartment of the vehicle could

Page 339 of 430

CHEVROLET HHR 2008 1.G Owners Manual 4. Turn the sealant canister so the in�ator �lling hose
is aligned with the slot in the compressor.
5. Lift the sealant canister from the compressor and
replace with a new sealant canister. See your
d

Page 340 of 430

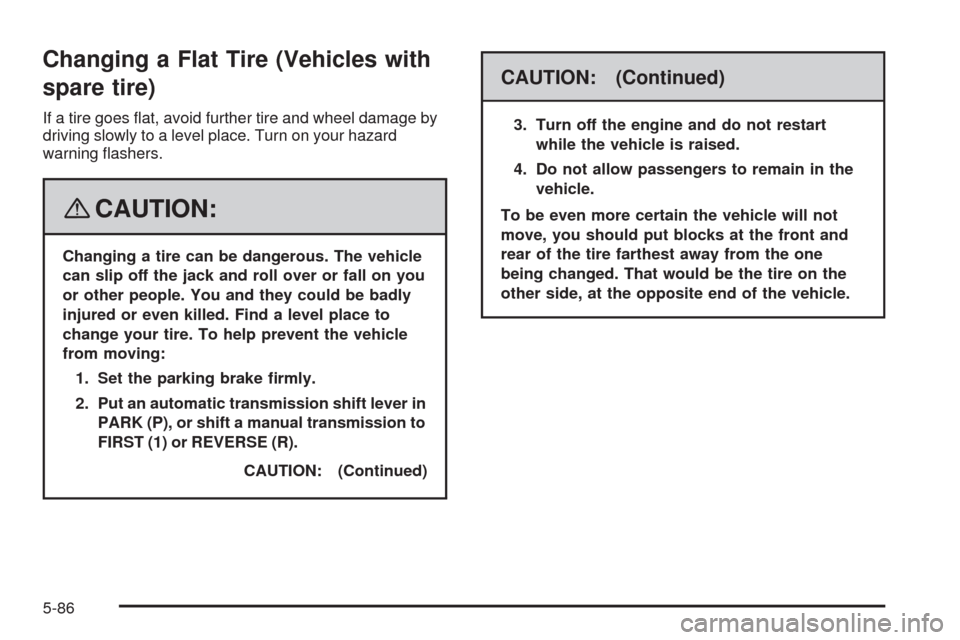

CHEVROLET HHR 2008 1.G Owners Manual Changing a Flat Tire (Vehicles with
spare tire)
If a tire goes �at, avoid further tire and wheel damage by
driving slowly to a level place. Turn on your hazard
warning �ashers.
{CAUTION:
Changing a ti
