Page 351 of 2438

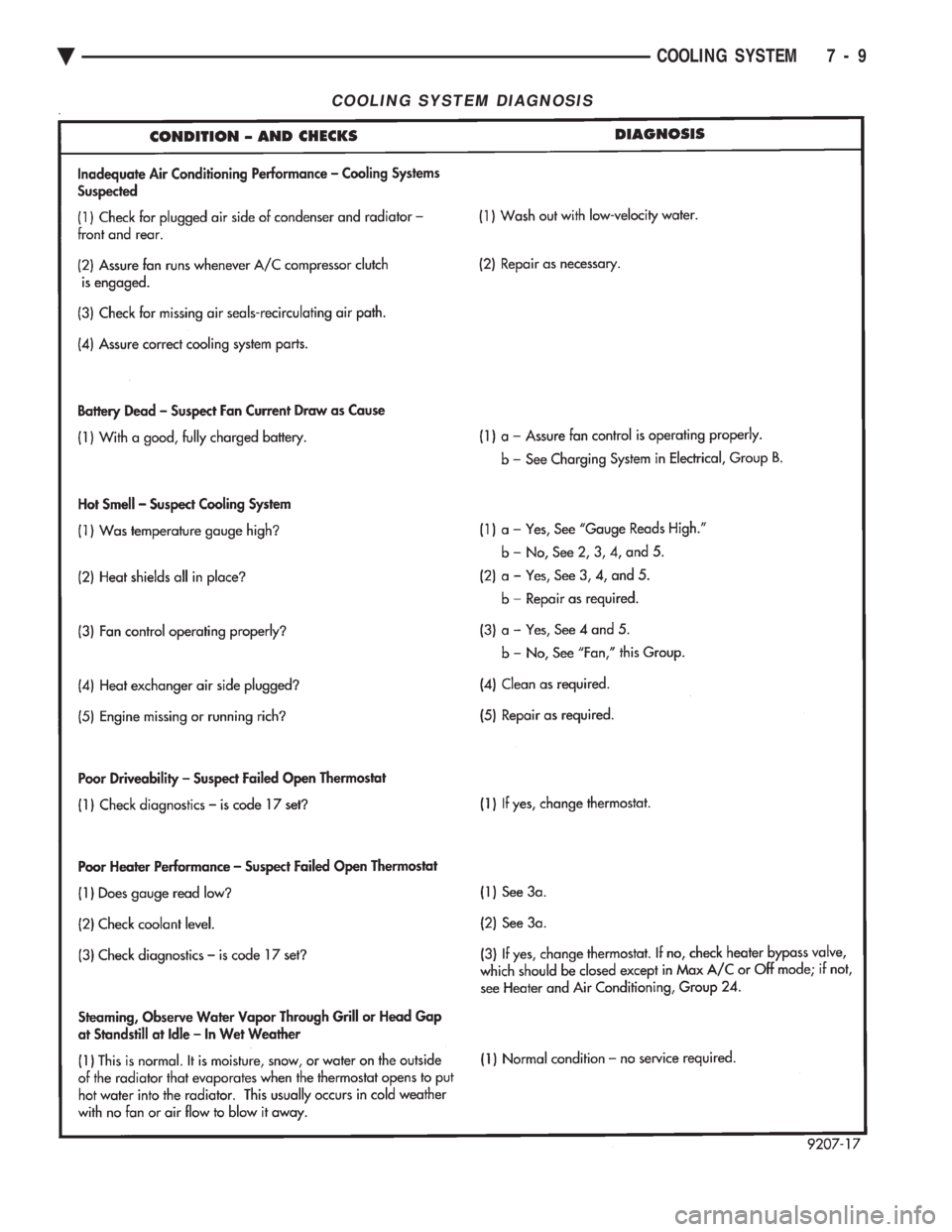

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual COOLING SYSTEM DIAGNOSIS
Ä COOLING SYSTEM 7 - 9

Page 352 of 2438

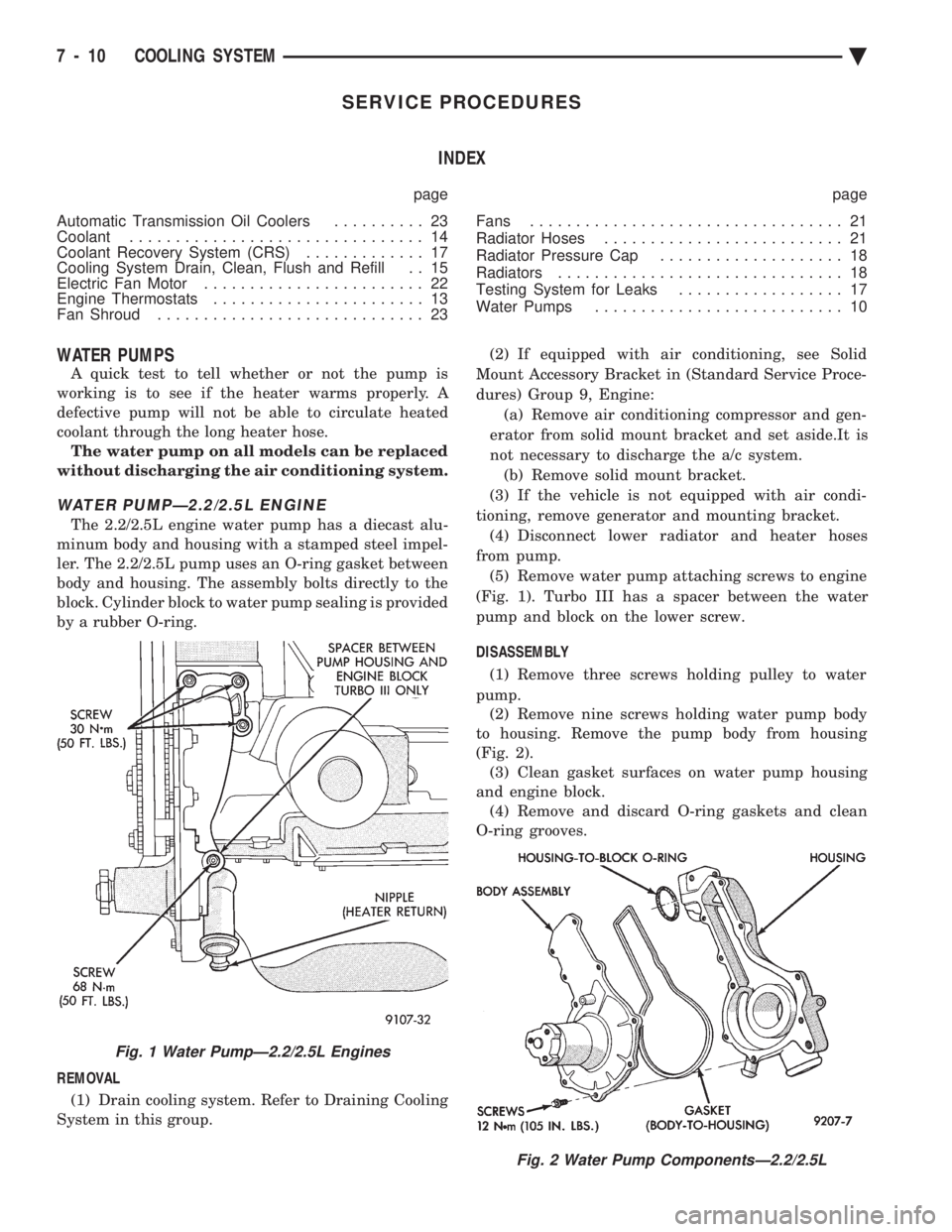

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual SERVICE PROCEDURES INDEX
page page
Automatic Transmission Oil Coolers  .......... 23
Coolant  ................................ 14
Coolant Recovery System (CRS)  ............. 17
Cooling System Dra

Page 353 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INSPECTION Replace water pump body assembly if it has any of
these defects: (1) Cracks or damage on the body.
(2) Water leaks from the shaft seal, evident by
coolant traces below the vent hole. (3) L

Page 354 of 2438

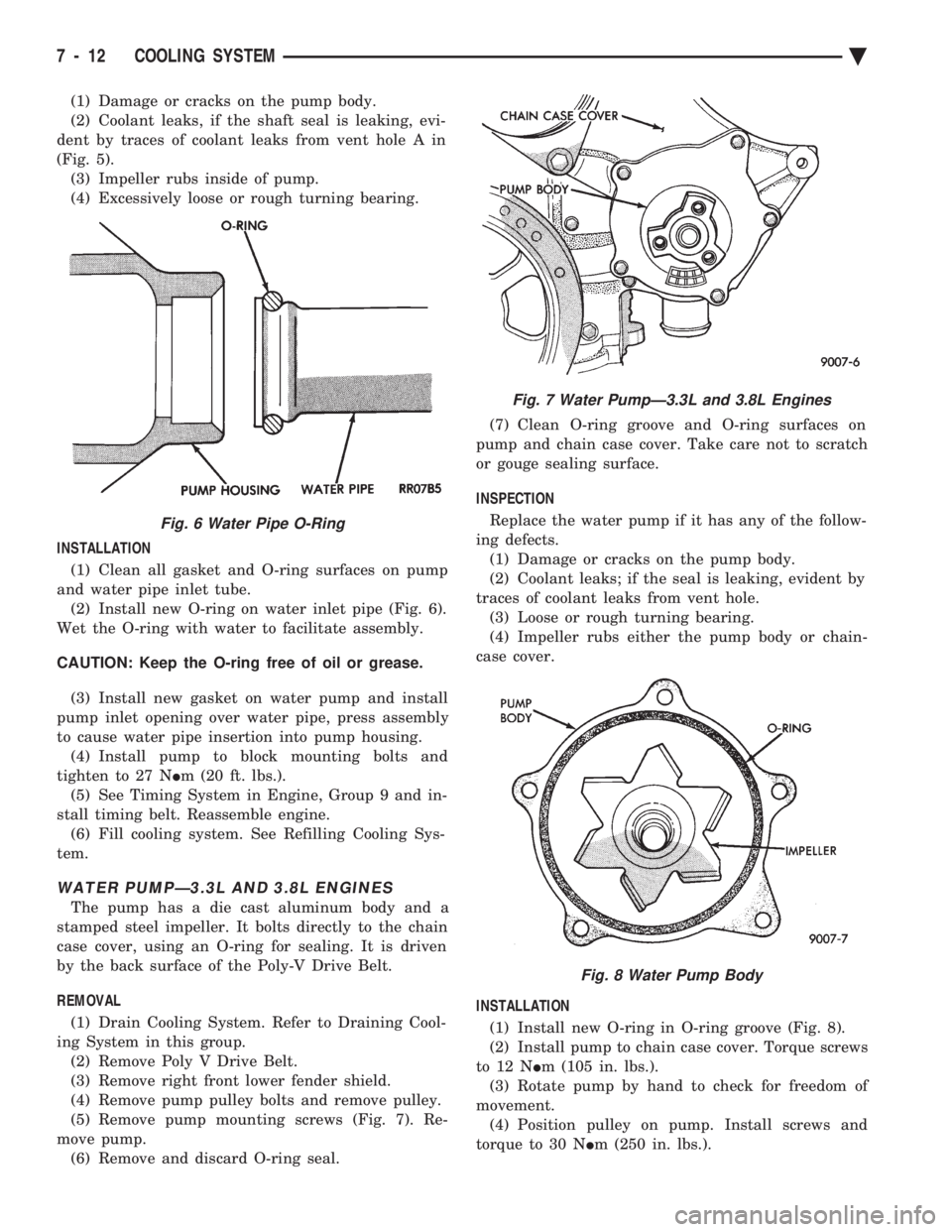

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (1) Damage or cracks on the pump body.
(2) Coolant leaks, if the shaft seal is leaking, evi-
dent by traces of coolant leaks from vent hole A in
(Fig. 5). (3) Impeller rubs inside of pump.
(4) Excess

Page 355 of 2438

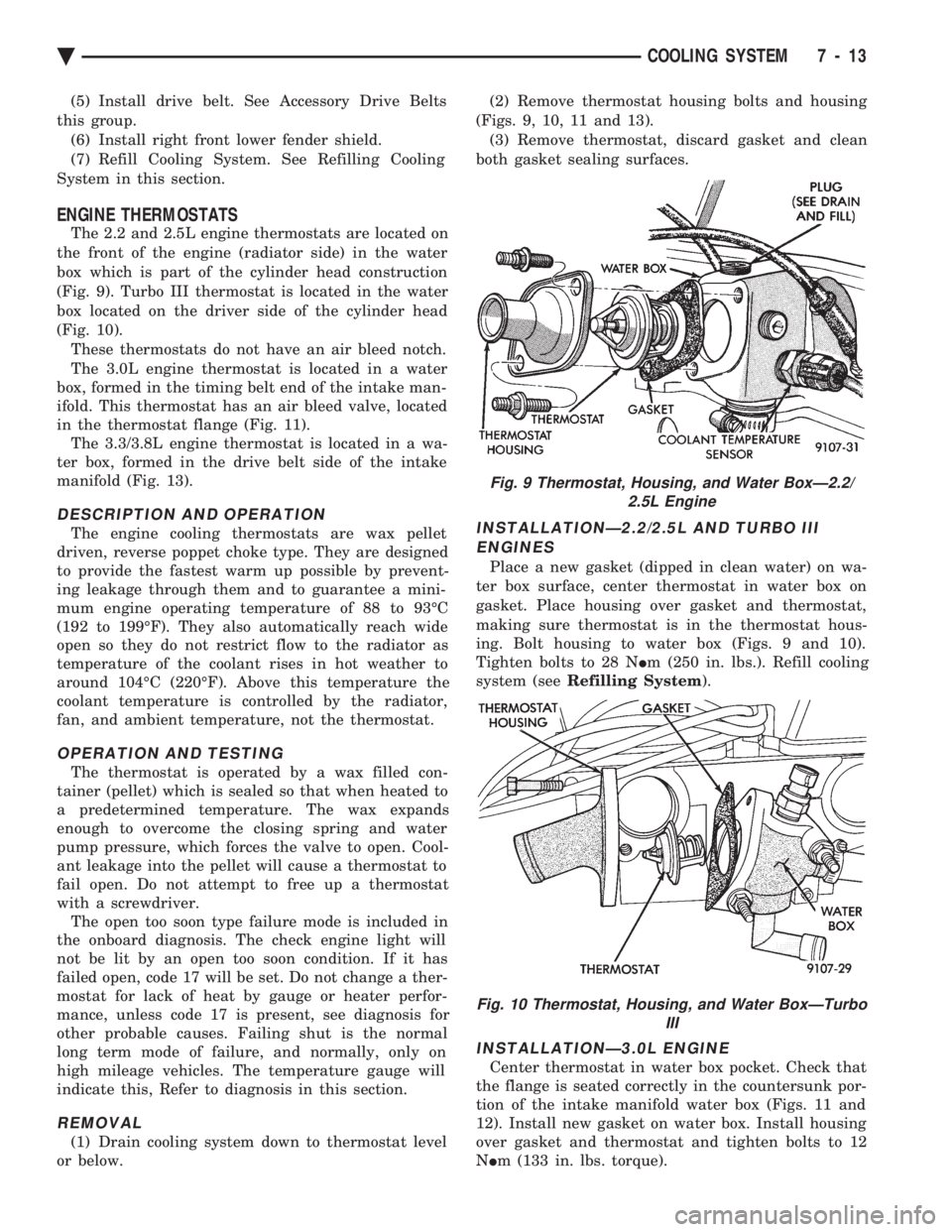

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (5) Install drive belt. See Accessory Drive Belts
this group. (6) Install right front lower fender shield.
(7) Refill Cooling System. See Refilling Cooling
System in this section.
ENGINE THERMOSTATS

Page 356 of 2438

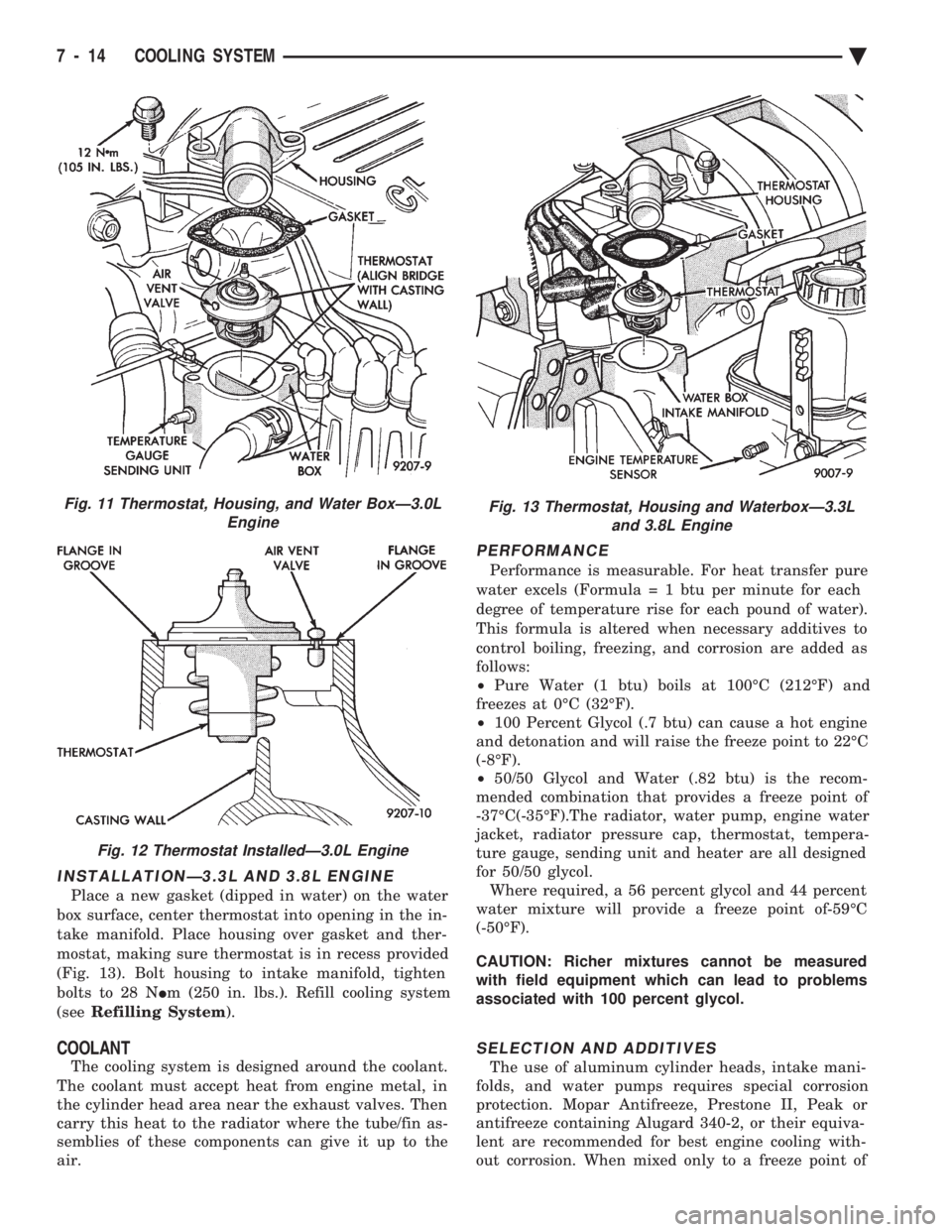

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual INSTALLATIONÐ3.3L AND 3.8L ENGINE
Place a new gasket (dipped in water) on the water
box surface, center thermostat into opening in the in-
take manifold. Place housing over gasket and ther-
mostat,

Page 357 of 2438

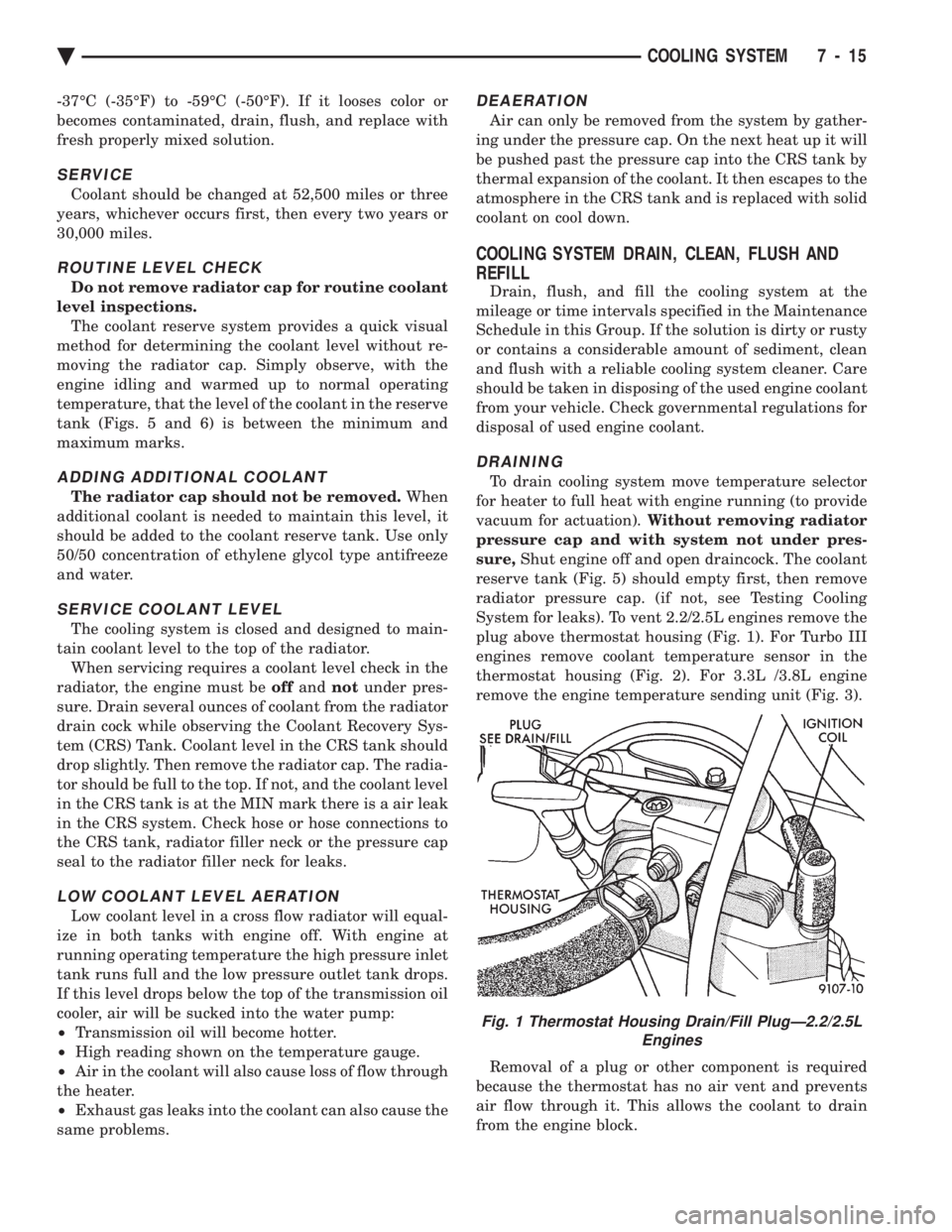

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual -37ÉC (-35ÉF) to -59ÉC (-50ÉF). If it looses color or
becomes contaminated, drain, flush, and replace with
fresh properly mixed solution.
SERVICE
Coolant should be changed at 52,500 miles or thre

Page 358 of 2438

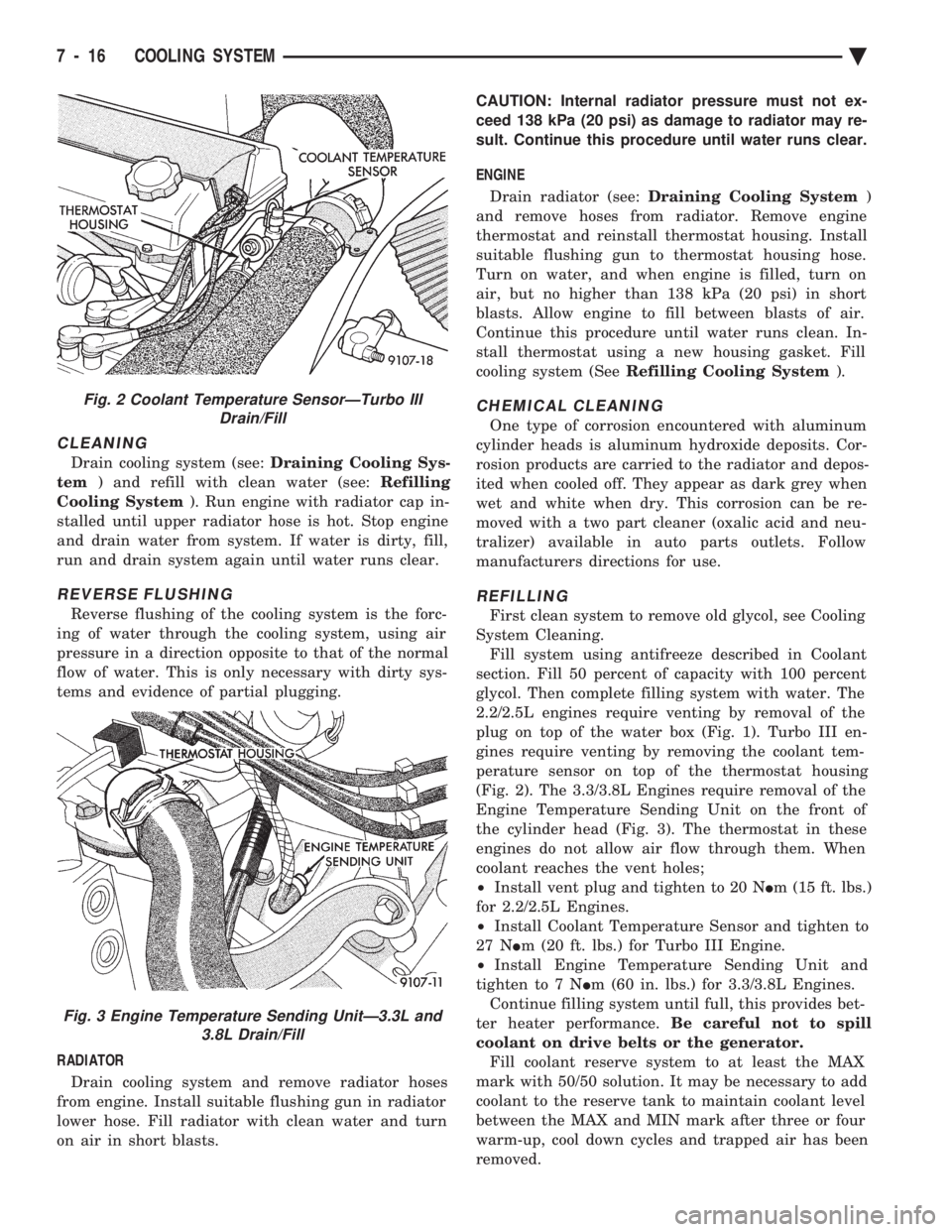

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual CLEANING
Drain cooling system (see: Draining Cooling Sys-
tem  ) and refill with clean water (see: Refilling
Cooling System  ). Run engine with radiator cap in-
stalled until upper radiator hose is

Page 359 of 2438

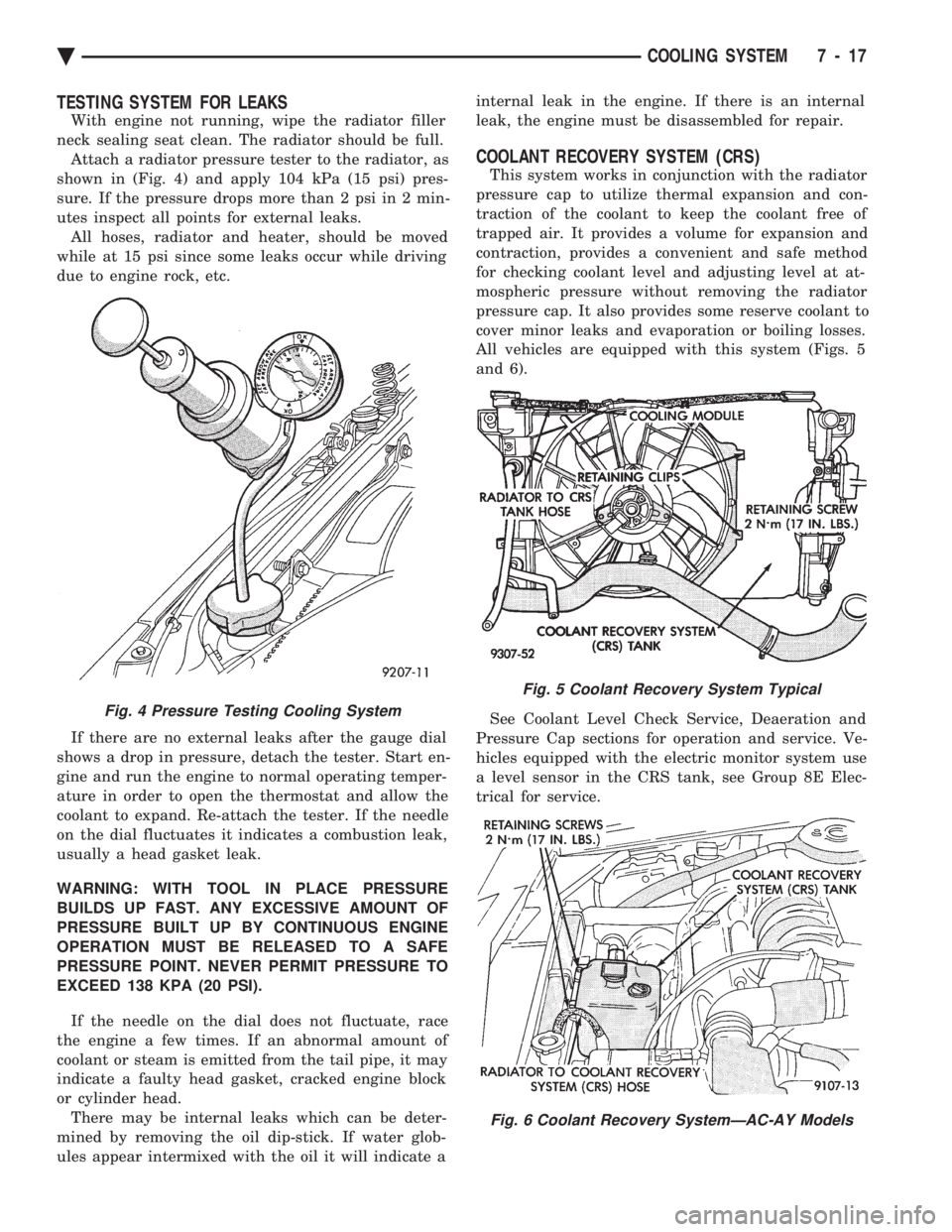

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual TESTING SYSTEM FOR LEAKS
With engine not running, wipe the radiator filler
neck sealing seat clean. The radiator should be full. Attach a radiator pressure tester to the radiator, as
shown in (Fig. 4

Page 360 of 2438

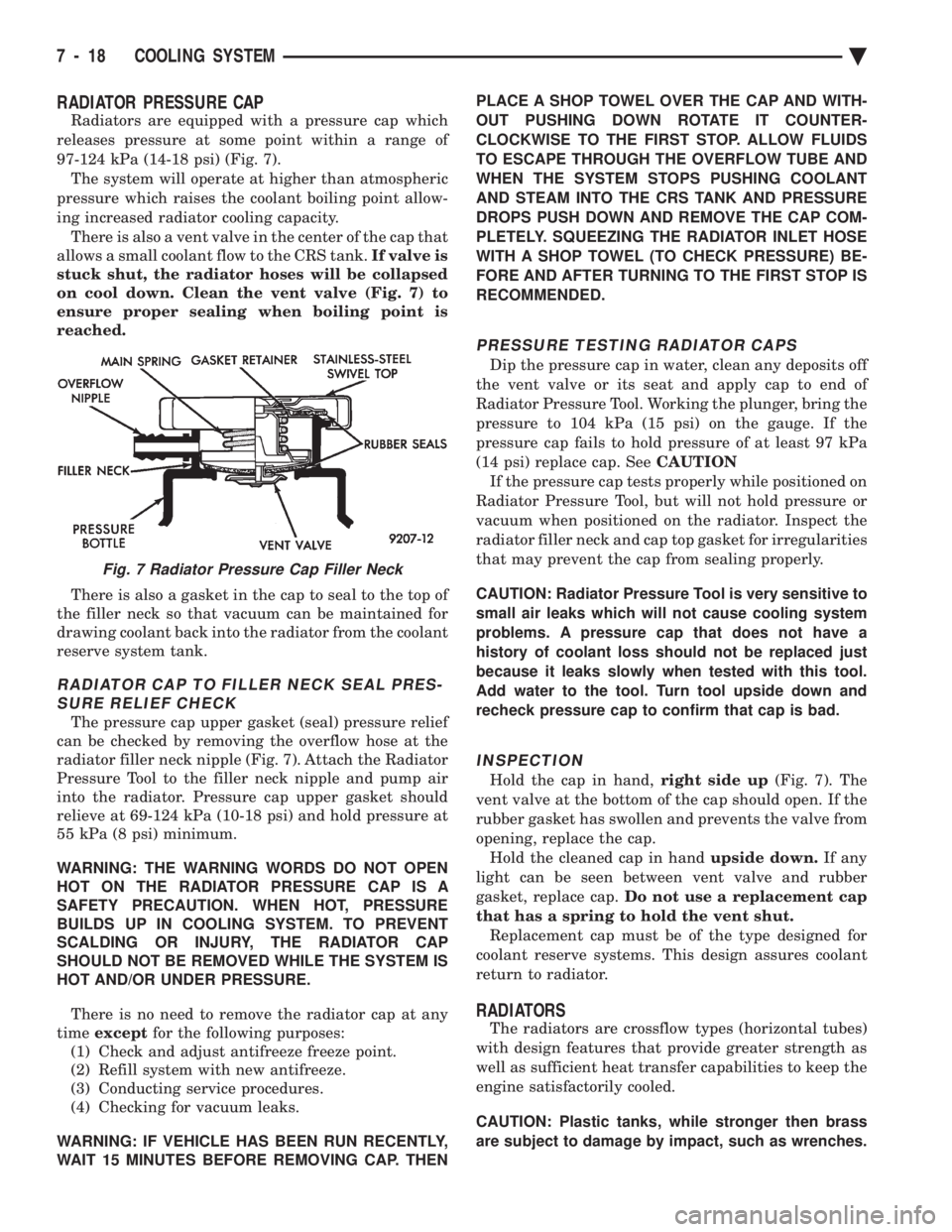

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual RADIATOR PRESSURE CAP
Radiators are equipped with a pressure cap which
releases pressure at some point within a range of
97-124 kPa (14-18 psi) (Fig. 7). The system will operate at higher than atmosp
