Page 381 of 2438

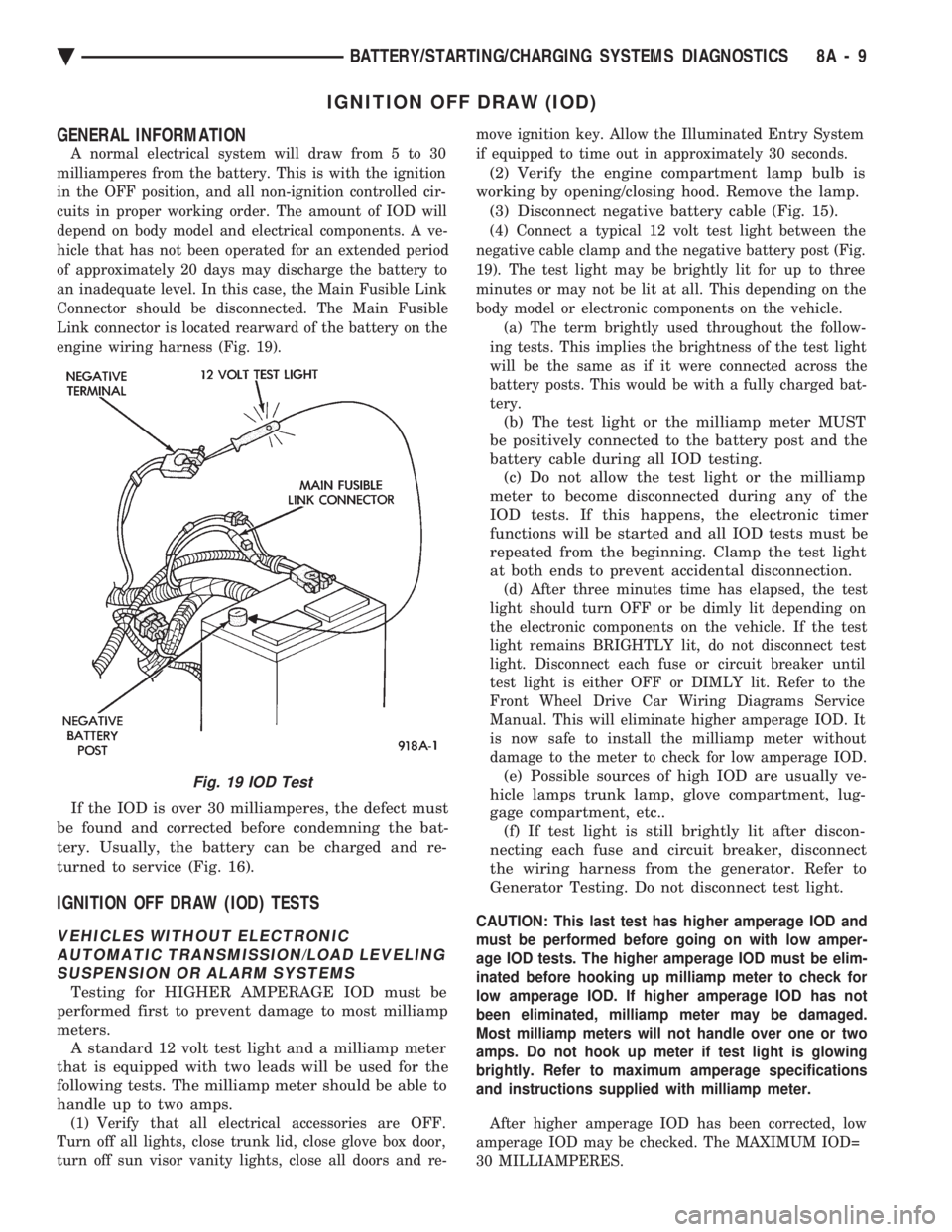

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual IGNITION OFF DRAW (IOD)
GENERAL INFORMATION
A normal electrical system will draw from 5 to 30
milliamperes from the battery. This is with the ignition
in the OFF position, and all non-ignition contr

Page 382 of 2438

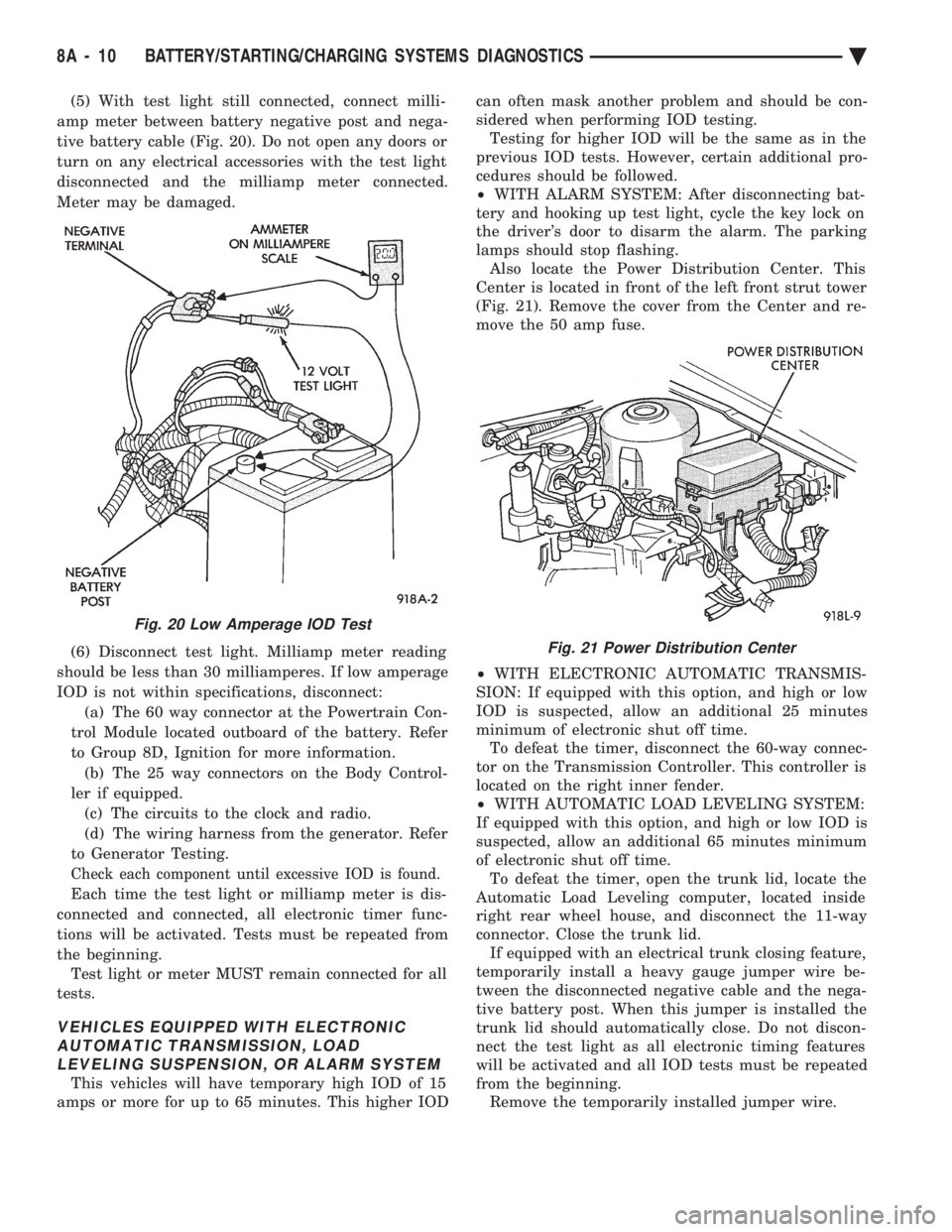

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (5) With test light still connected, connect milli-
amp meter between battery negative post and nega-
tive battery cable (Fig. 20). Do not open any doors or
turn on any electrical accessories with th

Page 383 of 2438

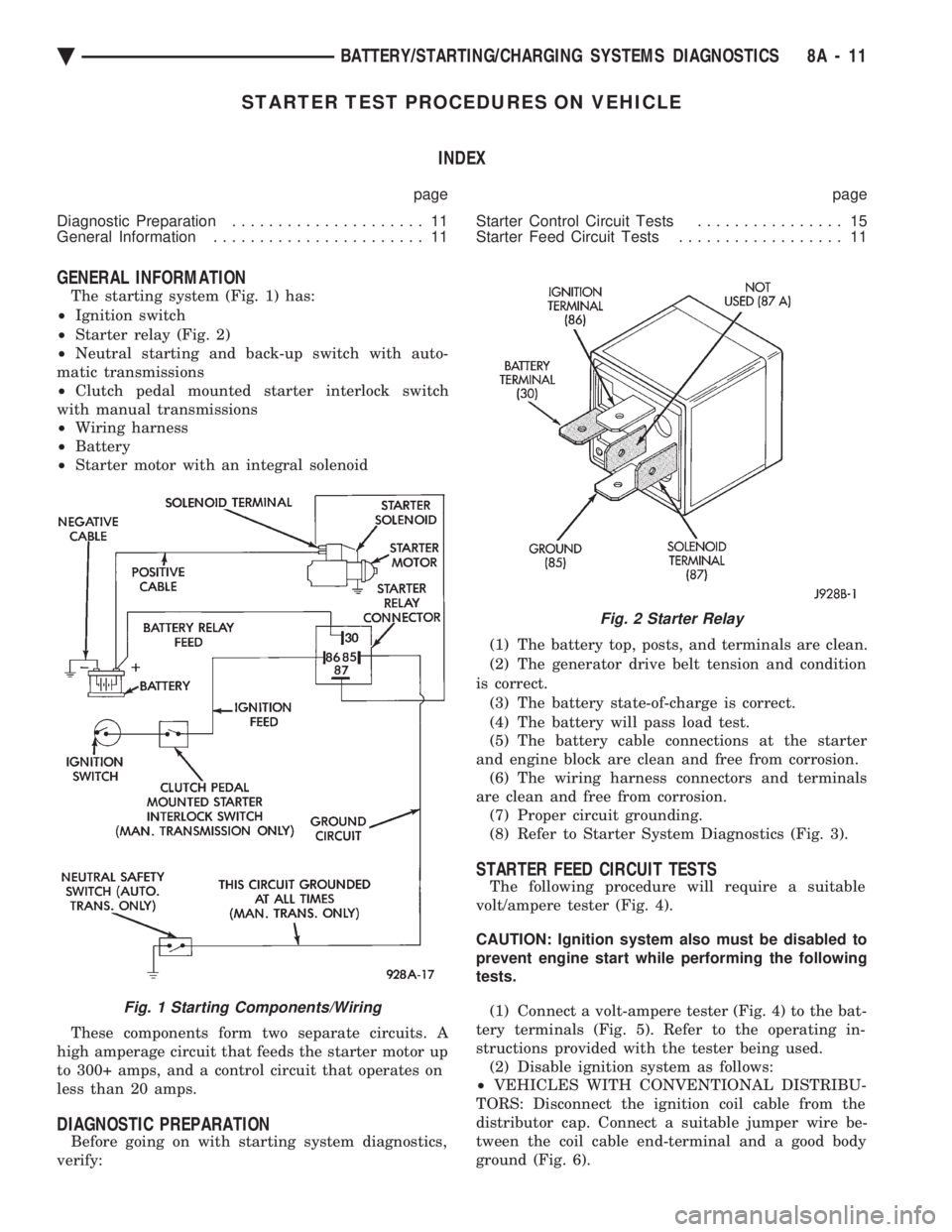

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual STARTER TEST PROCEDURES ON VEHICLE INDEX
page page
Diagnostic Preparation  ..................... 11
General Information  ....................... 11  Starter Control Circuit Tests
................ 1

Page 384 of 2438

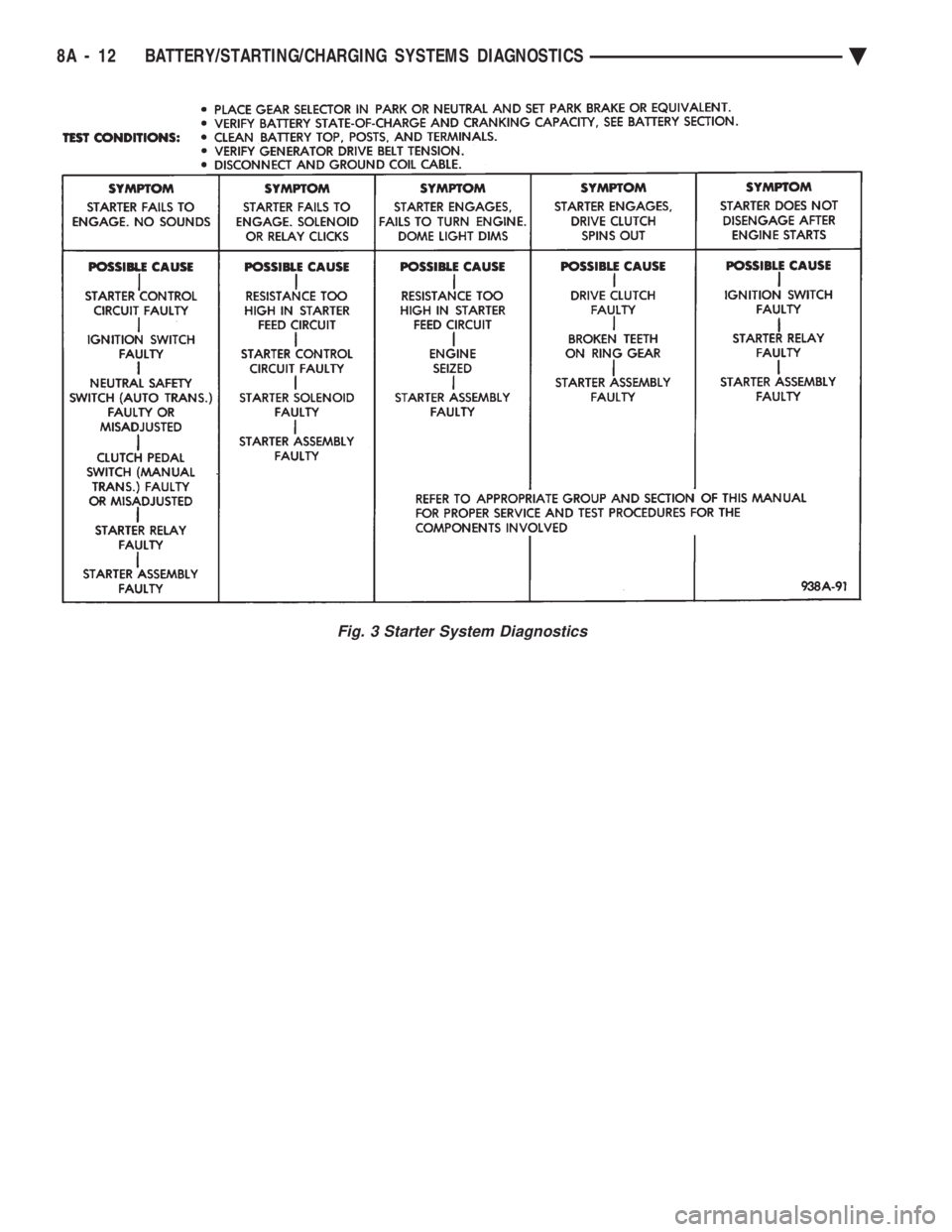

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 3 Starter System Diagnostics
8A - 12 BATTERY/STARTING/CHARGING SYSTEMS DIAGNOSTICS Ä

Page 385 of 2438

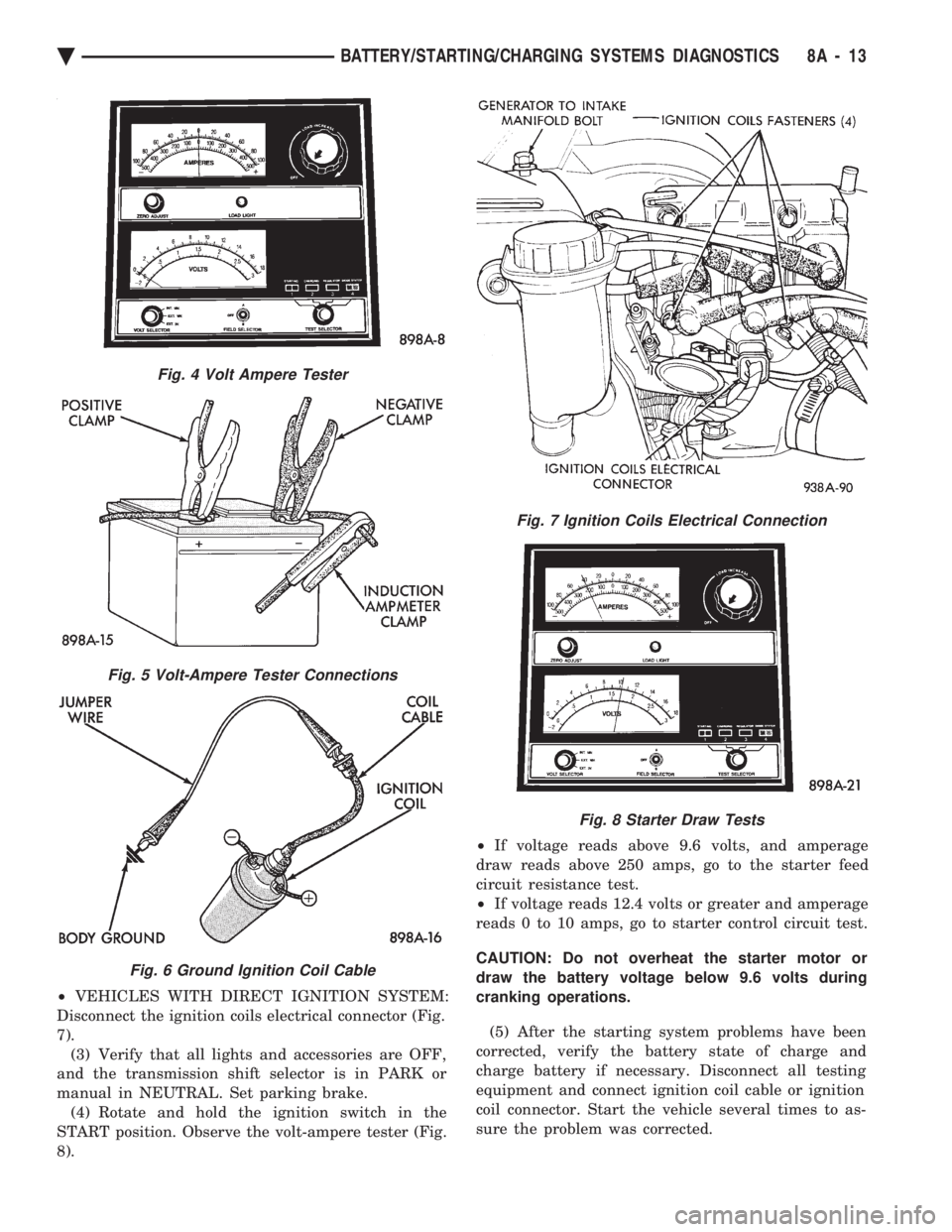

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual ² VEHICLES WITH DIRECT IGNITION SYSTEM:
Disconnect the ignition coils electrical connector (Fig.
7). (3) Verify that all lights and accessories are OFF,
and the transmission shift selector is in PAR

Page 386 of 2438

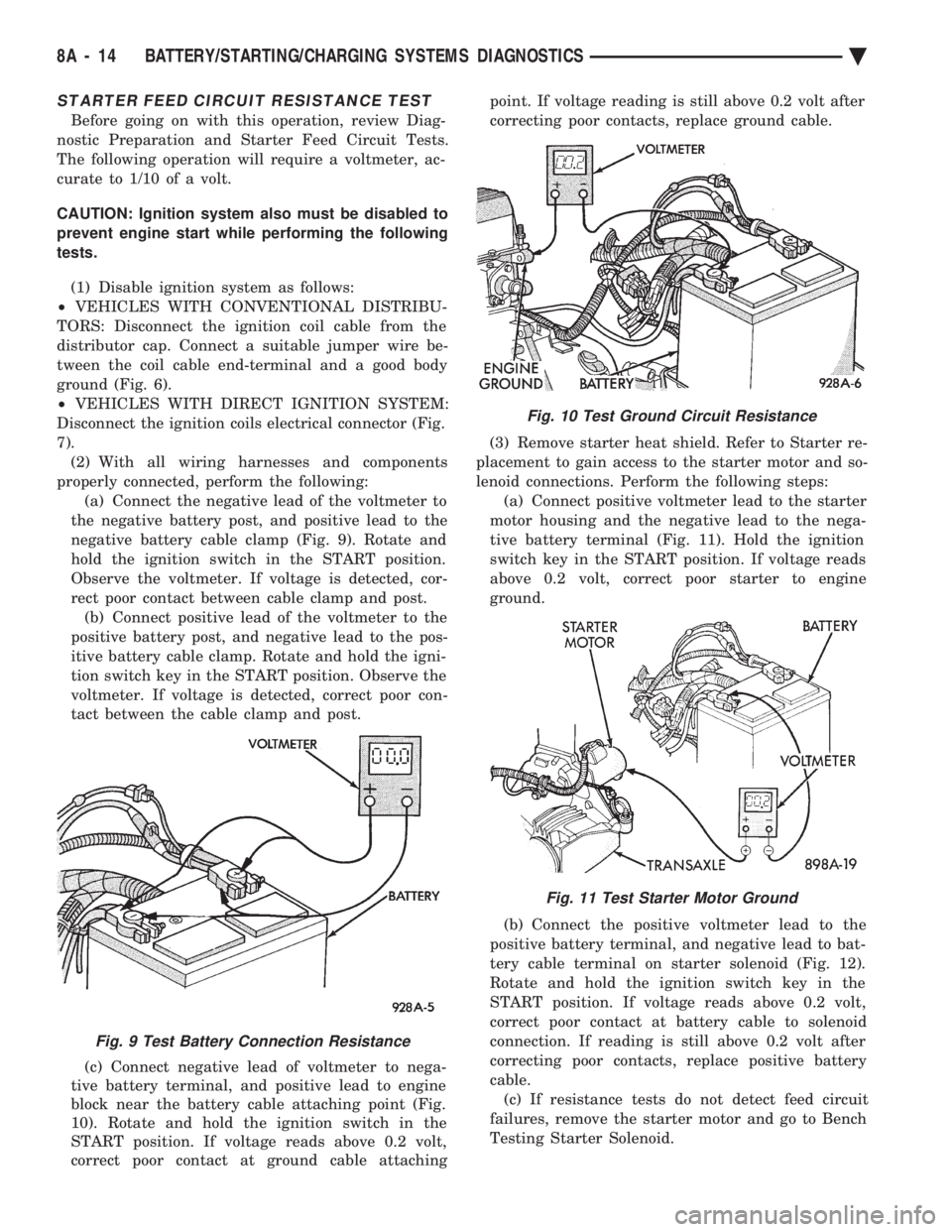

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual STARTER FEED CIRCUIT RESISTANCE TEST
Before going on with this operation, review Diag-
nostic Preparation and Starter Feed Circuit Tests.
The following operation will require a voltmeter, ac-
curate

Page 387 of 2438

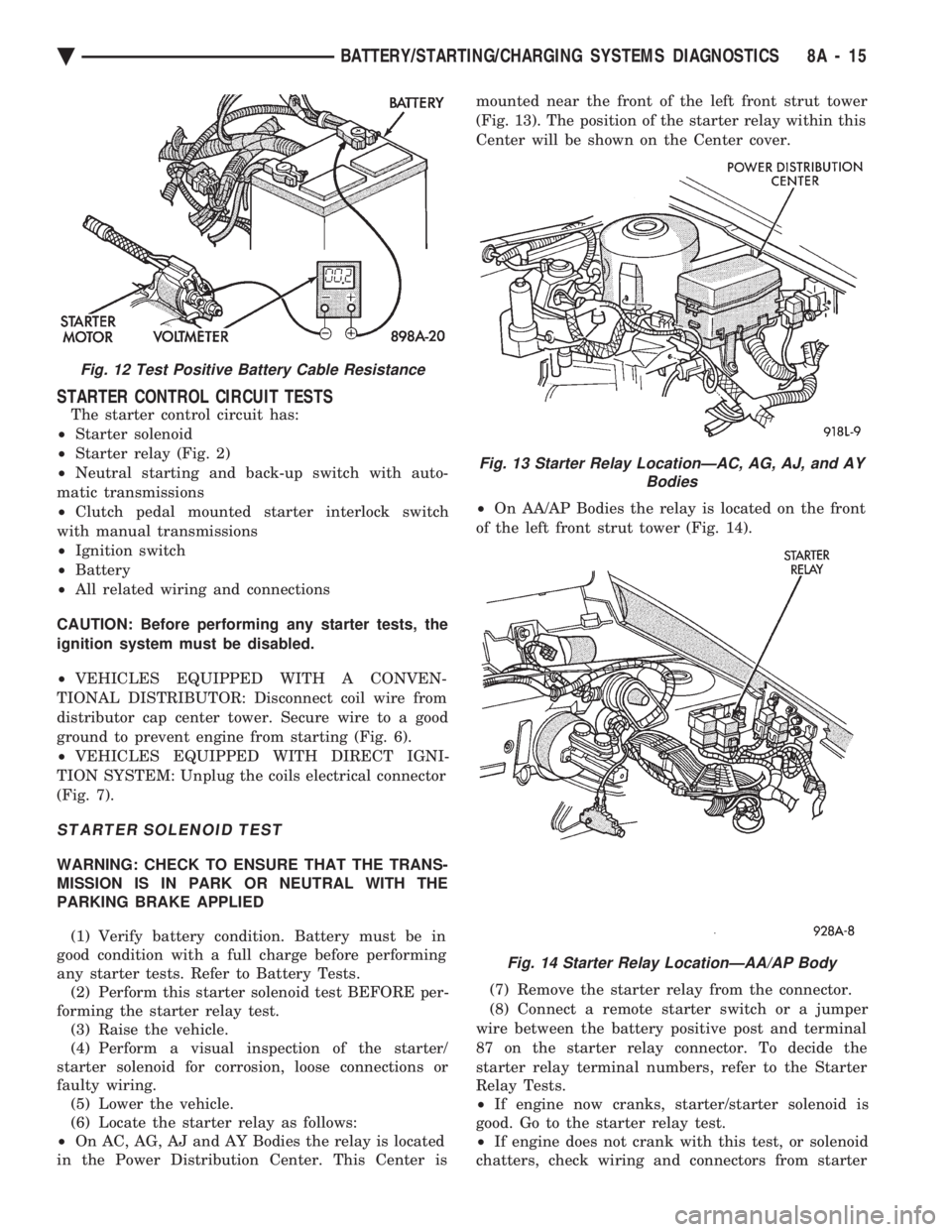

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual STARTER CONTROL CIRCUIT TESTS
The starter control circuit has:
²  Starter solenoid
²  Starter relay (Fig. 2)
²  Neutral starting and back-up switch with auto-
matic transmissions
²  Clutch ped

Page 388 of 2438

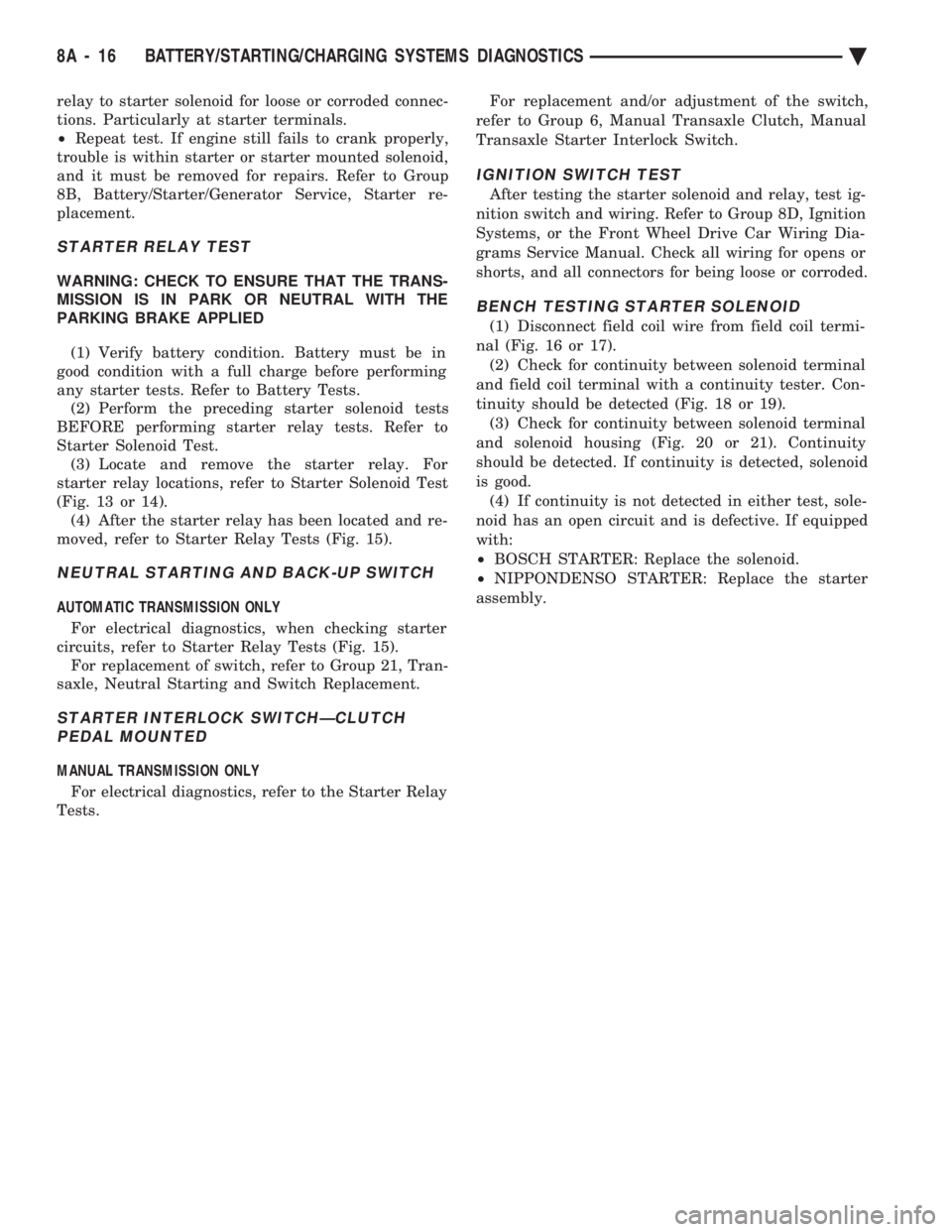

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual relay to starter solenoid for loose or corroded connec-
tions. Particularly at starter terminals.
²  Repeat test. If engine still fails to crank properly,
trouble is within starter or starter mount

Page 389 of 2438

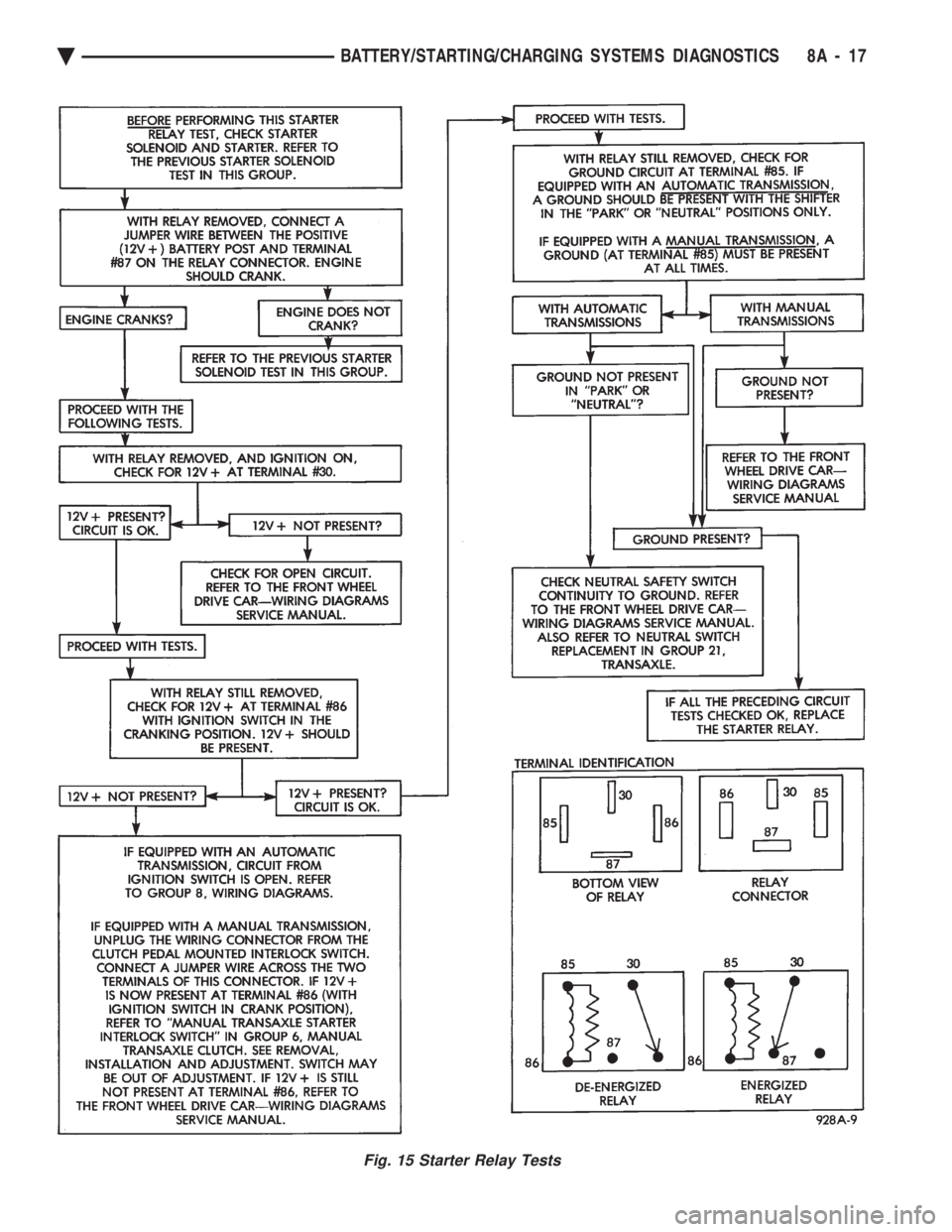

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 15 Starter Relay Tests
Ä BATTERY/STARTING/CHARGING SYSTEMS DIAGNOSTICS 8A - 17

Page 390 of 2438

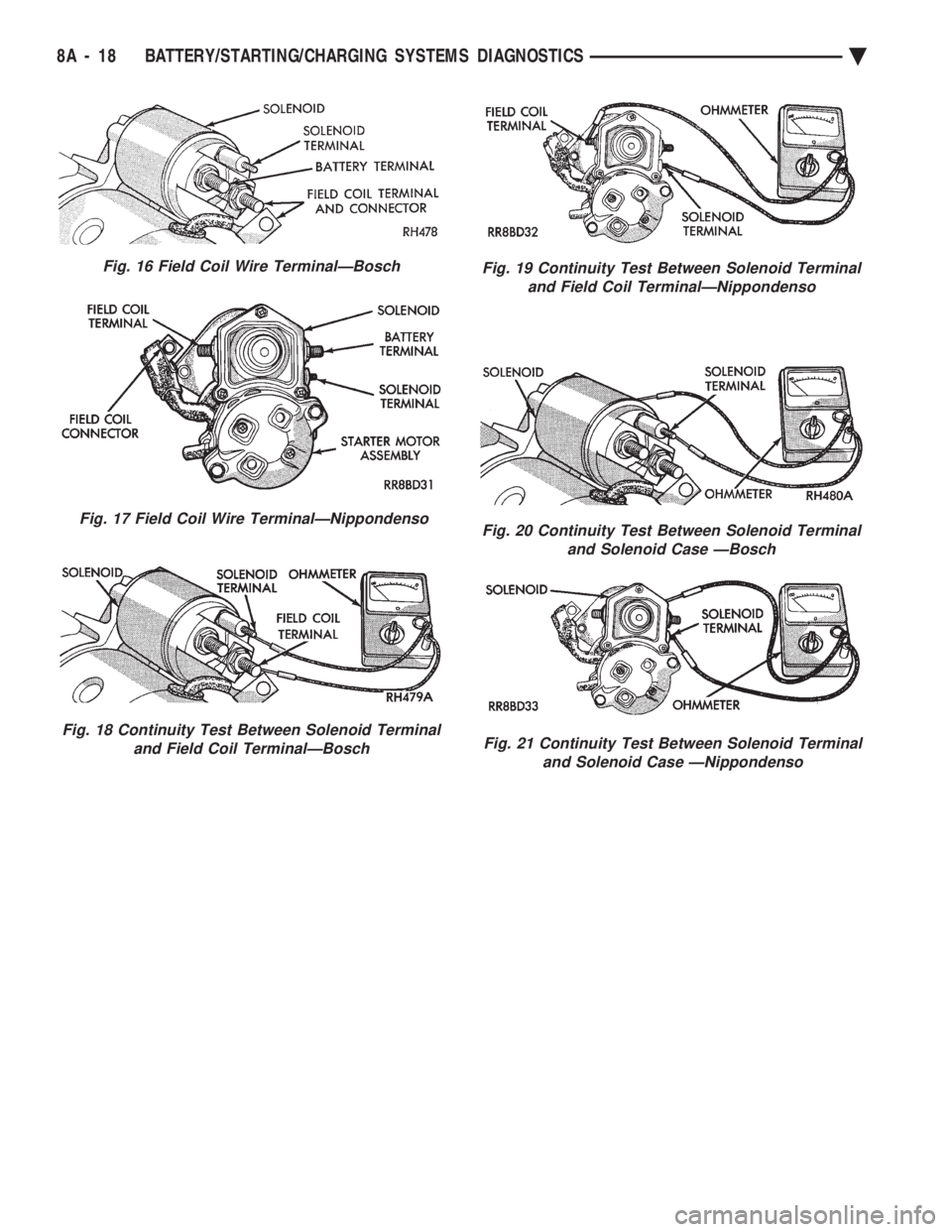

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 16 Field Coil Wire TerminalÐBosch
Fig. 17 Field Coil Wire TerminalÐNippondenso
Fig. 18 Continuity Test Between Solenoid Terminal and Field Coil TerminalÐBosch
Fig. 19 Continuity Test Between S
