Page 391 of 2438

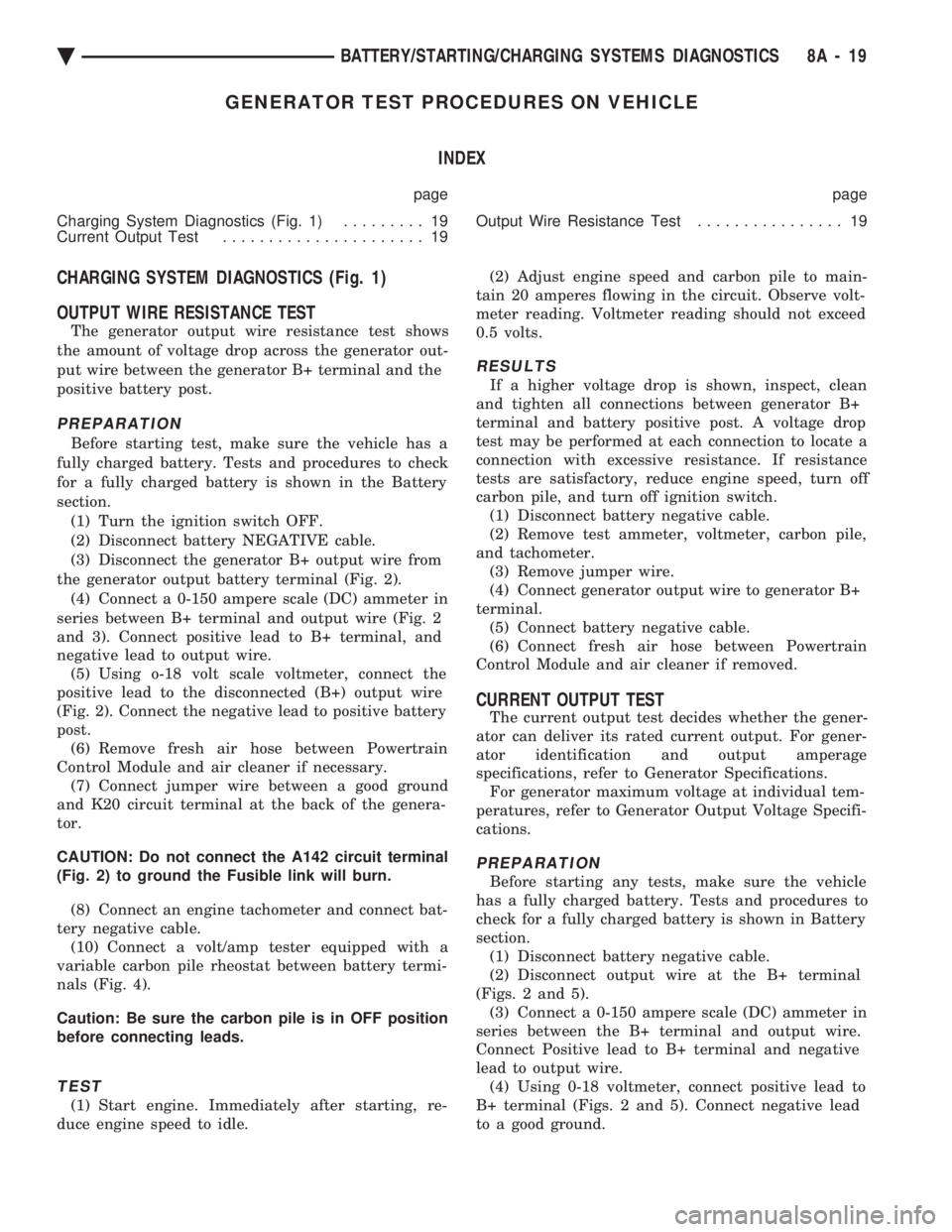

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual GENERATOR TEST PROCEDURES ON VEHICLE INDEX
page page
Charging System Diagnostics (Fig. 1)  ......... 19
Current Output Test  ...................... 19  Output Wire Resistance Test
................

Page 392 of 2438

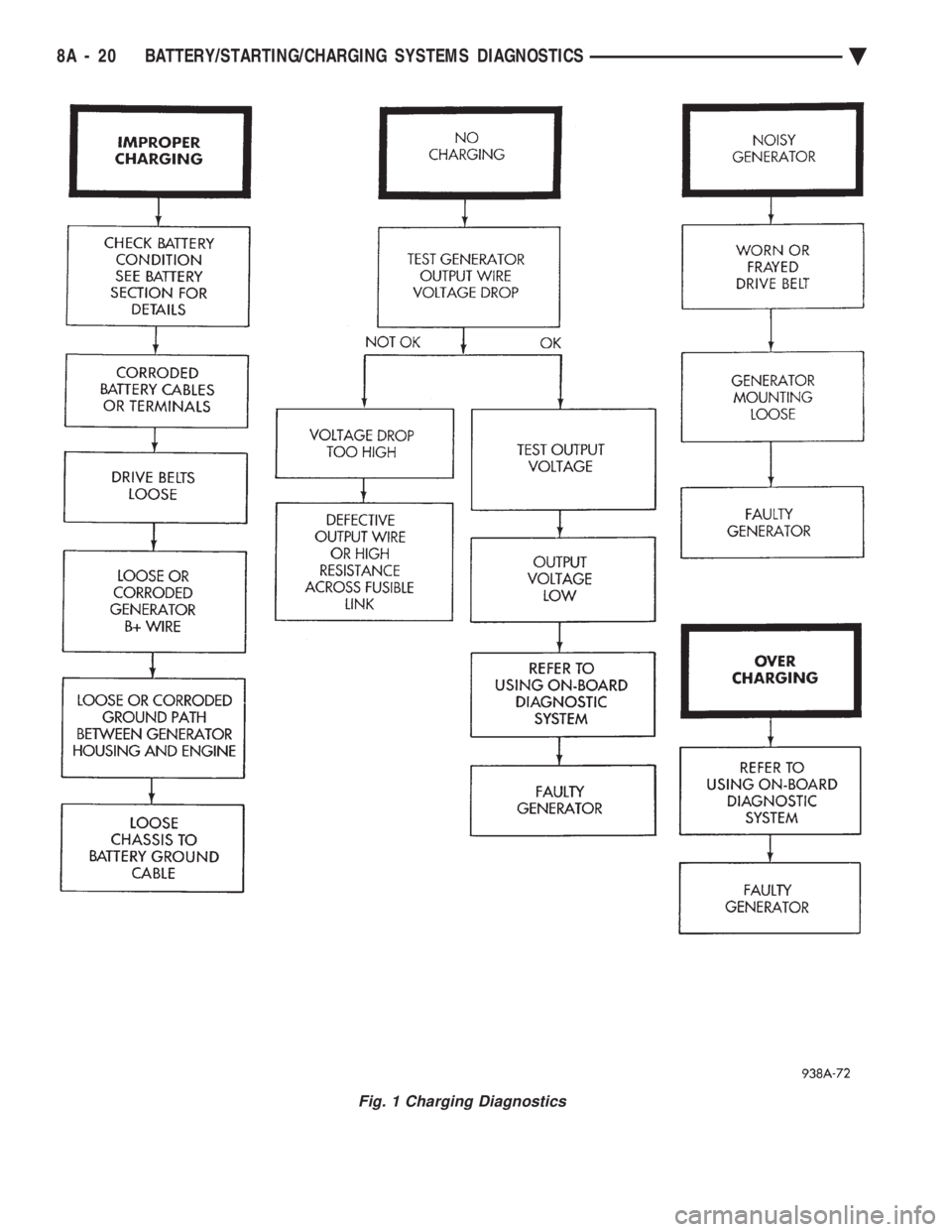

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 1 Charging Diagnostics
8A - 20 BATTERY/STARTING/CHARGING SYSTEMS DIAGNOSTICS Ä

Page 393 of 2438

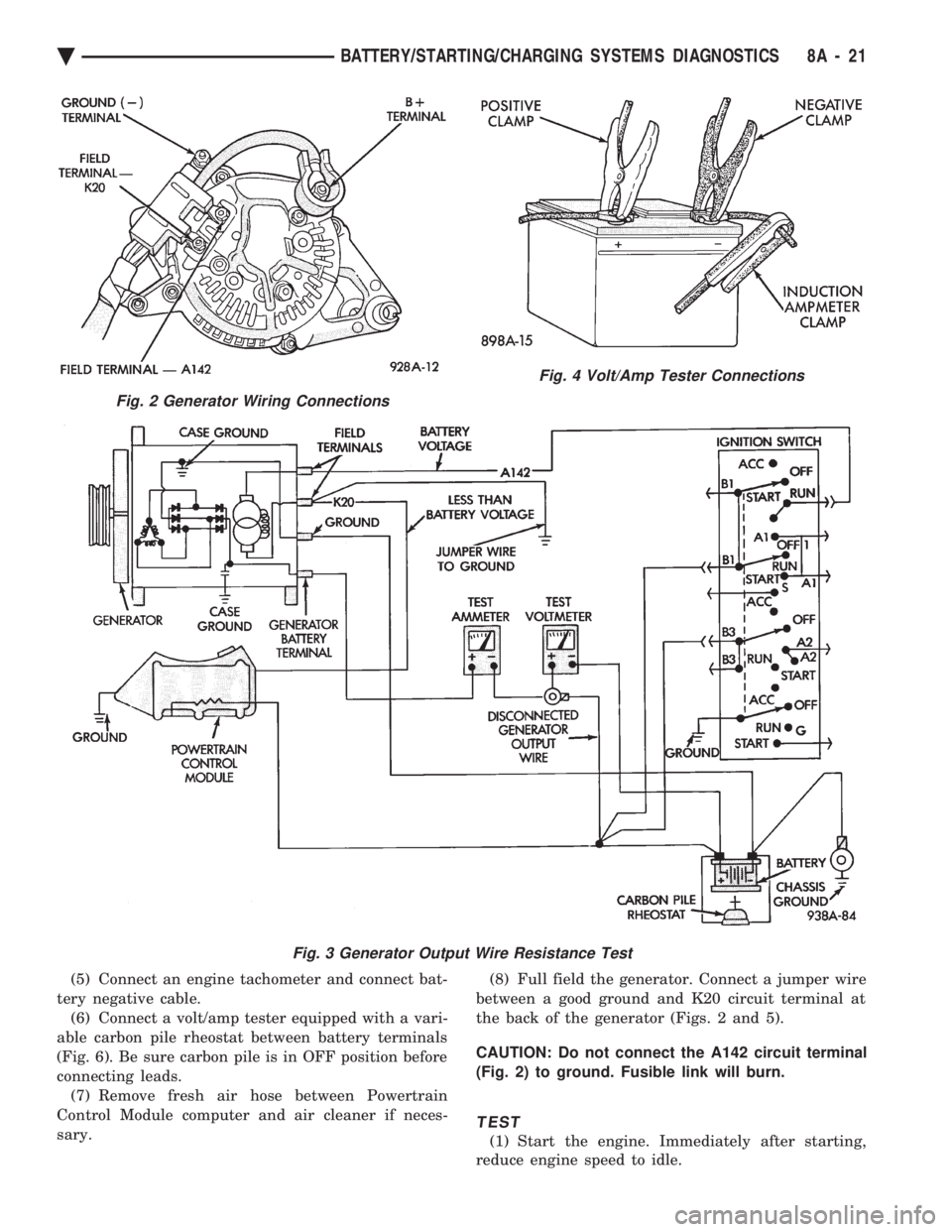

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (5) Connect an engine tachometer and connect bat-
tery negative cable. (6) Connect a volt/amp tester equipped with a vari-
able carbon pile rheostat between battery terminals
(Fig. 6). Be sure carbon

Page 394 of 2438

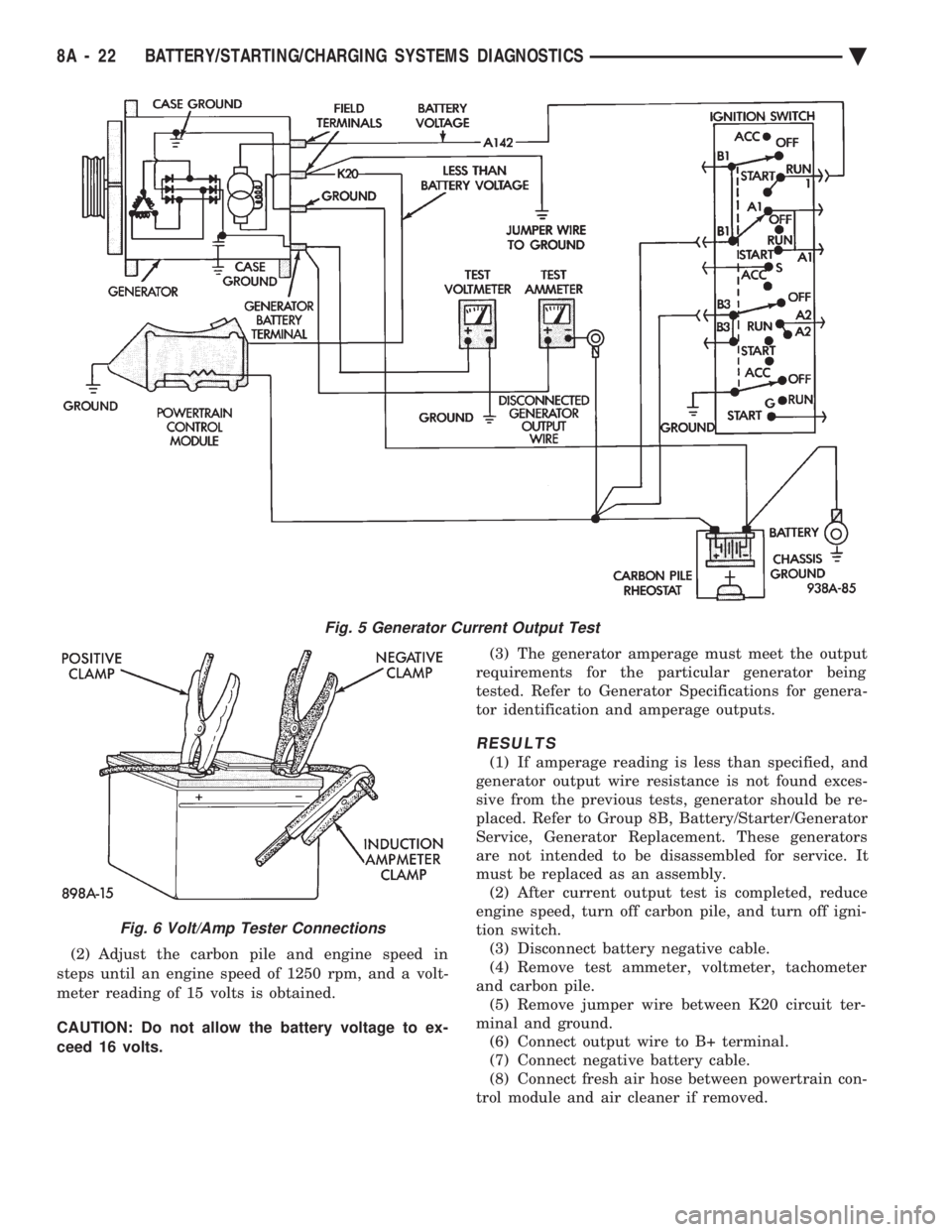

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (2) Adjust the carbon pile and engine speed in
steps until an engine speed of 1250 rpm, and a volt-
meter reading of 15 volts is obtained.
CAUTION: Do not allow the battery voltage to ex-
ceed 16 v

Page 395 of 2438

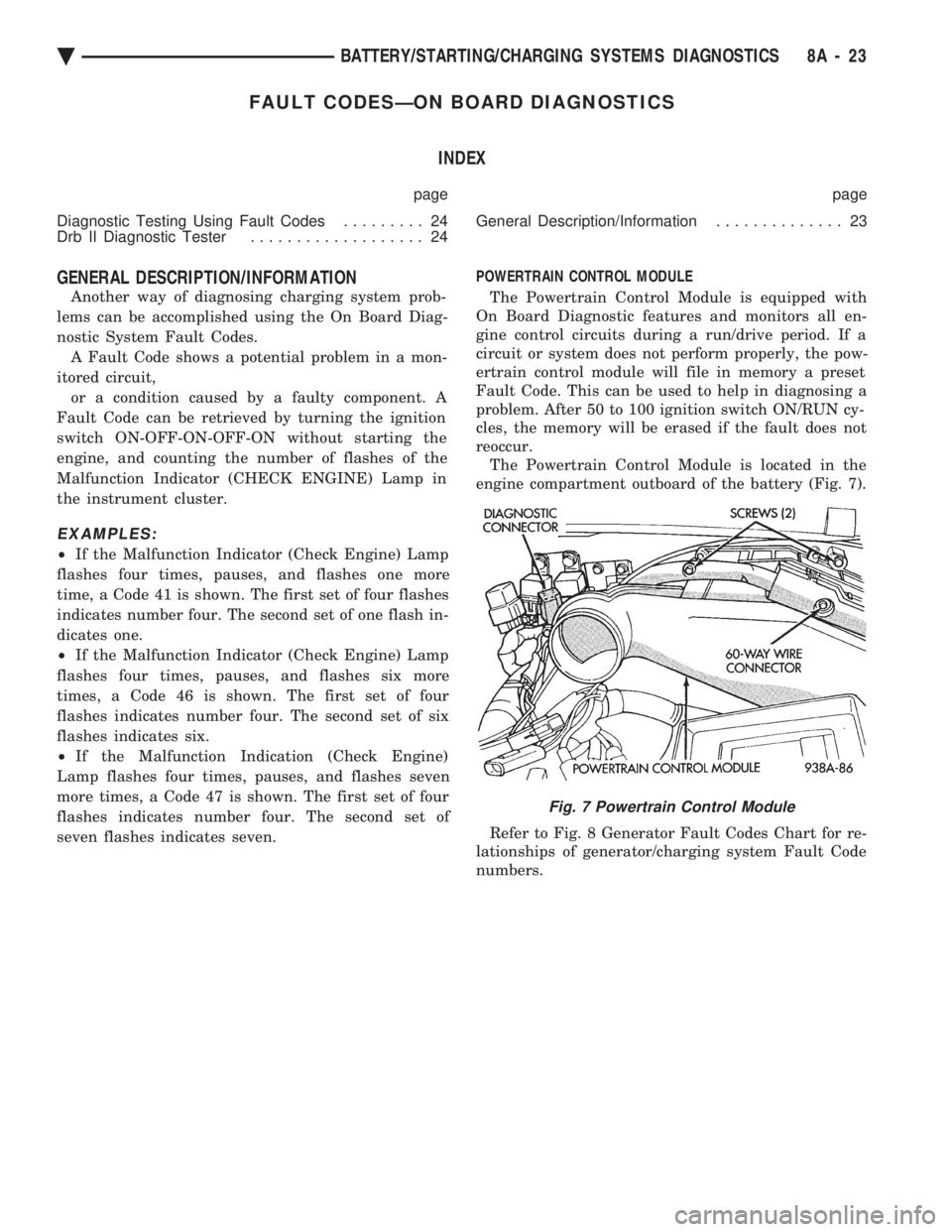

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual FAULT CODESÐON BOARD DIAGNOSTICS INDEX
page page
Diagnostic Testing Using Fault Codes  ......... 24
Drb II Diagnostic Tester  ................... 24  General Description/Information
..............

Page 396 of 2438

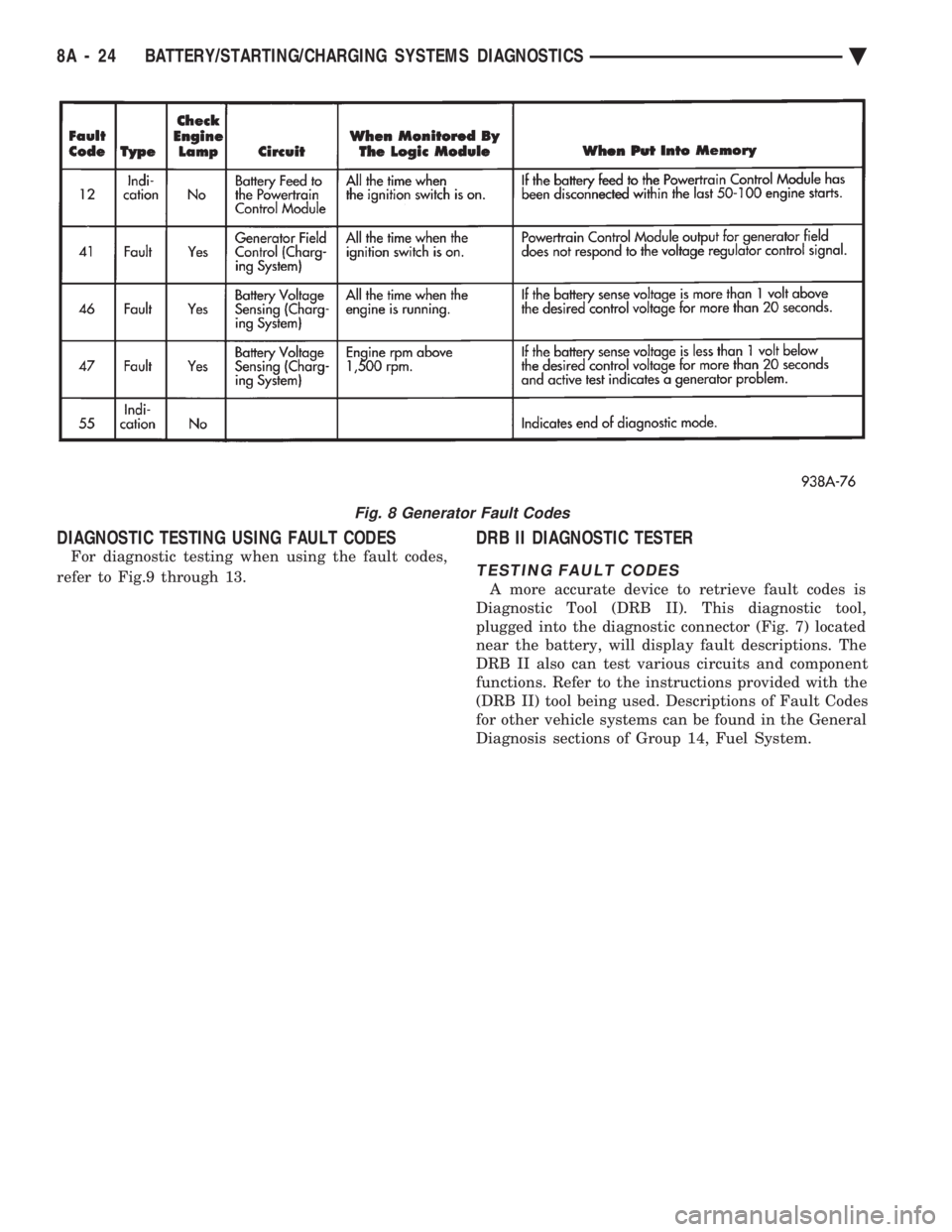

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual DIAGNOSTIC TESTING USING FAULT CODES
For diagnostic testing when using the fault codes,
refer to Fig.9 through 13.
DRB II DIAGNOSTIC TESTER
TESTING FAULT CODES
A more accurate device to retrieve faul

Page 397 of 2438

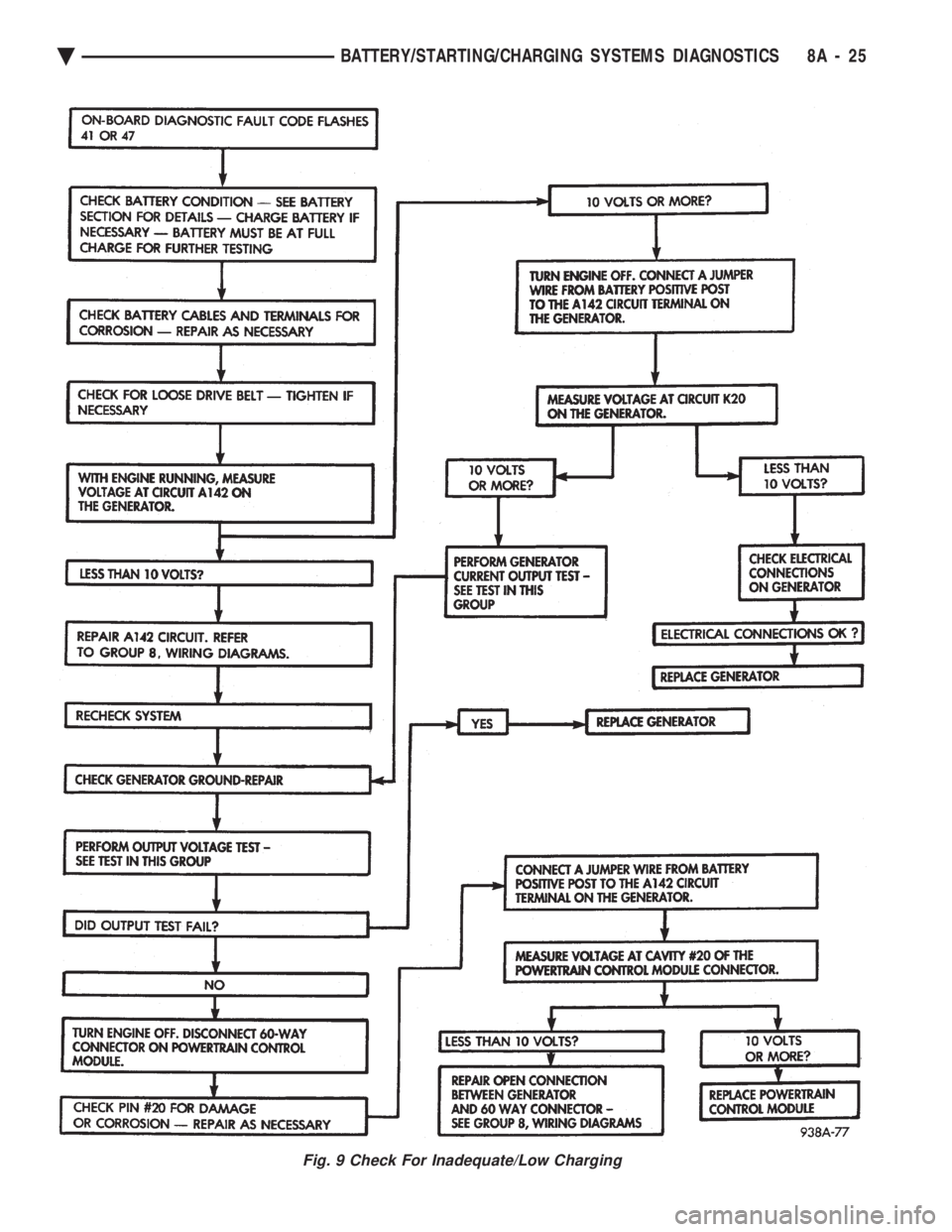

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 9 Check For Inadequate/Low Charging
Ä BATTERY/STARTING/CHARGING SYSTEMS DIAGNOSTICS 8A - 25

Page 398 of 2438

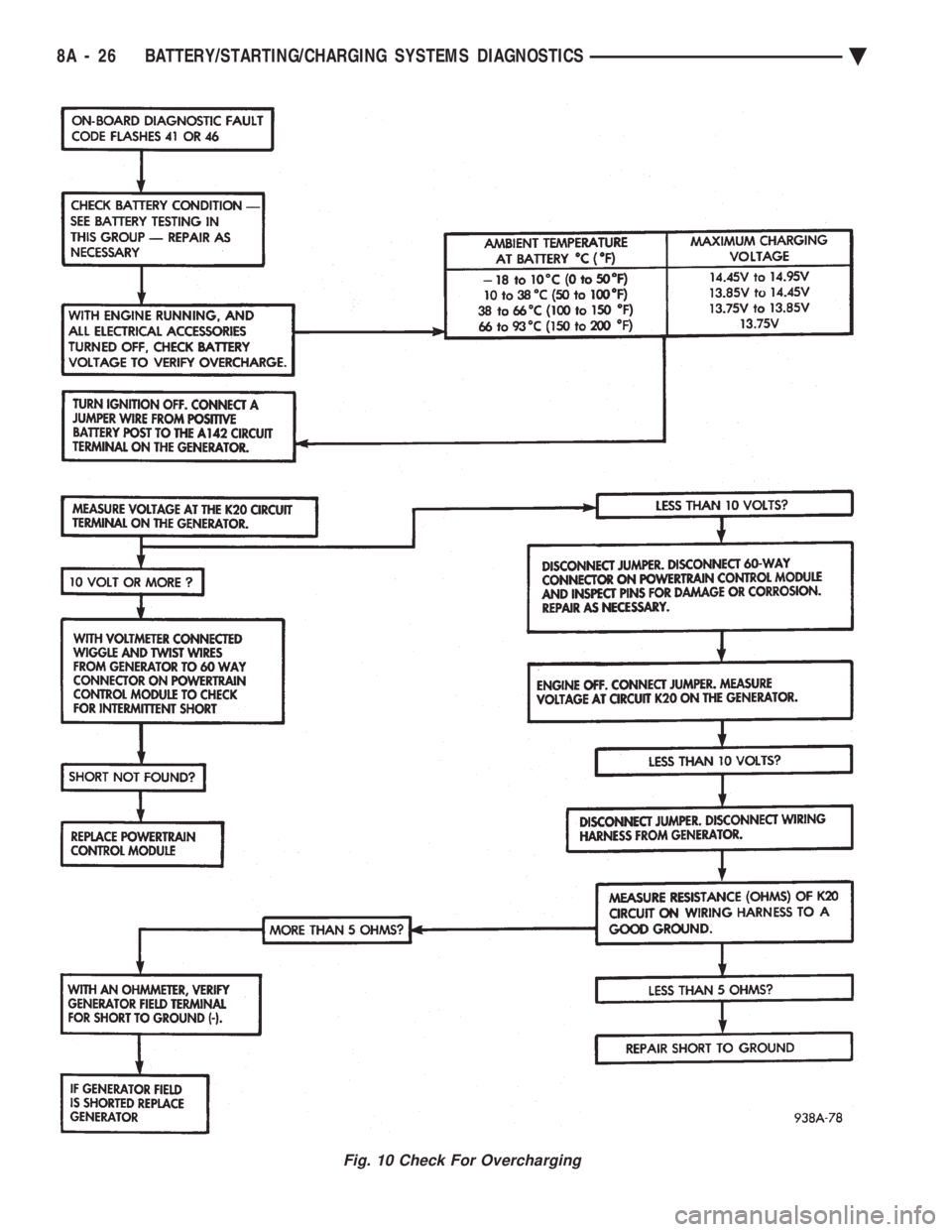

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 10 Check For Overcharging
8A - 26 BATTERY/STARTING/CHARGING SYSTEMS DIAGNOSTICS Ä

Page 399 of 2438

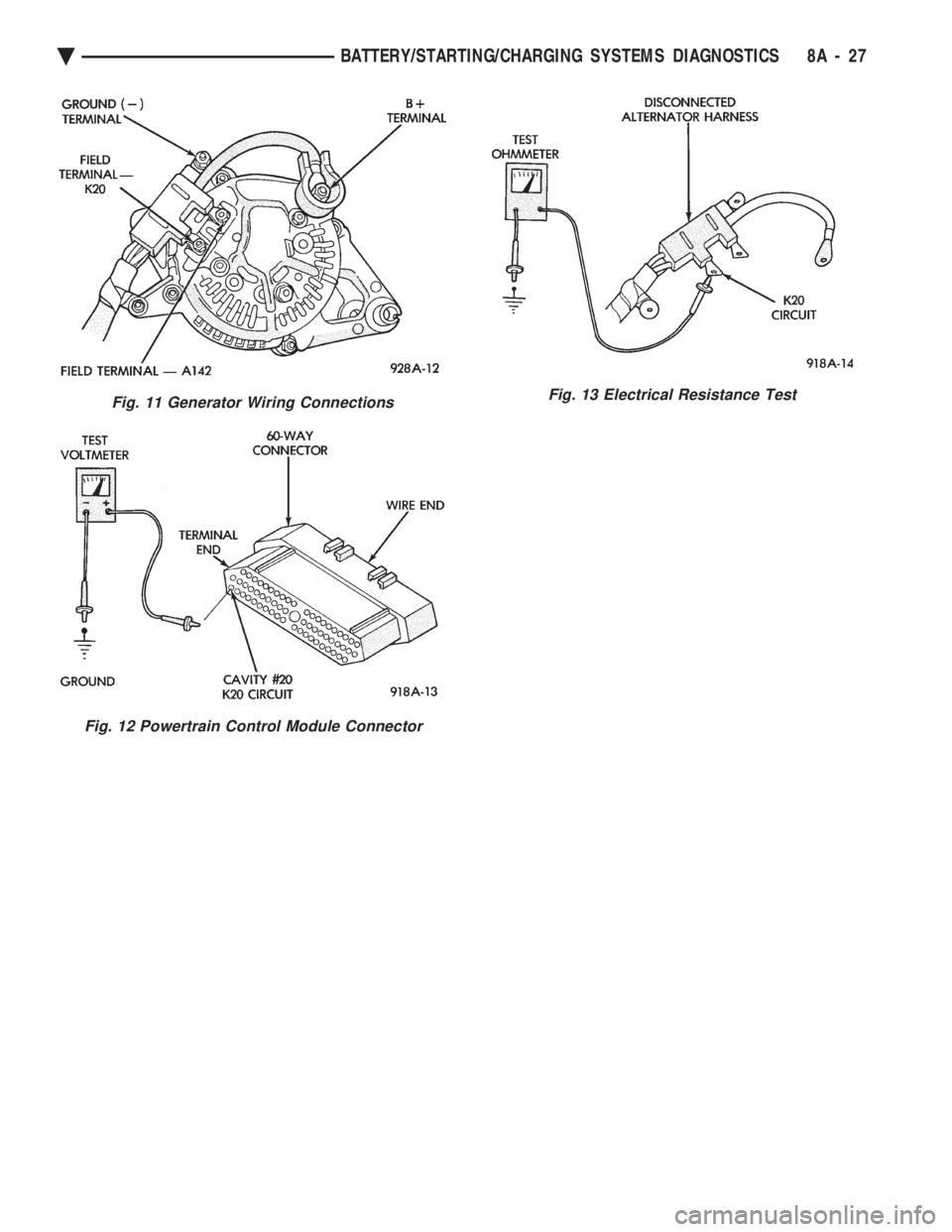

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 11 Generator Wiring Connections
Fig. 12 Powertrain Control Module Connector
Fig. 13 Electrical Resistance Test
Ä BATTERY/STARTING/CHARGING SYSTEMS DIAGNOSTICS 8A - 27

Page 400 of 2438

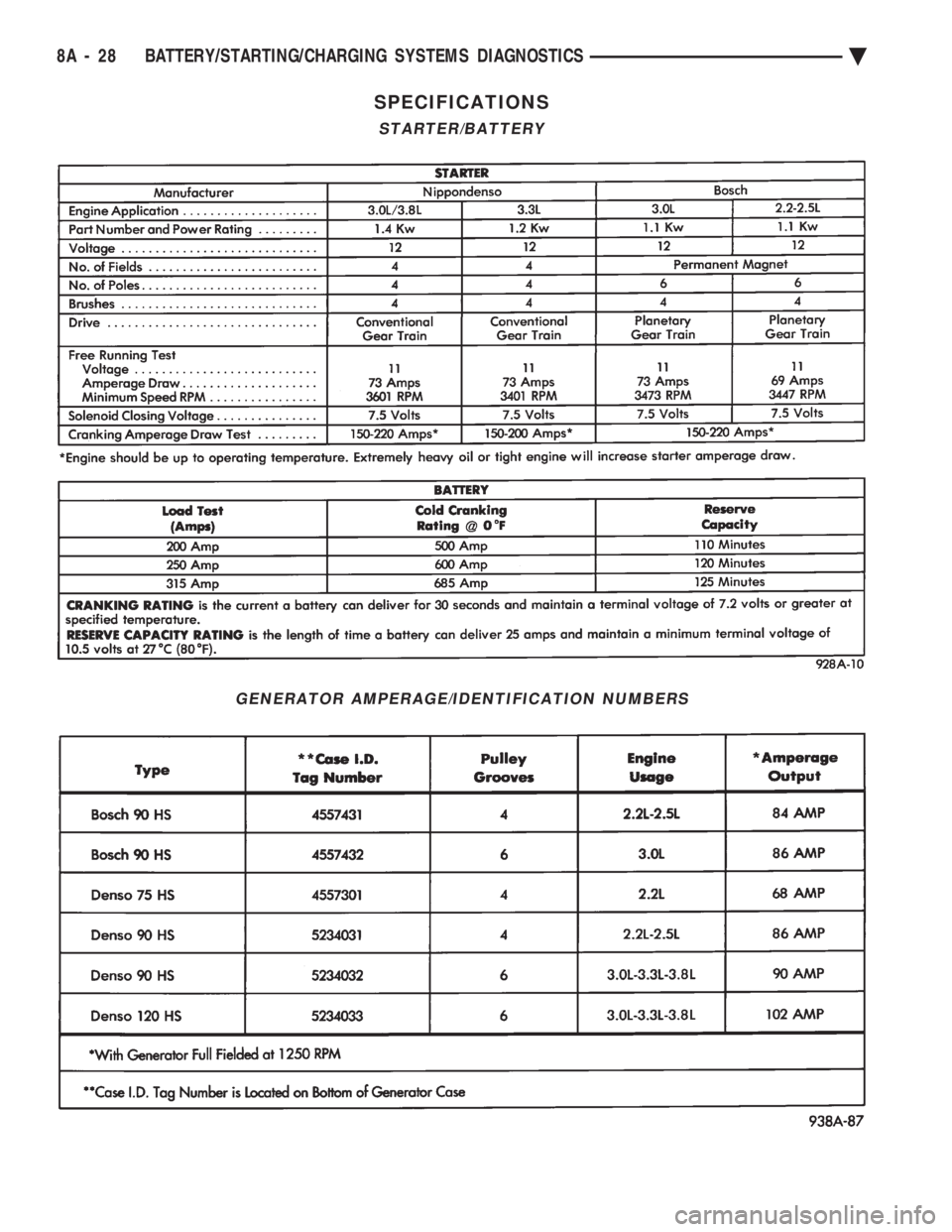

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual SPECIFICATIONS
STARTER/BATTERY
GENERATOR AMPERAGE/IDENTIFICATION NUMBERS
8A - 28 BATTERY/STARTING/CHARGING SYSTEMS DIAGNOSTICS Ä
