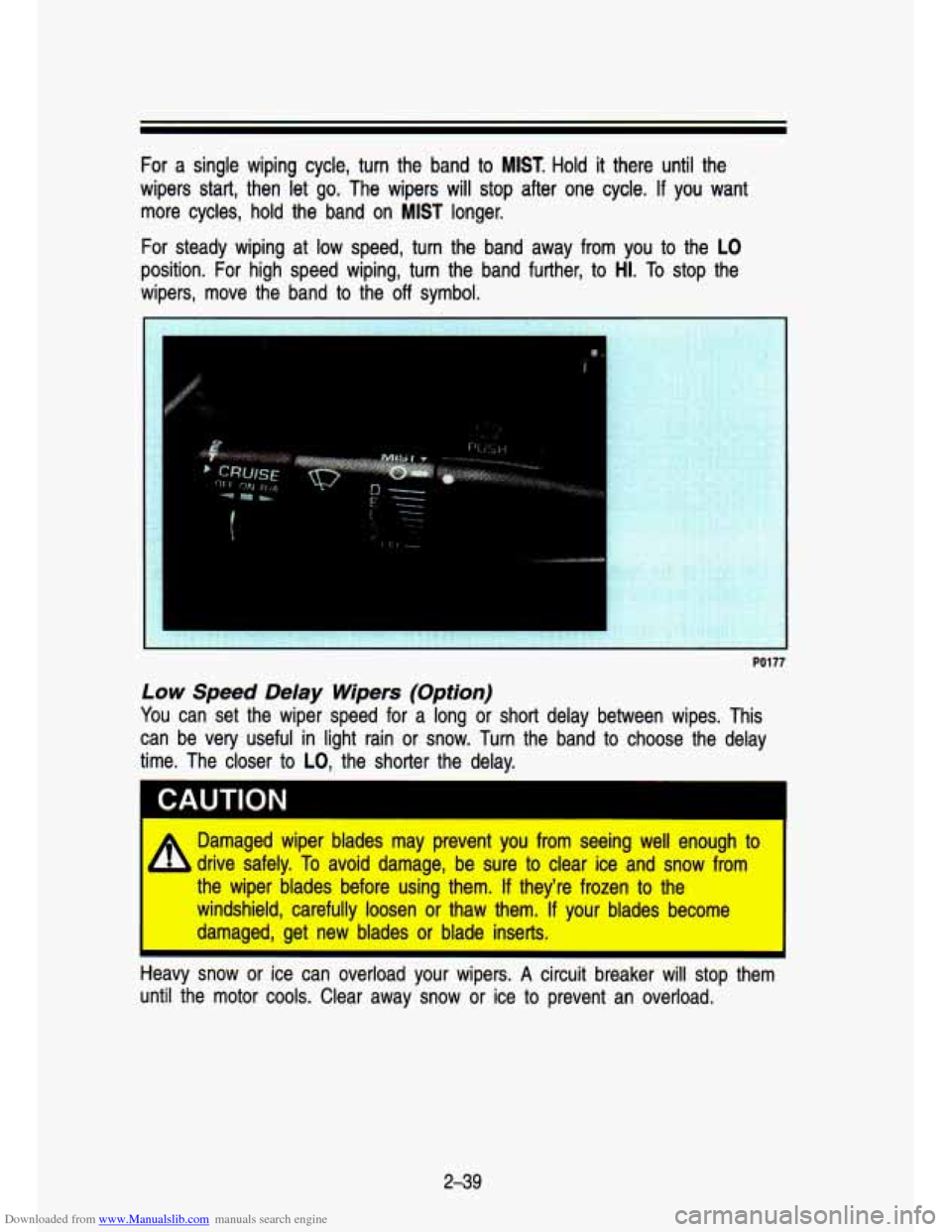

Downloaded from www.Manualslib.com manuals search engine For a single wiping cycle, turn the band to MIST. Hold it there until the
wipers start, then let
go. The wipers will stop after one cycle. If you want
more cycles, hold the band on
MIST longer.
For steady wiping at
low speed, turn the band away from you to the LO
position. For high speed wiping, turn the band further, to HI. To stop the
wipers, move the band to the
off symbol.
PO177
Low Speed Delay Wipers (Option)
You can set the wiper speed for a long or short delay between wipes. This
can be very useful in light rain or snow. Turn the band to choose the delay
time. The closer to
LO, the shorter the delay.
Damaged wiper blades may prevent
you from seeing well enough to I
drive safely. To avoild damage, ble sure to &air ice and SKIW from
the wiper blades before usilng them.
If they're frozen to the
wi'ndshield, carefully
lloosen or thaw them. If your blades become
damaged, get new blades
or blade inlserts. I
I leavy snow or ice can overload your wipers. A circuit breaker will stop them
until the motor cools. Clear away snow or ice
to prevent an overload.
2-39

Downloaded from www.Manualslib.com manuals search engine Features & Controls

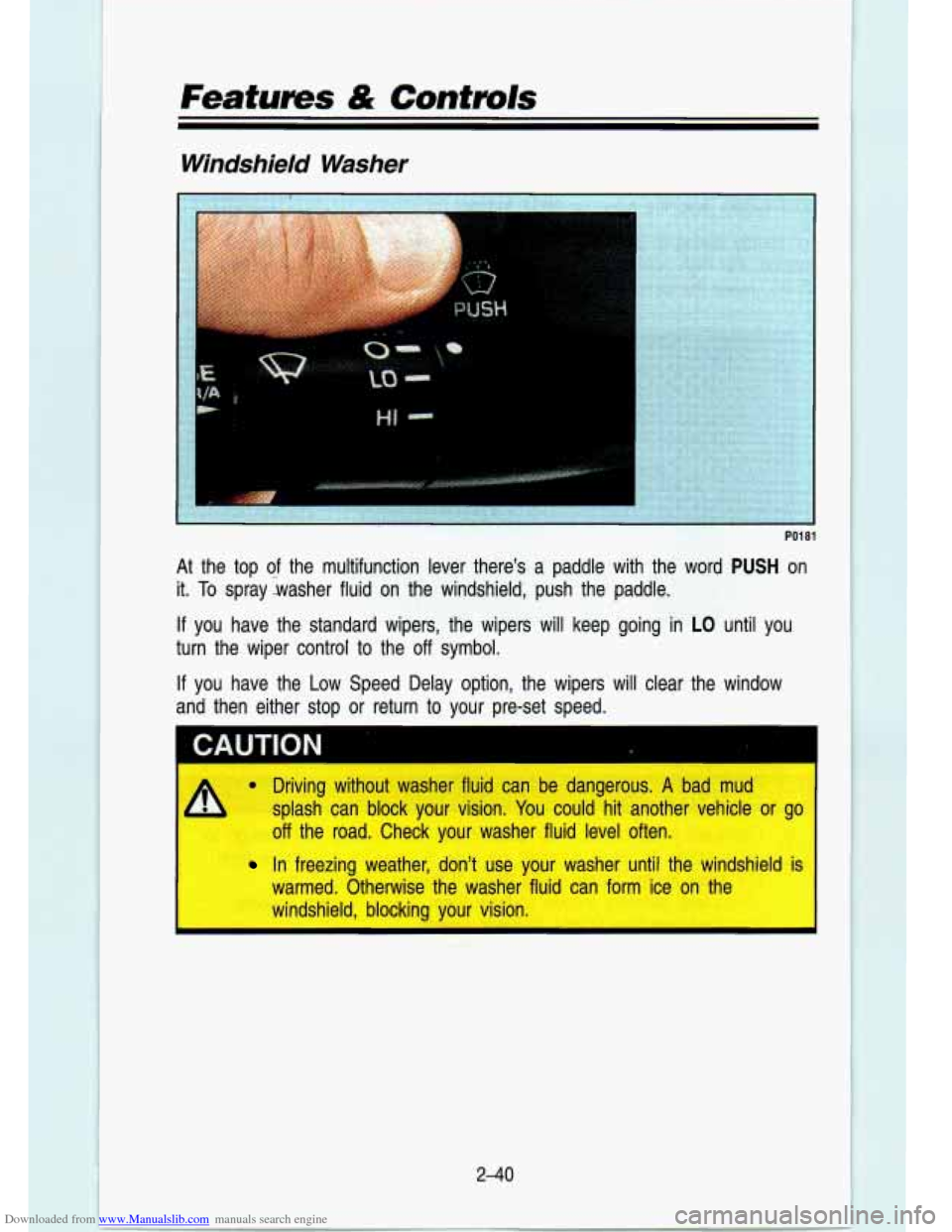

Windshield Washer
POT81
At the top of the multifunction lever there's a paddle with the word PUSH on
it. To spray 'hasher fluid on the windshield, push the paddle.
If you have the standard wipers, the wipers will keep going in LO until you
turn the wiper control to the off symbol.
If you have the Low Speed Delay option, the wipers will clear th\
e window
and then either stop
or return to your pre-set speed.
Driving without washer fluid can be dangerous. A bad mud
off the road. Check your washer fluid level often.
warmed. Otherwise the washer fluid can form ice on the
windshield, blocking your vision.
1 splash can block your vision. You could hit another vehicle or go I
In freezing weather, don't use your washer until the windshield is\

2-40

Downloaded from www.Manualslib.com manuals search engine I 1OTICE

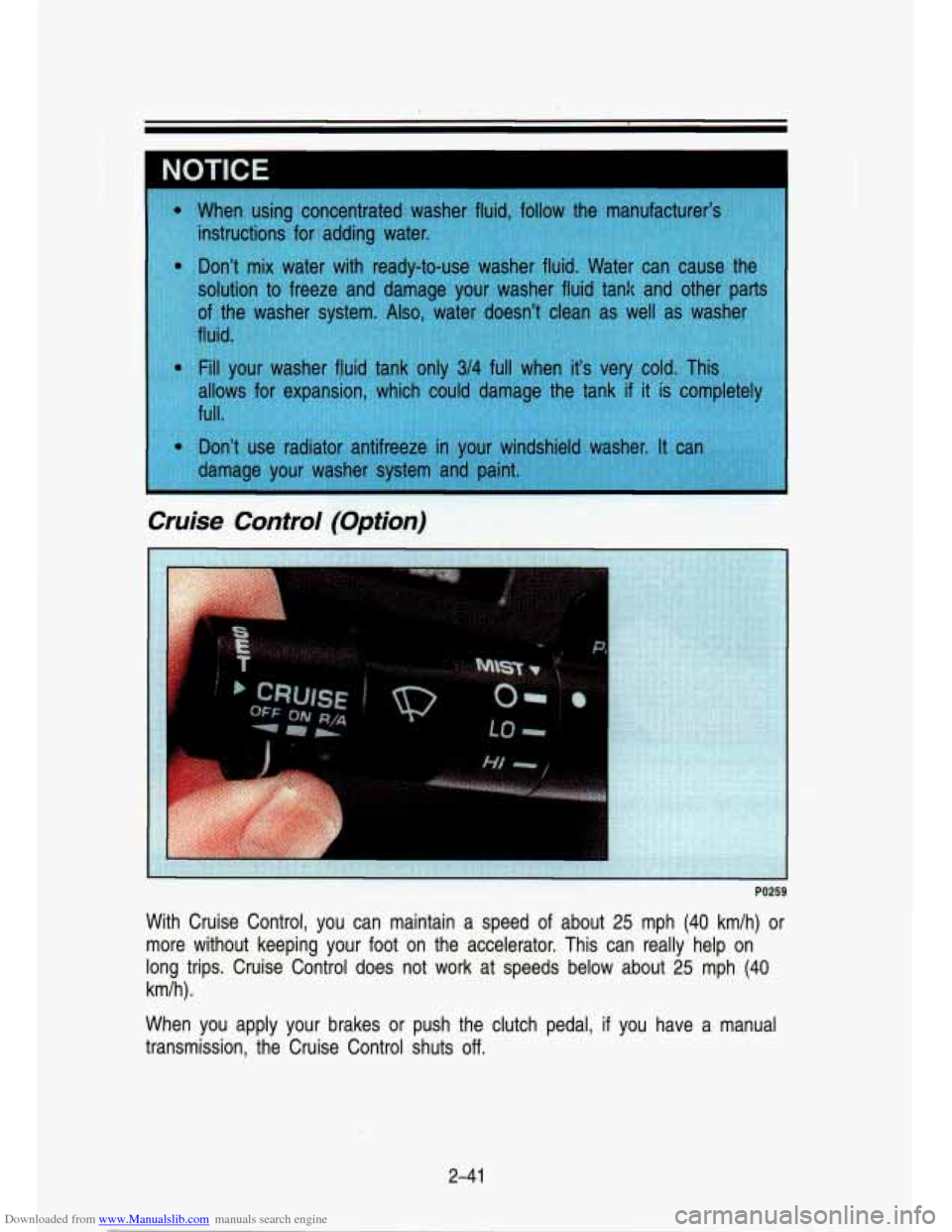

Cruise Control (Option)
PO259
With Cruise Control, you can maintain a speed of about 25 mph (40 km/h) or
more without keeping your foot on the accelerator. This can re\
ally help on
long trips. Cruise Control does not work at speeds below about\

25 mph (40
kmlh).
When you apply your brakes
or push the clutch pedal, if you have a manual
transmission, the Cruise Control shuts
off.
2-4 1

Downloaded from www.Manualslib.com manuals search engine Features & Contmls
t

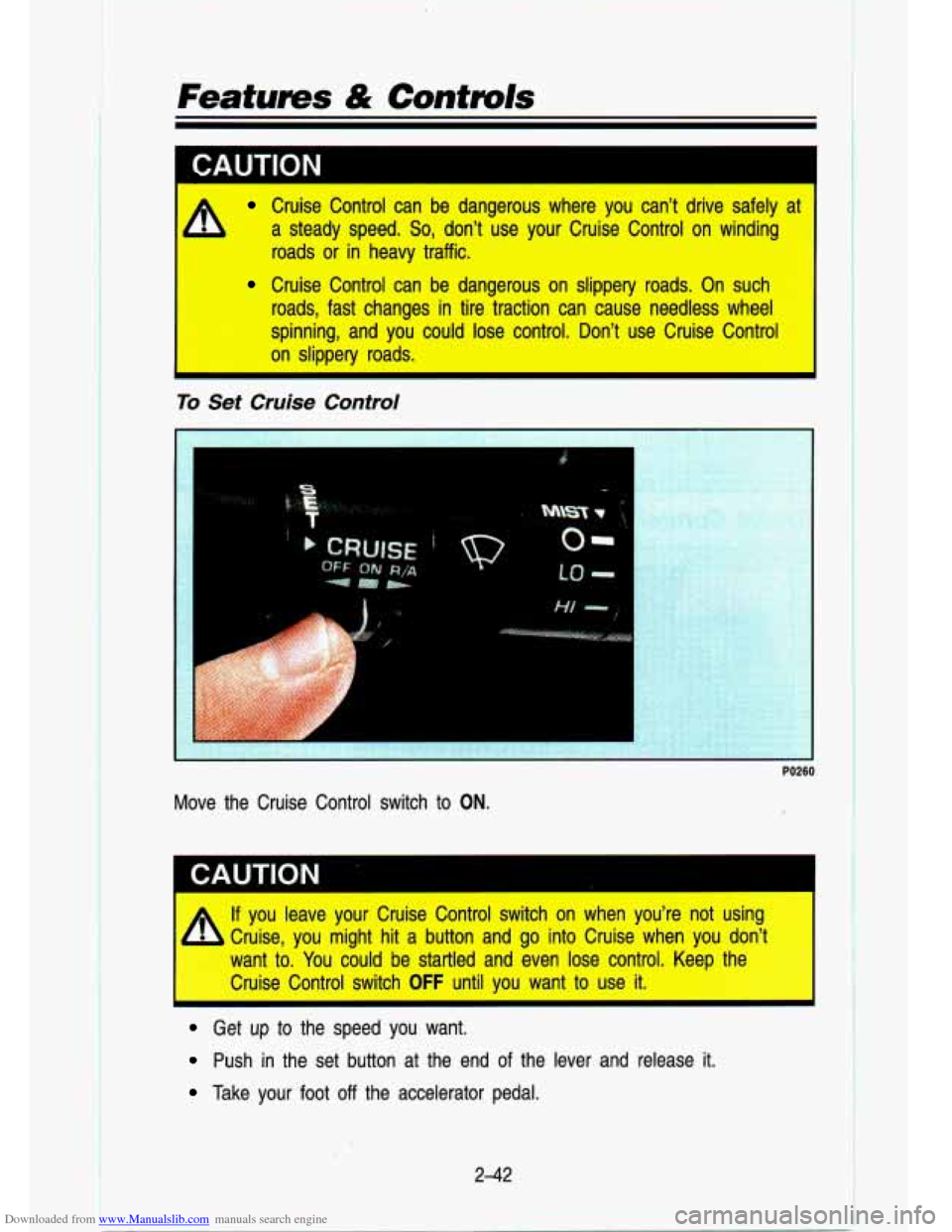

1 CALITION I. - .. ;Fg ,. L A Cruise Control can be dangerous where you can't drive safely a\
t
a steady speed.
So, don't use your Cruise Control on winding
roads
or in heavy traffic.
Cruise Control can be dangerous on slippery roads. On such
roads, fast changes in tire traction can cause needless wheel
spinning, and you could lose control. Don't use Cruise Control \
on slippery roads.
To Set Cruise Control
Move the Cruise Control switch to ON.
1 CAUTION
A If you leave your Cruise Control switch on when you're not using \
k Cruise, you might hit a button and go into Cruise when you don't
want to. You could be startled and even lose control. Keep the
Cruise Control switch
OFF until you want to use it.
Get up to the speed you want.
Push in the set button at the end of the lever and release it.
Take your foot off the accelerator pedal.
2-42

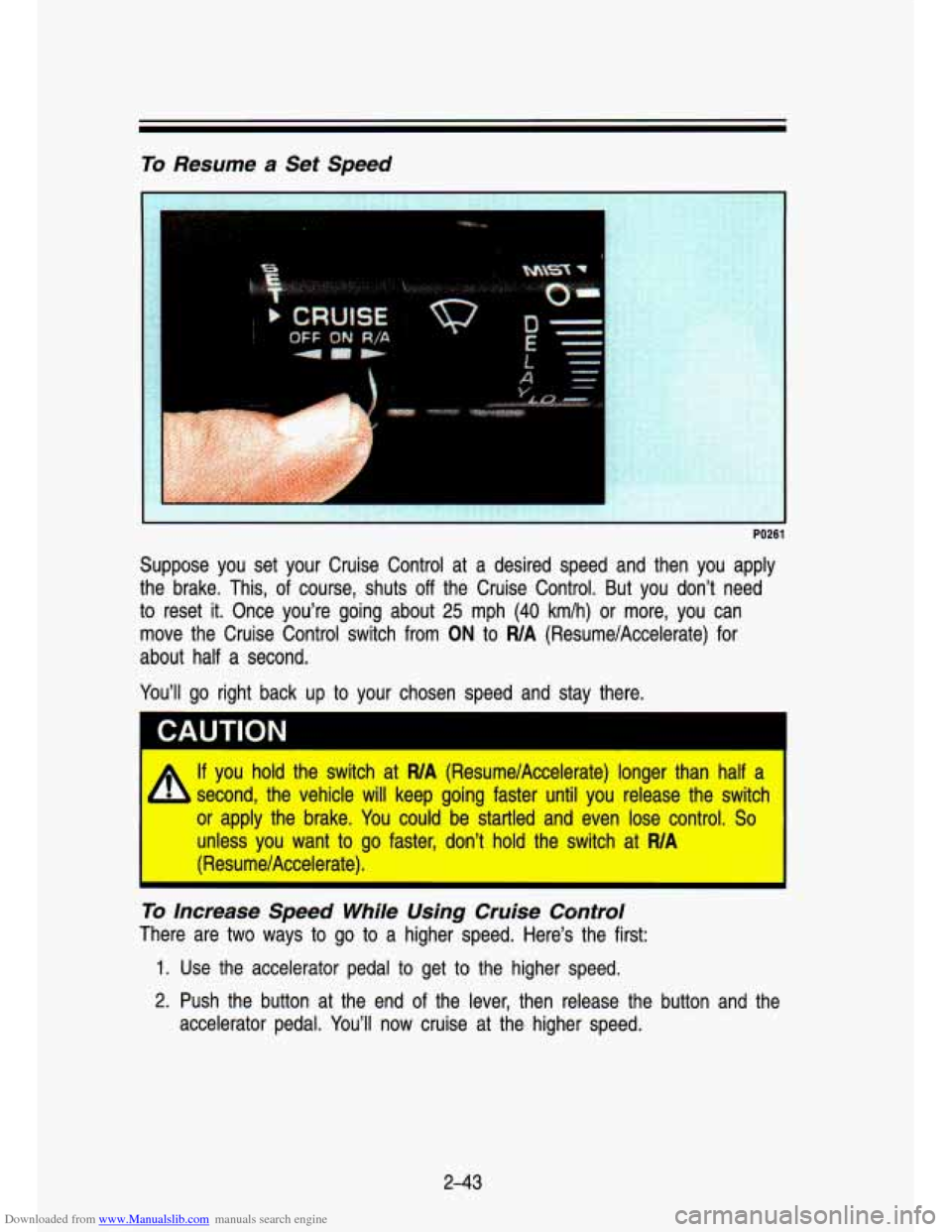

Downloaded from www.Manualslib.com manuals search engine To Resume a Set Speed
c
PO261
Suppose you set your Cruise Control at a desired speed and th\
en you apply
the brake. This, of course, shuts
off the Cruise Control. But you don’t need
to reset it. Once you’re going about
25 mph (40 km/h) or more, you can
move the Cruise Control switch from ON to
WA (Resume/Accelerate) for
about half a second.
You’ll go right back up to your chosen speed and stay there.
If you hold the switch at WA (ResumelAccelerate) longer than half a
second, the vehicle will keep going faster until you release t\
he switch
or apply the brake. You could be startled and even lose contr\
ol.
So
unless you want to go faster, don’t hold the switch at WA
(ResumelAccelerate).
ro Increase Speed While Using Cruise Control
There are two ways to go to a higher speed. Here’s the fi\
rst:
1. Use the accelerator pedal to get to the higher speed.
2. Push the button at the end of the lever, then release the button and the
accelerator pedal. You’ll now cruise at the higher speed.
2-43

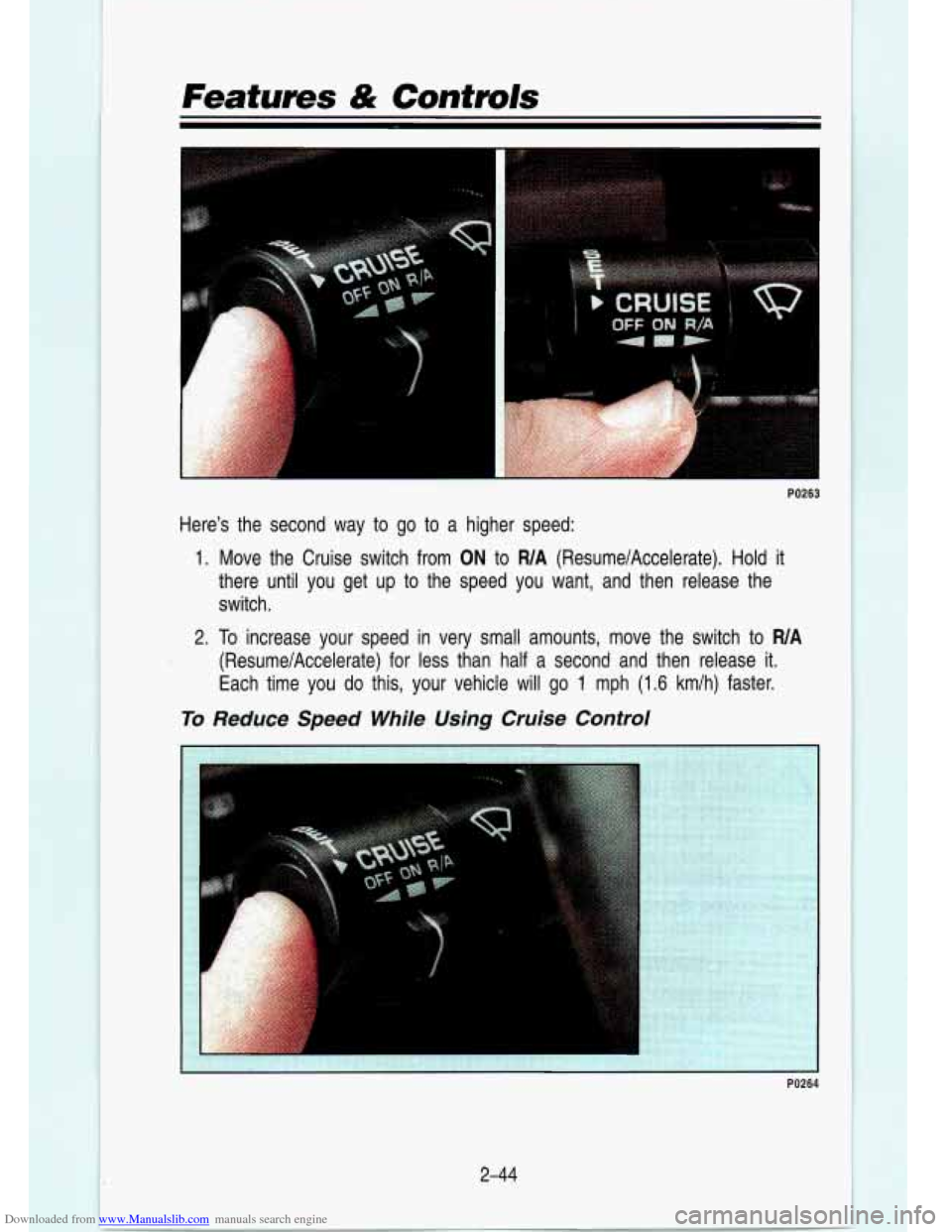

Downloaded from www.Manualslib.com manuals search engine Features & Controls
PO263
Here's the second way to go to a higher speed:
1. Move the Cruise switch from ON to WA (ResumelAccelerate). Hold it
there until you get up to the speed you want, and then release the
switch.
2. To increase your speed in very small amounts, move the switch to WA
(ResumelAccelerate) for less than half a second and then release it.
Each time you
do this, your vehicle will go 1 mph (1.6 kmlh) faster.
To Reduce Speed While Using Cruise Control
PO264
2-44

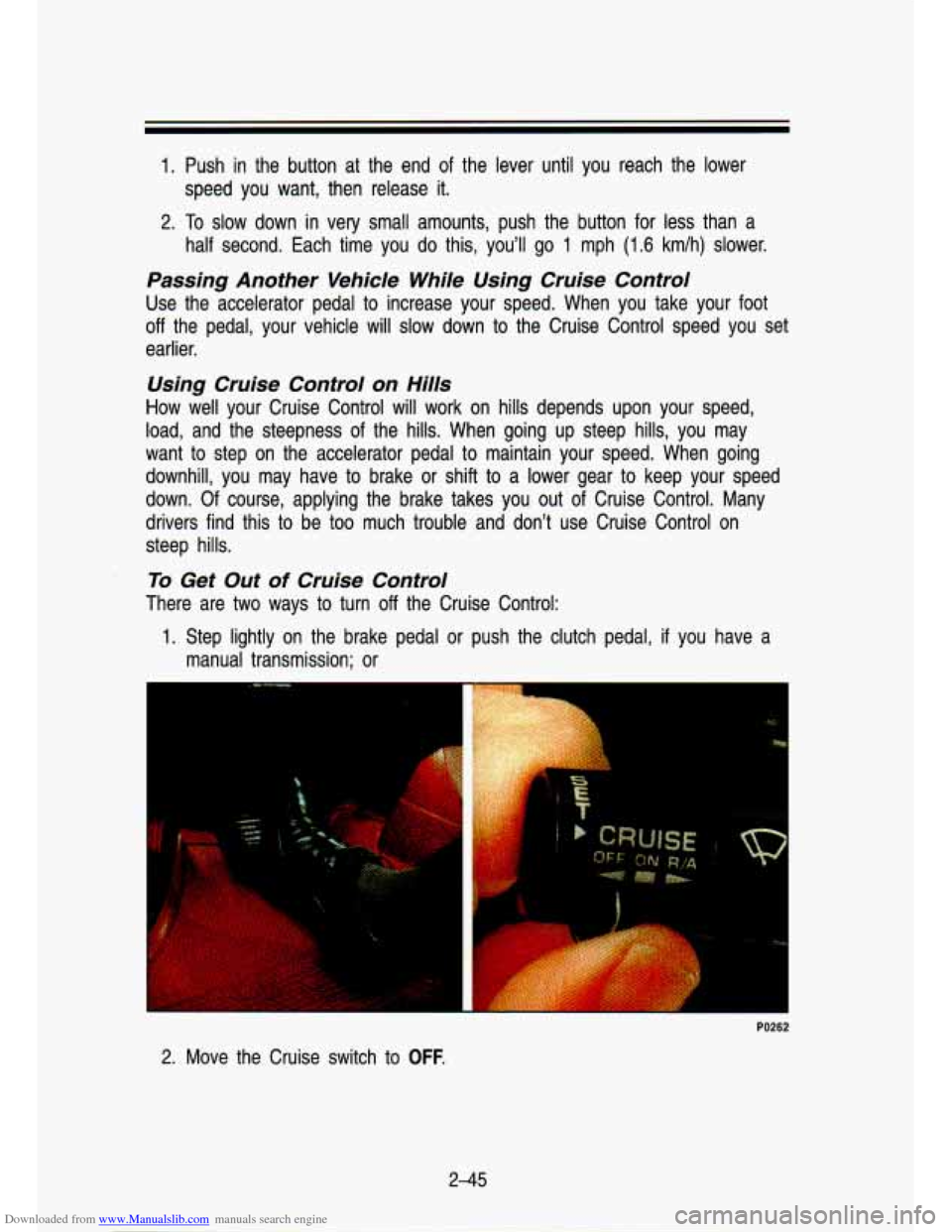

Downloaded from www.Manualslib.com manuals search engine 1. Push in the button at the end of the lever until you reach the lower
2. To slow down in very small amounts, push the button for less than a
speed you want, then release
it.
half second. Each time you do this, you’ll go 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal
to increase your speed. When you take your foot
off the pedal, your vehicle will slow down to the Cruise Control speed you set
earlier.
Using Cruise Control on Hills
How well your Cruise Control will work on hills depends upon \
your speed,
load, and the steepness of the hills. When going up steep hills, you may
want to step on the accelerator pedal to maintain your speed. When going
downhill, you may have to brake or shift to a lower gear to keep your speed
down.
Of course, applying the brake takes you out of Cruise Control. Many
drivers find this to be too much trouble and don’t use Cruise Control on
steep hills.
To Get Out of Cruise Control
There are two ways to turn off the Cruise Control:
1. Step lightly on the brake pedal or push the clutch pedal, if you have a
manual transmission; or
ruzw
2. Move the Cruise switch to OFF.
2-45

Downloaded from www.Manualslib.com manuals search engine Features & Contmls

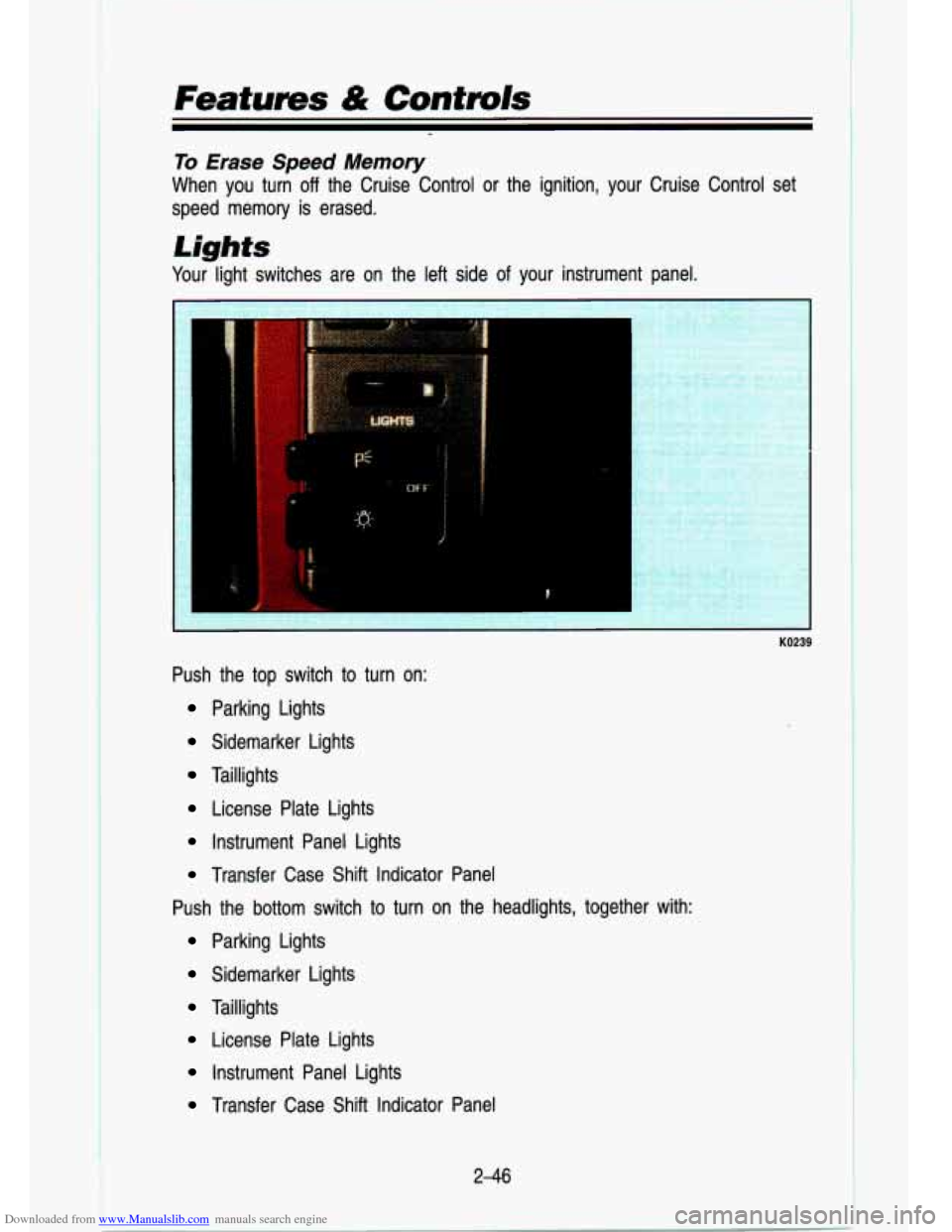

To Erase Speed Memory
When you turn off the Cruise Control or the ignition, your Cruise Control set
speed memory is erased.
Lights
Your light switches are on the left side of your instrument panel.
KO239
Push the top switch to turn on:
Parking Lights
Sidemarker Lights
Taillights
License Plate Lights
Instrument Panel Lights
Transfer Case Shift Indicator Panel
Push the bottom switch to turn on the headlights, together wit\
h:
Parking Lights
Sidemarker Lights
Taillights
License Plate Lights
Instrument Panel Lights
Transfer Case Shift Indicator Panel
2-46

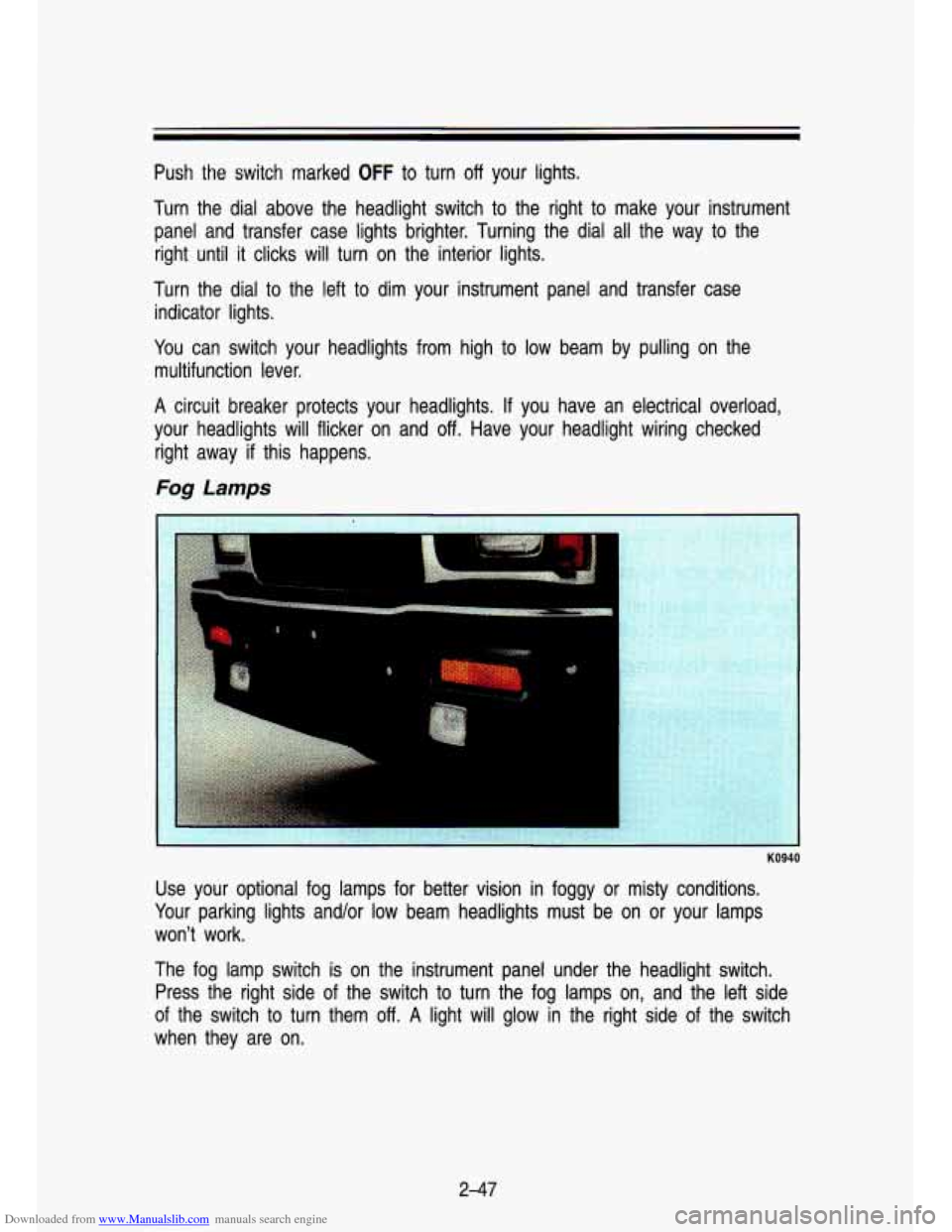

Downloaded from www.Manualslib.com manuals search engine Push the switch marked OFF to turn off your lights.
Turn the dial above the headlight switch to the right to make your instrument
panel and transfer case lights brighter. Turning the dial all the way to the
right until it clicks will turn on the interior lights.
Turn the dial to the left to dim your instrument panel and transfer case
indicator lights.
You can switch your headlights from high to low beam by pulling on the
multifunction lever.
A circuit breaker protects your headlights. If you have an electrical overload,
your headlights will flicker on and
off. Have your headlight wiring checked
right away
if this happens.
Fog Lamps
KO940
Use your optional fog lamps for better vision in foggy or misty conditions.
Your parking lights and/or low beam headlights must be on or your lamps
won’t work.
The fog lamp switch is on the instrument panel under the headlight switch.
Press the right side of the switch to turn the fog lamps on, and the left side
of the switch to turn them
off. A light will glow in the right side of the switch
when they are on.
2-47

Downloaded from www.Manualslib.com manuals search engine Featums & Controls

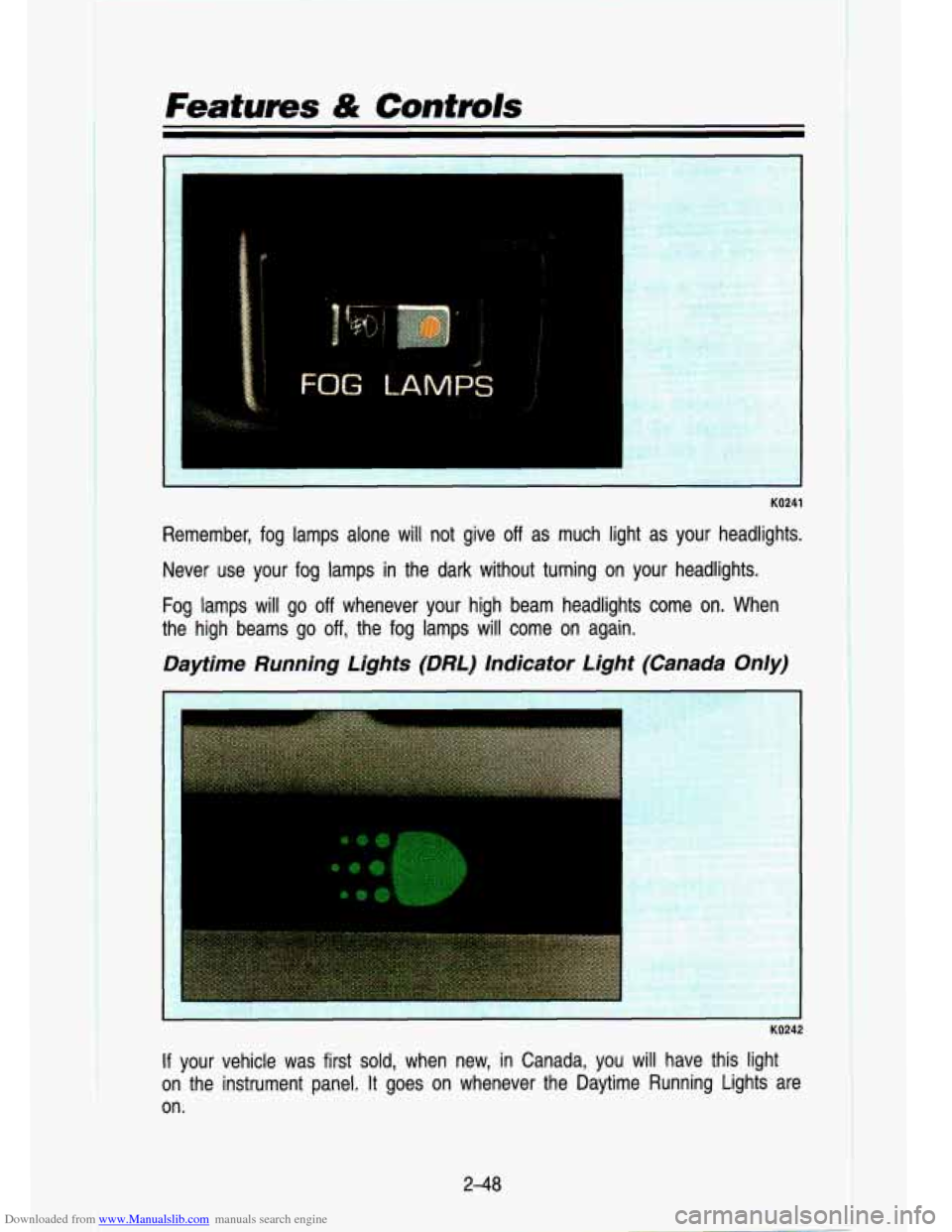

KO241
Remember, fog lamps alone will not give off as much light as your headlights.
Never use your fog lamps in the dark without turning on your headlights.
Fog lamps will go
off whenever your high beam headlights come on. When
the high beams go off, the fog lamps will come on again.
Daytime Running Lights (DRL) Indicator Light (Canada Only)
r
KO242
If your vehicle was first sold, when new, in Canada, you will have this light
on the instrument panel. It goes on whenever the Daytime Running Lights are
on.
