CHEVROLET S10 1993 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine REV

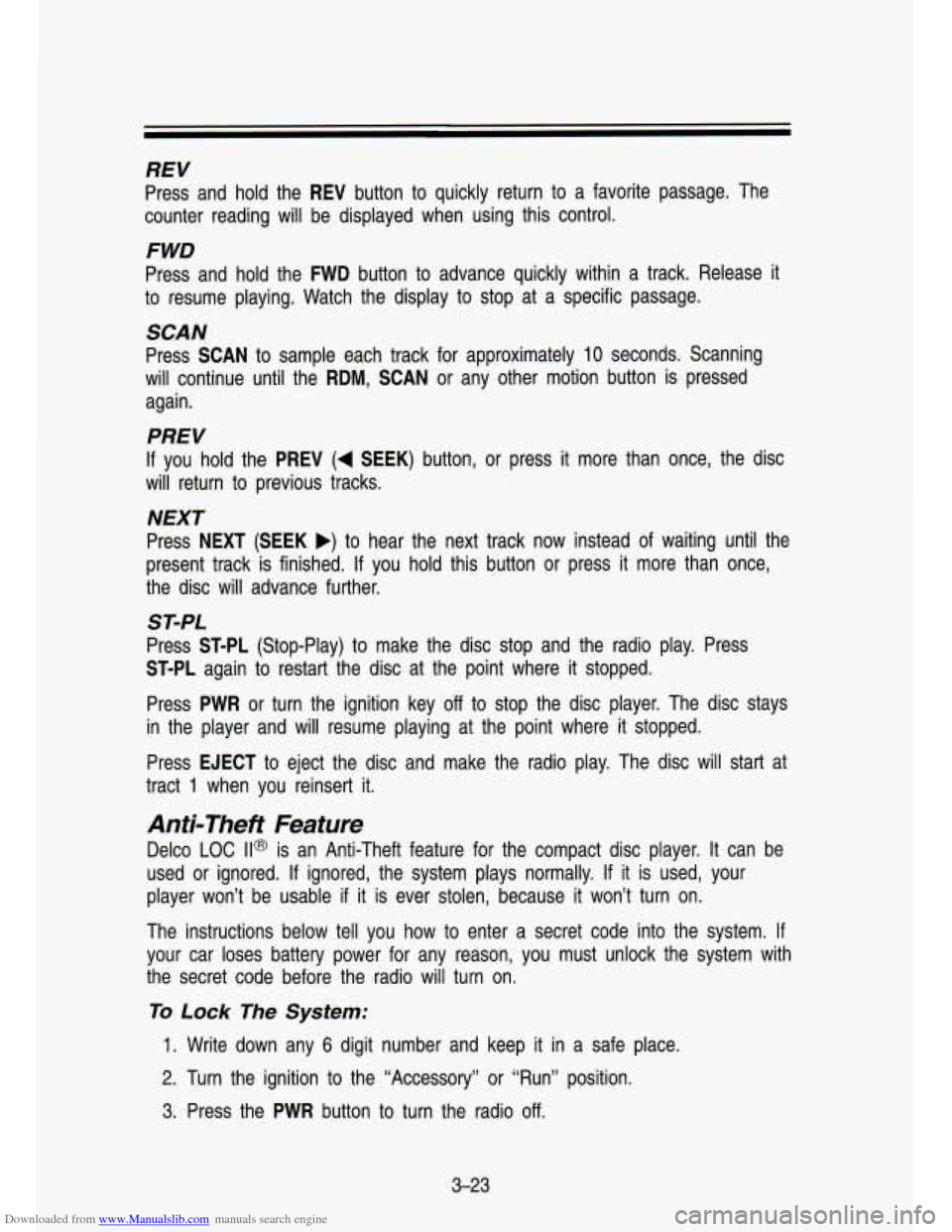

Press and hold the REV button to quickly return to a favorite passage. The
counter reading will be displayed when using this control.
FWD
Press and hold the button to advance quickly within a track. Release it
to resume playing. Watch the display to stop at a specific passage.
SCAN
Press SCAN to sample each track for approximately 10 seconds. Scanning
will continue until the
RDM, SCAN or any other motion button is pressed
again.
PREV
If you hold the PREV (4 SEEK) button, or press it more than once, the disc
will return to previous tracks.
NEXT
Press NEXT (SEEK b) to hear the next track now instead of waiting until the
present track is finished.
If you hold this button or press it more than once,
the disc will advance further.
ST-PL
Press ST-PL (Stop-Play) to make the disc stop and the radio play. Press
ST-PL again to restart the disc at the point where it stopped.
Press
PWR or turn the ignition key off to stop the disc player. The disc stays
in the player and will resume playing at the point where it stopped.
Press EJECT to eject the disc and make the radio play. The disc will start at
tract
1 when you reinsert it.
Anti-Theft Feature
Delco LOC ll@ is an Anti-Theft feature for the compact disc player. It can be
used or ignored. If ignored, the system plays normally.
If it is used, your
player won’t be usable
if it is ever stolen, because it won’t turn on.
The instructions below tell you how to enter a secret code into the system.
If
your car loses battery power for any reason, you must unlock \
the system with
the secret code before the radio will turn on.
To Lock The System:
1. Write down any 6 digit number and keep it in a safe place.
2. Turn the ignition to the “Accessory” or “Run” position.
3. Press the PWR button to turn the radio off.
3-23

Downloaded from www.Manualslib.com manuals search engine Comfort Contmls & Audio Systems

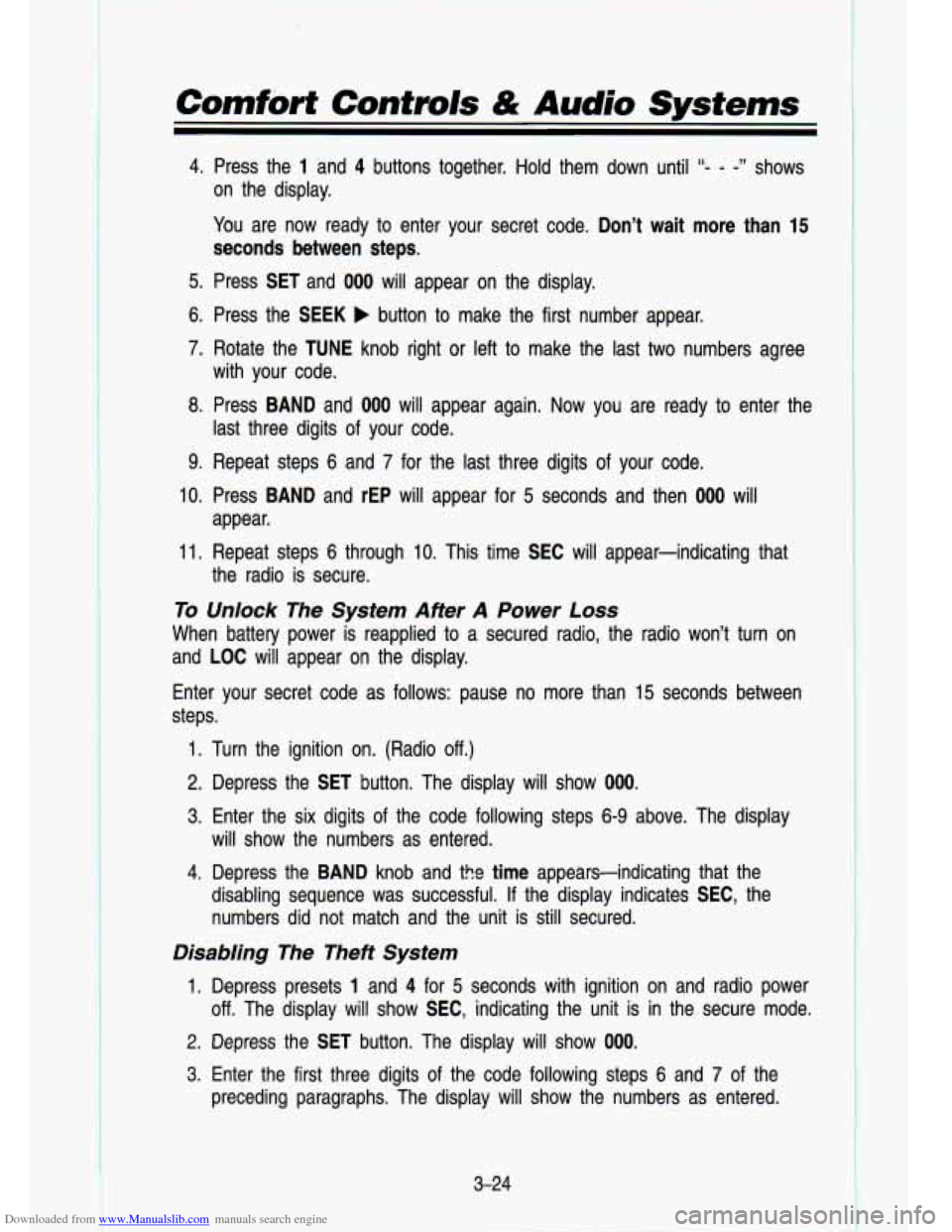

4. Press the 1 and 4 buttons together. Hold them down until “- - -” shows
on the display.
You are now ready to enter your secret code. Don’t wait more than
15
seconds between steps.
5. Press SET and 000 will appear on the display.
6. Press the SEEK b button to make the first number appear.
7. Rotate the TUNE knob right or left to make the last two numb\
ers agree
8. Press BAND and 000 will appear again. Now you are ready to enter the
9. Repeat steps
6 and 7 for the last three digits of your code.
with your code.
last three digits of your code.
IO. Press BAND and rEP will appear for 5 seconds and then 000 will
11. Repeat steps 6 through 10. This time SEC will appear-indicating that
To Unlock The System Afier A Power Loss
When battery power is reapplied to a secured radio, the radio won’t turn on
and LOC will appear on the display.
Enter your secret code as follows: pause no more than
15 seconds between
steps. appear.
the radio is secure.
1. Turn the ignition on. (Radio off.)
2. Depress the SET button. The display will show 000.
3. Enter the six digits of the code following steps 6-9 above. The display
will show the numbers as entered.
4. Depress the BAND knob and the time appears-indicating that the \
disabling sequence was successful.
If the display indicates SEC, the
numbers did not match and the unit is still secured.
Disabling The Theft System
1. Depress presets 1 and 4 for 5 seconds with ignition on and radio power
off. The display will show SEC, indicating the unit is in the secure mode.
2. Depress the SET button. The display will show 000.
3. Enter the first three digits of the code following steps 6 and 7 of the
preceding paragraphs. The display will show the numbers as entered.
3-24

Downloaded from www.Manualslib.com manuals search engine 4. Depress the BAND knob. The radio will display 000.
5. Enter the second three digits of the code. The display will show the
numbers as entered.
6. Depress the BAND knob. If the display shows "- - -", the disabling
sequence was successful. The numbers matched the user-selected c\
ode
or the factory back-up code and the unit is in the UNSECURED \
mode.
If
the display shows SEC, the disabling sequence was unsuccessful and
the numbers did not match either
of the codes and. the .unit will rema-in
in the SECURED mode.

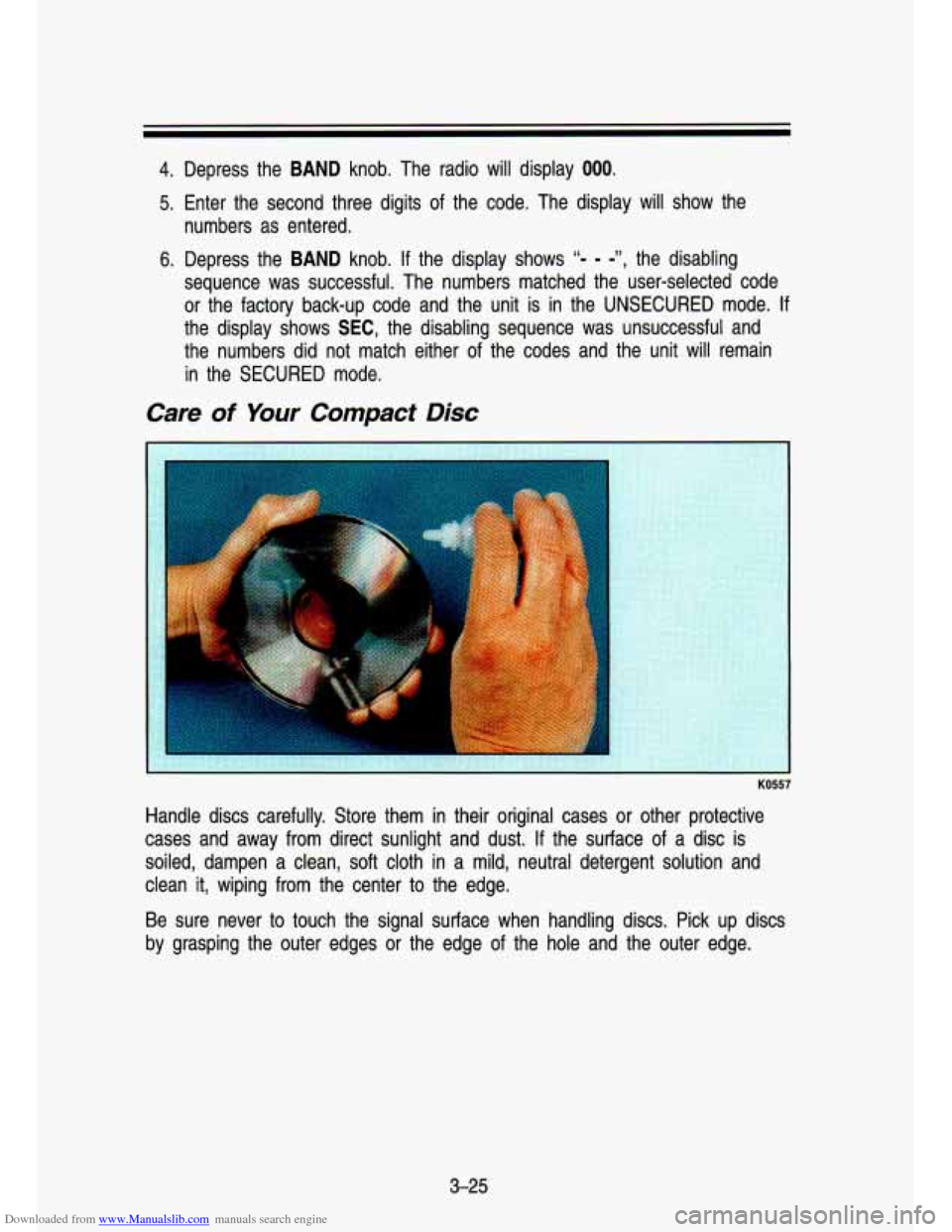

Care of Your Compact Disc
KO557
Handle discs carefully. Store them in their original cases or other protective
cases and away from direct sunlight and dust.
If the surface of a disc is
soiled, dampen a clean, soft cloth in a mild, neutral detergen\
t solution and
clean
it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling discs.\
Pick up discs
by grasping the outer edges or the edge
of the hole and the outer edge.
3-25

Downloaded from www.Manualslib.com manuals search engine L
Comfort Controls & Audio Systems

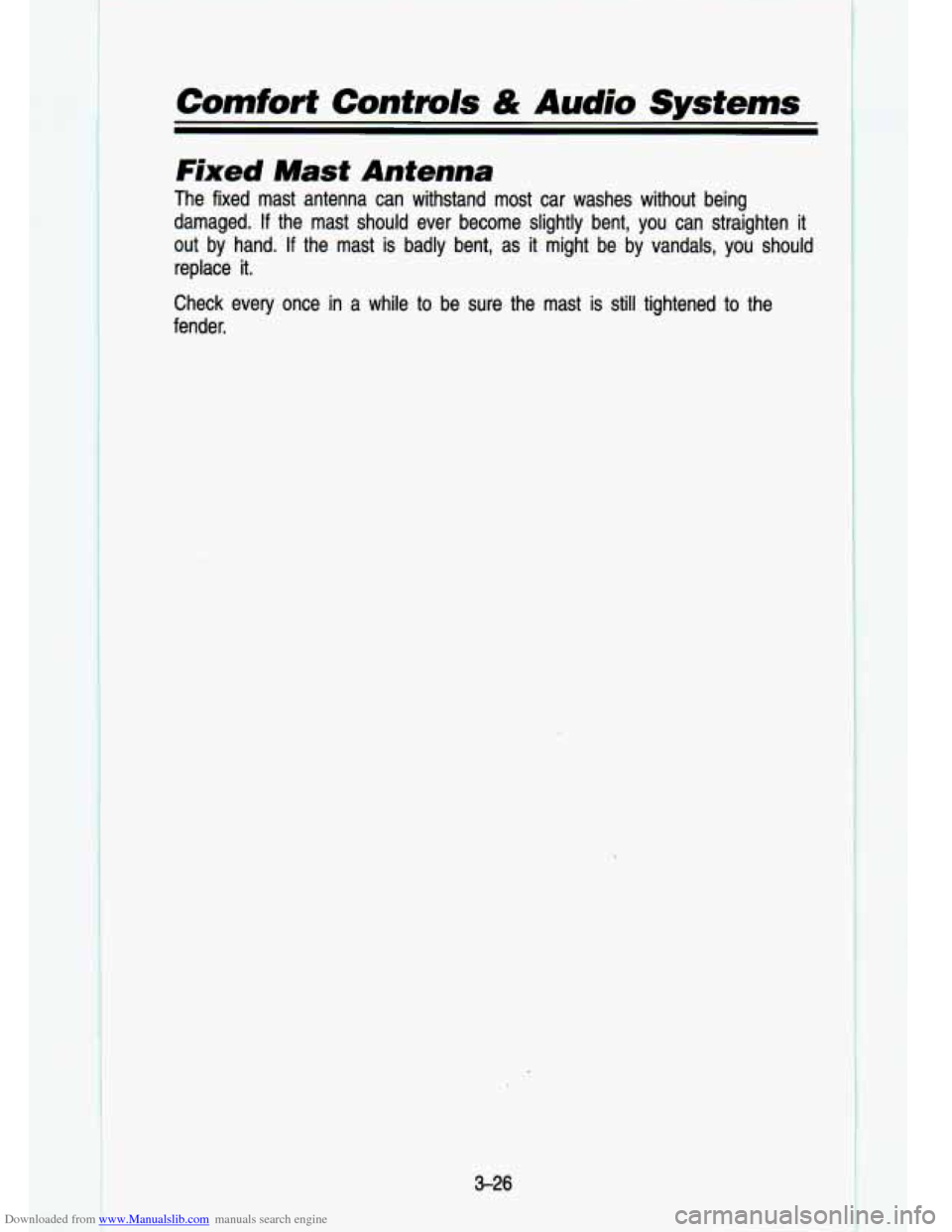

Fixed Mast Antenna
The fixed mast antenna can withstand most car washes without being
damaged.
If the mast should ever become slightly bent, you can straighten it
out by hand.
If the mast is badly bent, as it might be by vandals, you should
replace it.
Check every once in a while
to be sure the mast is still tiahtened to the
fender.
3-26

Downloaded from www.Manualslib.com manuals search engine Your Driving and the Road
.
Section
Here you’ll find information about driving on different kinds\
of roads and in
varying weather conditions
. We’ve also included many other useful tips on
driving
.
Road Signs ........................................................................\
.................................... 4-2
Defensive Driving
........................................................................\
.......................... 4-8
Drunken Driving
........................................................................\
............................. 4-9
Control
of a Vehicle ........................................................................\
.................... 4-12
Braking
........................................................................\
...................................... 4-12
Steering Tips
........................................................................\
............................ 4-18
Steering in Emergencies
........................................................................\
......... 4-18
Passing
........................................................................\
..................................... 4-20
Loss of Control ........................................................................\
........................ 4-22
Off-Road Driving With Your Four-wheel Drive Vehicle
.................................... 4-23
Driving at Night
........................................................................\
........................... 4-34
Driving in the Rain
........................................................................\
...................... 4-37
Driving in Fog, Mist and Haze
........................................................................\
.. 4-39
City Driving
........................................................................\
.................................. 4-41
Freeway Driving
........................................................................\
........................... 4-42
Driving a Long Distance
........................................................................\
............. 4-44
Hill and Mountain Roads
........................................................................\
............ 4-46
Winter Driving
........................................................................\
.............................. 4-51
Recreational Vehicle Towing (Four-wheel Drive Only)
.................................... 4-54
Towing a Trailer
........................................................................\
........................... 4-56
Parking
on Hills ........................................................................\
........................... 4-48
4-1

Downloaded from www.Manualslib.com manuals search engine .. . .-
,- ..
,.
.. . .I
c- - r. i
Your Driving and the Road

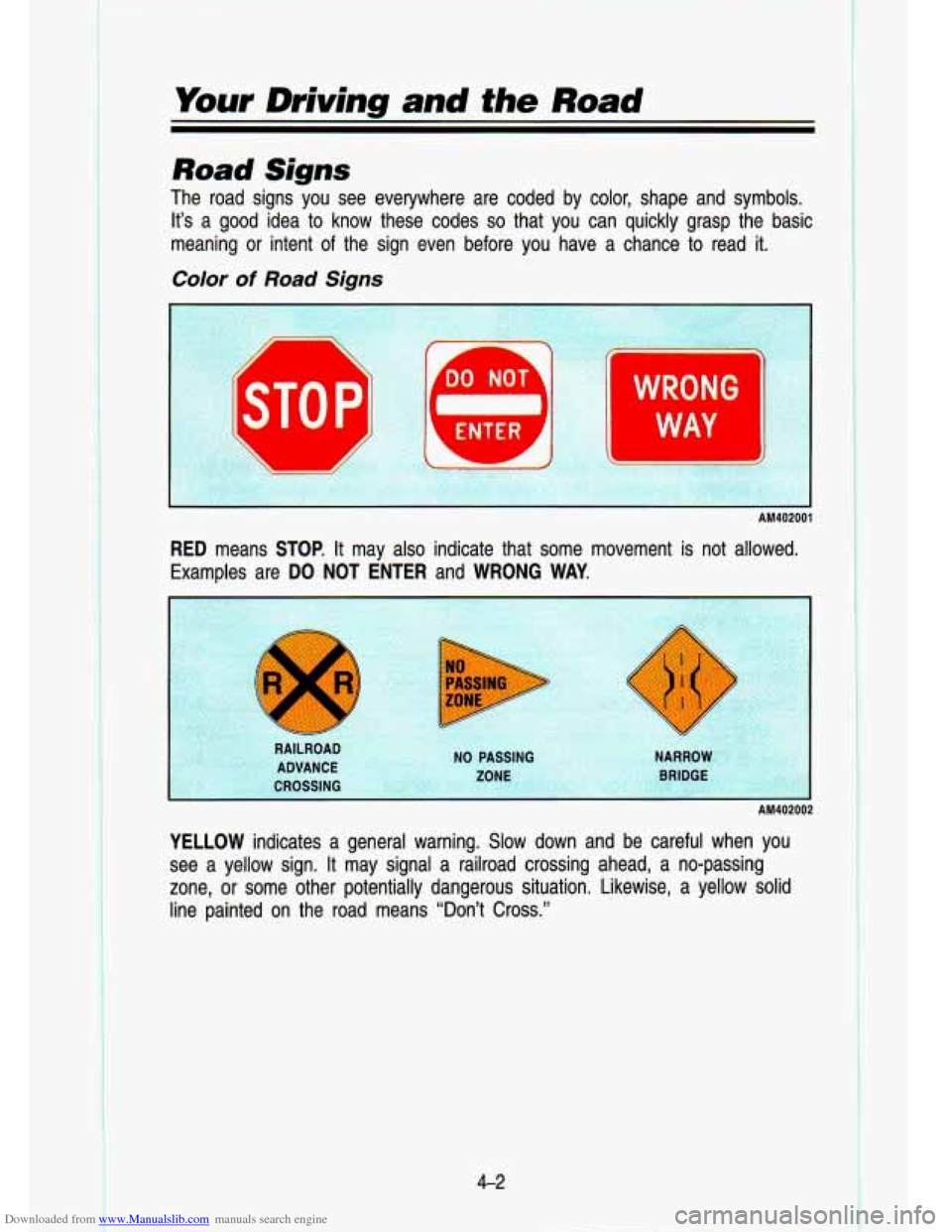

Road Signs
The road signs you see everywhere are coded by color, shape a\
nd symbols. It's a good idea to know these codes
so that you can quickly grasp the basic
meaning or intent of the sign even before you have a chance to read
it.
Color of Road Signs
mM402001
RED means S-IP. It may also indicate that some movement is not allowed.
Examples are
DO NOT ENTER and WRONG WAY.
YELLOW indicates a general warning. Slow down and be careful w\
hen you see a yellow sign. It may signal a railroad crossing ahead, a\
no-passing
zone,
or some other potentially dangerous situation. Likewise, a yellow s\
olid
line painted on the road means "Don't Cross."
4-2

Downloaded from www.Manualslib.com manuals search engine AM402003

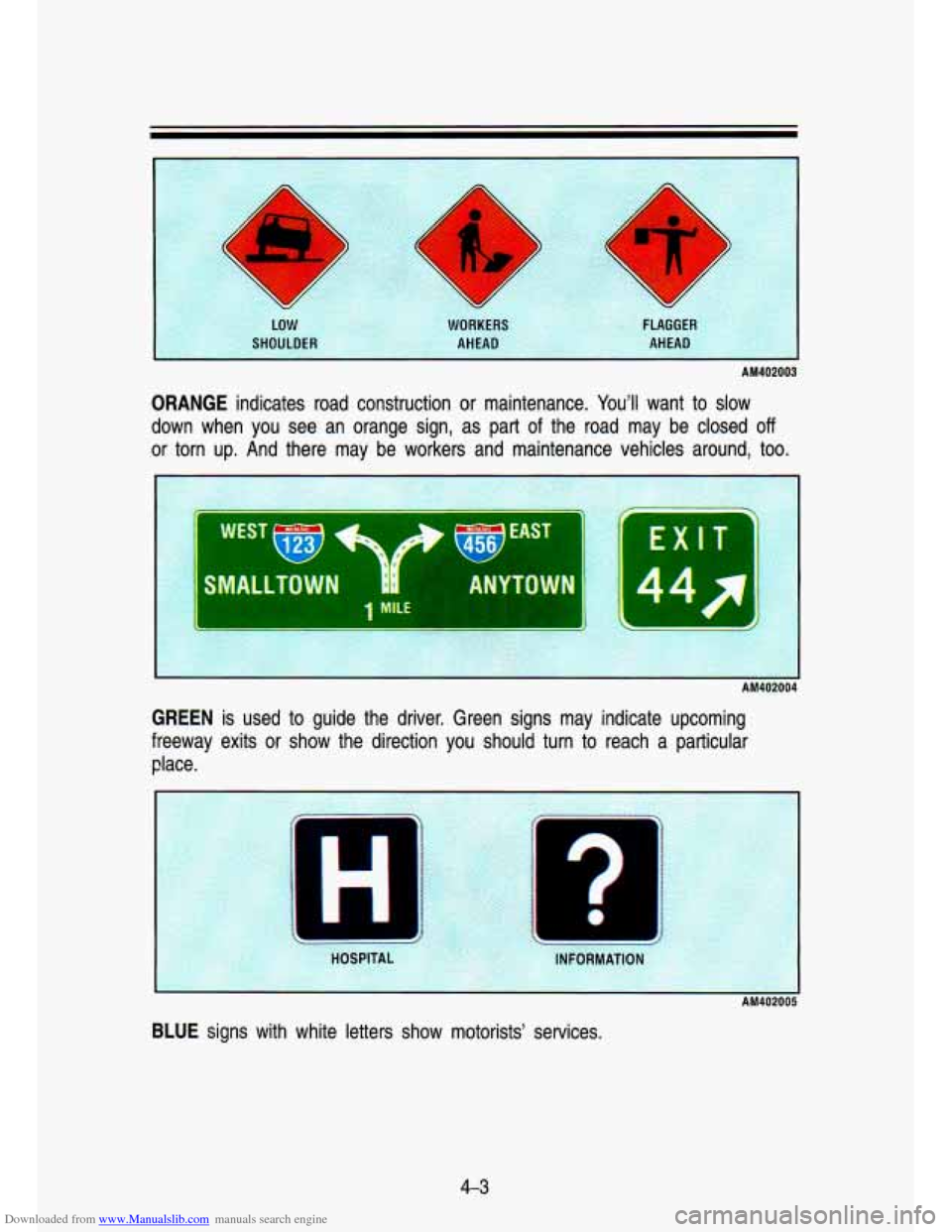

ORANGE indicates road construction or maintenance. You’ll want\
to slow
down when you see an orange sign, as part
of the road may be closed off
or torn up, And there may be workers and maintenance vehicles \
around, too.
GREEN is used to guide the driver. Green signs may indicate upcoming
freeway exits or show the direction you should turn to reach \
a particular place.
I-
BLUE signs with white letters show motorists’ services.
4-3

Downloaded from www.Manualslib.com manuals search engine - Your Driving and the Road
- - - - I
AM402006

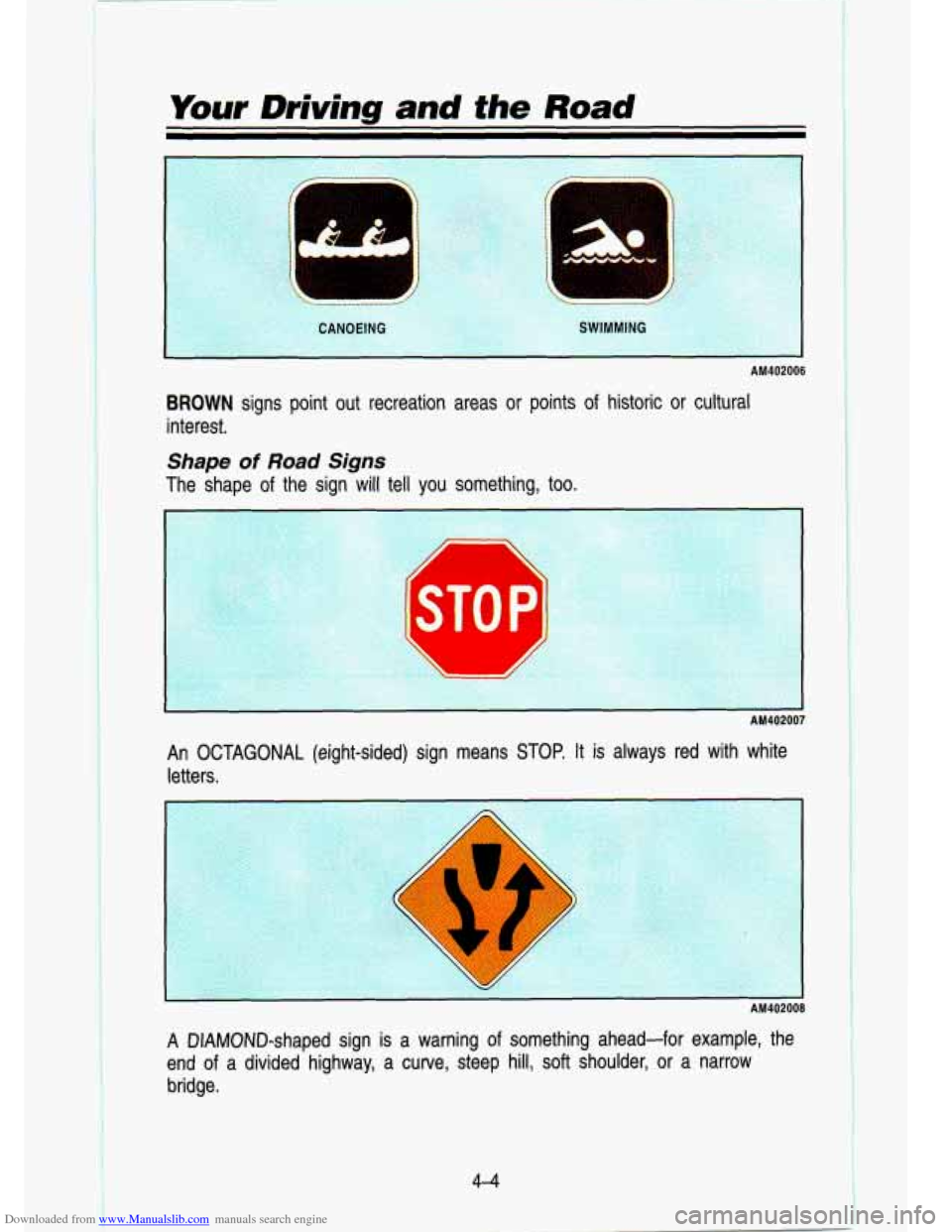

BROWN signs point out recreation areas or points of historic or cultural
interest.
Shape of Road Signs
The shape of the sign will tell you something, too.
AM402007
An OCTAGONAL (eight-sided) sign means STOP. It is always red with white
letters.
A DIAMOND-shaped sign is a warning
of something ahead-for example, the
end
of a divided highway, a curve, steep hill, soft shoulder, or a narrow
bridge.
4-4

Downloaded from www.Manualslib.com manuals search engine AM402009

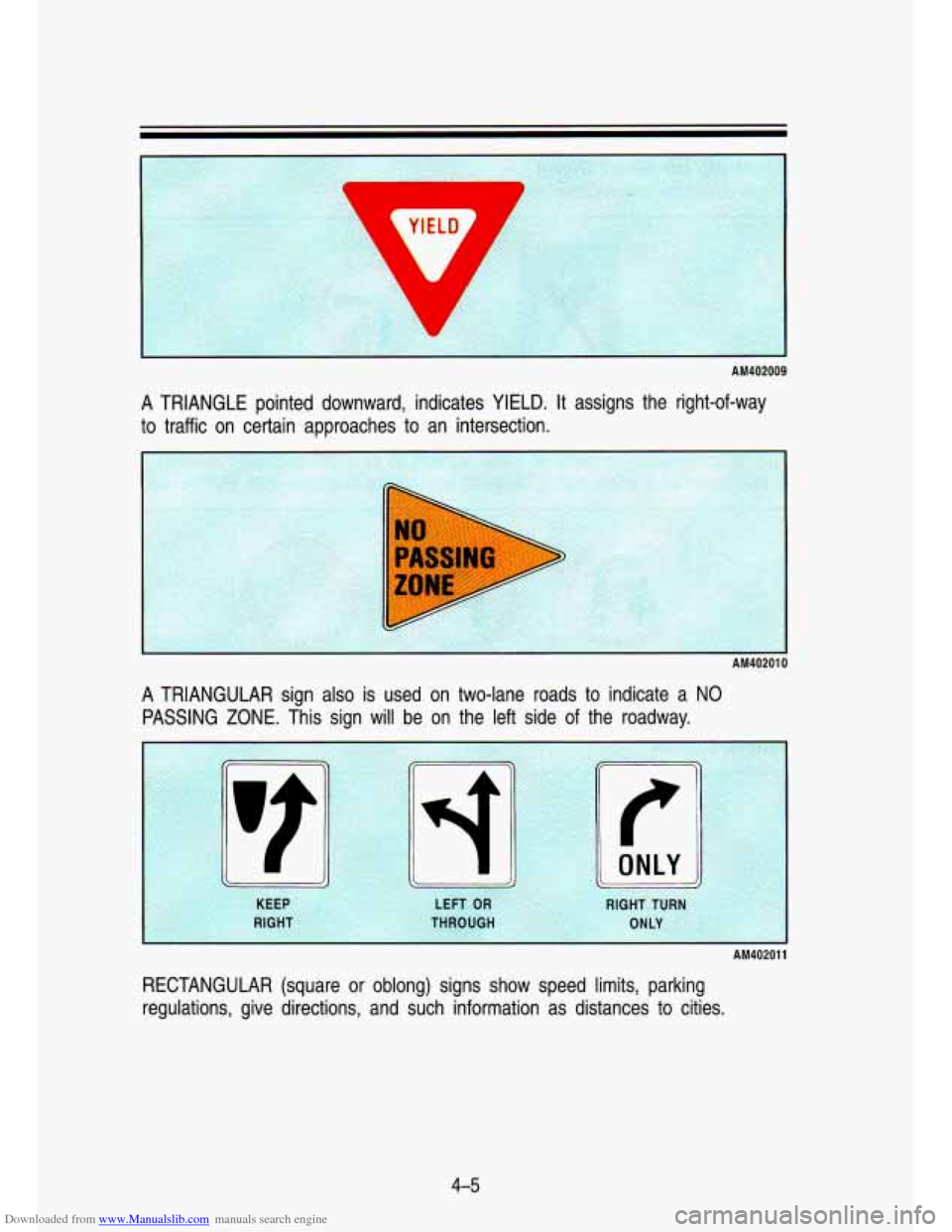

A TRIANGLE pointed downward, indicates YIELD. It assigns the right-of-way
to traffic on certain approaches to an intersection.
A TRIANGULAR sign also is used on PASSING ZONE. This sign will be on two-lane roads
to indicate a NO
the left side
of the roadway.
. ~.~
AM40201 1
RECTANGULAR (square or oblong) signs show speed limits, parking
regulations, give directions, and such information as distances
to cities.
4-5

Downloaded from www.Manualslib.com manuals search engine Your Driving and the Road

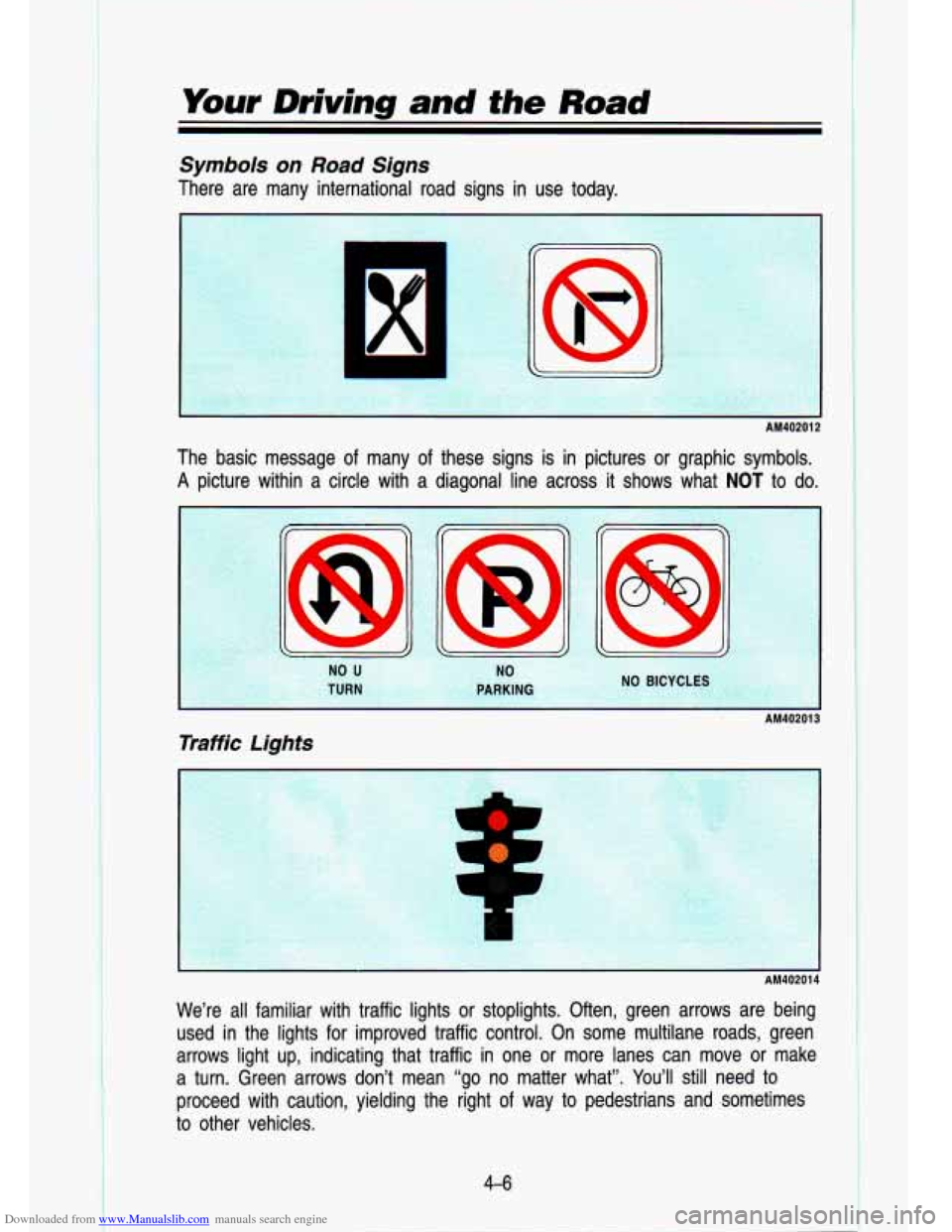

Symbols on Road Signs
There are many international road signs in use today.
The basic message
of many of
A picture within a circle with a
r
C
I AM40201 2
these signs is in pictures or graphic symbols.
liagonal line across it shows what
NOT to do.
I AM40201 3
Traffic Lights
I AM40201 4
We’re all familiar with traffic lights or stoplights. Often, green ar\
rows are being
used in the lights for improved traffic control. On some multilane road\
s, green
arrows light up, indicating that traffic in one or more lanes can move or make
a turn. Green arrows don’t mean “go no matter what”.
You’ll still need to
proceed with caution, yielding the right of way to pedestrians and sometimes
to other vehicles.
4-6
