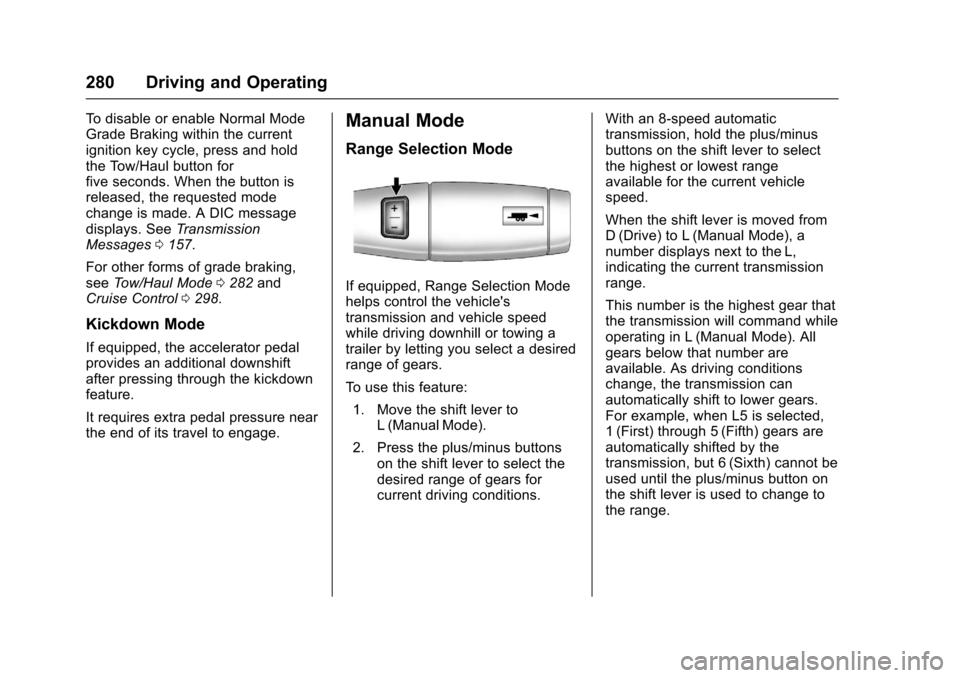

280 Driving and Operating
To d i s a b l e o r e n a b l e N o r m a l M o d eGrade Braking within the currentignition key cycle, press and holdthe Tow/Haul button forfive seconds. When the button isreleased, the requested modechange is made. A DIC messagedisplays. SeeTr a n s m i s s i o nMessages0157.
For other forms of grade braking,seeTo w / H a u l M o d e0282andCruise Control0298.
Kickdown Mode
If equipped, the accelerator pedalprovides an additional downshiftafter pressing through the kickdownfeature.
It requires extra pedal pressure nearthe end of its travel to engage.
Manual Mode
Range Selection Mode
If equipped, Range Selection Modehelps control the vehicle'stransmission and vehicle speedwhile driving downhill or towing atrailer by letting you select a desiredrange of gears.
To u s e t h i s f e a t u r e :
1. Move the shift lever toL(ManualMode).
2. Press the plus/minus buttonson the shift lever to select thedesired range of gears forcurrent driving conditions.
With an 8-speed automatictransmission, hold the plus/minusbuttons on the shift lever to selectthe highest or lowest rangeavailable for the current vehiclespeed.
When the shift lever is moved fromD(Drive) to L(Manual Mode), anumber displays next to the L,indicating the current transmissionrange.
This number is the highest gear thatthe transmission will command whileoperating in L (Manual Mode). Allgears below that number areavailable. As driving conditionschange, the transmission canautomatically shift to lower gears.For example, when L5 is selected,1(First) through 5(Fifth) gears areautomatically shifted by thetransmission, but 6 (Sixth) cannot beused until the plus/minus button onthe shift lever is used to change tothe range.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Driving and Operating 281

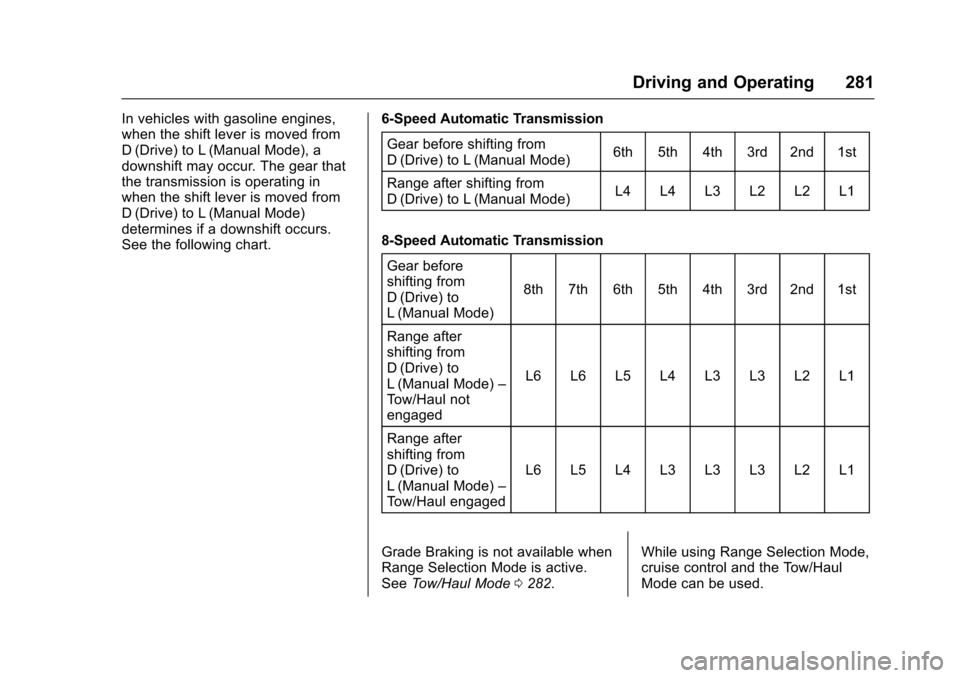

In vehicles with gasoline engines,when the shift lever is moved fromD(Drive) to L(Manual Mode), adownshift may occur. The gear thatthe transmission is operating inwhen the shift lever is moved fromD(Drive) to L(Manual Mode)determines if a downshift occurs.See the following chart.
6-Speed Automatic Transmission
Gear before shifting fromD(Drive) to L(Manual Mode)6th 5th 4th 3rd 2nd 1st
Range after shifting fromD(Drive) to L(Manual Mode)L4 L4 L3 L2 L2 L1
8-Speed Automatic Transmission
Gear beforeshifting fromD(Drive) toL(Manual Mode)
8th 7th 6th 5th 4th 3rd 2nd 1st
Range aftershifting fromD(Drive) toL(Manual Mode)–To w / H a u l n o tengaged
L6 L6 L5 L4 L3 L3 L2 L1
Range aftershifting fromD(Drive) toL(Manual Mode)–To w / H a u l e n g a g e d
L6 L5 L4 L3 L3 L3 L2 L1
Grade Braking is not available whenRange Selection Mode is active.SeeTo w / H a u l M o d e0282.
While using Range Selection Mode,cruise control and the Tow/HaulMode can be used.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16

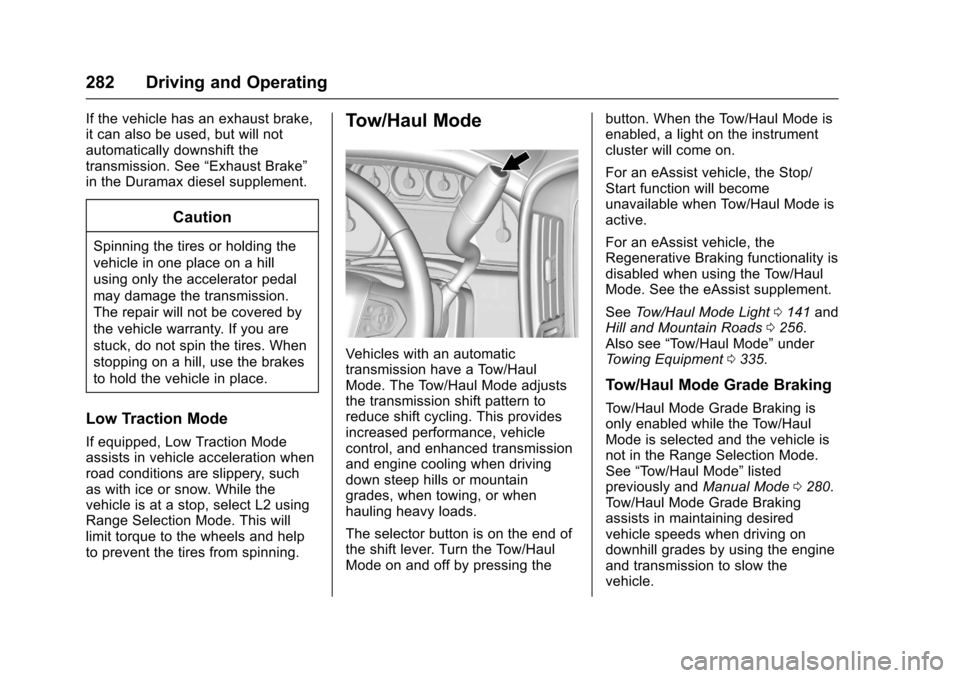

282 Driving and Operating
If the vehicle has an exhaust brake,it can also be used, but will notautomatically downshift thetransmission. See“Exhaust Brake”in the Duramax diesel supplement.
Caution
Spinning the tires or holding the
vehicle in one place on a hill
using only the accelerator pedal
may damage the transmission.
The repair will not be covered by
the vehicle warranty. If you are
stuck, do not spin the tires. When
stopping on a hill, use the brakes
to hold the vehicle in place.
Low Traction Mode
If equipped, Low Traction Modeassists in vehicle acceleration whenroad conditions are slippery, suchas with ice or snow. While thevehicle is at a stop, select L2 usingRange Selection Mode. This willlimit torque to the wheels and helpto prevent the tires from spinning.
Tow/Haul Mode
Vehicles with an automatictransmission have a Tow/HaulMode. The Tow/Haul Mode adjuststhe transmission shift pattern toreduce shift cycling. This providesincreased performance, vehiclecontrol, and enhanced transmissionand engine cooling when drivingdown steep hills or mountaingrades, when towing, or whenhauling heavy loads.
The selector button is on the end ofthe shift lever. Turn the Tow/HaulMode on and off by pressing the
button. When the Tow/Haul Mode isenabled, a light on the instrumentcluster will come on.
For an eAssist vehicle, the Stop/Start function will becomeunavailable when Tow/Haul Mode isactive.
For an eAssist vehicle, theRegenerative Braking functionality isdisabled when using the Tow/HaulMode. See the eAssist supplement.
SeeTo w / H a u l M o d e L i g h t0141andHill and Mountain Roads0256.Also see“To w / H a u l M o d e”underTo w i n g E q u i p m e n t0335.
Tow/Haul Mode Grade Braking
To w / H a u l M o d e G r a d e B r a k i n g i sonly enabled while the Tow/HaulMode is selected and the vehicle isnot in the Range Selection Mode.See“To w / H a u l M o d e”listedpreviously andManual Mode0280.To w / H a u l M o d e G r a d e B r a k i n gassists in maintaining desiredvehicle speeds when driving ondownhill grades by using the engineand transmission to slow thevehicle.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Driving and Operating 283
If equipped, on vehicles with agasoline engine, to disable orenable Tow/Haul Grade Brakingwithin the current ignition key cycle,press and hold the Tow/Haul buttonfor five seconds. When the button isreleased, the requested modechange is made. A DIC message isdisplayed. SeeTr a n s m i s s i o nMessages0157.
On vehicles with a diesel engine,To w / H a u l M o d e G r a d e B r a k i n g c a nbe enabled or disabled by pressingthe Tow/Haul Mode button. Use theexhaust brake and Tow/Haul Modefor maximum grade braking.
SeeTo w i n g E q u i p m e n t0335.
For other forms of grade braking,seeAutomatic Transmission0277andCruise Control0298.

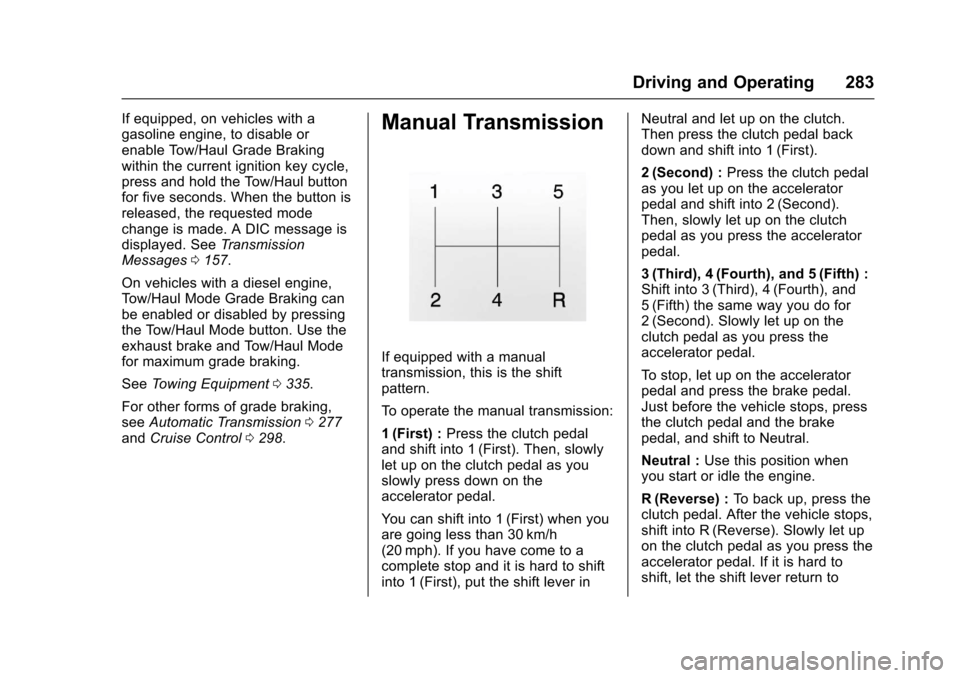

Manual Transmission
If equipped with a manualtransmission, this is the shiftpattern.
To o p e r a t e t h e m a n u a l t r a n s m i s s i o n :
1(First) :Press the clutch pedaland shift into 1 (First). Then, slowlylet up on the clutch pedal as youslowly press down on theaccelerator pedal.
Yo u c a n s h i f t i n t o 1 ( F i r s t ) w h e n y o uare going less than 30 km/h(20 mph). If you have come to acomplete stop and it is hard to shiftinto 1 (First), put the shift lever in
Neutral and let up on the clutch.Then press the clutch pedal backdown and shift into 1 (First).
2(Second) :Press the clutch pedalas you let up on the acceleratorpedal and shift into 2 (Second).Then, slowly let up on the clutchpedal as you press the acceleratorpedal.
3(Third), 4(Fourth), and 5(Fifth) :Shift into 3 (Third), 4 (Fourth), and5(Fifth) the same way you do for2(Second). Slowly let up on theclutch pedal as you press theaccelerator pedal.
To s t o p , l e t u p o n t h e a c c e l e r a t o rpedal and press the brake pedal.Just before the vehicle stops, pressthe clutch pedal and the brakepedal, and shift to Neutral.
Neutral :Use this position whenyou start or idle the engine.
R(Reverse) :To b a c k u p , p r e s s t h eclutch pedal. After the vehicle stops,shift into R (Reverse). Slowly let upon the clutch pedal as you press theaccelerator pedal. If it is hard toshift, let the shift lever return to

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
284 Driving and Operating
Neutral and release the clutchpedal. Then press the clutch againand shift into R (Reverse). Do notattempt to shift into 5 (Fifth) prior toshifting into R (Reverse). Thetransmission has a lock out feature,which prevents a 5 (Fifth) gear toR(Reverse) gear shift.
Caution
Shifting to R (Reverse) while the
vehicle is moving forward could
damage the transmission. The
repairs would not be covered by
the vehicle warranty. Shift to
R(Reverse) only after the vehicle
is stopped.
Use R (Reverse), along with theparking brake, for parking thevehicle.
Shift Speeds
{Warning
If you skip a gear when
downshifting, you could lose
control of the vehicle. You could
injure yourself or others. Do not
shift down more than one gear at
atimewhendownshifting.
Drive Systems
Four-Wheel Drive
If equipped, four-wheel driveengages the front axle for extratraction. Read the appropriatesection for transfer case operationbefore using.
Caution
Do not drive on clean, dry
pavement in 4mand 4n(if
equipped) for an extended period
of time. These conditions may
cause premature wear on the
vehicle’spowertrain.
Driving on clean, dry pavement in4HI or 4LO may:
.Cause a vibration to be felt inthe steering system.
.Cause tires to wear faster.
.Make the transfer case harder toshift, and cause it to run noisier.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Driving and Operating 285
{Warning
Shifting the transfer case to
N(Neutral) can cause the vehicle
to roll even if the transmission is
in P (Park). You or someone else
could be seriously injured. Be
sure to set the parking brake
before placing the transfer case in
N(Neutral). SeeParking
Brake0293.
Caution
Extended high-speed operation in
4nmay damage or shorten the
life of the drivetrain.
Engagement noise and bump when
shifting between 4nand 4mor from
N(Neutral), with the engine running,is normal.
Shifting into 4nwill turn Traction
Control and StabiliTrak®off. SeeTr a c t i o n C o n t r o l / E l e c t r o n i c S t a b i l i t yControl0295.
Manual Transfer Case
Move the lever to shift into and outof four-wheel drive.
An indicator light comes on whenfour-wheel drive is engaged. SeeFour-Wheel-Drive Light0141.
N(Neutral) :Use only when thevehicle needs to be towed. SeeRecreational Vehicle Towing0437orTo w i n g t h e V e h i c l e0436.
2m(Two-Wheel Drive High) :Use
this setting for driving on moststreets and highways. The front axleis not engaged. This settingprovides the best fuel economy.
4n(Four-Wheel Drive Low) :This
setting also engages the front axleand delivers extra torque. Choose 4nif driving off-road in deep sand,deep mud, or deep snow, and whileclimbing or descending steep hills.When engaged, keep vehicle speedbelow 72 km/h (45 mph).
4m(Four-Wheel Drive High) :Use
this setting when extra traction isneeded. The front axle engages andhelps when driving on snowy or icyroads, when off-roading, or whenplowing snow.
The vehicle can be shifted between
2mand 4mwhile the vehicle is
moving. In extremely cold weather,it may be necessary to stop or slow

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
286 Driving and Operating
the vehicle to shift into 4m.
Using the Manual Transfer Case
.Use quick motions to shift into or
out of 4nor N (Neutral).
.Shifting may be harder when thevehicle is cold, but will return tonormal once warmed up.
.Four-wheel drive reduces fueleconomy.
Shifting from 2mto 4m
.Shifts can be made at anyvehicle speed.
.Shift in one continuous motion.
.Shifting while the vehicle is inmotion may require thatmoderate force be applied to the
shift lever before 4mcan be
engaged, especially in coldweather.
.In extremely cold weather, it maybe necessary to slow or stop thevehicle to shift.
.While in 4m,thevehiclecanbe
driven at any posted legal speedlimit.
Shifting In or Out of 4n
Caution
Shifting the transfer case into 4n
while moving at speeds faster
than 5 km/h (3 mph) may cause
premature wear to the transfer
case, and may cause the gears to
grind.
1. If possible, shift with thevehicle moving 5 km/h (3 mph)or less.
2. Shift the transmission intoN(Neutral).
3. Shift the transfer case shiftlever in one continuous motion.
4. Shifting with the vehicle at astop may be more difficult. It ispossible that the shift will notcomplete and the transfer casewill remain in N (Neutral). Thisis normal. To complete theshift, with the engine running,shift the transmission to
D(Drive) and back toN(Neutral), and reattempt thetransfer case shift.
Shifting In or Out of N (Neutral)
1. Have the engine running.
2. Set the parking brake. Pressand hold the brake pedal. SeeParking Brake0293.
3. Place the transmission intoN(Neutral).
4. Shift the transfer case lever inone continuous motion into orout of N (Neutral).
Electronic Transfer Case

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Driving and Operating 287
Use the transfer case knob, next tothe steering wheel, to shift into andout of four-wheel drive for extratraction.
All of the lights will blink on then offmomentarily when the ignition ismoved to the ON/RUN position. Thelight that remains on will indicate thestate of the Transfer Case.
If the indicator mark on the switchdoes not match up with the lightthen that likely means the switchwas moved when the ignitionwas off.
The indicator mark on the switchmust line up with the indicator lightbefore a shift can be commanded.To c o m m a n d a s h i f t r o t a t e t h etransfer case switch to the newdesired position. The light will blinkmeaning that the shift is in progress.When the shift is completed the newposition will be illuminated. If thetransfer case can not complete ashift command, it will go back to itslast chosen setting.
Caution
Shifting the transmission into gear
before the requested mode
indicator light has stopped
flashing could damage the
transfer case.
The settings are:
N(Neutral) :Use only when thevehicle needs to be towed. SeeRecreational Vehicle Towing0437orTo w i n g t h e V e h i c l e0436.
2m(Two-Wheel Drive High) :Use
for driving on most streets andhighways. The front axle is notengaged. This setting provides thebest fuel economy.
4n(Four-Wheel Drive Low) :This
setting engages the front axle and
delivers extra torque. Choose 4nif
driving off-road in deep sand, deepmud, or deep snow, and whileclimbing or descending steep hills.When engaged, keep vehicle speedbelow 72 km/h (45 mph).
Shifting into 4nwill turn Traction
Control and StabiliTrak off. SeeTr a c t i o n C o n t r o l / E l e c t r o n i c S t a b i l i t yControl0295.
4m(Four-Wheel Drive High) :Use
when extra traction is needed. Thefront axle engages and helps whendriving on snowy or icy roads, whenoff-roading, or when plowing snow.
The vehicle can be shifted from 2m
to 4mwhile the vehicle is moving.
Shifting Into 4m
Turn the knob to 4mat any speed
up to 121 km/h (75 mph), except
from 4n.Theindicatorlightwillflash
while shifting and will remain on theselected setting.
Shifting Into 2m
Turn the knob to 2mat any speed,
except when shifting from 4n.
Shifting Into 4n
When 4nis engaged, vehicle speed
should be kept below 72 km/h(45 mph).

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
288 Driving and Operating
1. The ignition must be in ON/RUN and the vehicle must bestopped or moving less than5km/h (3mph) with thetransmission in N (Neutral). It isbest for the vehicle to bemoving 1.6 to 3.2 km/h(1 to 2 mph).
2. Turn the knob to 4n.Waitfor
the 4nindicator light to stop
flashing before shifting thetransmission into gear.
If the transmission is in gear and/ormoving more than 5 km/h (3 mph),
the 4nindicator light will flash for
30 seconds and not complete theshift. After 30 seconds the transfer
case will shift to 4m.Turntheknob
to 4mto see the indicator. With the
vehicle moving less than 5 km/h(3 mph), and the transmission inN(Neutral), attempt the shift again.
Shifting Out of 4n
1. To shift out of 4nthe vehicle
must be stopped or movingless than 5 km/h (3 mph) withthe transmission in N (Neutral)
and the ignition in ON/RUN.It is best for the vehicle to bemoving 1.6 to 3.2 km/h(1 to 2 mph).
2. Turn the knob to 4mor 2m.
Wait for the 4mor 2mindicator
light to stop flashing beforeshifting the transmissioninto gear.
If the transmission is in gear and/ormoving more than 5 km/h (3 mph),
the 4mor 2mindicator light will flash
for 30 seconds, but will not completethe shift. With the vehicle movingless than 5 km/h (3 mph), and thetransmission in N (Neutral), attemptthe shift again.
Shifting Into N (Neutral)
To s h i f t :
1. Park the vehicle on a levelsurface.
2. Set the parking brake andpress and hold the brakepedal. SeeParkingBrake0293.
3. Start the vehicle or turn theignition to ON/RUN.
4. Shift the transmission toN(Neutral).
5. Shift the transfer case to 2m.
6. Turn the transfer case knobclockwise to N (Neutral) until itstops and hold it there until theN(Neutral) light starts blinking.This will take at least10 seconds. Then slowly
release the dial to the 4n
position. The N (Neutral) lightwill come on when the transfercase shift to N (Neutral) iscomplete.
7. With the engine running, verifythat the transfer case is inN(Neutral) by shifting thetransmission to R (Reverse),then to D (Drive). There shouldbe no movement of the vehiclewhile shifting the transmission.
8. Turn the engine off, and theignition to ACC/ACCESSORY.
9. Place the transmission shiftlever in P (Park). SeeRecreational VehicleTo w i n g0437.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Driving and Operating 289
10. Turn the ignition to LOCK/OFF.
Shifting Out of N (Neutral)
To s h i f t :
1. Set the parking brake andapply the brake pedal.
2. Turn the ignition to ON/RUNwith the engine off.
3. Shift the transmission toN(Neutral).
4. Turn the transfer case knob to
2m.
After the transfer case hasshifted out of N (Neutral), theN(Neutral) light will goout.
5. Release the parking brake.
Caution
Shifting the transmission into gear
before the requested mode
indicator light has stopped
flashing could damage the
transfer case.
6. Start the engine and shift thetransmission to thedesired gear.
Automatic Transfer Case
If equipped, use the transfer caseknob next to the steering wheel toshift into and out of four-wheel drive.
All of the lights will blink on then offmomentarily when the ignition ismoved to the ON/RUN position. Thelight that remains on will indicate thestate of the Transfer Case.
If the indicator mark on the switchdoes not match up with the lightthen that likely means the switchwas moved when the ignitionwas off.
The indicator mark on the switchmust line up with the indicator lightbefore a shift can be commanded.To c o m m a n d a s h i f t r o t a t e t h etransfer case switch to the newdesired position. The light will blinkmeaning that the shift is in progress.When the shift is completed the newposition will be illuminated. If thetransfer case can not complete ashift command, it will go back to itslast chosen setting.
The settings are:
N(Neutral) :Use only when thevehicle needs to be towed. SeeRecreational Vehicle Towing0437orTo w i n g t h e V e h i c l e0436.
2m(Two-Wheel Drive High) :Use
for driving on most streets andhighways. The front axle is notengaged. This setting provides thebest fuel economy.
