CHEVROLET SILVERADO 2017 3.G Owners Manual

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
320 Driving and Operating

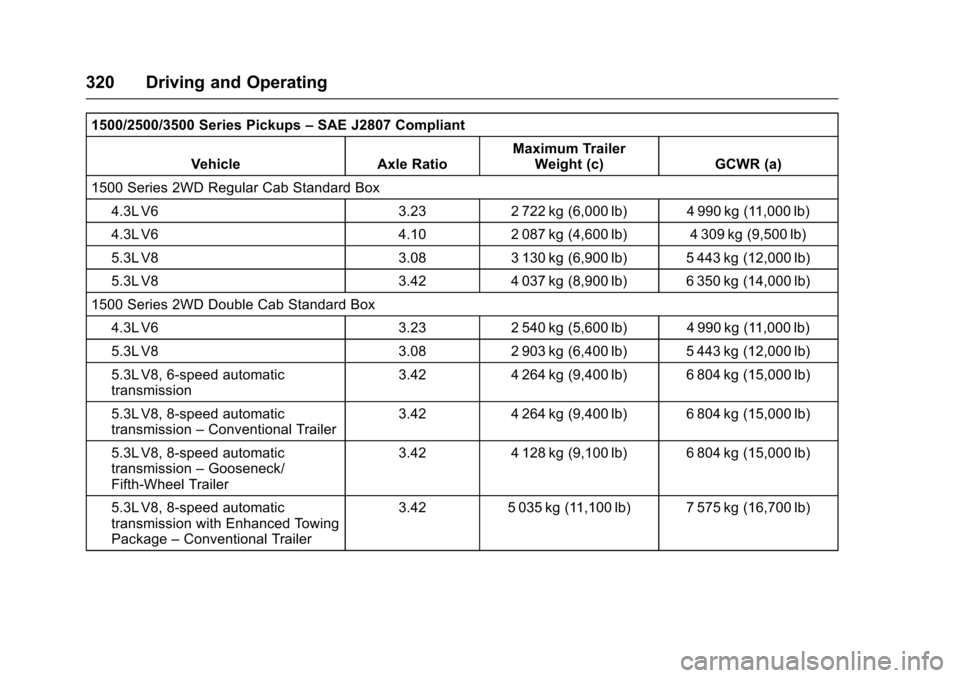

1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
1500 Series 2WD Regular Cab Standard Box
4.3L V6 3.23 2 722 kg (6,000 lb) 4 990 kg (11,000 lb)
4.3L V6 4.10 2 087 kg (4,600 lb) 4 309 kg (9,500 lb)
5.3L V8 3.08 3 130 kg (6,900 lb) 5 443 kg (12,000 lb)
5.3L V8 3.42 4 037 kg (8,900 lb) 6 350 kg (14,000 lb)
1500 Series 2WD Double Cab Standard Box
4.3L V6 3.23 2 540 kg (5,600 lb) 4 990 kg (11,000 lb)
5.3L V8 3.08 2 903 kg (6,400 lb) 5 443 kg (12,000 lb)
5.3L V8, 6-speed automatictransmission3.42 4 264 kg (9,400 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission–Conventional Trailer3.42 4 264 kg (9,400 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission–Gooseneck/Fifth-Wheel Trailer
3.42 4 128 kg (9,100 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission with Enhanced TowingPackage–Conventional Trailer
3.42 5 035 kg (11,100 lb) 7 575 kg (16,700 lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 5/6/16

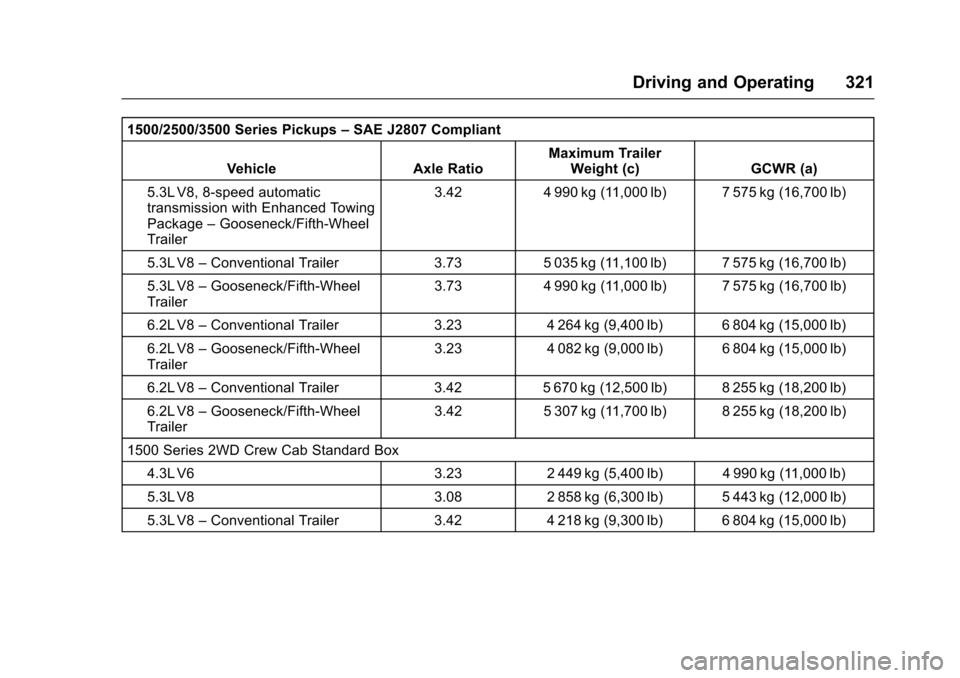

Driving and Operating 321
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
5.3L V8, 8-speed automatictransmission with Enhanced TowingPackage–Gooseneck/Fifth-WheelTrailer
3.42 4 990 kg (11,000 lb) 7 575 kg (16,700 lb)
5.3L V8–Conventional Trailer3.735035kg (11,100lb) 7575kg (16,700lb)
5.3L V8–Gooseneck/Fifth-WheelTrailer3.734990kg (11,000lb) 7575kg (16,700lb)
6.2L V8–Conventional Trailer3.234264kg (9,400lb) 6804kg (15,000lb)
6.2L V8–Gooseneck/Fifth-WheelTrailer3.234082kg (9,000lb) 6804kg (15,000lb)
6.2L V8–Conventional Trailer3.425670kg (12,500lb) 8255kg (18,200lb)
6.2L V8–Gooseneck/Fifth-WheelTrailer3.425307kg (11,700lb) 8255kg (18,200lb)
1500 Series 2WD Crew Cab Standard Box
4.3L V63.232449kg (5,400lb) 4990kg (11,000lb)
5.3L V83.082858kg (6,300lb) 5443kg (12,000lb)
5.3L V8–Conventional Trailer3.424218kg (9,300lb) 6804kg (15,000lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16

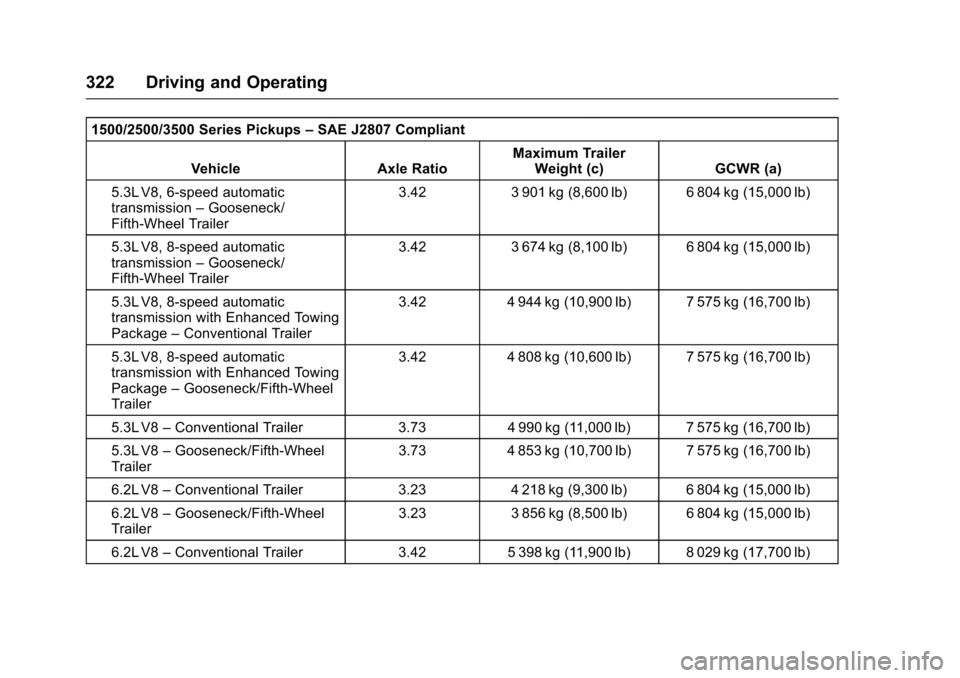

322 Driving and Operating
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
5.3L V8, 6-speed automatictransmission–Gooseneck/Fifth-Wheel Trailer
3.42 3 901 kg (8,600 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission–Gooseneck/Fifth-Wheel Trailer
3.42 3 674 kg (8,100 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission with Enhanced TowingPackage–Conventional Trailer
3.42 4 944 kg (10,900 lb) 7 575 kg (16,700 lb)
5.3L V8, 8-speed automatictransmission with Enhanced TowingPackage–Gooseneck/Fifth-WheelTrailer
3.42 4 808 kg (10,600 lb) 7 575 kg (16,700 lb)
5.3L V8–Conventional Trailer3.734990kg (11,000lb) 7575kg (16,700lb)
5.3L V8–Gooseneck/Fifth-WheelTrailer3.734853kg (10,700lb) 7575kg (16,700lb)
6.2L V8–Conventional Trailer3.234218kg (9,300lb) 6804kg (15,000lb)
6.2L V8–Gooseneck/Fifth-WheelTrailer3.233856kg (8,500lb) 6804kg (15,000lb)
6.2L V8–Conventional Trailer3.425398kg (11,900lb) 8029kg (17,700lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 5/6/16

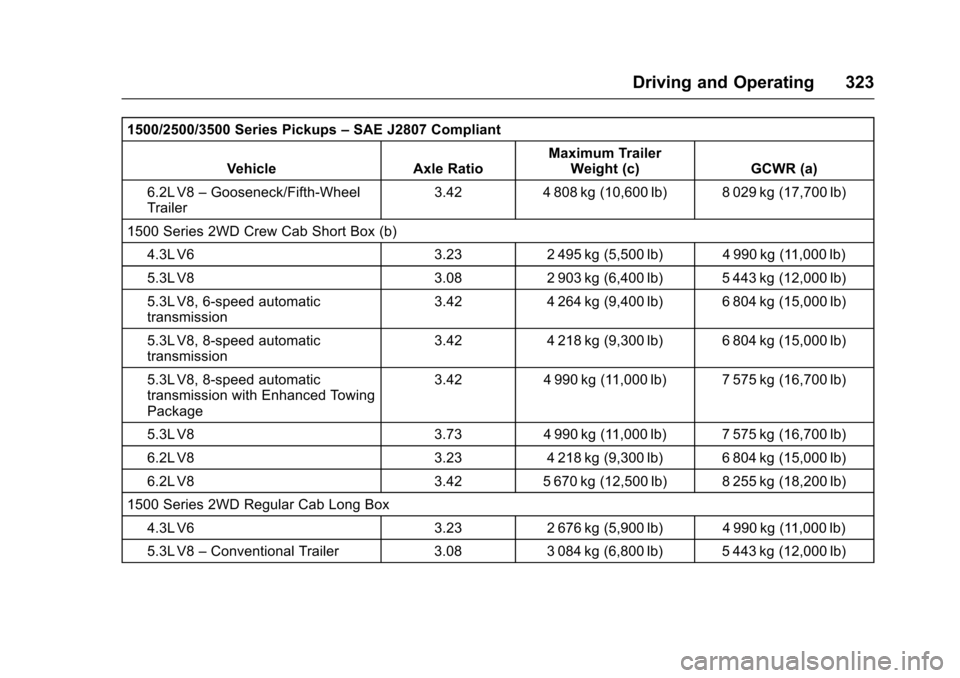

Driving and Operating 323
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
6.2L V8–Gooseneck/Fifth-WheelTrailer3.42 4 808 kg (10,600 lb) 8 029 kg (17,700 lb)
1500 Series 2WD Crew Cab Short Box (b)
4.3L V6 3.23 2 495 kg (5,500 lb) 4 990 kg (11,000 lb)
5.3L V8 3.08 2 903 kg (6,400 lb) 5 443 kg (12,000 lb)
5.3L V8, 6-speed automatictransmission3.42 4 264 kg (9,400 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission3.42 4 218 kg (9,300 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission with Enhanced TowingPackage
3.42 4 990 kg (11,000 lb) 7 575 kg (16,700 lb)
5.3L V8 3.73 4 990 kg (11,000 lb) 7 575 kg (16,700 lb)
6.2L V83.234218kg (9,300lb) 6804kg (15,000lb)
6.2L V83.425670kg (12,500lb) 8255kg (18,200lb)
1500 Series 2WD Regular Cab Long Box
4.3L V63.232676kg (5,900lb) 4990kg (11,000lb)
5.3L V8–Conventional Trailer3.083084kg (6,800lb) 5443kg (12,000lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16

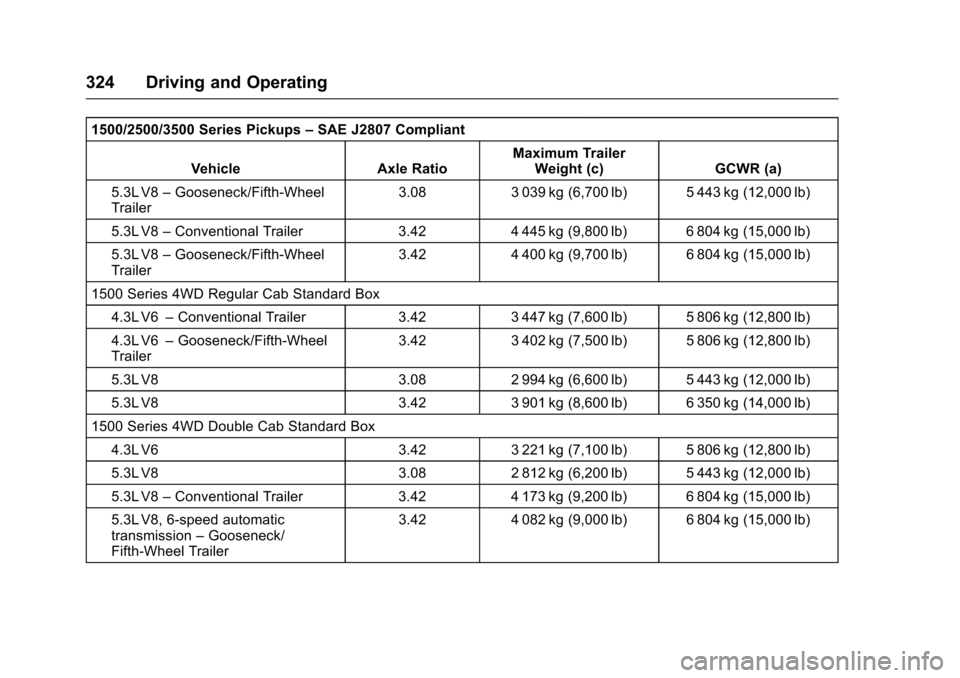

324 Driving and Operating
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
5.3L V8–Gooseneck/Fifth-WheelTrailer3.08 3 039 kg (6,700 lb) 5 443 kg (12,000 lb)
5.3L V8–Conventional Trailer3.424445kg (9,800lb) 6804kg (15,000lb)
5.3L V8–Gooseneck/Fifth-WheelTrailer3.424400kg (9,700lb) 6804kg (15,000lb)
1500 Series 4WD Regular Cab Standard Box
4.3L V6–Conventional Trailer3.423447kg (7,600lb) 5806kg (12,800lb)
4.3L V6–Gooseneck/Fifth-WheelTrailer3.423402kg (7,500lb) 5806kg (12,800lb)
5.3L V83.082994kg (6,600lb) 5443kg (12,000lb)
5.3L V83.423901kg (8,600lb) 6350kg (14,000lb)
1500 Series 4WD Double Cab Standard Box
4.3L V63.423221kg (7,100lb) 5806kg (12,800lb)
5.3L V83.082812kg (6,200lb) 5443kg (12,000lb)
5.3L V8–Conventional Trailer3.424173kg (9,200lb) 6804kg (15,000lb)
5.3L V8, 6-speed automatictransmission–Gooseneck/Fifth-Wheel Trailer
3.424082kg (9,000lb) 6804kg (15,000lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16

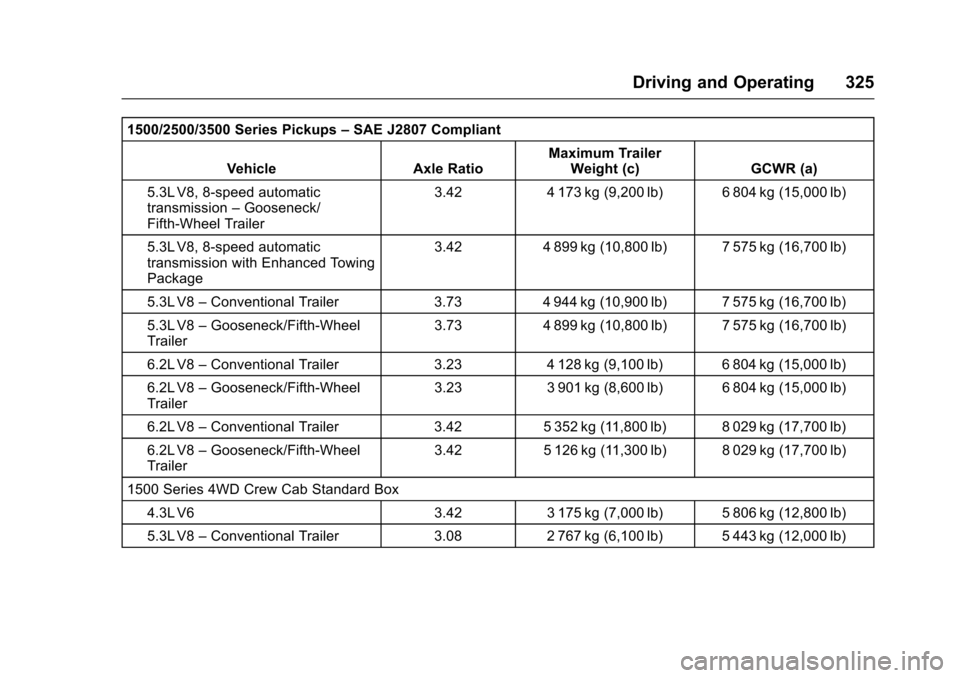

Driving and Operating 325
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
5.3L V8, 8-speed automatictransmission–Gooseneck/Fifth-Wheel Trailer
3.42 4 173 kg (9,200 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission with Enhanced TowingPackage
3.42 4 899 kg (10,800 lb) 7 575 kg (16,700 lb)
5.3L V8–Conventional Trailer3.734944kg (10,900lb) 7575kg (16,700lb)
5.3L V8–Gooseneck/Fifth-WheelTrailer3.734899kg (10,800lb) 7575kg (16,700lb)
6.2L V8–Conventional Trailer3.234128kg (9,100lb) 6804kg (15,000lb)
6.2L V8–Gooseneck/Fifth-WheelTrailer3.233901kg (8,600lb) 6804kg (15,000lb)
6.2L V8–Conventional Trailer3.425352kg (11,800lb) 8029kg (17,700lb)
6.2L V8–Gooseneck/Fifth-WheelTrailer3.425126kg (11,300lb) 8029kg (17,700lb)
1500 Series 4WD Crew Cab Standard Box
4.3L V63.423175kg (7,000lb) 5806kg (12,800lb)
5.3L V8–Conventional Trailer3.082767kg (6,100lb) 5443kg (12,000lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16

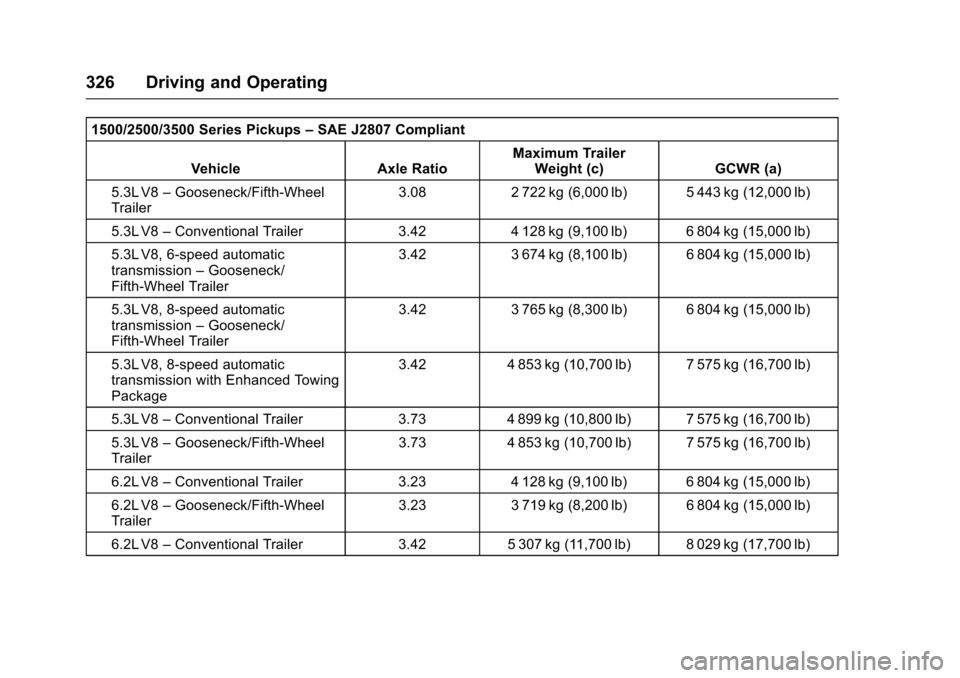

326 Driving and Operating
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
5.3L V8–Gooseneck/Fifth-WheelTrailer3.08 2 722 kg (6,000 lb) 5 443 kg (12,000 lb)
5.3L V8–Conventional Trailer3.424128kg (9,100lb) 6804kg (15,000lb)
5.3L V8, 6-speed automatictransmission–Gooseneck/Fifth-Wheel Trailer
3.423674kg (8,100lb) 6804kg (15,000lb)
5.3L V8, 8-speed automatictransmission–Gooseneck/Fifth-Wheel Trailer
3.423765kg (8,300lb) 6804kg (15,000lb)
5.3L V8, 8-speed automatictransmission with Enhanced TowingPackage
3.424853kg (10,700lb) 7575kg (16,700lb)
5.3L V8–Conventional Trailer3.734899kg (10,800lb) 7575kg (16,700lb)
5.3L V8–Gooseneck/Fifth-WheelTrailer3.734853kg (10,700lb) 7575kg (16,700lb)
6.2L V8–Conventional Trailer3.234128kg (9,100lb) 6804kg (15,000lb)
6.2L V8–Gooseneck/Fifth-WheelTrailer3.233719kg (8,200lb) 6804kg (15,000lb)
6.2L V8–Conventional Trailer3.425307kg (11,700lb) 8029kg (17,700lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16

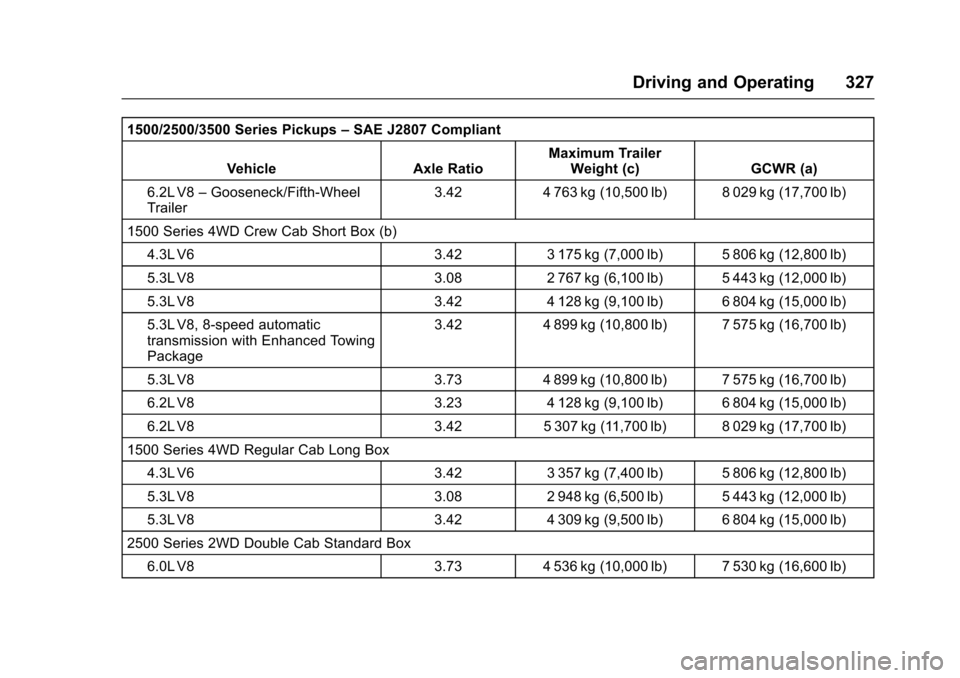

Driving and Operating 327
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
6.2L V8–Gooseneck/Fifth-WheelTrailer3.42 4 763 kg (10,500 lb) 8 029 kg (17,700 lb)
1500 Series 4WD Crew Cab Short Box (b)
4.3L V6 3.42 3 175 kg (7,000 lb) 5 806 kg (12,800 lb)
5.3L V8 3.08 2 767 kg (6,100 lb) 5 443 kg (12,000 lb)
5.3L V8 3.42 4 128 kg (9,100 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatictransmission with Enhanced TowingPackage
3.42 4 899 kg (10,800 lb) 7 575 kg (16,700 lb)
5.3L V8 3.73 4 899 kg (10,800 lb) 7 575 kg (16,700 lb)
6.2L V8 3.23 4 128 kg (9,100 lb) 6 804 kg (15,000 lb)
6.2L V8 3.42 5 307 kg (11,700 lb) 8 029 kg (17,700 lb)
1500 Series 4WD Regular Cab Long Box
4.3L V6 3.42 3 357 kg (7,400 lb) 5 806 kg (12,800 lb)
5.3L V8 3.08 2 948 kg (6,500 lb) 5 443 kg (12,000 lb)
5.3L V8 3.42 4 309 kg (9,500 lb) 6 804 kg (15,000 lb)
2500 Series 2WD Double Cab Standard Box
6.0L V8 3.73 4 536 kg (10,000 lb) 7 530 kg (16,600 lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16

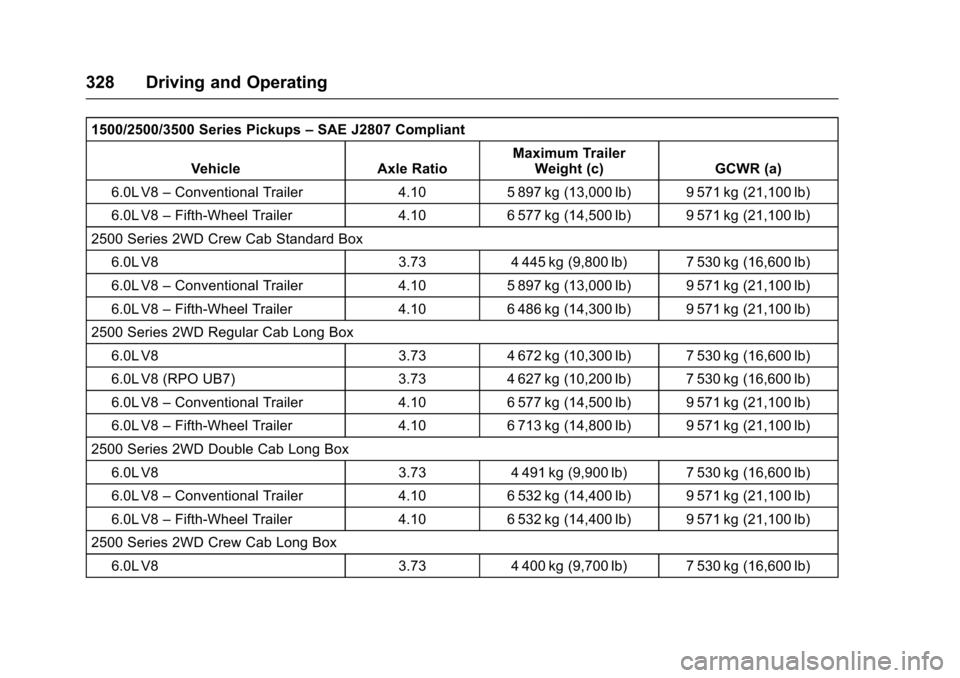

328 Driving and Operating
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
6.0L V8–Conventional Trailer4.105897kg (13,000lb) 9571kg (21,100lb)
6.0L V8–Fifth-Wheel Trailer4.106577kg (14,500lb) 9571kg (21,100lb)
2500 Series 2WD Crew Cab Standard Box
6.0L V83.734445kg (9,800lb) 7530kg (16,600lb)
6.0L V8–Conventional Trailer4.105897kg (13,000lb) 9571kg (21,100lb)
6.0L V8–Fifth-Wheel Trailer4.106486kg (14,300lb) 9571kg (21,100lb)
2500 Series 2WD Regular Cab Long Box
6.0L V83.734672kg (10,300lb) 7530kg (16,600lb)
6.0L V8 (RPO UB7)3.734627kg (10,200lb) 7530kg (16,600lb)
6.0L V8–Conventional Trailer4.106577kg (14,500lb) 9571kg (21,100lb)
6.0L V8–Fifth-Wheel Trailer4.106713kg (14,800lb) 9571kg (21,100lb)
2500 Series 2WD Double Cab Long Box
6.0L V83.734491kg (9,900lb) 7530kg (16,600lb)
6.0L V8–Conventional Trailer4.106532kg (14,400lb) 9571kg (21,100lb)
6.0L V8–Fifth-Wheel Trailer4.106532kg (14,400lb) 9571kg (21,100lb)
2500 Series 2WD Crew Cab Long Box
6.0L V83.734400kg (9,700lb) 7530kg (16,600lb)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Driving and Operating 329
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle RatioMaximum TrailerWeight (c) GCWR (a)
6.0L V8–Conventional Trailer4.106486kg (14,300lb) 9571kg (21,100lb)
6.0L V8–Fifth-Wheel Trailer4.106441kg (14,200lb) 9571kg (21,100lb)
2500 Series 4WD Double Cab Standard Box
6.0L V83.734400kg (9,700lb) 7530kg (16,600lb)
6.0L V8–Conventional Trailer4.105897kg (13,000lb) 9571kg (21,100lb)
6.0L V8–Fifth-Wheel Trailer4.106441kg (14,200lb) 9571kg (21,100lb)
2500 Series 4WD Crew Cab Standard Box
6.0L V83.734309kg (9,500lb) 7530kg (16,600lb)
6.0L V8–Conventional Trailer4.105897kg (13,000lb) 9571kg (21,100lb)
6.0L V8–Fifth-Wheel Trailer4.106350kg (14,000lb) 9571kg (21,100lb)
2500 Series 4WD Regular Cab Long Box
6.0L V83.734536kg (10,000lb) 7530kg (16,600lb)
6.0L V8–Conventional Trailer4.106577kg (14,500lb) 9571kg (21,100lb)
6.0L V8–Fifth-Wheel Trailer4.106577kg (14,500lb) 9571kg (21,100lb)
2500 Series 4WD Double Cab Long Box
6.0L V83.734354kg (9,600lb) 7530kg (16,600lb)
6.0L V8–Conventional Trailer4.106396kg (14,100lb) 9571kg (21,100lb)
