CHEVROLET SILVERADO 2017 3.G Owners Manual

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
350 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 351California Proposition65 Warning . . . . . . . . . . . . . . . . . 351California PerchlorateMaterials Requirements . . . . . 352Accessories andModifications . . . . . . . . . . . . . . . . 352
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 353Hood . . . . . . . . . . . . . . . . . . . . . . . . . 353Engine CompartmentOverview . . . . . . . . . . . . . . . . . . . . 354Engine Oil . . . . . . . . . . . . . . . . . . . . 359Engine Oil Life System . . . . . . . 362Automatic Transmission Fluid(6-Speed Transmission) . . . . . 363Automatic Transmission Fluid(8-Speed Transmission) . . . . . 366Manual Transmission Fluid . . . 366Hydraulic Clutch . . . . . . . . . . . . . . 366Engine Air Cleaner/Filter . . . . . . 367Cooling System . . . . . . . . . . . . . . 368Engine Coolant . . . . . . . . . . . . . . . 369Engine Overheating . . . . . . . . . . 372
Overheated Engine ProtectionOperating Mode . . . . . . . . . . . . . 374Engine Fan . . . . . . . . . . . . . . . . . . . 374Power Steering Fluid (1500Series) . . . . . . . . . . . . . . . . . . . . . . 375Power Steering Fluid (2500/3500 Series) . . . . . . . . . . . . . . . . 375Washer Fluid . . . . . . . . . . . . . . . . . 375Brakes . . . . . . . . . . . . . . . . . . . . . . . 376Brake Fluid . . . . . . . . . . . . . . . . . . . 377Battery - North America . . . . . . 378Four-Wheel Drive . . . . . . . . . . . . . 379Front Axle . . . . . . . . . . . . . . . . . . . . 380Rear Axle . . . . . . . . . . . . . . . . . . . . 380Noise Control System . . . . . . . . 382Starter Switch Check . . . . . . . . . 383Automatic Transmission ShiftLock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 383Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . 383Park Brake and P (Park)Mechanism Check . . . . . . . . . . 384Wiper Blade Replacement . . . . 384Glass Replacement . . . . . . . . . . 385
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 385
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 385
Halogen Bulbs . . . . . . . . . . . . . . . . 385High Intensity Discharge (HID)Lighting . . . . . . . . . . . . . . . . . . . . . 386LED Lighting . . . . . . . . . . . . . . . . . 386Headlamps, Front Turn Signal,Sidemarker, and ParkingLamps . . . . . . . . . . . . . . . . . . . . . . 386Fog Lamps . . . . . . . . . . . . . . . . . . . 387Ta i l l a m p s ( C h a s s i s C a bModels) . . . . . . . . . . . . . . . . . . . . . 387Ta i l l a m p s , T u r n S i g n a l ,Stoplamps, and Back-UpLamps . . . . . . . . . . . . . . . . . . . . . . 387Center High-MountedStoplamp (CHMSL) andCargo Lamp . . . . . . . . . . . . . . . . . 389Replacement Bulbs . . . . . . . . . . . 389
Electrical System
High Voltage Devices andWiring . . . . . . . . . . . . . . . . . . . . . . . 389Electrical System Overload . . . 389Fuses . . . . . . . . . . . . . . . . . . . . . . . . 390Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 390Instrument Panel Fuse Block(Right) . . . . . . . . . . . . . . . . . . . . . . 393Instrument Panel FuseBlock (Left) . . . . . . . . . . . . . . . . . 395

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 351
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 397All-Season Tires . . . . . . . . . . . . . . 398Winter Tires . . . . . . . . . . . . . . . . . . 398Low-Profile Tires . . . . . . . . . . . . . 399All-Terrain Tires . . . . . . . . . . . . . . . 399Tire Sidewall Labeling . . . . . . . . 399Tire Designations . . . . . . . . . . . . . 402Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 403Tire Pressure . . . . . . . . . . . . . . . . . 405Tire Pressure for High-SpeedOperation . . . . . . . . . . . . . . . . . . . 407Tire Pressure MonitorSystem . . . . . . . . . . . . . . . . . . . . . . 407Tire Pressure MonitorOperation . . . . . . . . . . . . . . . . . . . 408Tire Inspection . . . . . . . . . . . . . . . . 411Tire Rotation . . . . . . . . . . . . . . . . . 412When It Is Time for NewTires . . . . . . . . . . . . . . . . . . . . . . . . 414Buying New Tires . . . . . . . . . . . . . 415Different Size Tires andWheels . . . . . . . . . . . . . . . . . . . . . . 416Uniform Tire QualityGrading . . . . . . . . . . . . . . . . . . . . . 417Wheel Alignment and TireBalance . . . . . . . . . . . . . . . . . . . . . 418Wheel Replacement . . . . . . . . . . 418Tire Chains . . . . . . . . . . . . . . . . . . . 419If a Tire Goes Flat . . . . . . . . . . . . 420
Tire Changing . . . . . . . . . . . . . . . . 422Full-Size Spare Tire . . . . . . . . . . 431
Jump Starting
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . 432
Towing the Vehicle
To w i n g t h e V e h i c l e . . . . . . . . . . . 4 3 6Recreational VehicleTo w i n g . . . . . . . . . . . . . . . . . . . . . . 4 3 7
Appearance Care
Exterior Care . . . . . . . . . . . . . . . . . 441Interior Care . . . . . . . . . . . . . . . . . . 446Floor Mats . . . . . . . . . . . . . . . . . . . . 449
General Information
For service and parts needs, visityour dealer. You will receivegenuine GM parts and GM-trainedand supported service people.
Genuine GM parts have one ofthese marks:
California Proposition
65 Warning
WARNING:Most motor vehicles,including this one, as well as manyof its service parts and fluids,contain and/or emit chemicalsknown to the State of California to

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
352 Vehicle Care
cause cancer and birth defects orother reproductive harm. Engineexhaust, many parts and systems,many fluids, and some componentwear by-products contain and/oremit these chemicals.
SeeBattery - North America0378andJump Starting - NorthAmerica0432.
California Perchlorate
Materials Requirements
Certain types of automotiveapplications, such as airbaginitiators, safety belt pretensioners,and lithium batteries contained inRemote Keyless Entry transmitters,may contain perchlorate materials.Special handling may be necessary.For additional information, seewww.dtsc.ca.gov/hazardouswaste/perchlorate.
Accessories and
Modifications
Adding non-dealer accessories ormaking modifications to the vehiclecan affect vehicle performance andsafety, including such things asairbags, braking, stability, ride andhandling, emissions systems,aerodynamics, durability, andelectronic systems like antilockbrakes, traction control, and stabilitycontrol. These accessories ormodifications could even causemalfunction or damage not coveredby the vehicle warranty.
Damage to suspension componentscaused by modifying vehicle heightoutside of factory settings will not becovered by the vehicle warranty.
Damage to vehicle componentsresulting from modifications or theinstallation or use of non-GMcertified parts, including controlmodule or software modifications, isnot covered under the terms of thevehicle warranty and may affectremaining warranty coverage foraffected parts.
GM Accessories are designed tocomplement and function with othersystems on the vehicle. See yourdealer to accessorize the vehicleusing genuine GM Accessoriesinstalled by a dealer technician.
Also, seeAdding Equipment to theAirbag-Equipped Vehicle087.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 353
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own servicework, use the proper servicemanual. It tells you much moreabout how to service the vehiclethan this manual can. To order theproper service manual, seeServicePublications OrderingInformation0481.
This vehicle has an airbag system.Before attempting to do your ownservice work, seeServicing theAirbag-Equipped Vehicle086.
Keep a record with all parts receiptsand list the mileage and the date ofany service work performed. SeeMaintenance Records0466.
Caution
Even small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks.
Hood
To o p e n t h e h o o d :
1. Pull the handle with this symbolon it. It is inside the vehicleunder the steering wheel.
2. Go to the front of the vehicle tofind the secondary hoodrelease. The handle is underthe front edge of the hood nearthe center. Push the handle tothe right and at the same timeraise the hood.
Before closing the hood, be sure allthe filler caps are on properly. Thenbring the hood from full open towithin 15 cm (6 in) from the closedposition, pause, and push the frontcenter of the hood with a swift, firmmotion to fully close the hood.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
354 Vehicle Care

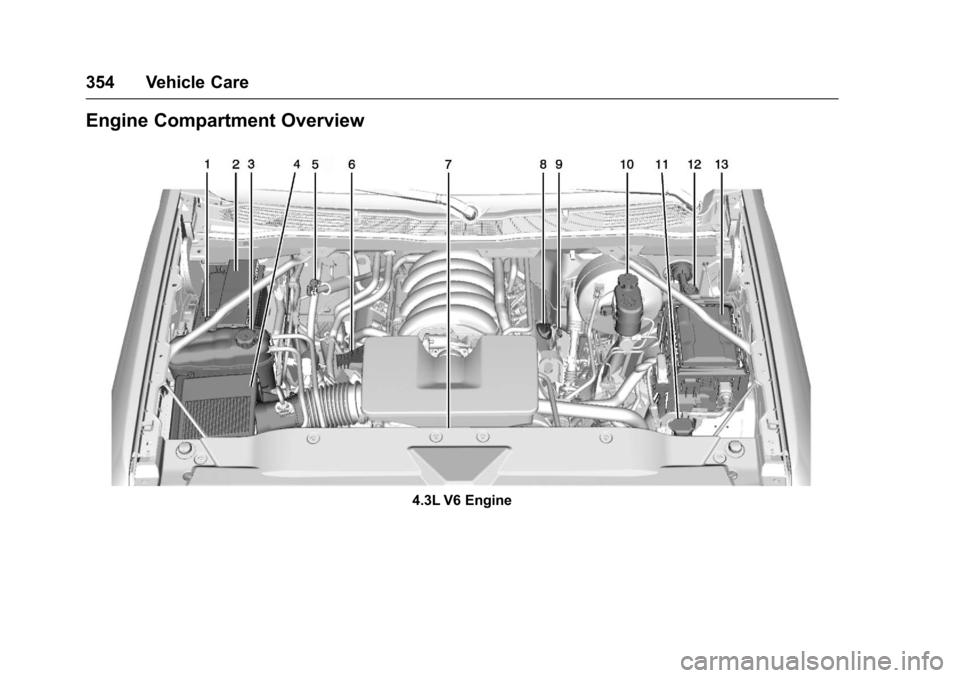

Engine Compartment Overview
4.3L V6 Engine

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 355
1. Positive (+) Terminal. SeeJump Starting - NorthAmerica0432.
2.Battery - North America0378.
3. Coolant Surge Tank andPressure Cap. SeeCoolingSystem0368.
4.Engine Air Cleaner/Filter0367.
5. Automatic TransmissionDipstick (If Equipped). See“How to Check AutomaticTransmission Fluid”underAutomatic Transmission Fluid(6-Speed Transmission)0363orAutomatic TransmissionFluid (8-SpeedTr a n s m i s s i o n )0366.
6. Remote Negative (–)Location.SeeJump Starting - NorthAmerica0432.
7. Engine Cooling Fans (Out ofView). SeeCoolingSystem0368.
8. Engine Oil Fill Cap. See“Whento Add Engine Oil”underEngine Oil0359.
9. Engine Oil Dipstick. See“Checking Engine Oil”underEngine Oil0359.
10. Brake Fluid Reservoir. SeeBrake Fluid0377.
11 . W i n d s h i e l d Wa s h e r F l u i dReservoir. See“Adding WasherFluid”underWasherFluid0375.
12. Clutch Fluid Reservoir (IfEquipped). SeeHydraulicClutch0366.
13.Engine Compartment FuseBlock0390.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
356 Vehicle Care

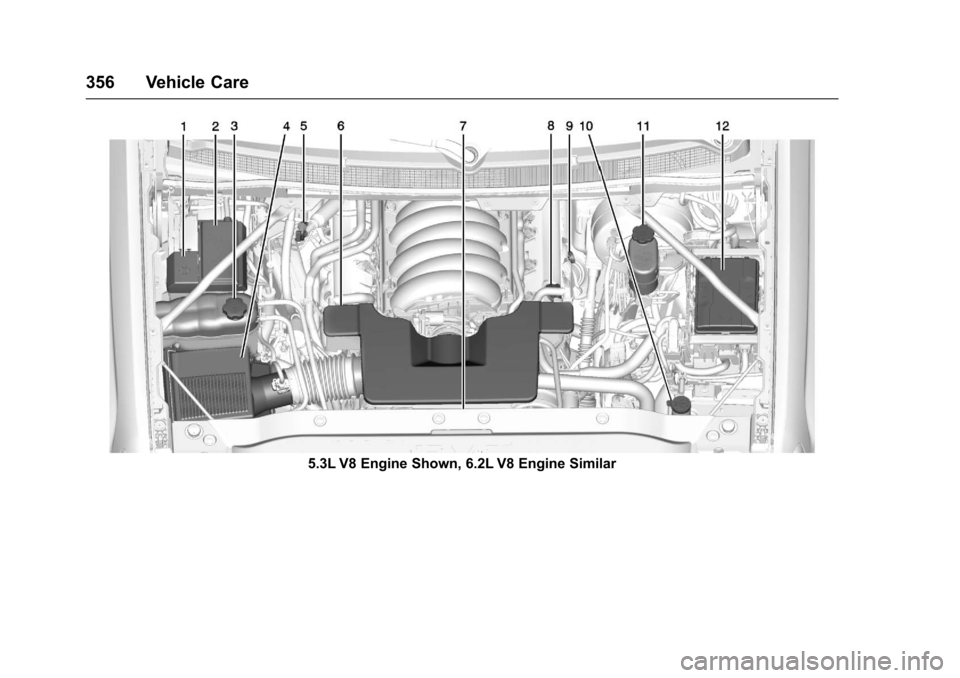

5.3L V8 Engine Shown, 6.2L V8 Engine Similar

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 357
1. Positive (+) Terminal. SeeJump Starting - NorthAmerica0432.
2.Battery - North America0378.
3. Coolant Surge Tank andPressure Cap. SeeCoolingSystem0368.
4.Engine Air Cleaner/Filter0367.
5. Automatic TransmissionDipstick (If Equipped). See“How to Check AutomaticTransmission Fluid”underAutomatic Transmission Fluid(6-Speed Transmission)0363orAutomatic TransmissionFluid (8-SpeedTr a n s m i s s i o n )0366.
6. Remote Negative (–)Location(Out of View). SeeJumpStarting - North America0432.
7. Engine Cooling Fans (Out ofView). SeeCoolingSystem0368.
8. Engine Oil Fill Cap. See“Whento Add Engine Oil”underEngine Oil0359.
9. Engine Oil Dipstick. See“Checking Engine Oil”underEngine Oil0359.
10. Windshield Washer FluidReservoir. See“Adding WasherFluid”underWasherFluid0375.
11 . B r a k e F l u i d R e s e r v o i r. S e eBrake Fluid0377.
12.Engine Compartment FuseBlock0390.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
358 Vehicle Care

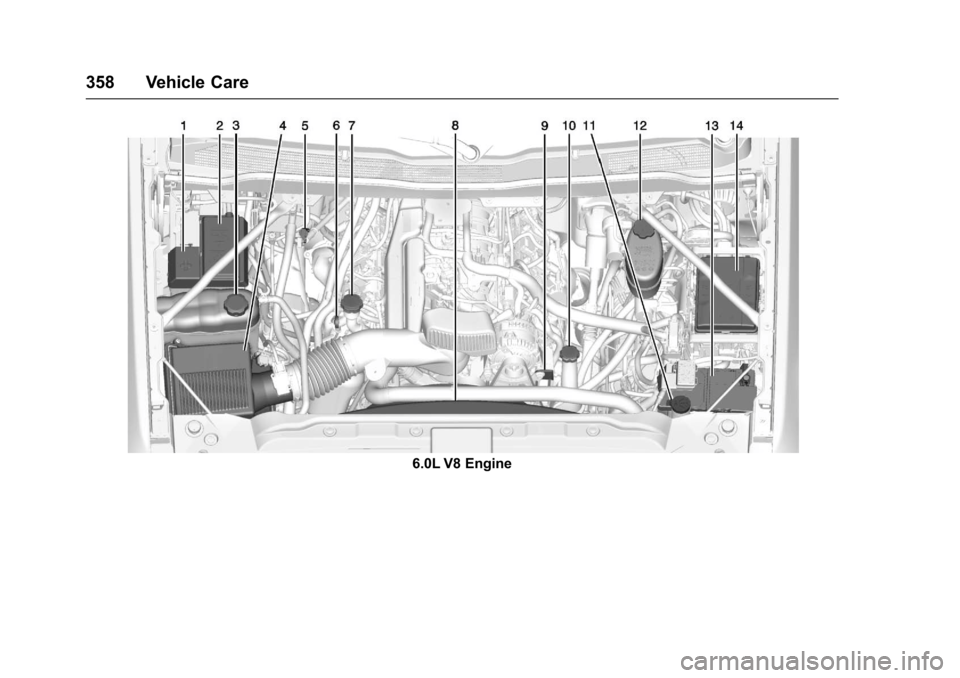

6.0L V8 Engine

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 359
1. Positive (+) Terminal. SeeJump Starting - NorthAmerica0432.
2.Battery - North America0378.
3. Coolant Surge Tank andPressure Cap. SeeCoolingSystem0368.
4.Engine Air Cleaner/Filter0367.
5. Automatic TransmissionDipstick (If Equipped). See“How to Check AutomaticTransmission Fluid”underAutomatic Transmission Fluid(6-Speed Transmission)0363orAutomatic TransmissionFluid (8-SpeedTr a n s m i s s i o n )0366.
6. Engine Oil Dipstick. See“Checking Engine Oil”underEngine Oil0359.
7. Engine Oil Fill Cap. See“Whento Add Engine Oil”underEngine Oil0359.
8. Engine Cooling Fan (Out ofView). SeeCoolingSystem0368.
9. Remote Negative (–)Location.SeeJump Starting - NorthAmerica0432.
10. Power Steering FluidReservoir. SeePower SteeringFluid (1500 Series)0375orPower Steering Fluid (2500/3500 Series)0375.
11 . W i n d s h i e l d Wa s h e r F l u i dReservoir. See“Adding WasherFluid”underWasherFluid0375.
12. Brake Fluid Reservoir. SeeBrake Fluid0377.
13. Auxiliary Battery (If Equipped).SeeBattery - NorthAmerica0378.
14.Engine Compartment FuseBlock0390.
If the vehicle has a diesel engineand/or an Allison Transmission, seethe Duramax diesel supplement.
For an eAssist vehicle, see theSilverado/Sierra eAssistsupplement.
Engine Oil
For diesel engine vehicles, see“Engine Oil”in the Duramax dieselsupplement.
To e n s u r e p r o p e r e n g i n eperformance and long life, carefulattention must be paid to engine oil.Following these simple, butimportant steps will help protectyour investment:
.Use engine oil approved to theproper specification and of theproper viscosity grade. See“Selecting the Right Engine Oil”in this section.
.Check the engine oil levelregularly and maintain theproper oil level. See“CheckingEngine Oil”and“When to AddEngine Oil”in this section.
.Change the engine oil at theappropriate time. SeeEngine OilLife System0362.
.Always dispose of engine oilproperly. See“What to Do withUsed Oil”in this section.
