clock CHRYSLER CARAVAN 2003 Workshop Manual

8W-41 HORN/CIGAR LIGHTER/POWER OUTLET
Component Page
Accessory Relay................... 8W-41-3, 4
Body Control Module................. 8W-41-3
Clockspring........................ 8W-41-2
Floor Console Power Outlet............ 8W-41-4
Front Cigar Lighter.................. 8W-41-3
Front Control Module............. 8W-41-2, 3, 4
Fuse 5.......................... 8W-41-3, 4
Fuse 6.......................... 8W-41-3, 4
Fuse 8............................ 8W-41-2
G102.............................. 8W-41-2
G200............................ 8W-41-3, 4Component Page
G302............................ 8W-41-3, 4
High Note Horn..................... 8W-41-2
Horn Relay......................... 8W-41-2
Horn Switch........................ 8W-41-2
Integrated Power Module.......... 8W-41-2, 3, 4
Low Note Horn...................... 8W-41-2
Power Outlet....................... 8W-41-4
PTC7............................. 8W-41-4
Radio............................. 8W-41-3
Rear Power outlet.................... 8W-41-3
RS8W-41 HORN/CIGAR LIGHTER/POWER OUTLET8W-41-1
ProCarManuals.com

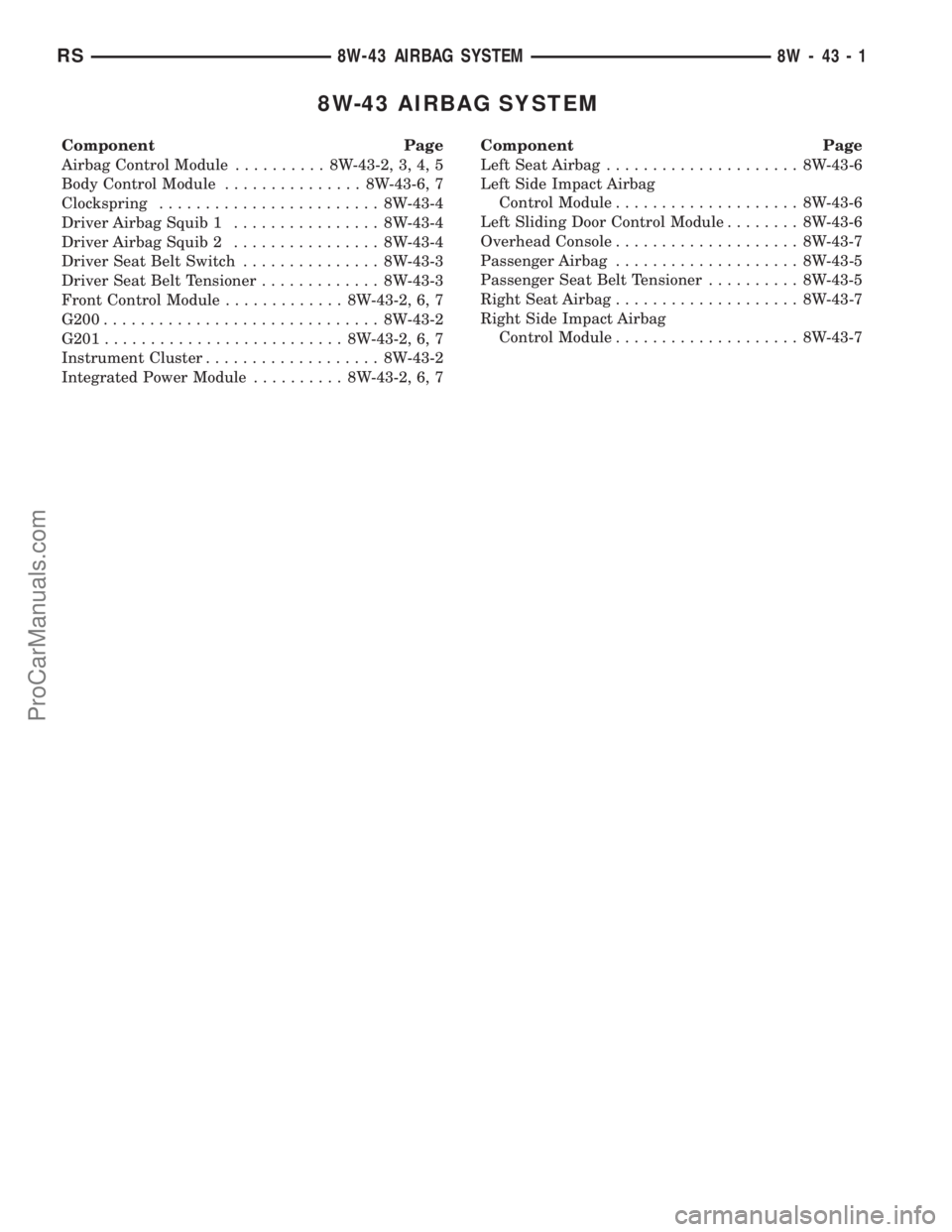

8W-43 AIRBAG SYSTEM
Component Page
Airbag Control Module.......... 8W-43-2, 3, 4, 5
Body Control Module............... 8W-43-6, 7
Clockspring........................ 8W-43-4
Driver Airbag Squib 1................ 8W-43-4
Driver Airbag Squib 2................ 8W-43-4
Driver Seat Belt Switch............... 8W-43-3
Driver Seat Belt Tensioner............. 8W-43-3
Front Control Module............. 8W-43-2, 6, 7
G200.............................. 8W-43-2
G201.......................... 8W-43-2, 6, 7
Instrument Cluster................... 8W-43-2
Integrated Power Module.......... 8W-43-2, 6, 7Component Page
Left Seat Airbag..................... 8W-43-6
Left Side Impact Airbag
Control Module.................... 8W-43-6
Left Sliding Door Control Module........ 8W-43-6
Overhead Console.................... 8W-43-7
Passenger Airbag.................... 8W-43-5
Passenger Seat Belt Tensioner.......... 8W-43-5
Right Seat Airbag.................... 8W-43-7
Right Side Impact Airbag
Control Module.................... 8W-43-7
RS8W-43 AIRBAG SYSTEM8W-43-1
ProCarManuals.com

8W-45 BODY CONTROL MODULE
Component Page
A/C-Heater Control............... 8W-45-16, 19
Auto Temp Control............... 8W-45-16, 19
Automatic Day/Night Mirror........... 8W-45-11
Body Control Module....... 8W-45-2, 3, 4, 5, 6, 7,
8, 9, 10, 11, 12, 13, 15,
16, 17, 18, 19, 20
CD Changer....................... 8W-45-17
Center Dome Lamp................. 8W-45-13
Center Dome Lamp.................. 8W-45-9
Clockspring........................ 8W-45-17
Controller Antilock Brake............. 8W-45-13
Driver Door Courtesy Lamp........... 8W-45-15
Driver Door Lock Switch............. 8W-45-12
Driver Door Lock Switch............. 8W-45-15
Driver Heated Seat Module........... 8W-45-11
DVD/CD.......................... 8W-45-17
Floor Console Lamp................. 8W-45-13
Front Cigar Lighter................. 8W-45-17
Front Control Module................. 8W-45-3
Front Reading Lamps/Switch....... 8W-45-13, 15
Fuel Pump Module.................. 8W-45-15
Fuse 14............................ 8W-45-3
Fuse 19............................ 8W-45-2
Fuse 20............................ 8W-45-2
Fuse 24............................ 8W-45-2
G301............................ 8W-45-2, 8
Headlamp Switch............. 8W-45-11, 16, 20
Hood Ajar Switch................... 8W-45-12
Ignition Switch...................... 8W-45-3
Instrument Cluster............ 8W-45-16, 18, 19
Instrument Panel Switch
Bank.................. 8W-45-10, 11, 17, 19
Integrated Power Module..... 8W-45-2, 3, 5, 6, 13
Left B-Pillar Switch.................. 8W-45-9
Left Cylinder Lock Switch............ 8W-45-10
Left Front Door Lock Motor/Ajar
Switch........................ 8W-45-4, 7
Left Liftgate Flood Lamp............. 8W-45-12
Left Mid Reading Lamp............ 8W-45-9, 14
Left Power Mirror................... 8W-45-20
Left Rear Lamp Assembly........... 8W-45-5, 6
Left Rear Reading Lamp........... 8W-45-9, 14
Left Remote Radio Switch............ 8W-45-17
Left Repeater Lamp................. 8W-45-20
Left Sliding Door Control Module..... 8W-45-8, 10
Left Sliding Door Lock Motor........... 8W-45-7Component Page
Left Sliding Door Lock Motor/Ajar
Switch........................ 8W-45-7, 8
Left Stop/Turn Signal Relay............ 8W-45-5
Left Visor/Vanity Lamp.............. 8W-45-13
License Lamp....................... 8W-45-8
Liftgate Ajar Switch................. 8W-45-12
Liftgate Cinch/Release Motor.......... 8W-45-12
Liftgate Cylinder Lock Switch.......... 8W-45-9
Memory Set Switch.................. 8W-45-4
Message Center.................... 8W-45-18
Multi-Function Switch............... 8W-45-16
Name Brand Speaker Relay............ 8W-45-3
Overhead Console................. 8W-45-4, 11
Passenger Door Courtesy Lamp........ 8W-45-15
Passenger Door Lock Switch........ 8W-45-12, 15
Passenger Folding Mirror Relay........ 8W-45-20
Passenger Heated Seat Module........ 8W-45-11
Power Folding Mirror Switch.......... 8W-45-20
Power Liftgate Module............. 8W-45-8, 12
Radio............................ 8W-45-17
Rear Auto Temp Control Switch..... 8W-45-10, 19
Rear Blower Rear Control Switch....... 8W-45-10
Rear Dome Lamp.................... 8W-45-9
Rear Wiper Motor.................... 8W-45-8
Remote Keyless Entry Module....... 8W-45-4, 16
Right B-Pillar Switch................. 8W-45-9
Right Combination Relay.............. 8W-45-5
Right Cylinder Lock Switch........... 8W-45-10
Right Front Door Lock Motor/Ajar
Switch........................ 8W-45-7, 9
Right Liftgate Flood Lamp............ 8W-45-12
Right Mid Reading Lamp........... 8W-45-9, 14
Right Power Mirror................. 8W-45-20
Right Rear Lamp Assembly.......... 8W-45-5, 6
Right Rear Reading Lamp.......... 8W-45-9, 14
Right Remote Radio Switch........... 8W-45-17
Right Repeater Lamp................ 8W-45-20
Right Sliding Door Control Module.... 8W-45-8, 10
Right Sliding Door Lock Motor.......... 8W-45-7
Right Sliding Door Lock Motor/Ajar
Switch........................ 8W-45-7, 8
Right Visor/Vanity Lamp............. 8W-45-13
Sentry Key Immobilizer Module......... 8W-45-3
Thatcham Alarm Module............. 8W-45-10
Traction Control Switch.............. 8W-45-17
RS8W-45 BODY CONTROL MODULE8W-45-1
ProCarManuals.com

8W-47 AUDIO SYSTEM
Component Page
Accessory Relay................... 8W-47-2, 5
Antenna........................... 8W-47-5
Body Control Module............. 8W-47-2, 5, 7
CD Changer....................... 8W-47-13
Clockspring........................ 8W-47-7
DVD Screen....................... 8W-47-11
DVD/CD....................... 8W-47-11, 12
Front Cigar Lighter................ 8W-47-2, 5
Front Control Module............. 8W-47-2, 5, 6
Fuse 5.......................... 8W-47-2, 5
Fuse 14....................... 8W-47-2, 6, 12
G200............................. 8W-47-12
G202....................... 8W-47-2, 5, 9, 10
Integrated Power Module....... 8W-47-2, 5, 6, 12Component Page
Left Door Speaker............... 8W-47-3, 8, 9
Left Instrument Panel Speaker....... 8W-47-3, 8
Left Rear Pillar Speaker.............. 8W-47-10
Left Rear Speaker............... 8W-47-4, 6, 10
Left Remote Radio Switch............. 8W-47-7
Name Brand Speaker Relay............ 8W-47-6
Radio........... 8W-47-2, 3, 4, 5, 6, 9, 10, 12, 13
Right Door Speaker.............. 8W-47-3, 8, 9
Right Instrument Panel Speaker...... 8W-47-3, 8
Right Rear Pillar Speaker............ 8W-47-10
Right Rear Speaker............. 8W-47-4, 6, 10
Right Remote Radio Switch............ 8W-47-7
RS8W-47 AUDIO SYSTEM8W-47-1
ProCarManuals.com

Component Page
C313 (Rear Console)................. 8W-80-39
C313 (Rear Console)................. 8W-80-39
C314 (Highline).................... 8W-80-40
C314 (Highline).................... 8W-80-40
C315 (Highline).................... 8W-80-41
C315 (Highline).................... 8W-80-41
C316 (Power Sliding Door)............ 8W-80-41
C316 (Power Sliding Door)............ 8W-80-42
C317 (Power Sliding Door)............ 8W-80-42
C317 (Power Sliding Door)............ 8W-80-42
C318 (Trailer Tow).................. 8W-80-43
C318 (Trailer Tow).................. 8W-80-43
C319 (Lowline)..................... 8W-80-43
C319 (Lowline)..................... 8W-80-44
C320............................. 8W-80-44
C320............................. 8W-80-44
C321............................. 8W-80-44
C321............................. 8W-80-45
C322 (Memory)..................... 8W-80-45
C322 (Memory)..................... 8W-80-45
C324 (Manual Sliding Door)........... 8W-80-46
C324 (Manual Sliding Door)........... 8W-80-46
C325 (Manual Sliding Door)........... 8W-80-46
C325 (Manual Sliding Door)........... 8W-80-46
C326............................. 8W-80-46
C326............................. 8W-80-47
C327............................. 8W-80-47
C327............................. 8W-80-47
C328 (Sunroof)..................... 8W-80-47
C328 (Sunroof)..................... 8W-80-47
C329 (Diesel)...................... 8W-80-48
C329 (Diesel)...................... 8W-80-48
C330 (Diesel)...................... 8W-80-48
C330 (Diesel)...................... 8W-80-48
C331 (Diesel)...................... 8W-80-48
C331 (Diesel)...................... 8W-80-49
C332 (3 Zone ATC).................. 8W-80-49
C332 (3 Zone ATC).................. 8W-80-49
Cabin Heater Assist C1 (Diesel)........ 8W-80-50
Cabin Heater Assist C2 (Diesel)........ 8W-80-50
Camshaft Position Sensor (Diesel)...... 8W-80-50
Camshaft Position Sensor (Gas)........ 8W-80-50
CD Changer....................... 8W-80-51
Center Dome Lamp (Base/Highline)..... 8W-80-51
Center High Mounted Stop Lamp....... 8W-80-51
Clockspring C1..................... 8W-80-51
Clockspring C2..................... 8W-80-52
Clockspring C3..................... 8W-80-52
Clockspring C4..................... 8W-80-52
Clutch Pedal Interlock Switch (MTX).... 8W-80-52
Clutch Pedal Upstop Switch (Diesel).... 8W-80-52
Controller Antilock Brake............. 8W-80-53
Crank Case Ventilation Heater (Diesel) . . 8W-80-53
Crankshaft Position Sensor (Diesel)..... 8W-80-53Component Page
Crankshaft Position Sensor (Gas)....... 8W-80-54
Data Link Connector................ 8W-80-54
Dosing Pump (Diesel)................ 8W-80-54
Driver Airbag Squib 1................ 8W-80-55
Driver Airbag Squib 2................ 8W-80-55
Driver Blend Door Actuator (ATC)...... 8W-80-55
Driver Blend Door Actuator (MTC)...... 8W-80-55
Driver Door Courtesy Lamp........... 8W-80-56
Driver Door Lock Switch............. 8W-80-56
Driver Heated Seat Back............. 8W-80-56
Driver Heated Seat Cushion........... 8W-80-56
Driver Heated Seat Module C1......... 8W-80-56
Driver Heated Seat Module C2......... 8W-80-57
Driver Heated Seat Module C3......... 8W-80-57
Driver Power Seat Front Riser Motor.... 8W-80-57
Driver Power Seat Front Riser Position
Sensor......................... 8W-80-57
Driver Power Seat Horizontal Motor.... 8W-80-58
Driver Power Seat Horizontal Position
Sensor......................... 8W-80-58
Driver Power Seat Rear Riser Motor.... 8W-80-58
Driver Power Seat Rear Riser Position
Sensor......................... 8W-80-58
Driver Power Seat Recliner Motor...... 8W-80-58
Driver Power Seat Recliner Position
Sensor......................... 8W-80-59
Driver Power Seat Switch............ 8W-80-59
Driver Power Window Motor.......... 8W-80-59
Driver Power Window Switch
(LHD Except Lowline)............. 8W-80-60
Driver Power Window Switch (LHD
Lowline)........................ 8W-80-60
Driver Power Window Switch (RHD).... 8W-80-60
Driver Seat Belt Switch.............. 8W-80-61
Driver Seat Belt Tensioner............ 8W-80-61
DVD Screen....................... 8W-80-61
DVD/CD Changer C1................ 8W-80-61
DVD/CD Changer C2................ 8W-80-62
DVD/CD Changer C3................ 8W-80-62
EGR Solenoid (3.3L/3.8L Export)....... 8W-80-62
EGR Solenoid (Diesel)............... 8W-80-62
Engine Control Module C1 (Diesel)..... 8W-80-63
Engine Control Module C2 (Diesel)..... 8W-80-64
Engine Coolant Temp Sensor (Diesel).... 8W-80-65
Engine Coolant Temp Sensor (Gas)..... 8W-80-65
Engine Oil Pressure Sensor (Diesel)..... 8W-80-66
Engine Oil Pressure Switch (Gas)...... 8W-80-66
EVAP/Purge Solenoid (Gas)........... 8W-80-66
Evaporator Temperature Sensor........ 8W-80-66
Floor Console Lamp................. 8W-80-67
Floor Console Power Outlet........... 8W-80-67
Front Blower Module C1 (ATC)........ 8W-80-67
Front Blower Module C2 (ATC)........ 8W-80-67
Front Cigar Lighter................. 8W-80-68
8W - 80 - 2 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

AMBIENT TEMPERATURE SENSOR (EXCEPT BASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G31 18VT/LG (EXCEPT 2.4L) AMBIENT TEMPERATURE SENSOR SIGNAL
1 G31 18VT/LG (2.4L) AAT SIGNAL
2 K900 18DB/DG (2.4L) SENSOR GROUND
2 G931 18VT/BR (EXCEPT 2.4L) AMBIENT TEMPERATURE SENSOR RETURN
ATC REMOTE SENSOR (ATC)-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTO TEMP CONTROL C1 - NATURAL 13 WAY
CAV CIRCUIT FUNCTION
1 C161 22LB/WT DRIVER BLEND DOOR DRIVER (B)
2 C61 22DB/LG DRIVER BLEND DOOR DRIVER (A)
3 C133 22DB/WT PASSENGER BLEND DOOR DRIVER (B)
4 C33 22LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C132 22DB/YL RECIRCULATION DOOR DRIVER (B)
6 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
7 C135 22DB/WT MODE DOOR DRIVER (B)
8 C35 22LB/LG MODE DOOR DRIVER (A)
9 C53 22LB REAR MODE DOOR DRIVER (A)
10 C154 22LB/OR REAR MODE DOOR DRIVER (B)
11 C54 22LB/YL REAR BLEND DOOR DRIVER (A)
12 C169 22DB/OR REAR BLEND DOOR DRIVER (B)
13 - -
AUTO TEMP CONTROL C2 - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 C21 22LB (LHD) EVAPORATOR TEMPERATURE SENSOR SIGNAL
1 C21 22LB (RHD) EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 22DB/DG (RHD) SENSOR GROUND
2 C121 20DB/DG (LHD) SENSOR GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 A114 18GY/RD FUSED B(+) (I.O.D.)
5 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
6 D25 20WT/VT PCI BUS
7 C56 22DB/VT (LHD) BLOWER MOTOR CONTROL
7 C56 22DB/LB (RHD) BLOWER MOTOR CONTROL
8 C59 22DB/LB REAR BLOWER MOTOR CONTROL
9 D22 20WT/TN (3 ZONE) KDB CLOCK
10 D17 22WT/DG KDB DATA
11 Z24 18BK/OR GROUND
12 - -
13 - -
RS8W-80 CONNECTOR PIN-OUTS8W-80-9
ProCarManuals.com

AUTO TEMP CONTROL C3-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTOMATIC DAY/NIGHT MIRROR (PREMIUM/LUXURY) - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 F503 20BK/PK FUSED IGNITION SWITCH OUTPUT (RUN)
2 Z113 20BK GROUND
3 L1 20BK/WT BACK-UP LAMP FEED
4 P112 20BK/OR (EXCEPT EXPORT) MIRROR B(+)
5 P114 20BK/LB (EXCEPT EXPORT) MIRROR B(-)
6- -
7 L24 20BK/GY (EXCEPT EXPORT) AUTOMATIC HEADLAMP SWITCH SENSOR
AUTOSTICK SWITCH (EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T55 20YL/VT AUTOSTICK/OVERDRIVE OFF MUX INPUT
2 Z65 20BK/YL GROUND
BACK-UP LAMP SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T2 18DG/WT TRS REVERSE SENSE
2 Z252 18BK/WT GROUND
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

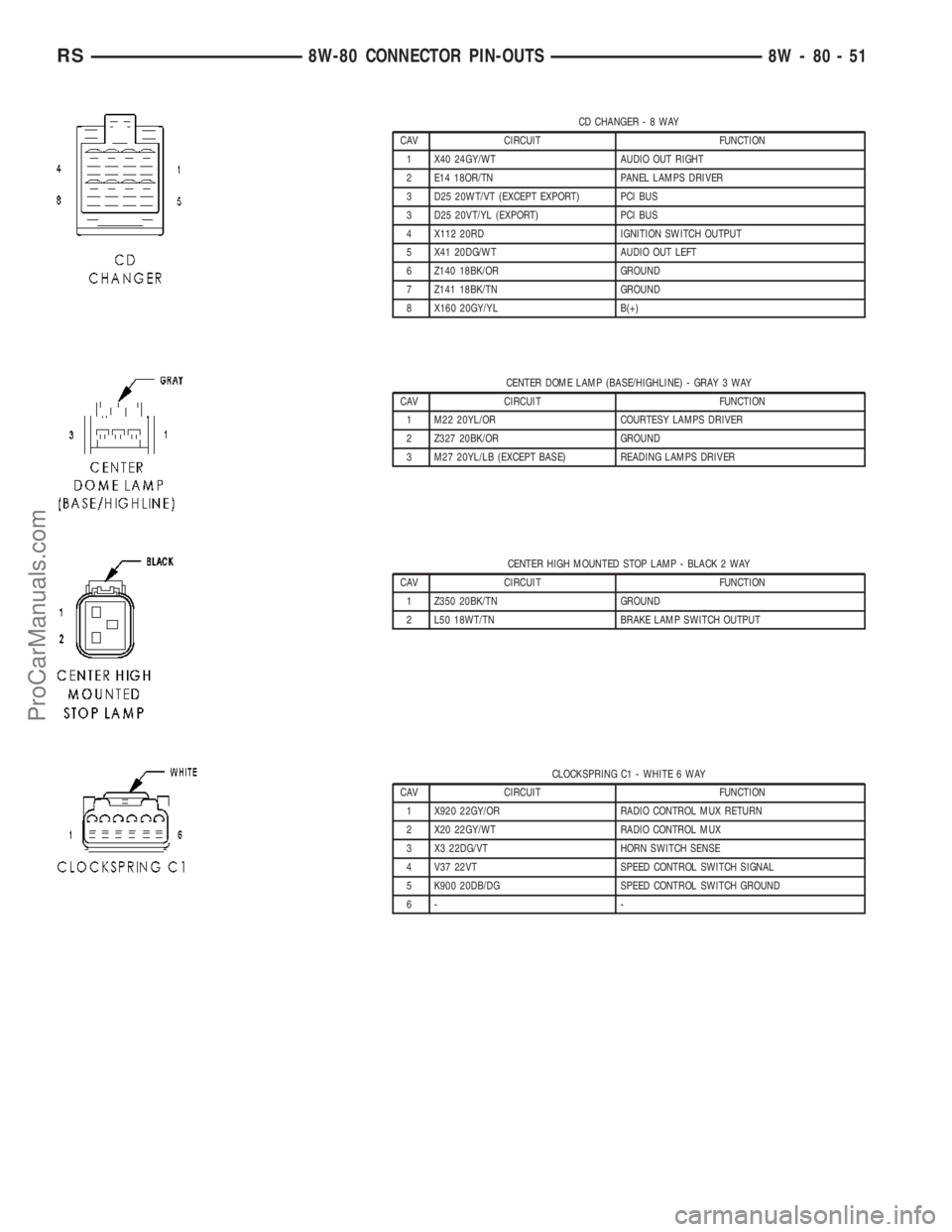

CD CHANGER-8WAY
CAV CIRCUIT FUNCTION
1 X40 24GY/WT AUDIO OUT RIGHT
2 E14 18OR/TN PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT EXPORT) PCI BUS
3 D25 20VT/YL (EXPORT) PCI BUS
4 X112 20RD IGNITION SWITCH OUTPUT
5 X41 20DG/WT AUDIO OUT LEFT
6 Z140 18BK/OR GROUND
7 Z141 18BK/TN GROUND
8 X160 20GY/YL B(+)
CENTER DOME LAMP (BASE/HIGHLINE) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB (EXCEPT BASE) READING LAMPS DRIVER
CENTER HIGH MOUNTED STOP LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z350 20BK/TN GROUND
2 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
CLOCKSPRING C1 - WHITE 6 WAY
CAV CIRCUIT FUNCTION
1 X920 22GY/OR RADIO CONTROL MUX RETURN
2 X20 22GY/WT RADIO CONTROL MUX
3 X3 22DG/VT HORN SWITCH SENSE
4 V37 22VT SPEED CONTROL SWITCH SIGNAL
5 K900 20DB/DG SPEED CONTROL SWITCH GROUND
6- -
RS8W-80 CONNECTOR PIN-OUTS8W-80-51
ProCarManuals.com

CLOCKSPRING C2 - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R61 18LG/DB DRIVER SQUIB 2 LINE 1
2 R63 18LG/WT DRIVER SQUIB 2 LINE 2
3 R43 18LG/BR DRIVER SQUIB 1 LINE 1
4 R45 18LG/OR DRIVER SQUIB 1 LINE 2
CLOCKSPRING C3 - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z23 20BK/VT LEFT SPEED CONTROL SWITCH GROUND
2 Z23 20BK/VT RIGHT SPEED CONTROL SWITCH GROUND
3 V37 20VT (EXCEPT 2.4L) SPEED CONTROL SWITCH SIGNAL
3 V37 20VT (2.4L) S/C SWITCH SIGNAL
3 V37 20VT (2.4L) S/C SWITCH SIGNAL
3 V37 20VT (EXCEPT 2.4L) SPEED CONTROL SWITCH SIGNAL
4 X3 20DG/VT HORN SWITCH SENSE
CLOCKSPRING C4 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
CLUTCH PEDAL INTERLOCK SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T141 20YL/OR FUSED IGNITION SWITCH OUTPUT (START)
2 T751 20YL (DIESEL) FUSED IGNITION SWITCH OUTPUT (START)
2 Z429 20BK/OR (GAS) GROUND
CLUTCH PEDAL UPSTOP SWITCH (DIESEL) - RED 2 WAY
CAV CIRCUIT FUNCTION
1 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
2 Z150 20BK/LG GROUND
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

REAR AUTO TEMP CONTROL SWITCH (3 ZONE ATC) - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
2 Z27 18BK/DG GROUND
3 D22 20WT/TN (SWB) KDB CLOCK
3 D22 22WT/TN (LWB) KDB CLOCK
4 D17 20WT/DG (SWB) KDB DATA
4 D17 22WT/DG (LWB) KDB DATA
5 E10 20OR/DG PANEL LAMPS DRIVER
6- -
7- -
8- -
9- -
10 - -
11 - -
12 - -
13 - -
REAR BLOWER FRONT CONTROL SWITCH (3 ZONE MTC) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z440 12BK/DG GROUND
3- -
4 C153 12DB/BR REAR BLOWER MOTOR HIGH
5- -
6 C152 16LB/LG REAR BLOWER MOTOR MED
7 C151 18LB/DG REAR BLOWER MOTOR LOW
8 C50 12DB/OR REAR BLOWER FRONT CONTROL FEED
REAR BLOWER MOTOR POWER MODULE C1 (3 ZONE ATC) - RED/BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C51 12DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
1 C51 18DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
2 C59 18DB/LB BLOWER MOTOR CONTROL
3 Z135 12BK/LB GROUND
4- -
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 115
