body CHRYSLER CARAVAN 2005 Service Manual

C309 (EXCEPT SIDE AIRBAG) - GRAY (RIGHT
DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 Z76 20BK (MANUAL SLIDING DOOR)
1 Z824 14BK (POWER SLIDING DOOR)
2 P34 20BK/TN
3 G76 20BK/DG
4 P38 20BK/DB
5 G152 20BK/GY (POWER SLIDING
DOOR)
6 D25 20BK/VT (POWER SLIDING DOOR)
7-
8 A113 14BK/RD (POWER SLIDING
DOOR)
C309 (SIDE AIRBAG) - GREEN (BODY SIDE)
CAV CIRCUIT
1 Z76 22BK/YL (MANUAL SLIDING
DOOR)
1 Z824 14BK/WT (POWER SLIDING
DOOR)
2 P34 20TN/LB
3 G76 20VT/YL
4 P38 20TN/DB
5 R18 20LB
6 A113 12WT/RD (POWER SLIDING
DOOR)
7 G152 22VT/GY (POWER SLIDING
DOOR)
8 D25 20WT/VT (HIGHLINE AUDIO
POWER SLIDING DOOR)
8 D25 20WT/VT (POWER SLIDING
DOOR)
10 R20 20WT/LG
C309 (SIDE AIRBAG) - GREEN (RIGHT DOOR
WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 Z76 20BK (MANUAL SLIDING DOOR)
1 Z824 14BK (POWER SLIDING DOOR)
2 P34 20BK/TN
3 G76 20BK/DG
4 P38 20BK/DB
5 R18 18LB
6 A113 14BK/RD (POWER SLIDING
DOOR)
7 G152 20BK/GY (POWER SLIDING
DOOR)
8 D25 20BK/VT (POWER SLIDING DOOR)
9-
10 R20 18WT/LG
RS8W-80 CONNECTOR PIN-OUTS8W-80-37

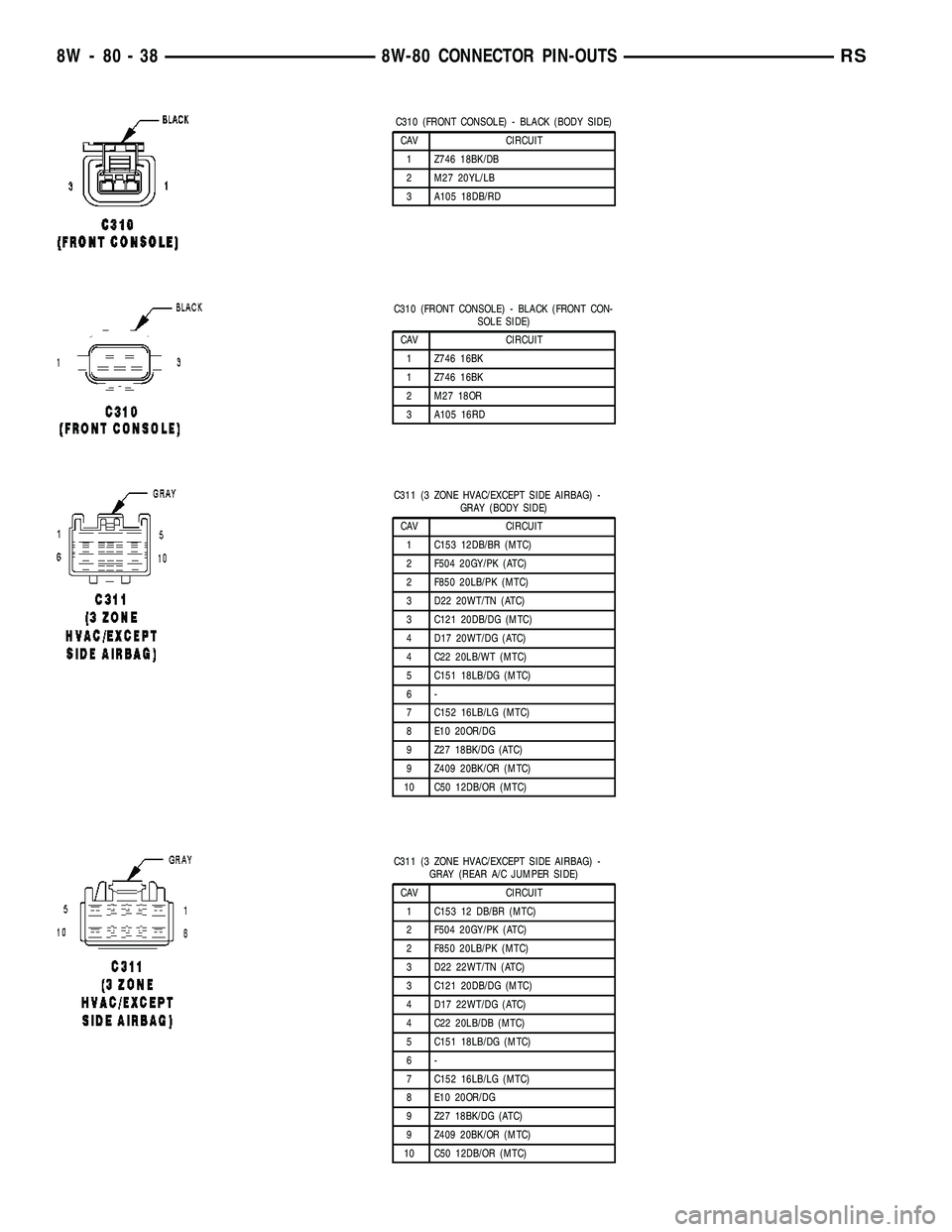

C310 (FRONT CONSOLE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 Z746 18BK/DB
2 M27 20YL/LB
3 A105 18DB/RD
C310 (FRONT CONSOLE) - BLACK (FRONT CON-
SOLE SIDE)
CAV CIRCUIT
1 Z746 16BK
1 Z746 16BK
2 M27 18OR
3 A105 16RD

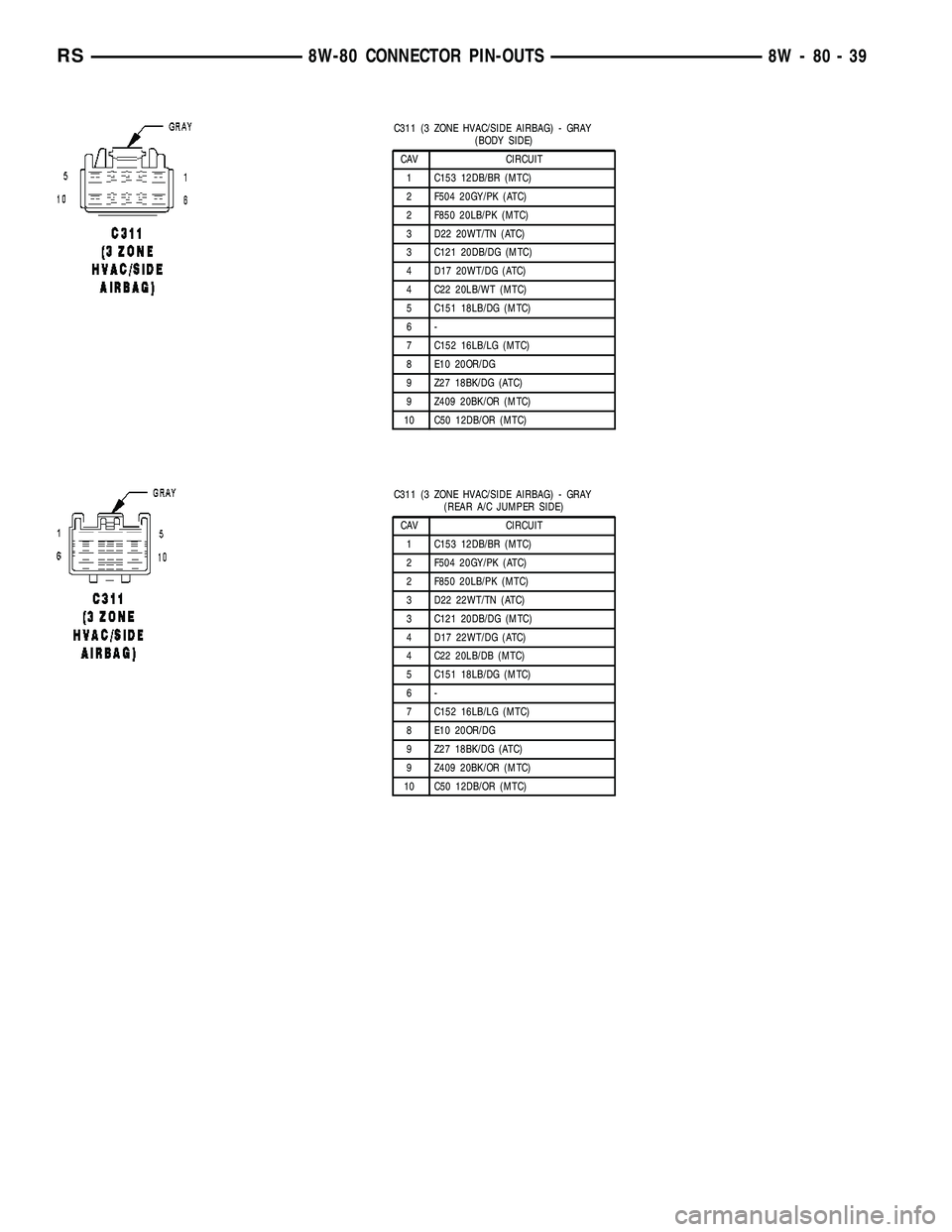

C311 (3 ZONE HVAC/EXCEPT SIDE AIRBAG) -
GRAY (BODY SIDE)
CAV CIRCUIT
1 C153 12DB/BR (MTC)
2 F504 20GY/PK (ATC)
2 F850 20LB/PK (MTC)
3 D22 20WT/TN (ATC)
3 C121 20DB/DG (MTC)
4 D17 20WT/DG (ATC)
4 C22 20LB/WT (MTC)
5 C151 18LB/DG (MTC)
6-
7 C152 16LB/LG (MTC)
8 E10 20OR/DG
9 Z27 18BK/DG (ATC)
9 Z409 20BK/OR (MTC)
10 C50 12DB/OR (MTC)
C311 (3 ZONE HVAC/EXCEPT SIDE AIRBAG) -
GRAY (REAR A/C JUMPER SIDE)
CAV CIRCUIT
1 C153 12 DB/BR (MTC)
2 F504 20GY/PK (ATC)
2 F850 20LB/PK (MTC)
3 D22 22WT/TN (ATC)
3 C121 20DB/DG (MTC)
4 D17 22WT/DG (ATC)
4 C22 20LB/DB (MTC)
5 C151 18LB/DG (MTC)
6-
7 C152 16LB/LG (MTC)
8 E10 20OR/DG
9 Z27 18BK/DG (ATC)
9 Z409 20BK/OR (MTC)
10 C50 12DB/OR (MTC)
8W - 80 - 38 8W-80 CONNECTOR PIN-OUTSRS

C311 (3 ZONE HVAC/SIDE AIRBAG) - GRAY
(BODY SIDE)
CAV CIRCUIT
1 C153 12DB/BR (MTC)
2 F504 20GY/PK (ATC)
2 F850 20LB/PK (MTC)
3 D22 20WT/TN (ATC)
3 C121 20DB/DG (MTC)
4 D17 20WT/DG (ATC)
4 C22 20LB/WT (MTC)
5 C151 18LB/DG (MTC)
6-
7 C152 16LB/LG (MTC)
8 E10 20OR/DG
9 Z27 18BK/DG (ATC)
9 Z409 20BK/OR (MTC)
10 C50 12DB/OR (MTC)
C311 (3 ZONE HVAC/SIDE AIRBAG) - GRAY
(REAR A/C JUMPER SIDE)
CAV CIRCUIT
1 C153 12DB/BR (MTC)
2 F504 20GY/PK (ATC)
2 F850 20LB/PK (MTC)
3 D22 22WT/TN (ATC)
3 C121 20DB/DG (MTC)
4 D17 22WT/DG (ATC)
4 C22 20LB/DB (MTC)
5 C151 18LB/DG (MTC)
6-
7 C152 16LB/LG (MTC)
8 E10 20OR/DG
9 Z27 18BK/DG (ATC)
9 Z409 20BK/OR (MTC)
10 C50 12DB/OR (MTC)
RS8W-80 CONNECTOR PIN-OUTS8W-80-39

C312 (EXCEPT SIDE AIRBAG) - GRAY (BODY SIDE)
CAV CIRCUIT
1 M27 20YL/LB
1 M27 20YL/LB (FRONT CONSOLE)
2 M22 20YL/OR
3 G23 22VT/DB (POWER SLIDING DOOR)
4 G25 22VT/TN (HIGHLINE)
5 D25 20WT/VT (DRIVER SIDE POWER SLIDING DOOR/EX-
CEPT EXPORT)
5 D25 20WT/VT (HIGHLINE)
6 A114 18GY/RD (HIGHLINE)
7 F503 20WT/PK (HIGHLINE)
8 X777 20DG/GY (REAR PARK ASSIST)
9 P112 22TN/OR (LUXURY)
10 P114 22TN/WT (LUXURY)
11 M21 20YL/BR
12 Z837 20BK/WT
12 Z113 20BK/WT (HIGHLINE)
13 Z13 20BK/WT
14 Z113 20BK/WT (HIGHLINE)
15 Q3 20OR/TN (SUNROOF)
16 Q4 20OR/YL (SUNROOF)
17 Q5 20OR/LB (SUNROOF)
18 Z171 20BK/GY (REAR PARK ASSIST)
19 D777 20WT/GY (REAR PARK ASSIST)
20 -
C312 (EXCEPT SIDE AIRBAG) - GRAY (HEADLINER SIDE)
CAV CIRCUIT
1 M27 20YL/LB
1 M27 20YL/LB (EXCEPT BASE)
2 M22 20YL/OR
3 G23 22VT/DB
3 G23 20VT/DB (EXCEPT BASE)
4 G25 22VT/TN
4 G25 20VT/TN (EXCEPT BASE)
5 D25 20WT/VT (EXCEPT BASE)
6 A114 20GY/RD (EXCEPT BASE)
7 F503 20BK/PK
7 F503 20WT/PK (EXCEPT BASE)
8 X777 20DG/GY (REAR PARK ASSIST)
9 P112 22BK/OR (LUXURY)
10 P114 22BK/LB (LUXURY)
11 M21 20YL/BR
12 Z837 20BK/OR
12 Z327 20BK/OR
12 Z137 20BK/LB (EXCEPT BASE)
13 Z13 20BK/WT (EXCEPT BASE)
14 Z113 20BK/DB (EXCEPT BASE)
14 Z113 20BK/WT (EXPORT)
14 Z113 20BK (LUXURY)
15 Q3 20OR/TN
16 Q4 20OR/YL
17 Q5 20OR/LB
18 Z171 20BK/GY (REAR PARK ASSIST)
19 D777 20WT/GY (REAR PARK ASSIST)
20 -
8W - 80 - 40 8W-80 CONNECTOR PIN-OUTSRS

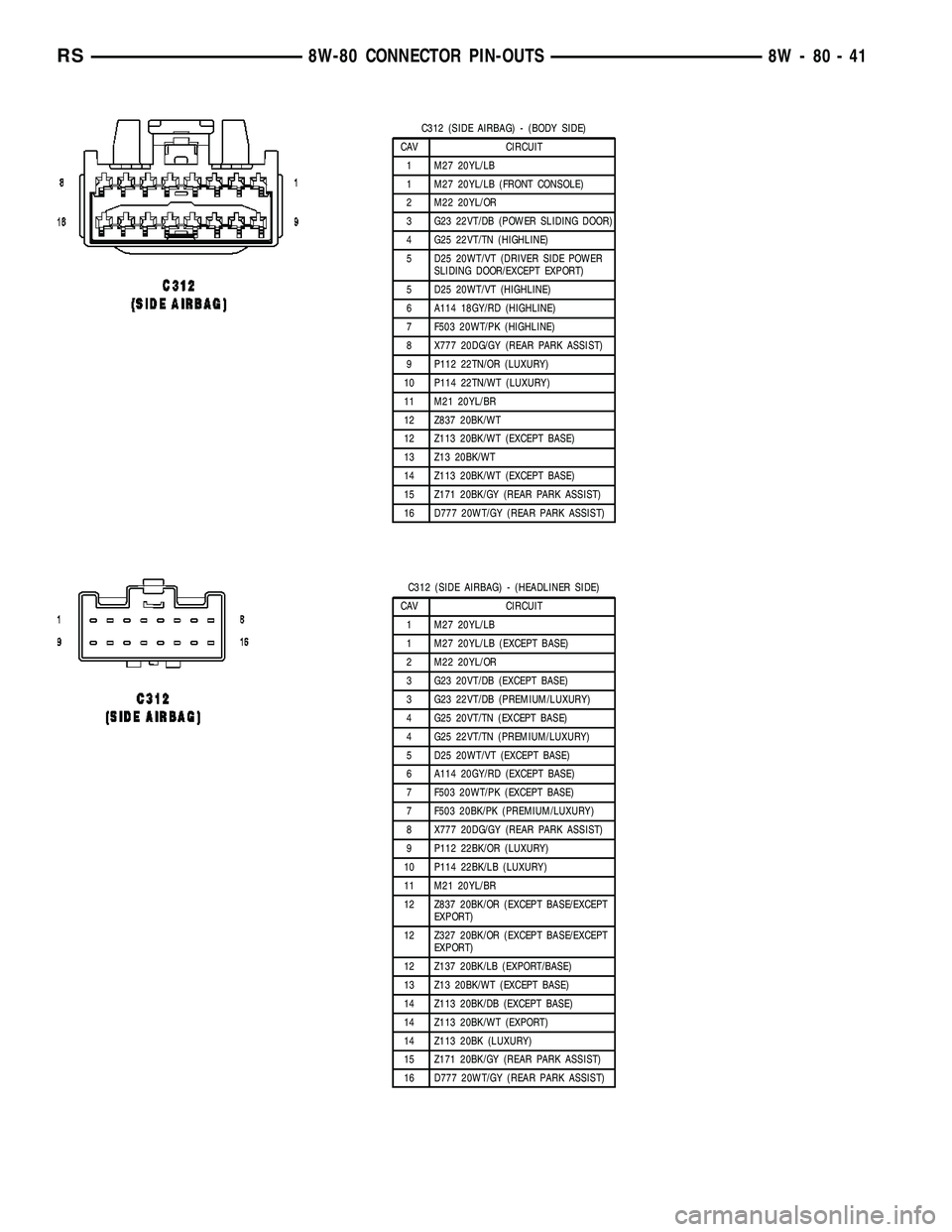

C312 (SIDE AIRBAG) - (BODY SIDE)
CAV CIRCUIT
1 M27 20YL/LB
1 M27 20YL/LB (FRONT CONSOLE)
2 M22 20YL/OR
3 G23 22VT/DB (POWER SLIDING DOOR)
4 G25 22VT/TN (HIGHLINE)
5 D25 20WT/VT (DRIVER SIDE POWER
SLIDING DOOR/EXCEPT EXPORT)
5 D25 20WT/VT (HIGHLINE)
6 A114 18GY/RD (HIGHLINE)
7 F503 20WT/PK (HIGHLINE)
8 X777 20DG/GY (REAR PARK ASSIST)
9 P112 22TN/OR (LUXURY)
10 P114 22TN/WT (LUXURY)
11 M21 20YL/BR
12 Z837 20BK/WT
12 Z113 20BK/WT (EXCEPT BASE)
13 Z13 20BK/WT
14 Z113 20BK/WT (EXCEPT BASE)
15 Z171 20BK/GY (REAR PARK ASSIST)
16 D777 20WT/GY (REAR PARK ASSIST)
C312 (SIDE AIRBAG) - (HEADLINER SIDE)
CAV CIRCUIT
1 M27 20YL/LB
1 M27 20YL/LB (EXCEPT BASE)
2 M22 20YL/OR
3 G23 20VT/DB (EXCEPT BASE)
3 G23 22VT/DB (PREMIUM/LUXURY)
4 G25 20VT/TN (EXCEPT BASE)
4 G25 22VT/TN (PREMIUM/LUXURY)
5 D25 20WT/VT (EXCEPT BASE)
6 A114 20GY/RD (EXCEPT BASE)
7 F503 20WT/PK (EXCEPT BASE)
7 F503 20BK/PK (PREMIUM/LUXURY)
8 X777 20DG/GY (REAR PARK ASSIST)
9 P112 22BK/OR (LUXURY)
10 P114 22BK/LB (LUXURY)
11 M21 20YL/BR
12 Z837 20BK/OR (EXCEPT BASE/EXCEPT
EXPORT)
12 Z327 20BK/OR (EXCEPT BASE/EXCEPT
EXPORT)
12 Z137 20BK/LB (EXPORT/BASE)
13 Z13 20BK/WT (EXCEPT BASE)
14 Z113 20BK/DB (EXCEPT BASE)
14 Z113 20BK/WT (EXPORT)
14 Z113 20BK (LUXURY)
15 Z171 20BK/GY (REAR PARK ASSIST)
16 D777 20WT/GY (REAR PARK ASSIST)
RS8W-80 CONNECTOR PIN-OUTS8W-80-41

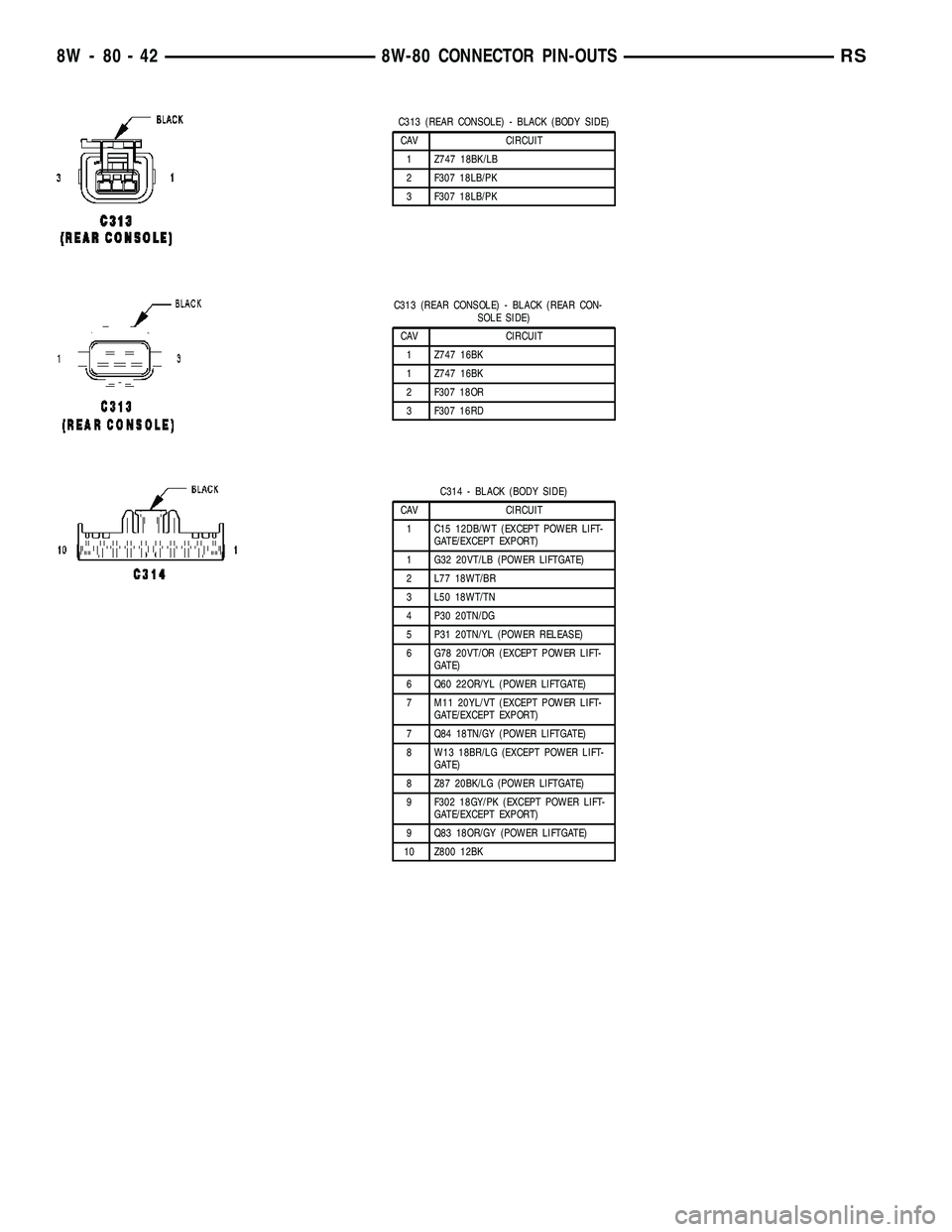

C313 (REAR CONSOLE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 Z747 18BK/LB
2 F307 18LB/PK
3 F307 18LB/PK
C313 (REAR CONSOLE) - BLACK (REAR CON-
SOLE SIDE)
CAV CIRCUIT
1 Z747 16BK
1 Z747 16BK
2 F307 18OR
3 F307 16RD
C314 - BLACK (BODY SIDE)
CAV CIRCUIT
1 C15 12DB/WT (EXCEPT POWER LIFT-
GATE/EXCEPT EXPORT)
1 G32 20VT/LB (POWER LIFTGATE)
2 L77 18WT/BR
3 L50 18WT/TN
4 P30 20TN/DG
5 P31 20TN/YL (POWER RELEASE)
6 G78 20VT/OR (EXCEPT POWER LIFT-
GATE)
6 Q60 22OR/YL (POWER LIFTGATE)
7 M11 20YL/VT (EXCEPT POWER LIFT-
GATE/EXCEPT EXPORT)
7 Q84 18TN/GY (POWER LIFTGATE)
8 W13 18BR/LG (EXCEPT POWER LIFT-
GATE)
8 Z87 20BK/LG (POWER LIFTGATE)
9 F302 18GY/PK (EXCEPT POWER LIFT-
GATE/EXCEPT EXPORT)
9 Q83 18OR/GY (POWER LIFTGATE)
10 Z800 12BK
8W - 80 - 42 8W-80 CONNECTOR PIN-OUTSRS

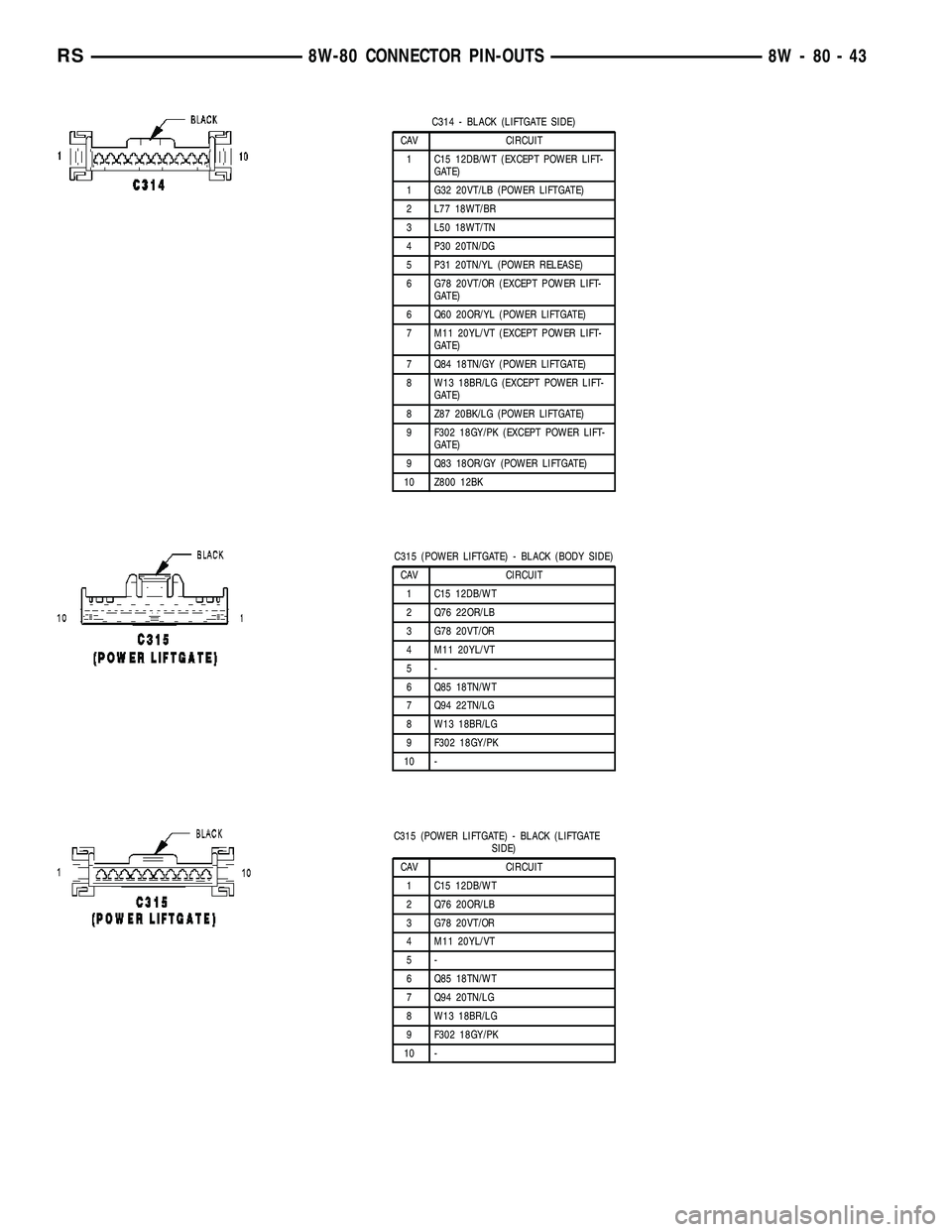

C314 - BLACK (LIFTGATE SIDE)
CAV CIRCUIT
1 C15 12DB/WT (EXCEPT POWER LIFT-
GATE)
1 G32 20VT/LB (POWER LIFTGATE)
2 L77 18WT/BR
3 L50 18WT/TN
4 P30 20TN/DG
5 P31 20TN/YL (POWER RELEASE)
6 G78 20VT/OR (EXCEPT POWER LIFT-
GATE)
6 Q60 20OR/YL (POWER LIFTGATE)
7 M11 20YL/VT (EXCEPT POWER LIFT-
GATE)
7 Q84 18TN/GY (POWER LIFTGATE)
8 W13 18BR/LG (EXCEPT POWER LIFT-
GATE)
8 Z87 20BK/LG (POWER LIFTGATE)
9 F302 18GY/PK (EXCEPT POWER LIFT-
GATE)
9 Q83 18OR/GY (POWER LIFTGATE)
10 Z800 12BK
C315 (POWER LIFTGATE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 C15 12DB/WT
2 Q76 22OR/LB
3 G78 20VT/OR
4 M11 20YL/VT
5-
6 Q85 18TN/WT
7 Q94 22TN/LG
8 W13 18BR/LG
9 F302 18GY/PK
10 -
C315 (POWER LIFTGATE) - BLACK (LIFTGATE
SIDE)
CAV CIRCUIT
1 C15 12DB/WT
2 Q76 20OR/LB
3 G78 20VT/OR
4 M11 20YL/VT
5-
6 Q85 18TN/WT
7 Q94 20TN/LG
8 W13 18BR/LG
9 F302 18GY/PK
10 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-43

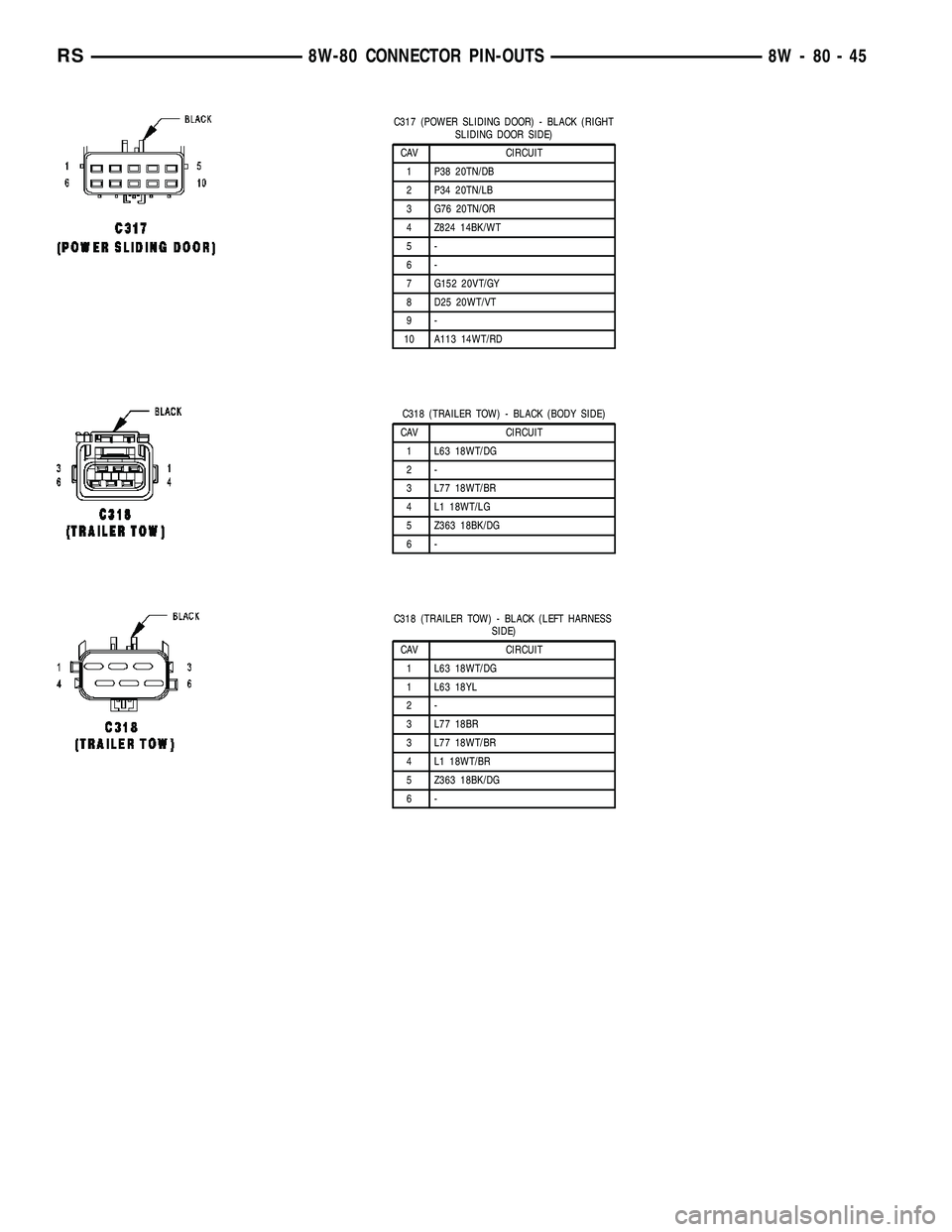

C317 (POWER SLIDING DOOR) - BLACK (RIGHT
SLIDING DOOR SIDE)
CAV CIRCUIT
1 P38 20TN/DB
2 P34 20TN/LB
3 G76 20TN/OR
4 Z824 14BK/WT
5-
6-
7 G152 20VT/GY
8 D25 20WT/VT
9-
10 A113 14WT/RD
C318 (TRAILER TOW) - BLACK (BODY SIDE)
CAV CIRCUIT
1 L63 18WT/DG
2-
3 L77 18WT/BR
4 L1 18WT/LG
5 Z363 18BK/DG
6-
C318 (TRAILER TOW) - BLACK (LEFT HARNESS
SIDE)
CAV CIRCUIT
1 L63 18WT/DG
1 L63 18YL
2-
3 L77 18BR
3 L77 18WT/BR
4 L1 18WT/BR
5 Z363 18BK/DG
6-
RS8W-80 CONNECTOR PIN-OUTS8W-80-45

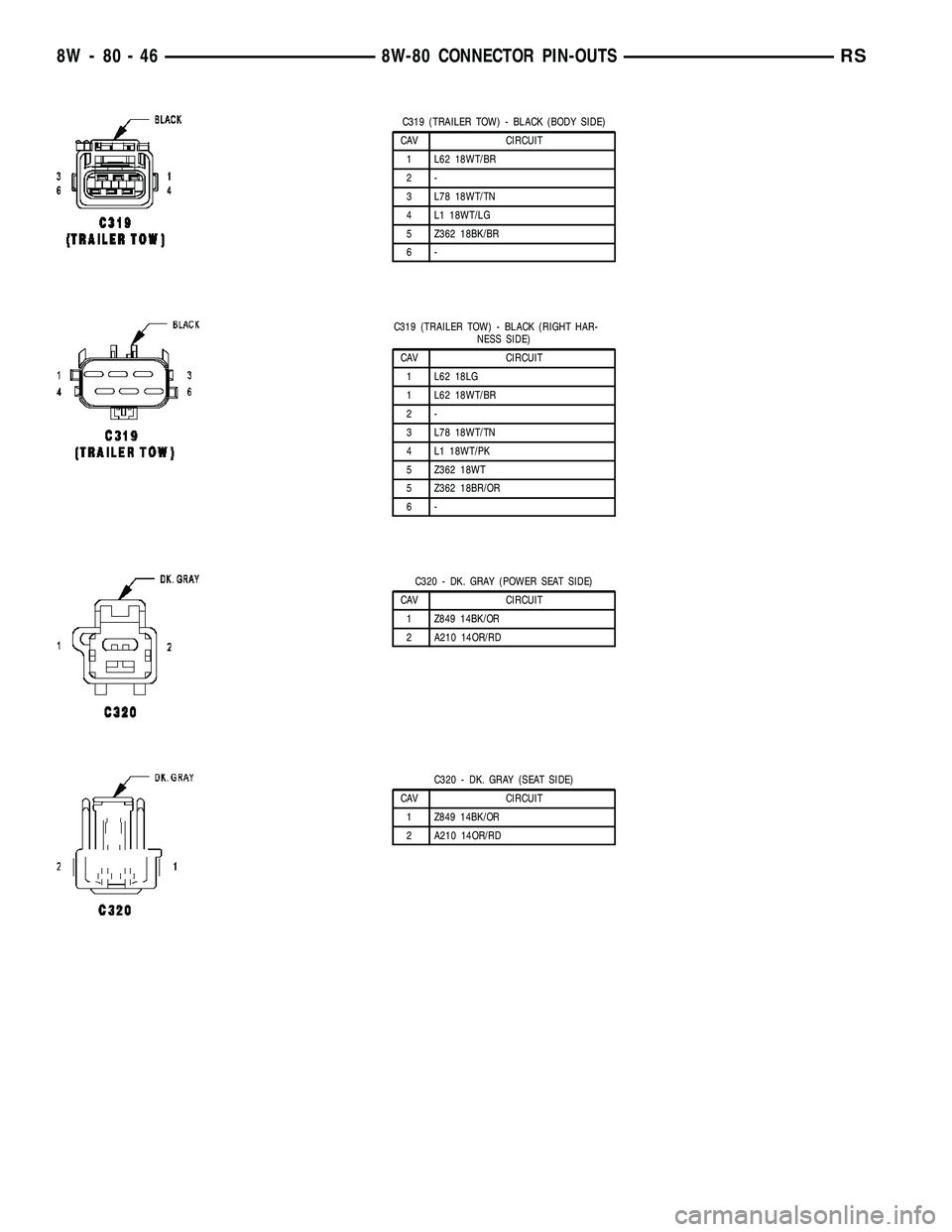

C319 (TRAILER TOW) - BLACK (BODY SIDE)
CAV CIRCUIT
1 L62 18WT/BR
2-
3 L78 18WT/TN
4 L1 18WT/LG
5 Z362 18BK/BR
6-
C319 (TRAILER TOW) - BLACK (RIGHT HAR-
NESS SIDE)
CAV CIRCUIT
1 L62 18LG
1 L62 18WT/BR
2-
3 L78 18WT/TN
4 L1 18WT/PK
5 Z362 18WT
5 Z362 18BR/OR
6-
C320 - DK. GRAY (POWER SEAT SIDE)
CAV CIRCUIT
1 Z849 14BK/OR
2 A210 14OR/RD
C320 - DK. GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z849 14BK/OR
2 A210 14OR/RD
8W - 80 - 46 8W-80 CONNECTOR PIN-OUTSRS

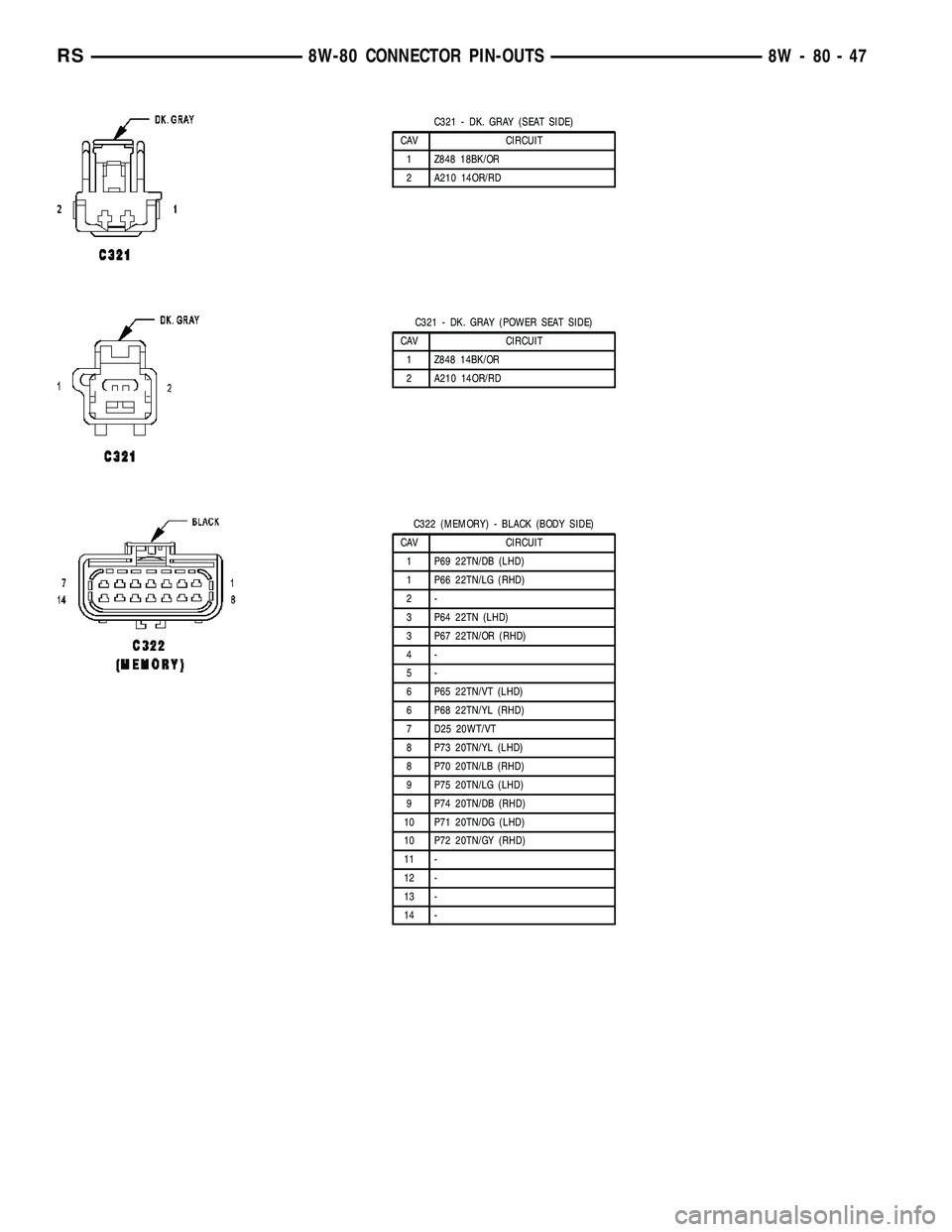

C321 - DK. GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z848 18BK/OR
2 A210 14OR/RD
C321 - DK. GRAY (POWER SEAT SIDE)
CAV CIRCUIT
1 Z848 14BK/OR
2 A210 14OR/RD
C322 (MEMORY) - BLACK (BODY SIDE)
CAV CIRCUIT
1 P69 22TN/DB (LHD)
1 P66 22TN/LG (RHD)
2-
3 P64 22TN (LHD)
3 P67 22TN/OR (RHD)
4-
5-
6 P65 22TN/VT (LHD)
6 P68 22TN/YL (RHD)
7 D25 20WT/VT
8 P73 20TN/YL (LHD)
8 P70 20TN/LB (RHD)
9 P75 20TN/LG (LHD)
9 P74 20TN/DB (RHD)
10 P71 20TN/DG (LHD)
10 P72 20TN/GY (RHD)
11 -
12 -
13 -
14 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-47
