NOTE:
•After pushing the door handle button, you must wait
two seconds before you can lock or unlock the doors,
using either Passive Entry door handle. This is done to
allow you to check if the vehicle is locked by pulling
the door handle, without the vehicle reacting and
unlocking.
• The Passive Entry system will not operate if the RKE
transmitter battery is dead.
The vehicle doors can also be locked by using the RKE
transmitter lock button, or the lock button located on the
vehicle’s interior door panel.
Manual Sliding Side Door
The sliding door may be opened from the inside or the
outside. Pull outward on the exterior handle to open the
sliding door. The sliding door inside handle functions by rocking forward and back. Rocking the handle back-
wards opens the door and rocking forward releases the
hold open latch in order to close the door.
To keep your door operating properly, observe the fol-
lowing guidelines:
•
Always open the door smoothly.
• Avoid high impacts against the door stop when open-
ing the door. This is very important when your vehicle
is parked on an incline as the door will slide faster in
the downhill direction.
• There is a hold-open latch that is activated when the
sliding door is fully opened. This latch will keep your
sliding door open on any incline. To close the sliding
door after the hold-open latch is activated, you must
rock the inside handle forward or pull outward on the
exterior handle.
3
GETTING TO KNOW YOUR VEHICLE 49

Always make sure that the sliding door is fully latched
anytime the vehicle is in motion.
NOTE:The left side sliding door cannot be opened while
the fuel door is open.Power Sliding Side Door — If Equipped
Side Door Handle And Lock Functions1 — Door Handle
2 — Door Lock
50 GETTING TO KNOW YOUR VEHICLE

The power sliding door may be power opened or closed
in several ways:
•RKE key fob
• inside or outside handles
• the following buttons located
• in the overhead console
• just inside the sliding door
• on the outside handle
• Hands-Free Sliding Doors — If Equipped
Using any of the above ways:
• when the door is fully closed, the door will open.
• when the door is fully open, the door will close.
• when the door is moving, the door will reverse.
Push the button on the RKE key fob twice within five
seconds to open, close, or reverse a power sliding door. The RKE Key Fob and the overhead console button will
operate the door when the door is locked. All other ways
require the sliding door to be unlocked. If the vehicle is
equipped with Passive Entry, pressing the button on the
outside handle or Hands-Free feature (if equipped) will
unlock and open the sliding door, with a valid Passive
Entry RKE Key Fob within 3ft (1m) of the door handle.
NOTE:
Opening or closing the hands free sliding door (if
equipped) requires a valid RKE key fob within 3 ft (1 m)
of the door handle. If Passive Entry is turned off in the
Uconnect Settings this feature will not be functional.
To operate the sliding door manually with the handles or
to avoid unintentional operation of the power sliding
doors from the rear seats, push the power sliding door
power Off button, located in the overhead console, to
remove power to the handles and buttons just inside the
sliding doors. The power OFF LED, in the overhead
console, will be lit when the handles are manual. When
3
GETTING TO KNOW YOUR VEHICLE 51

the LED is lit, pushing the power sliding door power OFF
button will return the handles to power operation.
NOTE:Tones are sounded and the turn signals are
flashed with sliding door movements. These alerts can be
turned on or off in ‘Uconnect Settings’.
There are power sliding side door switches located on the
B-Pillar trim panel, just in front of the power sliding door
for the rear seat passengers.
Driver Side Power Sliding Side Door Switch
52 GETTING TO KNOW YOUR VEHICLE

If the inside or outside door handles are used while the
power sliding side door is activated, the power sliding
door will reverse direction.
To avoid unintentional operation of the power sliding
doors from the rear seats, push the power sliding doorpower Off button, located in the overhead console, to
remove power to the handles and buttons just inside the
sliding doors.
NOTE:
•
The sliding door will not power open or close if the
gear selector is not in Park or Neutral.
• If anything obstructs the power sliding side door while
it is closing or opening, the door will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
• If the power sliding door encounters multiple obstruc-
tions within the same cycle, the system will automati-
cally stop. If this occurs, the power sliding door must
be opened or closed manually.
Passenger Side Power Sliding Side Door Switch
3
GETTING TO KNOW YOUR VEHICLE 53

WARNING!
Personal injury or cargo damage may occur if caught
in the path of the sliding door. Make sure the door
path is clear before closing the door.
WARNING!
Before driving off, check the instrument cluster for a
sliding door or door open message or warning indi-
cator. Failure to do this could result in unintention-
ally leaving the sliding door open while driving.

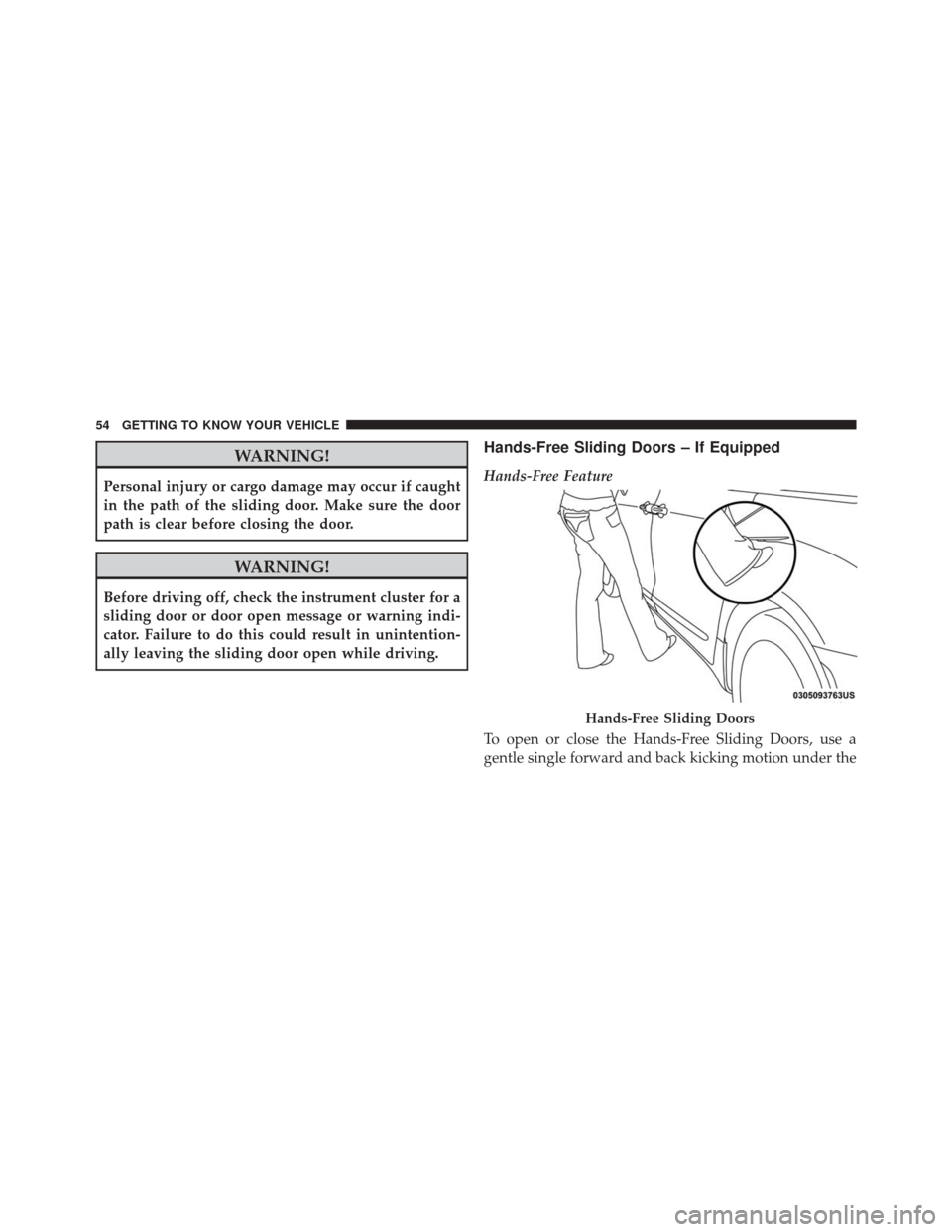

Hands-Free Sliding Doors – If Equipped
Hands-Free Feature
To open or close the Hands-Free Sliding Doors, use a
gentle single forward and back kicking motion under the
Hands-Free Sliding Doors
54 GETTING TO KNOW YOUR VEHICLE

vehicle in the general location below the door handle(s).
Do not move your foot sideways or in a sweeping motion
or the sensors may not detect the motion.
NOTE:To open or close the Hands-Free Sliding Doors
requires a valid Passive Entry RKE Key Fob within 3 ft
(1 m) of the door handle. If a valid Passive Entry RKE
Key Fob is not within 3 ft (1 m), the door will not respond
to any kicks.
NOTE: The Hands-Free Sliding Doors feature may be
turned off through Uconnect Settings. Refer to “Uconnect
Settings” in “Multimedia” for further information. The
Hands-Free Sliding Doors feature should be turned off
during Jacking, Tire Changing, and Service.
NOTE:
• The sliding doors will not power open or close if the
gear selector is in gear or the vehicle speed is above
0 mph (0 km/h). •
If anything obstructs the power sliding doors while it
is closing or opening, the sliding doors will automati-
cally reverse to the closed or open position, provided it
meets sufficient resistance.
• If the power sliding doors encounters multiple ob-
structions within the same cycle, the system will
automatically stop. If this occurs, the liftgate must be
opened or closed manually.
Safe Lock Device — If Equipped
To provide a safer environment for small children riding
in the rear seats, the second row sliding door switches
may be overridden by pushing the OFF side of the Power
Switch located in the front overhead console.
When the power sliding door power switch is in the OFF
position, the power sliding side door may not be opened
or closed by pushing the switch located on the B-Pillar
trim panel, just in front of the sliding door or activating
the inside power sliding door handle.
3
GETTING TO KNOW YOUR VEHICLE 55

Child Locks
To provide a safer environment for small children riding
in the rear seats, the sliding doors are equipped with a
Child Protection Door Lock system.
NOTE:When the Child Safety Locks have been engaged
the sliding side doors can be unlocked from the outside
using the hands free RKE or Passive Entry system.
To Engage The Child Protection Door Lock
1. Open the sliding side door.
2. On the rear of the sliding door, slide the Child Protection Door Lock control inward (toward the
vehicle) to engage the Child Protection Door Lock.
Overhead Console Buttons
1 — Liftgate
2 — Right Sliding Door
3 — Power Door Power Off
4 — Left Sliding Door 56 GETTING TO KNOW YOUR VEHICLE

3. Repeat Steps 1 and 2 on the opposite sliding door.NOTE:
•
After engaging (or disengaging) the Child Protection
Door Lock, always test the inside door handle with the
sliding door closed to make certain the Child Protec-
tion Door Lock is in the desired position. The inside
door handle will not open the sliding door when the
Child Protection Door Lock is engaged.
• The power sliding door will operate from the switch
located just inside the sliding door, regardless of the
Child Protection Door Lock lever position. To avoid
unintentional operation of the power sliding door
from the rear seats, push the power sliding door
power Off button, located in the overhead console, to
remove power to the handles and buttons just inside
the sliding doors. The power Off LED, in the over-
head console, will be lit when the handles are
manual and the buttons just inside the sliding doors
are disabled. When the overhead console power OFF
Child Protection Door Locks
3
GETTING TO KNOW YOUR VEHICLE 57

LED is lit, the sliding door may not be power opened
or closed by pushing the buttons just inside the sliding
doors or pulling on the handles.
WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the sliding doors can only be opened
from the outside door handle or the switches located
on the B-Pillar trim panel just in front of the power
sliding door when the Child Protection Door Locks
are engaged.
To Disengage The Child Protection Door Lock
1. Open the sliding side door.
2. Slide the Child Protection Door Lock control outward (away from the vehicle) to disengage the Child Pro-
tection Door Lock. 3. Repeat Steps 1 and 2 on the opposite sliding door.
NOTE:
•
After disengaging (or engaging) the Child Protection
Door Lock, always test the inside door handle with the
sliding door closed to make certain the Child Protec-
tion Door Lock is in the desired position. The inside
door handle will open the sliding door when the Child
Protection Door Lock is disengaged.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
• It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
(Continued)
