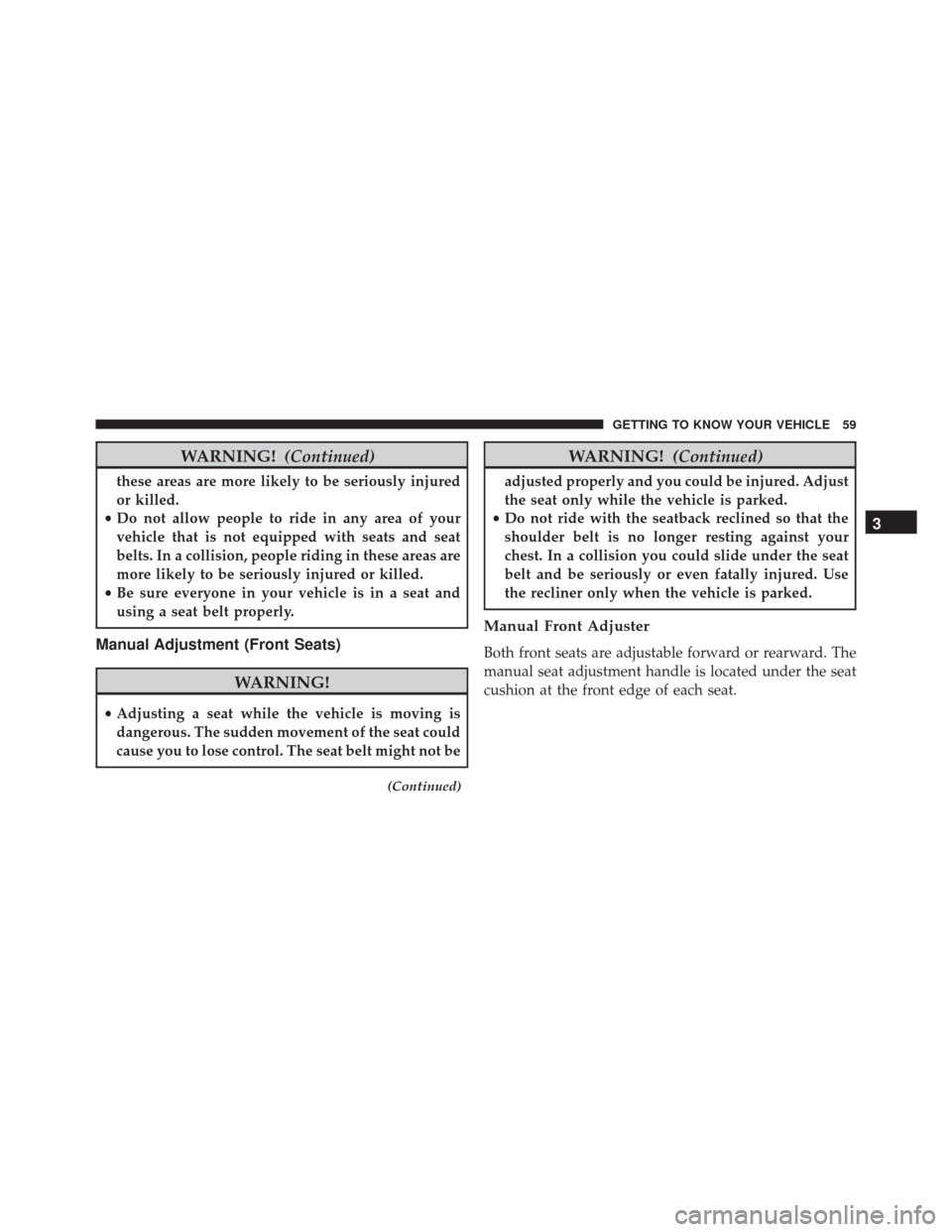

WARNING!(Continued)
these areas are more likely to be seriously injured
or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas are
more likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Adjustment (Front Seats)
WARNING!
• Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
(Continued)
WARNING! (Continued)
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Manual Front Adjuster
Both front seats are adjustable forward or rearward. The
manual seat adjustment handle is located under the seat
cushion at the front edge of each seat.
3
GETTING TO KNOW YOUR VEHICLE 59

While sitting in the seat, pull up on the handle and slide
the seat forward or rearward. Release the bar once you
have reached the desired position. Then, using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.
WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Manual Reclining Seats — If Equipped
For models equipped with manual seats, the recline lever
is located on the outboard side of the seat.Manual Seat Adjuster
60 GETTING TO KNOW YOUR VEHICLE

To recline, lean forward slightly, lift the lever, then push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
Manual Recline Lever
3
GETTING TO KNOW YOUR VEHICLE 61

Seat Height Adjustment
The driver ’s seat height can be raised or lowered by
using a lever, located on the outboard side of the seat.
Pump the lever upward to raise the seat height, or pump
the lever downward to lower the seat height.
1 — Seat Height Adjustment Lever
2 — Recline Lever
62 GETTING TO KNOW YOUR VEHICLE

Manual Adjustment (Rear Seats)
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Manual Recline
To recline, lean forward slightly, lift the lever, then push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
Recline Lever
3
GETTING TO KNOW YOUR VEHICLE 63

WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
Fold-Flat
To fold the seat, lift the recliner lever to the full upward
position and push the seatback forward until it rests on
the seat cushion.NOTE:
•The seatback may lock into the fold flat position. Use
the recline lever to unlock the seatback.
Fold-Flat Seat Recline Lever
64 GETTING TO KNOW YOUR VEHICLE

•When returning the seat to the original position, the
headrest must be folded back to the original position.Easy Entry
Easy Tilt Seat — With Or Without Child Seat Installed
The 2nd row seats can be tilted forward for easy entry
into the third row with or without a child seat installed.
1. Located in the seatback of the second row seat is a handle that provides easier access to the third row by
tilting the seat forward.
Fold Headrest To Upward Position
3
GETTING TO KNOW YOUR VEHICLE 65

2. To put the seat back into original position, just pullback on the seatback and lock the seat into position.
Easy Tilt Seat LeverSeat Folded Forward With Child Seat Installed
66 GETTING TO KNOW YOUR VEHICLE

WARNING!
Do not use this feature with a child in seat. Serious
injury or death my occur.
Easy Entry — With The Seat Folded Flat
The seats can be folded and tilted for more accessibility
for passengers to enter and exit the third row.
1. Without a child seat installed, you can fold the seat by pulling the recliner handle on the bottom part of the
seat. Before pulling the recliner lever, make sure the
arm rests are folded up.
2. Pull the strap on the back of the seat and the seat willtilt forward.
Recliner Lever
3
GETTING TO KNOW YOUR VEHICLE 67

3. To put it back into position, pull back on the foldedseat and make sure that it locks into position. Then
pull the seatback toward the back and fold down the
arm rests. Exit For 3rd Row Passengers
For passengers seated in the third row, there is a pull
strap located on the outboard side of the seat near the
bottom of the seat back. Third row passengers can pull on
the strap and push the seat forward for folding the
seatback down and tilting the seat to the floor.
Pull Strap
Pull Strap For Third Row Passengers
