NOTE:This process is for when there is no child seat
installed. Use the easy entry lever if a child seat is
installed.
Stow ’n Go Seating
On vehicles equipped with Stow ’n Go seating, the
second and third row seats can be folded into the floor for
convenient storage.
Stow ‘n Go Assist — If Equipped
On vehicles equipped with the Stow ‘n Go Assist feature,
the front seat will move forward automatically to a
location that will allow the second row Stow ‘n Go seat
movement, without interference by the front seat. After
the second row Stow ‘n Go seat movement is completed,
the front seat will automatically move back to the previ-
ous location once the Stow ‘n Go Assist button is pushed
again. The Stow ‘n Go Assist feature is available to both the
front driver and passenger power seats.
WARNING!
During power seat operation, personal injury or
cargo damage may occur. Ensure the front seat is not
occupied and the seat travel path is clear.
A one-touch Stow ‘n Go Assist button is located on the
B-pillar trim panel, just in front of the power sliding door.3
GETTING TO KNOW YOUR VEHICLE 69

Using the Stow ‘n Go Assist Feature
NOTE:
•The button is only functional when the power sliding
door is open and the vehicle is in PARK. If the door is
not open or the vehicle is not in PARK when the button
is pushed, the front seat will not move and a message
will be displayed in Electronic Vehicle Information
Center (EVIC) or Drivers Information Display (DID).
• If the power sliding door is closing when the button is
pushed, the front seat will not move and a message
will be displayed in the EVIC or DID.
1. Push and release the Stow ‘n Go Assist button. The front seat cushion and seat back will move as neces-
sary to a location that will allow space for the second
row Stow ‘n Go seat movement.
Stow ‘n Go Assist button
70 GETTING TO KNOW YOUR VEHICLE

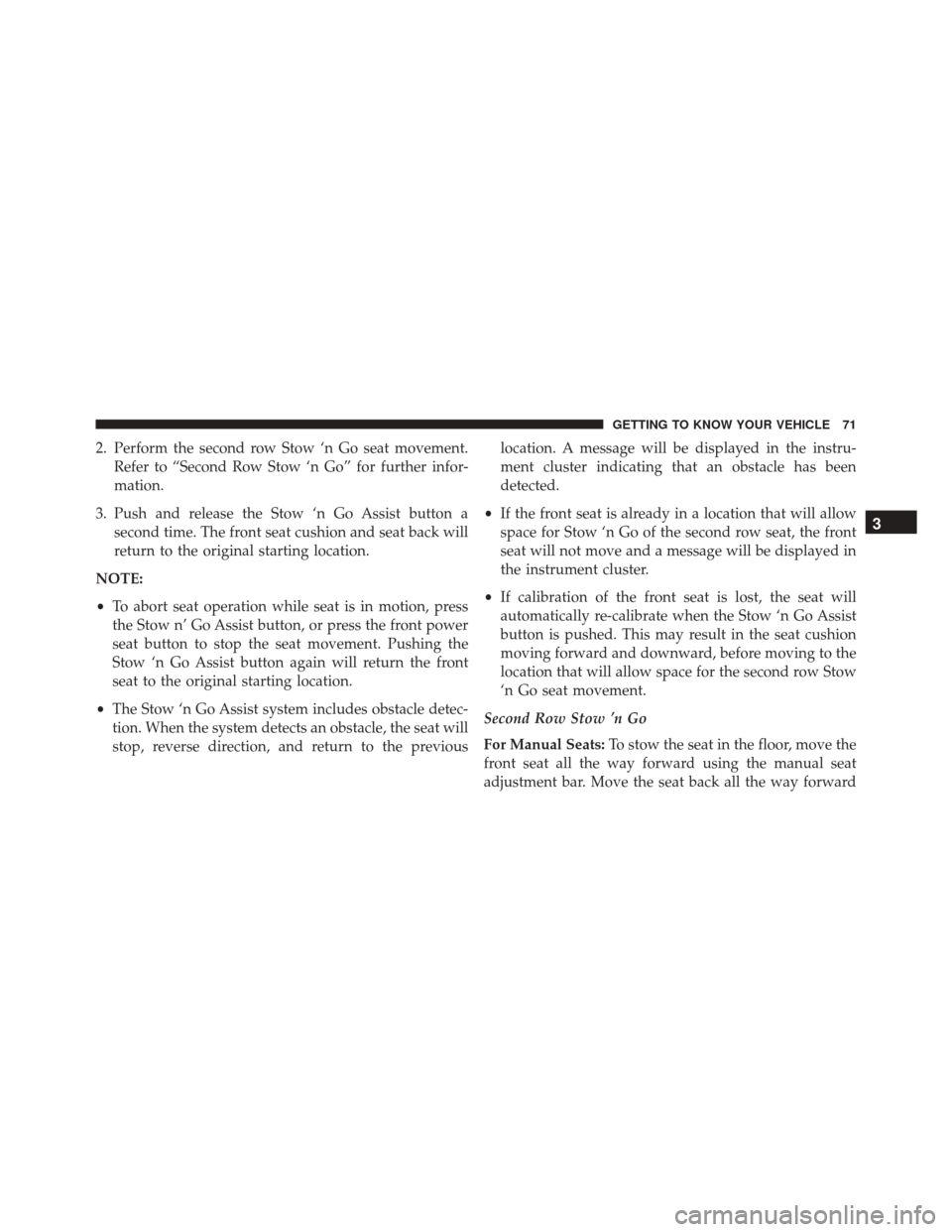

2. Perform the second row Stow ‘n Go seat movement.Refer to “Second Row Stow ‘n Go” for further infor-
mation.
3. Push and release the Stow ‘n Go Assist button a second time. The front seat cushion and seat back will
return to the original starting location.
NOTE:
• To abort seat operation while seat is in motion, press
the Stow n’ Go Assist button, or press the front power
seat button to stop the seat movement. Pushing the
Stow ‘n Go Assist button again will return the front
seat to the original starting location.
• The Stow ‘n Go Assist system includes obstacle detec-
tion. When the system detects an obstacle, the seat will
stop, reverse direction, and return to the previous location. A message will be displayed in the instru-
ment cluster indicating that an obstacle has been
detected.
• If the front seat is already in a location that will allow
space for Stow ‘n Go of the second row seat, the front
seat will not move and a message will be displayed in
the instrument cluster.
• If calibration of the front seat is lost, the seat will
automatically re-calibrate when the Stow ‘n Go Assist
button is pushed. This may result in the seat cushion
moving forward and downward, before moving to the
location that will allow space for the second row Stow
‘n Go seat movement.
Second Row Stow ’n Go
For Manual Seats: To stow the seat in the floor, move the
front seat all the way forward using the manual seat
adjustment bar. Move the seat back all the way forward
3
GETTING TO KNOW YOUR VEHICLE 71

using the recliner handle located on the outboard side of
the cushion. Move the seat height to at least mid position
using the height adjuster handle in the outboard side of
the cushion.
For Power Seats:Push the Stow ‘n Go Assist button
located on the B pillar trim (if equipped.) Refer to Stow
’n Go Assist - If Equipped in this section for instructions.
1. To access the storage bin, place the lock rod in the locked position.
NOTE:•Push the lock rod inward for the locked position.
• Pull outward on the lock rod for the unlocked
position.
Lock Rod
72 GETTING TO KNOW YOUR VEHICLE

•For information on storage bin function with the
seats rearward refer to “Second Row Floor Storage
Bins” in “Internal Equipment” for further informa-
tion.
2. Pull the latch located near the second row seat to open the floor panel. 3. Pull the floor panel and position it toward the front
seats while folding the top half down and rest it
against the front seats.
Floor Latch
Push Panel Forward
3
GETTING TO KNOW YOUR VEHICLE 73

4. Stow the seat by grabbing the strap on the lower partof the back seat and guide the seat into the tub. 5. Push down on the seat back to lock the seat in the tub.
Pull Strap
Push To Lock
74 GETTING TO KNOW YOUR VEHICLE

6. Close the floor by pulling the floor panel backwardsby the bottom corner edge of the panel.
7. Push down on floor panel to lock into place. 8. Readjust the front seat as needed.
Extend Floor Panel
Push To Lock
3
GETTING TO KNOW YOUR VEHICLE 75

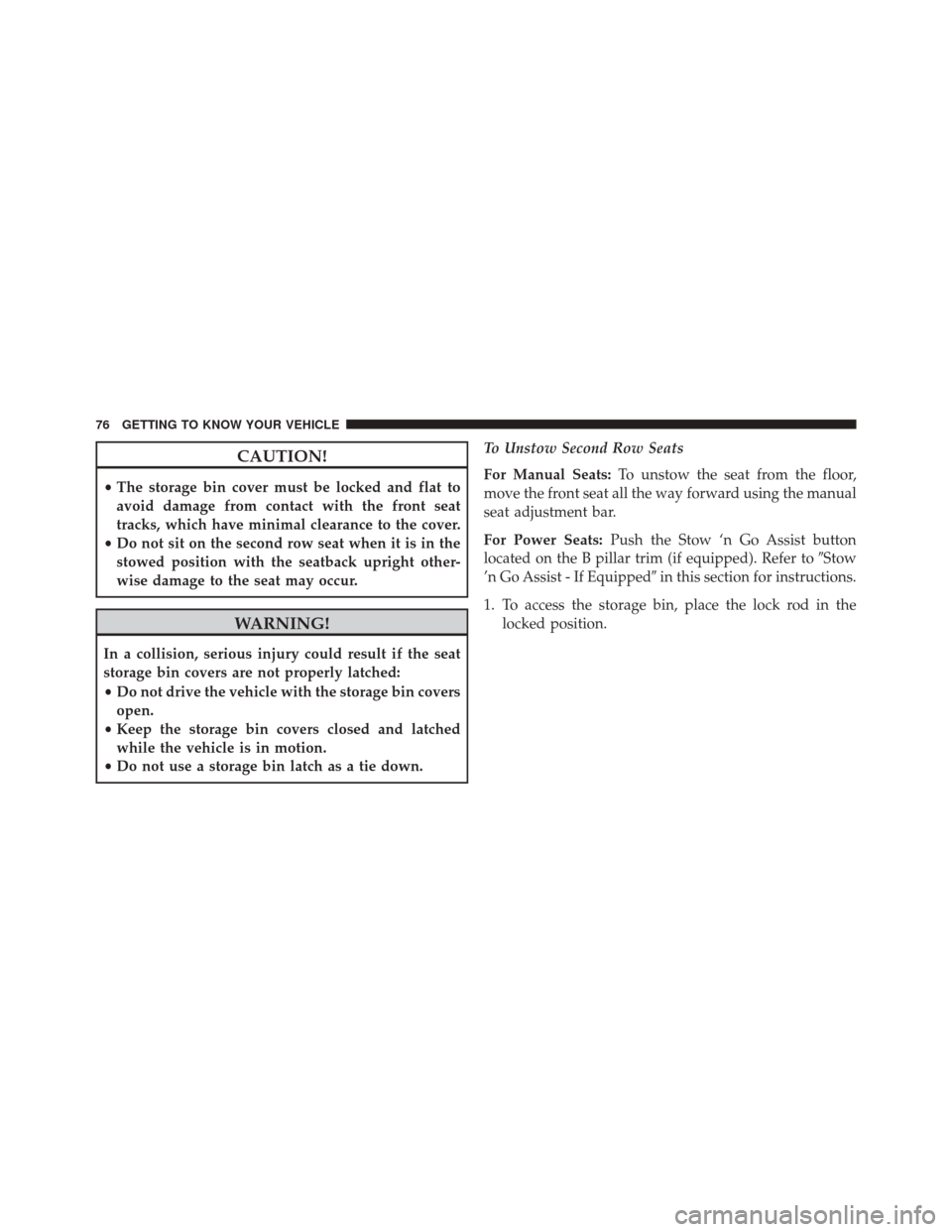

CAUTION!
•The storage bin cover must be locked and flat to
avoid damage from contact with the front seat
tracks, which have minimal clearance to the cover.
• Do not sit on the second row seat when it is in the
stowed position with the seatback upright other-
wise damage to the seat may occur.
WARNING!
In a collision, serious injury could result if the seat
storage bin covers are not properly latched:
• Do not drive the vehicle with the storage bin covers
open.
• Keep the storage bin covers closed and latched
while the vehicle is in motion.
• Do not use a storage bin latch as a tie down. To Unstow Second Row Seats
For Manual Seats:
To unstow the seat from the floor,
move the front seat all the way forward using the manual
seat adjustment bar.
For Power Seats: Push the Stow ‘n Go Assist button
located on the B pillar trim (if equipped). Refer to Stow
’n Go Assist - If Equipped in this section for instructions.
1. To access the storage bin, place the lock rod in the locked position.
76 GETTING TO KNOW YOUR VEHICLE

NOTE:•Push the lock rod inward for the locked position.
• Pull outward on the lock rod for the unlocked
position. 2. Pull the latch located near the second row seat to open
the floor panel.
3. Pull the floor panel and position it toward the front seats while folding the top half down and rest it
against the front seats.
Lock Rod
Floor Latch
3
GETTING TO KNOW YOUR VEHICLE 77

4. Pull the strap located on the seat and pull the seat outof the storage bin. Push the seat rearward making sure
that it locks into the floor. Fold the seatback into the
upright position and pull the headrest up. NOTE:
The seatback may be locked, if it is, it will be
necessary to use the recliner handle to unlock the back
before folding into the upright position.
5. To position the floor panel back into its original state, grab the bottom corner and extend it outward.
Push Panel Forward
Pull Strap
