CHRYSLER PACIFICA HYBRID 2019 User Guide

REAR VIEW

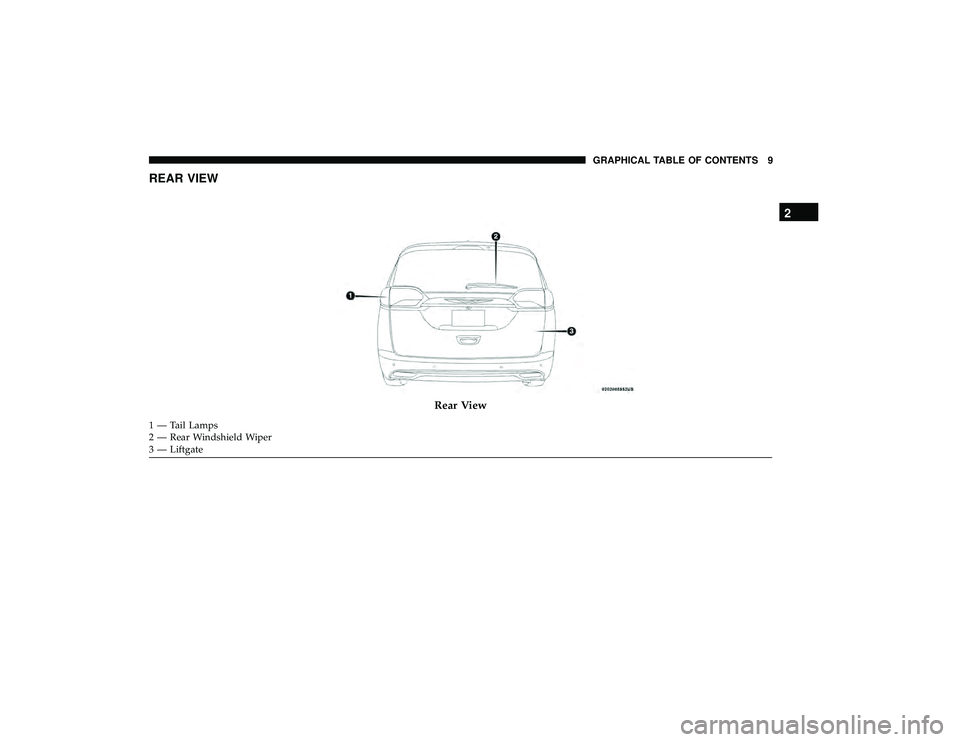

Rear View
1 — Tail Lamps
2 — Rear Windshield Wiper
3 — Liftgate
2
GRAPHICAL TABLE OF CONTENTS 9

INSTRUMENT PANEL

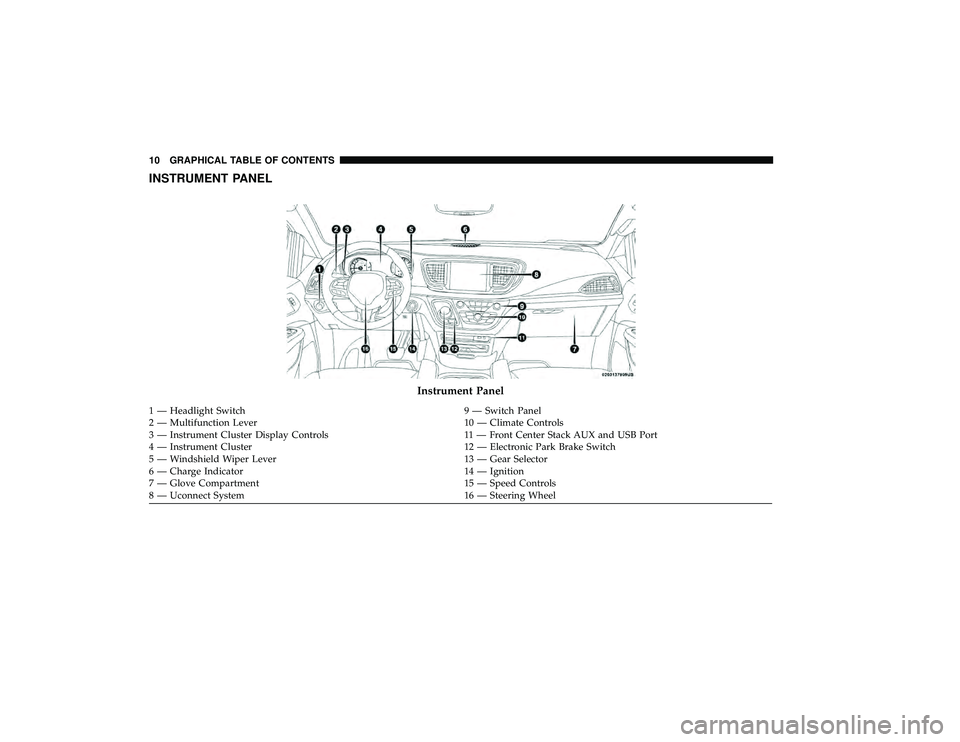

Instrument Panel
1 — Headlight Switch9 — Switch Panel
2 — Multifunction Lever 10 — Climate Controls
3 — Instrument Cluster Display Controls 11 — Front Center Stack AUX and USB Port
4 — Instrument Cluster 12 — Electronic Park Brake Switch
5 — Windshield Wiper Lever 13 — Gear Selector
6 — Charge Indicator 14 — Ignition
7 — Glove Compartment 15 — Speed Controls
8 — Uconnect System 16 — Steering Wheel
10 GRAPHICAL TABLE OF CONTENTS

INTERIOR

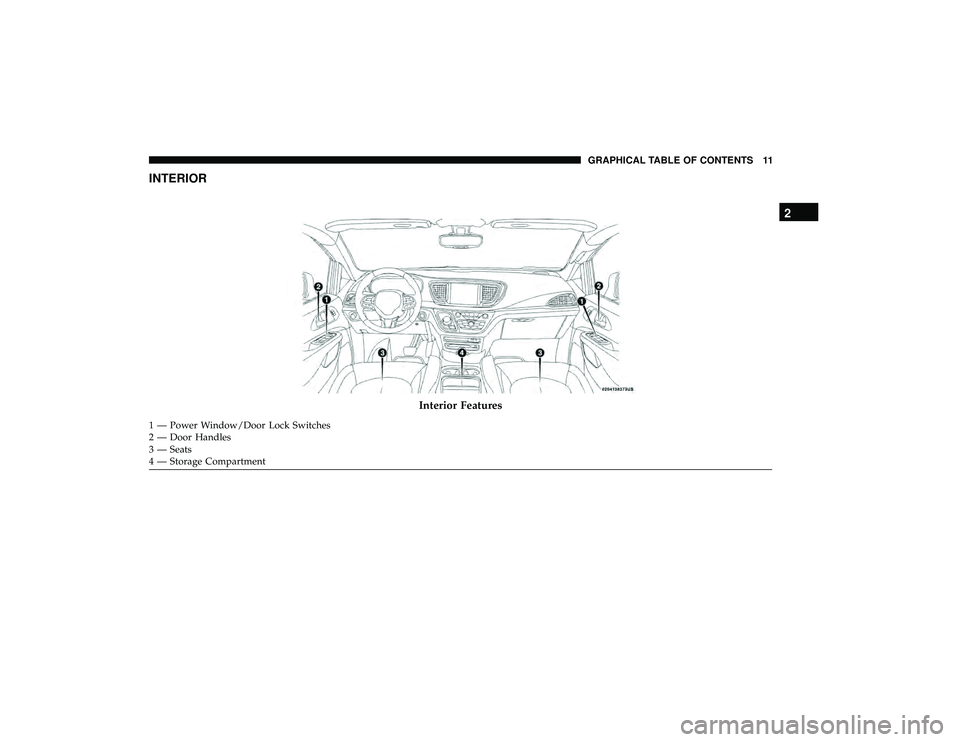

Interior Features
1 — Power Window/Door Lock Switches
2 — Door Handles
3 — Seats
4 — Storage Compartment
2
GRAPHICAL TABLE OF CONTENTS 11

GETTING TO KNOW YOUR VEHICLE
CONTENTS
HIGH VOLTAGE BATTERY .................17
 HIGH VOLTAGE CHARGING OPERATION .....19
▫ SAE J1772 Charging Inlet ..................19
▫ AC Level 1 Charging (120V, 15 Amp) ..........20
▫ AC Level 2 Charging (240V, 30 Amp Or
32 Amp) ..............................30
▫ Charging Times .........................31
▫ Vehicle Charge Indicators ..................32
▫ Hybrid Electric Pages .....................34
 KEYS .................................38
▫ KeyFob..............................38
 IGNITION SWITCH .......................46
 REMOTE STARTING SYSTEM — IF EQUIPPED . . .49
▫ Remote Start Cancel Message — If Equipped ....49▫
How To Use Remote Start ..................49
▫ To Enter Remote Start Mode ................50
▫ To Exit Remote Start Mode Without Driving The
Vehicle ...............................50
▫ To Exit Remote Start Mode And Drive The
Vehicle ...............................51
▫ Remote Start Comfort Systems — If Equipped . . .51
▫ Remote Start Windshield Wiper De–Icer
Activation — If Equipped ..................51
▫ General Information .....................51
 SENTRY KEY ...........................52
▫ Key Programming ......................53
▫ Replacement Keys .......................53
▫ General Information .....................53
 VEHICLE SECURITY ALARM — IF EQUIPPED . . .543

▫Rearming Of The System ..................54
▫ To Arm The System .....................54
▫ To Disarm The System ...................55
 DOORS ...............................56
▫ Manual Lock ...........................56
▫ Central Lock/Unlock — If Equipped ..........58
▫ Unlock Doors Automatically On Exit —
If Equipped ...........................58
▫ Keyless Enter-N-Go — Passive Entry .........58
▫ Manual Sliding Side Door ..................62
▫ Power Sliding Side Door — If Equipped .......63
▫ Hands-Free Sliding Doors — If Equipped .......66
▫ Child Locks ............................67
 SEATS ................................69
▫
Manual Adjustment (Front Seats) — If Equipped . .69
▫ Manual Adjustment (Rear Seats) ............71
▫ Power Adjustment (Front Seats) — If Equipped . .80 ▫
Driver Memory Seat — If Equipped ..........82
▫ Heated Seats ...........................85
▫ Ventilated Seats — If Equipped .............86
▫ Adjustable Armrest (Front Seats) — If Equipped . .87
 HEAD RESTRAINTS ......................88
▫ Head Restraints — Front Seats ..............88
▫ Head Restraints — Second Row .............90
▫ Head Restraints — Third Row ..............92
 STEERING WHEEL .......................93
▫ Tilt/Telescoping Steering Column ............93
▫ Heated Steering Wheel — If Equipped ........94
 MIRRORS ..............................95
▫ Inside Day/Night Mirror — If Equipped ......95
▫ Automatic Dimming Mirror — If Equipped .....95
▫ Outside Mirrors ........................96
▫ Driver’s Outside Automatic Dimming Mirror —
If Equipped ............................96
14 GETTING TO KNOW YOUR VEHICLE

▫Conversation Mirror .....................96
▫ Power Mirrors — If Equipped ..............97
▫ Outside Mirrors Folding Feature ............97
▫ Heated Mirrors — If Equipped .............97
▫ Power Folding Mirrors — If Equipped .........97
▫ Illuminated Vanity Mirrors — If Equipped .....98
 EXTERIOR LIGHTS .......................99
▫ Multifunction Lever ......................99
▫ Headlight Switch ........................99
▫ Daytime Running Lights — If Equipped ......100
▫ High/Low Beam Switch ..................100
▫ Automatic High Beam — If Equipped ........100
▫ Flash-To-Pass ........................ .101
▫ Automatic Headlights — If Equipped ........101
▫ Headlights On With Wipers — If Equipped . . . .101
▫ Headlight Delay — If Equipped ............101
▫ Lights-On Reminder ................... .102▫
Front Fog Lights — If Equipped ............102
▫ Turn Signals ......................... .102
▫ Lane Change Assist — If Equipped ..........103
▫ Battery Protection ..................... .103
 INTERIOR LIGHTS ..................... .103
▫ Courtesy/Interior Lighting ................103
 WINDSHIELD WIPER AND WASHERS ........106
▫ Windshield Wiper Operation ..............106
▫ Rain Sensing Wipers — If Equipped .........107
▫ Rear Wiper And Washer ..................108
 CLIMATE CONTROLS ................... .108
▫ Automatic

Climate Controls .............. .108
▫ Automatic Temperature Control (ATC) —
If Equipped ..........................115
▫ Operating Tips ....................... .122
 WINDOWS ........................... .124
▫ Power Windows ....................... .124
3
GETTING TO KNOW YOUR VEHICLE 15

PANORAMIC SUNROOF — IF EQUIPPED .....127
▫ Opening Sunroof ...................... .128
▫ Closing Sunroof ....................... .129
▫ Wind Buffeting ....................... .129
▫ Power Sun Shade — If Equipped ............129
▫ Pinch Protect Feature ................... .130
▫ Sunroof Maintenance ................... .130
▫ Ignition Off Operation .................. .130
 HOOD .............................. .131
▫ Opening ............................ .131
▫ Closing ............................. .132
 LIFTGATE ............................ .133
▫ Opening ............................ .133
▫ Closing ............................ .134
▫ Power Liftgate — If Equipped .............135
▫ Hands-Free Liftgate — If Equipped ..........137
▫ Cargo Area Features ................... .138
GARAGE DOOR OPENER — IF EQUIPPED . . . .139
▫ Before You Begin Programming HomeLink .....139
▫ Canadian/Gate Operator Programming .......142
▫ Using HomeLink ...................... .143
▫ Security ............................. .144
▫ Troubleshooting Tips ................... .144
▫ General Information .................... .145
 INTERNAL EQUIPMENT ..................145
▫ Storage ............................. .145
▫ Power

Outlets ........................ .149
▫ Power Inverter — If Equipped .............152
▫ Cigar Lighter — If Equipped ..............153
▫ Smoker’s Package Kit — If Equipped ........153
▫ Overhead Sunglass Storage ...............154
 ROOF LUGGAGE RACK — IF EQUIPPED ......154
▫ Deploying The Crossbars .................155
▫ Stowing The Crossbars .................. .158
16 GETTING TO KNOW YOUR VEHICLE

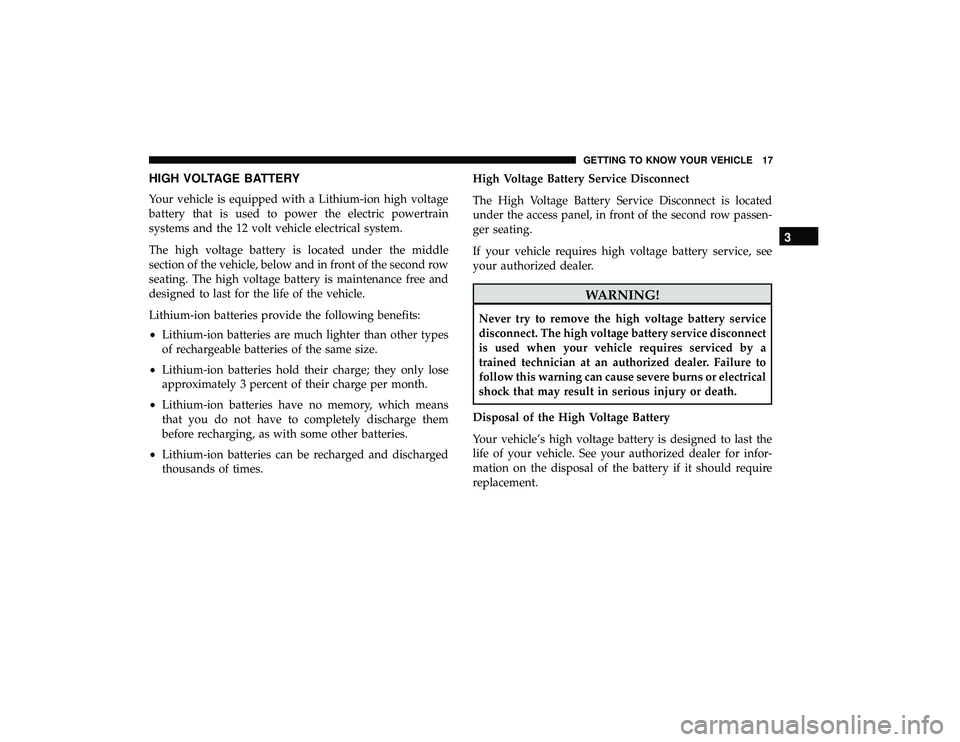

HIGH VOLTAGE BATTERY
Your vehicle is equipped with a Lithium-ion high voltage
battery that is used to power the electric powertrain
systems and the 12 volt vehicle electrical system.
The high voltage battery is located under the middle
section of the vehicle, below and in front of the second row
seating. The high voltage battery is maintenance free and
designed to last for the life of the vehicle.
Lithium-ion batteries provide the following benefits:
•Lithium-ion batteries are much lighter than other types
of rechargeable batteries of the same size.
• Lithium-ion batteries hold their charge; they only lose
approximately 3 percent of their charge per month.
• Lithium-ion batteries have no memory, which means
that you do not have to completely discharge them
before recharging, as with some other batteries.
• Lithium-ion batteries can be recharged and discharged
thousands of times. High Voltage Battery Service Disconnect
The High Voltage Battery Service Disconnect is located
under the access panel, in front of the second row passen-
ger seating.
If your vehicle requires high voltage battery service, see
your authorized dealer.
WARNING!
Never try to remove the high voltage battery service
disconnect. The high voltage battery service disconnect
is used when your vehicle requires serviced by a
trained technician at an authorized dealer. Failure to
follow this warning can cause severe burns or electrical
shock that may result in serious injury or death.
Disposal of the High Voltage Battery
Your vehicle’s high voltage battery is designed to last the
life of your vehicle. See your authorized dealer for infor-
mation on the disposal of the battery if it should require
replacement.
3
GETTING TO KNOW YOUR VEHICLE 17

General Information

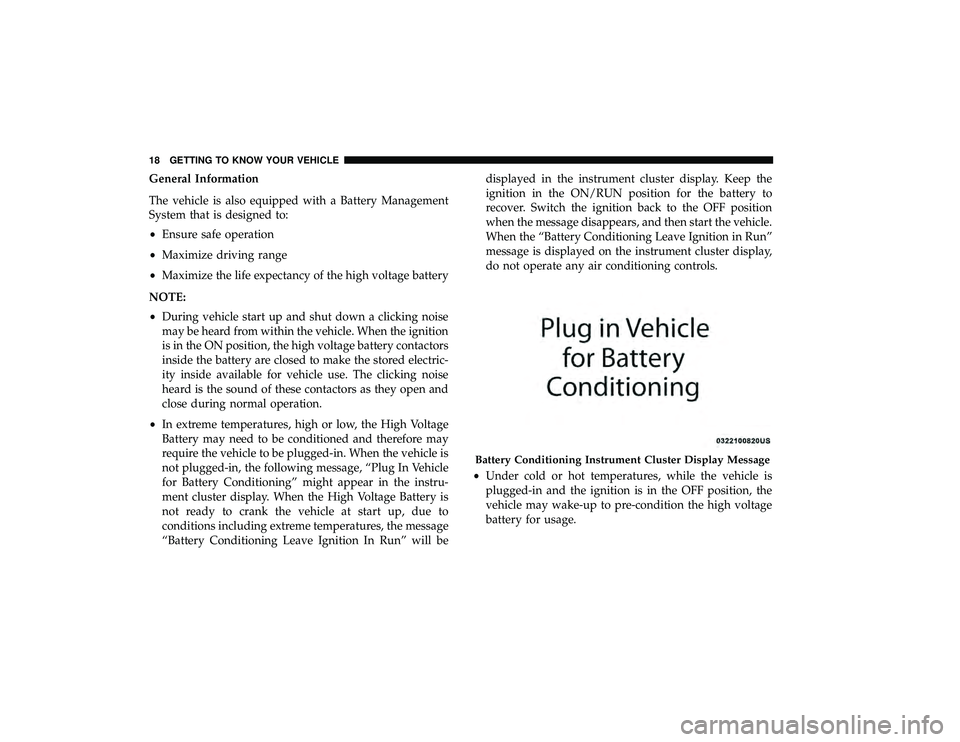

The vehicle is also equipped with a Battery Management
System that is designed to:
•Ensure safe operation
• Maximize driving range
• Maximize the life expectancy of the high voltage battery
NOTE:
• During vehicle start up and shut down a clicking noise
may be heard from within the vehicle. When the ignition
is in the ON position, the high voltage battery contactors
inside the battery are closed to make the stored electric-
ity inside available for vehicle use. The clicking noise
heard is the sound of these contactors as they open and
close during normal operation.
• In extreme temperatures, high or low, the High Voltage
Battery may need to be conditioned and therefore may
require the vehicle to be plugged-in. When the vehicle is
not plugged-in, the following message, “Plug In Vehicle
for Battery Conditioning” might appear in the instru-
ment cluster display. When the High Voltage Battery is
not ready to crank the vehicle at start up, due to
conditions including extreme temperatures, the message
“Battery Conditioning Leave Ignition In Run” will be displayed in the instrument cluster display. Keep the
ignition in the ON/RUN position for the battery to
recover. Switch the ignition back to the OFF position
when the message disappears, and then start the vehicle.
When the “Battery Conditioning Leave Ignition in Run”
message is displayed on the instrument cluster display,
do not operate any air conditioning controls.
• Under cold or hot temperatures, while the vehicle is
plugged-in and the ignition is in the OFF position, the
vehicle may wake-up to pre-condition the high voltage
battery for usage.
Battery Conditioning Instrument Cluster Display Message
