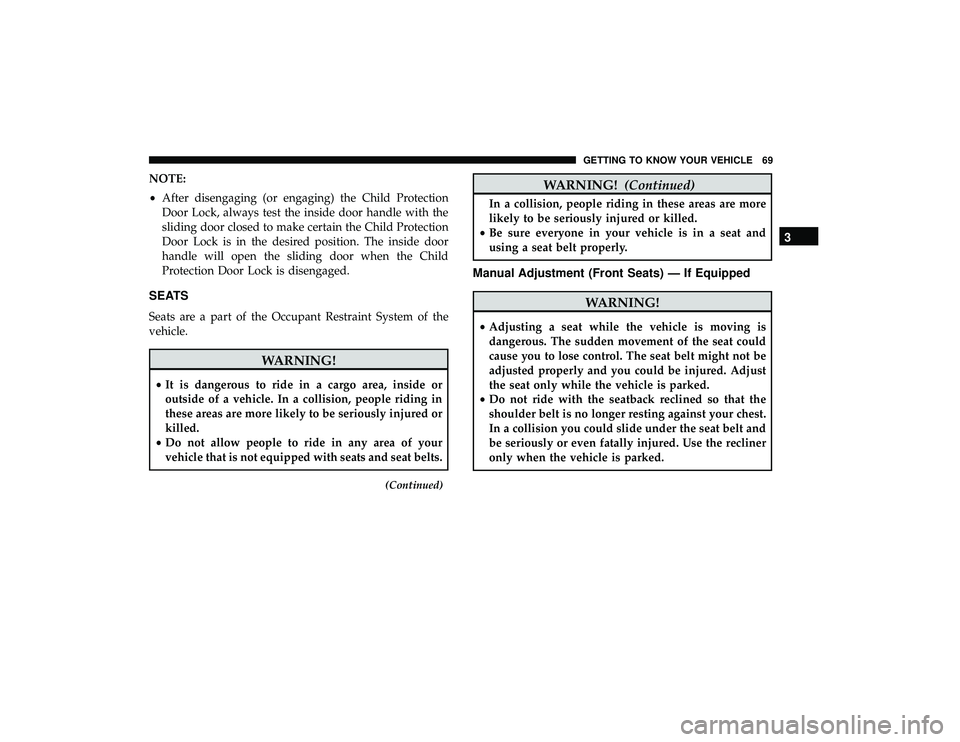

NOTE:
•After disengaging (or engaging) the Child Protection
Door Lock, always test the inside door handle with the
sliding door closed to make certain the Child Protection
Door Lock is in the desired position. The inside door
handle will open the sliding door when the Child
Protection Door Lock is disengaged.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
• It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
(Continued)
WARNING! (Continued)
In a collision, people riding in these areas are more
likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Adjustment (Front Seats) — If Equipped
WARNING!
• Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
3
GETTING TO KNOW YOUR VEHICLE 69

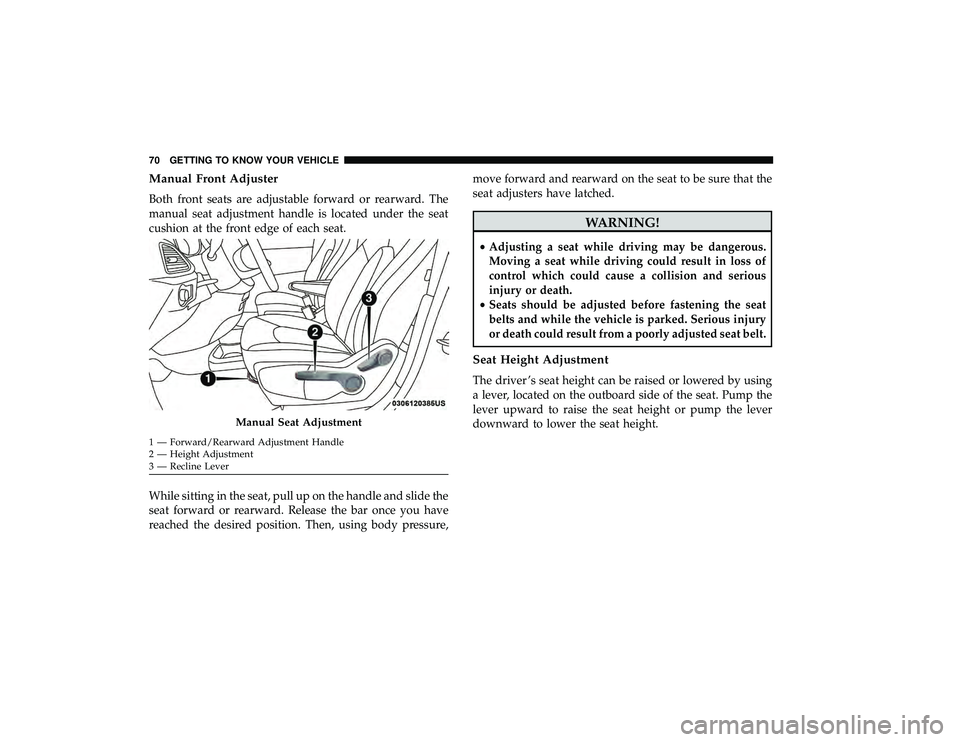

Manual Front Adjuster
Both front seats are adjustable forward or rearward. The
manual seat adjustment handle is located under the seat
cushion at the front edge of each seat.
While sitting in the seat, pull up on the handle and slide the
seat forward or rearward. Release the bar once you have
reached the desired position. Then, using body pressure,move forward and rearward on the seat to be sure that the
seat adjusters have latched.
WARNING!
•
Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury
or death could result from a poorly adjusted seat belt.
Seat Height Adjustment
The driver ’s seat height can be raised or lowered by using
a lever, located on the outboard side of the seat. Pump the
lever upward to raise the seat height or pump the lever
downward to lower the seat height.
Manual Seat Adjustment
1 — Forward/Rearward Adjustment Handle
2 — Height Adjustment
3 — Recline Lever 70 GETTING TO KNOW YOUR VEHICLE

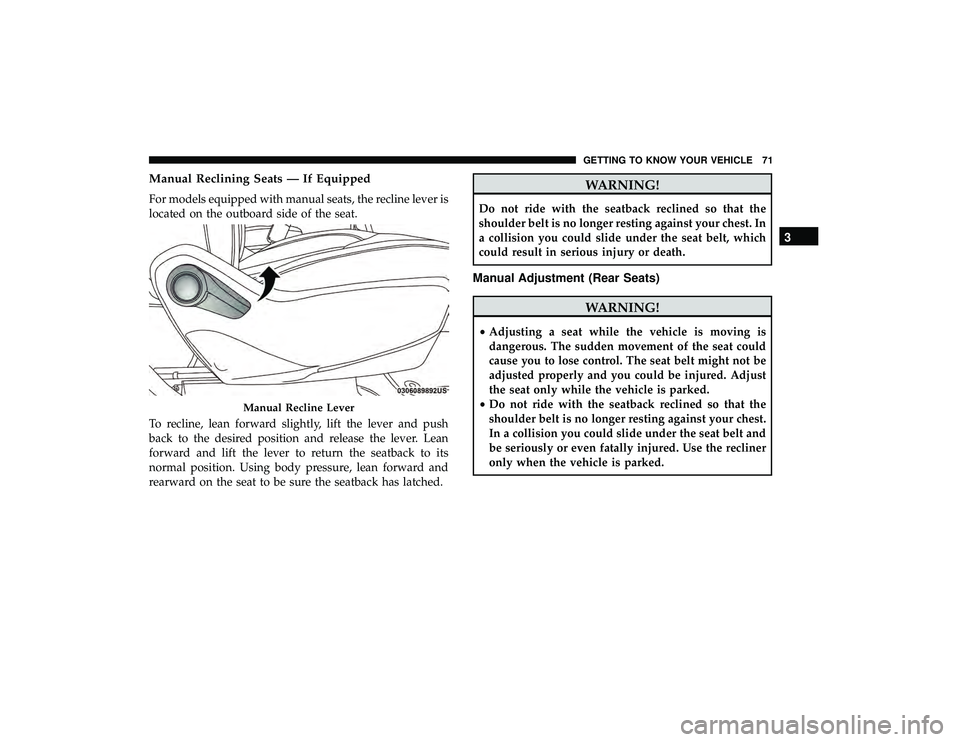

Manual Reclining Seats — If Equipped
For models equipped with manual seats, the recline lever is
located on the outboard side of the seat.
To recline, lean forward slightly, lift the lever and push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest. In
a collision you could slide under the seat belt, which
could result in serious injury or death.
Manual Adjustment (Rear Seats)
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Manual Recline Lever
3
GETTING TO KNOW YOUR VEHICLE 71

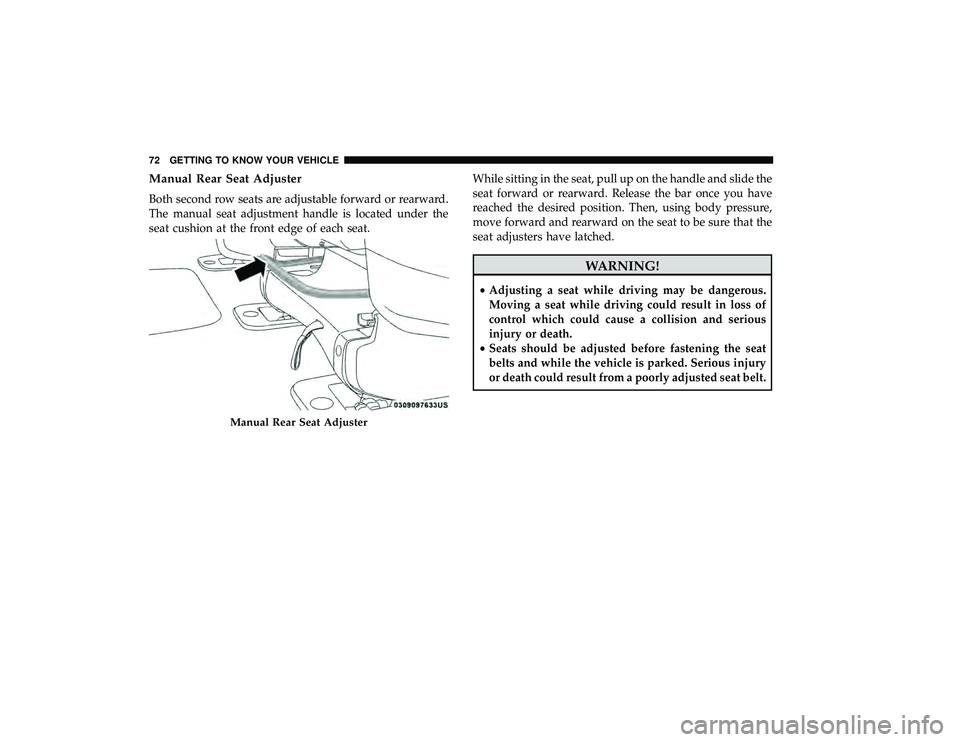

Manual Rear Seat Adjuster
Both second row seats are adjustable forward or rearward.
The manual seat adjustment handle is located under the
seat cushion at the front edge of each seat.While sitting in the seat, pull up on the handle and slide the
seat forward or rearward. Release the bar once you have
reached the desired position. Then, using body pressure,
move forward and rearward on the seat to be sure that the
seat adjusters have latched.
WARNING!
•
Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury
or death could result from a poorly adjusted seat belt.
Manual Rear Seat Adjuster
72 GETTING TO KNOW YOUR VEHICLE

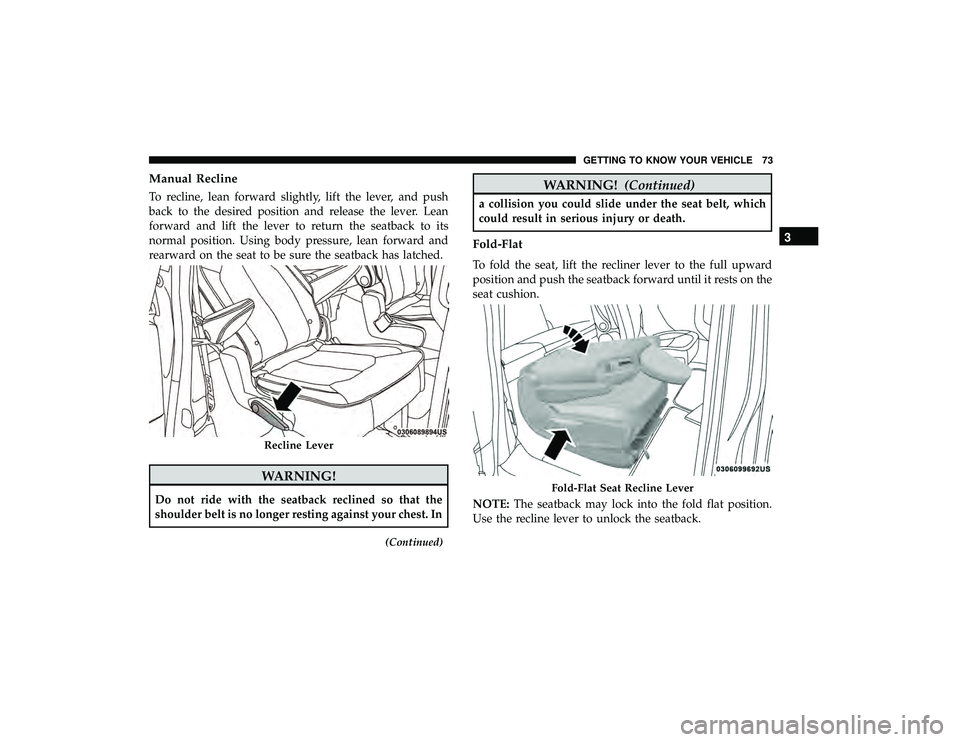

Manual Recline
To recline, lean forward slightly, lift the lever, and push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using body pressure, lean forward and
rearward on the seat to be sure the seatback has latched.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest. In
(Continued)
WARNING!(Continued)
a collision you could slide under the seat belt, which
could result in serious injury or death.
Fold-Flat
To fold the seat, lift the recliner lever to the full upward
position and push the seatback forward until it rests on the
seat cushion.
NOTE:The seatback may lock into the fold flat position.
Use the recline lever to unlock the seatback.
Recline Lever
Fold-Flat Seat Recline Lever
3
GETTING TO KNOW YOUR VEHICLE 73

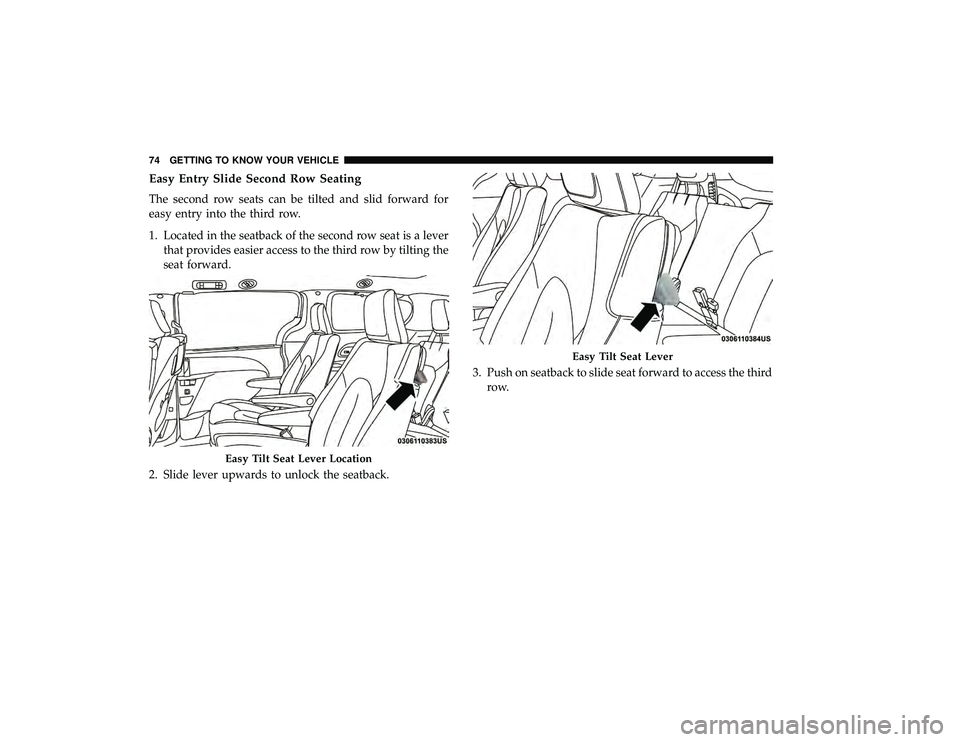

Easy Entry Slide Second Row Seating
The second row seats can be tilted and slid forward for
easy entry into the third row.
1. Located in the seatback of the second row seat is a leverthat provides easier access to the third row by tilting the
seat forward.
2. Slide lever upwards to unlock the seatback. 3. Push on seatback to slide seat forward to access the third
row.
Easy Tilt Seat Lever Location
Easy Tilt Seat Lever
74 GETTING TO KNOW YOUR VEHICLE

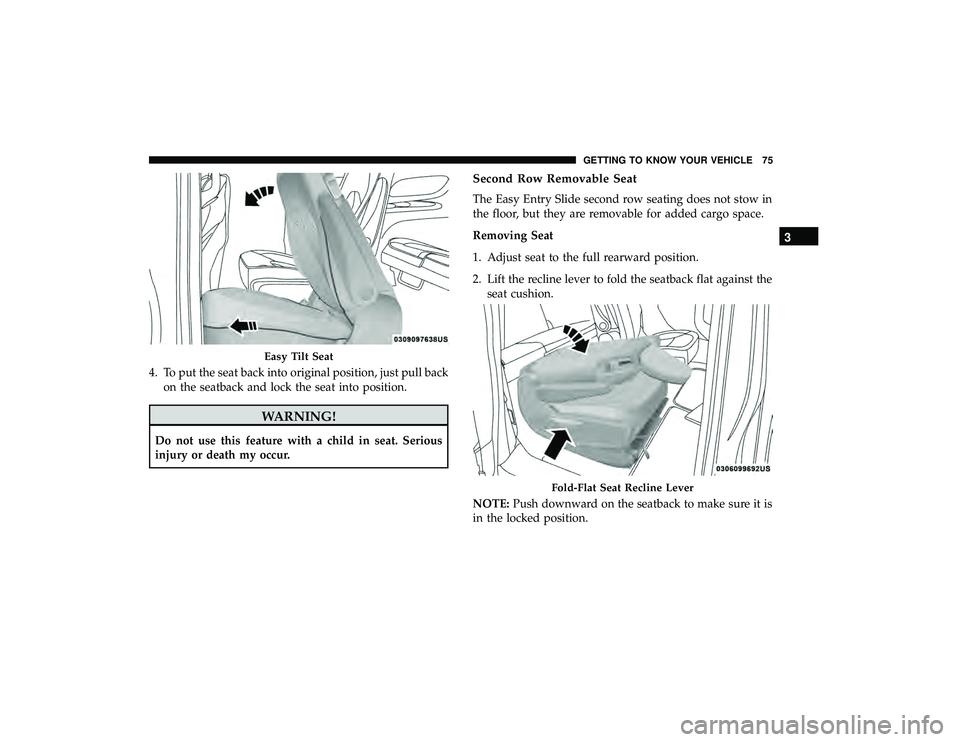

4. To put the seat back into original position, just pull backon the seatback and lock the seat into position.
WARNING!
Do not use this feature with a child in seat. Serious
injury or death my occur.
Second Row Removable Seat
The Easy Entry Slide second row seating does not stow in
the floor, but they are removable for added cargo space.
Removing Seat
1. Adjust seat to the full rearward position.
2. Lift the recline lever to fold the seatback flat against theseat cushion.
NOTE: Push downward on the seatback to make sure it is
in the locked position.
Easy Tilt Seat
Fold-Flat Seat Recline Lever
3
GETTING TO KNOW YOUR VEHICLE 75

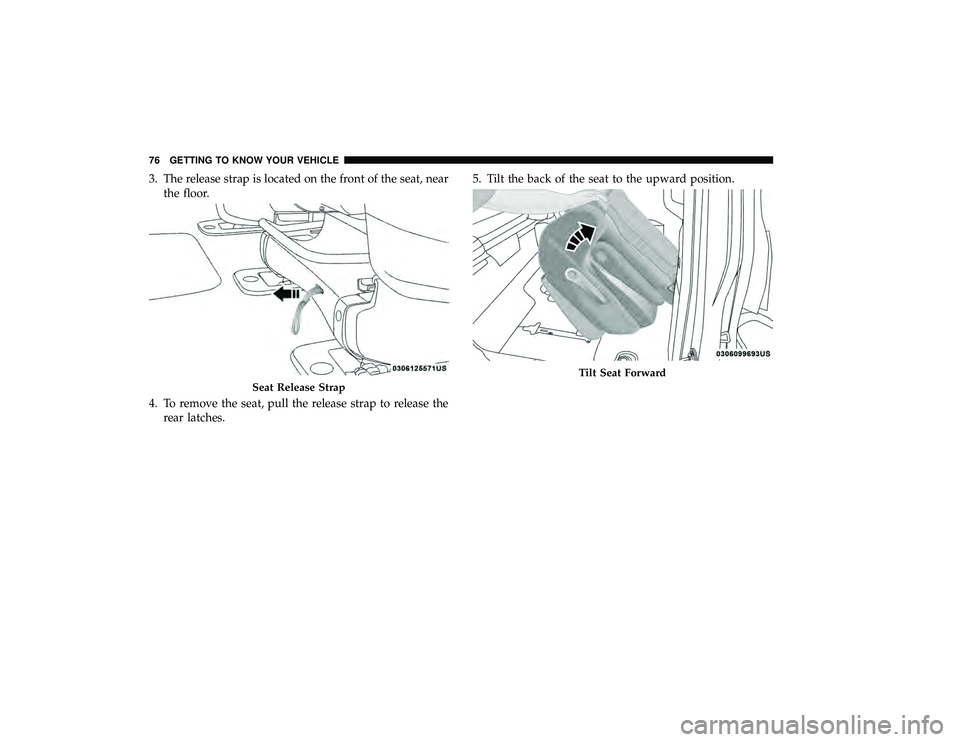

3. The release strap is located on the front of the seat, nearthe floor.
4. To remove the seat, pull the release strap to release the rear latches. 5. Tilt the back of the seat to the upward position.
Seat Release Strap
Tilt Seat Forward
76 GETTING TO KNOW YOUR VEHICLE

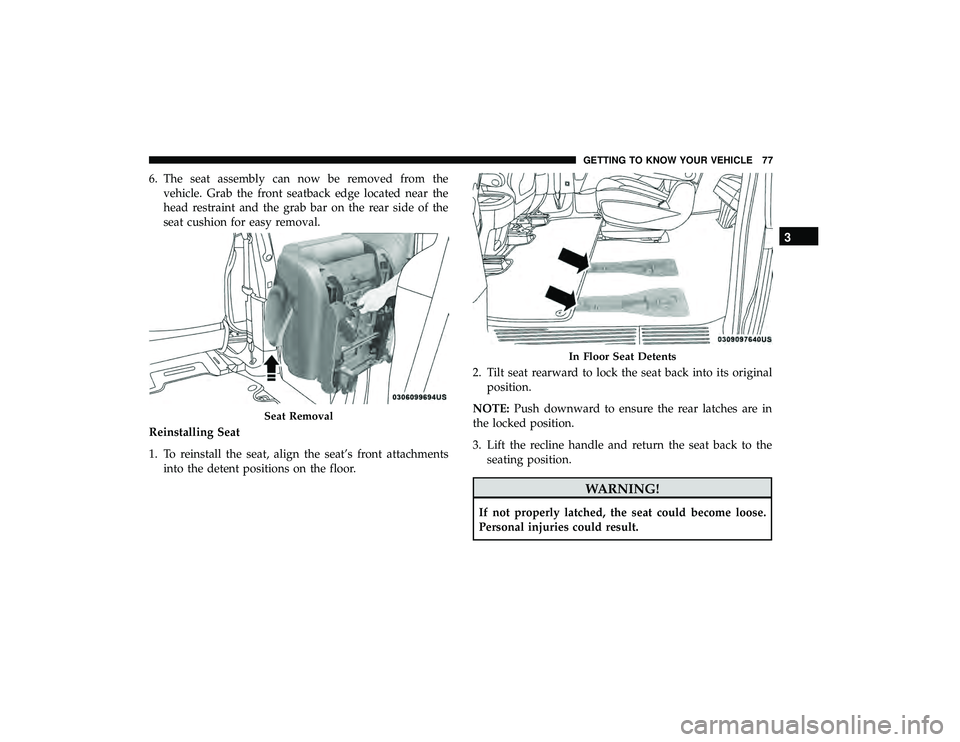

6. The seat assembly can now be removed from thevehicle. Grab the front seatback edge located near the
head restraint and the grab bar on the rear side of the
seat cushion for easy removal.
Reinstalling Seat
1. To reinstall the seat, align the seat’s front attachments into the detent positions on the floor. 2. Tilt seat rearward to lock the seat back into its original
position.
NOTE: Push downward to ensure the rear latches are in
the locked position.
3. Lift the recline handle and return the seat back to the seating position.
WARNING!
If not properly latched, the seat could become loose.
Personal injuries could result.
Seat Removal
In Floor Seat Detents
3
GETTING TO KNOW YOUR VEHICLE 77

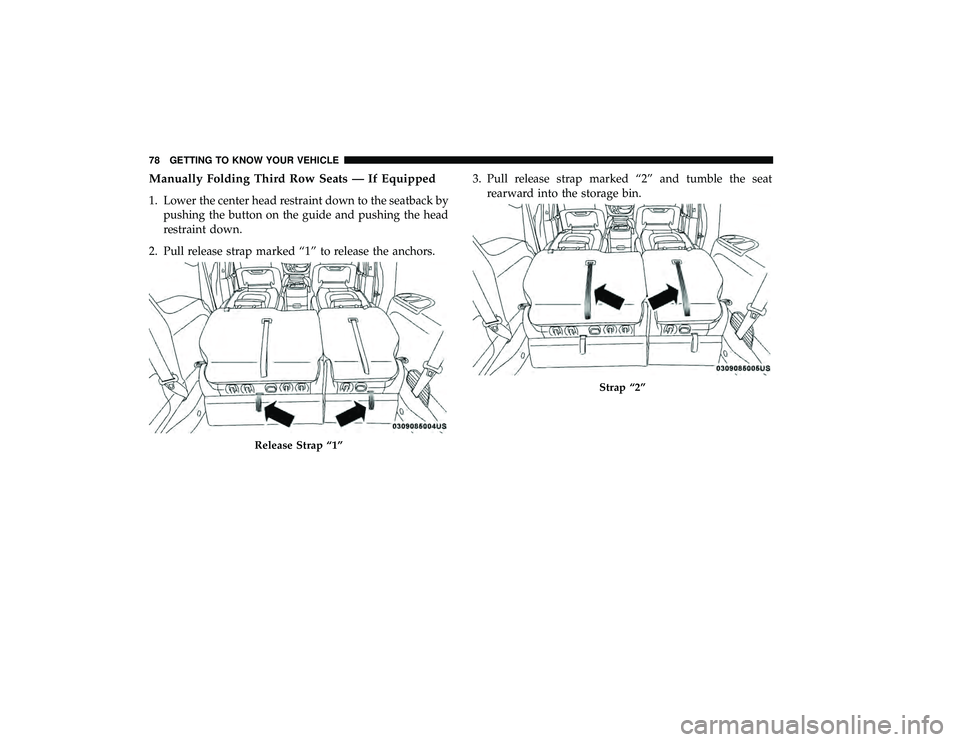

Manually Folding Third Row Seats — If Equipped
1. Lower the center head restraint down to the seatback bypushing the button on the guide and pushing the head
restraint down.
2. Pull release strap marked “1” to release the anchors. 3. Pull release strap marked “2” and tumble the seat
rearward into the storage bin.
Release Strap “1”
Strap “2”
78 GETTING TO KNOW YOUR VEHICLE
