CHRYSLER VOYAGER 1996 Service Manual

Fig. 10 Instrument Panel ConnectionsÐLHD
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 17
DESCRIPTION AND OPERATION (Continued)

Fig. 11 Instrument Panel ConnectionsÐLHD
8W - 90 - 18 8W - 90 CONNECTOR/GROUND LOCATIONSNS/GS
DESCRIPTION AND OPERATION (Continued)

Fig. 12 Instrument Panel ConnectionsÐLHD
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 19
DESCRIPTION AND OPERATION (Continued)

Fig. 13 Cowl Panel ConnectionsÐLHD
8W - 90 - 20 8W - 90 CONNECTOR/GROUND LOCATIONSNS/GS
DESCRIPTION AND OPERATION (Continued)

Fig. 14 Body ConnectionsÐLHD
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 21
DESCRIPTION AND OPERATION (Continued)

Fig. 15 HVAC ConnectionsÐLHD
8W - 90 - 22 8W - 90 CONNECTOR/GROUND LOCATIONSNS/GS
DESCRIPTION AND OPERATION (Continued)

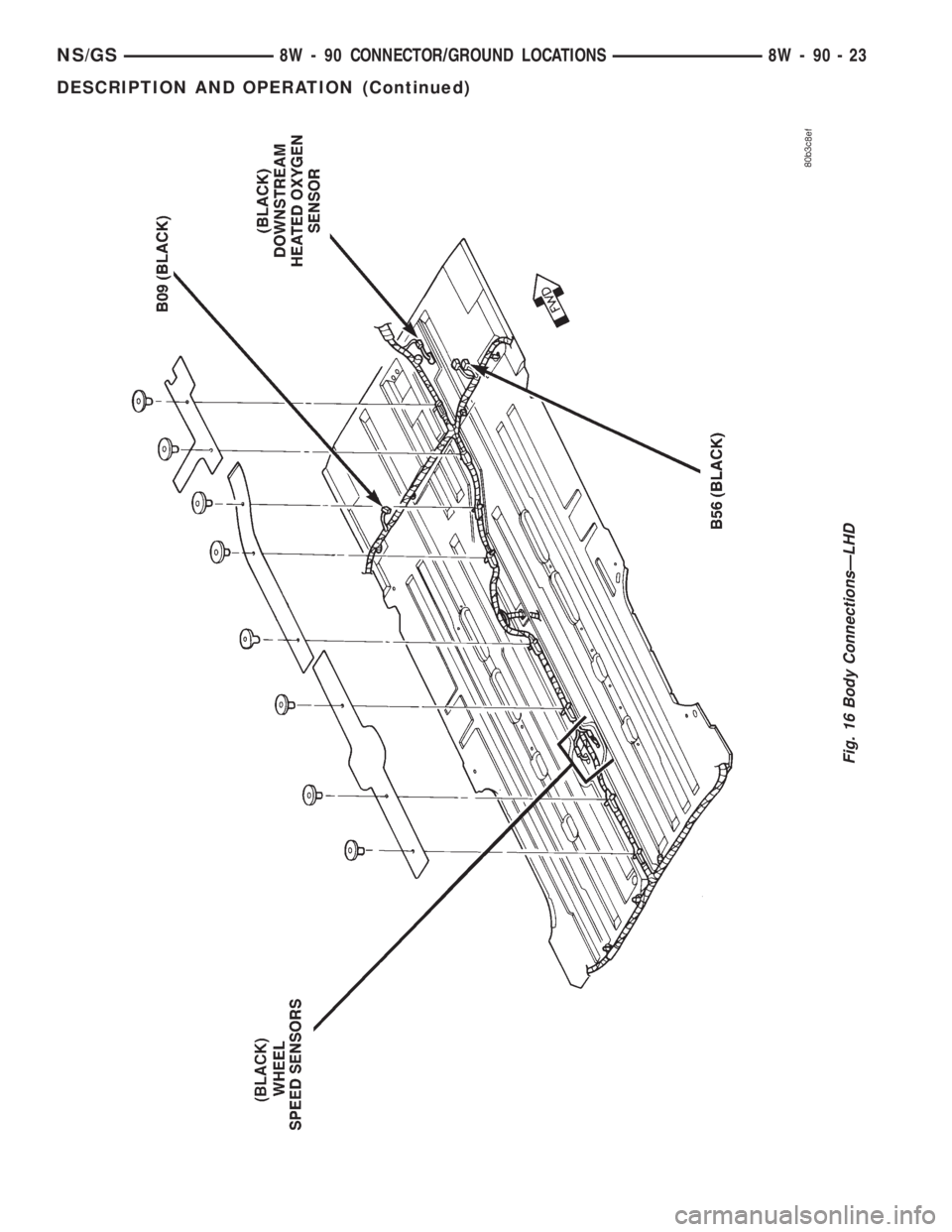

Fig. 16 Body ConnectionsÐLHD
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 23
DESCRIPTION AND OPERATION (Continued)

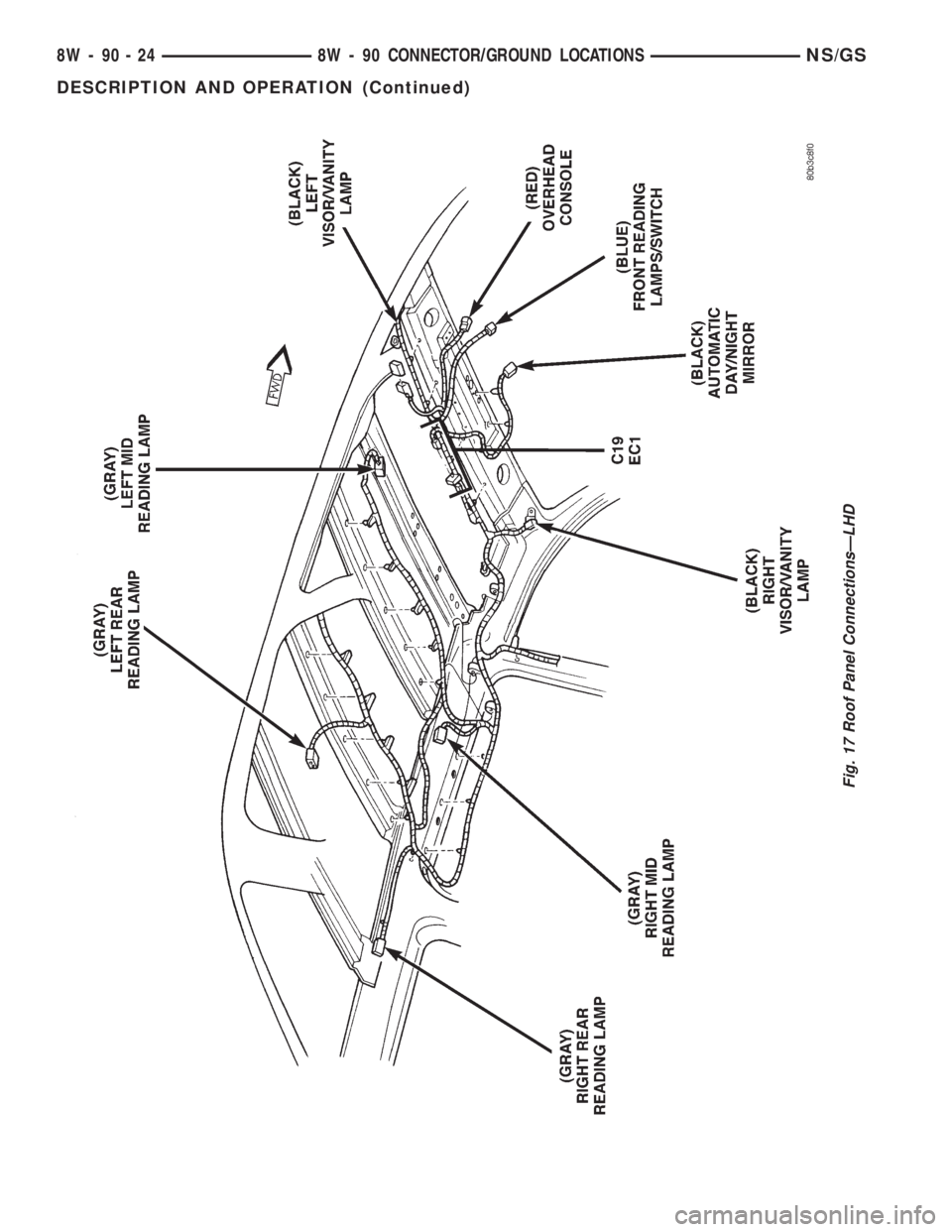

Fig. 17 Roof Panel ConnectionsÐLHD
8W - 90 - 24 8W - 90 CONNECTOR/GROUND LOCATIONSNS/GS
DESCRIPTION AND OPERATION (Continued)

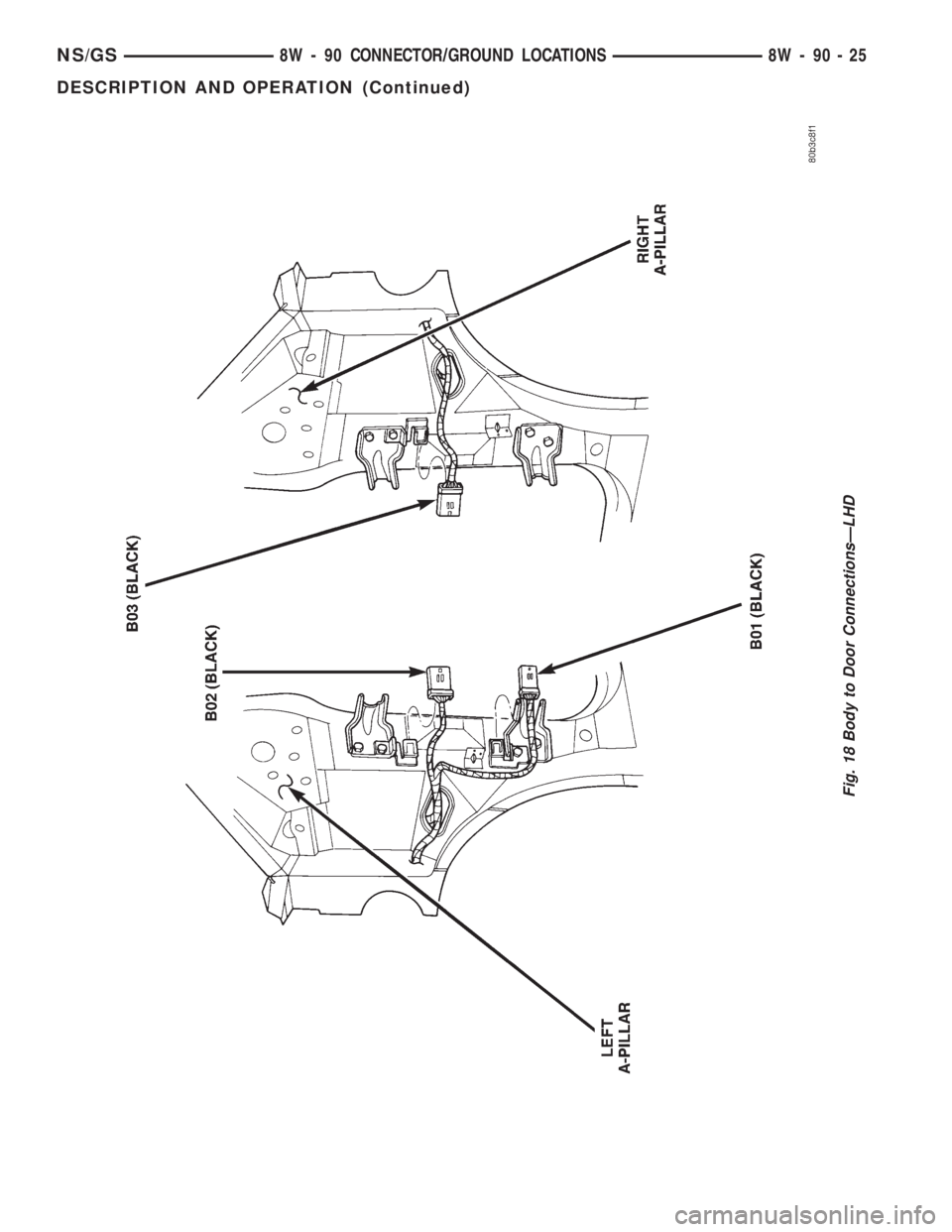

Fig. 18 Body to Door ConnectionsÐLHD
NS/GS8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 25
DESCRIPTION AND OPERATION (Continued)

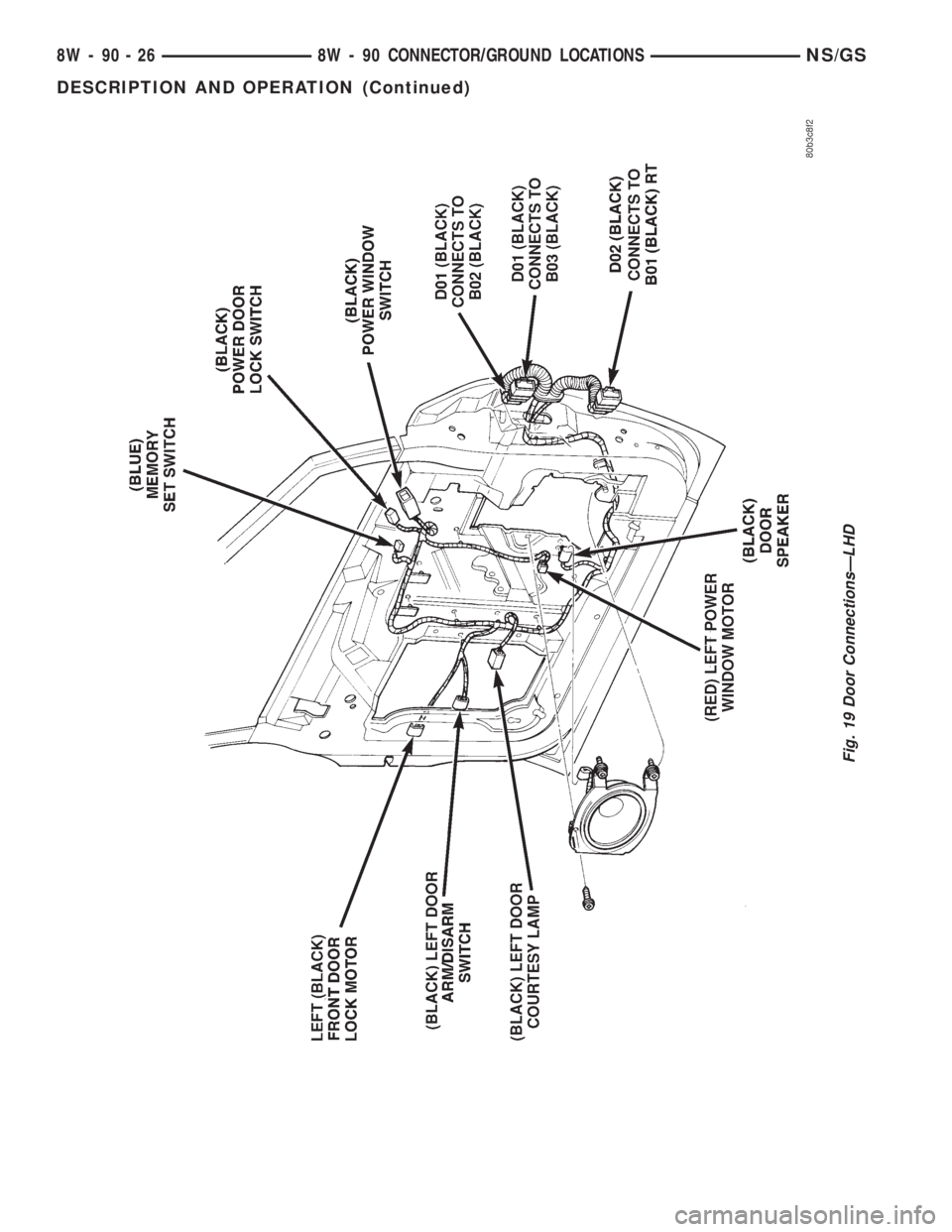

Fig. 19 Door ConnectionsÐLHD
8W - 90 - 26 8W - 90 CONNECTOR/GROUND LOCATIONSNS/GS
DESCRIPTION AND OPERATION (Continued)
