CHRYSLER VOYAGER 2001 Service Manual

ATC REMOTE SENSOR (ATC)-4WAYCAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTO TEMP CONTROL C1 - WHITE 13 WAYCAV CIRCUIT FUNCTION
1 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
2 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
3 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
4 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C132 20DB/YL RECIRCULATION DOOR DRIVER (B)
6 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
7 C135 20DB/GY MODE DOOR DRIVER (B)
8 C35 20LB/OR MODE DOOR DRIVER (A)
9 C53 20LB REAR MODE DOOR DRIVER (A)
10 C154 20LB/OR REAR MODE DOOR DRIVER (B)
11 C54 20LB/YL REAR BLEND DOOR DRIVER (A)
12 C169 20DB/OR REAR BLEND DOOR DRIVER (B)
13 - -
AUTO TEMP CONTROL C2 - BLACK 13 WAYCAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 A114 20GY/RD FUSED B(+) (I.O.D.)
5 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
6 D25 20WT/VT PCI BUS
7 C56 20DB/LB BLOWER MOTOR CONTROL
8 C59 20DB/LB REAR BLOWER MOTOR CONTROL
9 D22 20WT/TN KDB CLOCK
10 D17 20WT/DG KDB DATA
11 Z24 18BK/OR GROUND
12 C200 20LB/DG TXV SOLENOID FEED
13 C900 18LB/VT WIPER DE-ICER DRIVER
AUTO TEMP CONTROL C3-4WAYCAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO.2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1012
CONNECTOR PINOUTS

BLOWER MOTOR RESISTOR C1 (MTC) - BLACK 6 WAYCAV CIRCUIT FUNCTION
1 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
2 C74 12DB/WT BLOWER MOTOR M3 DRIVER
3 C73 14DB/VT BLOWER MOTOR M2 DRIVER
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
5 C72 16DB/OR BLOWER MOTOR M1 DRIVER
6 C71 16DB/BR BLOWER MOTOR LOW DRIVER
BLOWER MOTOR RESISTOR C2 (MTC) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 C70 12DG REAR BLOWER HIGH SPEED
2 C7 12BK HIGH SPEED BLOWER MOTOR
BODY CONTROL MODULE C1 - BLACK/BLACK 6 WAYCAV CIRCUIT FUNCTION
1 A102 12WT/RD FUSED B(+)
2 A701 16BR/RD FUSED B(+) (HAZARD)
3 Z100 12BK/TN GROUND
4- -
5 A101 12VT/RD FUSED B(+)
6- -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1013
CONNECTOR PINOUTS

BODY CONTROL MODULE C2 - BLACK/GREEN 34 WAYCAV CIRCUIT FUNCTION
1 L61 18WT/LG LEFT FRONT TURN SIGNAL DRIVER
2 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
4 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
5 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
6 G25 20VT/TN (HIGH LINE) LIFTGATE SWITCH MUX
7 A114 20GY/RD FUSED B(+) (I.O.D.)
8- -
9 L1 18WT/LG BACK-UP LAMP DRIVER
10 P3 20TN/WT LEFT FRONT DOOR LOCK DRIVER
11 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
12 P38 20TN/DB RIGHT SLIDING DOOR LOCK DRIVER
13 - -
14 - -
15 Z15 18BK/TN GROUND
16 G920 20VT/YL (MEMORY) MEMORY SEAT SWITCH RETURN
17 G153 20VT/YL (POWER
LIFTGATE)LIFTGATE MODULE WAKE UP SIGNAL
18 P32 20TN/VT LEFT SLIDING DOOR LOCK DRIVER
19 Z10 18BK/TN GROUND
20 P5 20TN/OR LEFT SLIDING DOOR UNLOCK DRIVER
21 P164 18LG/DB (BUILT-UP-
EXPORT)PASSENGER FOLDING MIRROR RELAY INPUT
22 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
23 - -
24 G200 20VT/BR (MEMORY) MEMORY SEAT SET SWITCH MUX
25 M22 20YL/OR COURTESY LAMPS DRIVER
26 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
27 P34 20TN/LB RIGHT SLIDING DOOR UNLOCK DRIVER
28 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER
29 P159 20TN/DG (BUILT-UP-
EXPORT)DRIVER FOLDING MIRROR FOLD DRIVER
30 P174 20TN/LB (BUILT-UP-
EXPORT)RIGHT FOLDING MIRROR UNFOLD DRIVER
31 P171 20TN/YL (BUILT-UP-
EXPORT)LEFT FOLDING MIRROR UNFOLD DRIVER
32 W13 18BR/LG REAR WIPER MOTOR CONTROL
33 M24 20YL/WT COURTESY LAMPS DRIVER
34 L38 20WT/YL (BUILT-UP-
EXPORT)REAR FOG LAMP SWITCH OUTPUT
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1014
CONNECTOR PINOUTS

BODY CONTROL MODULE C3 - BLACK/WHITE 34 WAYCAV CIRCUIT FUNCTION
1 G23 20VT/DB (POWER
SLIDING DOOR)SLIDING DOORS OVERHEAD SWITCH MUX
2 D23 20WT/BR FLASH PROGRAM ENABLE
3 G152 20VT/GY (POWER
SLIDING DOOR)RIGHT SLIDING DOOR WAKE UP SIGNAL
4 G151 20VT/BR (POWER
SLIDING DOOR)LEFT SLIDING DOOR WAKE UP SIGNAL
5 G76 20VT/YL RIGHT SLIDING DOOR AJAR SWITCH SENSE
6 G75 20VT (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
6 G74 20VT/WT (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
7 G75 20VT (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
7 G74 20VT/WT (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
8 G77 20VT/GY LEFT SLIDING DOOR AJAR SWITCH SENSE
9 E10 20OR/GY (ATC ) (3
ZONE HVAC)PANEL LAMPS DRIVER (REAR BLOWER SWITCH)
10 - -
11 L162 20WT/VT (BUILT-UP-
EXPORT)RIGHT SIDE REPEATER LAMP FEED
12 G42 20VT/YL (POWER
SLIDING DOOR)RIGHT SLIDING DOOR PILLAR SWITCH MUX
13 G165 20VT/GY LIFTGATE CYLINDER LOCK SWITCH MUX
14 G163 20VT/LB LEFT CYLINDER LOCK SWITCH MUX
15 G162 20VT/WT RIGHT CYLINDER LOCK SWITCH MUX
16 - -
17 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
18 G41 20VT/DG (POWER
SLIDING DOOR)LEFT SLIDING DOOR PILLAR SWITCH MUX
19 L163 20WT/BR (BUILT-UP-
EXPORT)LEFT SIDE REPEATER LAMP FEED
20 N4 18DB/WT FUEL LEVEL SENSOR SIGNAL
21 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
21 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
22 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
22 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
23 D25 20WT/VT PCI BUS
24 - -
25 M11 20YL/VT COURTESY LAMPS DRIVER
26 P31 20TN/YL (POWER RE-
LEASE) (EXCEPT BUILT-
UP-EXPORT LHD SWB
GAS)LIFTGATE RELEASE DRIVER
26 P31 20TN/DG (POWER
RELEASE) (BUILT-UP-
EXPORT LHD SWB GAS)LIFTGATE RELEASE DRIVER
27 - -
28 - -
29 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
30 G70 20VT/LB HOOD AJAR SWITCH SENSE
31 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
32 - -
33 M21 20YL/BR COURTESY LAMPS DRIVER
34 M27 20YL/LB READING LAMPS DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1015
CONNECTOR PINOUTS

BODY CONTROL MODULE C4 - BLACK/GRAY 34 WAYCAV CIRCUIT FUNCTION
1 E18 20OR/LB (POWER
MIRRORS)PANEL LAMPS DRIVER (MIRROR SWITCH)
2 E12 20OR/GY PANEL LAMPS DRIVER (HVAC)
3 E19 20OR/BR PANEL LAMPS DRIVER (HEADLAMP SWITCH)
4 D9 20WT/GY RKE MODULE PROGRAM ENABLE
5 G150 20VT/BR INSTRUMENT CLUSTER WAKE UP SENSE
6 E17 20OR/YL (EXCEPT
BUILT-UP-EXPORT)PARADE MODE SIGNAL (RADIO)
7 P162 20LG/DG (BUILT-UP-
EXPORT)PASSENGER FOLDING MIRROR RELAY CONTROL
8 G69 20VT/WT (HIGH LINE) VTSS INDICATOR DRIVER
9 L161 20WT/LG LEFT TURN INDICATOR DRIVER
10 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
11 E14 20OR/TN PANEL LAMPS DRIVER (RADIO)
12 E13 20OR/YL PANEL LAMPS DRIVER (INSTRUMENT CLUSTER)
13 X920 20GY/OR RADIO CONTROL MUX RETURN
14 G900 20VT/OR IGNITION SWITCH SENSE RETURN
15 - -
16 - -
17 L160 20WT/TN RIGHT TURN INDICATOR DRIVER
18 M26 20YL/DB HALO LAMP DRIVER
19 - -
20 - -
21 - -
22 G902 20VT/OR MULTI-FUNCTION SWITCH MUX RETURN
23 - -
24 - -
25 - -
26 M28 20YL/TN GLOVE BOX LAMP DRIVER
27 - -
28 - -
29 - -
30 - -
31 G96 20VT/DG REMOTE KEYLESS ENTRY INTERFACE
32 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
33 P136 20TN/YL (BUILT-UP-
EXPORT)FOLDING MIRROR SWITCH SENSE
34 G26 20VT/OR CHIME DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1016
CONNECTOR PINOUTS

BODY CONTROL MODULE C5 - BLACK/BLACK 34 WAYCAV CIRCUIT FUNCTION
1 L91 20WT/DB HAZARD SWITCH SENSE
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 G20 20VT/BR IGNITION SWITCH SENSE
11 - -
12 - -
13 - -
14 - -
15 - -
16 G926 20VT/WT REAR WIPER SWITCH MUX RETURN
17 L900 20WT/YL HEADLAMP SWITCH MUX RETURN
18 L307 20WT/BR HEADLAMP SWITCH MUX
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 L36 20WT/DB (BUILT-UP-
EXPORT)REAR FOG LAMP INDICATOR DRIVER
26 X20 20GY/WT RADIO CONTROL MUX
27 G194 20VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
28 W26 20BR/DB REAR WIPER SWITCH MUX
29 W52 20BR/YL FRONT WIPER SWITCH MUX
30 E2 20OR/BR PANEL LAMPS DIMMER SIGNAL
31 L305 20WT/LB TURN SIGNAL SWITCH MUX
32 - -
33 - -
34 L39 20WT/OR (HIGH LINE) FRONT FOG LAMP INDICATOR DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1017
CONNECTOR PINOUTS

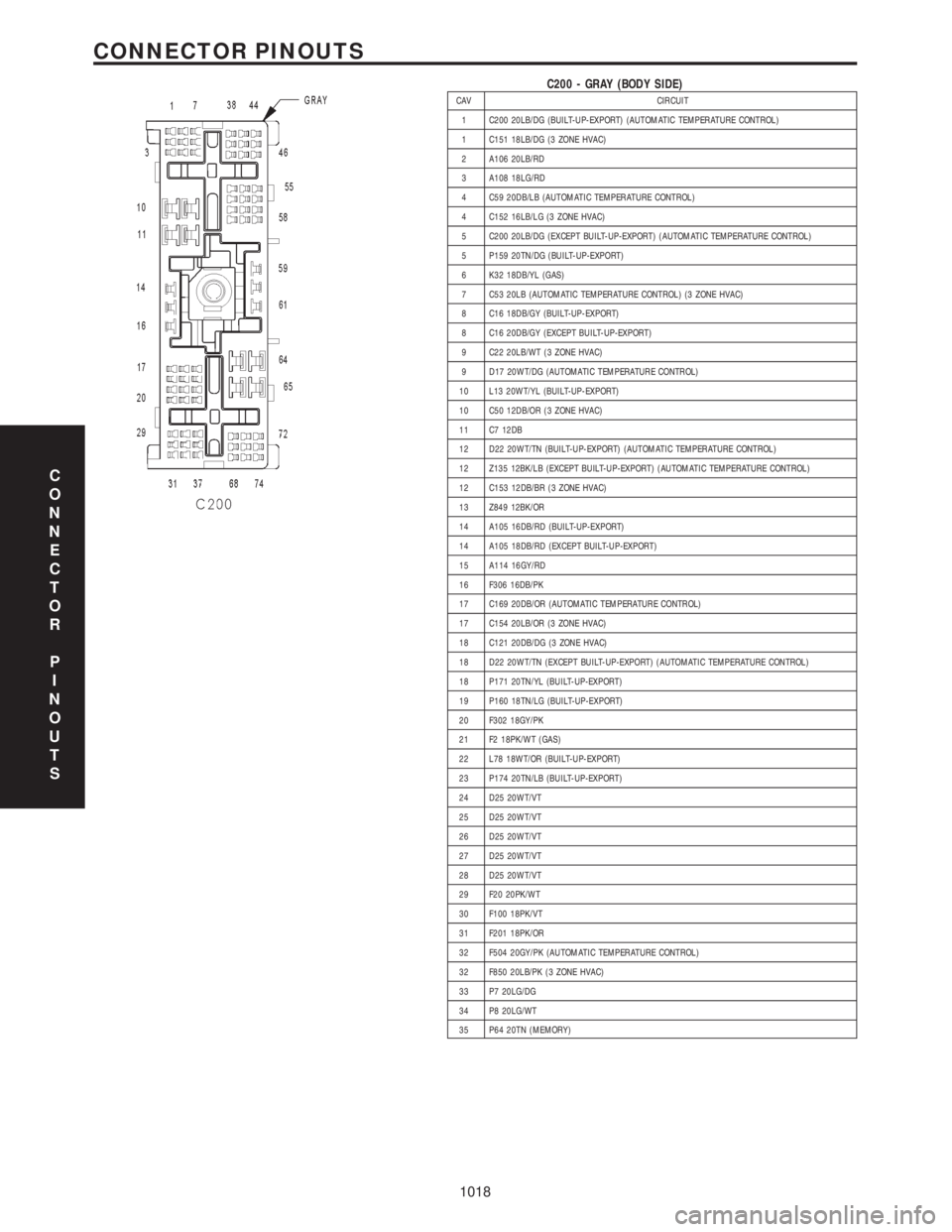

C200 - GRAY (BODY SIDE)CAV CIRCUIT
1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
1 C151 18LB/DG (3 ZONE HVAC)
2 A106 20LB/RD
3 A108 18LG/RD
4 C59 20DB/LB (AUTOMATIC TEMPERATURE CONTROL)
4 C152 16LB/LG (3 ZONE HVAC)
5 C200 20LB/DG (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
5 P159 20TN/DG (BUILT-UP-EXPORT)
6 K32 18DB/YL (GAS)
7 C53 20LB (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
8 C16 18DB/GY (BUILT-UP-EXPORT)
8 C16 20DB/GY (EXCEPT BUILT-UP-EXPORT)
9 C22 20LB/WT (3 ZONE HVAC)
9 D17 20WT/DG (AUTOMATIC TEMPERATURE CONTROL)
10 L13 20WT/YL (BUILT-UP-EXPORT)
10 C50 12DB/OR (3 ZONE HVAC)
11 C7 12DB
12 D22 20WT/TN (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
12 Z135 12BK/LB (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
12 C153 12DB/BR (3 ZONE HVAC)
13 Z849 12BK/OR
14 A105 16DB/RD (BUILT-UP-EXPORT)
14 A105 18DB/RD (EXCEPT BUILT-UP-EXPORT)
15 A114 16GY/RD
16 F306 16DB/PK
17 C169 20DB/OR (AUTOMATIC TEMPERATURE CONTROL)
17 C154 20LB/OR (3 ZONE HVAC)
18 C121 20DB/DG (3 ZONE HVAC)
18 D22 20WT/TN (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
18 P171 20TN/YL (BUILT-UP-EXPORT)
19 P160 18TN/LG (BUILT-UP-EXPORT)
20 F302 18GY/PK
21 F2 18PK/WT (GAS)
22 L78 18WT/OR (BUILT-UP-EXPORT)
23 P174 20TN/LB (BUILT-UP-EXPORT)
24 D25 20WT/VT
25 D25 20WT/VT
26 D25 20WT/VT
27 D25 20WT/VT
28 D25 20WT/VT
29 F20 20PK/WT
30 F100 18PK/VT
31 F201 18PK/OR
32 F504 20GY/PK (AUTOMATIC TEMPERATURE CONTROL)
32 F850 20LB/PK (3 ZONE HVAC)
33 P7 20LG/DG
34 P8 20LG/WT
35 P64 20TN (MEMORY)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1018
CONNECTOR PINOUTS

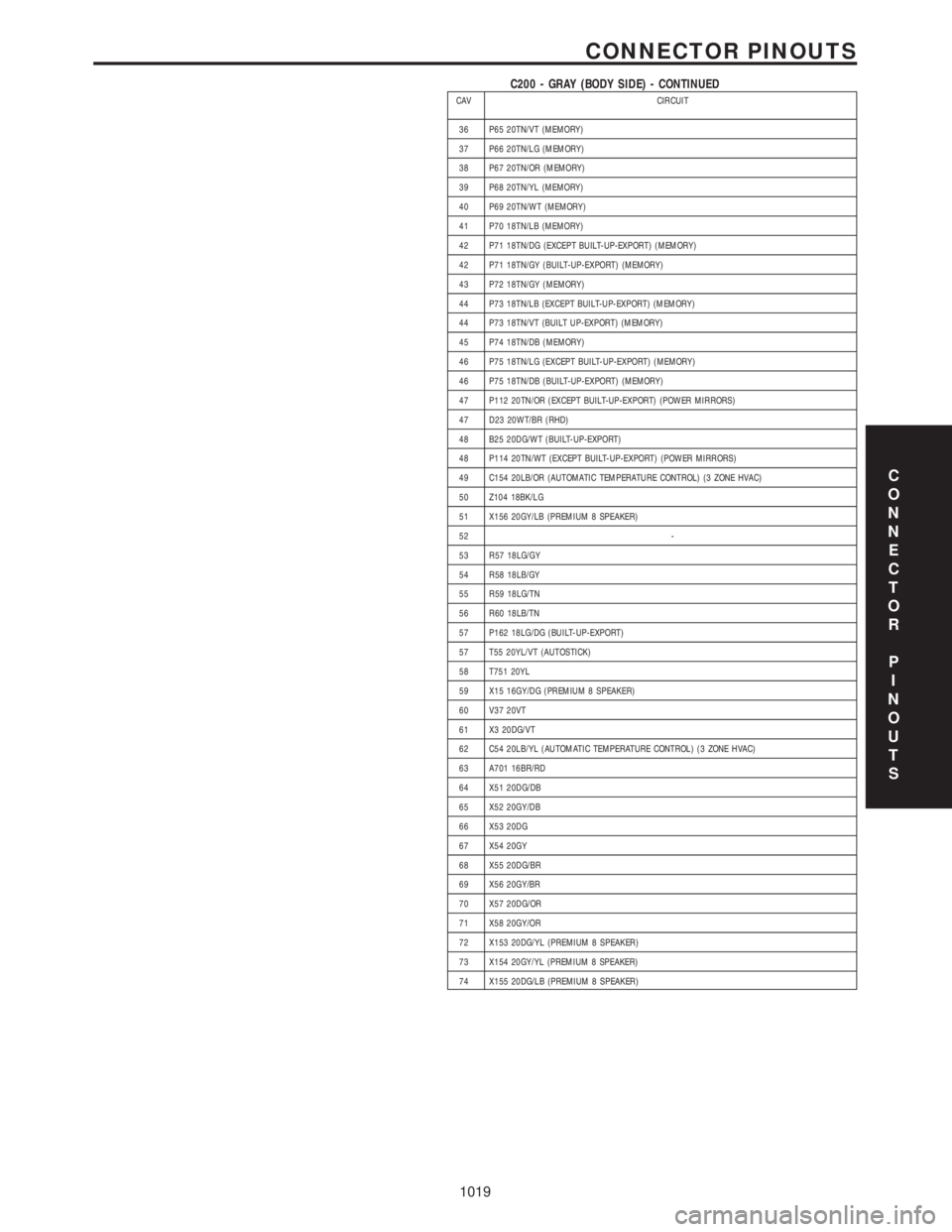

C200 - GRAY (BODY SIDE) - CONTINUEDCAV CIRCUIT
36 P65 20TN/VT (MEMORY)
37 P66 20TN/LG (MEMORY)
38 P67 20TN/OR (MEMORY)
39 P68 20TN/YL (MEMORY)
40 P69 20TN/WT (MEMORY)
41 P70 18TN/LB (MEMORY)
42 P71 18TN/DG (EXCEPT BUILT-UP-EXPORT) (MEMORY)
42 P71 18TN/GY (BUILT-UP-EXPORT) (MEMORY)
43 P72 18TN/GY (MEMORY)
44 P73 18TN/LB (EXCEPT BUILT-UP-EXPORT) (MEMORY)
44 P73 18TN/VT (BUILT UP-EXPORT) (MEMORY)
45 P74 18TN/DB (MEMORY)
46 P75 18TN/LG (EXCEPT BUILT-UP-EXPORT) (MEMORY)
46 P75 18TN/DB (BUILT-UP-EXPORT) (MEMORY)
47 P112 20TN/OR (EXCEPT BUILT-UP-EXPORT) (POWER MIRRORS)
47 D23 20WT/BR (RHD)
48 B25 20DG/WT (BUILT-UP-EXPORT)
48 P114 20TN/WT (EXCEPT BUILT-UP-EXPORT) (POWER MIRRORS)
49 C154 20LB/OR (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
50 Z104 18BK/LG
51 X156 20GY/LB (PREMIUM 8 SPEAKER)
52 -
53 R57 18LG/GY
54 R58 18LB/GY
55 R59 18LG/TN
56 R60 18LB/TN
57 P162 18LG/DG (BUILT-UP-EXPORT)
57 T55 20YL/VT (AUTOSTICK)
58 T751 20YL
59 X15 16GY/DG (PREMIUM 8 SPEAKER)
60 V37 20VT
61 X3 20DG/VT
62 C54 20LB/YL (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
63 A701 16BR/RD
64 X51 20DG/DB
65 X52 20GY/DB
66 X53 20DG
67 X54 20GY
68 X55 20DG/BR
69 X56 20GY/BR
70 X57 20DG/OR
71 X58 20GY/OR
72 X153 20DG/YL (PREMIUM 8 SPEAKER)
73 X154 20GY/YL (PREMIUM 8 SPEAKER)
74 X155 20DG/LB (PREMIUM 8 SPEAKER)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1019
CONNECTOR PINOUTS

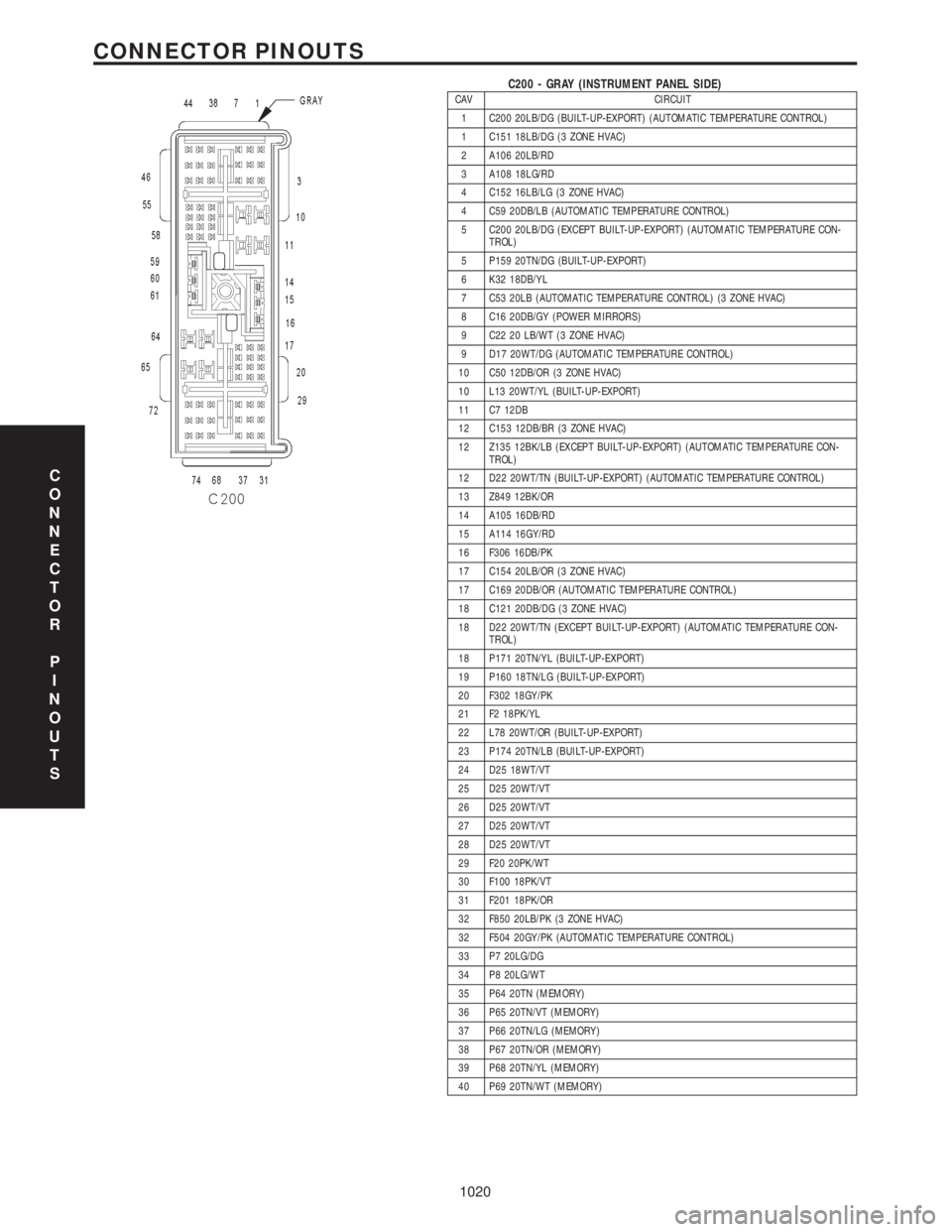

C200 - GRAY (INSTRUMENT PANEL SIDE)CAV CIRCUIT
1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
1 C151 18LB/DG (3 ZONE HVAC)
2 A106 20LB/RD
3 A108 18LG/RD
4 C152 16LB/LG (3 ZONE HVAC)
4 C59 20DB/LB (AUTOMATIC TEMPERATURE CONTROL)
5 C200 20LB/DG (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
5 P159 20TN/DG (BUILT-UP-EXPORT)
6 K32 18DB/YL
7 C53 20LB (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
8 C16 20DB/GY (POWER MIRRORS)
9 C22 20 LB/WT (3 ZONE HVAC)
9 D17 20WT/DG (AUTOMATIC TEMPERATURE CONTROL)
10 C50 12DB/OR (3 ZONE HVAC)
10 L13 20WT/YL (BUILT-UP-EXPORT)
11 C7 12DB
12 C153 12DB/BR (3 ZONE HVAC)
12 Z135 12BK/LB (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
12 D22 20WT/TN (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
13 Z849 12BK/OR
14 A105 16DB/RD
15 A114 16GY/RD
16 F306 16DB/PK
17 C154 20LB/OR (3 ZONE HVAC)
17 C169 20DB/OR (AUTOMATIC TEMPERATURE CONTROL)
18 C121 20DB/DG (3 ZONE HVAC)
18 D22 20WT/TN (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
18 P171 20TN/YL (BUILT-UP-EXPORT)
19 P160 18TN/LG (BUILT-UP-EXPORT)
20 F302 18GY/PK
21 F2 18PK/YL
22 L78 20WT/OR (BUILT-UP-EXPORT)
23 P174 20TN/LB (BUILT-UP-EXPORT)
24 D25 18WT/VT
25 D25 20WT/VT
26 D25 20WT/VT
27 D25 20WT/VT
28 D25 20WT/VT
29 F20 20PK/WT
30 F100 18PK/VT
31 F201 18PK/OR
32 F850 20LB/PK (3 ZONE HVAC)
32 F504 20GY/PK (AUTOMATIC TEMPERATURE CONTROL)
33 P7 20LG/DG
34 P8 20LG/WT
35 P64 20TN (MEMORY)
36 P65 20TN/VT (MEMORY)
37 P66 20TN/LG (MEMORY)
38 P67 20TN/OR (MEMORY)
39 P68 20TN/YL (MEMORY)
40 P69 20TN/WT (MEMORY)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1020
CONNECTOR PINOUTS

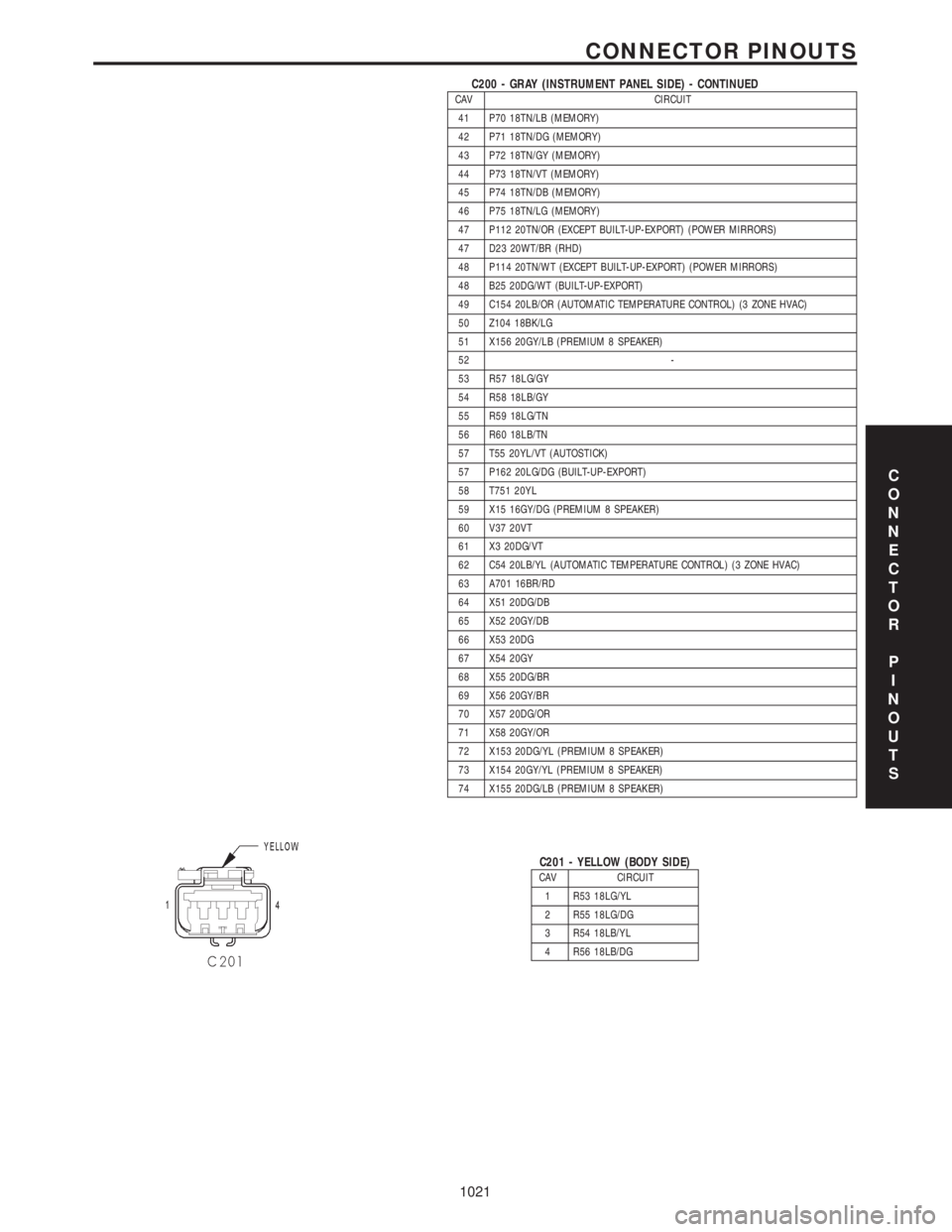

C200 - GRAY (INSTRUMENT PANEL SIDE) - CONTINUEDCAV CIRCUIT
41 P70 18TN/LB (MEMORY)
42 P71 18TN/DG (MEMORY)
43 P72 18TN/GY (MEMORY)
44 P73 18TN/VT (MEMORY)
45 P74 18TN/DB (MEMORY)
46 P75 18TN/LG (MEMORY)
47 P112 20TN/OR (EXCEPT BUILT-UP-EXPORT) (POWER MIRRORS)
47 D23 20WT/BR (RHD)
48 P114 20TN/WT (EXCEPT BUILT-UP-EXPORT) (POWER MIRRORS)
48 B25 20DG/WT (BUILT-UP-EXPORT)
49 C154 20LB/OR (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
50 Z104 18BK/LG
51 X156 20GY/LB (PREMIUM 8 SPEAKER)
52 -
53 R57 18LG/GY
54 R58 18LB/GY
55 R59 18LG/TN
56 R60 18LB/TN
57 T55 20YL/VT (AUTOSTICK)
57 P162 20LG/DG (BUILT-UP-EXPORT)
58 T751 20YL
59 X15 16GY/DG (PREMIUM 8 SPEAKER)
60 V37 20VT
61 X3 20DG/VT
62 C54 20LB/YL (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
63 A701 16BR/RD
64 X51 20DG/DB
65 X52 20GY/DB
66 X53 20DG
67 X54 20GY
68 X55 20DG/BR
69 X56 20GY/BR
70 X57 20DG/OR
71 X58 20GY/OR
72 X153 20DG/YL (PREMIUM 8 SPEAKER)
73 X154 20GY/YL (PREMIUM 8 SPEAKER)
74 X155 20DG/LB (PREMIUM 8 SPEAKER)
C201 - YELLOW (BODY SIDE)CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3 R54 18LB/YL
4 R56 18LB/DG
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1021
CONNECTOR PINOUTS
