CHRYSLER VOYAGER 2001 Service Manual

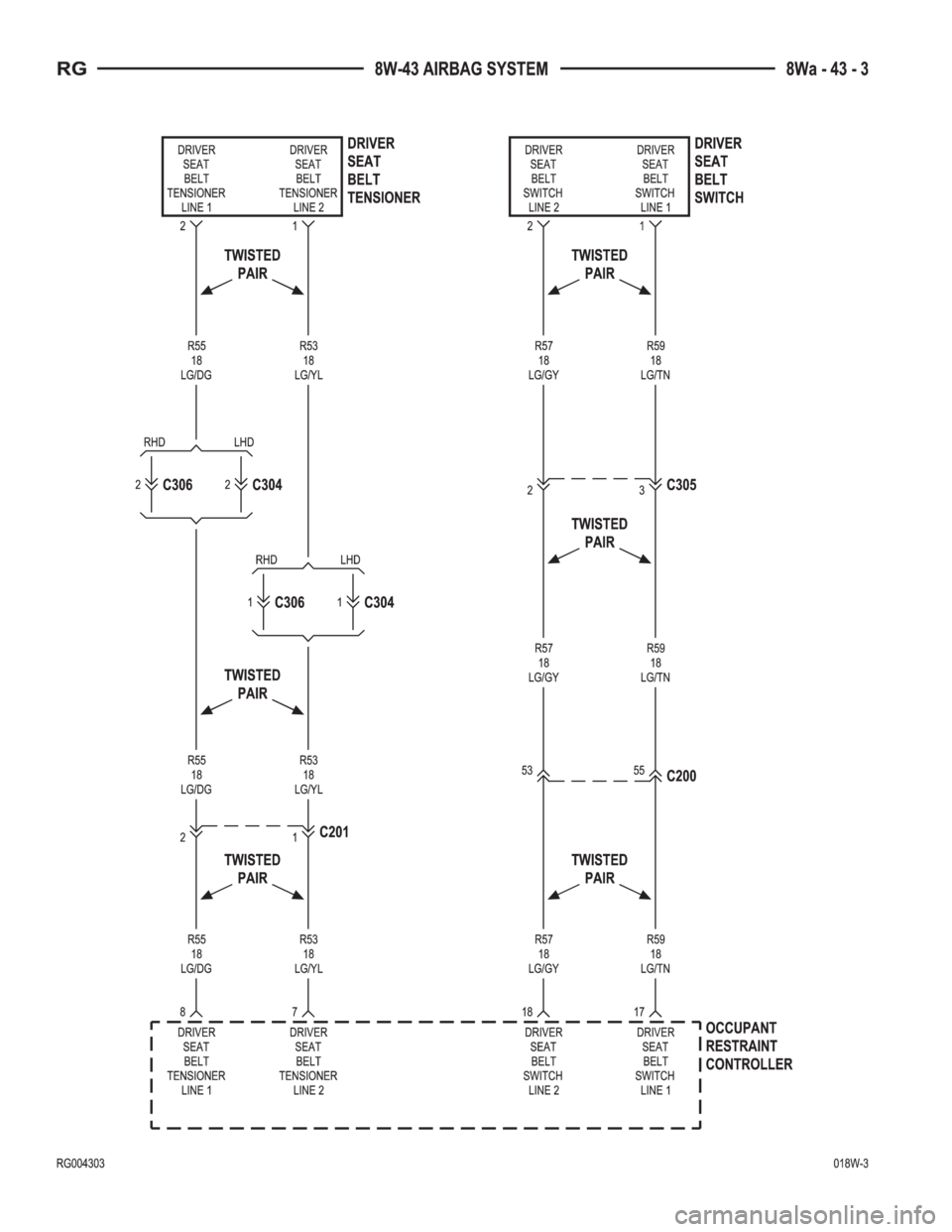

8W-43 AIRBAG SYSTEM
Component Page
Body Control Module................ 8Wa-43-6
Clockspring........................ 8Wa-43-4
Diagnostic Junction Port............ 8Wa-43-2, 6
Driver Airbag...................... 8Wa-43-4
Driver Seat Belt Switch.............. 8Wa-43-3
Driver Seat Belt Tensioner............ 8Wa-43-3
Front Control Module.............. 8Wa-43-2, 6
G200............................. 8Wa-43-2
G201........................... 8Wa-43-2, 6
Instrument Cluster.................. 8Wa-43-2
Intelligent Power Module........... 8Wa-43-2, 6
Left Seat Airbag.................... 8Wa-43-6
Left Side Impact Airbag Control Module . . 8Wa-43-6
Occupant Restraint Controller.... 8Wa-43-2, 3, 4, 5
Passenger Airbag................... 8Wa-43-5
Passenger Seat Belt Switch............ 8Wa-43-5
Passenger Seat Belt Tensioner......... 8Wa-43-5
Right Seat Airbag................... 8Wa-43-6
Right Side Impact Airbag Control Module . 8Wa-43-6
RG8W-43 AIRBAG SYSTEM8Wa-43-1

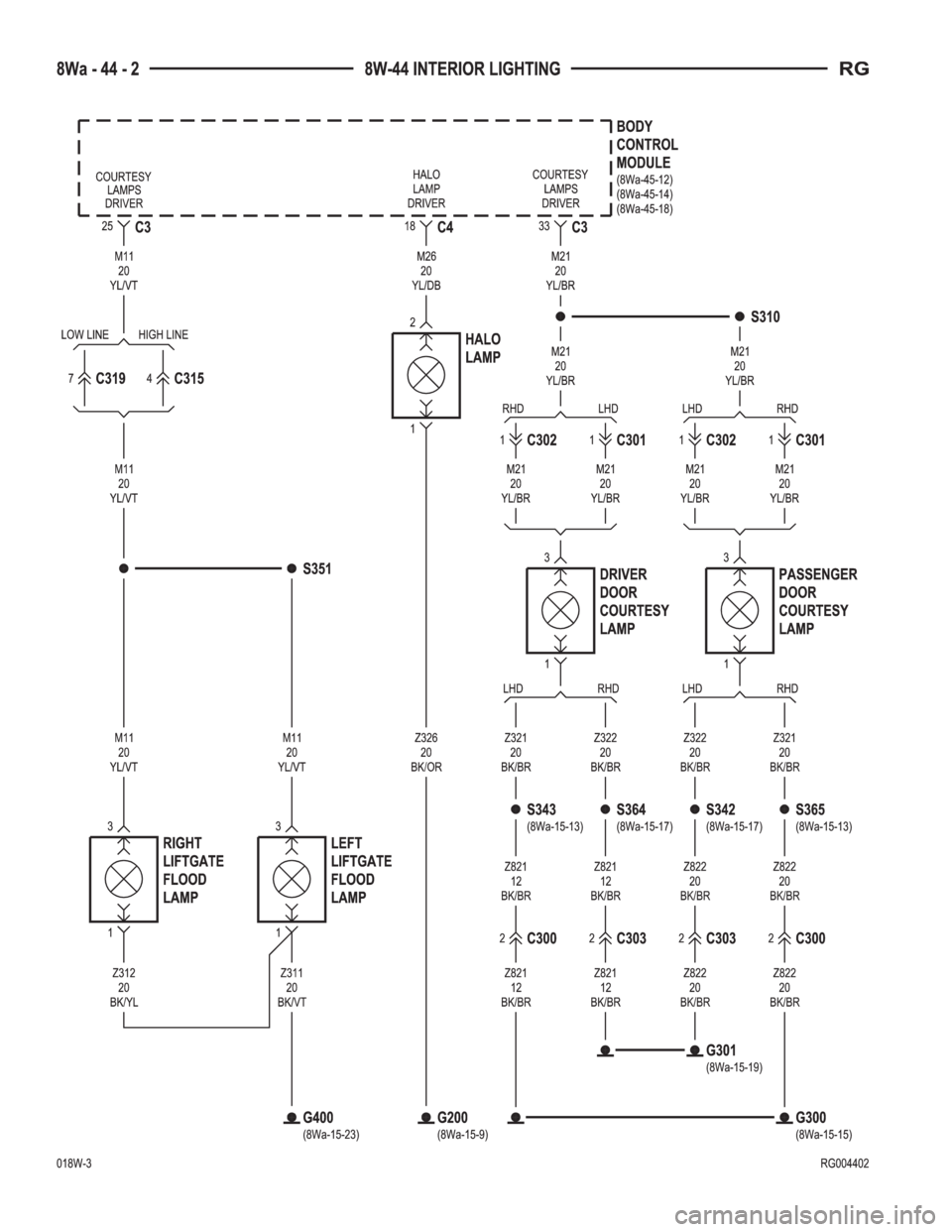

8W-44 INTERIOR LIGHTING
Component Page
A/C- Heater Control................. 8Wa-44-8
Accessory Relay..................... 8Wa-44-4
Auto Temp Control.................. 8Wa-44-8
Body Control Module..... 8Wa-44-2, 3, 4, 5, 6, 7, 8
Center Dome Lamp.................. 8Wa-44-5
Driver Door Courtesy Lamp........... 8Wa-44-2
Floor Console Lamp................. 8Wa-44-4
Front Cigar Lighter.................. 8Wa-44-7
Front Control Module................ 8Wa-44-4
Front Reading Lamps/Switch........ 8Wa-44-4, 5
Fuse 6 (IPM)....................... 8Wa-44-4
G200....................... 8Wa-44-2, 5, 7, 8
G300........................... 8Wa-44-2, 8
G301....................... 8Wa-44-2, 3, 5, 6
G302............................. 8Wa-44-4
G400............................. 8Wa-44-2
Glove Box Lamp.................... 8Wa-44-5
Halo Lamp........................ 8Wa-44-2
Headlamp Switch........... 8Wa-44-3, 5, 6, 7, 8
Instrument Cluster.................. 8Wa-44-7
Instrument Panel Switch Bank......... 8Wa-44-7
Intelligent Power Module............. 8Wa-44-4
Left Liftgate Flood Lamp............. 8Wa-44-2
Left Mid Reading Lamp.............. 8Wa-44-3
Left Rear Reading Lamp.............. 8Wa-44-3
Left Visor/Vanity Lamp............... 8Wa-44-6
Overhead Console................... 8Wa-44-5
Passenger Door Courtesy Lamp........ 8Wa-44-2
Power Mirror Switch................. 8Wa-44-8
Radio............................. 8Wa-44-7
Rear Auto Temp Control Switch........ 8Wa-44-8
Rear Blower Rear Control Switch....... 8Wa-44-8
Rear Dome Lamp................... 8Wa-44-5
Right Liftgate Flood Lamp............ 8Wa-44-2
Right Mid Reading Lamp............. 8Wa-44-3
Right Rear Reading Lamp............. 8Wa-44-3
Right Visor/Vanity Lamp.............. 8Wa-44-6
RG8W-44 INTERIOR LIGHTING8Wa-44-1
