CHRYSLER VOYAGER 2001 Service Manual

Symptom:

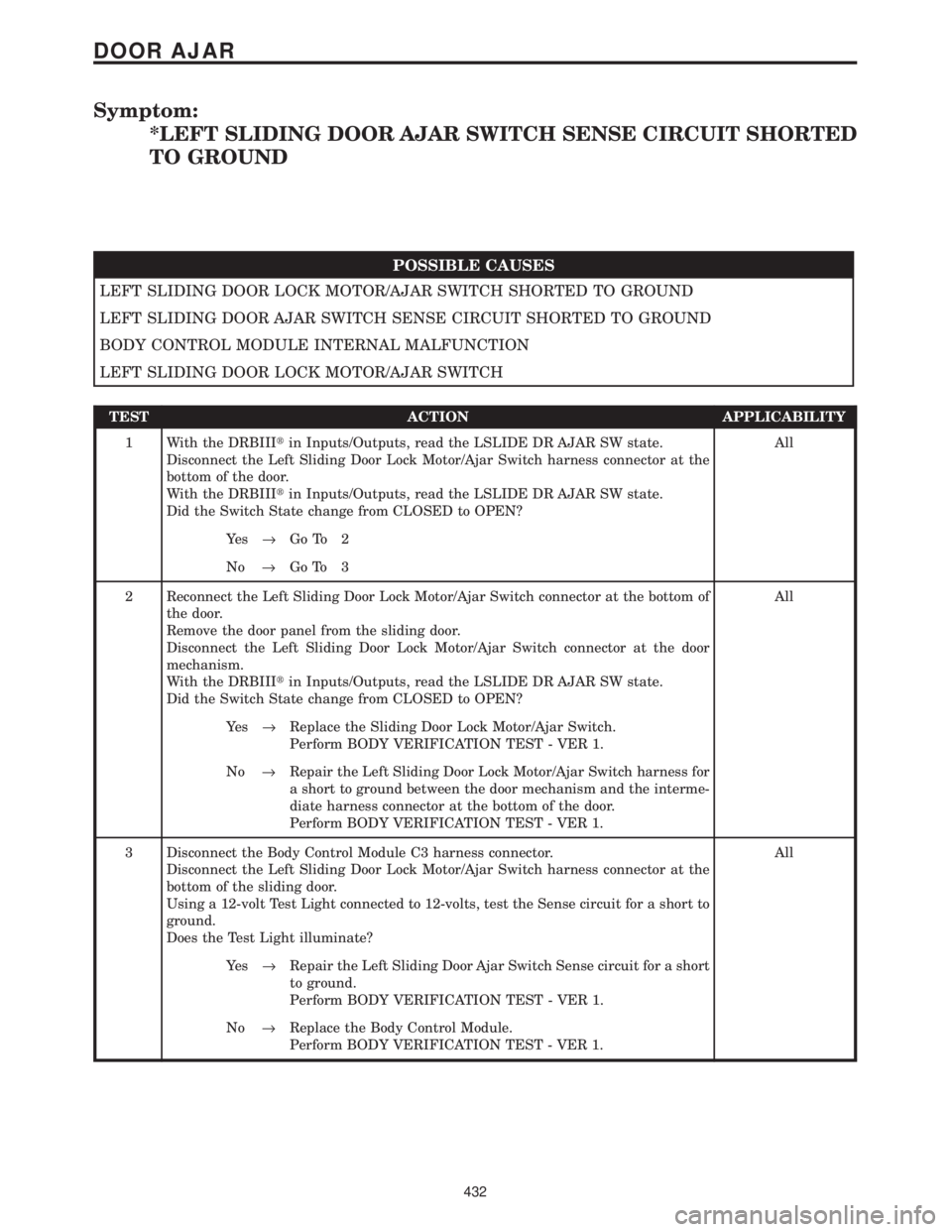

*LEFT SLIDING DOOR AJAR SWITCH SENSE CIRCUIT SHORTED
TO GROUND
POSSIBLE CAUSES
LEFT SLIDING DOOR LOCK MOTOR/AJAR SWITCH SHORTED TO GROUND
LEFT SLIDING DOOR AJAR SWITCH SENSE CIRCUIT SHORTED TO GROUND
BODY CONTROL MODULE INTERNAL MALFUNCTION
LEFT SLIDING DOOR LOCK MOTOR/AJAR SWITCH
TEST ACTION APPLICABILITY
1 With the DRBIIItin Inputs/Outputs, read the LSLIDE DR AJAR SW state.
Disconnect the Left Sliding Door Lock Motor/Ajar Switch harness connector at the
bottom of the door.
With the DRBIIItin Inputs/Outputs, read the LSLIDE DR AJAR SW state.
Did the Switch State change from CLOSED to OPEN?All
Ye s®Go To 2
No®Go To 3
2 Reconnect the Left Sliding Door Lock Motor/Ajar Switch connector at the bottom of
the door.
Remove the door panel from the sliding door.
Disconnect the Left Sliding Door Lock Motor/Ajar Switch connector at the door
mechanism.
With the DRBIIItin Inputs/Outputs, read the LSLIDE DR AJAR SW state.
Did the Switch State change from CLOSED to OPEN?All
Ye s®Replace the Sliding Door Lock Motor/Ajar Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Left Sliding Door Lock Motor/Ajar Switch harness for
a short to ground between the door mechanism and the interme-
diate harness connector at the bottom of the door.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Body Control Module C3 harness connector.
Disconnect the Left Sliding Door Lock Motor/Ajar Switch harness connector at the
bottom of the sliding door.
Using a 12-volt Test Light connected to 12-volts, test the Sense circuit for a short to
ground.
Does the Test Light illuminate?All
Ye s®Repair the Left Sliding Door Ajar Switch Sense circuit for a short
to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
432
DOOR AJAR

Symptom:

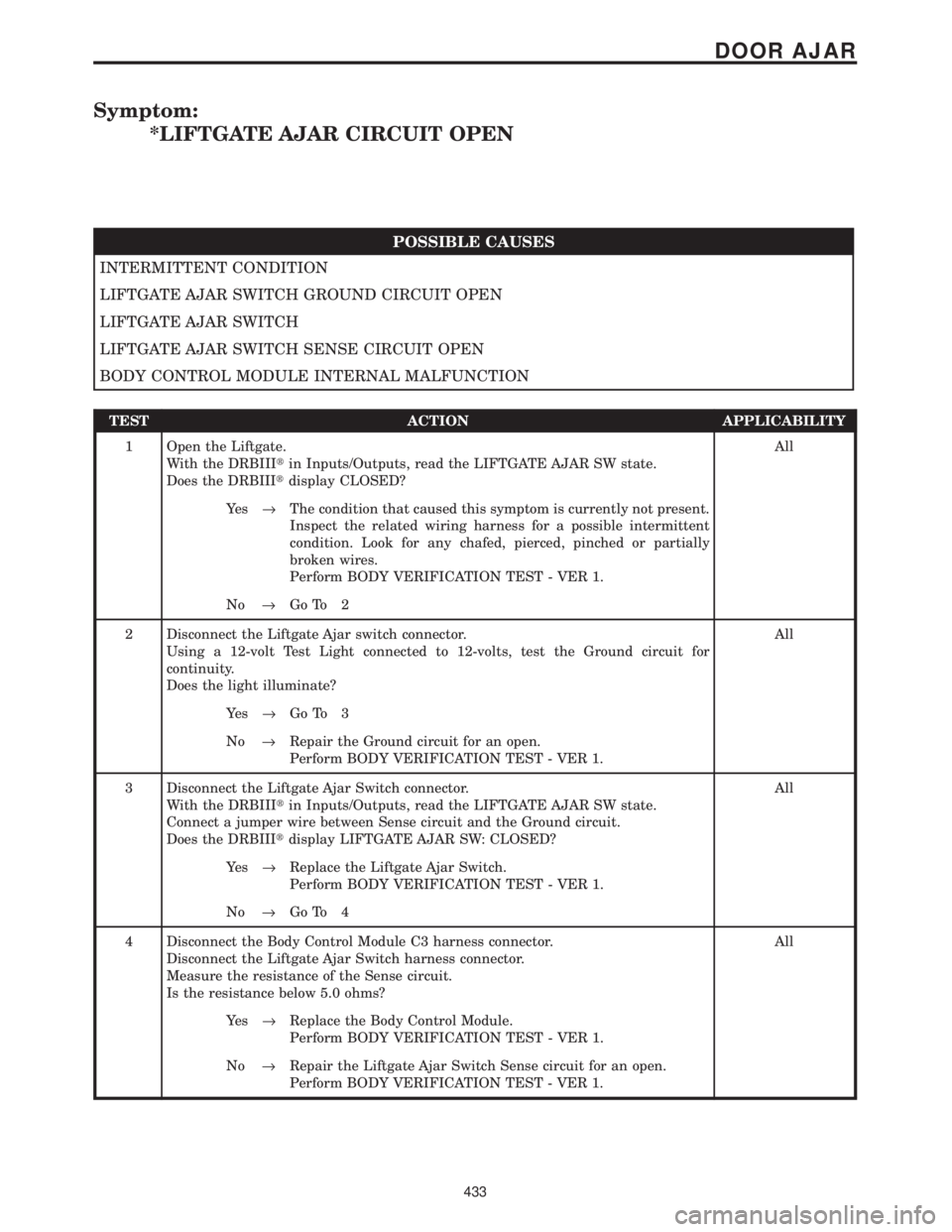

*LIFTGATE AJAR CIRCUIT OPEN
POSSIBLE CAUSES
INTERMITTENT CONDITION
LIFTGATE AJAR SWITCH GROUND CIRCUIT OPEN
LIFTGATE AJAR SWITCH
LIFTGATE AJAR SWITCH SENSE CIRCUIT OPEN
BODY CONTROL MODULE INTERNAL MALFUNCTION
TEST ACTION APPLICABILITY
1 Open the Liftgate.
With the DRBIIItin Inputs/Outputs, read the LIFTGATE AJAR SW state.
Does the DRBIIItdisplay CLOSED?All
Ye s®The condition that caused this symptom is currently not present.
Inspect the related wiring harness for a possible intermittent
condition. Look for any chafed, pierced, pinched or partially
broken wires.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Disconnect the Liftgate Ajar switch connector.
Using a 12-volt Test Light connected to 12-volts, test the Ground circuit for
continuity.
Does the light illuminate?All
Ye s®Go To 3
No®Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Liftgate Ajar Switch connector.
With the DRBIIItin Inputs/Outputs, read the LIFTGATE AJAR SW state.
Connect a jumper wire between Sense circuit and the Ground circuit.
Does the DRBIIItdisplay LIFTGATE AJAR SW: CLOSED?All
Ye s®Replace the Liftgate Ajar Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
4 Disconnect the Body Control Module C3 harness connector.
Disconnect the Liftgate Ajar Switch harness connector.
Measure the resistance of the Sense circuit.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Liftgate Ajar Switch Sense circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
433
DOOR AJAR

Symptom:

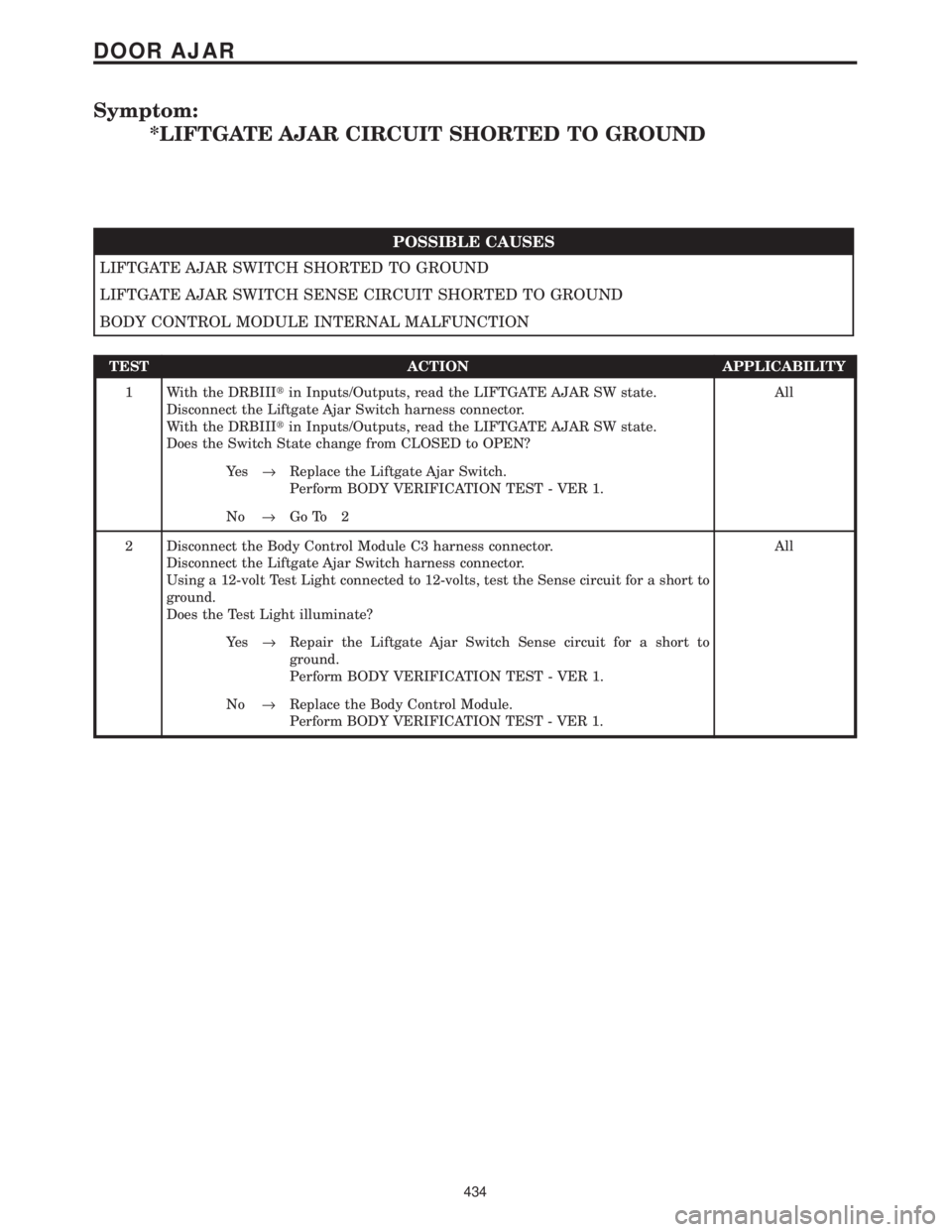

*LIFTGATE AJAR CIRCUIT SHORTED TO GROUND
POSSIBLE CAUSES
LIFTGATE AJAR SWITCH SHORTED TO GROUND
LIFTGATE AJAR SWITCH SENSE CIRCUIT SHORTED TO GROUND
BODY CONTROL MODULE INTERNAL MALFUNCTION
TEST ACTION APPLICABILITY
1 With the DRBIIItin Inputs/Outputs, read the LIFTGATE AJAR SW state.
Disconnect the Liftgate Ajar Switch harness connector.
With the DRBIIItin Inputs/Outputs, read the LIFTGATE AJAR SW state.
Does the Switch State change from CLOSED to OPEN?All
Ye s®Replace the Liftgate Ajar Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Disconnect the Body Control Module C3 harness connector.
Disconnect the Liftgate Ajar Switch harness connector.
Using a 12-volt Test Light connected to 12-volts, test the Sense circuit for a short to
ground.
Does the Test Light illuminate?All
Ye s®Repair the Liftgate Ajar Switch Sense circuit for a short to
ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
434
DOOR AJAR

Symptom:

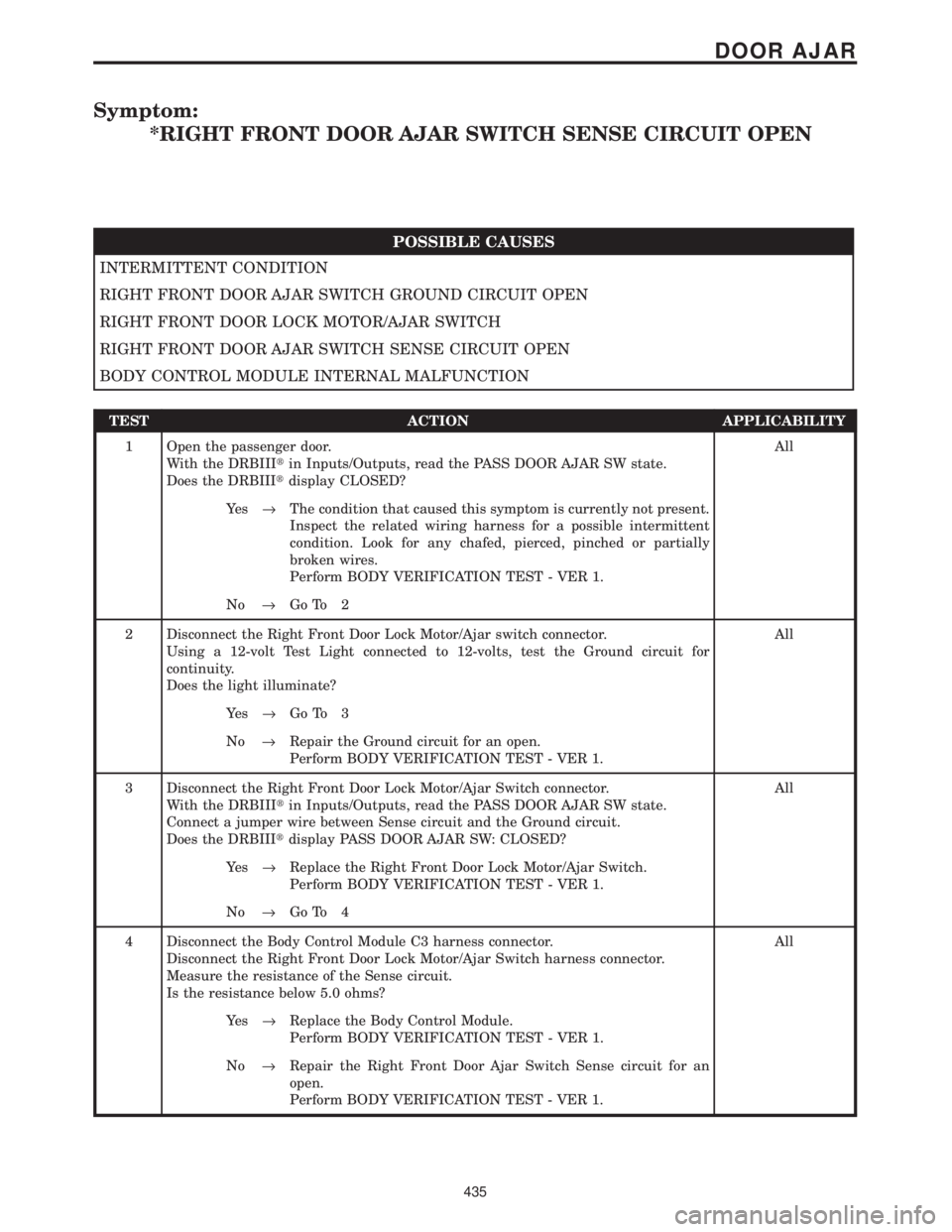

*RIGHT FRONT DOOR AJAR SWITCH SENSE CIRCUIT OPEN
POSSIBLE CAUSES
INTERMITTENT CONDITION
RIGHT FRONT DOOR AJAR SWITCH GROUND CIRCUIT OPEN
RIGHT FRONT DOOR LOCK MOTOR/AJAR SWITCH
RIGHT FRONT DOOR AJAR SWITCH SENSE CIRCUIT OPEN
BODY CONTROL MODULE INTERNAL MALFUNCTION
TEST ACTION APPLICABILITY
1 Open the passenger door.
With the DRBIIItin Inputs/Outputs, read the PASS DOOR AJAR SW state.
Does the DRBIIItdisplay CLOSED?All
Ye s®The condition that caused this symptom is currently not present.
Inspect the related wiring harness for a possible intermittent
condition. Look for any chafed, pierced, pinched or partially
broken wires.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Disconnect the Right Front Door Lock Motor/Ajar switch connector.
Using a 12-volt Test Light connected to 12-volts, test the Ground circuit for
continuity.
Does the light illuminate?All
Ye s®Go To 3
No®Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Right Front Door Lock Motor/Ajar Switch connector.
With the DRBIIItin Inputs/Outputs, read the PASS DOOR AJAR SW state.
Connect a jumper wire between Sense circuit and the Ground circuit.
Does the DRBIIItdisplay PASS DOOR AJAR SW: CLOSED?All
Ye s®Replace the Right Front Door Lock Motor/Ajar Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
4 Disconnect the Body Control Module C3 harness connector.
Disconnect the Right Front Door Lock Motor/Ajar Switch harness connector.
Measure the resistance of the Sense circuit.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Right Front Door Ajar Switch Sense circuit for an
open.
Perform BODY VERIFICATION TEST - VER 1.
435
DOOR AJAR

Symptom:

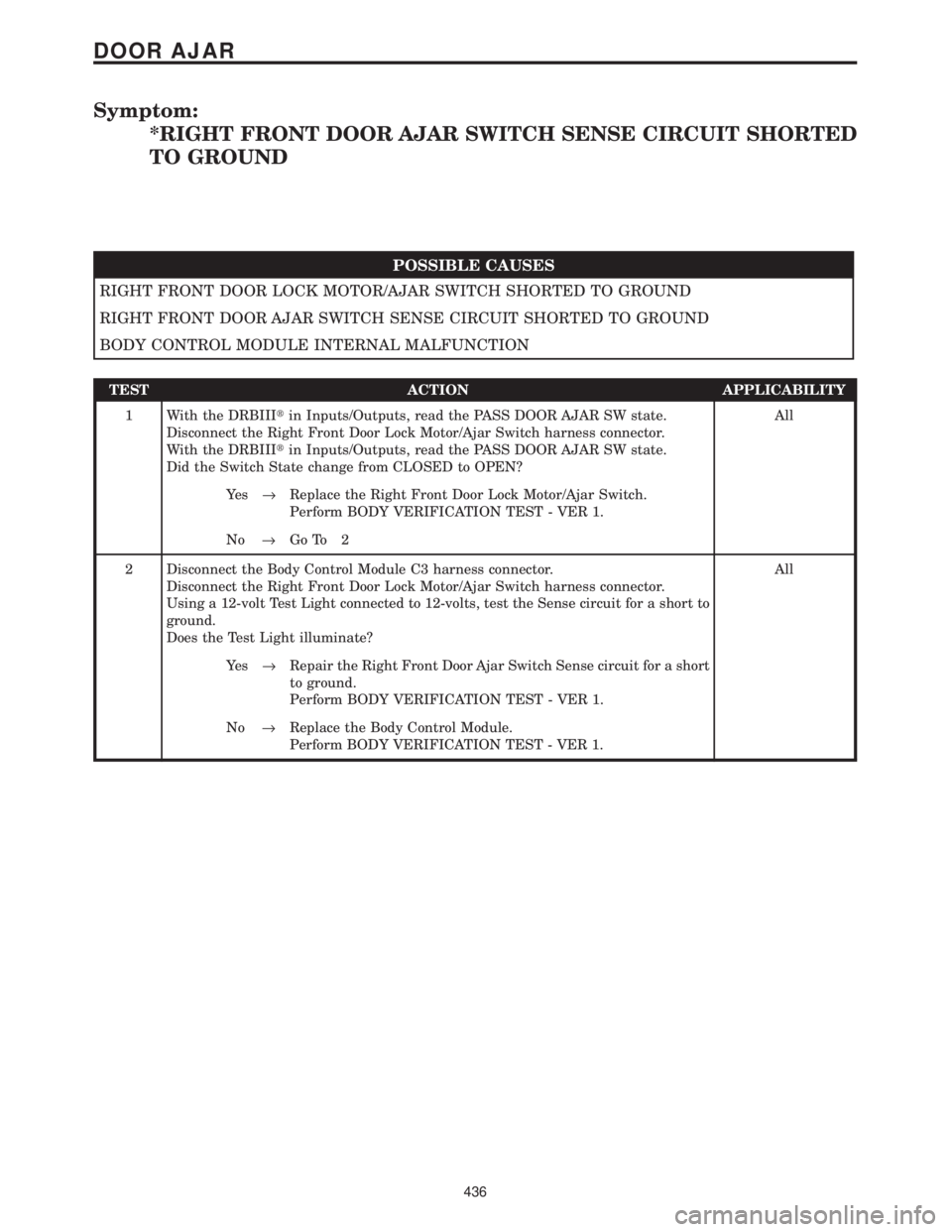

*RIGHT FRONT DOOR AJAR SWITCH SENSE CIRCUIT SHORTED
TO GROUND
POSSIBLE CAUSES
RIGHT FRONT DOOR LOCK MOTOR/AJAR SWITCH SHORTED TO GROUND
RIGHT FRONT DOOR AJAR SWITCH SENSE CIRCUIT SHORTED TO GROUND
BODY CONTROL MODULE INTERNAL MALFUNCTION
TEST ACTION APPLICABILITY
1 With the DRBIIItin Inputs/Outputs, read the PASS DOOR AJAR SW state.
Disconnect the Right Front Door Lock Motor/Ajar Switch harness connector.
With the DRBIIItin Inputs/Outputs, read the PASS DOOR AJAR SW state.
Did the Switch State change from CLOSED to OPEN?All
Ye s®Replace the Right Front Door Lock Motor/Ajar Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Disconnect the Body Control Module C3 harness connector.
Disconnect the Right Front Door Lock Motor/Ajar Switch harness connector.
Using a 12-volt Test Light connected to 12-volts, test the Sense circuit for a short to
ground.
Does the Test Light illuminate?All
Ye s®Repair the Right Front Door Ajar Switch Sense circuit for a short
to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
436
DOOR AJAR

Symptom:

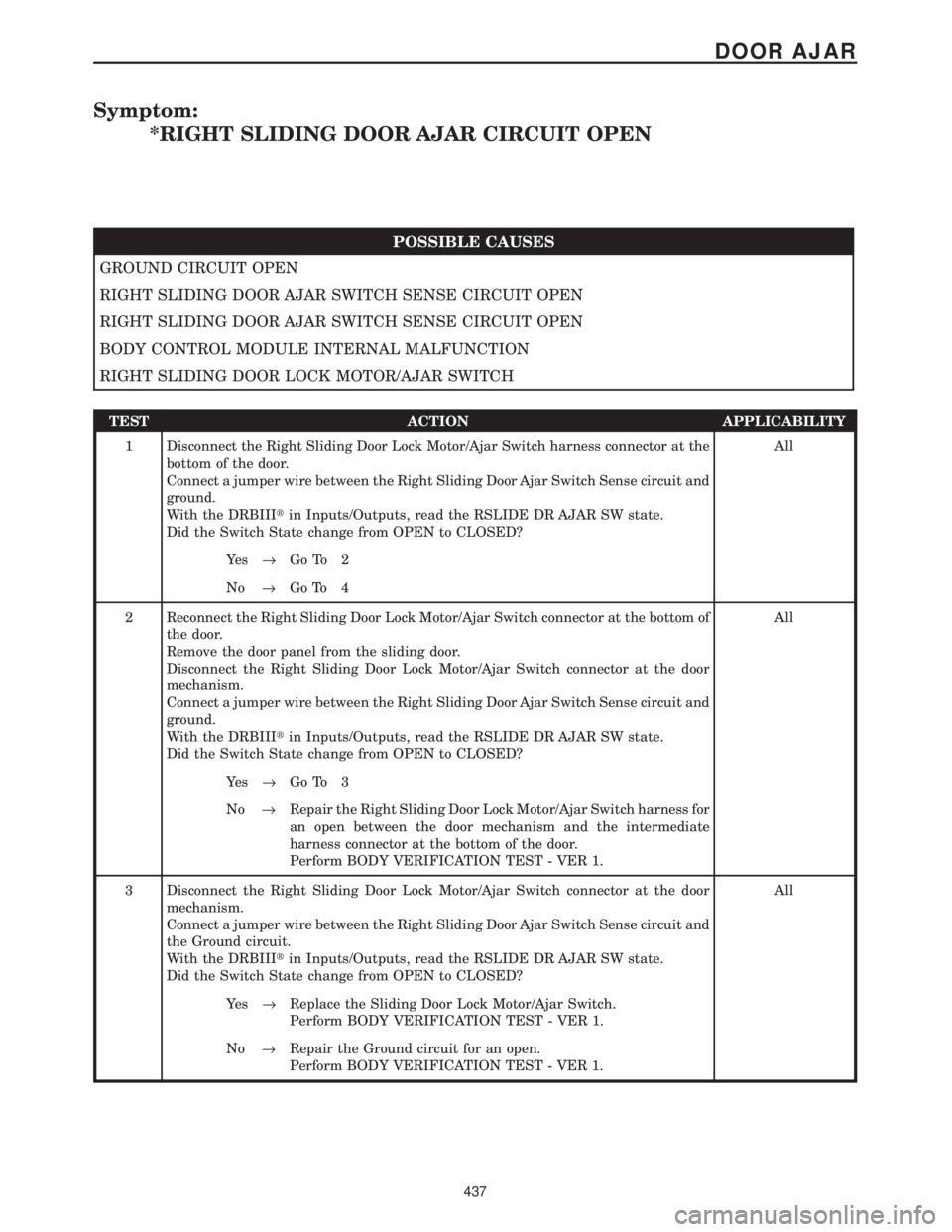

*RIGHT SLIDING DOOR AJAR CIRCUIT OPEN
POSSIBLE CAUSES
GROUND CIRCUIT OPEN
RIGHT SLIDING DOOR AJAR SWITCH SENSE CIRCUIT OPEN
RIGHT SLIDING DOOR AJAR SWITCH SENSE CIRCUIT OPEN
BODY CONTROL MODULE INTERNAL MALFUNCTION
RIGHT SLIDING DOOR LOCK MOTOR/AJAR SWITCH
TEST ACTION APPLICABILITY
1 Disconnect the Right Sliding Door Lock Motor/Ajar Switch harness connector at the
bottom of the door.
Connect a jumper wire between the Right Sliding Door Ajar Switch Sense circuit and
ground.
With the DRBIIItin Inputs/Outputs, read the RSLIDE DR AJAR SW state.
Did the Switch State change from OPEN to CLOSED?All
Ye s®Go To 2
No®Go To 4
2 Reconnect the Right Sliding Door Lock Motor/Ajar Switch connector at the bottom of
the door.
Remove the door panel from the sliding door.
Disconnect the Right Sliding Door Lock Motor/Ajar Switch connector at the door
mechanism.
Connect a jumper wire between the Right Sliding Door Ajar Switch Sense circuit and
ground.
With the DRBIIItin Inputs/Outputs, read the RSLIDE DR AJAR SW state.
Did the Switch State change from OPEN to CLOSED?All
Ye s®Go To 3
No®Repair the Right Sliding Door Lock Motor/Ajar Switch harness for
an open between the door mechanism and the intermediate
harness connector at the bottom of the door.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Right Sliding Door Lock Motor/Ajar Switch connector at the door
mechanism.
Connect a jumper wire between the Right Sliding Door Ajar Switch Sense circuit and
the Ground circuit.
With the DRBIIItin Inputs/Outputs, read the RSLIDE DR AJAR SW state.
Did the Switch State change from OPEN to CLOSED?All
Ye s®Replace the Sliding Door Lock Motor/Ajar Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
437
DOOR AJAR

TEST ACTION APPLICABILITY

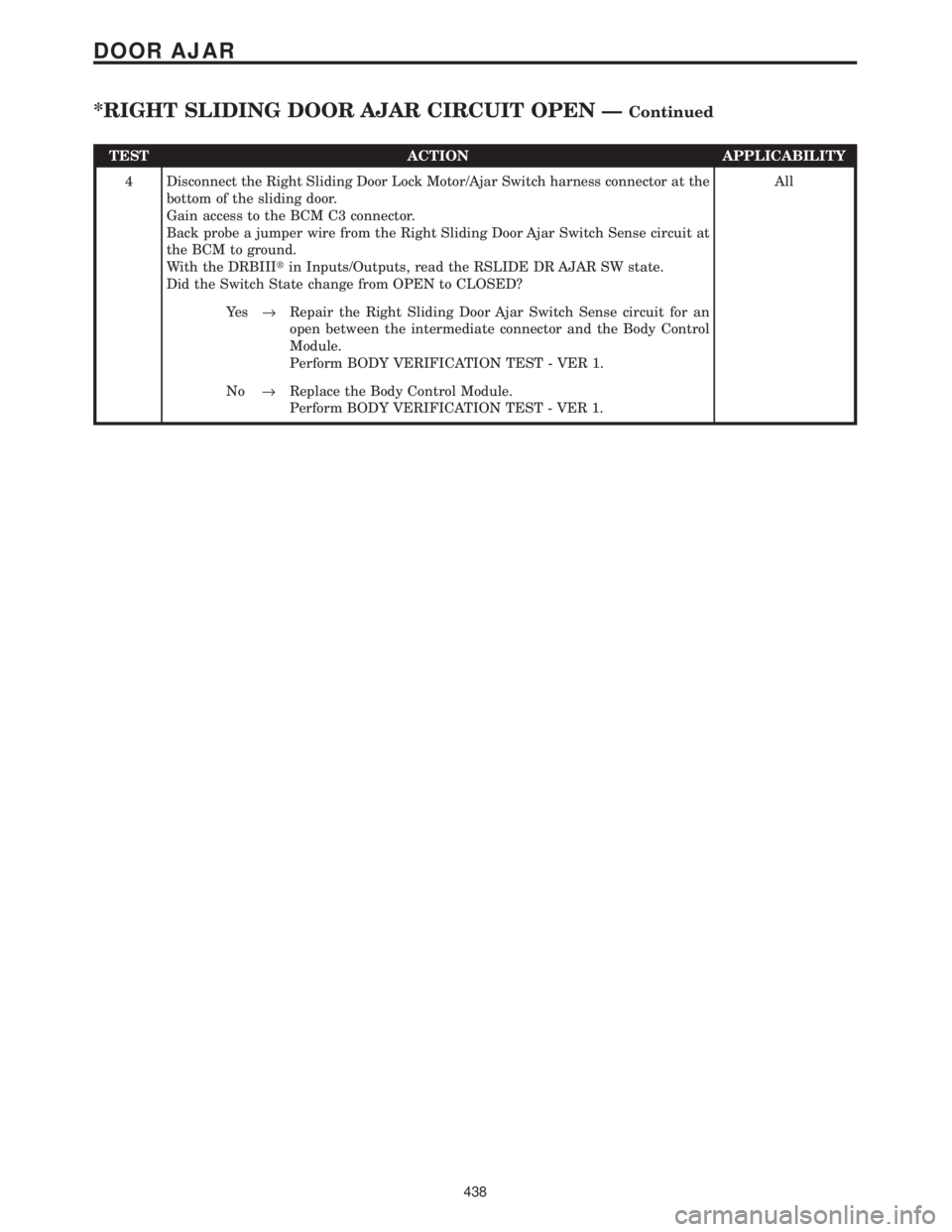

4 Disconnect the Right Sliding Door Lock Motor/Ajar Switch harness connector at the
bottom of the sliding door.
Gain access to the BCM C3 connector.
Back probe a jumper wire from the Right Sliding Door Ajar Switch Sense circuit at
the BCM to ground.
With the DRBIIItin Inputs/Outputs, read the RSLIDE DR AJAR SW state.
Did the Switch State change from OPEN to CLOSED?All
Ye s®Repair the Right Sliding Door Ajar Switch Sense circuit for an
open between the intermediate connector and the Body Control
Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
438
DOOR AJAR
*RIGHT SLIDING DOOR AJAR CIRCUIT OPEN ÐContinued

Symptom:

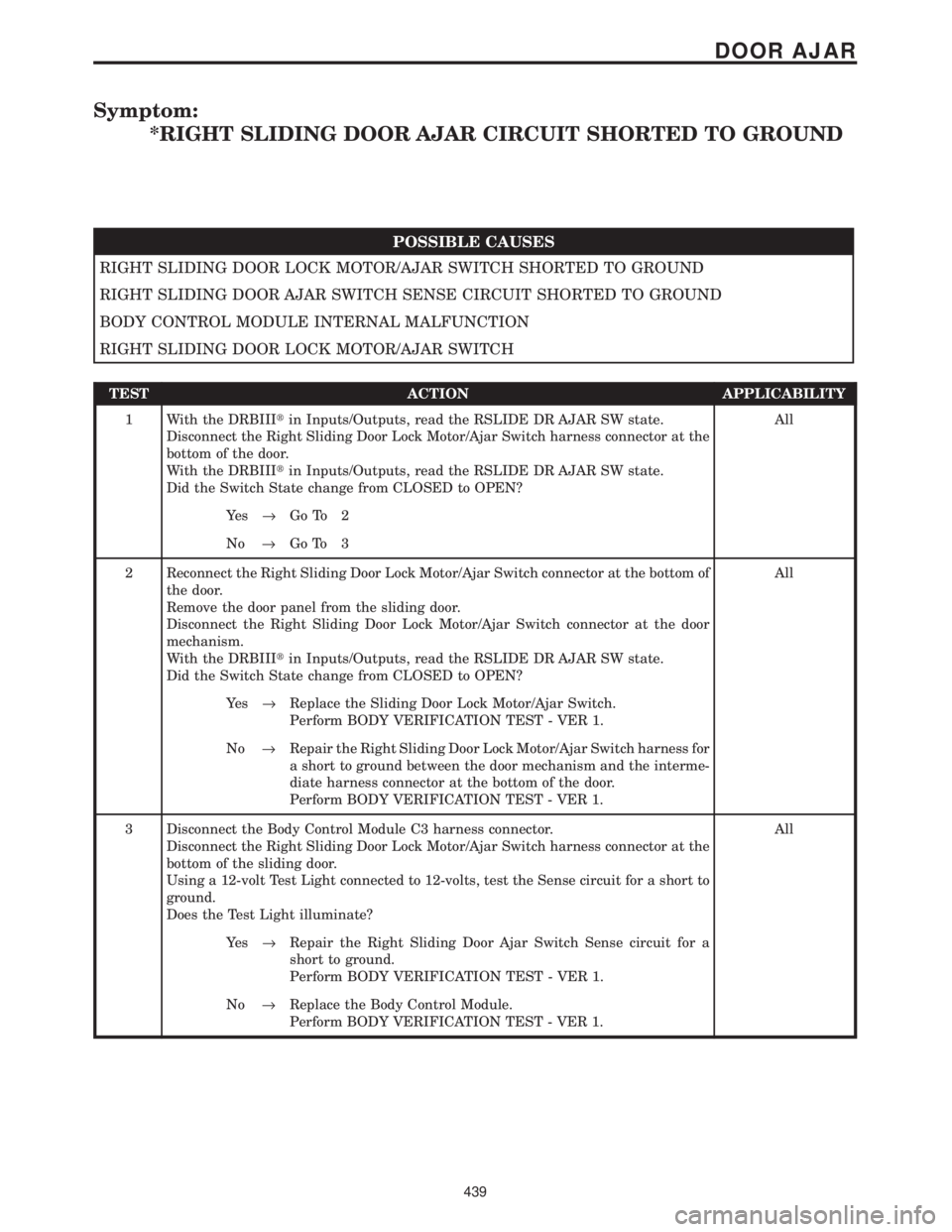

*RIGHT SLIDING DOOR AJAR CIRCUIT SHORTED TO GROUND
POSSIBLE CAUSES
RIGHT SLIDING DOOR LOCK MOTOR/AJAR SWITCH SHORTED TO GROUND
RIGHT SLIDING DOOR AJAR SWITCH SENSE CIRCUIT SHORTED TO GROUND
BODY CONTROL MODULE INTERNAL MALFUNCTION
RIGHT SLIDING DOOR LOCK MOTOR/AJAR SWITCH
TEST ACTION APPLICABILITY
1 With the DRBIIItin Inputs/Outputs, read the RSLIDE DR AJAR SW state.
Disconnect the Right Sliding Door Lock Motor/Ajar Switch harness connector at the
bottom of the door.
With the DRBIIItin Inputs/Outputs, read the RSLIDE DR AJAR SW state.
Did the Switch State change from CLOSED to OPEN?All
Ye s®Go To 2
No®Go To 3
2 Reconnect the Right Sliding Door Lock Motor/Ajar Switch connector at the bottom of
the door.
Remove the door panel from the sliding door.
Disconnect the Right Sliding Door Lock Motor/Ajar Switch connector at the door
mechanism.
With the DRBIIItin Inputs/Outputs, read the RSLIDE DR AJAR SW state.
Did the Switch State change from CLOSED to OPEN?All
Ye s®Replace the Sliding Door Lock Motor/Ajar Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Right Sliding Door Lock Motor/Ajar Switch harness for
a short to ground between the door mechanism and the interme-
diate harness connector at the bottom of the door.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Body Control Module C3 harness connector.
Disconnect the Right Sliding Door Lock Motor/Ajar Switch harness connector at the
bottom of the sliding door.
Using a 12-volt Test Light connected to 12-volts, test the Sense circuit for a short to
ground.
Does the Test Light illuminate?All
Ye s®Repair the Right Sliding Door Ajar Switch Sense circuit for a
short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
439
DOOR AJAR

Symptom:
EBL RUN ONLY RELAY OPEN
When Monitored and Set Condition:
EBL RUN ONLY RELAY OPEN
When Monitored: Continuously with the ignition on.
Set Condition: The FCM has detected an open in the Rear Defogger Relay control circuit.
POSSIBLE CAUSES
OPEN B+ TO RELAY
VERIFY ACTIVE DTC
MISSING RELAY
FRONT CONTROL MODULE
REAR WINDOW DEFOGGER RELAY
INTELLIGENT POWER MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, erase the current Front Control Module DTC's.
Turn the ignition off, wait 10 seconds then turn the ignition on.
With the DRBIIIt, read the current Front Control Module DTC's.
Does the DRBIIItdisplay EBL RUN ONLY RELAY OPEN trouble code?All
Ye s®Go To 2
No®The condition that caused this symptom is currently not present
at this time.
Perform BODY VERIFICATION TEST - VER 1.
2 Turn the ignition off.
Check the IPM to make certain the Rear Window Defogger Relay is present.
Is the Rear Window Defogger Relay present?All
Ye s®Go To 3
No®Replace the missing Rear Defogger Relay.
Perform BODY VERIFICATION TEST - VER 1.
3 Remove the Rear Window Defogger relay from the IPM.
Measure the voltage of pin 86 in the Rear Defogger Relay socket.
Is the voltage above 10.0 volts?All
Ye s®Go To 4
No®Repair/replace open B+ to relay as necessary.
Perform BODY VERIFICATION TEST - VER 1.
440
ELECTRICALLY HEATED SYSTEMS

TEST ACTION APPLICABILITY
4 Turn the ignition off.
Install a known good relay in place of the Rear Window Defogger relay.
Turn the ignition on.
Attempt to operate the Rear Window Defogger.
With the DRBIIIt, read the current Front Control Module DTC's.
Does the DTC reset?All
Ye s®Go To 5
No®Replace the Rear Defogger Relay.
Perform BODY VERIFICATION TEST - VER 1.
5 Turn the ignition off.
Disconnect the Front Control Module from the Fuse and Relay Center.
Remove the Rear Window Defogger Relay.
Measure the resistance of the Rear Window Defogger Relay Control Circuit in the
Fuse and Relay Center.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Fuse and Relay Center.
Perform BODY VERIFICATION TEST - VER 1.
441
ELECTRICALLY HEATED SYSTEMS
EBL RUN ONLY RELAY OPEN ÐContinued
