CHRYSLER VOYAGER 2001 Service Manual

Symptom:
PASSENGER MIRROR RELAY OUTPUT SHORT
POSSIBLE CAUSES
INTERMITTENT CONDITION
PASSENGER FOLDING MIRROR RELAY
PASSENGER FOLDING MIRROR RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE
BODY CONTROL MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
NOTE: Doors must be closed to allow the mirrors to fold with the power folding
mirror switch.
Attempt to operate the power folding mirror system with the power folding mirror
switch and by opening and closing both front doors with mirrors folded.
With the DRBIIIt, read DTCs.
Does the same DTC reset?All
Ye s®Go To 2
No®The condition that caused this DTC is currently not present. Use
the wiring diagram/schematic as a guide, and inspect the related
wiring harness for a possible intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Remove the Passenger Folding Mirror Relay.
Check connectors - Clean/repair as necessary.
Install a substitute relay in place of the Passenger Folding Mirror Relay.
With the DRBIIIt, erase DTC's.
NOTE: Doors must be closed to allow the mirrors to fold with the power folding
mirror switch.
Attempt to operate the power folding mirror system with the power folding mirror
switch and by opening and closing both front doors with mirrors folded.
With the DRBIIIt, read DTCs.
Does the same DTC reset?All
Ye s®Go To 3
No®Replace the Passenger Folding Mirror Relay.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Passenger Folding Mirror Relay connector.
Disconnect the Body Control Module C4 connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the voltage of the Passenger Folding Mirror Relay Control circuit in the
relay connector.
Is the voltage above 1.0 volts?All
Ye s®Repair the Passenger Folding Mirror Relay Control circuit for a
short to voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
912
POWER MIRROR ± FOLDING

Symptom:
UNFOLD MIRROR OUTPUT FAILURE
POSSIBLE CAUSES
INTERMITTENT CONDITION
PASSENGER FOLDING MIRROR RELAY
LEFT POWER MIRROR
RIGHT POWER MIRROR
DRIVER FOLDING MIRROR FOLD DRIVER SHORT TO VOLTAGE
PASSENGER FOLDING MIRROR RELAY OUTPUT SHORT TO VOLTAGE
PASSENGER FOLDING MIRROR RELAY INPUT SHORT TO VOLTAGE
DRIVER FOLDING MIRROR FOLD DRIVER SHORT TO GROUND
PASSENGER FOLDING MIRROR RELAY OUTPUT SHORT TO GROUND
PASSENGER FOLDING MIRROR RELAY INPUT SHORT TO GROUND
BODY CONTROL MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, record and erase DTC's.
NOTE: Doors must be closed to allow the mirrors to fold with the power folding
mirror switch.
Attempt to operate the power folding mirror system with the power folding mirror
switch and by opening and closing both front doors with mirrors folded.
With the DRBIIIt, read DTCs.
Does the same DTC reset?All
Ye s®Go To 2
No®The condition that caused this DTC is currently not present. Use
the wiring diagram/schematic as a guide, and inspect the related
wiring harness for a possible intermittent condition.
Perform BODY VERIFICATION TEST - VER 1.
2 Install a substitute relay in place of the Passenger Folding Mirror Relay.
With the DRBIIIt, erase DTC's.
NOTE: Doors must be closed to allow the mirrors to fold with the power folding
mirror switch.
Attempt to operate the power folding mirror system with the power folding mirror
switch and by opening and closing both front doors with mirrors folded.
With the DRBIIIt, read DTCs.
Does the same DTC reset?All
Ye s®Go To 3
No®Replace the Passenger Folding Mirror Relay.
Perform BODY VERIFICATION TEST - VER 1.
913
POWER MIRROR ± FOLDING

TEST ACTION APPLICABILITY
3 Disconnect the Left Power Mirror connector.
NOTE: Check connectors - Clean/repair as necessary.
With the DRBIIIt, erase DTC's.
Operate the Power Folding Mirror switch.
With the DRBIIIt, read DTCs.
Does the same DTC reset?All
Ye s®Go To 4
No®Replace the Left Power Mirror.
Perform BODY VERIFICATION TEST - VER 1.
4 Disconnect the Right Power Mirror connector.
NOTE: Check connectors - Clean/repair as necessary.
With the DRBIIIt, erase DTC's.
Operate the Power Folding Mirror switch.
With the DRBIIIt, read DTCs.
Does the same DTC reset?All
Ye s®Go To 5
No®Replace the Right Power Mirror.
Perform BODY VERIFICATION TEST - VER 1.
5 Disconnect the Left and Right Power Mirror connectors.
Disconnect the Body Control Module C2 connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure for unwanted voltage on the Driver Folding Mirror Fold Driver circuit in the
BCM C2 connector.
Is there any voltage present?All
Ye s®Repair the Driver Folding Mirror Fold Driver circuit for a short to
voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 6
6 Disconnect the Left and Right Power Mirror connectors.
Disconnect the Passenger Folding Mirror Relay.
NOTE: Check connectors - Clean/repair as necessary.
Measure for unwanted voltage on the Passenger Folding Mirror Relay Output circuit
in the relay connector.
Is there any voltage present?All
Ye s®Repair the Passenger Folding Mirror Relay Output circuit for a
short to voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 7
7 Disconnect the Body Control Module C2 connector.
Disconnect the Passenger Folding Mirror Relay.
NOTE: Check connectors - Clean/repair as necessary.
Measure for unwanted voltage on the Passenger Folding Mirror Relay Input circuit
in the relay connector.
Is there any voltage present?All
Ye s®Repair the Passenger Folding Mirror Relay Input circuit for a
short to voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 8
914
POWER MIRROR ± FOLDING
UNFOLD MIRROR OUTPUT FAILURE ÐContinued

TEST ACTION APPLICABILITY
8 Disconnect the Left and Right Power Mirror connectors.
Disconnect the Body Control Module C2 connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the Driver Folding Mirror Fold Driver
circuit in the BCM C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Driver Folding Mirror Fold Driver circuit for a short to
ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 9
9 Disconnect the Left and Right Power Mirror connectors.
Disconnect the Passenger Folding Mirror Relay.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the Passenger Folding Mirror Relay
Output circuit in the relay connector.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Passenger Folding Mirror Relay Output circuit for a
short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 10
10 Disconnect the Body Control Module C2 connector.
Disconnect the Passenger Folding Mirror Relay.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the Passenger Folding Mirror Relay
Input circuit in the relay connector.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Passenger Folding Mirror Relay Input circuit for a
short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
915
POWER MIRROR ± FOLDING
UNFOLD MIRROR OUTPUT FAILURE ÐContinued

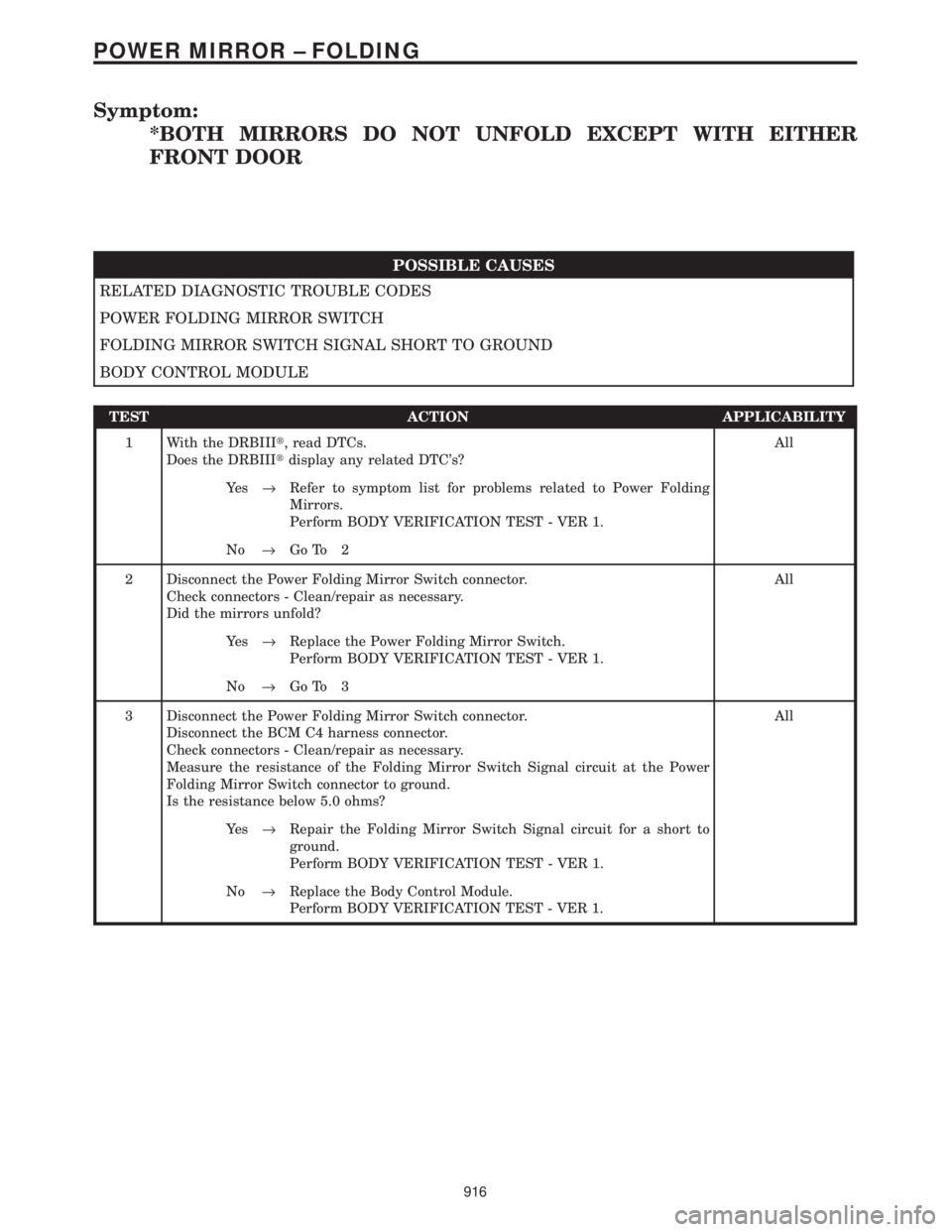

Symptom:
*BOTH MIRRORS DO NOT UNFOLD EXCEPT WITH EITHER
FRONT DOOR
POSSIBLE CAUSES
RELATED DIAGNOSTIC TROUBLE CODES
POWER FOLDING MIRROR SWITCH
FOLDING MIRROR SWITCH SIGNAL SHORT TO GROUND
BODY CONTROL MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay any related DTC's?All
Ye s®Refer to symptom list for problems related to Power Folding
Mirrors.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Disconnect the Power Folding Mirror Switch connector.
Check connectors - Clean/repair as necessary.
Did the mirrors unfold?All
Ye s®Replace the Power Folding Mirror Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Disconnect the Power Folding Mirror Switch connector.
Disconnect the BCM C4 harness connector.
Check connectors - Clean/repair as necessary.
Measure the resistance of the Folding Mirror Switch Signal circuit at the Power
Folding Mirror Switch connector to ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Folding Mirror Switch Signal circuit for a short to
ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
916
POWER MIRROR ± FOLDING

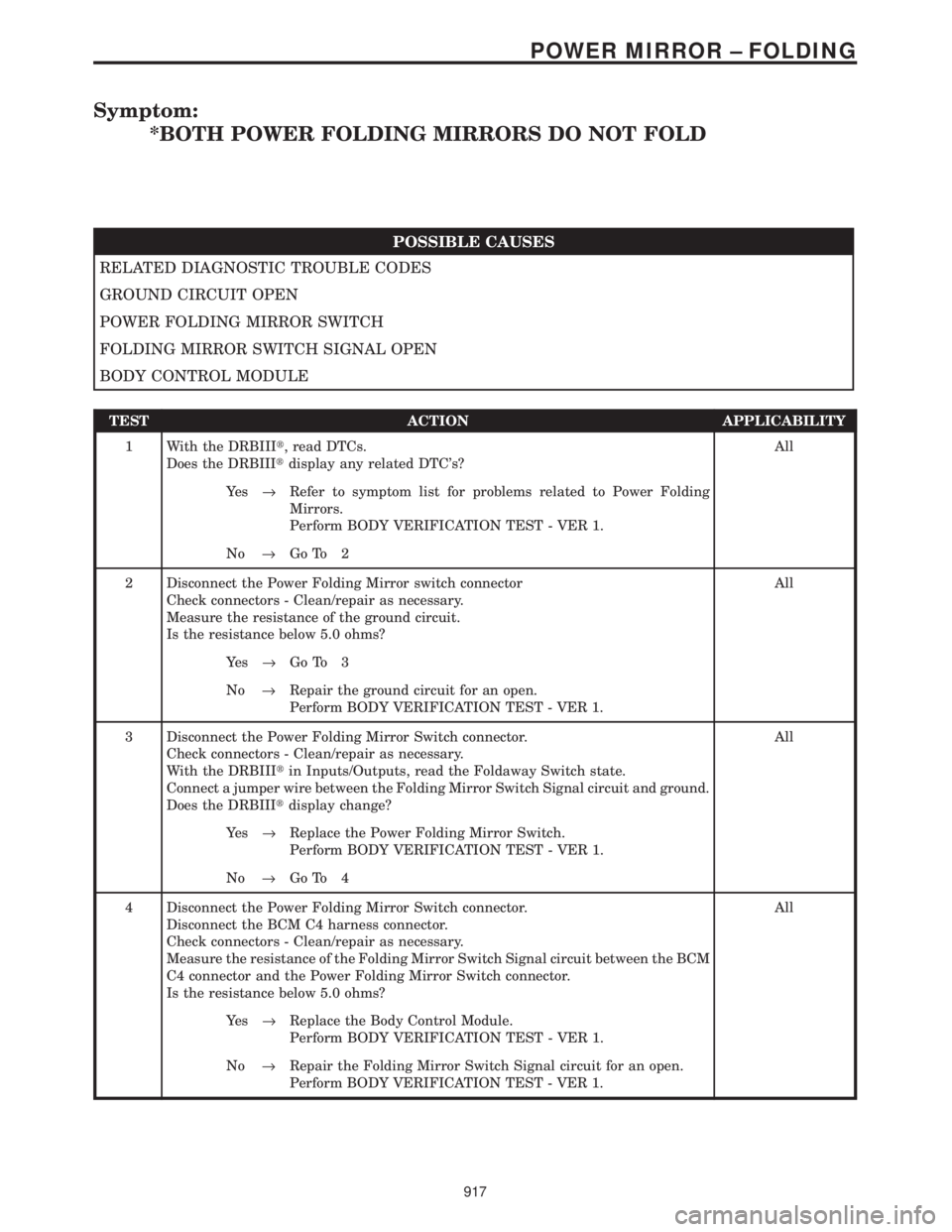

Symptom:
*BOTH POWER FOLDING MIRRORS DO NOT FOLD
POSSIBLE CAUSES
RELATED DIAGNOSTIC TROUBLE CODES
GROUND CIRCUIT OPEN
POWER FOLDING MIRROR SWITCH
FOLDING MIRROR SWITCH SIGNAL OPEN
BODY CONTROL MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay any related DTC's?All
Ye s®Refer to symptom list for problems related to Power Folding
Mirrors.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Disconnect the Power Folding Mirror switch connector
Check connectors - Clean/repair as necessary.
Measure the resistance of the ground circuit.
Is the resistance below 5.0 ohms?All
Ye s®Go To 3
No®Repair the ground circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
3 Disconnect the Power Folding Mirror Switch connector.
Check connectors - Clean/repair as necessary.
With the DRBIIItin Inputs/Outputs, read the Foldaway Switch state.
Connect a jumper wire between the Folding Mirror Switch Signal circuit and ground.
Does the DRBIIItdisplay change?All
Ye s®Replace the Power Folding Mirror Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
4 Disconnect the Power Folding Mirror Switch connector.
Disconnect the BCM C4 harness connector.
Check connectors - Clean/repair as necessary.
Measure the resistance of the Folding Mirror Switch Signal circuit between the BCM
C4 connector and the Power Folding Mirror Switch connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Folding Mirror Switch Signal circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
917
POWER MIRROR ± FOLDING

Symptom:
*DRIVER FOLDING MIRROR DOES NOT FOLD
POSSIBLE CAUSES
RELATED DIAGNOSTIC TROUBLE CODES
POWER MIRROR
FOLDING MIRROR UNFOLD DRIVER CIRCUIT OPEN
DRIVER FOLDING MIRROR FOLD DRIVER CIRCUIT OPEN
BODY CONTROL MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, read Body Computer DTCs.
Does the DRBIIItdisplay any related DTC's?All
Ye s®Refer to symptom list for problems related to Power Folding
Mirrors.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Disconnect the inoperative Power Mirror connector.
NOTE: Check connectors - Clean/repair as necessary.
Connect one lead of a test light to the Passenger Folding Mirror Relay Output circuit
and the other lead to the appropriate Folding Mirror Unfold Driver in the power
mirror harness connector.
With the DRBIIIt, actuate the Folding Mirrors.
Does the test light illuminate brightly?All
Ye s®Replace the appropriate Power Mirror.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Disconnect the inoperative Power Mirror connector.
Disconnect the Body Control Module C2 connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the appropriate Folding Mirror Unfold Driver circuit from the BCM C2
connector to the power mirror harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the appropriate Folding Mirror Unfold Driver circuit for
an open.
Perform BODY VERIFICATION TEST - VER 1.
918
POWER MIRROR ± FOLDING

TEST ACTION APPLICABILITY

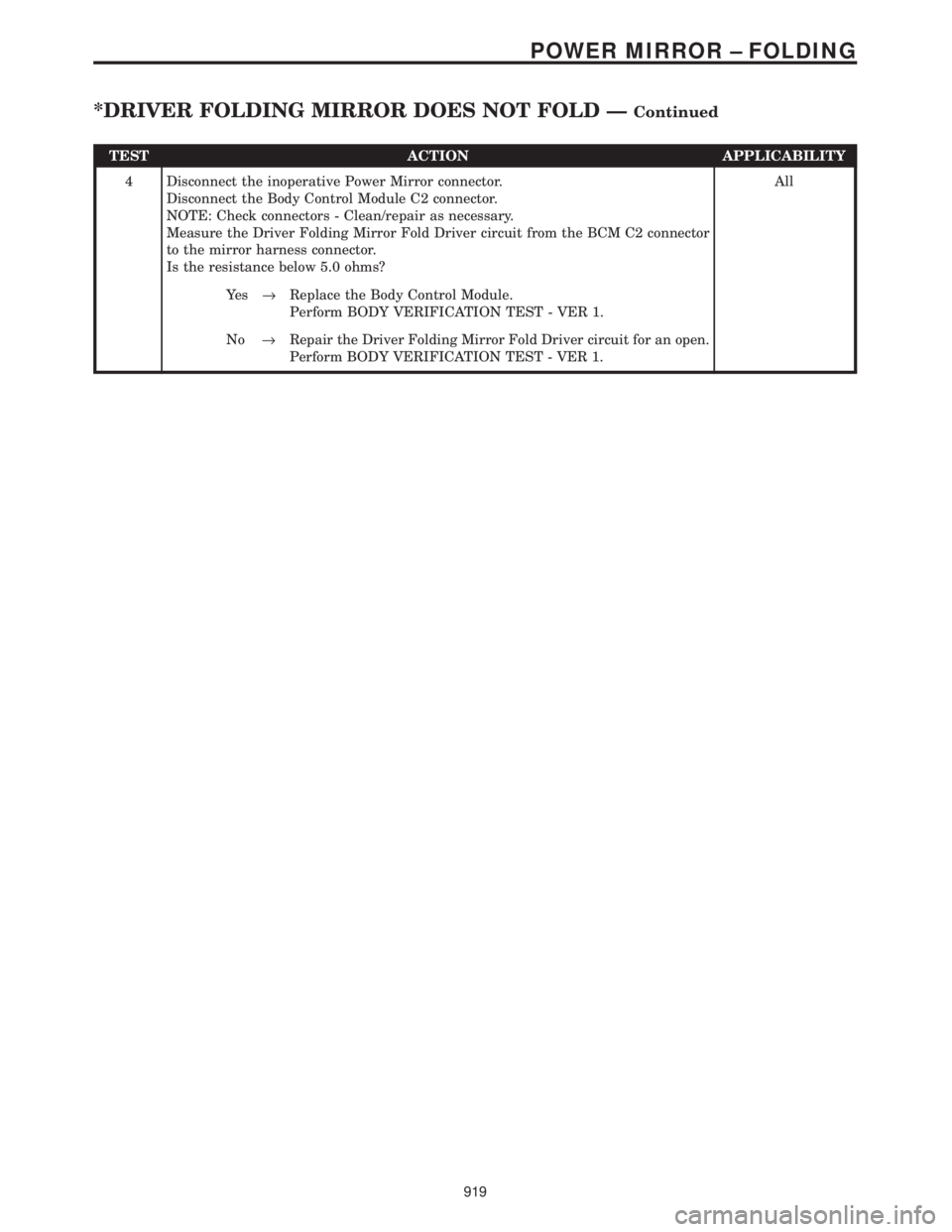

4 Disconnect the inoperative Power Mirror connector.
Disconnect the Body Control Module C2 connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the Driver Folding Mirror Fold Driver circuit from the BCM C2 connector
to the mirror harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Driver Folding Mirror Fold Driver circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
919
POWER MIRROR ± FOLDING
*DRIVER FOLDING MIRROR DOES NOT FOLD ÐContinued

Symptom:
*PASSENGER FOLDING MIRROR DOES NOT FOLD
POSSIBLE CAUSES
RELATED DIAGNOSTIC TROUBLE CODES
PASSENGER FOLDING MIRROR RELAY
POWER MIRROR
FOLDING MIRROR UNFOLD DRIVER CIRCUIT OPEN
PASSENGER FOLDING MIRROR RELAY OUTPUT CIRCUIT OPEN
PASSENGER FOLDING MIRROR RELAY INPUT CIRCUIT OPEN
BODY CONTROL MODULE
TEST ACTION APPLICABILITY
1 With the DRBIIIt, read Body Computer DTCs.
Does the DRBIIItdisplay any related DTC's?All
Ye s®Refer to symptom list for problems related to Power Folding
Mirrors.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Disconnect the Passenger Folding Mirror Relay.
Check connectors - Clean/repair as necessary.
Connect a substitute relay in place of the Passenger Folding Mirror Relay.
NOTE: Doors must be closed to allow the mirrors to fold with the power folding
mirror switch.
Attempt to operate the power folding mirror system with the power folding mirror
switch and by opening and closing both front doors with mirrors folded.
Does the system now operate properly?All
Ye s®Replace the Passenger Folding Mirror Relay.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Connect Passenger Folding Mirror Relay if disconnected in previous step.
Disconnect the inoperative Power Mirror connector.
NOTE: Check connectors - Clean/repair as necessary.
Connect one lead of a test light to the Passenger Folding Mirror Relay Output circuit
and the other lead to the appropriate Folding Mirror Unfold Driver in the power
mirror harness connector.
With the DRBIIIt, actuate the Folding Mirrors.
Does the test light illuminate brightly?All
Ye s®Replace the appropriate Power Mirror.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
920
POWER MIRROR ± FOLDING

TEST ACTION APPLICABILITY
4 Disconnect the inoperative Power Mirror connector.
Disconnect the Body Control Module C2 connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the appropriate Folding Mirror Unfold Driver circuit from the BCM C2
connector to the power mirror harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 5
No®Repair the appropriate Folding Mirror Unfold Driver circuit for
an open.
Perform BODY VERIFICATION TEST - VER 1.
5 Disconnect the inoperative Power Mirror connector.
Disconnect the Passenger Folding Mirror Relay.
NOTE: Check connectors - Clean/repair as necessary.
Measure the Passenger Folding Mirror Relay Output circuit from the relay connector
to the mirror harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 6
No®Repair the Passenger Folding Mirror Relay Output circuit for an
open.
Perform BODY VERIFICATION TEST - VER 1.
6 Disconnect the Body Control Module C2 connector.
Disconnect the Passenger Folding Mirror Relay.
NOTE: Check connectors - Clean/repair as necessary.
Measure the Passenger Folding Mirror Relay Input circuit from the relay connector
to the BCM C2 connector.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Passenger Folding Mirror Relay Input circuit for an
open.
Perform BODY VERIFICATION TEST - VER 1.
921
POWER MIRROR ± FOLDING
*PASSENGER FOLDING MIRROR DOES NOT FOLD ÐContinued
