8W-56 CONVENIENCE SYSTEMS
Component Page

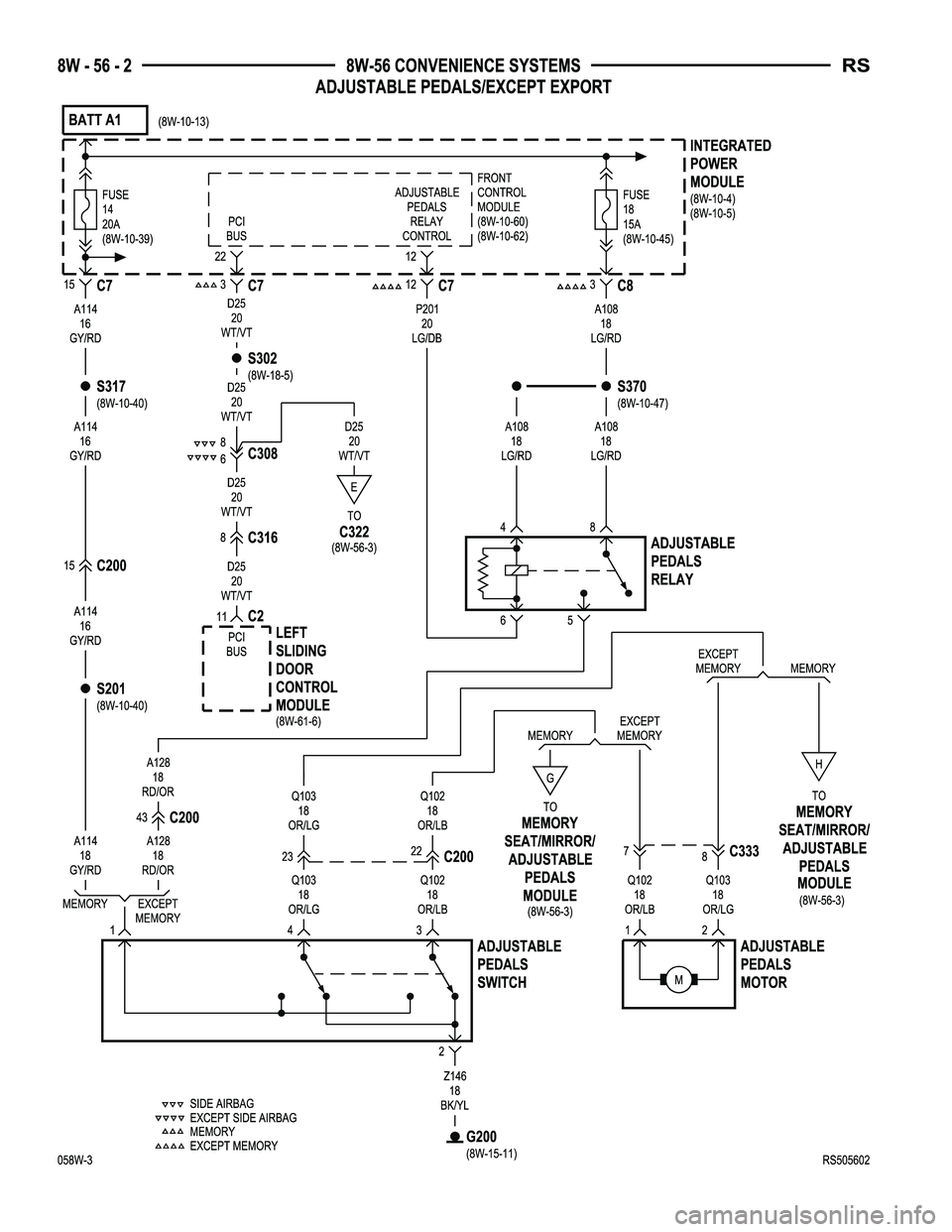

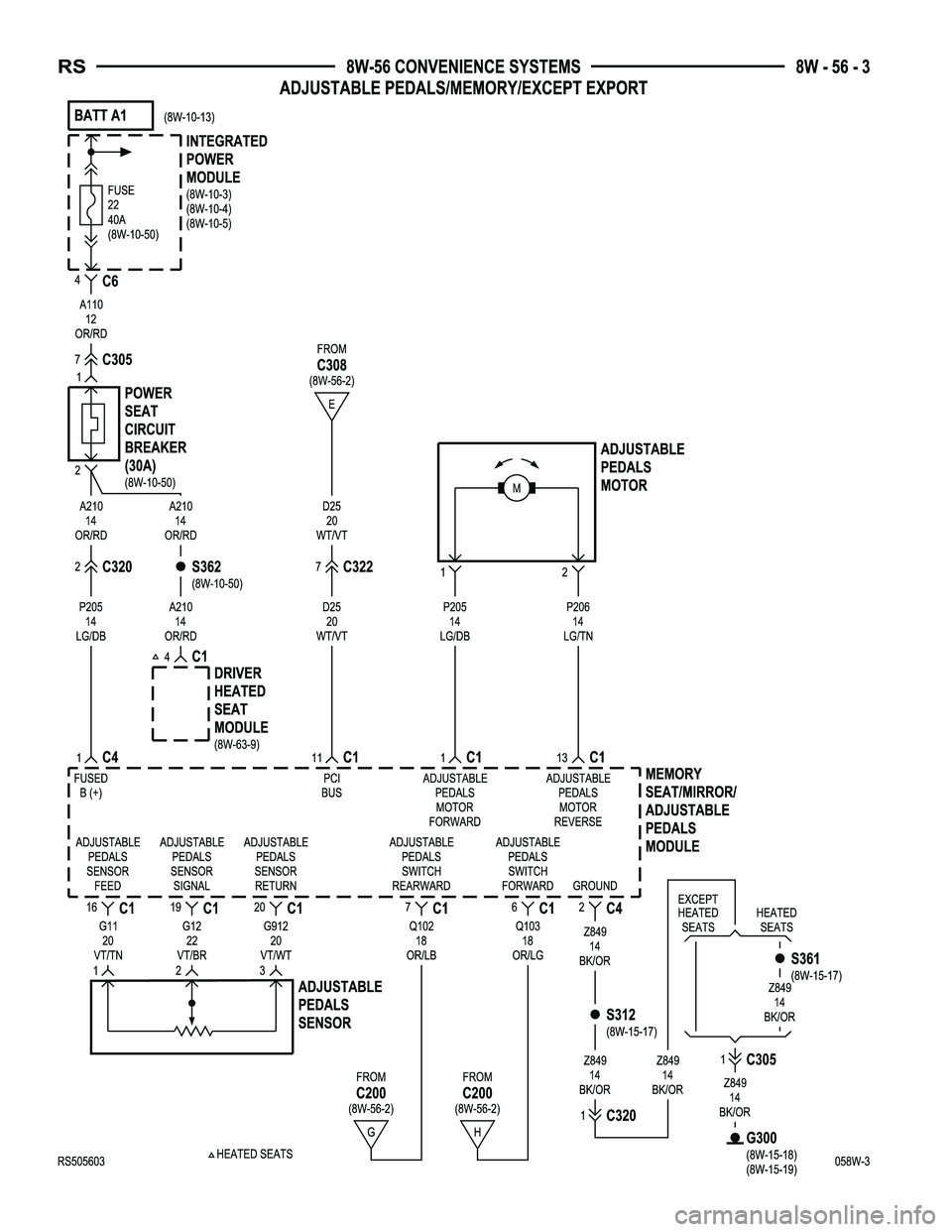

Adjustable Pedals Motor............. 8W-56-2, 3
Adjustable Pedals Relay............... 8W-56-2
Adjustable Pedals Sensor.............. 8W-56-3
Adjustable Pedals Switch.............. 8W-56-2
Driver Heated Seat Module............ 8W-56-3
Front Control Module............... 8W-56-2, 4
Fuse 14............................ 8W-56-2
Fuse 18............................ 8W-56-2
Fuse 22............................ 8W-56-3
G200.............................. 8W-56-2
G300.............................. 8W-56-3
G302.............................. 8W-56-4
Ignition Switch...................... 8W-56-4Component Page
Integrated Power Module.......... 8W-56-2, 3, 4
Left Sliding Door Control Module........ 8W-56-2
Memory Seat/Mirror/Adjustable Pedals
Module........................ 8W-56-2, 3

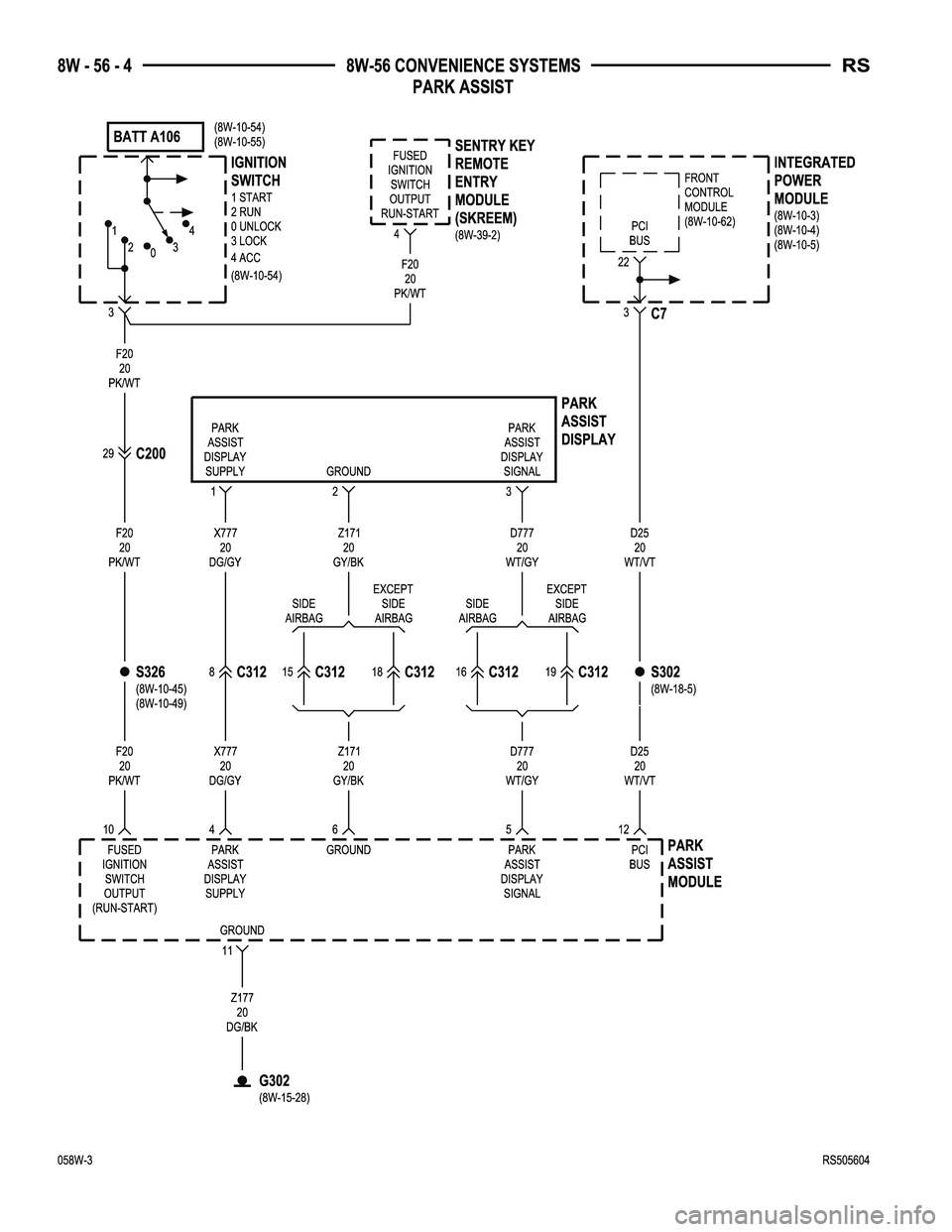

Park Assist Display.................. 8W-56-4

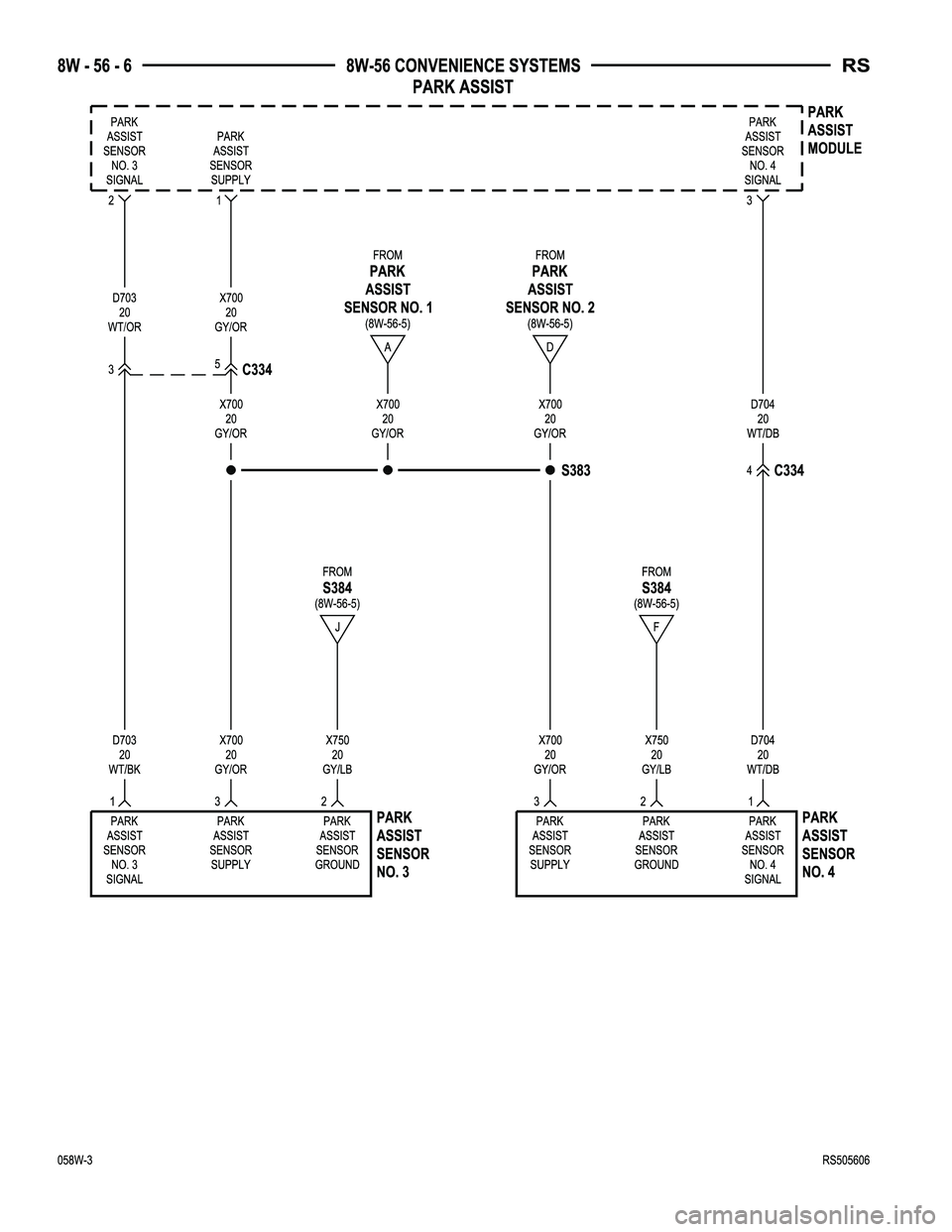

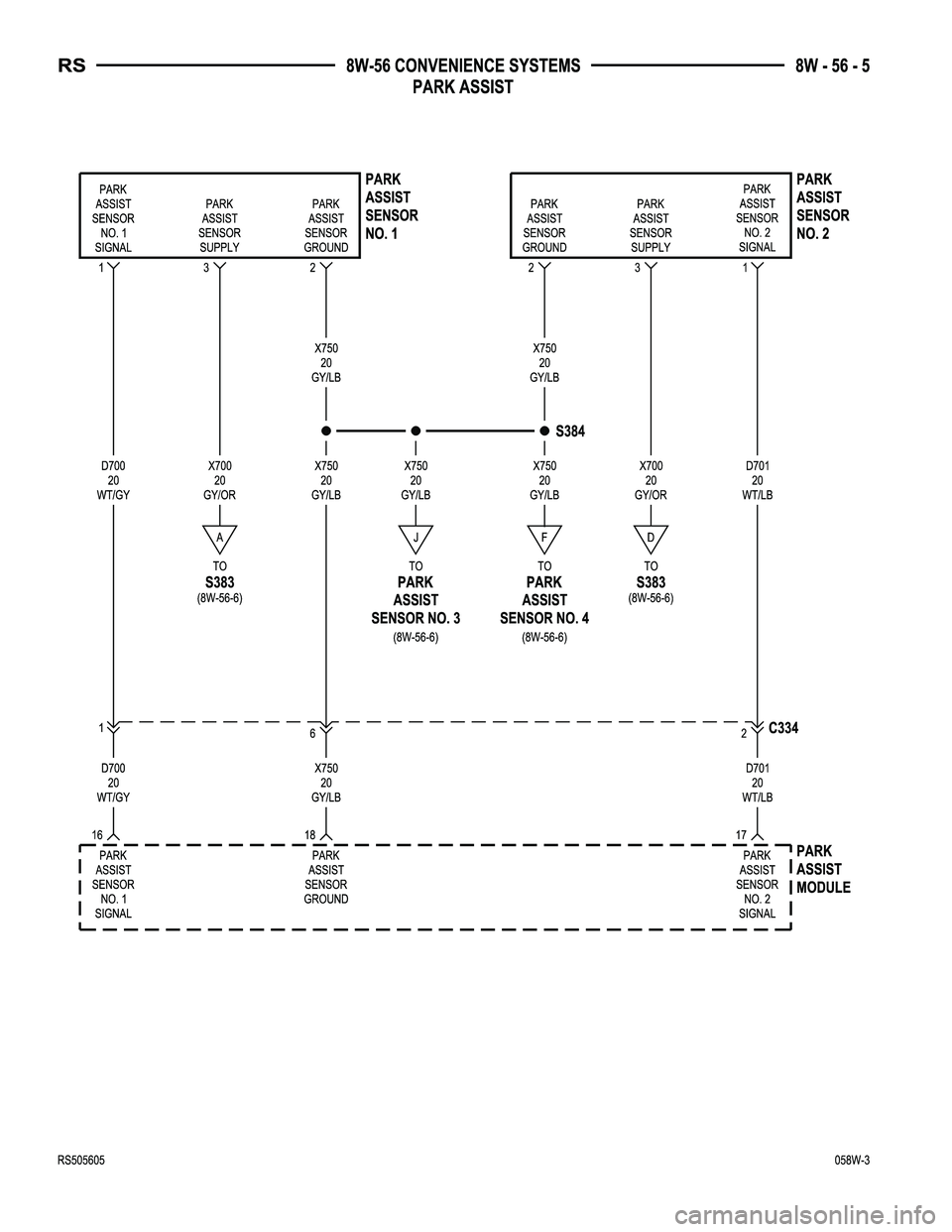

Park Assist Module............... 8W-56-4, 5, 6
Park Assist Sensor No. 1............ 8W-56-5, 6
Park Assist Sensor No. 2............ 8W-56-5, 6
Park Assist Sensor No. 3............ 8W-56-5, 6
Park Assist Sensor No. 4............ 8W-56-5, 6
Power Seat Circuit Breaker............ 8W-56-3
Sentry Key Remote Entry Module....... 8W-56-4
RS8W-56 CONVENIENCE SYSTEMS8W-56-1
8W-60 POWER WINDOWS
Component Page
Accessory Relay..................... 8W-60-2
Driver Power Window Motor....... 8W-60-3, 4, 6
Driver Power Window Switch . . . 8W-60-3, 4, 5, 6, 7
Front Control Module................. 8W-60-2
Fuse 28............................ 8W-60-2
G300............................ 8W-60-3, 4
G301.............................. 8W-60-6Component Page
Integrated Power Module.............. 8W-60-2
Left Rear Vent Motor............... 8W-60-3, 6
Passenger Power Window Motor...... 8W-60-5, 7
Passenger Power Window Switch.... 8W-60-2, 5, 7
Power Window Circuit Breaker......... 8W-60-2
Power Window Switch.............. 8W-60-4, 5
Right Rear Vent Motor.............. 8W-60-3, 6
RS8W-60 POWER WINDOWS8W-60-1
