8W-51 REAR LIGHTING
Component Page
Back-Up Lamp Switch................ 8W-51-6
Battery............................ 8W-51-6
Body Control Module......... 8W-51-2, 3, 4, 5, 6
Brake Lamp Switch................ 8W-51-2, 5

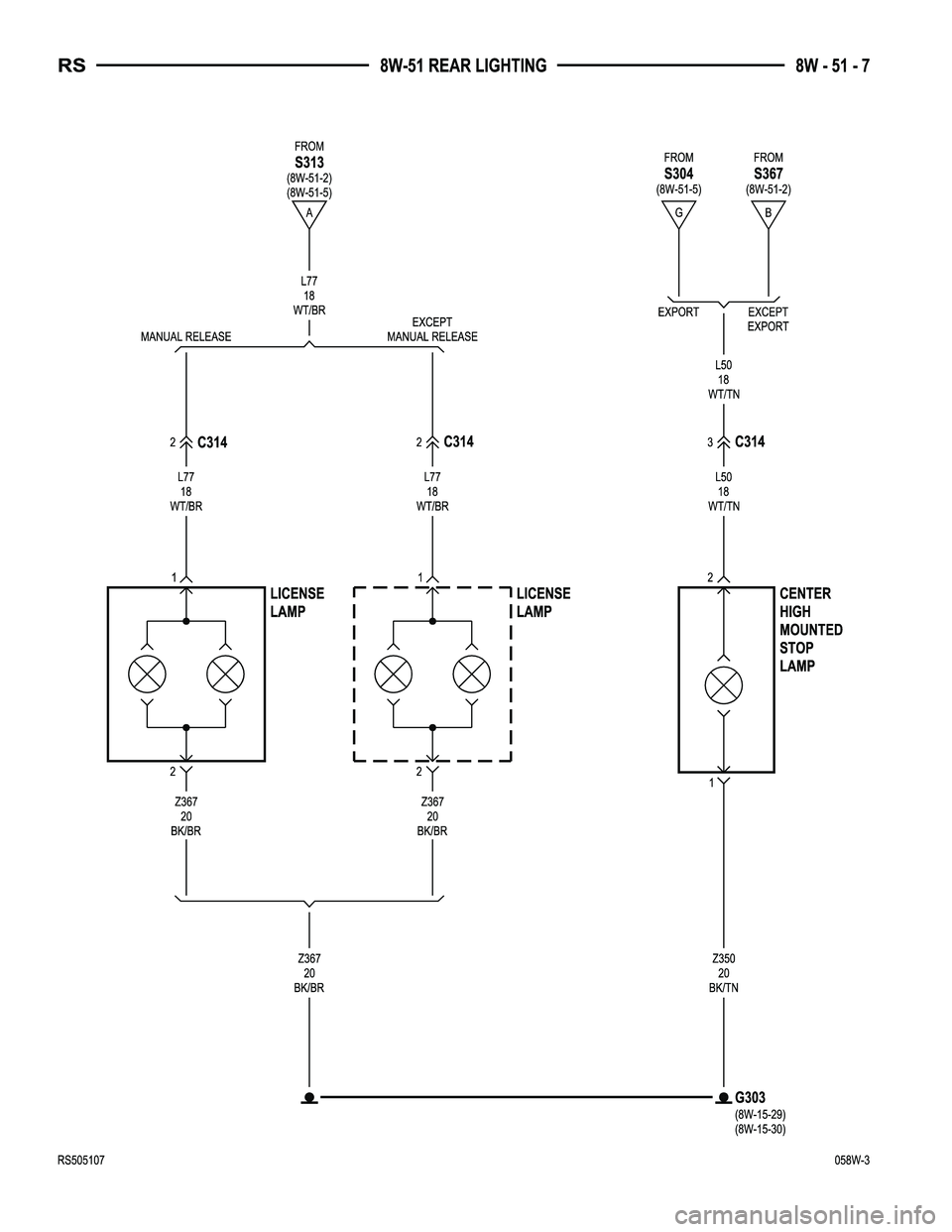

Center High Mounted Stop Lamp....... 8W-51-7
Front Control Module............. 8W-51-2, 5, 6
Fuse 2.......................... 8W-51-2, 5
Fuse 3......................... 8W-51-2, 5, 6
Fuse 26.......................... 8W-51-2, 5Component Page
G101.............................. 8W-51-6
G302........................ 8W-51-3, 4, 5, 6
G303.............................. 8W-51-7

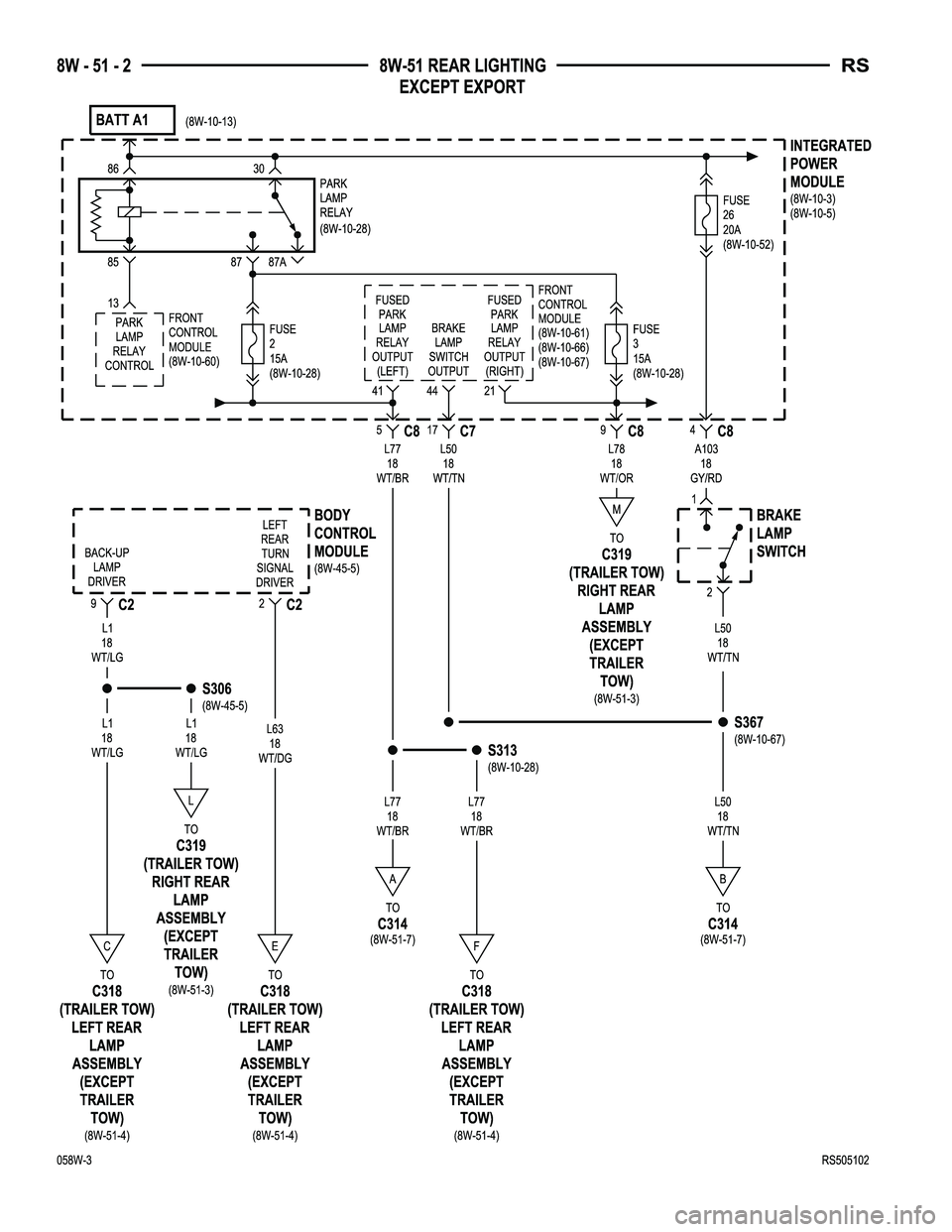

Integrated Power Module........ 8W-51-2, 3, 5, 6

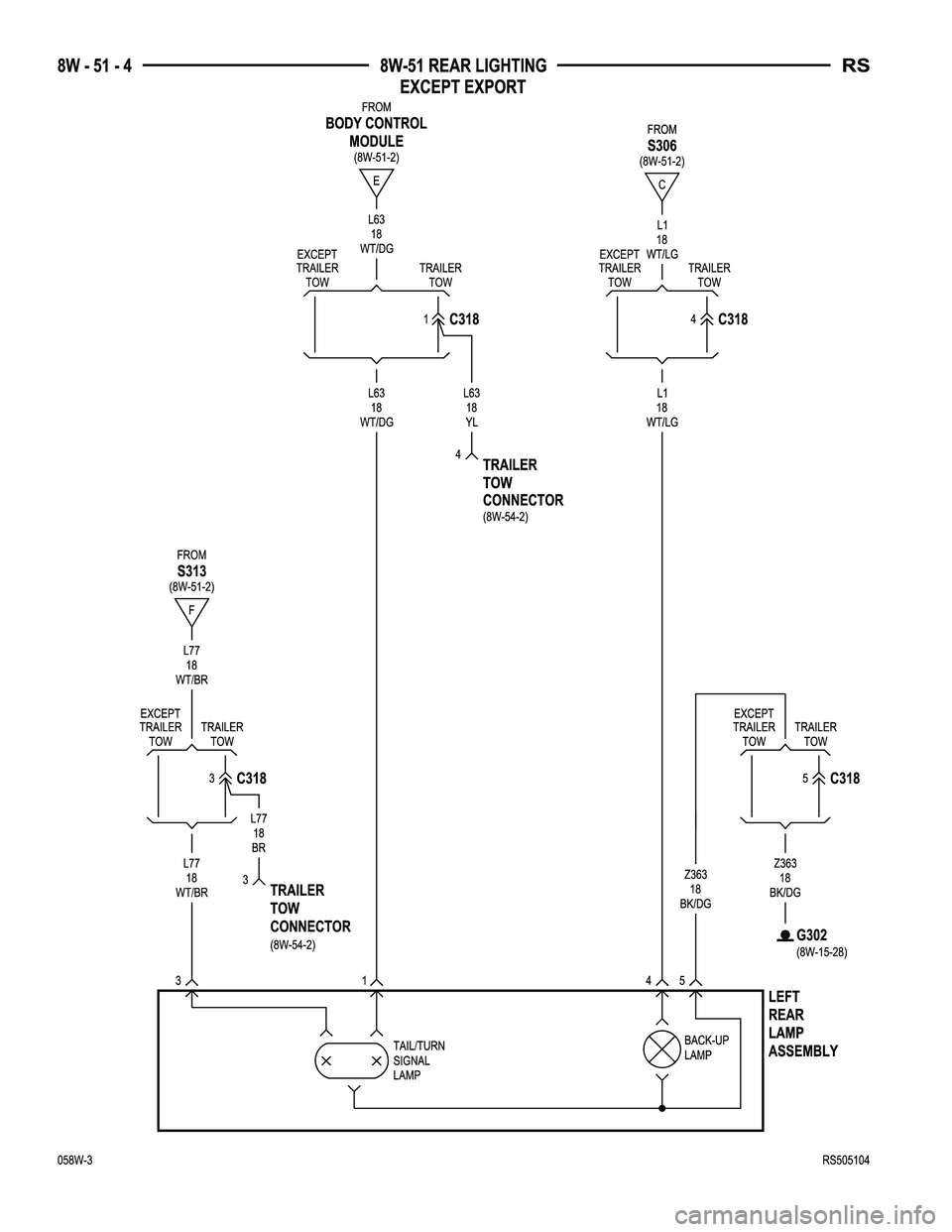

Left Rear Lamp Assembly........ 8W-51-2, 4, 5, 6
License Lamp....................... 8W-51-7
Park Lamp Relay................ 8W-51-2, 5, 6

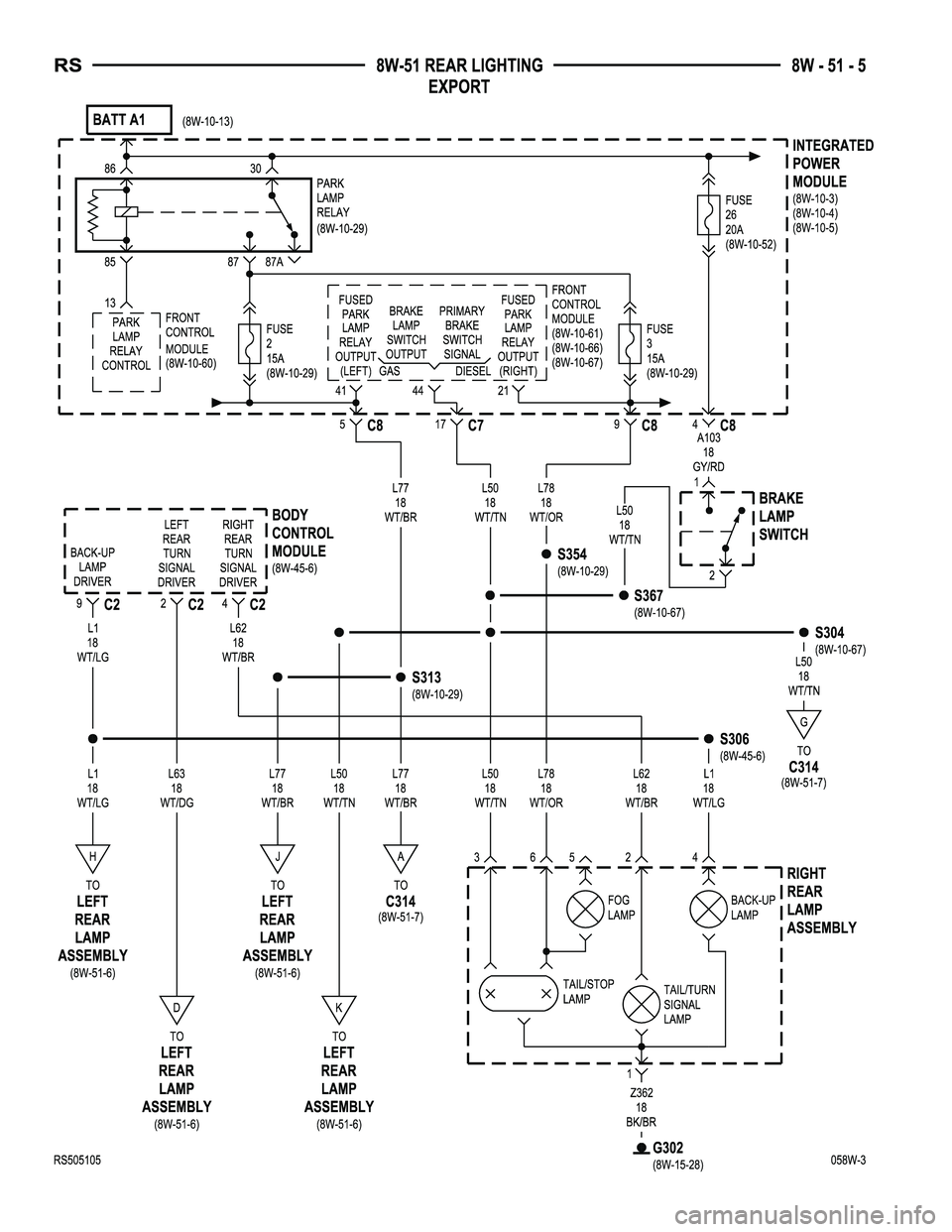

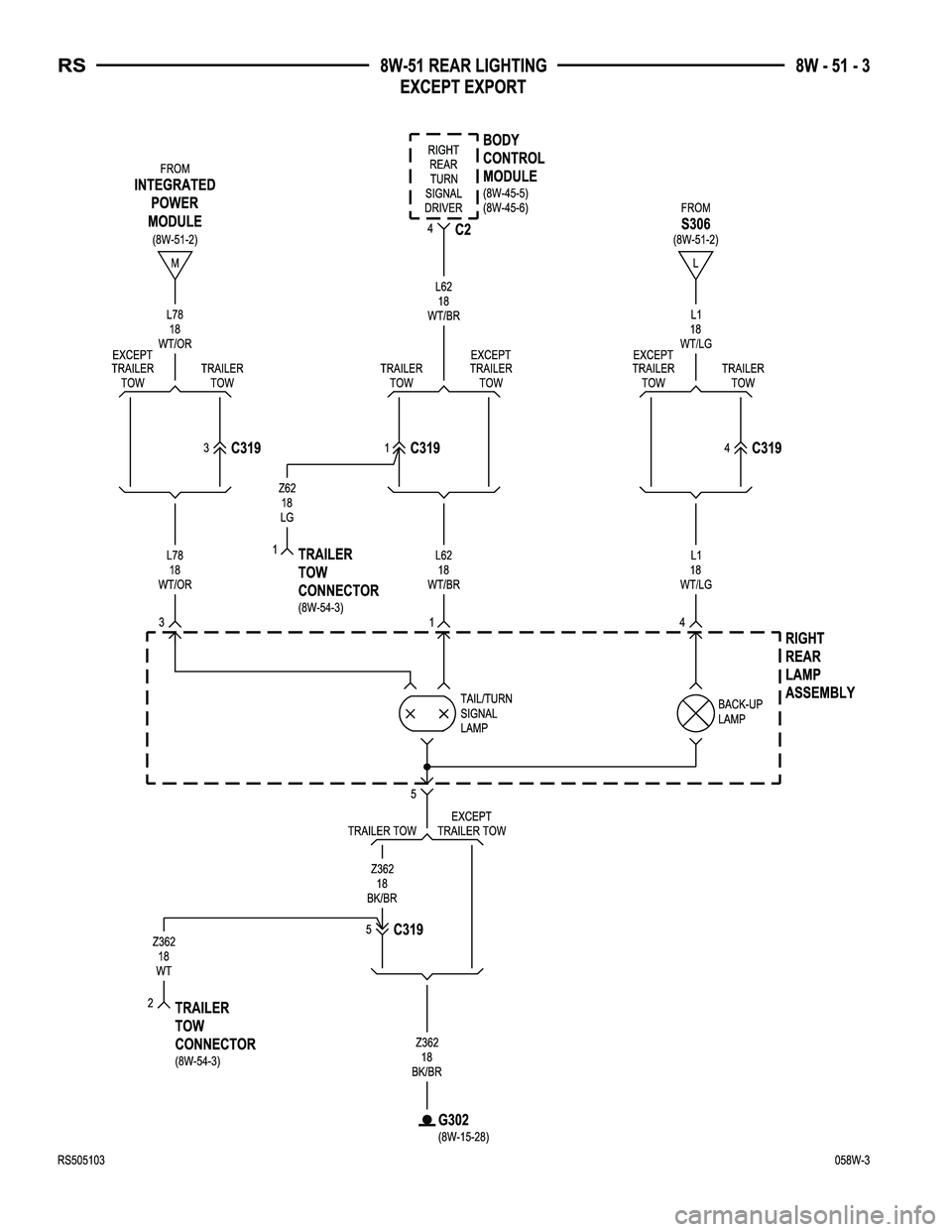

Right Rear Lamp Assembly...... 8W-51-2, 3, 5, 6
Trailer Tow Connector.............. 8W-51-3, 4
RS8W-51 REAR LIGHTING8W-51-1
8W-52 TURN SIGNALS
Component Page
Body Control Module........... 8W-52-2, 3, 4, 5
Fuse 24............................ 8W-52-5
G102.............................. 8W-52-2
G200............................ 8W-52-2, 3
G302.............................. 8W-52-4
Instrument Cluster................... 8W-52-5
Instrument Panel Switch Bank....... 8W-52-2, 3
Integrated Power Module.......... 8W-52-2, 3, 5
Left Front Park/Turn Signal Lamp....... 8W-52-2Component Page
Left Rear Lamp Assembly............. 8W-52-4
Left Repeater Lamp.................. 8W-52-5
Left Turn Signal Lamp................ 8W-52-3
Multi-Function Switch.............. 8W-52-2, 3
Right Front Park/Turn Signal Lamp..... 8W-52-2
Right Rear Lamp Assembly............ 8W-52-4
Right Repeater Lamp................. 8W-52-5
Right Turn Signal Lamp............... 8W-52-3
Trailer Tow Connector................ 8W-52-4
RS8W-52 TURN SIGNALS8W-52-1
