CHRYSLER VOYAGER 2005 Service Manual

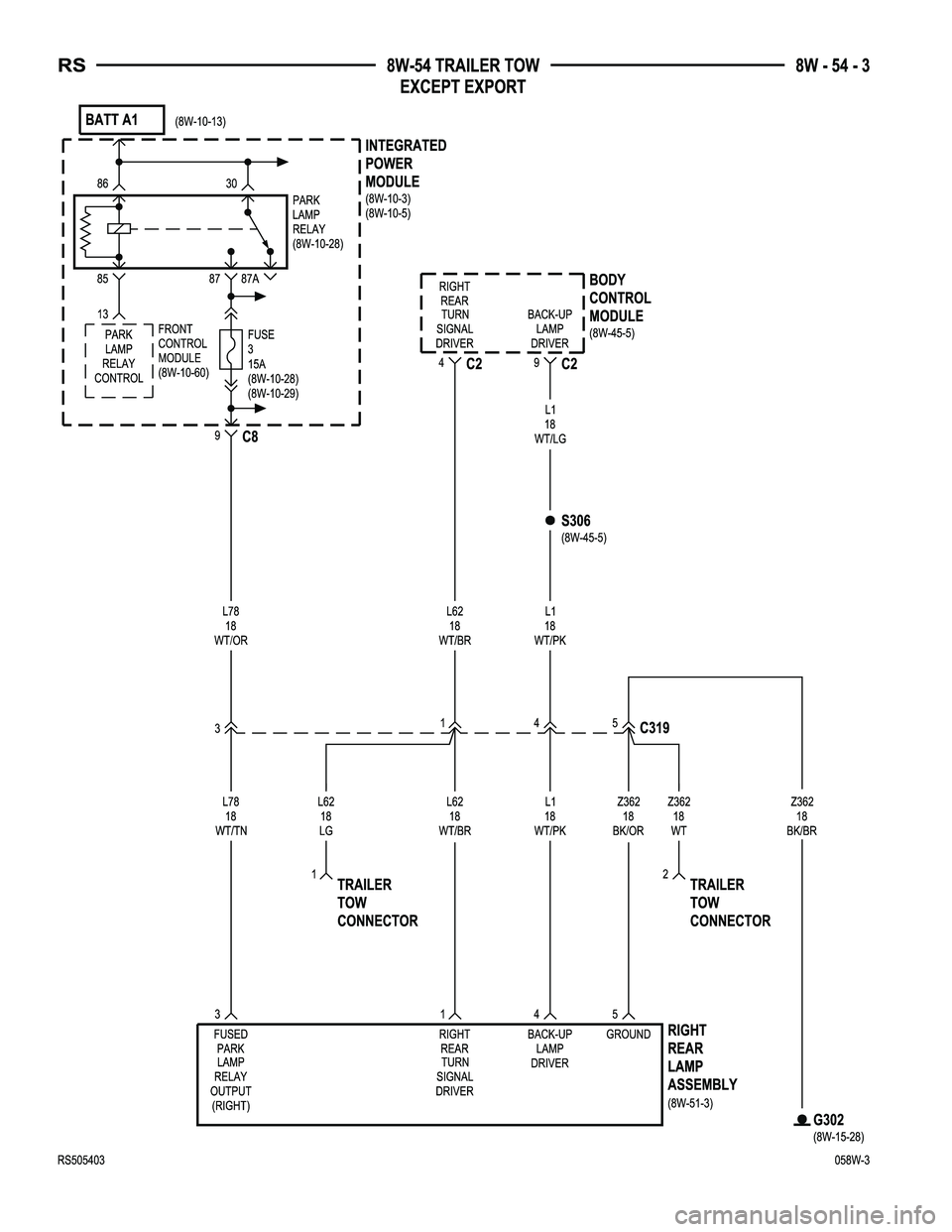

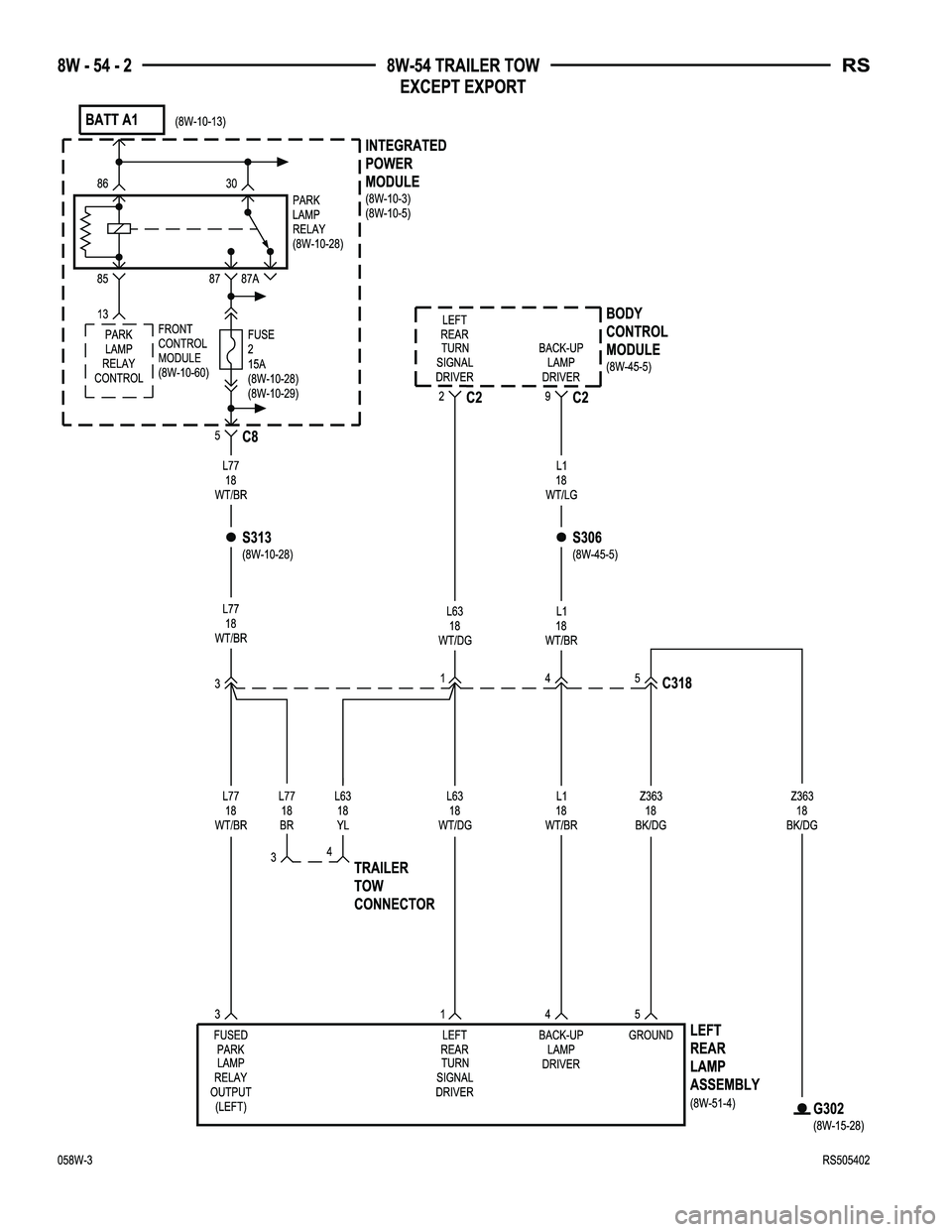

8W-54 TRAILER TOW
Component Page
Body Control Module............... 8W-54-2, 3
Front Control Module............... 8W-54-2, 3
Fuse 2............................ 8W-54-2
Fuse 3............................ 8W-54-3
G302............................ 8W-54-2, 3Component Page
Integrated Power Module............ 8W-54-2, 3
Left Rear Lamp Assembly............. 8W-54-2
Park Lamp Relay.................. 8W-54-2, 3
Right Rear Lamp Assembly............ 8W-54-3
Trailer Tow Connector.............. 8W-54-2, 3
RS8W-54 TRAILER TOW8W-54-1

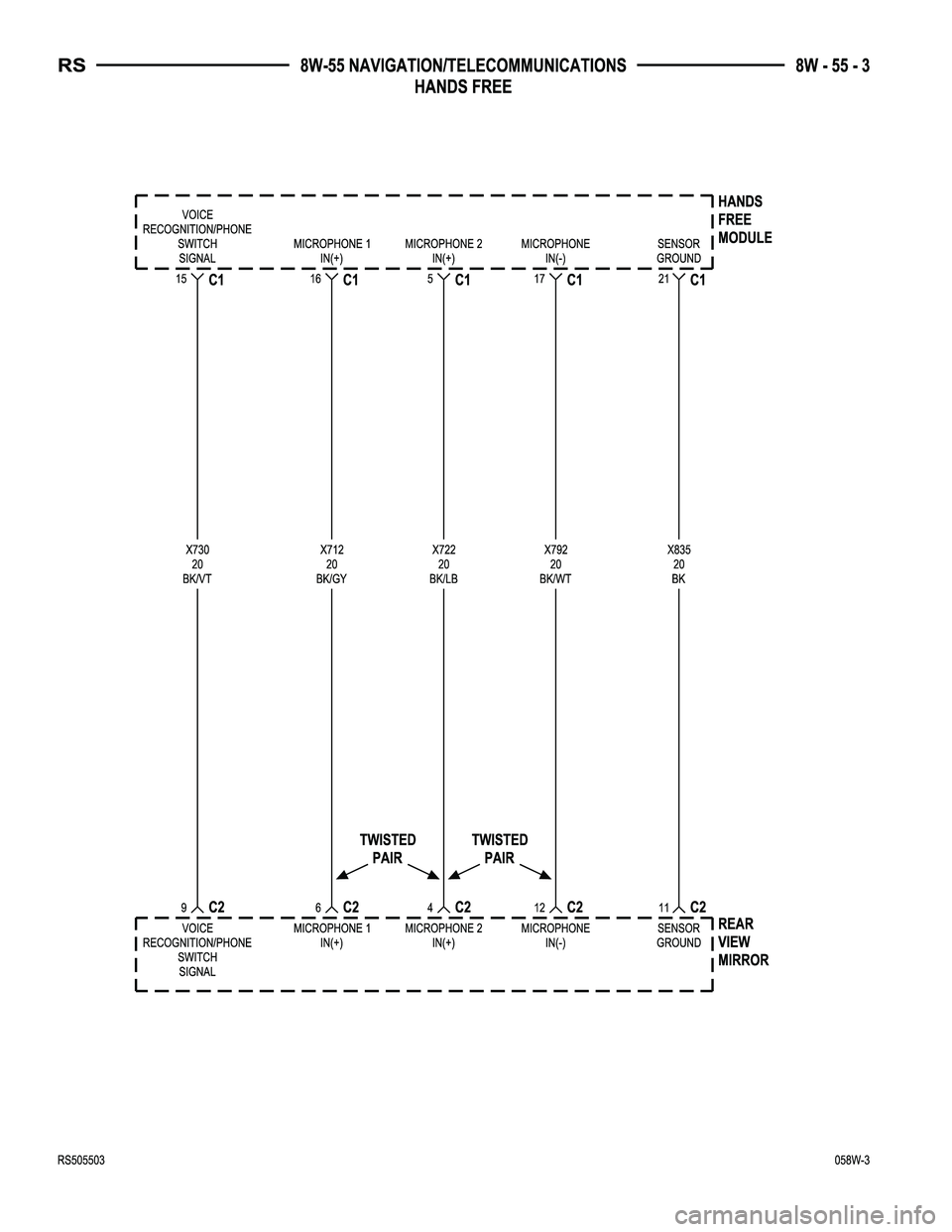

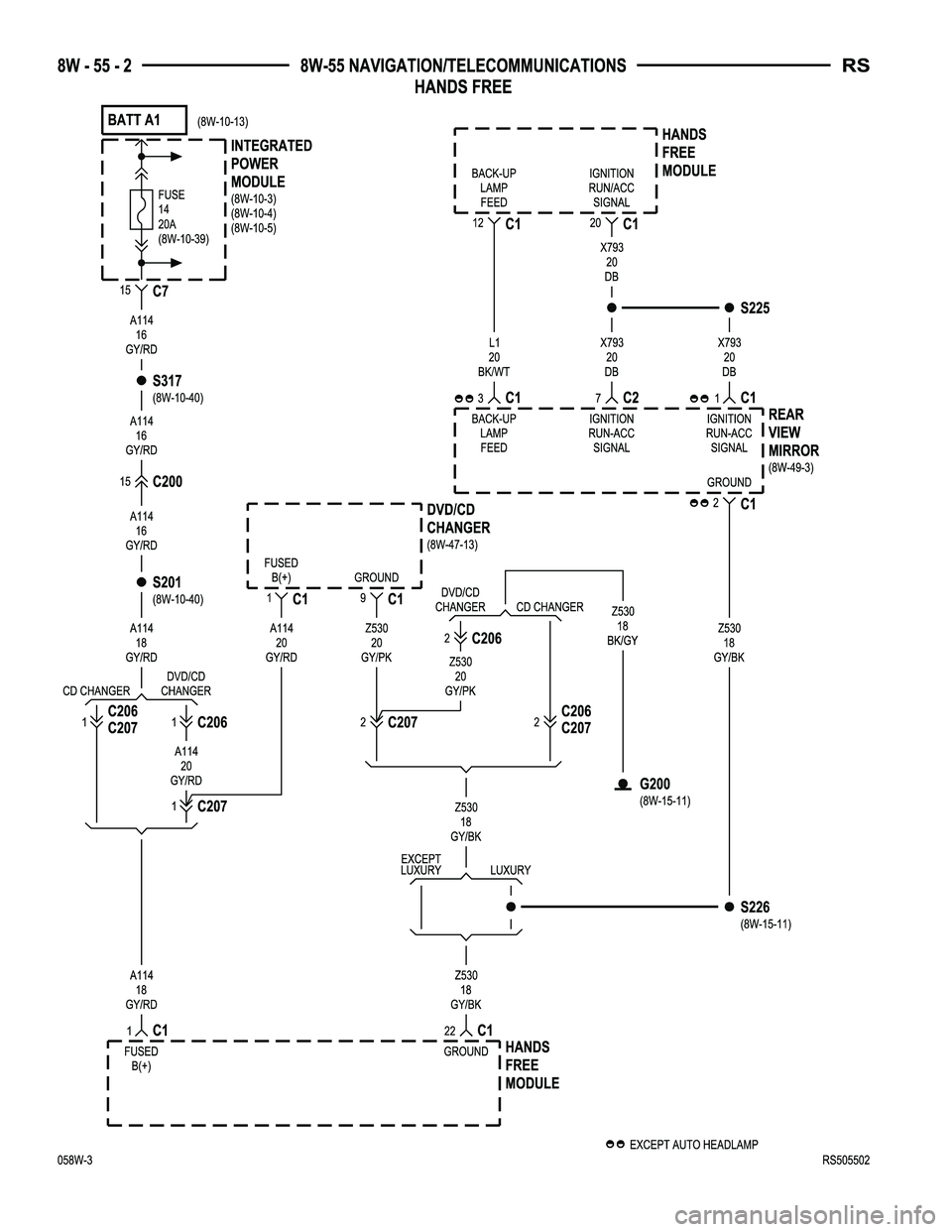

8W-55 NAVIGATION/TELECOMMUNICATIONS
Component Page
CD Changer........................ 8W-55-5
DVD/CD Changer.................. 8W-55-2, 4
Fuse 14............................ 8W-55-2
G200.............................. 8W-55-2Component Page
Hands Free Module............ 8W-55-2, 3, 4, 5
Integrated Power Module.............. 8W-55-2
Radio........................... 8W-55-4, 5
Rear View Mirror.................. 8W-55-2, 3
RS8W-55 NAVIGATION/TELECOMMUNICATIONS8W-55-1
