Citroen BERLINGO FIRST 2011 1.G Owner's Manual

99 TECHNICAL DATA
-




Light van
Ludospace


L1


4 137


L2


4 437


H


1 796 to 1 819
1 810







A


2 693


B


836


C


608


D


570
550


E


1 440
1 440 or 1 452


F


1 960


G


1 420
1 420 or 1 436


I


1 724

TECHNICAL DATA
100 -
INTERIOR DIMENSIONS (IN MM) AND VOLUMES (IN M3) LIGHT VAN



L1



L2




J


1 155


K


1 320


M


1 190


N


1 190


O


568


P


1 340
1 640


m
3


3.25
3.6

101 TECHNICAL DATA
-
INTERIOR DIMENSIONS (IN MM) LUDOSPACE






L1



L2




Row 2
bench seat
in position




- normal



1.25
1.75



- fully folded



2.8
3.25
VOLUMES (IN M3) LUDOSPACE 7 SEAT VERSION






L2




Row 2 and
row 3 bench
seats in
position




- normal



0.2



- fully folded



3
3)LUDOSPACE 5 SEAT VERSION

TECHNICAL DATA
102 -

PETROL ENGINES AND GEARBOXES


Model codes


GA/GB/GC/GD/GF/GG/GJ...


...KFWC



GA/GJ/GK/GN...


...NFUC



ENGINES


1.4 litre



1.6 litre


Cubic capacity (cc)
1 360
1 587
Bore x stroke (mm)
75 x 77
78.5 x 82
EU standard maximum power (kW)
55
80
Maximum power at engine speed (rpm)
5 500
5 800
EU standard maximum torque (Nm)
120
147
Maximum torque at engine speed (rpm)
3 400
4 000
Fuel
Ron 95 - Ron 98
Ron 95 - Ron 98
Catalytic converter
Yes
Yes

Gearbox

Manual (5 speed)
Manual (5 speed)

Oil capacity (in litres)


Engine (with cartridge replacement)
3 (1) - 3.25 (2)
3.2 (1) - 3.4 (2)
(1) Draining by gravity - (2) Draining by suction

103 TECHNICAL DATA
-

Model codes


GA/GB/GC/GD/GF/GG/
GJ/GK/GN...


...9HWC



GA/GB/GC/GD/GF/GG/
GJ/GK/GN
...
... 9HXC



GA/GB/GC/GD/GF/GG/
GJ/GK/GN...


... WJYB



ENGINES


1.6 litre Turbo HDI 75



1.6 litre Turbo HDI 92



1.9 litre


Cubic capacity (cc)
1 560
1 560
1 867
Bore x stroke (mm)
75 x 88.3
75 x 88.3
82.2 x 88
EU standard maximum power (kW)
55
66
51
Maximum power at engine speed (rpm)
4 000
4 000
4 600
EU standard maximum torque (Nm)
175
215
125
Maximum torque at engine speed (rpm)
1 750
1 750
2 500
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Yes
Ye s
Yes

Gearbox

Manual (5 speed)
Manual (5 speed)
Manual (5 speed)

Oil capacity (in litres)


Engine (with cartridge replacement)
3.75
3.8
4.8


DIESEL ENGINES AND GEARBOXES

TECHNICAL DATA
104 -









Quality of the fuel used for petrol engines









Quality of the fuel used for Diesel engines


The petrol engines are perfectly compatible with E10 type petrol biofuels (containing 10 % ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol) are reserved exclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15293.
For Brazil only, special vehicles are marketed to run on fuels containing up to 100 % ethanol (E100 type).


The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel
fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the
pumps (containing up to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing
conditions. Contact a CITROËN dealer or a qualifi ed workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

TECHNICAL DATA
106 -

Engine


1.4 litre



Gearbox


Manual



Model codes


GB KFWC



GC KFWC



GD KFWC



GA KFWC



Length


L1



L2



Version (kg)


600



800



750



1 000




●
Kerb weight
1 055
1 080
1 116


●
Gross vehicle weight (GVW)
1 655
1 855
1 830
2 145


●
Gross train weight
2 555
2 755
2 740
2 880


●
Unbraked trailer
500
575
575


●
Braked trailer (within GTW)
900
910
735


●
Recommended nose weight
70
75

75


●
Recommended weight on roof rack
100
100
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the exterior temperature is above 37 °C, limit the towed load.
PETROL WEIGHTS AND TOWING LOADS (IN KG) FOR LIGHT VAN

107 TECHNICAL DATA
-
DIESEL WEIGHTS AND TOWING LOADS (IN KG) FOR LIGHT VAN


Engine


1.6 litre Turbo HDI 75



1.6 litre Turbo 92



1.9 litre



Gearbox


Manual



Manual



Manual



Model codes


GB
9HWC



GC
9HWC



GD
9HWC



GA
9HWC



GB
9HXC



GC
9HXC



GD
9HXC



GA
9HXC



GB
WJYB



GC
WJYB



GD
WJYB



GA
WJYB



Length


L1



L2



L1



L2



L1



L2



Version (kg)


600



800



750



1 000



600



800



750



1 000



600



800



750



1 000




●
Kerb weight
1 130
1 144
1 140
1 130
1 140
1 144
1 206
1 142
1 146


●
Gross vehicle weight
1 730
1 930
1 895
2 180
1 730
1 930
1 900
2 140
1 805
1 955
1 895
2 180


●
Gross train weight
2 830
3 030
3 005
3 005
2 830
3 030
3 005
3 005
2 855
3 055
3 005
3 005


●
Unbraked trailer
500
585
585
500
585
585
500
585
585


●
Braked trailer
(within GTW)
1 100
1 110
850
1 100
1 110
865
1 050
1 100
1 110
825


●
Recommended nose
weight
70
75
75
70
75
75
70
75
75


●
Recommended
weight on roof rack
100
100
100
100
-
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the exterior temperature is above 37 °C, limit the towed load.

TECHNICAL DATA
108 -

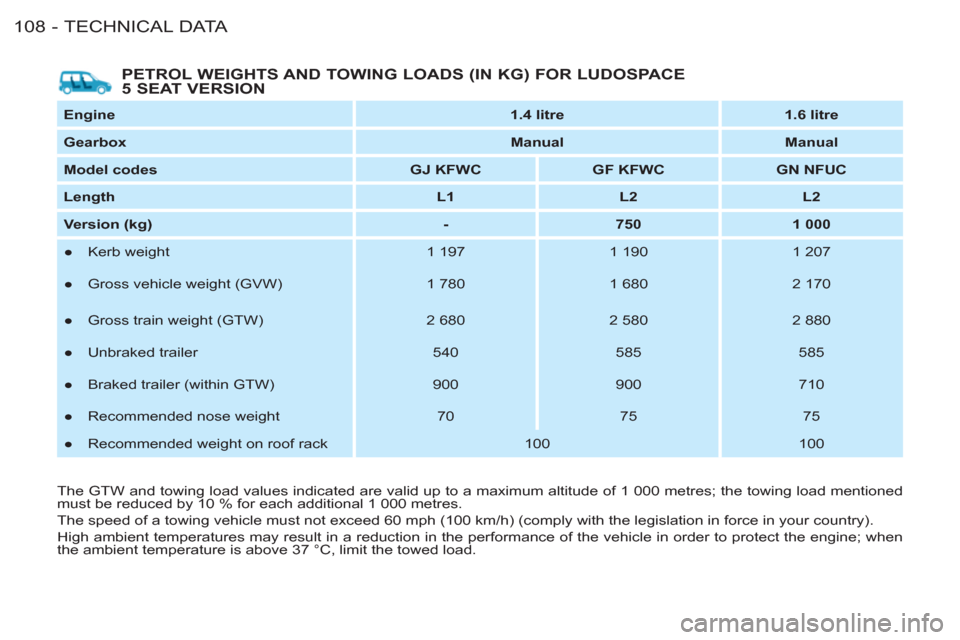

PETROL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE
5 SEAT VERSION

Engine


1.4 litre



1.6 litre



Gearbox


Manual



Manual



Model codes


GJ KFWC



GF KFWC



GN NFUC



Length


L1



L2



L2



Version (kg)


-



750



1 000


●
Kerb weight
1 197
1 190
1 207

●
Gross vehicle weight (GVW)
1 780
1 680
2 170

●
Gross train weight (GTW)
2 680
2 580
2 880

●
Unbraked trailer
540
585
585

●
Braked trailer (within GTW)
900
900
710

●
Recommended nose weight
70
75
75

●
Recommended weight on roof rack
100

100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, limit the towed load.
