109 TECHNICAL DATA
-

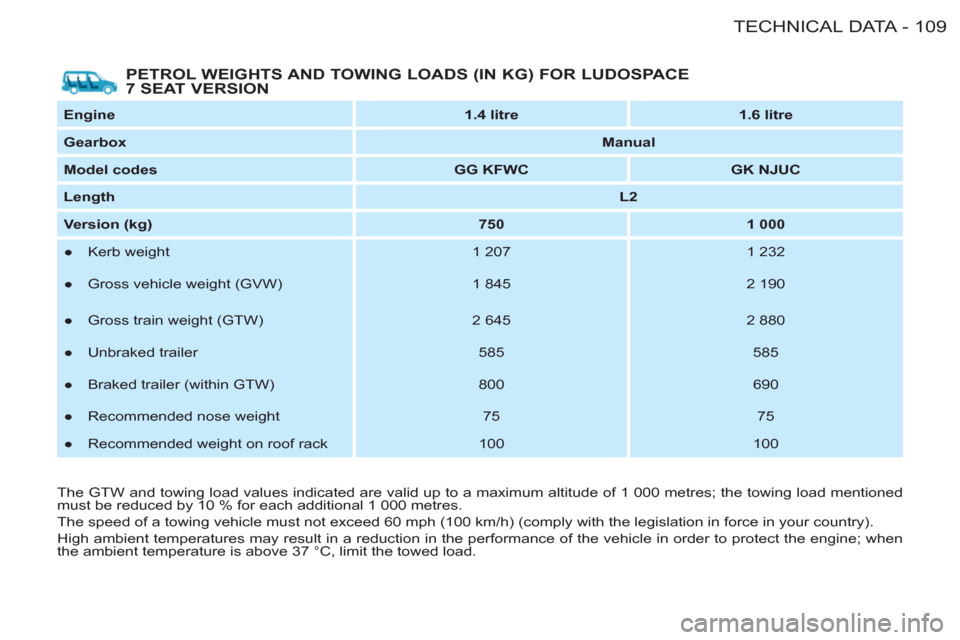

PETROL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE
7 SEAT VERSION
Engine
1.4 litre
1.6 litre
Gearbox
Manual
Model codes
GG KFWC
GK NJUC
Length
L2
Version (kg)
750
1 000
●
Kerb weight
1 207
1 232
●
Gross vehicle weight (GVW)
1 845
2 190
●
Gross train weight (GTW)
2 645
2 880
●
Unbraked trailer
585
585
●
Braked trailer (within GTW)
800
690
●
Recommended nose weight
75
75
●
Recommended weight on roof rack
100
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, limit the towed load.
Page 112 of 136
TECHNICAL DATA
11 0 -

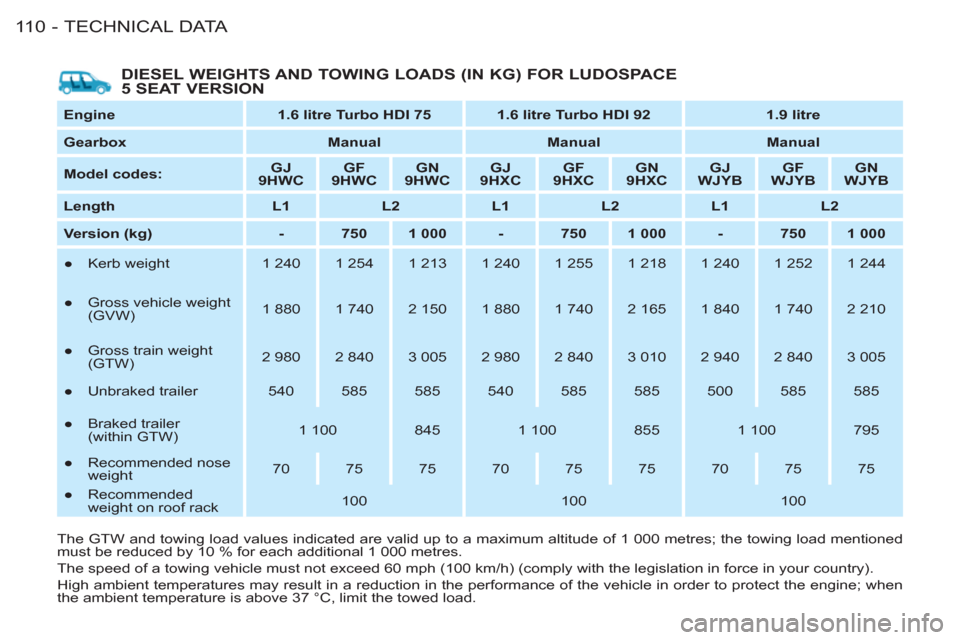

DIESEL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE
5 SEAT VERSION
Engine
1.6 litre Turbo HDI 75
1.6 litre Turbo HDI 92
1.9 litre
Gearbox
Manual
Manual
Manual
Model codes:
GJ
9HWC
GF
9HWC
GN
9HWC
GJ
9HXC
GF
9HXC
GN
9HXC
GJ
WJYB
GF
WJYB
GN
WJYB
Length
L1
L2
L1
L2
L1
L2
Version (kg)
-
750
1 000
-
750
1 000
-
750
1 000
●
Kerb weight
1 240
1 254
1 213
1 240
1 255
1 218
1 240
1 252
1 244
●
Gross vehicle weight
(GVW)
1 880
1 740
2 150
1 880
1 740
2 165
1 840
1 740
2 210
●
Gross train weight
(GTW)
2 980
2 840
3 005
2 980
2 840
3 010
2 940
2 840
3 005
●
Unbraked trailer
540
585
585
540
585
585
500
585
585
●
Braked trailer
(within GTW)
1 100
845
1 100
855
1 100
795
●
Recommended nose
weight
70
75
75
70
75
75
70
75
75
●
Recommended
weight on roof rack
100
100
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, limit the towed load.
Page 113 of 136
111 TECHNICAL DATA
-

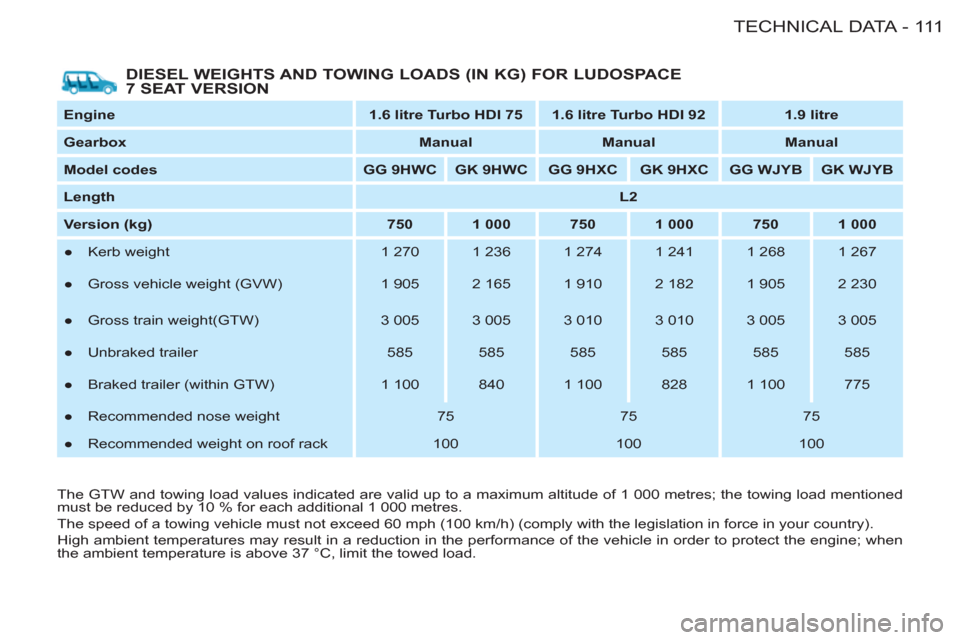

DIESEL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE
7 SEAT VERSION
Engine
1.6 litre Turbo HDI 75
1.6 litre Turbo HDI 92
1.9 litre
Gearbox
Manual
Manual
Manual
Model codes
GG 9HWC
GK 9HWC
GG 9HXC
GK 9HXC
GG WJYB
GK WJYB
Length
L2
Version (kg)
750
1 000
750
1 000
750
1 000
●
Kerb weight
1 270
1 236
1 274
1 241
1 268
1 267
●
Gross vehicle weight (GVW)
1 905
2 165
1 910
2 182
1 905
2 230
●
Gross train weight(GTW)
3 005
3 005
3 010
3 010
3 005
3 005
●
Unbraked trailer
585
585
585
585
585
585
●
Braked trailer (within GTW)
1 100
840
1 100
828
1 100
775
●
Recommended nose weight
75
75
75
●
Recommended weight on roof rack
100
100
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, limit the towed load.
Page 114 of 136
TECHNICAL DATA
11 2 -

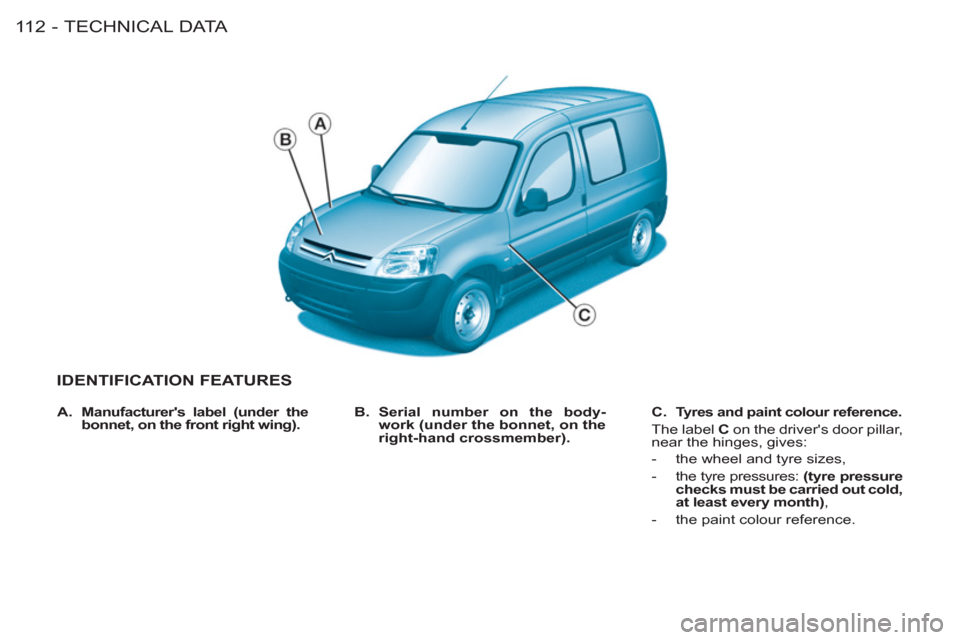

IDENTIFICATION FEATURES
B.
Serial number on the body-
work (under the bonnet, on the
right-hand crossmember).
C.
Tyres and paint colour reference.
The label C
on the driver's door pillar,
near the hinges, gives:
- the wheel and tyre sizes,
- the tyre pressures: (tyre pressure
checks must be carried out cold,
at least every month)
,
- the paint colour reference.
A. Manufacturer's label (under the
bonnet, on the front right wing).
Page 115 of 136
113
AUDIO SYSTEM
Your Audio system is coded in such a way that it willonly operate in your vehicle. If it is to be installed inanother vehicle, contact your CITROËN dealer for yp y
confi guration of the system.
For safet
y reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the audio equipment mayswitch off after a few minutes.
AUDIO SYSTEM/BLUETOOTH
01 First steps
02 Steering mounted controls
03 Main menu
04 Audio
05 Configuration
06 Screen menu map
Frequently asked questions p.
p.
p.
p.
p.
p.
p. 11 4
11 5
11 6
11 7
120
121
123
CONTENTS
Page 116 of 136
11 4
01
1
22
10101111
133144155
33445566778899
122
FIRST STEPS
1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the display on the screen:
Audio (AUDIO) functions.
4. Selection of source:
radio, audio CD/MP3 CD.
5. Selection of FM1, FM2, FMast and AMwavebands.
6. Setting audio options: front/rear fader, left/right balance, loudness, sound ambience.
7. Display the list of local stations, of thetracks on the CD or of the MP3 folders.
8. Abandon current operation.
9. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (Types of radio programme) mode.
10. Confi rmation.
11. Automatic search for a lower/higher frequency.
Selection of previous/next CD, MP3 track.
12. Selection of a lower/higher radio frequency.
Selection of the previous/next MP3 folder.Selection of the previous/next USB devicefolder/genre/artist/playlist.
13. Display the main menu.
14. Buttons 1 to 6:
Selection of a stored radio station.
Long press: store a station.
15. The DARK button changes the display in the screen to improve driving comfort at night.
1st press: lighting the upper band only.
2nd press: display of a black screen.
3rd press: return to the standard display.
Page 117 of 136
115
02STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station.
Selection of the next item on a menu.
RADIO: selection of the previous stored station.
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/MP3: selection of the next track.
CD: continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/MP3: selection of the previous track.
CD: continuous press: fast reverse.
Selection of the next item.
- Change of sound source.
- Confi rmation of a selection.
Volume increase.
Volume decrease.
Mute: press the volumeincrease and decreasebuttons simultaneously.
The sound is restored by pressing one of thetwo volume buttons.
Page 118 of 136
116

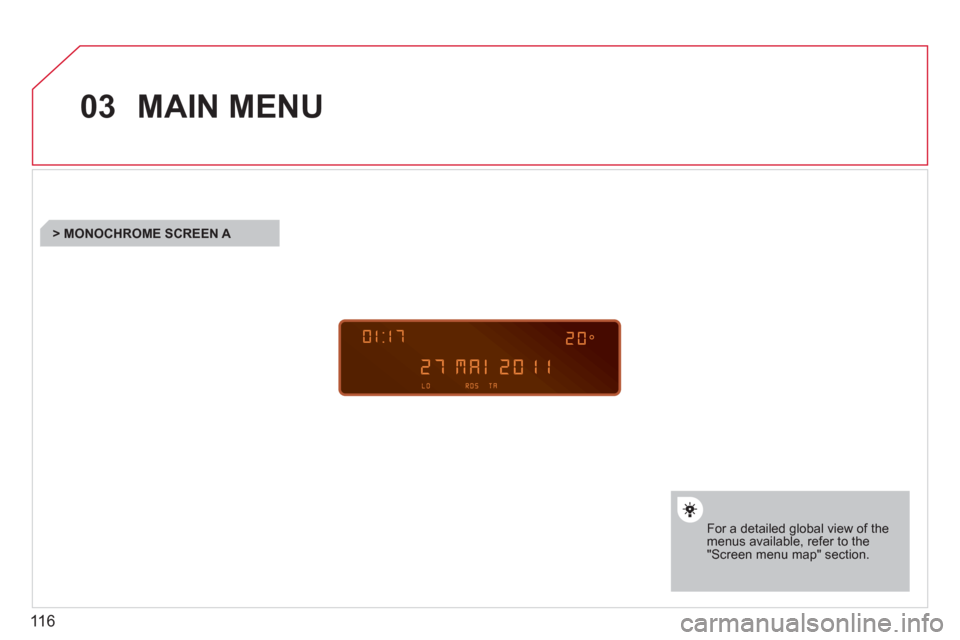

03MAIN MENU
For a detailed global view of the menus available, refer to the"Screen menu map" section.
> MONOCHROME SCREEN A
Page 119 of 136
11 7
04
1
2
3
4
1
2
3
AUDIO
Press the SOURCE button several
times in succession and select theradio.
Press the BAND A
ST button to select
a waveband: FM1, FM2, FMast, AM.
Briefl
y press one of the buttons tocarry out an automatic search of theradio stations.
Press one o
f the buttons to carry out a manual search of the radio stations.
Press the LI
ST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
t
han two seconds. The external environment
(hills, buildings, tunnels, basement car parks, ...)may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failure of the audio system.
RDS
RADIO
SELECTING A STATION
Pr
ess the MENU button.
Select RADI
O-CD then press OK.
Select RDS then press OK. RDS
appears on the screen.
The RDS, if displayed, enables you to continue listening to the same station by automatic retuning to alternative fequencies. However, incertain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.
Page 120 of 136
118
04
1
2
3
AUDIO
Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the quality of the original player.
Without pressin
g the EJECT button, insert a CD in the player, playbegins automatically.
CD
PLAYING A CD
To play a disc which has already been
inserted, press the SOURCE buttonseveral times in succession andselect CD.
Pr
ess one of the buttons to select a
track on the CD.
Press the LI
ST REFRESH button to display the list of tracks on
the CD.
Pr
ess and hold one of the buttons for
fast forward or backward.
RECEIVING TA MESSAGES
Press the TA button to activate or
deactivate traffi c messages.
The TA
(Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
