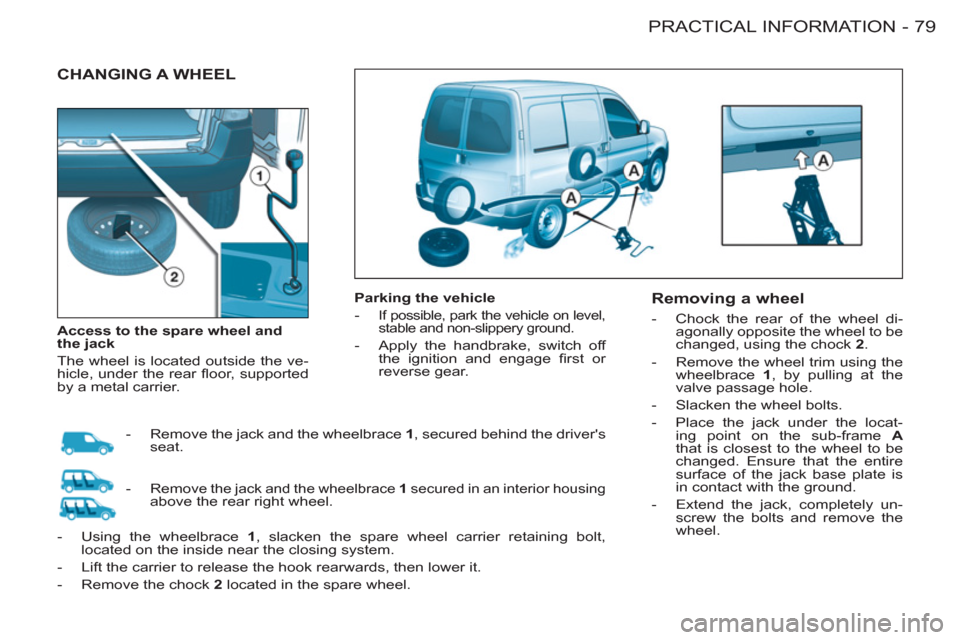

79 PRACTICAL INFORMATION
-
CHANGING A WHEEL


Parking the vehicle


-
If possible, park the vehicle on level,
stable and non-slippery ground.

- Apply the handbrake, switch off
the ignition and engage fi rst or
reverse gear.




Removing a wheel



- Chock the rear of the wheel di-
agonally opposite the wheel to be
changed, using the chock 2
.

- Remove the wheel trim using the
wheelbrace 1
, by pulling at the
valve passage hole.

- Slacken the wheel bolts.

- Place the jack under the locat-
ing point on the sub-frame A

that is closest to the wheel to be
changed. Ensure that the entire
surface of the jack base plate is
in contact with the ground.

- Extend the jack, completely un-
screw the bolts and remove the
wheel.

Access to the spare wheel and
the jack
The wheel is located outside the ve-
hicle, under the rear fl oor, supported
by a metal carrier.


- Remove the jack and the wheelbrace 1
, secured behind the driver's
seat.

- Remo
ve the jack and the wheelbrace 1
secured in an interior housing
above the rear right wheel.

- Using the wheelbrace 1
, slacken the spare wheel carrier retaining bolt,
located on the inside near the closing system.

- Lift the carrier to release the hook rearwards, then lower it.

- Remove the chock 2
located in the spare wheel.

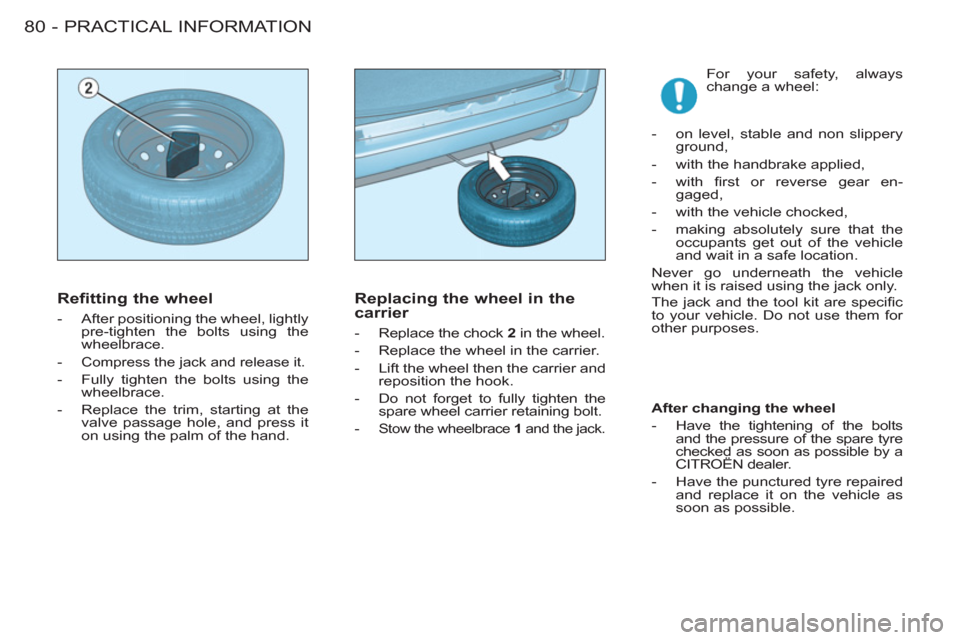

PRACTICAL INFORMATION
80 -
For your safety, always
change a wheel:


- on level, stable and non slippery
ground,

- with the handbrake applied,

- with fi rst or reverse gear en-
gaged,

- with the vehicle chocked,

- making absolutely sure that the
occupants get out of the vehicle
and wait in a safe location.
Never go underneath the vehicle
when it is raised using the jack only.
The jack and the tool kit are specifi c
to your vehicle. Do not use them for
other purposes.

Refitting the wheel



- After positioning the wheel, lightly
pre-tighten the bolts using the
wheelbrace.

-
Compress the jack and release it.


- Fully tighten the bolts using the
wheelbrace.

- Replace the trim, starting at the
valve passage hole, and press it
on using the palm of the hand.



Replacing the wheel in the
carrier


- Replace the chock 2
in the wheel.

- Replace the wheel in the carrier.

- Lift the wheel then the carrier and
reposition the hook.

- Do not forget to fully tighten the
spare wheel carrier retaining bolt.

-
Stow the wheelbrace 1
and the jack.
After changing the wheel


- Have the tightening of the bolts
and the pressure of the spare tyre
checked as soon as possible by a
CITROËN dealer.

- Have the punctured tyre repaired
and replace it on the vehicle as
soon as possible.

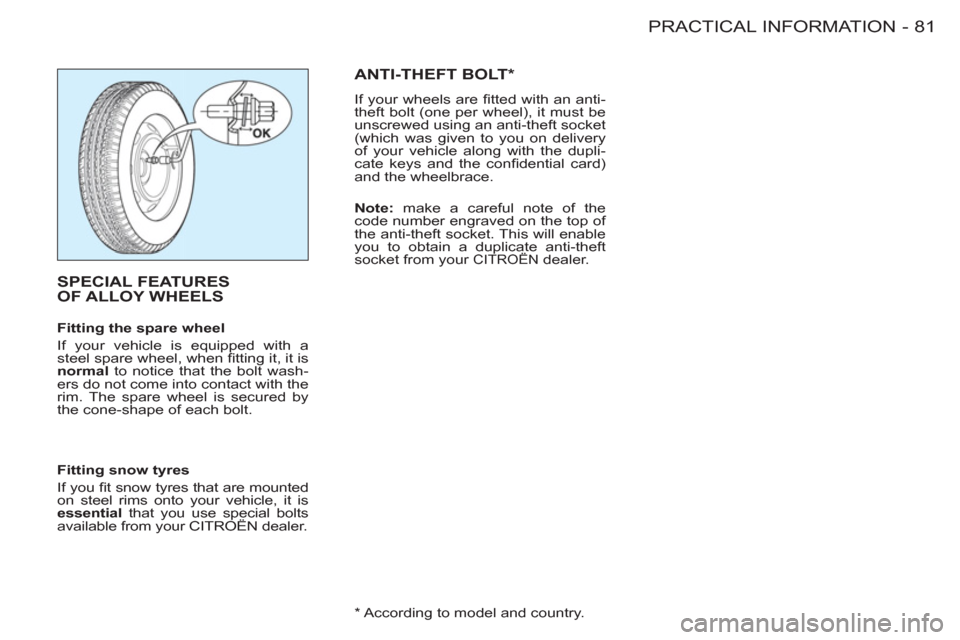

81 PRACTICAL INFORMATION
-
SPECIAL FEATURES
OF ALLOY WHEELS


Fitting the spare wheel
If your vehicle is equipped with a
steel spare wheel, when fi tting it, it is
normal
to notice that the bolt wash-
ers do not come into contact with the
rim. The spare wheel is secured by
the cone-shape of each bolt.

Fitting snow tyres
If you fi t snow tyres that are mounted
on steel rims onto your vehicle, it is
essential
that you use special bolts
available from your CITROËN dealer.


* According to model and country.

ANTI-THEFT BOLT *

If your wheels are fi tted with an anti-
theft bolt (one per wheel), it must be
unscrewed using an anti-theft socket
(which was given to you on delivery
of your vehicle along with the dupli-
cate keys and the confi dential card)
and the wheelbrace.

Note:
make a careful note of the
code number engraved on the top of
the anti-theft socket. This will enable
you to obtain a duplicate anti-theft
socket from your
CITROËN dealer.

PRACTICAL INFORMATION
82 -
CHANGING A BULB

Front lamps

To replace a dipped/main beam
headlamp or sidelamp bulb:

Remove the grille



- Remove the screw ( 1
).

- Unclip the lug ( A
) of carrier ( 2
) on
each side.

- Remove the grille ( 3
).
Partially remove the wheelarch liner


- Remove the screws ( 1
),

- Remove the screw ( 2
),

- Remove the plastic pins ( 3
).

83 PRACTICAL INFORMATION
-

Partially remove the bumper



- Remove the screws ( 1
),

- Remove the screws ( 2
),
- Pull lightly on the side of the bum-
per ( 3
),

- Push in the direction of the ar-
row ( B
), on the latch ( A
), via the
opening ( C
),

- Maintain a light sideways pull on
the bumper,

- Push the bumper sharply for-
wards to release the clips at ( D
).
Remove the headlamp



- Remove the screws ( 1
),

- Unclip the index pin on the head-
lamp ( A
),

- Disconnect the connector ( B
) on
the back of the headlamp,

- Remove the headlamp ( 2
).

PRACTICAL INFORMATION
84 -

Dipped/Main beam headlamps
(H4-60/55W)
After following the procedure for re-
moval of the headlamp:

- Turn and remove the protector ( 6
),
- Disconnect the connector ( C
),

- Unclip the spring ( D
),

- Remove and replace the bulb ( 3
).

85 PRACTICAL INFORMATION
-

Side lights (W 5 W)
After following the procedure for re-
moval of the headlamp:


- Turn and remove the protector ( 6
).

- Unclip the the bulb holder ( E
).

- Disconnect the connector ( F
),

- Remove and replace the bulb ( 1
).

Reassembly
Carry out the operations in reverse
order to reassemble. Check that the
lamps are working correctly.


Direction indicator side
repeaters (WY 5 W amber)


- Push the lens to the front or rear
and pull it out.

- Turn the bulb holder a quarter turn.

- Replace the bulb.
Amber coloured bulbs (di-
rection indicators and side
repeaters) must be replaced
by bulbs of the same rating
and colour.

PRACTICAL INFORMATION
86 -


- Open the rear door.

- Unscrew the nut A
.

- Push the light unit gently towards
the interior of the vehicle to unclip
the two side retaining clips.

- Remove the light unit and discon-
nect it.

- Unclip the bulb holder by pressing
the tabs B
.

- Change the faulty bulb.


Number plate lights (W 5 W)



)
Insert a thin screwdriver into one
of the external holes of the lens.

)
Push it outwards to unclip it.

)
Remove the lens.

)
Change the faulty bulb.



Rear lights



1.
Fog lamp (P21 W).


2.
Direction indicators
(P21 W).


3.
Reversing lights (P21 W).


4.
Brake lights/Side lights
(P21/5 W).



High pressure washing:
when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surround to avoid dam-
aging their coating and their seal.

87 PRACTICAL INFORMATION
-

Third brake light (tailgate)
(W 5 W)


)
With the tailgate open, unscrew
the two nuts.

)
Unclip the support to gain access
to the bulbs.

)
Change the faulty bulb.



Third brake light
(rear left door) (W 5 W)


)
Remove the housing cover by
pressing the tab A
(round sec-
tion) at the end of the light.

)

Pull the housing cover rearwards.


)
Squeeze the two tabs B
to re-
move the bulb holder.

)

Pull the faulty bulb and change it.
To refi t, proceed in the reverse order.

PRACTICAL INFORMATION
88 -

Removing and fi tting a fuse
Before changing a fuse, the cause
of the fault must be found and reme-
died. The fuse numbers are indicated
on the fusebox.
Use the tweezer B
.
CHANGING A FUSE

The fuse boxes are located under the
dashboard and in the engine com-
partment.

Dashboard fusebox

Unclip the cover to gain access to the
fuses.
The spare fuses and the tweezer B
are
fi tted to the inside of the cover A
.
Good


Failed


Tweezer B



Always replace a faulty fuse with a fuse
of the same rating (two fuse types ac-
cording to manufacturer - see images).
