Citroen BERLINGO FIRST 2011 1.G Owner's Manual

119
04
1
2
3
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of several tens of music fi les on a single disc.
In order to be able to play a recorded
CDR or CDRW, when recording, the ISO 9660 level 1.2 or Joliet fi le format isrecommended.
If the disc is recorded in another format, it ma
y not be playedcorrectly.
It is recommended that the same recordin
g format is alwaysused for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet format is recommended.
The audio s
ystem will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le(.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without usin
gspecial characters (e.g. " ? ; ù) to avoid any playing or displaying problems.














MP3 CD
INFORMATION AND ADVICE
AUDIO

Empty CDs are not recognised and may damage the system.
Insert an MP3 compilation in the pla
yer.
The audio equipment searches
for all of the music tracks, which
may take anything between a few seconds and several tens of seconds, before play begins.









MP3 CD
PLAYING AN MP3 COMPILATION

On a single disc, the CD player can read up to 255 MP3 fi lesspread over 8 folder levels. However, it is advisable to keep to
a limit of two levels to reduce the access time before the CD isplayed.
While the CD is bein
g played, the folder structure is not followed.
All of the fi les are displayed on a single level.

To play a disc which has already
been inserted, press the SOURCE button several times in successionand select CD.
Pr
ess one of the buttons to select atrack on the CD.

Press the LI
ST REFRESH button to display the list of directories of
the MP3 compilation.

Pr
ess and hold one of the buttons for fast forward or backward play.

120
05
1
2
3
4
5
6
7
CONFIGURATION
Press the MENU button.
Usin
g the arrows, select DISPLAY CONGIGURATION.
Pr
ess to confi rm the selection.

Using the arrows, select YEAR. Pr
ess to confi rm the selection.
Pr
ess to confi rm the selection.
Ad
just the setting.


Start again from step 1 then set MONTH, DAY, HOUR, MINUTES.










SETTING THE DATE AND TIME

121
06 SCREEN MENU MAP


RADIO-CD
MAIN FUNCTION


* The parameters vary according to vehicle.
CHOICE A

CHOICE B...
MONOCHROME A
Choice A1
Choice A2
REG MODE
CD REPEAT
RANDOM PLAY



VEHICLE CONFIG *


REV WIPE ACT


OPTIONS


GUIDE LAMPS
DIAGNO
STICS
RDS SEARCHCONSUL
T
ABANDON

UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT

FUEL CONSUMPTION
:KM/L - L/100 - MPG

1
2
3
31
2
2
2
2
1
2
3
2
3
1
2
2
1
2
2

122
06

DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR


12 H/24 H MODE


LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH

ESPANOL
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

123
QUESTIONANSWERSOLUTION
There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,Ambience, Loudness) can be adapted to the different sound sources, whichmay result in audible differences when changing source (radio, CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.
Set the treble or bass level to 0, without selectingan ambience.

124
QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

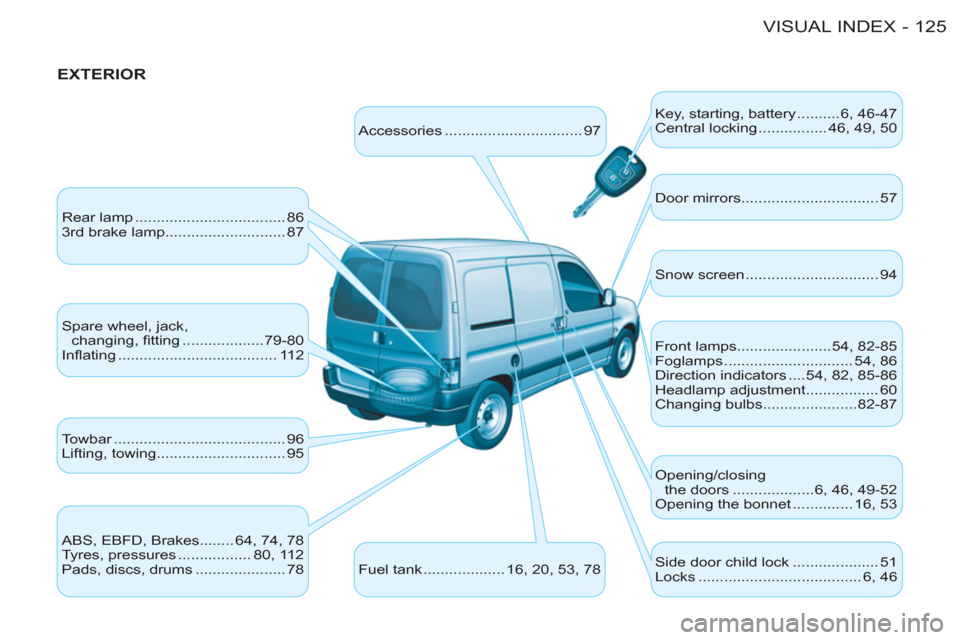

125 VISUAL INDEX-

EXTERIOR

Accessories ................................ 97
Key, starting, battery ..........6, 46-47

Central locking ................ 46, 49, 50
Rear lamp ................................... 86
3rd brake lamp............................ 87
Spare wheel, jack,
changing, fi tting ...................79-80
Infl ating ..................................... 112
ABS, EBFD, Brakes........ 64, 74, 78
Tyres, pressures ................. 80, 112
Pads, discs, drums ..................... 78
Fuel tank ................... 16, 20, 53, 78
Door mirrors ................................ 57

Snow screen ............................... 94
Front lamps......................54, 82-85

Foglamps .............................. 54, 86
Direction indicators ....54, 82, 85-86
Headlamp adjustment................. 60
Changing bulbs......................82-87

Opening/closing
the doors ...................6, 46, 49-52

Opening the bonnet .............. 16, 53
Side door child lock .................... 51
Locks ...................................... 6, 46
Towbar ........................................ 96
Lifting, towing.............................. 95

VISUAL INDEX126 -

INSTRUMENTS AND CONTROLS

Overhead storage, sun visor,
courtesy lamp ................14, 58-59
Rear view mirrors ....................... 57
Instrument panel, dials,
speedometer ............................ 18
Warning lamps,
indicator lamps ....................19-21
Indicators, displays, screen ...21-25
Setting the time, dimmer,
resetting to zero ..................23-24
Interior fuses ..........................88-90
Parking brake,
handbrake .......................... 64, 78
Front fi ttings ...........................58-59
Electric windows ......................... 56
Signal/hazard warning
lamps ........................................ 60
Audio system ..................... 113-124
Fitting audio equipment,
speakers ................................... 93

Heating/Air conditioning.........26-31


- vent, demisting, defrosting,

- air conditioning A/C,

- air recirculation,

- ventilation.

Opening the bonnet .............. 16, 53

127 VISUAL INDEX-

STEERING MOUNTED CONTROLS

Lighting ....................................... 54


- dipped beam headlamps,

- main beam headlamps,

- foglamps.
Speed limiter/
cruise control .......................65-68
Passenger's electric
mirror ........................................ 57
Door mirror ................................. 57

Headlamp adjustment................. 60 Audio system controls .............. 115

Steering wheel, horn............. 10, 60
Front-rear wipers ........................ 55
Screenwash ............................ 7, 55
Alarm .......................................... 48

128 -

INTERIOR

Stowing rings ........................ 15, 61
Child seats .............................38-43
Front seats.............................32-33

Seat belts...............................44-45
Airbags ..................................69-71

Multifunction passenger seat ...... 34

Child lock (door) ......................... 51
Partially opening rear windows ... 56
Courtesy lamp,
interior lighting .....................58-59
Rear seat (5 seat version) .......... 35
Rear fi ttings .....................15, 62-63


- stowing rings,

- storage tray,

- hooks,

- retaining net,

- storage pocket,

- storage compartments.
Rear seat (7 seat version) .......... 36
