CITROEN BERLINGO VAN 2021 Owners Manual

229
Technical data

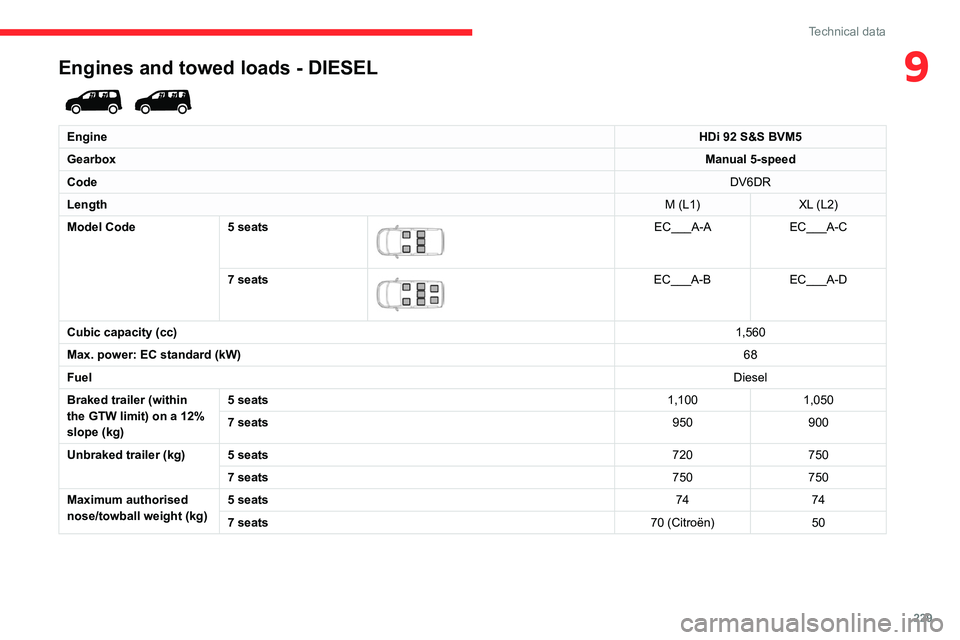

9Engines and towed loads - DIESEL

EngineHDi 92 S&S BVM5
Gearbox Manual 5-speed
Code DV6DR
Length M (L1)XL (L2)
Model Code 5 seats


EC___A-AEC___A-C
7 seats


EC___A-B EC___A-D
Cubic capacity (cc) 1,560
Max. power: EC standard (kW) 68
Fuel Diesel
Braked trailer (within
the GTW limit) on a 12%
slope (kg) 5 seats
1,1001,050
7 seats 950900
Unbraked trailer (kg) 5 seats 720750
7 seats 750750
Maximum authorised
nose/towball weight (kg) 5 seats
7474
7 seats 70 (Citroën)50

230
Technical data

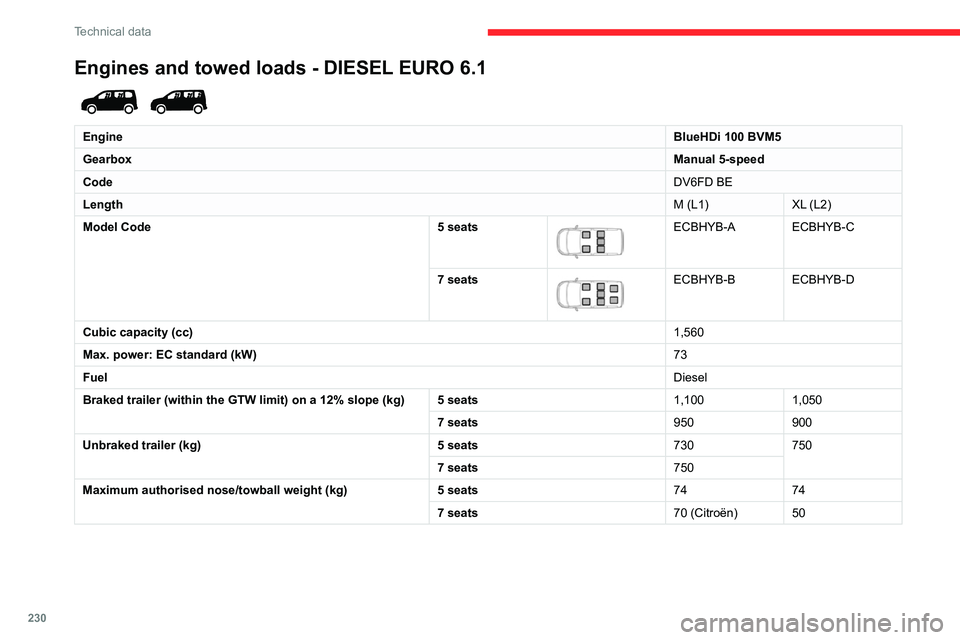

Engines and towed loads - DIESEL EURO 6.1

EngineBlueHDi 100 BVM5
Gearbox Manual 5-speed
Code DV6FD BE
Length M (L1)XL (L2)
Model Code 5 seats


ECBHYB-A ECBHYB-C
7 seats


ECBHYB-B ECBHYB-D
Cubic capacity (cc) 1,560
Max. power: EC standard (kW) 73
Fuel Diesel
Braked trailer (within the GTW limit) on a 12% slope (kg) 5 seats 1,1001,050
7 seats 950900
Unbraked trailer (kg) 5 seats730750
7 seats 750
Maximum authorised nose/towball weight (kg) 5 seats7474
7 seats 70 (Citroën) 50

231
Technical data

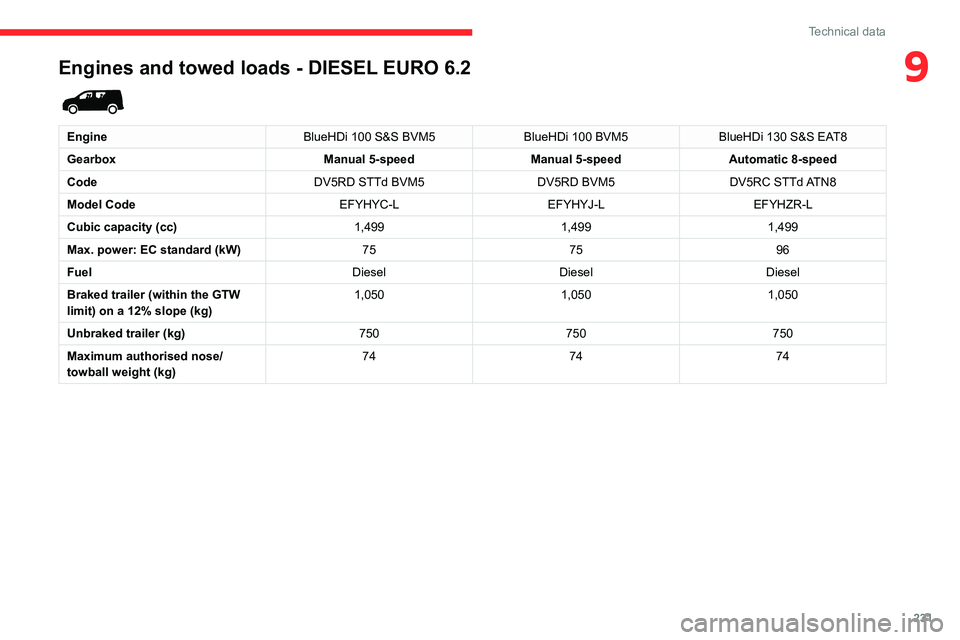

9Engines and towed loads - DIESEL EURO 6.2

EngineBlueHDi 100 S&S BVM5BlueHDi 100 BVM5BlueHDi 130 S&S EAT8
Gearbox Manual 5-speedManual 5-speedAutomatic 8-speed
Code DV5RD STTd BVM5DV5RD BVM5DV5RC STTd ATN8
Model Code EFYHYC-LEFYHYJ-LEFYHZR-L
Cubic capacity (cc) 1,4991,4991,499
Max. power: EC standard (kW) 757596
Fuel DieselDieselDiesel
Braked trailer (within the GTW
limit) on a 12% slope (kg) 1,050
1,0501,050
Unbraked trailer (kg) 750750750
Maximum authorised nose/
towball weight (kg) 74
7474

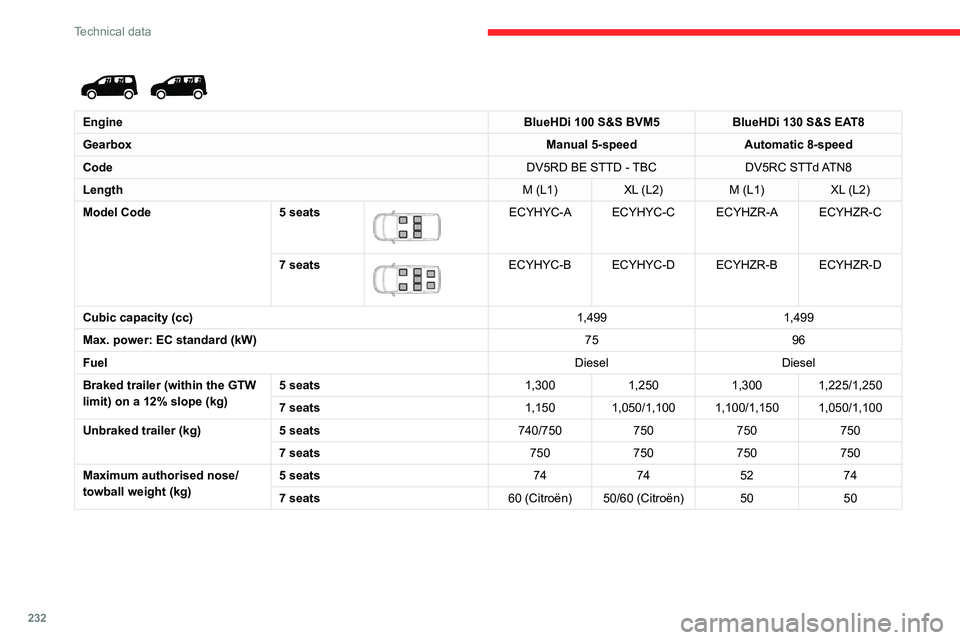

232
Technical data


EngineBlueHDi 100 S&S BVM5BlueHDi 130 S&S EAT8
Gearbox Manual 5-speedAutomatic 8-speed
Code DV5RD BE STTD - TBCDV5RC STTd ATN8
Length M (L1)XL (L2) M (L1)XL (L2)
Model Code 5 seats


ECYHYC-A ECYHYC-C ECYHZR-A ECYHZR-C
7 seats


ECYHYC-B ECYHYC-D ECYHZR-B ECYHZR-D
Cubic capacity (cc) 1,4991,499
Max. power: EC standard (kW) 7596
Fuel DieselDiesel
Braked trailer (within the GTW
limit) on a 12% slope (kg) 5 seats
1,3001,2501,300 1,225/1,250
7 seats 1,150 1,050/1,100 1,100/1,150 1,050/1,100
Unbraked trailer (kg) 5 seats 740/750750750750
7 seats 750750750750
Maximum authorised nose/
towball weight (kg) 5 seats
74745274
7 seats 60 (Citroën) 50/60 (Citroën) 50 50

233
Technical data

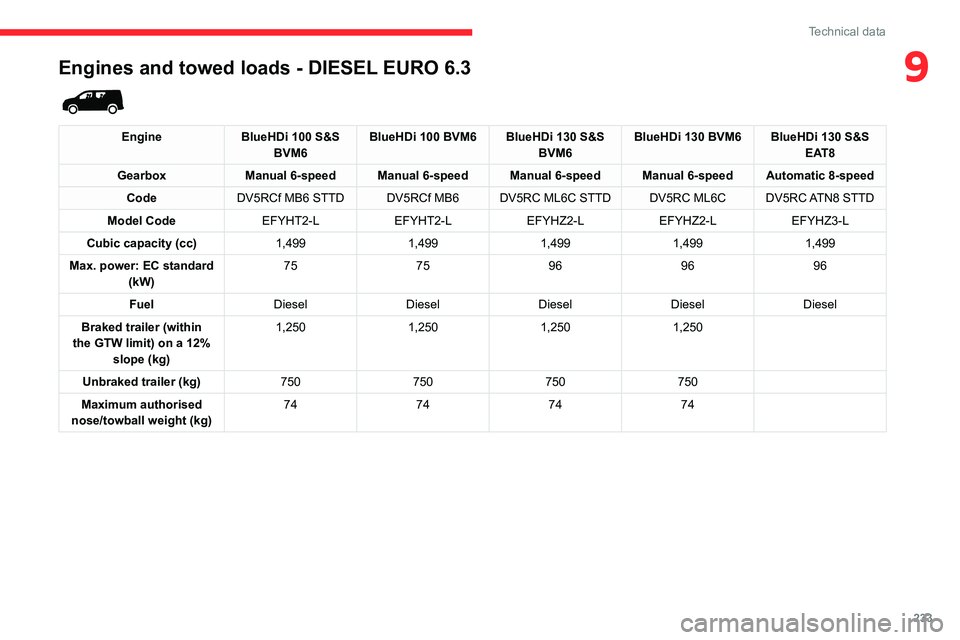

9Engines and towed loads - DIESEL EURO 6.3

EngineBlueHDi 100 S&S
BVM6 BlueHDi 100 BVM6 BlueHDi 130 S&S
BVM6BlueHDi 130 BVM6 BlueHDi 130 S&S
EAT8
Gearbox Manual 6-speed Manual 6-speed Manual 6-speed Manual 6-speed Automatic 8-speed
Code DV5RCf MB6 STTD DV5RCf MB6 DV5RC ML6C STTD DV5RC ML6C DV5RC ATN8 STTD
Model Code EFYHT2-LEFYHT2-LEFYHZ2-LEFYHZ2-LEFYHZ3-L
Cubic capacity (cc) 1,4991,4991,4991,4991,499
Max. power: EC standard (kW) 75
75969696
Fuel DieselDieselDieselDieselDiesel
Braked trailer (within
the GTW limit) on a 12% slope (kg) 1,250
1,2501,2501,250
Unbraked trailer (kg) 750750750750
Maximum authorised
nose/towball weight (kg) 74
747474

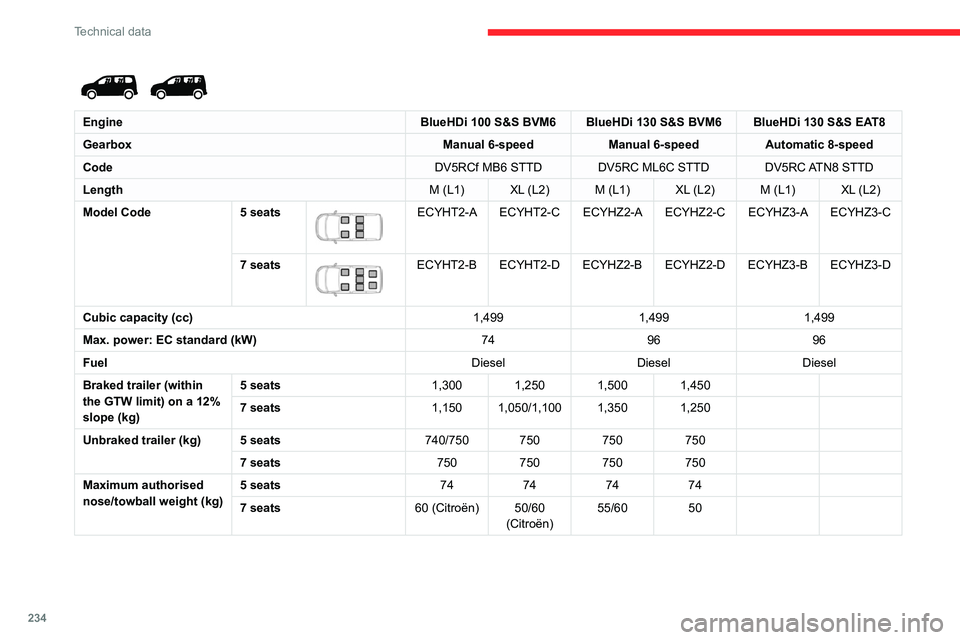

234
Technical data


EngineBlueHDi 100 S&S BVM6 BlueHDi 130 S&S BVM6 BlueHDi 130 S&S EAT8
Gearbox Manual 6-speedManual 6-speedAutomatic 8-speed
Code DV5RCf MB6 STTD DV5RC ML6C STTDDV5RC ATN8 STTD
Length M (L1) XL (L2) M (L1) XL (L2) M (L1) XL (L2)
Model Code 5 seats


ECYHT2-A ECYHT2-C ECYHZ2-A ECYHZ2-C ECYHZ3-A ECYHZ3-C
7 seats


ECYHT2-B ECYHT2-D ECYHZ2-B ECYHZ2-D ECYHZ3-B ECYHZ3-D
Cubic capacity (cc) 1,4991,4991,499
Max. power: EC standard (kW) 749696
Fuel DieselDieselDiesel
Braked trailer (within
the GTW limit) on a 12%
slope (kg) 5 seats
1,300 1,250 1,500 1,450
7 seats 1,150 1,050/1,100 1,350 1,250
Unbraked trailer (kg) 5 seats 740/750 750750750
7 seats 750750750750
Maximum authorised
nose/towball weight (kg) 5 seats
74747474
7 seats 60 (Citroën) 50/60
(Citroën)55/60
50

235
Technical data

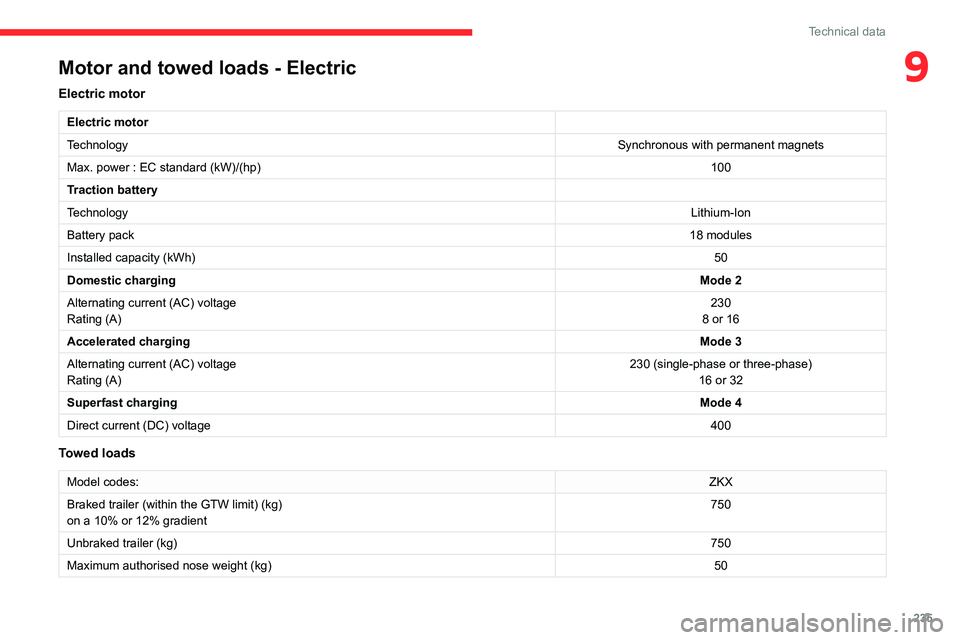

9Motor and towed loads - Electric
Electric motor
Electric motor
TechnologySynchronous with permanent magnets
Max. power : EC standard (kW)/(hp) 100
Traction battery
Technology Lithium-Ion
Battery pack 18 modules
Installed capacity (kWh) 50
Domestic charging Mode 2
Alternating current (AC) voltage
Rating (A) 230
8 or 16
Accelerated charging Mode 3
Alternating current (AC) voltage
Rating (A) 230 (single-phase or three-phase)
16 or 32
Superfast charging Mode 4
Direct current (DC) voltage 400
Towed loads
Model codes:ZKX
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 750
Unbraked trailer (kg) 750
Maximum authorised nose weight (kg) 50

236
Technical data

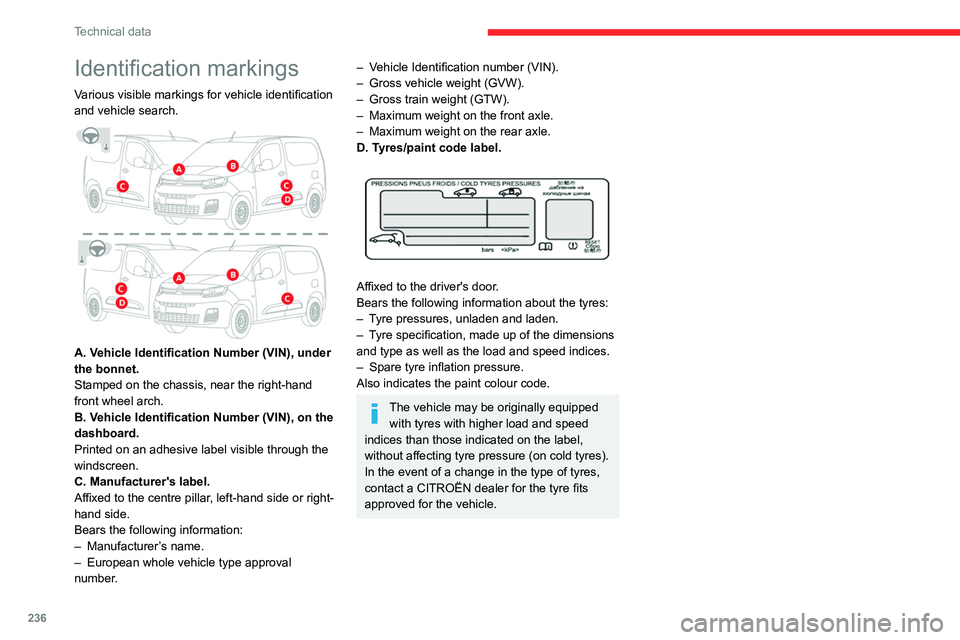

Identification markings
Various visible markings for vehicle identification
and vehicle search.


A. Vehicle Identification Number (VIN), under
the bonnet.
Stamped on the chassis, near the right-hand
front wheel arch.
B. Vehicle Identification Number (VIN), on the
dashboard.
Printed on an adhesive label visible through the
windscreen.
C. Manufacturer's label.
Affixed to the centre pillar, left-hand side or right-
hand side.
Bears the following information:
–
Manufacturer
’s name.
–

European whole vehicle type approval
number

.
– Vehicle Identification number (VIN).
– Gross vehicle weight (GVW).
–

Gross train weight (GTW).
–


Maximum weight on the front axle.
–


Maximum weight on the rear axle.
D. T

yres/paint code label.


Affixed to the driver's door.
Bears the following information about the tyres:
–
T
yre pressures, unladen and laden.
–

T
yre specification, made up of the dimensions
and type as well as the load and speed indices.
–

Spare tyre inflation pressure.
Also indicates the paint colour code.
The vehicle may be originally equipped with tyres with higher load and speed
indices than those indicated on the label,
without affecting tyre pressure (on cold tyres).
In the event of a change in the type of tyres,
contact a CITROËN dealer for the tyre fits
approved for the vehicle.

237

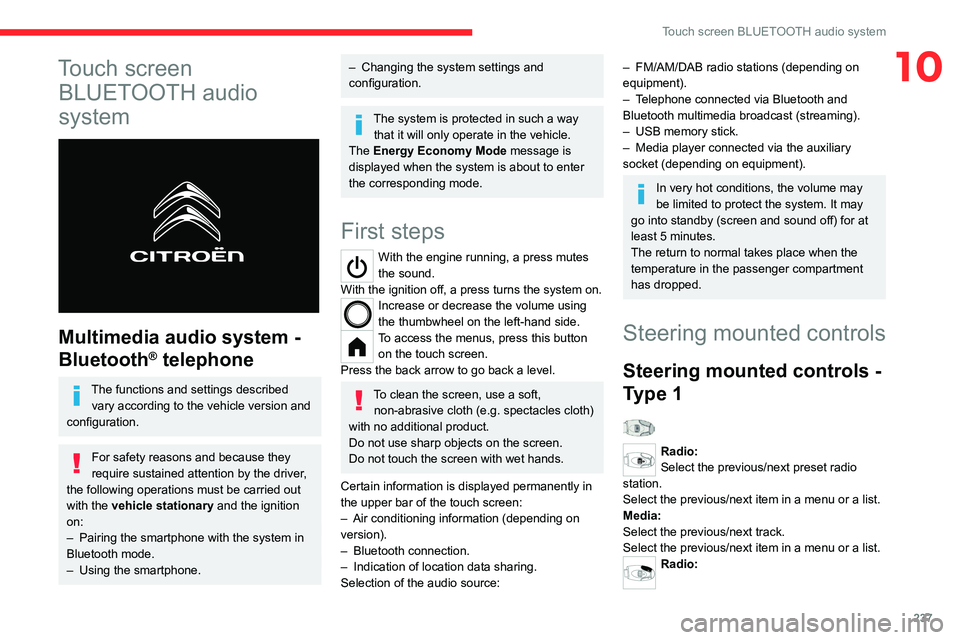

Touch screen BLUETOOTH audio system
10Touch screen BLUETOOTH audio
system


Multimedia audio system -
Bluetooth
® telephone
The functions and settings described
vary according to the vehicle version and
configuration.
For safety reasons and because they
require sustained attention by the driver,
the following operations must be carried out
with the vehicle stationary and the ignition
on:
–

Pairing the smartphone with the system in
Bluetooth mode.
–


Using the smartphone.
– Changing the system settings and
configuration.
The system is protected in such a way that it will only operate in the vehicle.
The Energy Economy Mode message is
displayed when the system is about to enter
the corresponding mode.
First steps
With the engine running, a press mutes
the sound.
With the ignition off, a press turns the system on.
Increase or decrease the volume using
the thumbwheel on the left-hand side.
To access the menus, press this button on the touch screen.
Press the back arrow to go back a level.
To clean the screen, use a soft, non-abrasive cloth (e.g. spectacles cloth)
with no additional product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
Certain information is displayed permanently in
the upper bar of the touch screen:
–

Air conditioning information (depending on
version).
–


Bluetooth connection.
–


Indication of location data sharing.
Selection of the audio source:
– FM/AM/DAB radio stations (depending on
equipment).
–

T
elephone connected via Bluetooth and
Bluetooth multimedia broadcast (streaming).
–

USB memory stick.
–


Media player connected via the auxiliary
socket (depending on equipment).
In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off) for at
least 5 minutes.
The return to normal takes place when the
temperature in the passenger compartment
has dropped.
Steering mounted controls
Steering mounted controls -
Type 1

Radio:
Select the previous/next preset radio
station.
Select the previous/next item in a menu or a list.
Media:
Select the previous/next track.
Select the previous/next item in a menu or a list.
Radio:

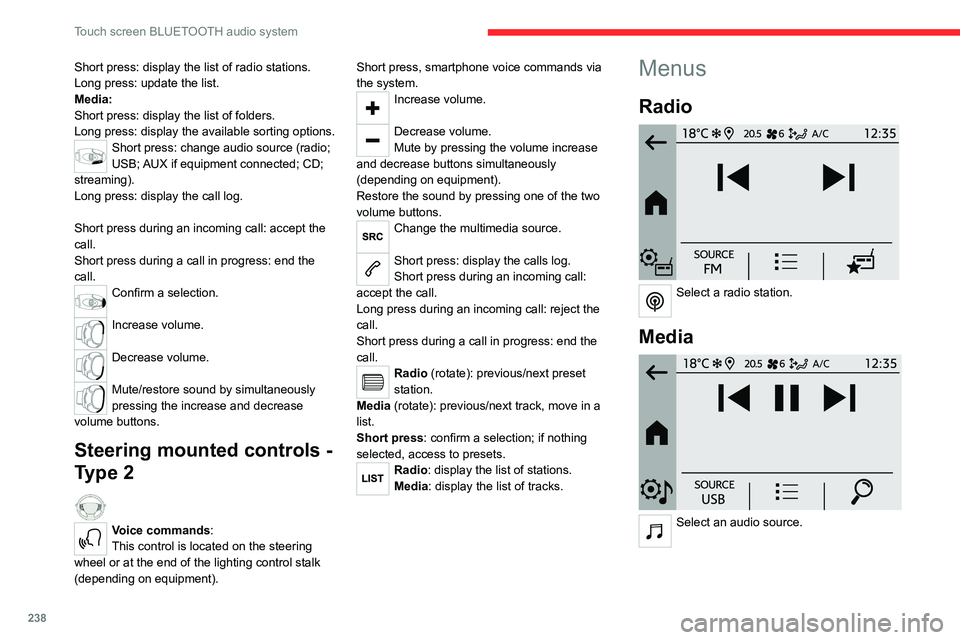

238
Touch screen BLUETOOTH audio system
Short press: display the list of radio stations.
Long press: update the list.
Media:
Short press: display the list of folders.
Long press: display the available sorting options.
Short press: change audio source (radio;
USB; AUX if equipment connected; CD;
streaming).
Long press: display the call log.
Short press during an incoming call: accept the
call.
Short press during a call in progress: end the
call.
Confirm a selection.
Increase volume.
Decrease volume.
Mute/restore sound by simultaneously
pressing the increase and decrease
volume buttons.
Steering mounted controls -
Type 2

Voice commands:
This control is located on the steering
wheel or at the end of the lighting control stalk
(depending on equipment). Short press, smartphone voice commands via
the system.
Increase volume.
Decrease volume.
Mute by pressing the volume increase
and decrease buttons simultaneously
(depending on equipment).
Restore the sound by pressing one of the two
volume buttons.
Change the multimedia source.
Short press: display the calls log.
Short press during an incoming call:
accept the call.
Long press during an incoming call: reject the
call.
Short press during a call in progress: end the
call.
Radio (rotate): previous/next preset
station.
Media (rotate): previous/next track, move in a
list.
Short press: confirm a selection; if nothing
selected, access to presets.
Radio: display the list of stations.
Media: display the list of tracks.
Menus
Radio

Select a radio station.
Media

Select an audio source.
