I N S T R U M E N T S a n d C O N T R O L S
I
24
Warning messages (ignition at “ON”)
Message is on
Associated
warning light
Cause Solution - action Observations
ABS
F i x e d
Anti-lock braking
system (ABS)
fault. Consult a CITROËN
dealer. The vehicle retains
conventional braking
without assistance
but you are advised
to stop.
Braking
system F i x e d
and The level of
b r a k e fl u i d i n t h e
reservoir is too
low.
Stop and top up,
otherwise contact a
CITROËN dealer. If the message
remains on after
topping up, contact a
CITROËN dealer.
Braking system
fault. Consult a CITROËN
dealer.
It is essential
to stop.
Handbrake on
F i x e d
You have moved
off with the
handbrake still
applied.
Release the handbrake.
Coolant
temperature Flashing -
High engine
temperature. If the message
fl a s h e s ,
wait for the engine to
cool before topping up
the level, if necessary.
It is essential to
stop your vehicle in
a safe place.
Flashing If the message
fl a s h e s
and the service
warning light comes
on , contact a CITROËN
dealer without delay.
Seat belt
F i x e d
The driver has
not fastened or
has unfastened
his seat belt.
Fasten your seat belt. An intermittent
audible signal is
heard above 5 mph
(8 km/h).
Page 22 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
25
Message is on Cause Solution - action Observations
Air bags
F i x e d
Fault in the
air bags or
pretensioners. Consult a CITROËN
dealer.
Service
F i x e d - Problem in one
of the systems
which does not
h a v e a s p e c i fi c
message. Stop the vehicle and
contact a CITROËN
dealer.
To identify the problem,
contact a CITROËN
dealer.
Engine oil
pressure F i x e d
- Engine oil
pressure too low
or fault in the oil
circuit. Stop the vehicle and
contact a CITROËN
dealer.
Engine oil
level F i x e d
- Engine oil level
too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of oil,
top up the level.
Fuel level
warning F i x e d
- The fuel tank
level is low. Fill your fuel tank as
soon as possible.
Fuel circuit
F i x e d - Fuel circuit fault. Consult a CITROËN
dealer.
Accesses
not closed correctly F i x e d
- One of the doors
or the tailgate
is not closed
correctly. Close the door or the
tailgate.
The access concerned
is indicated on the
display.
Page 23 of 216

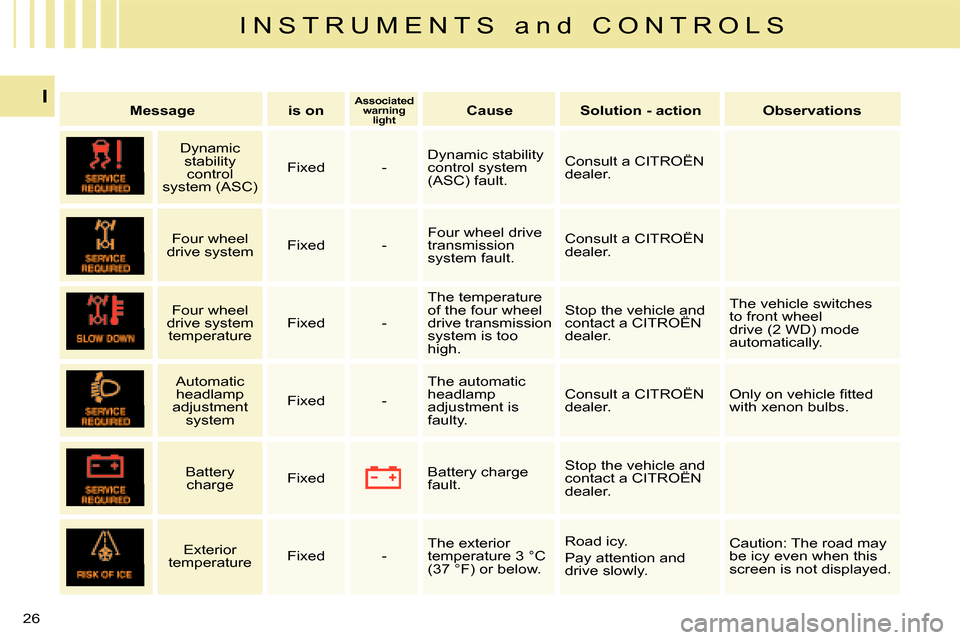

I N S T R U M E N T S a n d C O N T R O L S
I
26
Message is on
Associated
warning light
Cause Solution - action Observations
Dynamic
stability control
system (ASC) F i x e d
- Dynamic stability
control system
(ASC) fault. Consult a CITROËN
dealer.
Four wheel
drive system F i x e d
- Four wheel drive
transmission
system fault. Consult a CITROËN
dealer.
Four wheel
drive system temperature F i x e d
- The temperature
of the four wheel
drive transmission
system is too
high. Stop the vehicle and
contact a CITROËN
dealer.
The vehicle switches
to front wheel
drive (2 WD) mode
automatically.
Automatic
headlamp
adjustment system F i x e d
- The automatic
headlamp
adjustment is
faulty. Consult a CITROËN
dealer.
O n l y o n v e h i c l e fi t t e d
w i t h x e n o n b u l b s .
Battery
charge F i x e d
Battery charge
fault. Stop the vehicle and
contact a CITROËN
dealer.
E x t e r i o r
temperature F i x e d
- T h e e x t e r i o r
temperature 3 °C
(37 °F) or below. Road icy.
Pay attention and
drive slowly. Caution: The road may
be icy even when this
screen is not displayed.
Page 24 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
27
Message is on Associated
warning light Cause Solution - action Observations
Saturation of
the particle
e m i s s i o n fi l t e r F i x e d
- Start of saturation
of the particle
e m i s s i o n fi l t e r . A s s o o n a s t r a f fi c
conditions permit,
r e g e n e r a t e t h e fi l t e r
by driving at a speed
of at least 35 mph
(60 km/h) until the
message is cleared. If the message is still
displayed, contact a
CITROËN dealer.
Diesel
additive level F i x e d
- Low diesel
additive level. Have the level topped
up by a CITROËN
dealer without delay.
Water in the
d i e s e l fi l t e r
(according to country) F i x e d
- The presence
of water in the
d i e s e l fi l t e r i s
indicated.
Risk of damage
to the injection
system on Diesel
engines. Contact a CITROËN
dealer without delay.
Page 25 of 216

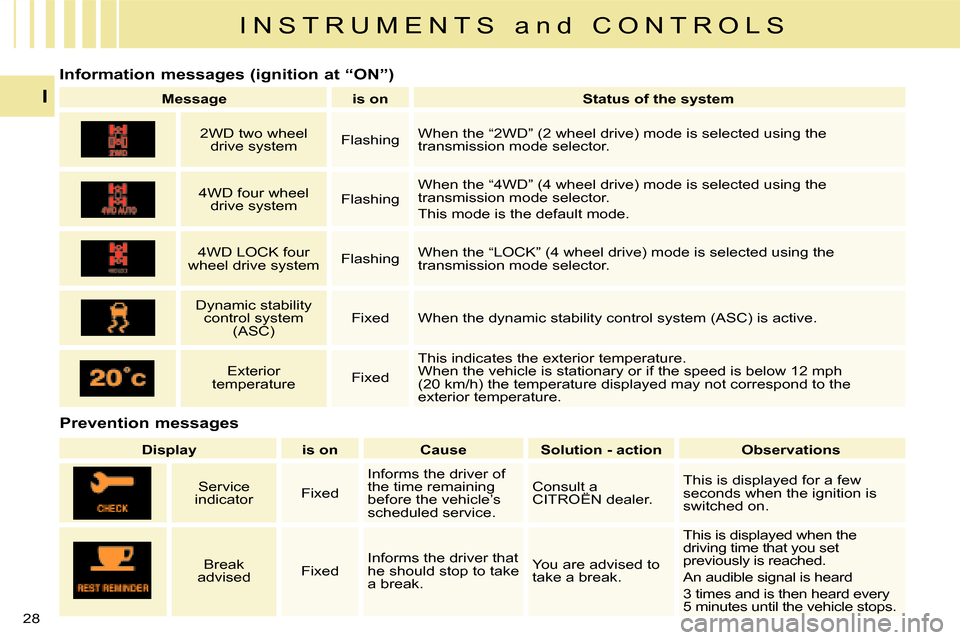

I N S T R U M E N T S a n d C O N T R O L S
I
28
Prevention messages
Information messages (ignition at “ON”)
Message is on Status of the system
2WD two wheel
drive system Flashing When the “2WD” (2 wheel drive) mode is selected using the
transmission mode selector.
4WD four wheel
drive system Flashing When the “4WD” (4 wheel drive) mode is selected using the
transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the “LOCK” (4 wheel drive) mode is selected using the
transmission mode selector.
Dynamic stability
control system (ASC) F i x e d
When the dynamic stability control system (ASC) is active.
E x t e r i o r
temperature F i x e d T h i s i n d i c a t e s t h e e x t e r i o r t e m p e r a t u r e .
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not correspond to the
e x t e r i o r t e m p e r a t u r e .
Display is on Cause Solution - action Observations
Service
indicator F i x e d Informs the driver of
the time remaining
before the vehicle’s
scheduled service. Consult a
CITROËN dealer.
This is displayed for a few
seconds when the ignition is
switched on.
Break
advised F i x e d Informs the driver that
he should stop to take
a break. You are advised to
take a break. This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard every
5 minutes until the vehicle stops.
Page 26 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
29
The total distance is
displayed in zone 1
of the display and the
trip distance in zone 2
(refer to the “Distance
recorders” section).
Distance recorder (A and B)
INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
Data displays
With the ignition on, press the
INFO
button, located on the fascia to the
right of the instrument panel, to display
the various information displays in
succession:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu. This displays the dis-
tance and the number
of months remaining be-
f o r e t h e n e x t s e r v i c e t o
be carried out in accord-
ance with the manufac-
turer’s servicing sched-
ule (refer to the “Service
indicator” section).
Service indicator
When the engine is
running, this indicates
the temperature of the
coolant (refer to the
“Coolant temperature
indicator” section).
Coolant temperature
When the engine is run-
ning, this indicates the
number of miles (kilome-
tres) which can still be
travelled with the fuel re-
maining in the tank in re-
lation to the average con-
sumption over the last
few miles (kilometres)
travelled (refer to the “Range” section).
Range
This indicates the aver-
age consumption, the
average speed and the
current consumption (re-
fer to the “Trip computer”
section).
Trip computer
When the vehicle is
stationary , this allows
the user to change the
following parameters
(refer to the “Function
parameters” section):
- the display language,
- the temperature dis- play unit,
- the fuel consumption unit,
- the option to reinitialise the aver- age consumption and the average
speed,
- the break (rest) reminder display in- terval.
Setting menu
Page 27 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
30
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .
DISTANCE RECORDERS (A / B)
System for measuring the total distance
travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to
the
critical position
located on the right, the
temperature is too high.
T h e s y m b o l fl a s h e s w h e n y o u r e n g i n e
is overheating.
It is imperative that you stop your
vehicle safely.
Wait a few minutes before switching
off the engine.
Wait for the engine to cool
before topping up the level. The
cooling system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure
to drop.
When the pressure has dropped,
remove the cap and top up the level, if
necessary.
Consult a CITROËN dealer. T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g a
change in the style of driving or the
relief, resulting in a reduction in the
current consumption.
If you only add a few litres, the
value displayed will be incorrect.
T h e r e f o r e , y o u m u s t fi l l t h e t a n k
whenever possible.
When you disconnect
the battery, the previous
consumption data is lost and
the value displayed will be different
from that displayed before the battery
was disconnected. The distance
displayed must be considered an
a p p r o x i m a t e i n d i c a t i o n .
Page 28 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
31
SERVICE INDICATOR Resetting the service indicator
to zero
Your CITROËN dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service yourself, the zero reset
procedure is the following:
switch off the ignition.
press the INFO button several times
in succession until the service indi-
cator is displayed.
press and hold the INFO button for
a few seconds until the spanner
fl a s h e s .
press the INFO button while the
s p a n n e r i s fl a s h i n g t o c h a n g e t h e
display “---” to “CLEAR” then the
t i m e r e m a i n i n g b e f o r e t h e n e x t s e r v -
ice is due is displayed.
Service overdue
Operation
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
n e x t s e r v i c e i s d u e .
After a certain distance and a
certain time, the displaying of “---”
is reinitialised and the display
indicates the time remaining before
t h e n e x t s e r v i c e i s d u e .
System which informs the driver when
t h e n e x t s e r v i c e i s d u e i n a c c o r d a n c e
with the manufacturer’s servicing
schedule.
T h e p o i n t a t w h i c h t h e n e x t s e r v i c e i s
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles
(km)),
- the time elapsed since the last serv- ice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user’s driving habits.
Example: the display indicates that
7300 miles (kilometres) remain before
t h e n e x t s e r v i c e i s d u e .
The symbol “---” remains displayed
u n t i l t h e fi r s t s e r v i c e o f a n e w v e h i c l e
has been carried out.
Example: the display indicates that the
service is overdue. This service must
be carried out by a CITROËN dealer.
Each time the ignition is switched on,
the display
“PERIODIC INSPECTION”
is displayed for a few seconds to
indicate that the service must be carried
out without delay.
Page 29 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
32
System which provides current infor-
mation about the route travelled.

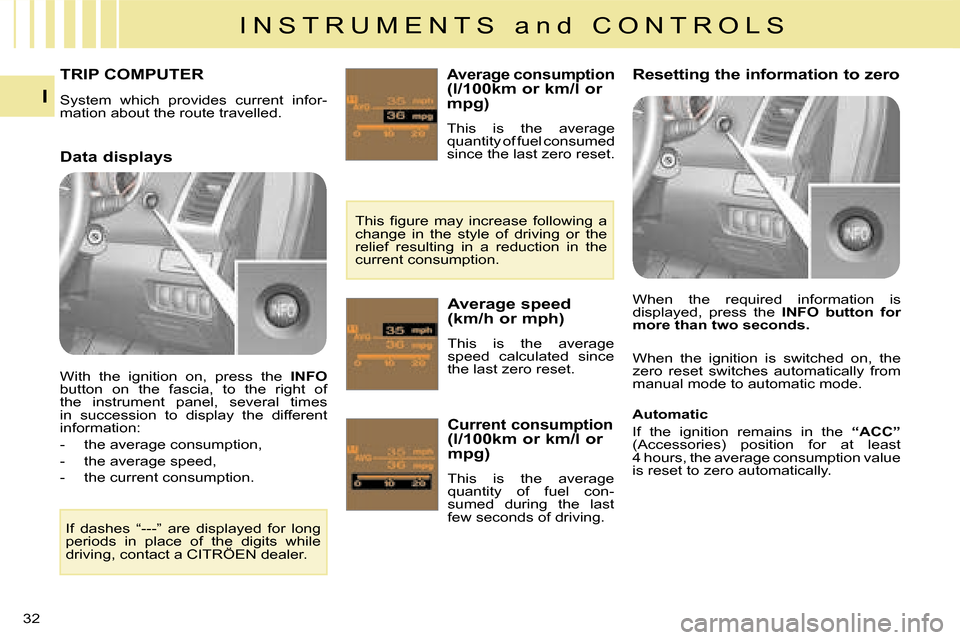

TRIP COMPUTER Average consumption (l/100km or km/l or
mpg)
This is the average
quantity of fuel consumed
since the last zero reset.
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g a
change in the style of driving or the
relief resulting in a reduction in the
current consumption.
Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset.
Resetting the information to zero
Automatic
If the ignition remains in the “ACC”
(Accessories) position for at least
4 hours, the average consumption value
is reset to zero automatically.
If dashes “---” are displayed for long
periods in place of the digits while
driving, contact a CITRÖEN dealer. Current consumption (l/100km or km/l or
mpg)
This is the average
quantity of fuel con-
sumed during the last
few seconds of driving.
Data displays
With the ignition on, press the INFO
button on the fascia, to the right of
the instrument panel, several times
in succession to display the different
information:
- the average consumption,
- the average speed,
- the current consumption. When the required information is
displayed, press the
INFO button for
more than two seconds.
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
Page 30 of 216
I N S T R U M E N T S a n d C O N T R O L S
I
33
When the vehicle is
stationary , it allows
the user to change the
following parameters:
- the choice of the reini-
tialisation of the average
consumption and aver-
age speed,
- the fuel consumption unit,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
- the break (rest) reminder display in- terval,
- restore the manufacturer’s param- eters.
FUNCTION PARAMETERS
System which provides access to
certain function parameters.
In order to change the settings,
it is essential that you stop
the vehicle and switch on the
ignition.
Apply the handbrake and place the
gear lever in neutral.
When the vehicle is moving ,
the functions setting display is not
displayed when you press the INFO
button.
With the ignition on , press the
INFO
button on the fascia, to the right of
the instrument panel, several times in
succession until the “SETTING MENU”
screen is displayed. Operation
press and hold the INFO button for
a few seconds to display the menus
screen. Press and hold the
INFO button
for a few seconds to return to the
previous screen.
When the menus screen is displayed,
if no operation is carried out within
15 seconds, the function parameters
screen is displayed.
on the menus screen, press the
INFO button to select a function
from the list:
MENU 1/2 :
- 1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed) ,
- UNIT (choice of the fuel consump-
tion units) ,
- choice of the temperature display
unit ,
- LANGUAGE (choice of the display
language),
MENU 2/2:
- a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),
- activation / deactivation of the
INFO
button sound ,
- ALERT (changing of the “BREAK
ADVISED” break reminder display
interval),
- REINITIALISE (restore the manu-
facturer’s parameters). Choice of the reinitialisation of
the average consumption and
average speed
You can choose between two average
consumption and average speed
reinitialisation modes:
-
automatic reinitialisation (
choice 1) ,
- manual reinitialisation (choice 2) .
On the menus screen:
press the INFO button to select:
press and hold the INFO button
for a few seconds to switch in suc-
cession from reinitialisation mode
1
(automatic) to reinitialisation
mode
2 (manual) .
T h e m o d e s e l e c t e d i s c o n fi r m e d .
