Citroen C CROSSER 2008 1.G Owner's Guide

I N S T R U M E N T S a n d C O N T R O L S
I
34

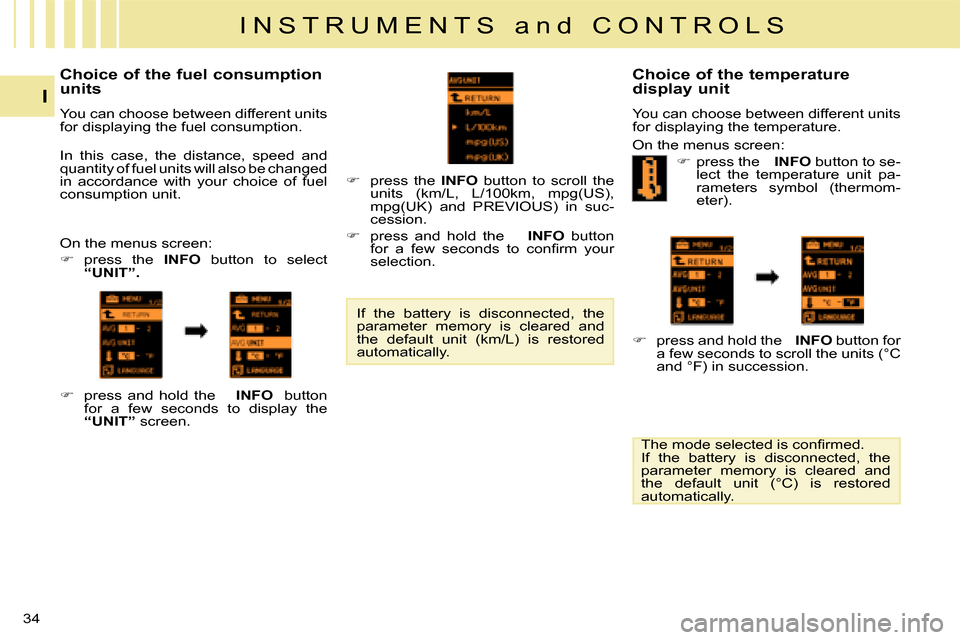

Choice of the fuel consumption
units
You can choose between different units
for displaying the fuel consumption.
On the menus screen:

 press the INFO button to select

“UNIT” .

 press and hold the
INFO button
for a few seconds to display the

“UNIT” screen.
 press the INFO button to scroll the
units (km/L, L/100km, mpg(US),
mpg(UK) and PREVIOUS) in suc-
cession.

 press and hold the
INFO button
for a few seconds to confi rm your
selection.
In this case, the distance, speed and
quantity of fuel units will also be changed
in accordance with your choice of fuel
consumption unit.
If the battery is disconnected, the
parameter memory is cleared and
the default unit (km/L) is restored
automatically. Choice of the temperature
display unit
You can choose between different units
for displaying the temperature.
On the menus screen:

 press the
INFO button to se-
lect the temperature unit pa-
rameters symbol (thermom-
eter).

 press and hold the
INFO button for
a few seconds to scroll the units (°C
and °F) in succession.
The mode selected is confi rmed.
If the battery is disconnected, the
parameter memory is cleared and
the default unit (°C) is restored
automatically.

I N S T R U M E N T S a n d C O N T R O L S
I
35
Choice of the display language
(LANGUAGE)
You can choose between different
languages for the display.
On the menus screen:

 press the INFO button to select

“LANGUAGE” .

 press and hold the
INFO button
for a few seconds to display the

“LANGUAGE” screen.

 press the INFO button to scroll the
languages (Japonais, English, Deut-
sch, Français, Espanol, Italiano, “---
” and PREVIOUS) in succession.

 press and hold the INFO button for
a few seconds to confi rm your se-
lection.
If you select the parameter “---”,
no message will be displayed in
message display situations. If the battery is disconnected, the
parameter memory is cleared and
the default language (ENGLISH) is
restored automatically.
Activation / deactivation of the
“INFO” button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:

 press the
INFO button
to select the INFO button
sound activation / deacti-
vation symbol (located on
menu 2/2) .

 press and hold the INFO button for
a few seconds to scroll the choices
(ON, OFF) in succession.
The mode selected is confi rmed.
If the battery is disconnected, the
parameter memory is cleared and
the default choice (ON) is restored
automatically. Changing the display interval
of the “BREAK ADVISED”
message
You can change the display interval of
the
“BREAK ADVISED” message.
On the menus screen:

 press the INFO button to select

“ALERT” (located on menu 2/2) .

 press and hold the INFO button
for a few seconds to display the

“ALERT” screen.

 press the INFO button to select
the display interval of the “BREAK
ADVISED” message.

 press and hold the INFO button for
a few seconds to confi rm.
If the battery is disconnected, the
parameter memory is cleared and
the default value (OFF) is restored
automatically.

I N S T R U M E N T S a n d C O N T R O L S
I
36
Restoring the manufacturer’s
parameters (REINITIALISE)
You can restore all of the manufacturer’s
settings for all of the functions.
On the menus screen:

 press the INFO button to select
“REINITIALISE”

(located on menu
2/2) .

 press and hold the
INFO button for

at least 5 seconds .
An audible signal is heard and all of the
manufacturer’s settings are restored for
all of the functions. The manufacturer’s settings are: LIGHTING RHEOSTAT
With the lights on or off, press the button
to change the intensity of the lighting of
the instruments and controls in “day” or
“night” mode.
When the lighting reaches the maximum
setting, press again to change to the
minimum setting.
When the lighting reaches the required
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and the
intensity of the lighting increases
each time the button is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.

Functions
Manufacturer’s
setting
Reinitialisation
of the average
consumption and
average speed
1 (automatic)
Fuel consumption
units
L/100 km
Temperature
display unit
°C
Display language ENGLISH
INFO button
sound
ON (activated)
Displaying of the
“BREAK ADVISED”
message
OFF (deactivated)

I
37
MONOCHROME DISPLAY
This provides the following information:
- the time,
- the audio equipment displays (refer to the “Audio and Telematics” sec-
tion). Setting the time
The digital clock can be set in
automatic
mode or in
manual mode . Selecting the Setting
Select the
automatic mode or the

manual mode as follows:

 Press button A “PWR” to switch on
the audio system.

 Access the setting mode by press-
ing button B “TUNE” for approxi-
mately 2 seconds.

 Press button B “TUNE” several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the
following: AF / CT / REG / TP-S / PTY
display language / SCV / PHONE /
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting of
the local time using the signal from the
RDS stations.
The symbol
“CT” appears on the
display.
Manual mode
This mode permits manual setting of
the time using the audio equipment
buttons.
It can also be used when the “Automatic
mode” displays an inaccurate time, when
the local RDS stations are broadcasting
from a different time zone.

I N S T R U M E N T S a n d C O N T R O L S
I
38
Set the time using the buttons as
indicated below:

 with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
time display fl ashes.
 Press the appropriate button to set
the time:

Button H: setting of the hour
The hours digits scroll when you press
this button.

Button M: setting of the minutes
The minutes digits scroll when you
press this button.

Button :00: resetting of the minutes to
zero.
- from 1 to 29 min
: rounded down to
the previous hour,
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations. - from
30 to 59 min: rounded up to
the next hour.

 After setting the time, press the

DISP button; the time display
stops fl ashing.
The digital clock does not display
seconds.
When the “minutes” display is set or
reset to zero, the clock starts at the
zero second of the minute selected.
The time setting is lost if the battery
is disconnected.

 Turn button B “TUNE” to the left or
to the right to select “CT ON” (auto-
matic mode) or “CT OFF” (manual
mode).

 After selecting the mode, you can
exit the “Functions setting mode”
menu by pressing button B “TUNE”
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the “functions setting mode” menu
automatically.

I N S T R U M E N T S a n d C O N T R O L S
I
39
COLOUR DISPLAY
This permits displaying of the following
main menus: On the control panel, press button
B
(SET) to access the “Settings” screen
and select:
- “Display Deactivated” to switch
off the display,
- “Sound control” for the sound dis-
tribution or volume, the type of mu-
sic and the sound fi eld (surround),
- “Picture control” to set the colour,
the intensity, the brightness, the
contrast and the level of black,
- “System” to change the time zone,
the language, the units and other
settings,
- “Wide Screen” to change the size
of the DVD picture to 4/3 format,
wide screen mode, centred wide
screen mode or enlargement,
- “Equipment” to set certain equip-
ment offered in the vehicle,
- “Col Contrast” to select the con-
trast of the display in relation to the
exterior light (Day, Night or Auto),
- “TP standby” to activate or deacti-
vate the traffi c information.
“Audio-video” menu
“Navigation-guidance” menu
On the control panel, press button A
(MODE) to access the “AV mode”
screen and select:
- the radio (FM, MW, LW),
- the CD (audio, MP3 or WMA),
- the Music Server,
- the DVD,
- the Auxiliary (Rear Display). “Settings” menu
On the control panel, press button C
(MENU) to access the “Menu” screen
and select:
- “Address/Junction” to search for
a location using the address or the
name of the street,
- “POI name” to search for a location
using the name of a point of interest
(POI),
- “Advanced search” to search for a
location using an advanced search
based on a POI,
- “20 Previous” to search for a
location using one of the 20 previous
destinations,
- “Address book” to search for a
location using a stored address,
- “Return to the initial screen” to
enter a return home,
- “Navigation settings” to set
functions linked with the navigation,
- “Navigation tools” to access
the basic information or a pre-set
demonstration.
The “CD” and “DVD” buttons are
active if you insert a CD or DVD in
the player.

I N S T R U M E N T S a n d C O N T R O L S
I
40
Setting the time
The digital clock is set automatically .
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.

 On the control panel, press button

A (SET) to access the “Settings”
menu.

 On the touch screen, press button

B to access the “System” menu.
The system settings screen is
displayed.
“Information” menu
On the control panel, press button
D
(INFO) to access the “Info” screen and
consult:
- “Support info” to display the
software and data versions,
- “Vehicle position” to display the
GPS location of the vehicle,
- “Calendar” to make a note of events,
birthdays, etc.,
- “Journey” to display the average
speed, the consumption, the
distances and the duration of driving,
- “Environment” to display the
altitude, the atmospheric pressure,
the exterior temperature (the ice
symbol is displayed if there is a risk
of ice),
- “Air conditioning” to display
the information relating to the air
conditioning,
- “Mobile telephone” to enter a
number, delete a character, make or
receive a call. “Map” menu
On the control panel, press button
E
(NAVI) to access the “Routes Menu”
screen and select:
- “Detour” to make a detour through
a specifi ed region,
- “Route” to change the route,
- “Display a route” to display a route
in different ways,
- “Delete a route” to delete a route,
- “Local POI” to search for the POIs
in the surrounding area.

I N S T R U M E N T S a n d C O N T R O L S
I
41

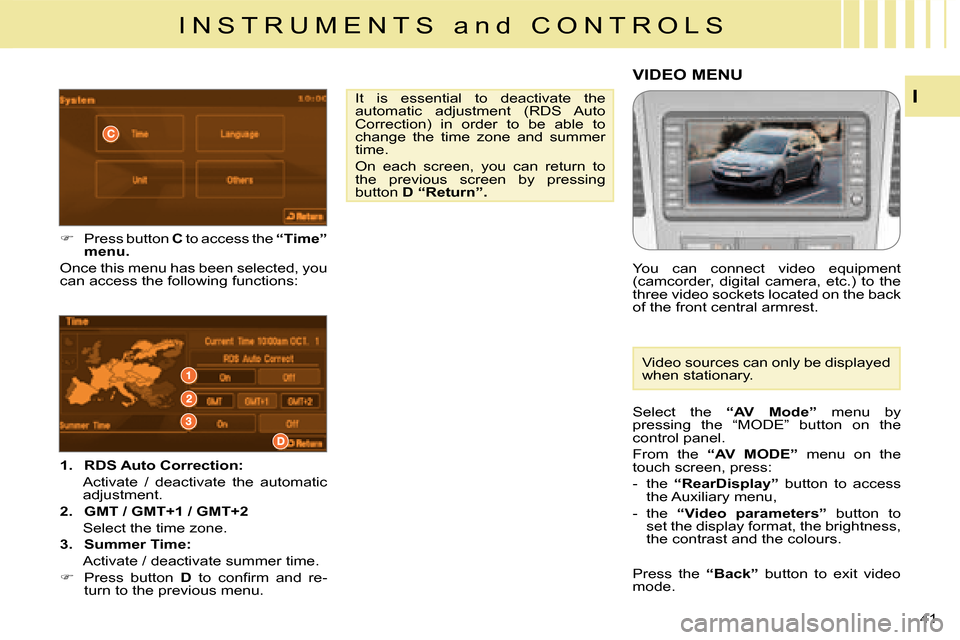

1.
RDS Auto Correction:
Activate / deactivate the automatic
adjustment.

2.
GMT / GMT+1 / GMT+2
Select the time zone.

3.
Summer Time:
Activate / deactivate summer time.

 Press button D to confi rm and re-
turn to the previous menu.

 Press button C to access the “Time”
menu .
Once this menu has been selected, you
can access the following functions: It is essential to deactivate the
automatic adjustment (RDS Auto
Correction) in order to be able to
change the time zone and summer
time.
On each screen, you can return to
the previous screen by pressing
button
D “Return” .
Select the “AV Mode” menu by
pressing the “MODE” button on the
control panel.
From the “AV MODE” menu on the
touch screen, press:
- the “RearDisplay” button to access
the Auxiliary menu,
- the “Video parameters” button to
set the display format, the brightness,
the contrast and the colours.
VIDEO MENU
You can connect video equipment
(camcorder, digital camera, etc.) to the
three video sockets located on the back
of the front central armrest.
Video sources can only be displayed
when stationary.
Press the “Back” button to exit video
mode.

C O M F O R T
II
42
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
hind the fl aps in the boot. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a
CITROËN dealer.
THE AIR CONDITIONING
Do not cover the temperature and hu-
midity sensor
2 and the sunshine sen-
sor
7 .
They are required for regulation of the
air conditioning.
Advice on operation
In hot weather, in order to obtain in-
tense ventilation, it is advisable to
use vents 1 and
4 only.
If, when the vehicle has been parked
in the sun for a long time, the interior
temperature remains very high, do
not hesitate to ventilate the passen-
ger compartment for a few minutes. Switch off the air conditioning when
the climatic conditions permit.
Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
all of the following functions: air fl ow,
passenger compartment temperature
and air distribution, by means of vari-
ous sensors (exterior temperature, in-
terior temperature, sunshine), so pre-
venting the need for you to change your
reference settings other than the value
displayed.
In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), cutting
off the air conditioning permits recovery
of the engine power and therefore im-
provement of the towing capacity.
Close the windows to benefi t from the
full effectiveness of the air condition-
ing.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodically.
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
1. Centre panel vents.

2. Temperature sensor .

3. Air outlet to passenger footwells.

4. Side vents.

5. Front windows de-icing or demisting
vents.

6. Windscreen de-icing or demisting
vents.

7. Sunshine sensor.

C O M F O R T
II
43
