FAMILIARISATION
SEEING CLEARLY

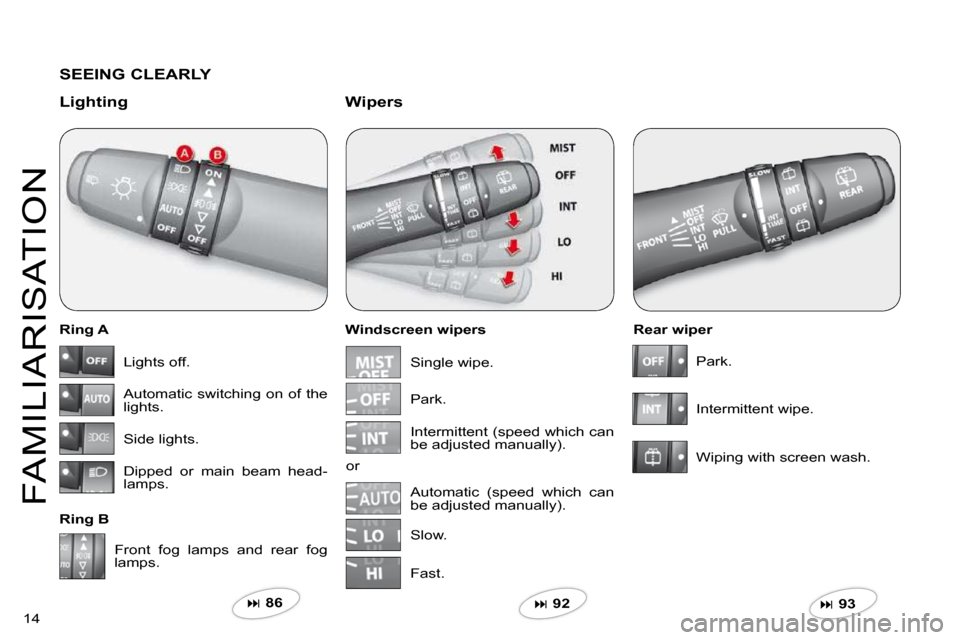

Lighting
Ring A
Ring B Windscreen wipers
Wipers
Rear wiper
Front fog lamps and rear fog lamps.
86 92 93
Lights off.
Automatic switching on of the lights.
Side lights.
Dipped or main beam head-lamps.
Single wipe.
Park.
Intermittent (speed which can be adjusted manually).
Slow.
Fast.
Park.
Intermittent wipe.
Wiping with screen wash. or
Automatic (speed which can be adjusted manually).
Page 12 of 230
FAMILIARISATION
VENTILATING

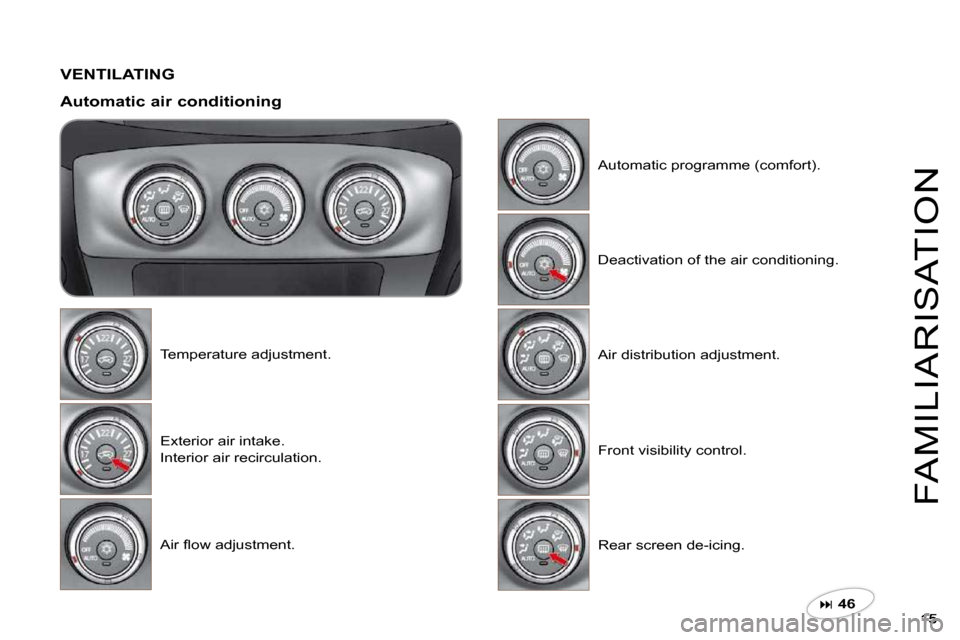

Automatic air conditioning
Temperature adjustment.
Exterior air intake.
Interior air recirculation.
A i r fl o w a d j u s t m e n t .
Automatic programme (comfort).
Deactivation of the air conditioning.
Air distribution adjustment.
Front visibility control.
Rear screen de-icing.
46
Page 13 of 230
16
FAMILIARISATION
MONITORING
Instrument panels Controls bar
W h e n t h e i g n i t i o n i s o n , t h e o r a n g e a n d red warning lights come on.
W h e n t h e e n g i n e i s r u n n i n g , t h e s e warning lights should switch off.
I f w a r n i n g l i g h t s r e m a i n o n , r e f e r t o t h e page concerned.
Warning lights
19, 20 19, 20
A. Passenger air bag disarmed warning light.
110
B. Hazard warning lights switch.
103
C. Front passenger’s seat belt not fastened or unfastened warning light.
107
21
Detection of fastening of the driver’s seat belt
When the ignition is switched on, the seat belt warning lightcomes on accompanied by an audible signal if the driver has not fastened his seat belt.
The warning light switches off when the seat belt is fastened.
23
Type 1
Type 2
A. Speedometer.
B. Instrument panel display.
C. Rev counter.
D. Fascia lighting rheostat.
Page 14 of 230
17
FAMILIARISATION
KEEPING YOUR PASSENGERS SAFE

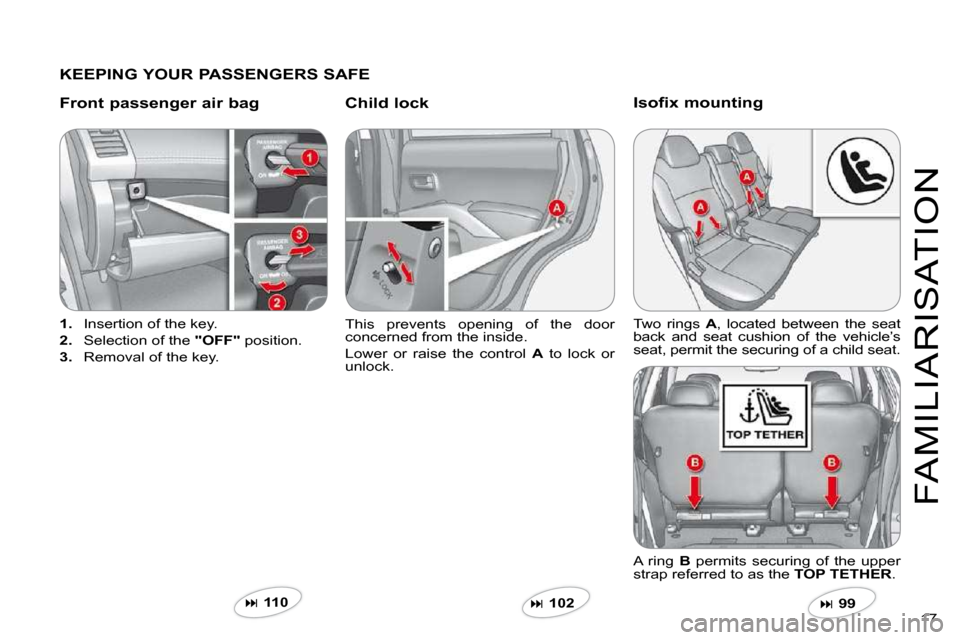

Front passenger air bag Child lock
1. Insertion of the key.
2. Selection of the "OFF" position.
3. Removal of the key.
This prevents opening of the door concerned from the inside.
Lower or raise the control A to lock or unlock.
110 102
Isofix mounting
Two rings A , l o c a t e d b e t w e e n t h e s e a t Aback and seat cushion of the vehicle’s s e a t , p e r m i t t h e s e c u r i n g o f a c h i l d s e a t .
A ring B permits securing of the upper strap referred to as the TOP TETHER .
99
Page 15 of 230
18
FAMILIARISATION
Cruise control
This maintains a constant vehicle speed programmed by the driver.
1. "ON/OFF" button: activation/deactivation of the cruise control mode.
2. "COAST SET" button: storing of a driving speed then decreasing of the cruising speed.
3. "ACC RES" button: increasing of the cruising speed and recalling of the stored speed.
4. "CANCEL" button: switching off of the cruise control.
I n o r d e r t o b e p r o g r a m m e d o r a c t i v a t e d , the vehicle speed must be higher than 25 mph (40 km/h) with at least second gear engaged.
T h i s d e t e c t s a n y o b s t a c l e ( p e r s o n , v e h i c l e , t r e e , g a t e , . . . ) l o c a t e d b e h i n d the vehicle.
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
D. two side sensors.
E. two central sensors.
Audible rear parking assistance
122 124
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-able and can be selected manually by the driver in accordance with his requirements:
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK),
120
Also...
You can change transmission mode when stationary or when driving at a speed below 60 mph (100 km/h).
Page 16 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
19
DIESEL MANUAL GEARBOX INSTRUMENT PANEL - TYPE 1
1. Speedometer.
2. Left-hand direction indicator and
hazard warning lights indicator
light.
3. Main beam headlamps indicator
light.
4. Diesel pre-heating indicator light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Seat belt not fastened/unfastened
warning light.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)
warning light.
10. Battery charge fault warning light.
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Cruise control mode indicator light.
13. Air bags warning light.
14. Engine management warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Rev counter.
17. Fascia lighting rheostat.
18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.
Page 17 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
20
DIESEL MANUAL GEARBOX INSTRUMENT PANEL - TYPE 2
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
1. Rev counter.
2. Battery charge fault warning light.
3. Main beam headlamps indicator
light.
4. Left-hand direction indicator and
hazard warning lights indicator
light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Directional lighting off indicator light
(AFS OFF).
8. Rear fog lamps indicator light.
9. Anti-lock braking system (ABS)
warning light.
10. Dynamic stability control warning
light (ASC).
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Engine management warning light.
13. Cruise control mode indicator light.
14. Seat belt not fastened/unfastened
warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Air bags warning light.
17. Speedometer.
18. Fascia lighting rheostat.
19. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.
20. Diesel preheating warning light.
Page 18 of 230
I
21

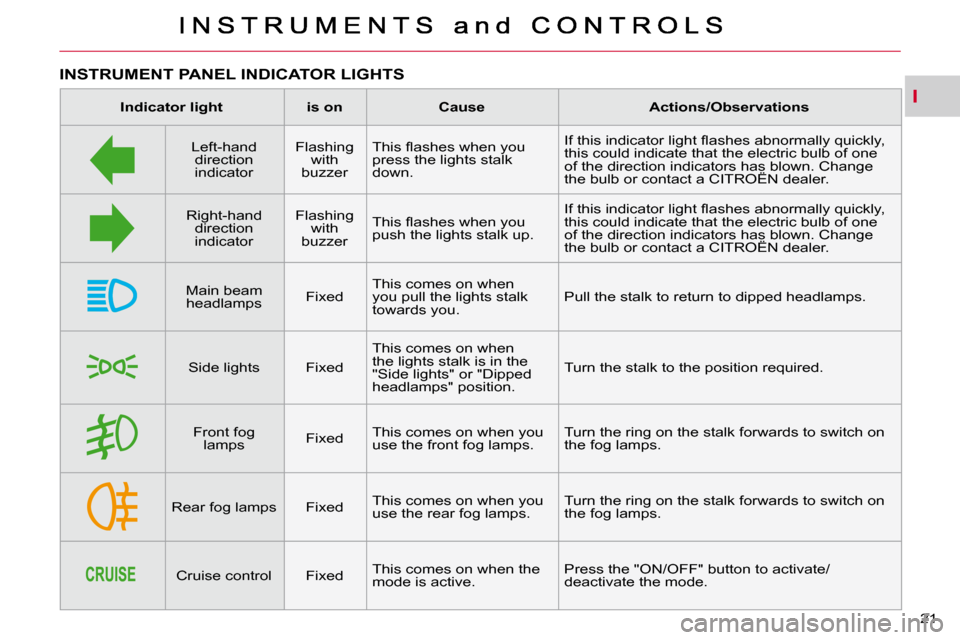

INSTRUMENT PANEL INDICATOR LIGHTS
Indicator light is on Cause Actions/
Observations
Left-hand direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
press the lights stalk
down. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Right-hand direction
indicator Flashing
with
buzzer T h i s fl a s h e s w h e n y o u
push the lights stalk up. I f t h i s i n d i c a t o r l i g h t fl a s h e s a b n o r m a l l y q u i c k l y ,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.
Main beam headlamps Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights Fixed This comes on when
the lights stalk is in the
"Side lights" or "Dipped
headlamps" position. T u r n t h e s t a l k t o t h e p o s i t i o n r e q u i r e d .
Front fog lamps Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog lamps Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/
deactivate the mode.
Page 19 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
22
Warning light is on Cause Actions/Observations
Diesel
preheating Fixed This comes on when the
ignition switch is in the
ON position. Wait until this switches off before starting.
The duration for which this is lit is determined
by the exterior climatic conditions.
Handbrake/ B r a k e fl u i d level Fixed This comes on for a few
seconds when the ignition
is turned to "ON" then
switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is applied
or has not been released
fully. It is accompanied by a message on the
instrument panel display. Release the
handbrake to switch off the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. t is accompanied by a message on the
i n s t r u m e n t p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d
and contact a CITROËN dealer.
Emission
control system Fixed or
fl a s h i n g T h i s c o m e s o n o r fl a s h e s
if the system fails. Consult a CITROËN dealer.
It should switch off a few seconds after starting
the engine.
Battery charge Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the "Battery" section).
Page 20 of 230
I
I N S T R U M E N T S a n d C O N T R O L S
23
Warning light is on Cause Actions/Observations
Driver's
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver's seat belt.
ABS Fixed This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
CITROËN dealer.
Air bags and
pretensioners Fixed This comes on for a few
seconds when the ignition
is turned to "ON" then
switches off.
It should switch off when the engine is started.
If it does not switch off, contact a CITROËN
dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the
instrument panel display. Have the system
checked by a CITROËN dealer without delay.
Dynamic
stability control system (ASC) Fixed This comes on if the
dynamic stability control
system fails. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a CITROËN dealer without delay.
Directional lighting off
(AFS OFF) Fixed
This comes on when the
mode is not active. Press the "AFS OFF" button to activate/
deactivate the mode.
Flashing T h i s fl a s h e s i f t h e
systems fails. Consult a CITROËN dealer.
